TOYOTA PRIUS 2008 2.G Owners Manual

411
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(L/O_0802)
■
Back-up lights, tail and rear side maker lights
Open the back door and remove
the cover.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Back-up light
Tail and rear side marker light
Remove the light bulb. Rear turn signal light
Back-up light
Tail and rear side marker light
ITY43P048
STEP1
STEP2
STEP3

412 4-3. Do-it-yourself maintenance
PRIUS_U_(L/O_0802)■
License plate lights
Remove the upper trim board.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Front fog lights
If the high mounted stoplight has burnt out, have it replaced by
your Toyota dealer.
ITY43P051
STEP1
ITY43P052
STEP2
ITY43P053
STEP3

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(L/O_0802)
■
Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED light bulbs
The tail, tail/stop and high mounted stoplights consist of a number of LEDs. If
any of the LEDs burn out, take your vehicle to your Toyota dealer to have the
light replaced.
If two or more LEDs in a stoplight burn out, your vehicle may not conform to
local laws (SAE).
■ High-intensity dischar ge (HID) headlights
If voltage to the high-intensity discharge bulbs is insufficient, the light may
not come on, or may go out temporarily. The high-intensity discharge bulbs
will come on when normal power is restored.

414 4-3. Do-it-yourself maintenance
PRIUS_U_(L/O_0802)
CAUTION
■Replacing light bulbs
● Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not take apart or repair the low beam discharge headlight bulbs, con-
nectors, power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■ High-intensity discharge (HID) headlights
● Contact your Toyota dealer before replacing high-intensity discharge
headlights (including light bulbs).
● Do not touch the high-intensity discharge headlight’s high voltage socket
when the headlights are turned on. An extremely high voltage of 20000V
will be discharged and could result in serious injury or death by electric
shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

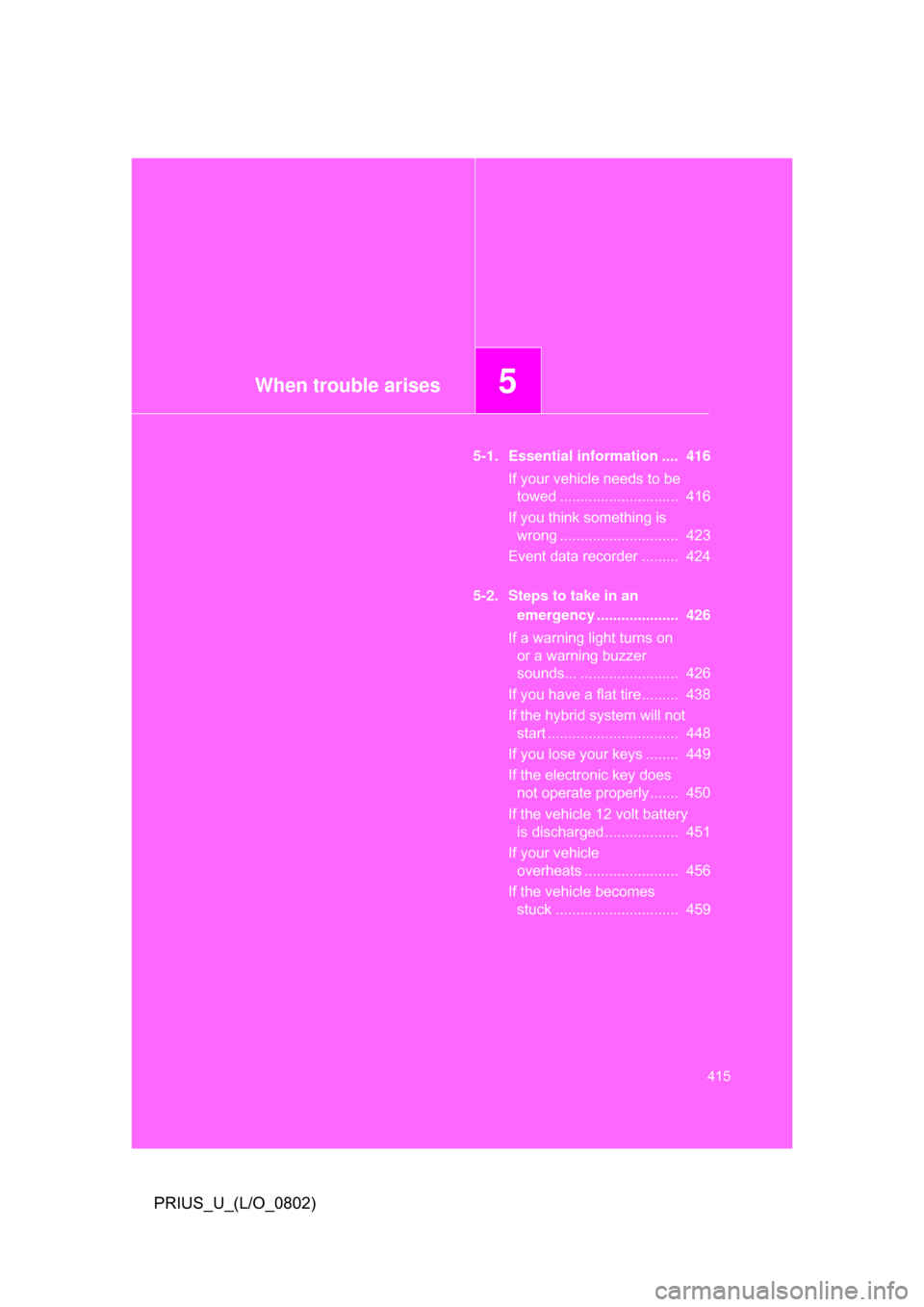

When trouble arises5
415
PRIUS_U_(L/O_0802)
5-1. Essential information .... 416If your vehicle needs to be towed ............................. 416
If you think something is wrong ............................. 423
Event data recorder ......... 424
5-2. Steps to take in an emergency .................... 426
If a warning light turns on or a warning buzzer
sounds... ........................ 426
If you have a flat tire......... 438
If the hybrid system will not start ................................ 448
If you lose your keys ........ 449
If the electronic key does not operate properly....... 450
If the vehicle 12 volt battery is discharged .................. 451
If your vehicle overheats ....................... 456
If the vehicle becomes stuck .............................. 459

416
PRIUS_U_(L/O_0802)
5-1. Essential information
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Toyota dealer before towing.
● The hybrid system is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be
temporarily towed using a cable or chain secured to the emergency
towing eyelet. This should only attempted on hard, surfaced roads for
short distances below 18 mph (30km/h).
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commerci al towing service, using a lift-type
truck or a flat bed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.
If towing from the front, the vehicle ’s rear wheel and axles must be in
good condition. ( P. 420)
If they are damaged, use a towing dolly or flat bed truck.

5
When trouble arises
417
5-1. Essential information
PRIUS_U_(L/O_0802)
Towing eyelet
ITY51P001
■
Emergency towin g procedure
Release the parking brake.
Put the shift lever in “N”.
Turn the “POWER” switch to ACCESSORY (hybrid system off) or
ON mode hybrid system operating).
CAUTION
■ While towing
● Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelet and the cable or chain.
● If the hybrid system is not running, the power assist for the brakes and
steering will not function, making steering and braking more difficult.
NOTICE
■To prevent causing serious dama ge to the transmission
Never tow this vehicle from the rear with the four wheels on the ground. This
may cause serious damage to the transmission.
STEP1
STEP2
STEP3

418 5-1. Essential information
PRIUS_U_(L/O_0802)
Installing towing eyeletRemove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body, as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.
ITY51P002
STEP1
ITY51P003
STEP2
ITY51P004
STEP3
■Location of the emer gency towing eyelet
 P. 438

5
When trouble arises
419
5-1. Essential information
PRIUS_U_(L/O_0802)
Towing with a sling-type truck
CAUTION
■
Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing. This
may lead to accidents that cause serious injury or even death.
ITY51P005
NOTICE
■To prevent body damage
Do not tow with a sling-type truck, either from the front or rear.

420 5-1. Essential information
PRIUS_U_(L/O_0802)
Towing with a wheel lift-type truckFrom front Release the parking brake.
From rear Use a towing dolly under the
front wheel.
ITY51P006
ITY51P007
