6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*:Unladen vehicle
Overall length175.0 in. (4445 mm)
Overall width67.9 in. (1725 mm)
Overall height *58.7 in. (1490 mm)
Wheelbase106.3 in. (2700 mm)
TreadFront59.3 in. (1505 mm)
Rear58.3 in. (1480 mm)
Vehicle capacity weight
(Occupants + luggage) 810 lb. (365 kg)

463
6-1. Specifications
6
Vehicle specifications
PRIUS_U_(L/O_0802)
Vehicle identification
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.
The engine number and traction
motor number are stamped on
the engine block as shown.Gasoline engine number
Electric motor (traction motor)
number
ITY61P001
ITY61P002
ITY61P003

464 6-1. Specifications
PRIUS_U_(L/O_0802)
Engine
Fuel
Model1NZ-FXE
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke 2.95  3.33 in. (75.0  84.7 mm)
Displacement91.4 cu. in. (1497 cm3)
Drive belt tension 44 - 88 lbf(196 - 392 N, 20 - 40 kgf)*
*: Drive belt tension measured with Boroughs
drive belt tension gauge No. BT-33-73F (used
belt)
Valve clearance
(engine cold)
Intake
Exhaust
0.007 - 0.009 in. (0.17 - 0.23 mm)
0.011 - 0.013 in. (0.27 - 0.33 mm)
Fuel typeUnleaded gasoline only
Octane Rating
87 (Research Octane Number 91) or higher
Fuel tank capacity 11.9 gal. (45 L, 9.9 lmp.gal.)
Idler assembly
Crankshaft Water pump

465
6-1. Specifications
6
Vehicle specifications
PRIUS_U_(L/O_0802)
Electric motor (Traction motor)
Hybrid battery (Traction battery)
Ty p ePermanent magnet synchronous motor
Maximum output 50 kW
Maximum torque 400 N•m (40.8 kgf•m, 295 ft•lbf)
Ty p eNickel-Metal hydride battery
Voltage
7.2 V/module
Capacity6.5 Ah (3HR)
Quantity 28 modules
Overall voltage 201.6 V

466 6-1. Specifications
PRIUS_U_(L/O_0802)
Lubrication system
*:5W-30 is an oil that provides optimal levels of fuel efficiency.
Oil viscosity:
● The 5W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil viscosity when the oil is as its oper-
ating temperature. An oil with a higher viscosity may be better suited
if the vehicle is operated at high speeds, or under extreme load con-
dition.
Oil capacity
(drain and refill)
with filter
without filter 3.9 qt. (3.7 L, 3.3 lmp.qt.)
3.6 qt. (3.4 L, 3.0 lmp.qt.)
Oil grade
ILSAC multigrade engine oil
Recommended oil
viscosityUse Toyota approved “Toyota Genuine Motor Oil” or
equivalent to satisfy the grade and viscosity shown
below.
Outside temperature

467
6-1. Specifications
6
Vehicle specifications
PRIUS_U_(L/O_0802)
Cooling system
Ignition system
Capacity
Gasoline engine
Power control unit
9.0 qt. (8.6 L, 7.5 lmp.qt.)
2.9 qt. (2.7 L, 2.4 lmp.qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life organic acid technology
Do not use plain water alone.
Spark plug
Make DENSO NGK SK16R11
IFR5A11
Gap
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

468 6-1. Specifications
PRIUS_U_(L/O_0802)
Electrical system
Transmission
12 volt battery
Open voltage at
68F (20 C): 12.6 
12.8V Fully charged
12.2  12.4V Half charged
11 . 5  11.9V Discharged
(Voltage is checked 20 minutes after
the engine and all lights are turned
off.)
Charging rates 3.5A max.
Fluid capacity
Drain and refill3.8 qt. (3.6 L, 3.2 lmp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.

469
6-1. Specifications
6
Vehicle specifications
PRIUS_U_(L/O_0802)
Brakes
*1: Minimum pedal clearance when depressed with a force of 44 lbf (196 N,
20.0 kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 66.0 lbf (294 N,33.0 kgf).
Pedal clearance *13.98 in. (101.0 mm) Min.
Pedal free play Less than 0.04 - 0.24 in. (1.0 - 6.0 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake pedal
travel
*26  9 clicks
Parking brake lining wear
limit 0.04 in. (1.0 mm)
Fluid type
SAE J1703 or FMVSS No. 116 DOT 3

470 6-1. Specifications
PRIUS_U_(L/O_0802)
Steering

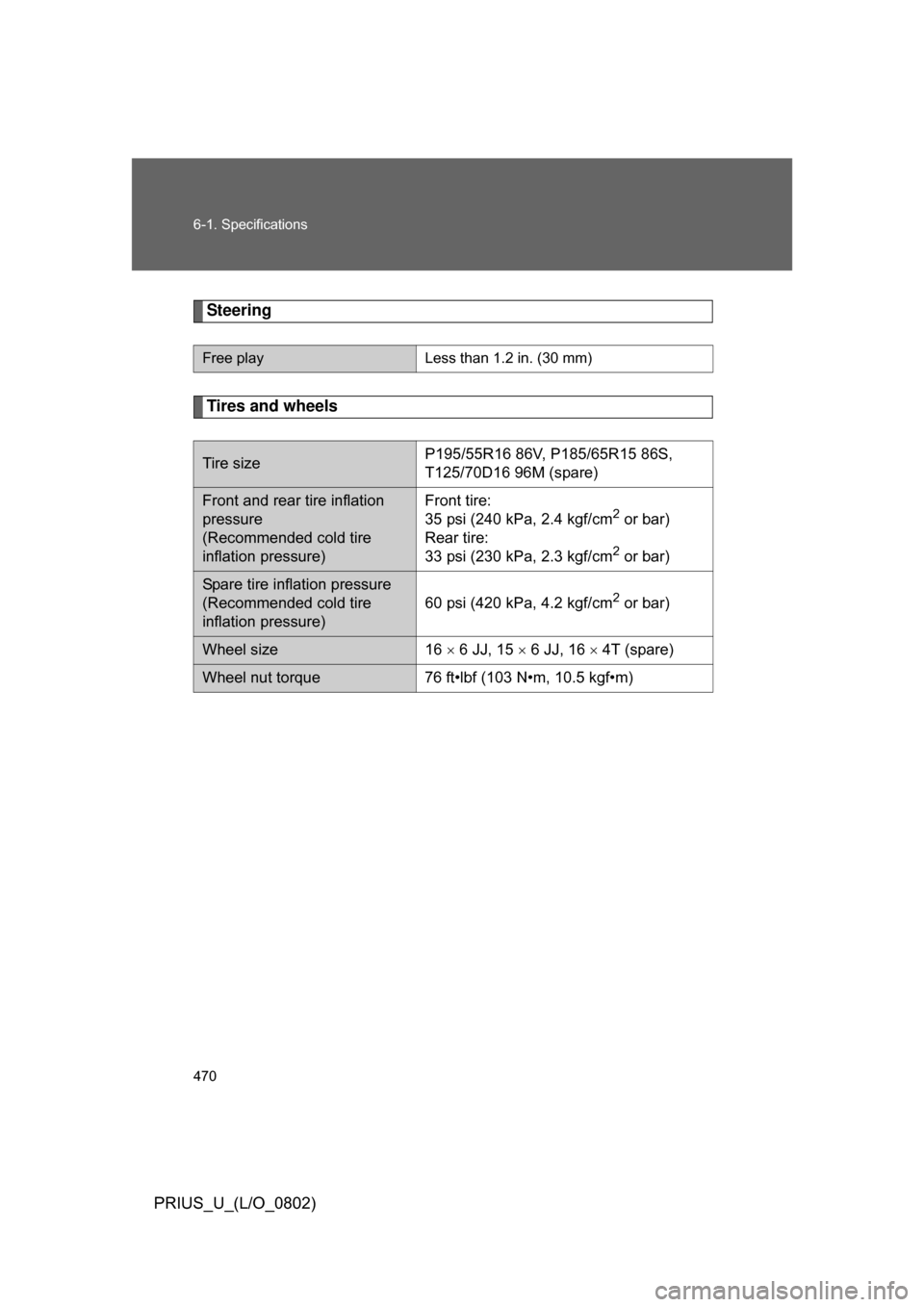

Tires and wheels
Free playLess than 1.2 in. (30 mm)
Tire sizeP195/55R16 86V, P185/65R15 86S,
T125/70D16 96M (spare)
Front and rear tire inflation
pressure
(Recommended cold tire
inflation pressure)Front tire:
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear tire:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Spare tire inflation pressure
(Recommended cold tire
inflation pressure) 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size
16  6 JJ, 15  6 JJ, 16  4T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
