Page 451 of 512

5
When trouble arises
451
5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)

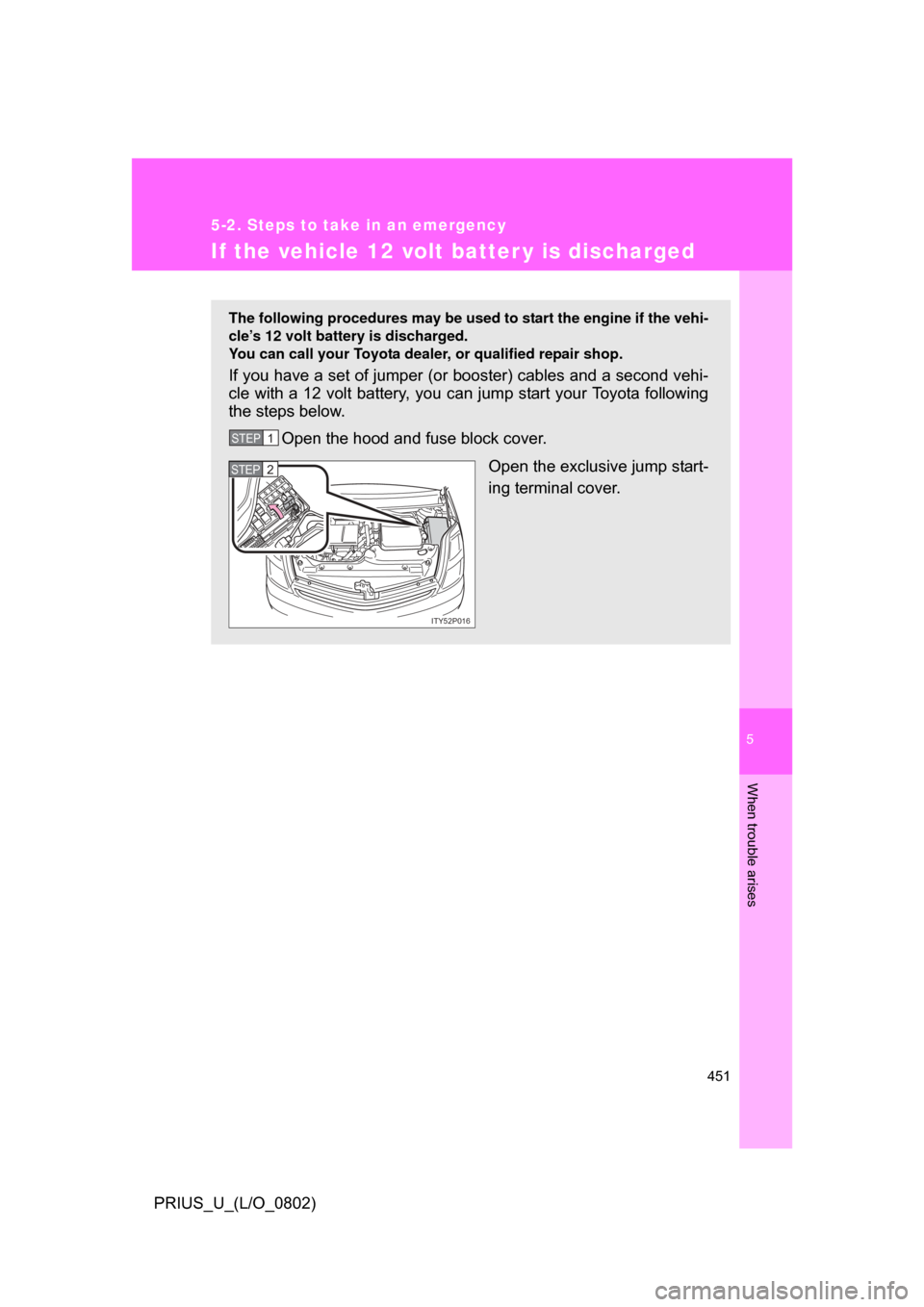

If the vehicle 12 volt batter y is discharged
The following procedures may be used to start the engine if the vehi-
cle’s 12 volt battery is discharged.
You can call your Toyota dealer, or qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehi-
cle with a 12 volt battery, you can jump start your Toyota following
the steps below.
Open the hood and fuse block cover.
Open the exclusive jump start-
ing terminal cover.
STEP1
ITY52P016
STEP2
Page 452 of 512

452 5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)

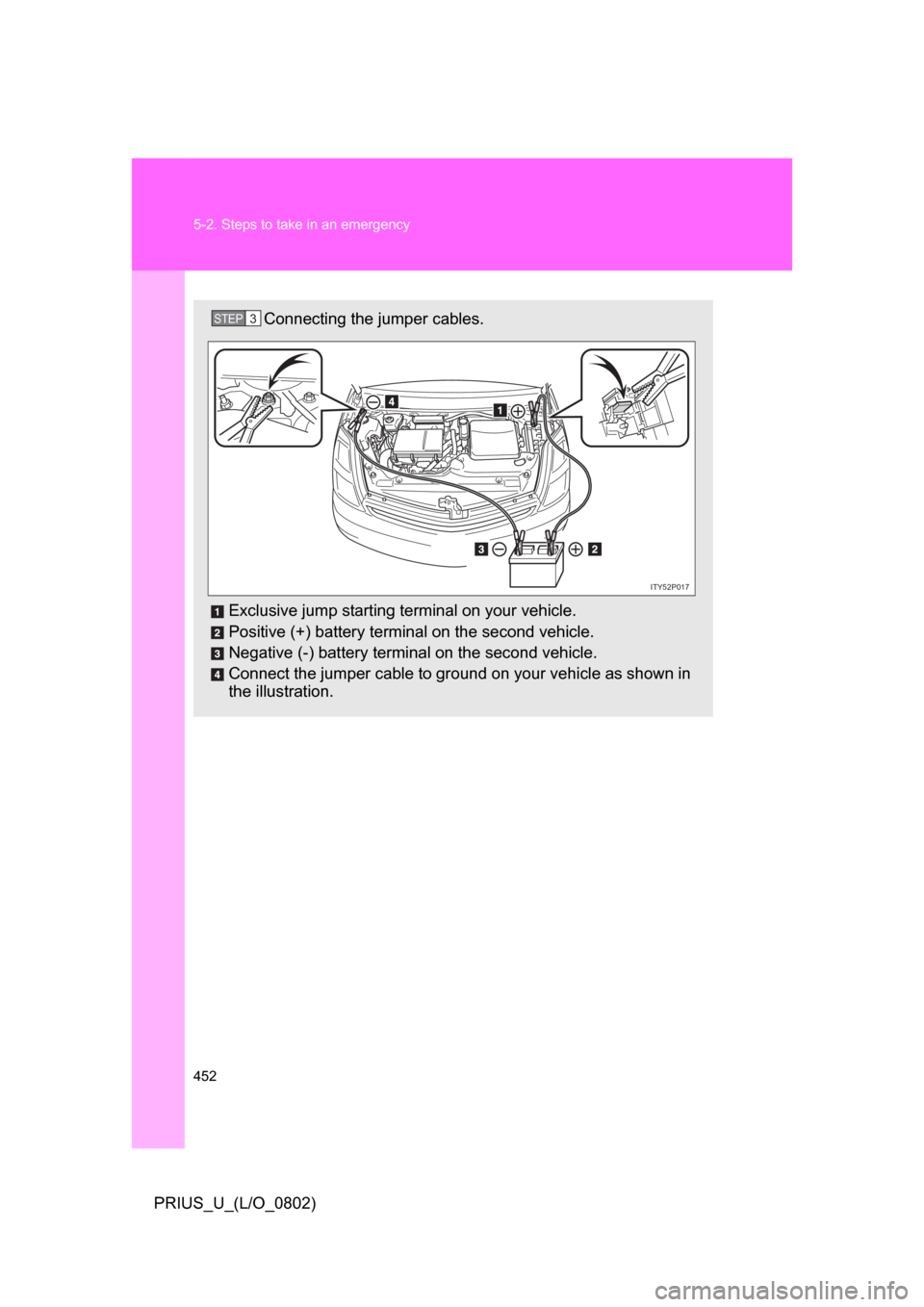

Connecting the jumper cables.
Exclusive jump starting terminal on your vehicle.
Positive (+) battery terminal on the second vehicle.
Negative (-) battery terminal on the second vehicle.
Connect the jumper cable to ground on your vehicle as shown in
the illustration.STEP3
ITY52P017
Page 453 of 512

5
When trouble arises
453
5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
â–
Starting the hybrid system when the battery is discharged
The hybrid system cannot be started by push-starting.
â– Avoiding a discharged 12 volt battery
â—Ź Turn off the headlights and the audio system while the hybrid system is
turned off.
â—Ź Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic, etc.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately
five minutes to recharge the 12 volt battery of your vehicle.
Open and close any of the doors with the “POWER” switch
OFF.
Maintain the engine speed on the second vehicle and turn
the “POWER” switch to the ON mode, then start the vehi-
cle’s engine.
Make sure the “READY” light comes on. If the “READY”
light will not come on and the hybrid system will not start
after you recharge the battery, do the following procedure.
Turn the hybrid system off. Open and close the driver’s
door. Then push the “POWER” switch briefly and firmly. If
the light does not come on, contact your Toyota dealer.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Toyota
dealer as soon as possible.STEP4
STEP5
STEP6
STEP7
STEP8
Page 454 of 512

454 5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
â– When the 12 volt battery is removed or discharged
The following systems must be initialized.
â—Ź Power windows (
ď‚®P. 75)
â—Ź Tire pressure warning system (
ď‚®P. 380)
â—Ź The hybrid system may not start. ( ď‚®P. 448)
CAUTION
â– Avoiding 12 volt battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the 12 volt battery.
â—Ź Make sure the jumper cable is connected to the correct terminal and that it
is not unintentionally in contact with any part other than the intended termi-
nal.
● Do not allow the jumper cables to come into contact with the “+” and “-” ter-
minals.
â—Ź Do not allow open flame or use matc hes, cigarette lighters or smoke near
the 12 volt battery.
â– 12 volt battery precautions
The 12 volt battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the 12 volt battery:
â—Ź When working with the 12 volt battery, always wear safety glasses and
take care not to allow any battery fluids (acid) to come into contact with
skin, clothing or the vehicle body.
â—Ź Do not lean over the 12 volt battery.
â—Ź In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
â—Ź Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
â—Ź Do not allow children near the 12 volt battery.
Page 455 of 512

5
When trouble arises
455
5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
NOTICE
â–
To prevent damaging the vehicle
â—Ź Do not pull- or push-start the vehicle, because the three-way catalytic con-
verter may overheat and become a fire hazard.
â—Ź The exclusive jump starting terminal is to be used when charging the 12
volt battery from another vehicle in an emergency. It cannot be used to
jump start another vehicle.
â– When handling jumper cables
Be careful that the jumper cables do not become tangled in the cooling fan
or any of the belts when connecting or disconnecting them.
Page 456 of 512

456
5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
If your vehicle overheats
Correction proceduresStop the vehicle in a safe place and turn off the automatic air
conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the engine and carefully lift the hood.
If you do not see steam: Leave the engine running and carefully lift the hood.
Remove the engine compartment cover. ( ď‚®P. 365)
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the engine coolant temperature gauge begins to
fall and then stop the engine.
If the fan is not operating: Stop the hybrid system immediately and call your local Toy-
ota dealer.
After the hybrid system has
cooled down sufficiently, check
the coolant level and inspect the
radiator core (radiator) for any
leaks.
The following may indicate that your vehicle is overheating:
The high engine coolant temperature warning light comes on:
The engine may be overheating.
Follow the correction procedure as described blow.
STEP1
STEP2
STEP3
STEP4
ITY52P018
STEP5
Page 457 of 512

5
When trouble arises
457
5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
Add coolant if required.
Water can be used in an emer-
gency measure if coolant is
unavailable. (
ď‚®P. 467)
Have the vehicle checked at your nearest Toyota dealer as soon as
possible.
ITY52P019
STEP6
â– Overheating
In the following situations, your vehicle may be overheating.
â—Ź High coolant temperature warning light is displayed on the touch screen.
â—Ź Steam is coming from under the hood.
CAUTION
â– To prevent an accident or injury when inspecting under the hood of
your vehicle
â—Ź Keep hands and clothing away from the fan and engine drive belt while the
engine is running.
â—Ź Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
Page 458 of 512

458 5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
NOTICE
â– When adding engine coolant
Wait until the hybrid system has cooled down before adding engine/power
control unit coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the hybrid system.
Page 459 of 512

5
When trouble arises
459
5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
If the vehicle becomes stuck
CAUTION
â– When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
â– When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
â– To avoid damaging the transmission and other components
â—Ź Avoid spinning the wheels.
â—Ź If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the hybrid system. Set t he parking brake and push the
“P” position switch.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the hybrid system.
Carefully apply the accelerator to free the vehicle.STEP1
STEP2
STEP3
STEP4
STEP5
Page 460 of 512

460 5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
