Page 221 of 508

221
3-3. Using the audio system
3
Interior features
PRIUS_U_(OM47614U)

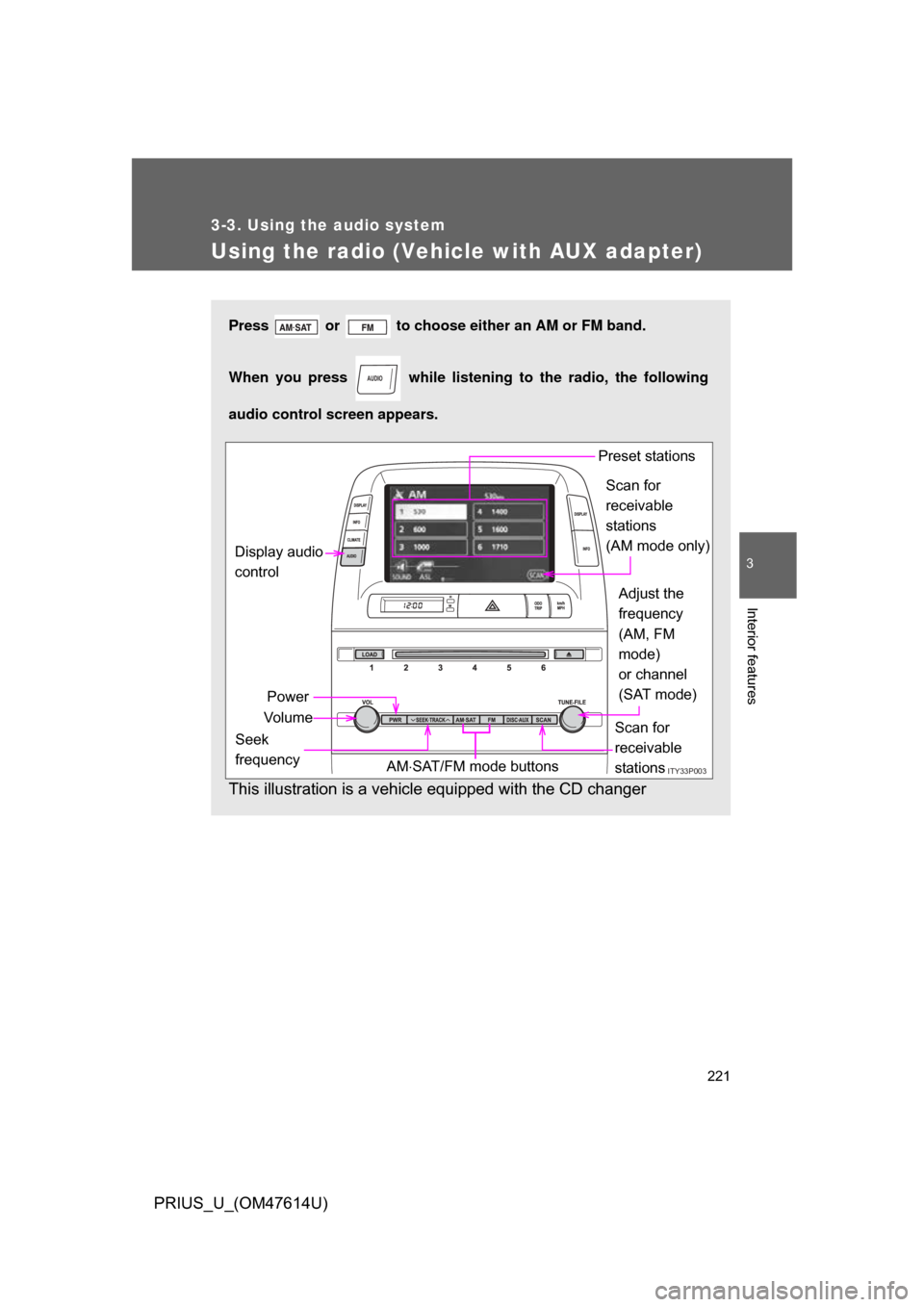

Using the radio (Vehicle with AUX adapter)
Press or to choose either an AM or FM band.
When you press while listening to the radio, the following
audio control screen appears.
This illustration is a vehicle equipped with the CD changer
AUDIO
ITY33P003
Display audio
control
Power
Vo l u m e Scan for
receivable
stations
Seek
frequency Adjust the
frequency
(AM, FM
mode)
or channel
(SAT mode)
AM SAT/FM mode buttons Preset stations
Scan for
receivable
stations
(AM mode only)
Page 222 of 508

222 3-3. Using the audio system
PRIUS_U_(OM47614U)
Setting station presets (excluding XM® satellite radio)
Search for desired stations by turning the
dial or press-
ing or on .
Touch and hold one of the preset stations (1 - 6) until you hear
a beep.
Scanning radio stations (excluding XM® satellite radio)
■ Scanning the preset radio stations
AM station
Touch on the screen or press
until “P SCAN”
appears.
Preset stations will be played for a few seconds each.
When the desired station is reached, touch or press once again.
FM station
Press until “P SCAN” appears.
When the desired station is reached, press the button once
again.
STEP1
TUNE FILE
STEP2
STEP1SCAN
STEP2
SCAN
STEP1SCAN
STEP2
Page 223 of 508

223
3-3. Using the audio system
3
Interior features
PRIUS_U_(OM47614U)
■
Scanning all radio stations within range
AM station
Touch on the screen or press .
“SCAN” appears on the screen and all stations with reception will be
played for a few seconds each.
When the desired station is reached, touch or press once again.
FM station
Press .
“SCAN” appears on the screen and all stations with reception will be
played for a few seconds each.
When the desired station is reached, press once
again.
RDS (Radio Data System)
This feature allows your radio to receive station identification informa-
tion and program information (classical, jazz, etc.) from radio stations
which broadcast this information.
■ Receiving RDS broadcasts
Touch or on the
screen.
STEP1SCAN
STEP2
SCAN
STEP1SCAN
STEP2SCAN
STEP1
Page 224 of 508

224 3-3. Using the audio system
PRIUS_U_(OM47614U)The type of program changes each time the button is pressed.
●
ROCK
● EASYLIS (Easy listening)
● CLS/JAZZ (Classical music and Jazz)
● R & B (Rhythm and Blues)
● INFORM (Information)
● RELIGION
● MISC (Miscellaneous)
● ALARM (Emergency messages)
If the system receives no RDS stations, “NO PTY” appears on the display.
When a program is set, “TYPE SEEK” appears.
Touch on the screen or press or on .
The radio seeks or scans the station by the relevant program type.
If no radio station of that type is found, “NOTHING” appears on the
screen.
■ Displaying radio text messages
Touch on the screen.
If “MSG” appears on the screen,
a text message may be dis-
played.
STEP2
Page 225 of 508

225
3-3. Using the audio system
3
Interior features
PRIUS_U_(OM47614U)
■
Traffic announcement
Touch on the screen.
“TRAF SEEK” appears on the
screen, and the radio will start
seeking any station broadcasting
traffic program information.
If no traffic program station is
found, “NOTHING” appears on
the screen.
XM® satellite radio (if equipped)
■ Receiving XM
® satellite radio
Press until “SAT” appears
on the screen.
The display changes as follows
each time the switch is pressed.
AM SAT1 SAT2 SAT3
Turn the dial to select a desired channel from all the
categories or press or on to select a desired
channel in the current category.
■ Presetting XM
® satellite radio channels
Select the desired channel. Touch one of the preset stations (1 - 6)
and hold it until you hear a beep.
■ Changing the channel category
Touch or on the screen.
STEP1
STEP2
TUNE FILE
Page 226 of 508

226 3-3. Using the audio system
PRIUS_U_(OM47614U)■
Scanning XM
® satellite radio channels
● Scanning channels in the current category
Touch on the screen or press .
“SCAN” appears on the screen.
When the desired channel is reached, touch orpress the button once again.
● Scanning preset channels
Touch on the screen or press and hold ituntil you hear a beep.
“P SCAN” appears on the screen.
When the desired channel is reached, touch or
press the button once again.
■ Displaying the title and artist name
Touch on the screen.
The screen will display up to 10
characters.
Touch the button once again to
return to the previous screen.
STEP1SCAN
STEP2
STEP1SCAN
6 7 ( 3
Page 227 of 508

227
3-3. Using the audio system
3
Interior features
PRIUS_U_(OM47614U)
■
When the 12 volt battery is disconnected
All preset stations are erased.
■ Reception sensitivity
● Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
● The radio antenna is mounted on the roof. To maintain clear radio recep-
tion, do not attach metallic window tinting or other metallic objects to the
antenna wire mounted inside the rear window.
■ XM
® satellite radio
An XM
® Satellite Radio is a tuner designed exclusively to receive broadcasts
provided under a separate subscription.
Availability is limited to the 48 contiguous states and 10 Canadian provinces.
● XM
® subscriptions
For detailed information about XM® Satellite Radio or to subscribe:
U.S.A. –
Visit on the web at www.xmradio.com
or call 1-800-967-2346.
Canada –
Visit on the web at www.xmradio.ca
or call 1-877-438-9677.
● Radio ID
You will need the radio ID when activating XM
® service or reporting a
problem. Select “CH000” using the dial, and the receiver’s 8-char-
acter ID number will appear.
● Satellite tuner
The tuner supports only Audio Services (Music and Talk) and the accom-
panying Text Information of XM
® satellite radio.
*: Terms and services provided by XM® Radio are subject to change without
notice.
TUNE FILE
Page 228 of 508

228 3-3. Using the audio system
PRIUS_U_(OM47614U)
■If the satellite radio does not operate normally
If a problem occurs with the XM
® tuner, a message will appear on the
screen. Refer to the table below to identify the problem, and take the sug-
gested corrective action.
ANTENNA
The XM® antenna is not connected. Check
whether the XM® antenna cable is attached
securely.
There is a short-circuit in the antenna or the sur-
rounding antenna cable. See a Toyota certified
dealer.
UPDATING You have not subscribed to XM
® satellite radio.
The radio is being updated with the latest encryp-
tion code. Contact XM
® satellite radio for subscrip-
tion information. When a contract is canceled, you
can choose “CH000” and all free-to-air channels.
The premium channel you selected is not autho-
rized. Wait for about 2 seconds until the radio
returns to the previous channel or “CH001”. If it
does not change automatically, select another
channel. If you want to listen to the premium chan-
nel, contact XM
® satellite radio.
NO SIGNAL The XM
® signal is too weak at the current location.
Wait until your vehicle reaches a location with a
stronger signal.
LOADING The unit is acquiring audio or program information.
Wait until the unit has received the information.
OFF AIRThe channel you selected is not broadcasting any
programming. Select another channel.
-----There is no song/program title or artist name/fea-
ture associated with the channel at that time. No
action needed.
Page 229 of 508

229
3-3. Using the audio system
3
Interior features
PRIUS_U_(OM47614U)
Contact the XM® Listener Care Center at
1-800-967-2346 (U.S.A.) or 1-877-
438-9677 (Canada).
■ Certifications for the radio tuner
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by trying one or more of
the following:
● Reorienting or relocating the receiving antenna.
● Increasing the separation between the equipment and receiver.
● Connecting the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consulting the dealer or an experienc ed radio/TV technician for help.
---
The channel you selected is no longer available.
Wait for about 2 seconds until the radio returns to
the previous channel or “CH001”. If it does not
change automatically, select another channel.
Page 230 of 508

230
3-3. Using the audio system
PRIUS_U_(OM47614U)

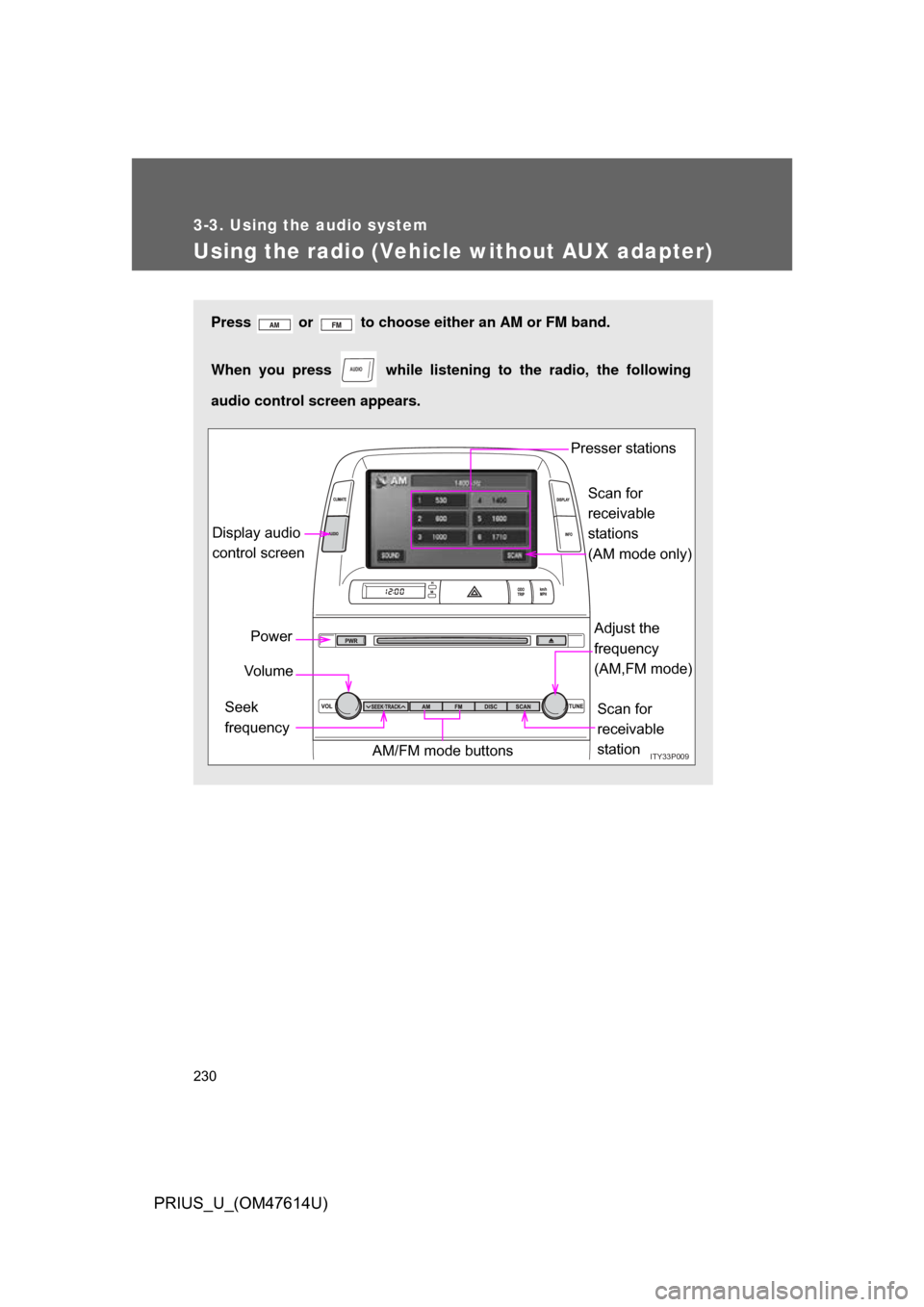

Using the radio (Vehicle without AUX adapter)
Press or to choose either an AM or FM band.
When you press while listening to the radio, the following
audio control screen appears.
AUDIO
ITY33P009
Display audio
control screen
Power
Vo l u m e
Scan for
receivable
station
Seek
frequency Adjust the
frequency
(AM,FM mode)
AM/FM mode buttons Presser stations
Scan for
receivable
stations
(AM mode only)
