TOYOTA PRIUS 2009 2.G Owners Manual

231
3-3. Using the audio system
3
Interior features
PRIUS_U_(OM47614U)
Setting station presets
Search for desired stations by turning the
dial or
pressing  or  on .
Touch and hold one of the preset stations (1 - 6) until you hear
a beep.
Scanning radio stations
■ Scanning the preset radio stations
AM station
Touch on the screen or press
until “P SCAN”
appears.
Preset stations will be played for a few seconds each.
When the desired station is reached, touch or press
once again.
FM station
Press until “P SCAN” appears.
When the desired station is reached, press the button once
again.
STEP1TUNE
STEP2
STEP1SCAN
STEP2
SCAN
STEP1SCAN
STEP2

232 3-3. Using the audio system
PRIUS_U_(OM47614U)■
Scanning all radio stations within range
AM station
Touch on the screen or press .
“SCAN” appears on the screen and all stations with reception will be
played for a few seconds each.
When the desired station is reached, touch or press
once again.
FM station
Press .
“SCAN” appears on the screen and all stations with reception will be
played for a few seconds each.
When the desired station is reached, press the button once
again.
RDS (Radio Data System)
This feature allows your radio to receive station identification informa-
tion and program information (classic al, jazz, etc.) from radio stations
which broadcast this information.
■ Receiving RDS broadcasts
Touch or on the screen.
STEP1SCAN
STEP2
SCAN
STEP1SCAN
STEP2
ITY33P010
STEP1

233
3-3. Using the audio system
3
Interior features
PRIUS_U_(OM47614U)
The type of program changes each time the button is pressed.
●
ROCK
● EASYLIS (Easy listening)
● CLS/JAZZ (Classical music and Jazz)
● R & B (Rhythm and Blues)
● INFORM (Information)
● RELIGION
● MISC (Miscellaneous)
● ALARM (Emergency messages)
If the system receives no RDS stations, “NO PTY” appears on the screen.
When a program is set, “TYPE SEEK” appears.
Touch on the screen or press  or  on .
The radio seeks or scans the station by the relevant program type.
If no radio station of that type is found, “NOTHING” appears on the
screen.
■ Displaying radio text messages
Touch on the screen.
If “MSG” appears on the screen,
a text message may be dis-
played.
STEP2
ITY33P011

234 3-3. Using the audio system
PRIUS_U_(OM47614U)■
Traffic announcement
Touch on the screen.
“TRAF SEEK” appears on the
screen, and the radio will start
seeking any station broadcasting
traffic program information.
If no traffic program station is
found, “NOTHING” appears on
the screen.
ITY33P028
■When the 12 volt battery is disconnected
All preset stations are erased.
■ Reception sensitivity
● Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
● The radio antenna is mounted on the roof. To maintain clear radio recep-
tion, do not attach metallic window tinting or other metallic objects to the
antenna wire mounted inside the rear window.

235
3-3. Using the audio system
3
Interior features
PRIUS_U_(OM47614U)

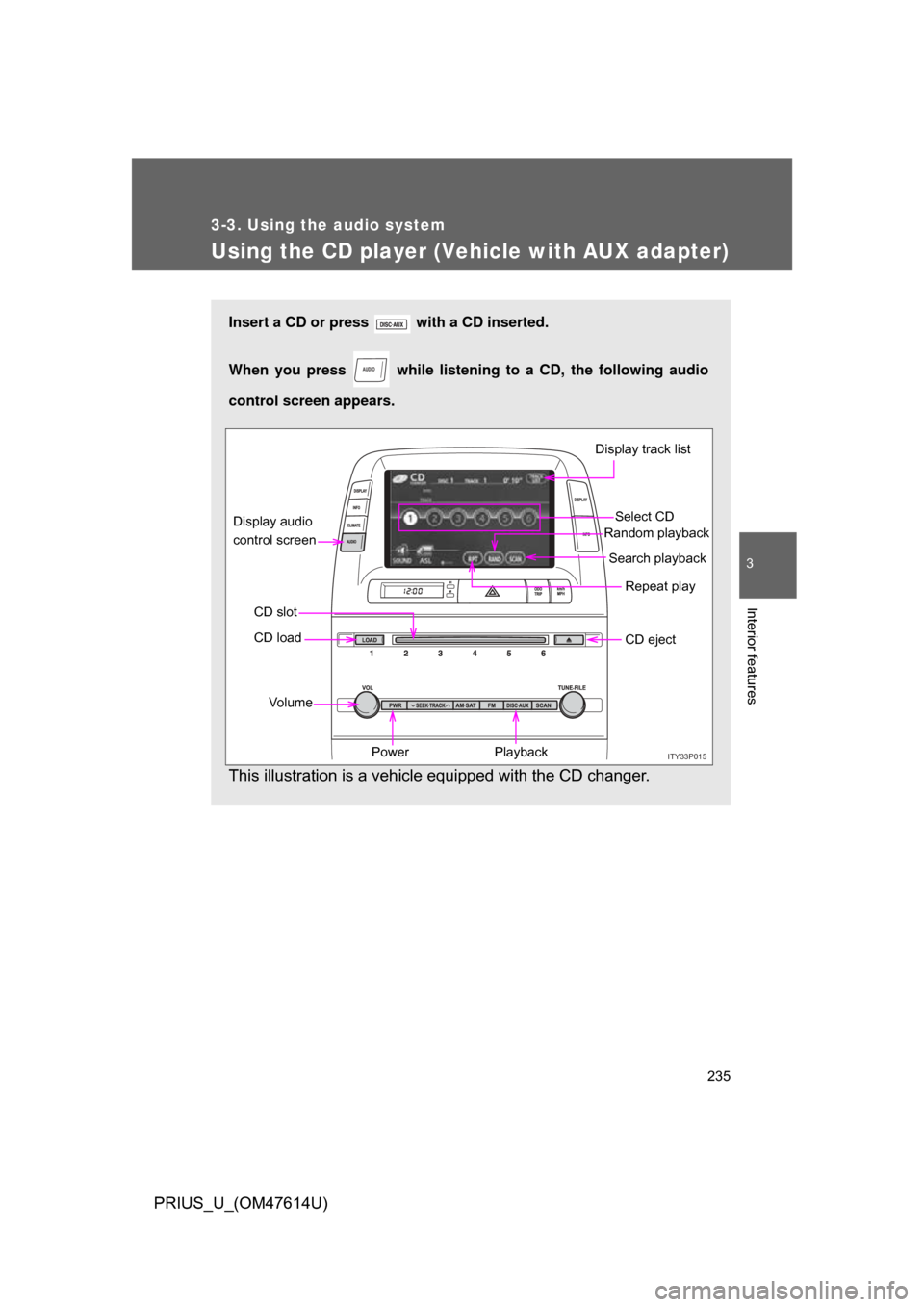

Using the CD player (Vehicle with AUX adapter)
Insert a CD or press with a CD inserted.
When you press while listening to a CD, the following audio
control screen appears.
This illustration is a vehicle equipped with the CD changer.
AUDIO
ITY33P015
Select CD
Display track list
Search playback
CD slot Random playback
Repeat play
Power
Vo l u m e CD eject
Playback
CD load
Display audio
control screen

236 3-3. Using the audio system
PRIUS_U_(OM47614U)
Loading CDs■ Loading a CD (CD player without changer)
Insert a CD.
■ Loading a single CD (CD player with changer)
Press .
When the indicator changes from flashing amber to green,
insert a CD after the CD player door opens.
■ Loading multiple CDs
Press and hold until you hear a beep.
When the indicator changes from flashing amber to green,
insert a CD after the CD player door opens.
After inserting a CD, wait until the indicator changes from
flashing amber to green, then insert the next CD after the CD
door has opened.
Repeat steps 2 and 3 until you have inserted all CDs.
To cancel the operation, press the or . If you do not
insert a CD within 15 seconds, loading will be canceled automati-
cally.
Ejecting CDs
■ Ejecting a CD (CD player without changer)
Press and remover the CD.
■ Ejecting a CD (CD player with changer)
To select the CD to be eject ed, touch the desired disc number
(1 - 6) on the screen.
Press and remover the CD.
STEP1
STEP2
STEP1
STEP2
STEP3
STEP1
STEP2

237
3-3. Using the audio system
3
Interior features
PRIUS_U_(OM47614U)
■
Ejecting all CDs (CD player with changer)
Press and hold until you hear a beep, then remove the
CDs.
Selecting, fast forwarding and scanning tracks
■ Selecting a track
Press  to move up and  to move down using until the
desired track number appears on the screen.
To fast forward or rewind, press and hold  or  on .
■ Selecting a track from the track list
Touch on the screen.
Touch the desired track number.
or : changes the list by 6track groups.
This function is available only
when the vehicle is not moving.
■ Scanning a CD
Touch on the screen.
“SCAN” appears on the screen.
The first 10 seconds of each track will be played.
Touch once again when the desired track is reached.
STEP1
ITY33P013
STEP2
STEP1
STEP2

238 3-3. Using the audio system
PRIUS_U_(OM47614U)
Selecting a CD (CD player with changer only)■ To select a CD to play
Touch the desired disc number (1 - 6) on the screen.
■ To scan loaded CDs
Touch and hold on the screen until you hear a beep.
The first 10 seconds of the first track on each CD will be played.
Touch once again when the desired CD is reached.
Random playback
■ Current CD
Touch on the screen.
Songs are played in random order until random playback is canceled.
■All CDs (CD player with changer only)
Touch and hold on the screen until you hear a beep.
Tracks on all loaded CDs are played in random order until is
touched once again.
Repeating a track or a disc
■ Repeating a track
Touch on the screen.
■ Repeating a disc (CD player with changer only)
Touch on the screen and hold until you hear a beep.
STEP1
STEP2

239
3-3. Using the audio system
3
Interior features
PRIUS_U_(OM47614U)
■
Canceling random, repeat and scan playback
Touch , , or on the screen once again.
■ Displaying the title and artist name
If a CD-TEXT disc is inserted, the title of the disc and track will be displayed.
Up to 13 letters can be displayed.
■ Error messages
Refer to the following table and take the appropriate measures. If the prob-
lem is not rectified, take the vehicle to your Toyota dealer.
MessageCauseCorrection
Procedures
CD X CHECK • The disc X is dirty or
damaged
• The disc X is inserted upside down
• The disc X is not play- able with the player • Clean the disc
• Insert the disc correctly
• Confirm the disc is
playable with the player
CD ERROR • There is a malfunction
within the system
• Operation is stopped due to a high tempera-
ture inside the player • Eject the disc
• Eject the disc and allow
the player to cool down
NO DATA DISC This indicates that no
playable data is
included in the disc Eject the disc

240 3-3. Using the audio system
PRIUS_U_(OM47614U)
■Discs that can be used
Discs with the marks shown below can be used.
Playback may be possible depending on recording format or disc features,
or due to scratches, dirt or deterioration.
CDs with copy-protect features may not be used.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected.
■ If CDs are left inside the CD player or in the ejected position for
extended periods
CDs may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
