Page 391 of 508
391
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(OM47614U)
■
Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, refer to the
Owner’s Manual Supplement/Scheduled Maintenance Guide”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■To prevent damage to the system
When using the air conditioning system, make sure that a filter is always
installed.
■ Replacement method
Remove the air conditioning
filter from the filter case and
replace it with a new one.
The “UP” marks shown on
the filter and the filter case
should be pointing up.
Page 392 of 508
392
4-3. Do-it-yourself maintenance
PRIUS_U_(OM47614U)

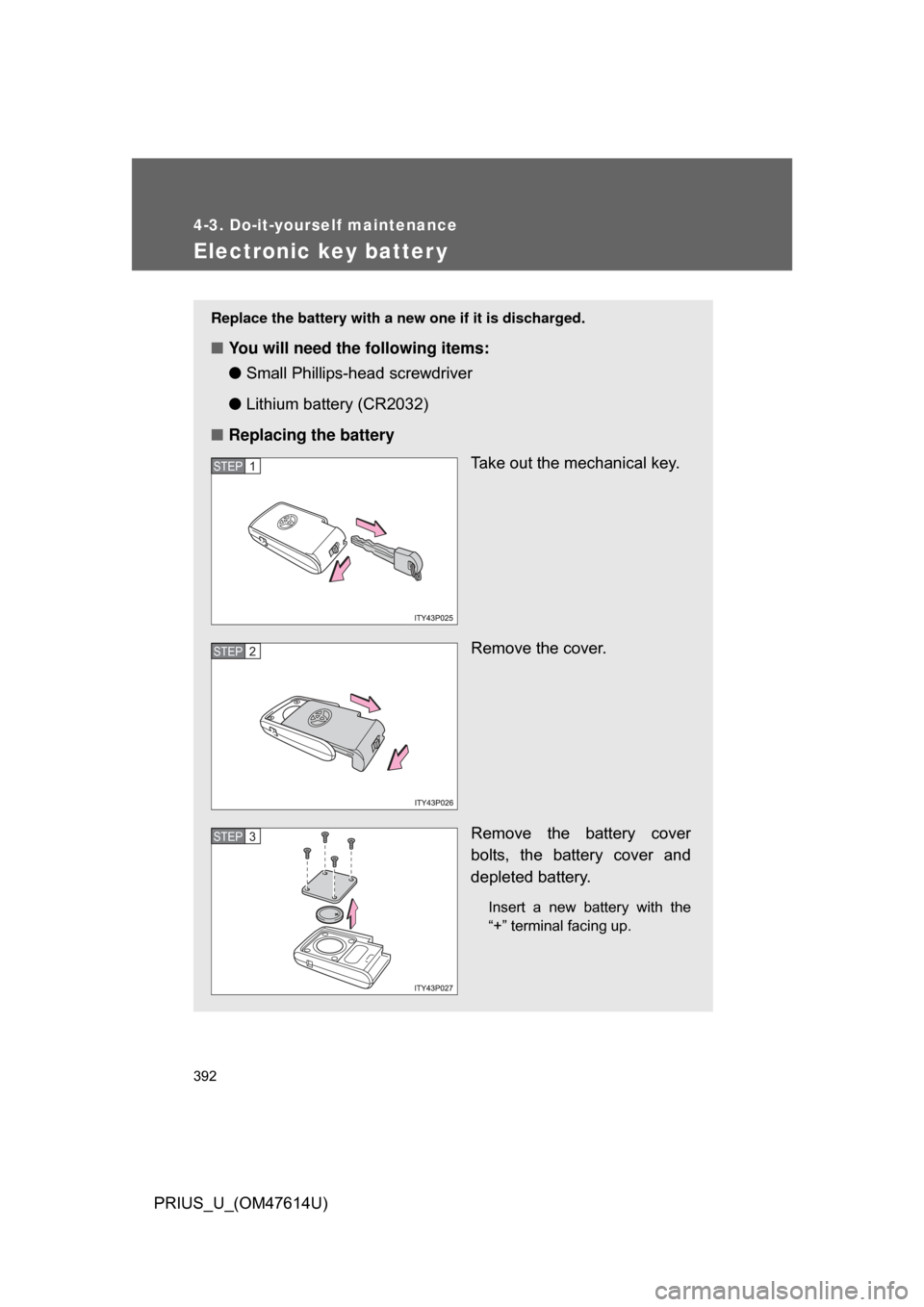

Electronic key batter y
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Small Phillips-hea d screwdriver
● Lithium battery (CR2032)
■ Replacing the battery
Take out the mechanical key.
Remove the cover.
Remove the battery cover
bolts, the battery cover and
depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP1
STEP2
STEP3
Page 393 of 508
393
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(OM47614U)
■
If the electronic key battery is discharged
The following symptoms may occur.
● The smart key system and wireless remote control will not function prop-
erly.
● The operational range is reduced.
■ Use a CR2032 lithium battery
● Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
● Replace only with the same or equivalent type recommended by a Toy-
ota dealer.
● Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the electronic key.
● Do not bend the battery terminals.
Page 394 of 508
394
4-3. Do-it-yourself maintenance
PRIUS_U_(OM47614U)

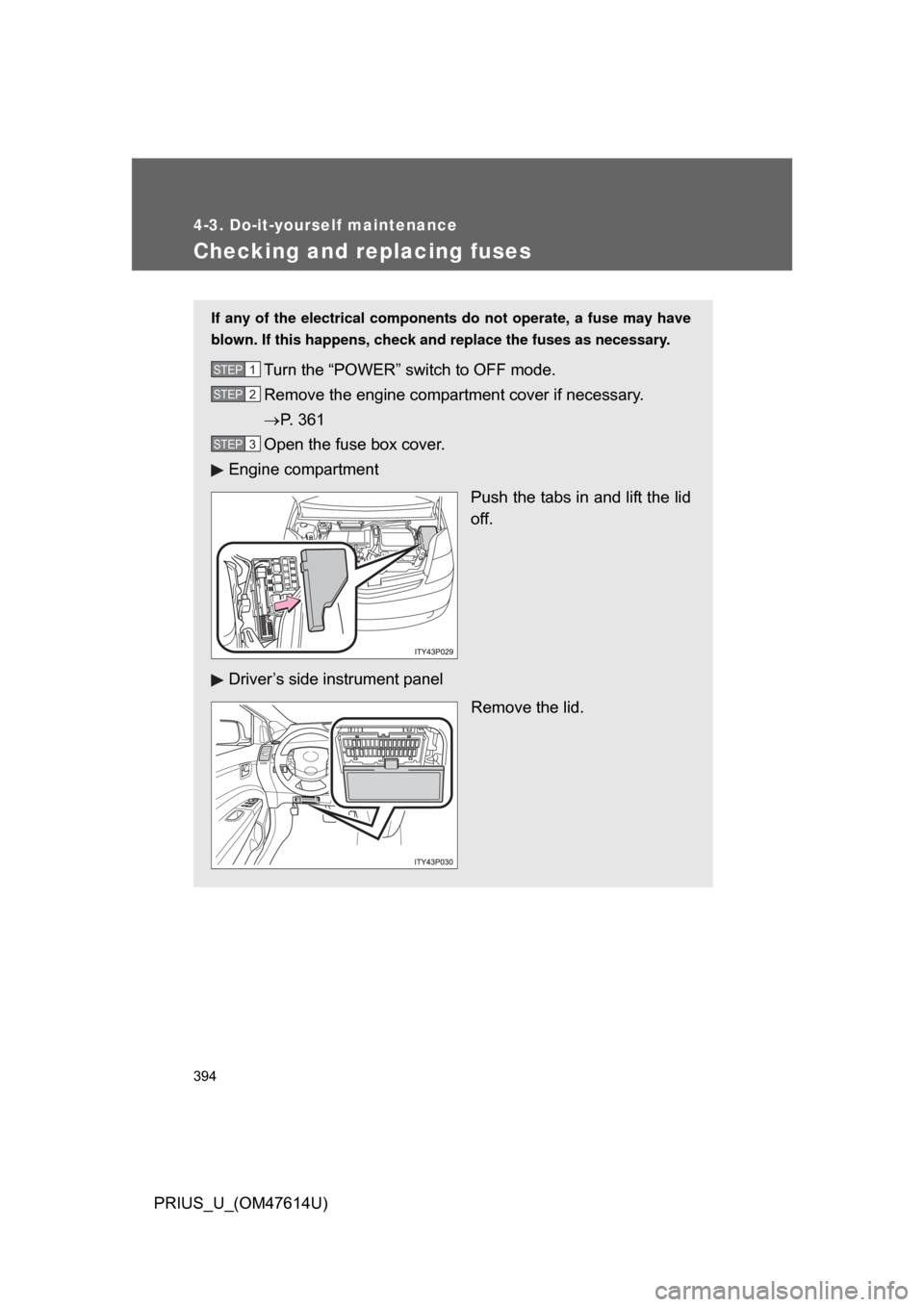

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “POWER” switch to OFF mode.
Remove the engine compartment cover if necessary.
P. 361
Open the fuse box cover.
Engine compartment
Push the tabs in and lift the lid
off.
Driver’s side instrument panel Remove the lid.STEP1
STEP2
STEP3
Page 395 of 508
395
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(OM47614U)

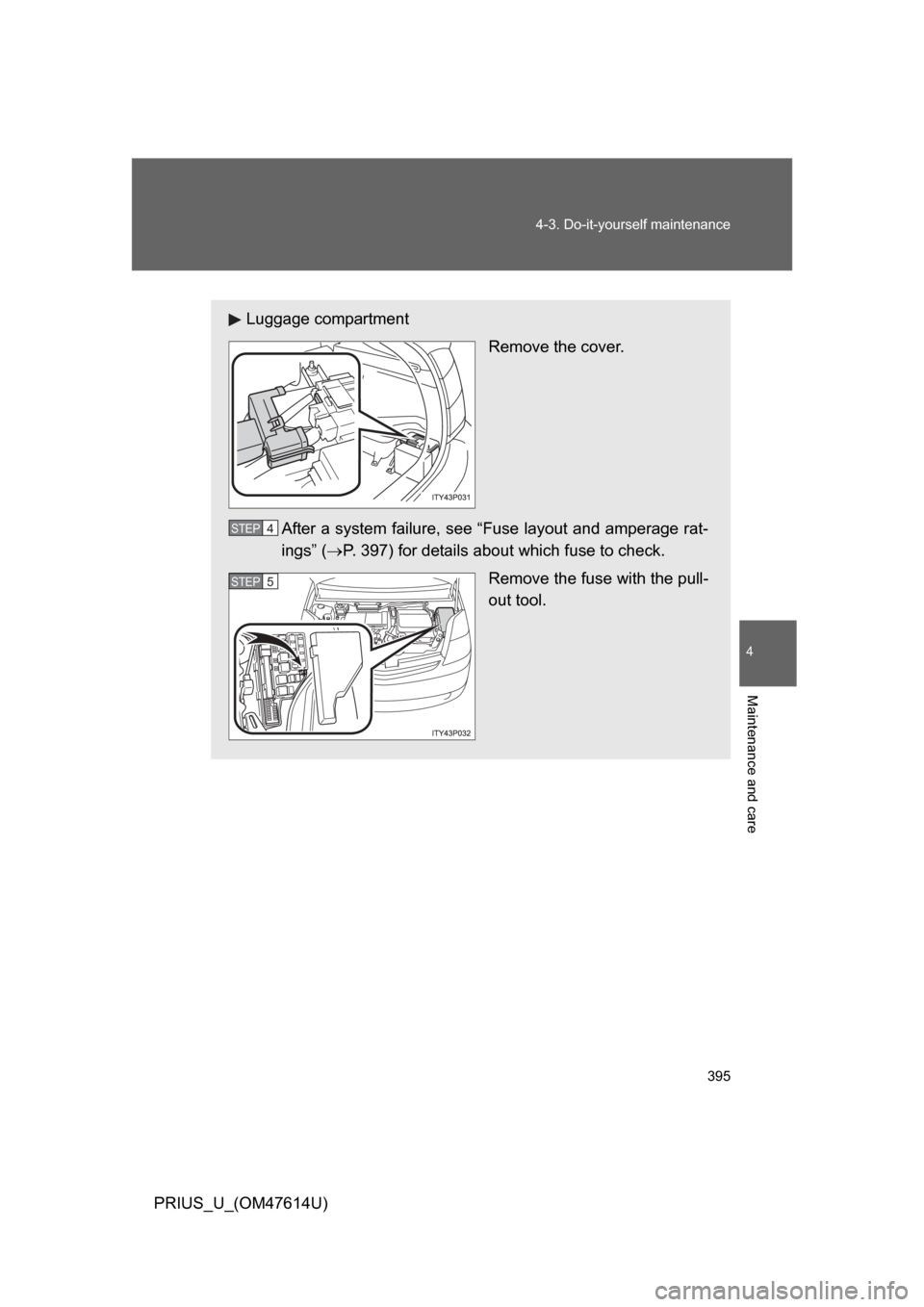

Luggage compartment
Remove the cover.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 397) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
STEP4
STEP5
Page 396 of 508
396 4-3. Do-it-yourself maintenance
PRIUS_U_(OM47614U)

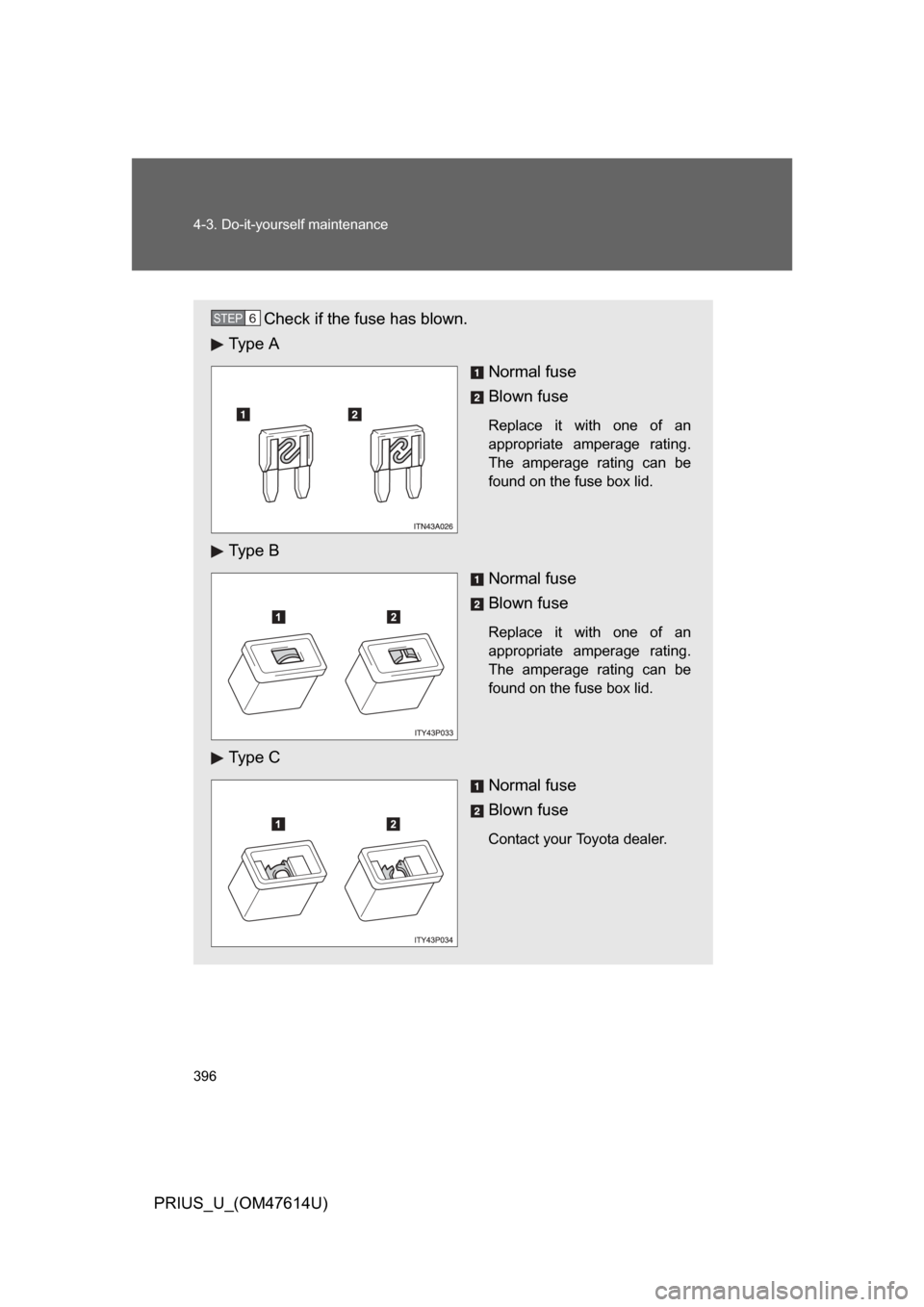

Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Contact your Toyota dealer.
STEP6
Page 397 of 508
397
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(OM47614U)

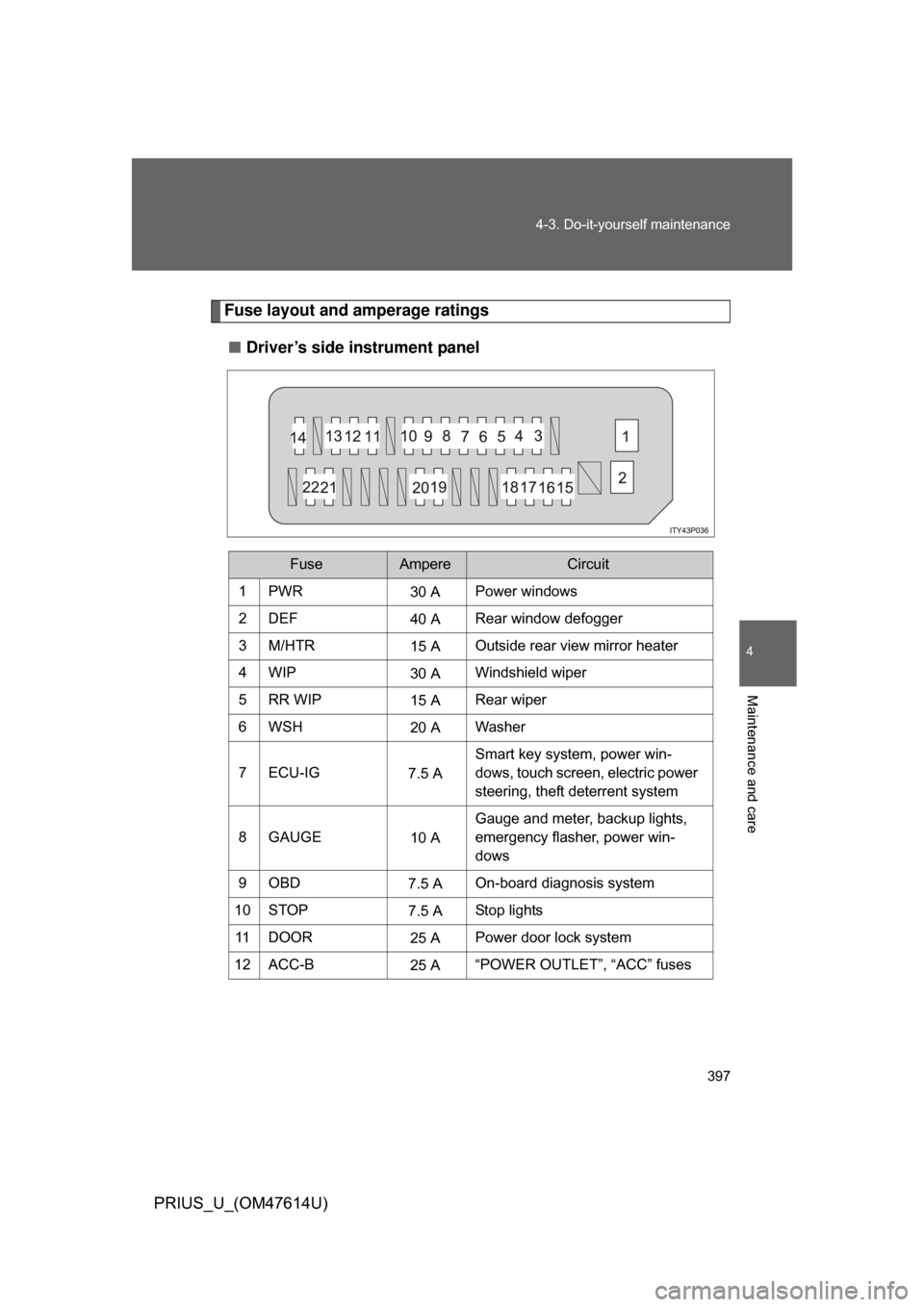

Fuse layout and amperage ratings
■ Driver’s side instrument panel
FuseAmpereCircuit
1PWR30 APower windows
2DEF 40 ARear window defogger
3M/HTR 15 AOutside rear view mirror heater
4WIP 30 AWindshield wiper
5RR WIP 15 ARear wiper
6WSH 20 AWasher
7 ECU-IG 7.5 ASmart key system, power win-
dows, touch screen, electric power
steering, theft deterrent system
8GAUGE 10 AGauge and meter, backup lights,
emergency flasher, power win-
dows
9OBD 7.5 AOn-board diagnosis system
10 STOP 7.5 AStop lights
11 D O O R 25 APower door lock system
12 ACC-B 25 A“POWER OUTLET”, “ACC” fuses
Page 398 of 508
398 4-3. Do-it-yourself maintenance
PRIUS_U_(OM47614U)
13 ECU-B15 ATouch screen, power windows, air
conditioning system
14 AM1 7.5 AHybrid system
15 TAIL 10 ATail lights, license plates light,
parking lights
16 PANEL 7.5 ATouch screen, clock, audio sys-
tem, instrument panel lights
17 A/C (HTR) 10 AAir conditioning system
18 FR DOOR 20 APower windows
19 PWR OUTLET 15 APower outlet
20 ACC 7.5 AAudio system, touch screen, clock
21 PWR OUTLET
FR
15 A
Power outlet
22 IGN 7.5 AHybrid system, hybrid vehicle
immobilizer system, SRS airbags
FuseAmpereCircuit
Page 399 of 508
399
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(OM47614U)
■

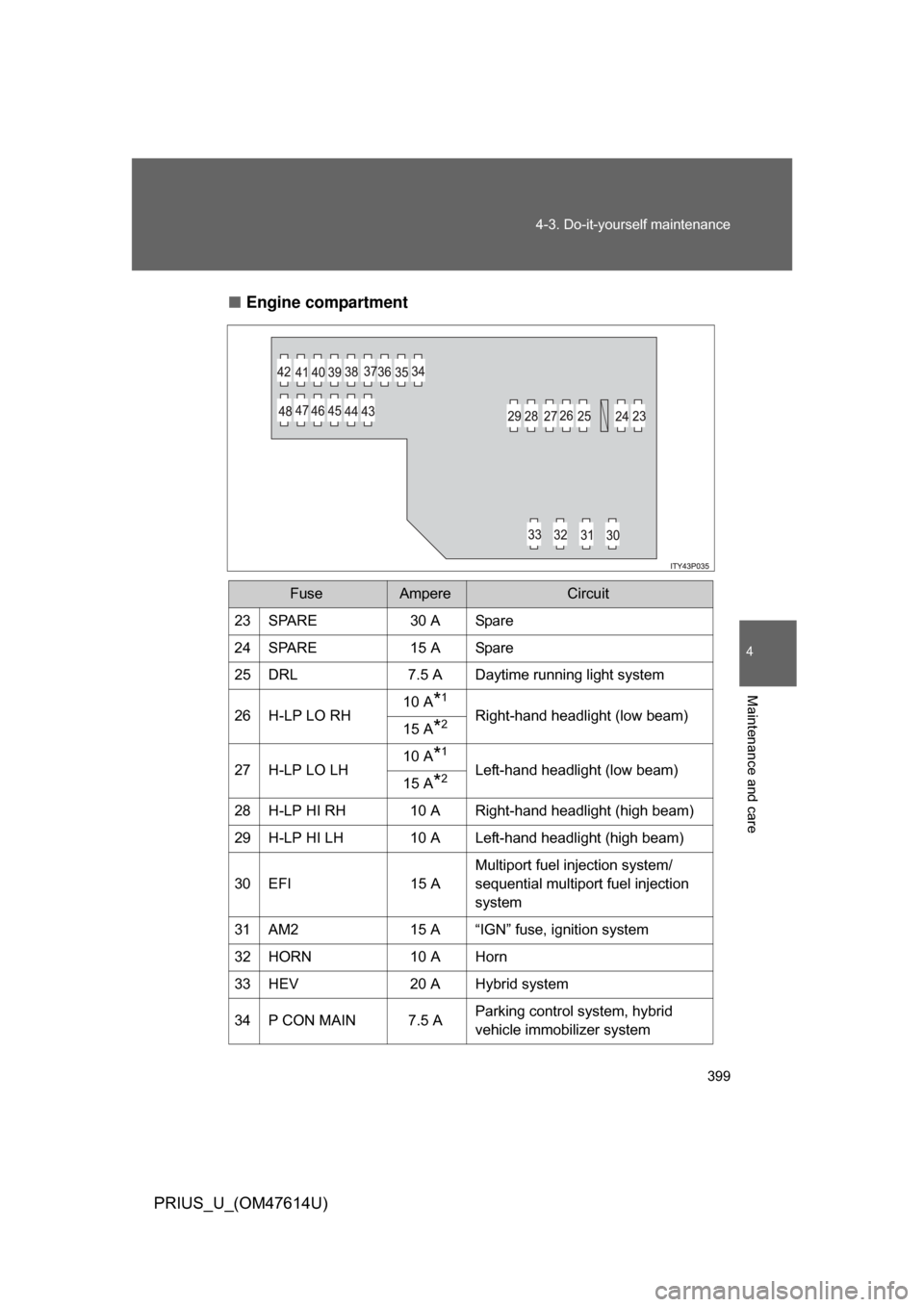

Engine compartment
FuseAmpereCircuit
23SPARE30 ASpare
24 SPARE 15 A Spare
25 DRL 7.5 A Daytime running light system
26 H-LP LO RH 10 A
*1
Right-hand headlight (low beam)
15 A*2
27 H-LP LO LH 10 A*1
Left-hand headlight (low beam)
15 A*2
28 H-LP HI RH 10 A Right-hand headlight (high beam)
29 H-LP HI LH 10 A Left-hand headlight (high beam)
30 EFI 15 A Multiport fuel injection system/
sequential multiport fuel injection
system
31 AM2 15 A “IGN” fuse, ignition system
32 HORN 10 A Horn
33 HEV 20 A Hybrid system
34 P CON MAIN 7.5 A Parking control system, hybrid
vehicle immobilizer system
Page 400 of 508
400 4-3. Do-it-yourself maintenance
PRIUS_U_(OM47614U)
*1: Vehicles with halogen headlights (low beam)
*2: Vehicles with discharge headlights (low beam)35 ABS-1 25 A Anti-lock brake system
36 ETCS 10 A Electronic throttle control system
37 BATT FAN 10 A Battery cooling fan
38 HAZ 10 A
Turn signal lights, emergency
flasher
39 DOME 15 A Audio system, interior lights, smart
key system, gauge and meter, turn
signal lights, luggage room light,
clock
40 ABS MAIN3 15 A Anti-lock brake system
41 ABS MAIN2 10 A Anti-lock brake system
42 ABS MAIN1 10 A Anti-lock brake system
43 FR FOG 15 A Fog lights
44 CHS W/P 10 A CHS W/P
45 AMP 30 A Audio system
46 PTC HTR2 30 A PTC heater
47 PTC HTR1 30 A PTC heater
48 CDS FAN 30 A Electric cooling fan
FuseAmpereCircuit
