TOYOTA PRIUS 2010 3.G Owners Manual

311
3-2. Using the audio system
3
Interior features
PRIUS_U (OM47668U) U.S.A.

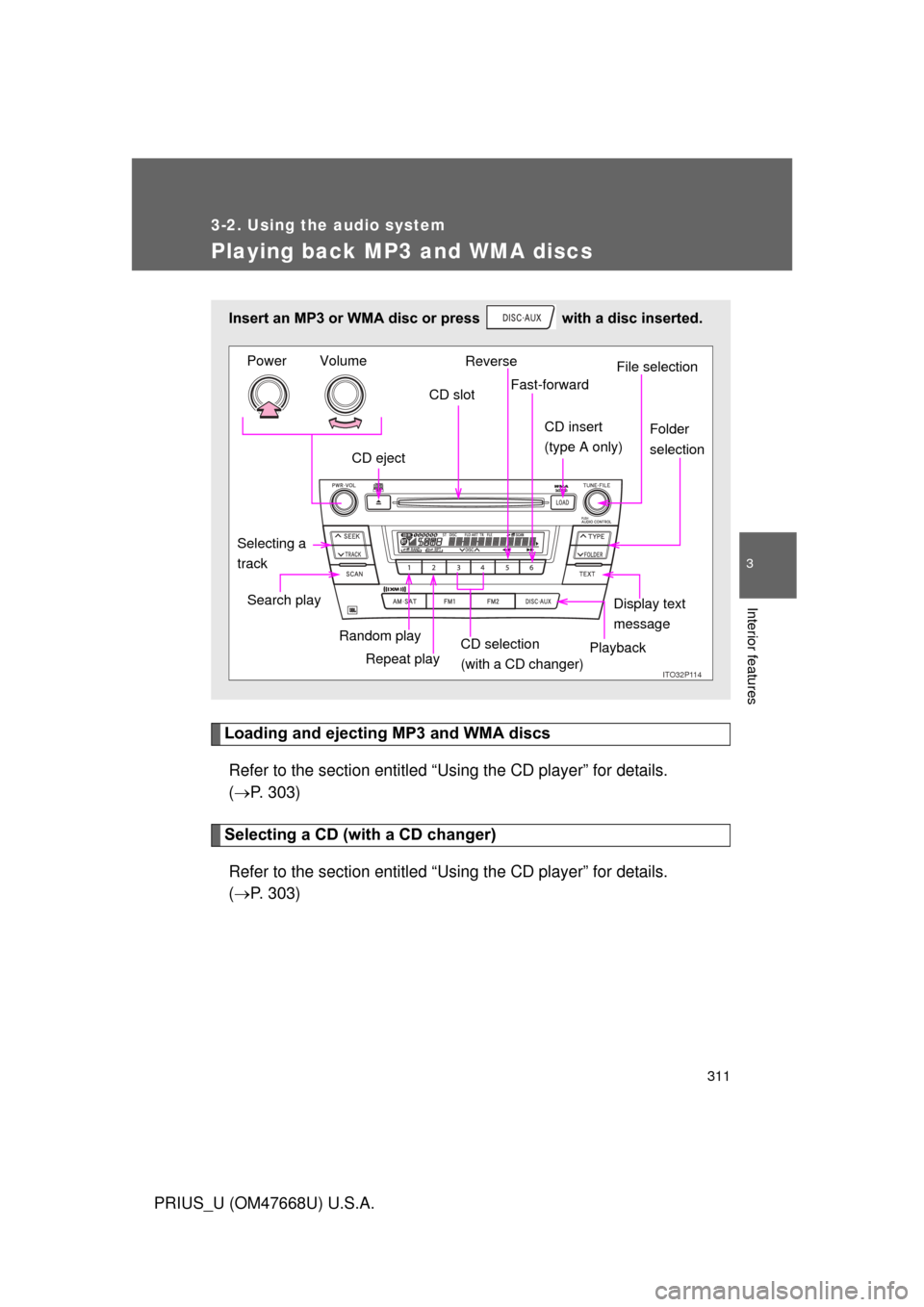

Playing back MP3 and WMA discs
Loading and ejecting MP3 and WMA discsRefer to the section entitled “Using the CD player” for details. 
(  P. 303)
Selecting a CD (with a CD changer)
Refer to the section entitled “Using the CD player” for details. 
(  P. 303)
Insert an MP3 or WMA disc or press with a disc inserted.
ITO32P11Q
CD eject CD slot
CD insert
(type A onlyF
Display text
message
Search play
Repeat play
Selecting a
track
Reverse
Fast-forward
Playback
CD selection

(with a CD changer)
Random playFile selection
Folder

selection
Volume
Power

312 3-2. Using the audio system
PRIUS_U (OM47668U) U.S.A.
Selecting and scanning a folder■ Selecting folders one at a time
Press “ ” or “ ” on to select the desired folder.
To return to the first folder, press and hold “ ” on until you
hear a beep.
■ Selecting the desired folder by cueing the first file of each
folder
Press and hold until you hear a beep. 
When the desired folder is reached, press the switch once again.
Selecting and scanning a file
■ Selecting one file at a time
Turn or press “ ” or “ ” on to select the desired
file.
■ Selecting the desired file by cueing the files in the folder
Press . 
When the desired file is reached, press once again.
Fast forwarding and reversing files Press and hold (reverse) or (fast forward).

313
3-2. Using the audio system
3
Interior features
PRIUS_U (OM47668U) U.S.A.
Random playback
■ To play files from a partic ular folder in random order
Press (RAND).
■ To play all of the files on a disc in random order
Press and hold (RAND) until you hear a beep.
Repeating a file or a folder
■ Repeating a file
Press (RPT).
■ Repeating a folder
Press and hold (RPT) until you hear a beep.
Switching the display
Press .
Each time the switch is pressed, the display changes in the order of
Folder no./File no./Elapsed time Folder name File name Album title
(MP3 only) Track title Artist name.
Silencing the sound (type B only)
 P. 2 9 8

314 3-2. Using the audio system
PRIUS_U (OM47668U) U.S.A.
■Display
 P. 307
■ Canceling random, repeat and scan playback
 P. 308
■ Error messages
“ERROR”: This indicates a trouble either in the CD or inside the player.
The CD may be dirty, damaged or inserted up-side down.
“WAIT”: Operation has stopped due to a high temperature inside the player. Wait for a while and then press . Contact your
Toyota dealer if the CD still cannot be played.
“NO MUSIC”: This indicates that the MP3/WMA file is not included in the CD.
■ Discs that can be used
Discs with the marks shown below can be used. 
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
■ CD player protection feature
 P. 308
■ If CDs are left inside the CD pla yer or in the ejected position for
extended periods
 P. 308

315
3-2. Using the audio system
3
Interior features
PRIUS_U (OM47668U) U.S.A.
■
Lens cleaners
 P. 308
■ MP3 and WMA files
MP3 (MPEG Audio LAYER3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using
MP3 compression.
WMA (Windows Media
TM Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3
format.
There is a limit to the MP3 and WMA file standards and to the media/formats
recorded by them that can be used.
● MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies 
MPEG1 LAYER3: 32, 44.1, 48 (kHz) 
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates 
MPEG1 LAYER3: 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps)
• MPEG2 LSF LAYER3: 64, 80, 96, 112, 128, 144, 160 (kbps) 
* Compatible with VBR
• Compatible channel modes: stereo, joint stereo, dual channel and monaural

316 3-2. Using the audio system
PRIUS_U (OM47668U) U.S.A.
●WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9
• Compatible sampling frequencies 
32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible with 2-channel playback) 
Ver. 7, 8: CBR 48, 64, 80, 96, 128, 160, 192 (kbps) 
Ver. 9: CBR 48, 64, 80, 96, 128, 160, 192, 256, 320 (kbps)
● Compatible media
Media that can be used for MP3 and WMA playback are CD-Rs and CD-
RWs.
Playback in some instances may not be possible, depending on the status
of the CD-R or CD-RW. Playback may not be possible or the audio may
jump if the disc is scratched or marked with fingerprints.
● Compatible disc formats
The following disc formats can be used.
• Disc formats: CD-ROM Mode 1 and Mode 2 
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet) 
MP3 and WMA files written in any format other than those listed above
may not play correctly, and their file names and folder names may not
be displayed correctly.
Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255

317
3-2. Using the audio system
3
Interior features
PRIUS_U (OM47668U) U.S.A.
●
File names
The only files that can be recogniz ed as MP3/WMA and played are those
with the extension .mp3 or .wma.
● Multi-sessions
As the audio system is compatible with multi-sessions, it is possible to play
discs that contain MP3 and WMA files. However, only the first session can
be played.
● ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track
title and artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.
● MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc
are first checked. Once the file check is finished, the first MP3 or WMA\
file
is played. To make the file check finish more quickly, we recommend you
do not write in any files other than MP3 or WMA files or create any unnec-
essary folders.
If the discs contain a mixture of music data and MP3 or WMA format data,
only music data can be played.

318 3-2. Using the audio system
PRIUS_U (OM47668U) U.S.A.
●Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they will be mistakenly recognized and played as MP3 and
WMA files. This may result in large amounts of interference and damage
to the speakers.
● Playback
• To play MP3 file with steady sound quality, we recommend a fixed bit
rate of 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances, depending on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for MP3 and WMA files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at
all.
• When files other than MP3 or WMA files are recorded on a disc, it may take more time to recognize the disc and in some cases, playback may
not be possible at all.
• Microsoft, Windows, and Windows Media are the registered trade- marks of Microsoft Corporation in the U.S. and other countries.
NOTICE
■CDs and adapters that cannot be used
 P. 309
■ Player precautions
 P. 310

319
3-2. Using the audio system
3
Interior features
PRIUS_U (OM47668U) U.S.A.

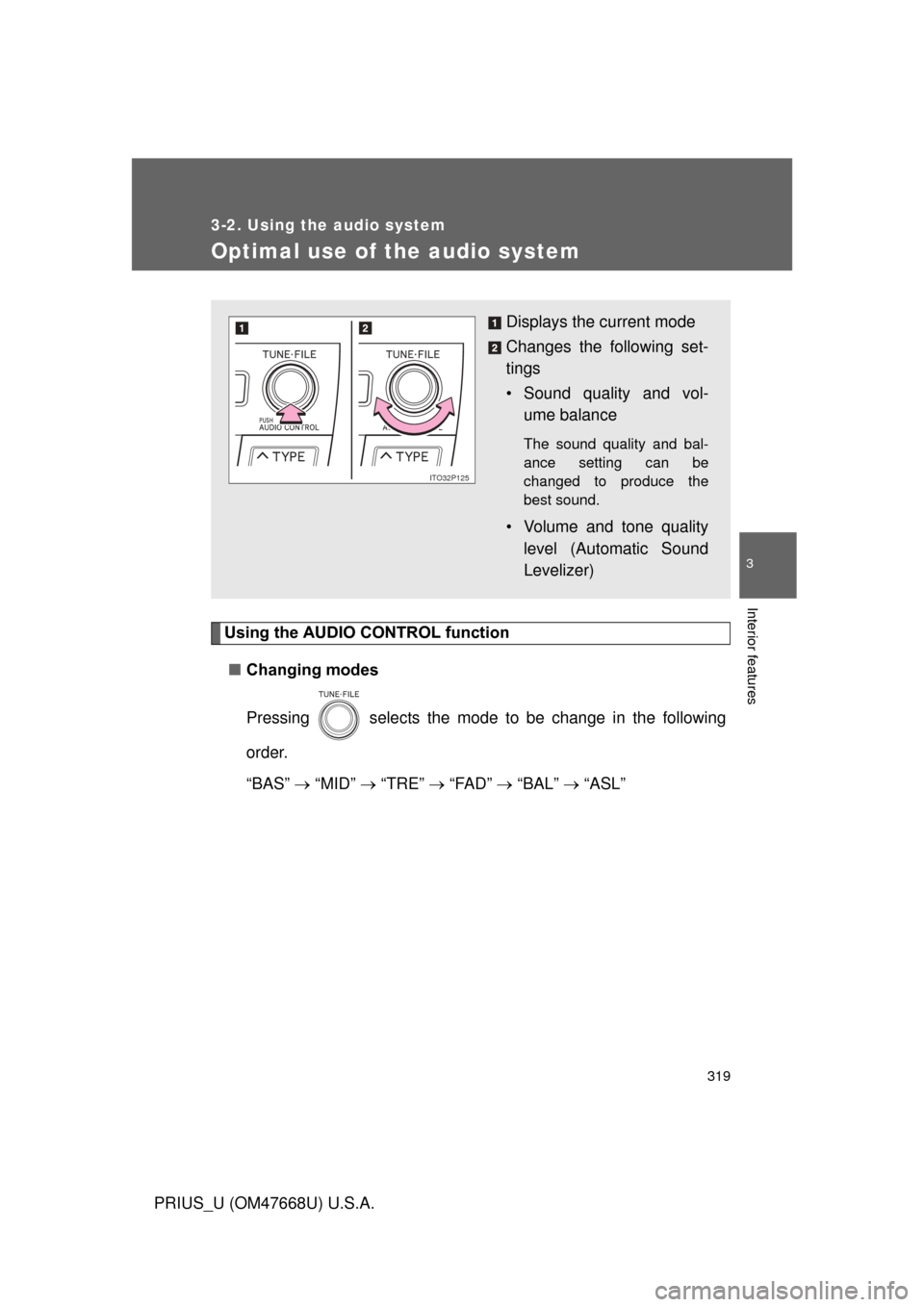

Optimal use of the audio system
Using the AUDIO CONTROL function■ Changing modes
Pressing selects the mode to be change in the following
order.
“BAS”  “MID”  “TRE”  “FAD”  “BAL”  “ASL”
Displays the current mode
Changes the following set-
tings
• Sound quality and vol-
ume balance
The sound quality and bal-
ance setting can be
changed to produce the
best sound.
• Volume and tone quality
level (Automatic Sound
Levelizer)
ITO32P125

320 3-2. Using the audio system
PRIUS_U (OM47668U) U.S.A.■
Adjusting sound quality
Turning adjusts the level.
*: The sound quality level is adjusted individually in each radio or CD mode.
Sound quality
modeMode
displayedLevelTurn to the leftTurn to the right
Low-pitched tones
*BAS -5 to 5
Low High
Mid-pitched
tones
*
MID
(type A only) -5 to 5
High pitched tones
*TRE -5 to 5
Front/rear
volume balance FAD F7 to R7 Shifts to rear Shifts to
front
Left/right volume balance BAL L7 to R7 Shifts to left Shifts to right
