TOYOTA PRIUS 2010 3.G Owners Manual

341
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U (OM47668U) U.S.A.
Transferring a call
A call can be transferred between the cellular phone and system
while dialing, receiving a call, or during a call. Use one of the follow-
ing methods: a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
b. Press *1.
c. Press and say “Call Transfer”
*2.
*1: This operation can be performed only when transferring a call from the cellular phone to the system during a call.
*2: While the vehicle is in motion, a call cannot be transferred from the system to the cellular phone.

342 3-3. Using the hands-free system (for cellular phone)
PRIUS_U (OM47668U) U.S.A.
Using the call history memoryFollow the procedure below to use a number stored in the call history
memory:
Press and say “Redial” (when using a number stored in
the outgoing call history memory) or “Call back” (when using a
number stored in the incoming call history memory).
Select the number by either of the following methods:
a. Say “Previous” or “Go back” until the desired number is displayed.
b. Select the desired number by using .
STEP1
STEP2

343
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U (OM47668U) U.S.A.The following operations can be performed:
Dialing: Press or select “Dial” by using a voice command or
.
Storing the number in the phone book: Select “Store” by using a
voice command or .
Deleting: Select “Delete” by using a voice command or .
■Call history
Up to 5 numbers can be stored in each of the outgoing and incoming history
memories.
■ When talking on the phone
● Do not talk simultaneously with the other party.
● Keep the volume of the receiving voice down. Otherwise, voice echo will
increase.

344
3-3. Using the hands-free system (for cellular phone)
PRIUS_U (OM47668U) U.S.A.

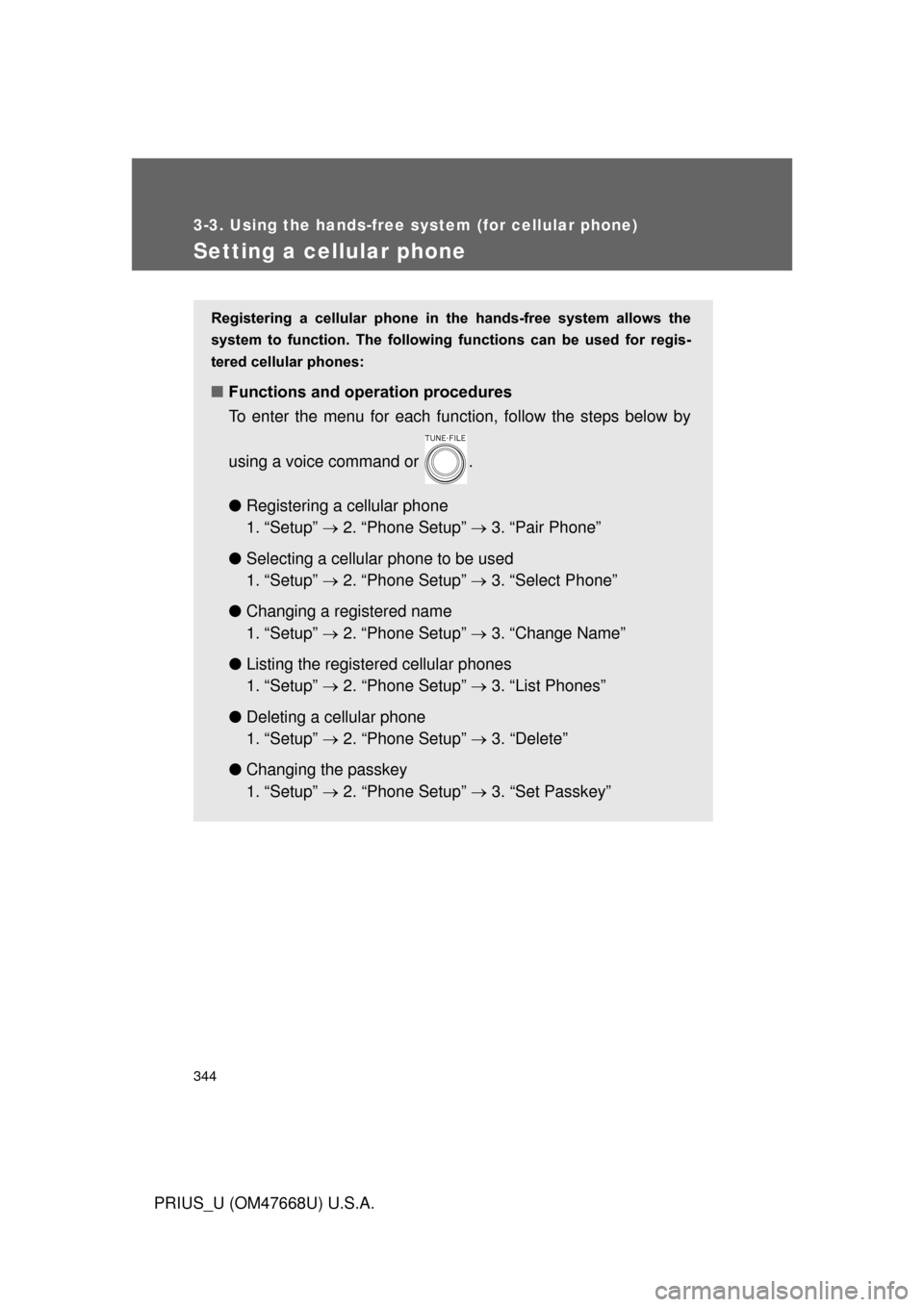

Setting a cellular phone
Registering a cellular phone in the hands-free system allows the
system to function. The following functions can be used for regis-
tered cellular phones:
■ Functions and operation procedures
To enter the menu for each function, follow the steps below by
using a voice command or .
●Registering a cellular phone 
1. “Setup”  2. “Phone Setup”  3. “Pair Phone”
● Selecting a cellular phone to be used 
1. “Setup”  2. “Phone Setup”  3. “Select Phone”
● Changing a registered name 
1. “Setup”  2. “Phone Setup”  3. “Change Name”
● Listing the registered cellular phones 
1. “Setup”  2. “Phone Setup”  3. “List Phones”
● Deleting a cellular phone 
1. “Setup”  2. “Phone Setup”  3. “Delete”
● Changing the passkey 
1. “Setup”  2. “Phone Setup”  3. “Set Passkey”

345
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U (OM47668U) U.S.A.
Registering a cellular phone
Select “Pair Phone” by using a voice command or , and do the
procedure for registering a cellular phone. ( P. 332)
Selecting a cellular phone to be used
Select “Select Phone” by using a voice command or .
Pattern A Select a cellular phone to be us ed by either of the following
methods, and select “Confirm” by using a voice command or
:
a. Press and say the desired phone name.
b. Press and say “List phones”. While the name of the desired cellular phone is being read aloud, press .
Pattern B
Select a cellular phone to be used by using .
STEP1
STEP2
STEP2

346 3-3. Using the hands-free system (for cellular phone)
PRIUS_U (OM47668U) U.S.A.
Changing a registered nameSelect “Change Name” by using a voice command or .
Select a name of cellular phone to be changed by either of the
following methods:
a. Press and say the desired phone name, and select “Confirm” by using a voice command or .
b. Press and say “List phones”. While the desired phone name is being read aloud, press .
c. Select the desired phone name by using .
Press or select “Record Name” by using , and
say a new name.
Select “Confirm” by using a voice command or .
STEP1
STEP2
STEP3
STEP4

347
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U (OM47668U) U.S.A.
Listing the registered cellular phones
Selecting “List Phones” by using a voice command or causes
the list of registered cellular phones to be read aloud. 
When listing is complete, the system returns to “Phone Setup”.
Pressing while a name of cellular phone is being read selects
the cellular phone, a nd the following functions will be available:
● Selecting a cellular phone: “Select Phone”
● Changing a registered name: “Change Name”
● Deleting a cellular phone: “Delete”

348 3-3. Using the hands-free system (for cellular phone)
PRIUS_U (OM47668U) U.S.A.
Deleting a cellular phoneSelect “Delete” by using a voice command or .
Pattern A Select the cellular phone to be deleted by either of the follow-
ing methods and select “Confirm” by using a voice command
or :
a. Press and say the name of the desired cellular phone.
b. Press and say “List phones”. While the name of the desired cellular phone is being read aloud, press .
Pattern B
Select a desired cellular phone to be deleted by using .
STEP1
STEP2
STEP2

349
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U (OM47668U) U.S.A.
Changing the passkey
Select “Set Passkey” by using a voice command or .
Pattern A Press , say a 4 to 8-digit number, and select “Confirm”
by using a voice command or .
Pattern B
Select a 4 to 8-digit number by using .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
■The number of cellular phone that can be registered
Up to 6 cellular phones can be registered in the system.
STEP1
STEP2
STEP2
STEP3

350
3-3. Using the hands-free system (for cellular phone)
PRIUS_U (OM47668U) U.S.A.
Security and system setup
To enter the menu of each setting, follow the steps below:
■Security setting items and operation procedure
● Setting or changing t he PIN (Personal Identification Number) 
1. “Setup”  2. “Security”  3. “Set PIN”
● Locking the phone book 
1. “Setup”  2. “Security”  3. “Phonebook Lock”
● Unlocking the phone book 
1. “Setup”  2. “Security”  3. “Phonebook Unlock”
■ System setup items and operation procedure
●Setting voice guidance volume 
1. “Setup”  2. “System Setup”  3. “Guidance Vol”
● Initialization 
1. “Setup”  2. “System Setup”  3. “Initialize”
can only be used for system setup operation.
