TOYOTA PRIUS 2010 3.G Owners Manual

361
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U (OM47668U) U.S.A.
Deleting registered data
Select “Delete Entry” by using a voice command or .
Pattern A Select the data to be deleted by either of the following meth-
ods, and select “Confirm” by using a voice command or
:
a. Press , and say the name of the desired phone num- ber to be deleted.
b. Press , say “List phones”. While the name of the desired phone number is being read aloud, press .
Pattern B
Select the data to be deleted by using .
STEP1
STEP2
STEP2

362 3-3. Using the hands-free system (for cellular phone)
PRIUS_U (OM47668U) U.S.A.
Deleting speed dialsSelect “Delete Speed Dial (Del Spd Dial)” by using a voice
command or .
Press the preset button in which the desired speed dial is reg-
istered, and select “Confirm” by using a voice command or
.
Listing the registered dataSelecting “List names” by using a vo ice command causes a list of the
registered data to be read aloud.
When listing is complete, the system returns to “Phonebook”.
Pressing while the desired data is being read aloud selects the
data, and the following f unction will be available.
● Dialing: “Dial”
● Changing a registered name: “Change Name”
● Deleting an entry: “Delete Entry”
● Setting speed dial: “Set Speed Dial (Speed Dial)”
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
STEP1
STEP2

363
3
Interior features
PRIUS_U (OM47668U) U.S.A.

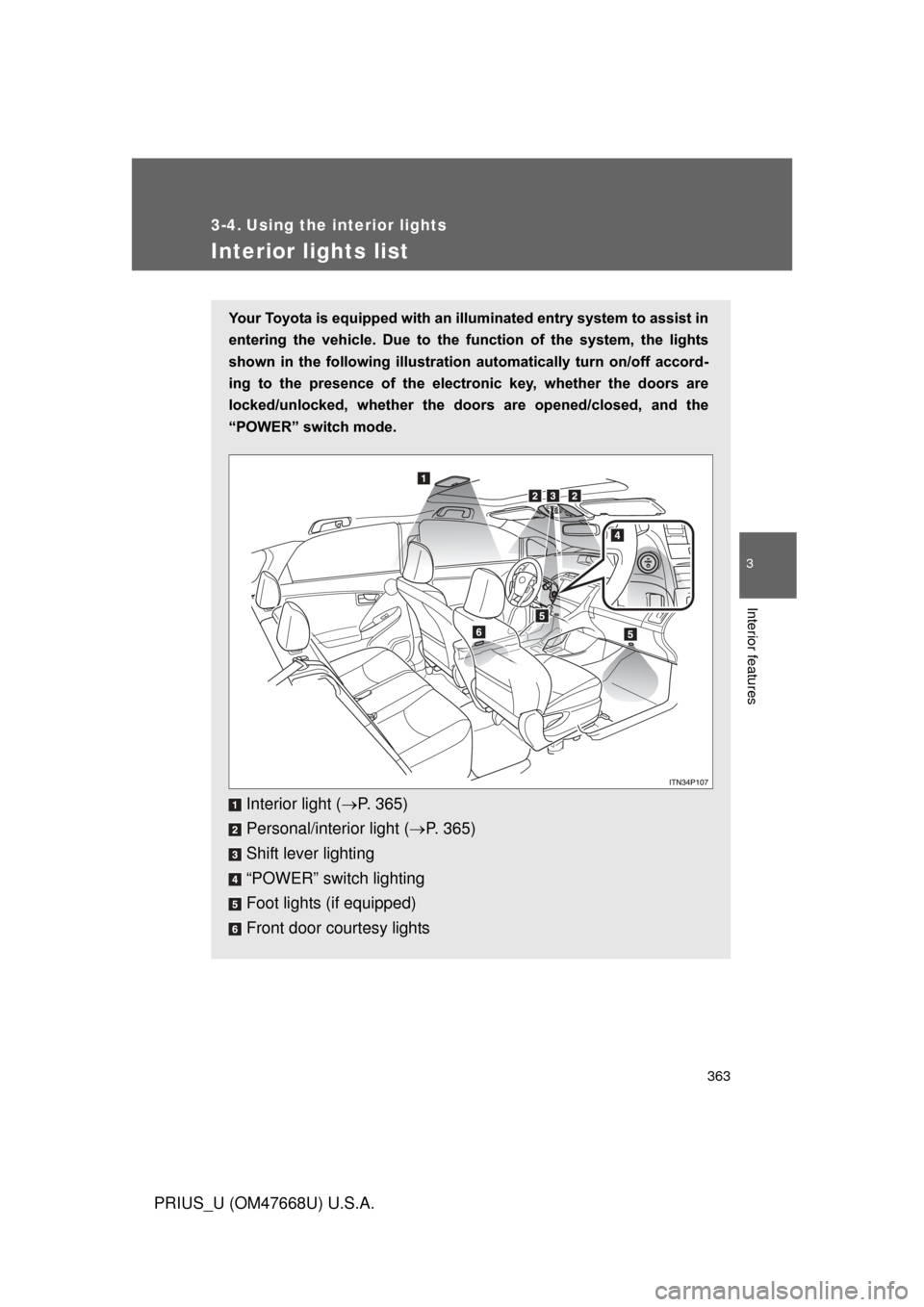

3-4. Using the interior lights
Interior lights list
Your Toyota is equipped with an illuminated entry system to assist in
entering the vehicle. Due to the fu nction of the system, the lights
shown in the following illustration automatically turn on/off accord-
ing to the presence of the electr onic key, whether the doors are
locked/unlocked, whether the door s are opened/closed, and the
“POWER” switch mode.
Interior light ( P. 365)
Personal/interior light ( P. 365)
Shift lever lighting
“POWER” switch lighting
Foot lights (if equipped)
Front door courtesy lights

364 3-4. Using the interior lights
PRIUS_U (OM47668U) U.S.A.
Personal/interior light main switchType A “OFF”
The personal/interior lights and
interior light can be individually
turned on or off.
Door position
The personal/interior lights and
interior light automatically turn on/
off according to the presence of
the electronic key, whether the
doors are locked/unlocked,
whether the doors are opened/
closed, and the “POWER” switch
mode.
On
The personal/interior lights and
interior light cannot be individually
turned off.
Type B
ITO34P102
Personal/interior light main switch

365
3-4. Using the interior lights
3
Interior features
PRIUS_U (OM47668U) U.S.A.
Personal/interior lights
Type A On/off
The illuminated entry system is
activated even if the light is
turned off when the personal/
interior light main switch is in door
position.
Type BOn/off
The illuminated entry system is
activated even if the light is
turned off when the personal/
interior light main switch is in door
position.
Interior light
Door position
On
The interior lights are turned on/
off by the illuminated entry sys-
tem. When the personal/interior
light main switch is in the “OFF”
position, the lights will not turn on
even if the door is opened with
the interior light switch in door
position.
ITO34P111
Personal/interior lights and interior light

366 3-4. Using the interior lights
PRIUS_U (OM47668U) U.S.A.
■To prevent 12 volt battery discharge
If the interior lights and personal lights on when the door is not fully closed or
the interior light switch in door position, the lights will go off automatically
after 20 minutes.
■ Customization that can be co nfigured at Toyota dealer
Setting (e.g. The time elapsed before lights turn off) can be changed. 
(Customizable features P. 587)

367
3
Interior features
PRIUS_U (OM47668U) U.S.A.

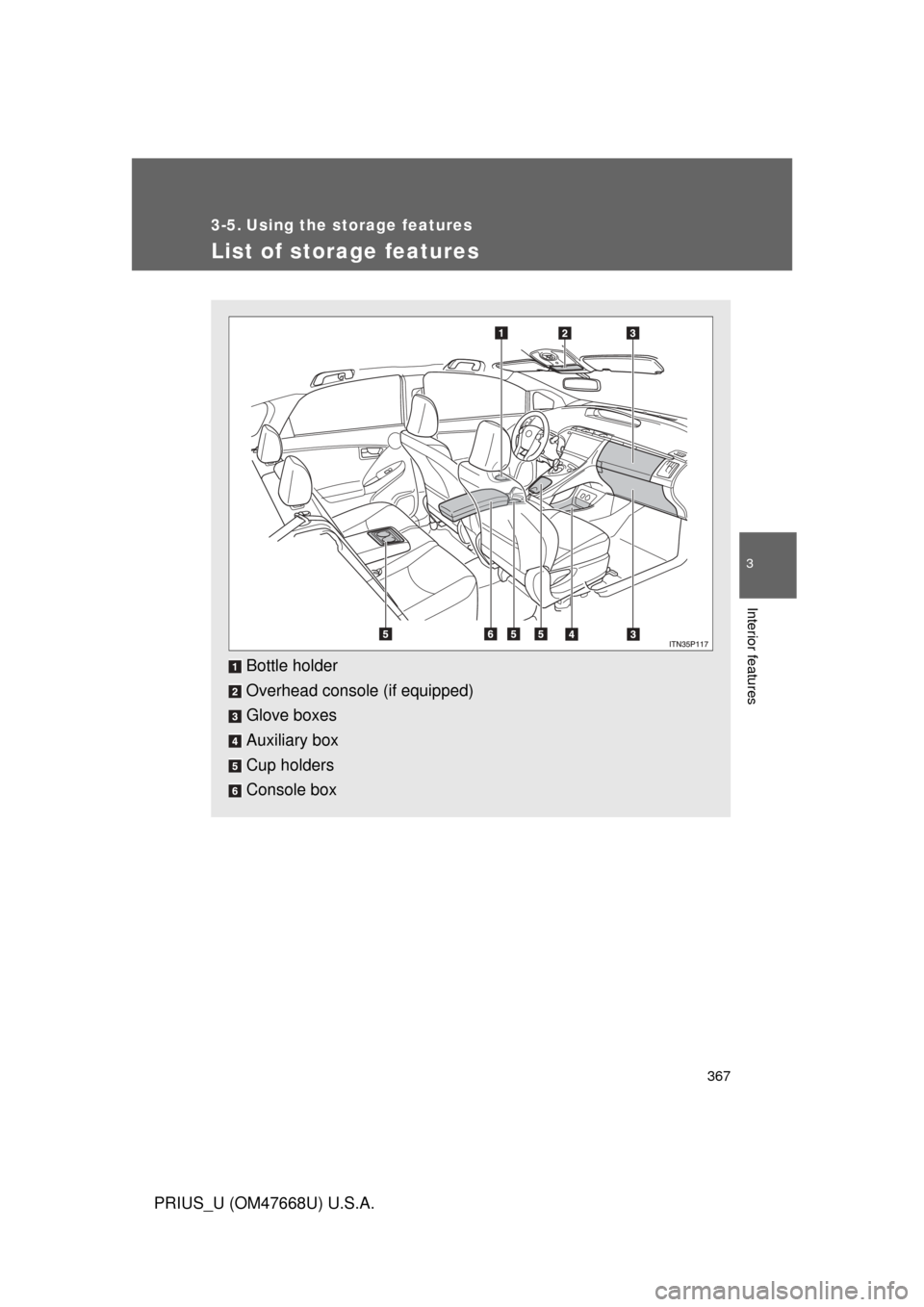

3-5. Using the storage features
List of storage features
Bottle holder
Overhead console (if equipped)
Glove boxes
Auxiliary box
Cup holders
Console box

368 3-5. Using the storage features
PRIUS_U (OM47668U) U.S.A.
Glove boxesUpper glove box Push the button.
Lower glove box Push the button.
ITO35P103
ITO35P101
■Glove box light (lower glove box only)
The glove box light turns on when the tail lights are on.
CAUTION
■While driving
Keep the glove box closed. 
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
Glove boxes

369
3-5. Using the
storage features
3
Interior features
PRIUS_U (OM47668U) U.S.A.
Console box
Type A Pull up the lever to release the
lock.
Slide the console box lid fully
rearward.
Lift the console box lid to
open.
Type B Lift the lid while pulling the lever.
ITO35P105
■Tray in the console box (type A only)
The tray can be raise backward.
ITO35P119
Console box

370 3-5. Using the storage features
PRIUS_U (OM47668U) U.S.A.
Overhead console (vehicles without the moon roof)Push the lid.
The overhead console is useful
for temporarily storing small
items.
CAUTION
■While driving
Keep the console box closed. 
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
ITO35P108
CAUTION
■ Items that should not be le ft in the overhead console
Do not leave glasses or lighters in the console. 
If the interior of the vehicle becomes hot, lighters may explode and glasses
may warp or become cracked.
■ While driving
Do not leave the overhead console open. 
Items may fall out and cause injury.
■ Maximum storage weight
Do not place any object heavier than 0.4 lb. (200 g) in it. The console may
be opened and cause injury.
Console box and overhead console
