TOYOTA PRIUS 2012 3.G Owners Manual

371
3-5. Other interior features
3
Interior features
Armrest
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
: If equipped
Pull the armrest down for use.
ITO36P111

372
3-5. Other interior features

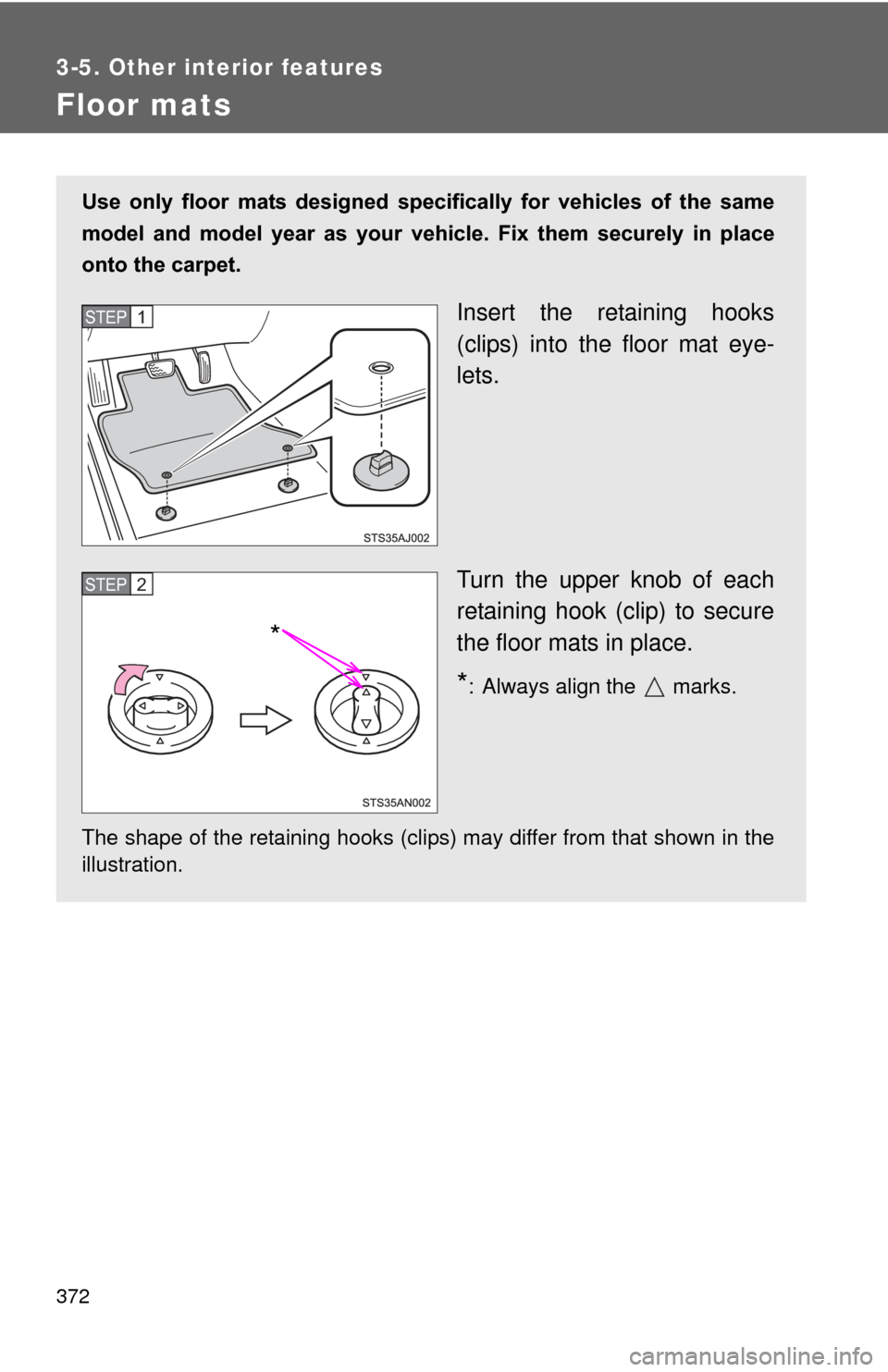

Floor mats
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
STEP 1
STEP 2
*

373
3-5. Other interior features
3
Interior features
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■
When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the hybrid system stopped and the
shift position in P, fully depress each
pedal to the floor to make sure it does
not interfere with the floor mat.

374
3-5. Other interior features

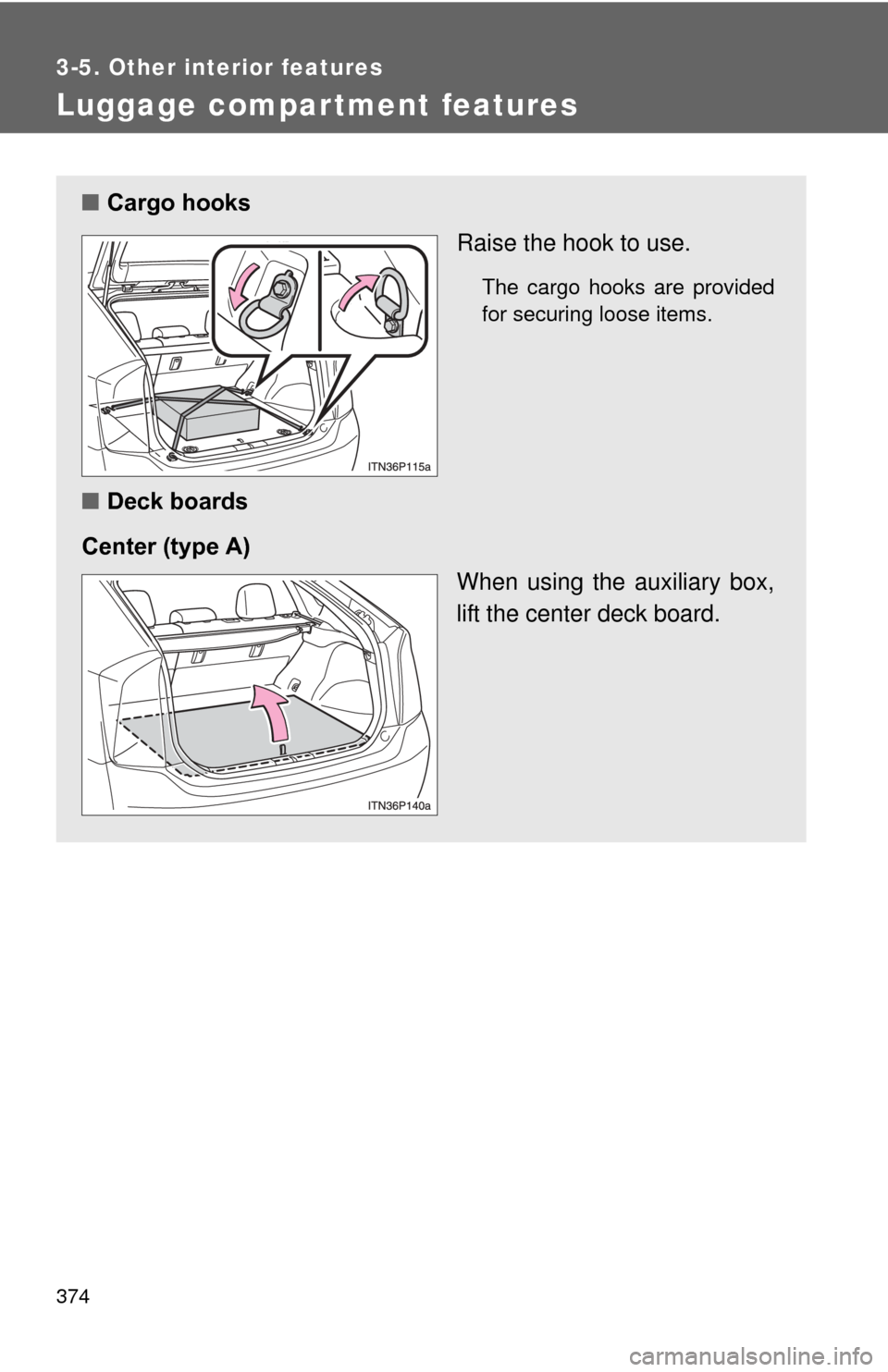

Luggage compartment features
■Cargo hooks
Raise the hook to use.
The cargo hooks are provided
for securing loose items.
■Deck boards
Center (type A) When using the auxiliary box,
lift the center deck board.

375
3-5. Other interior features
3
Interior features

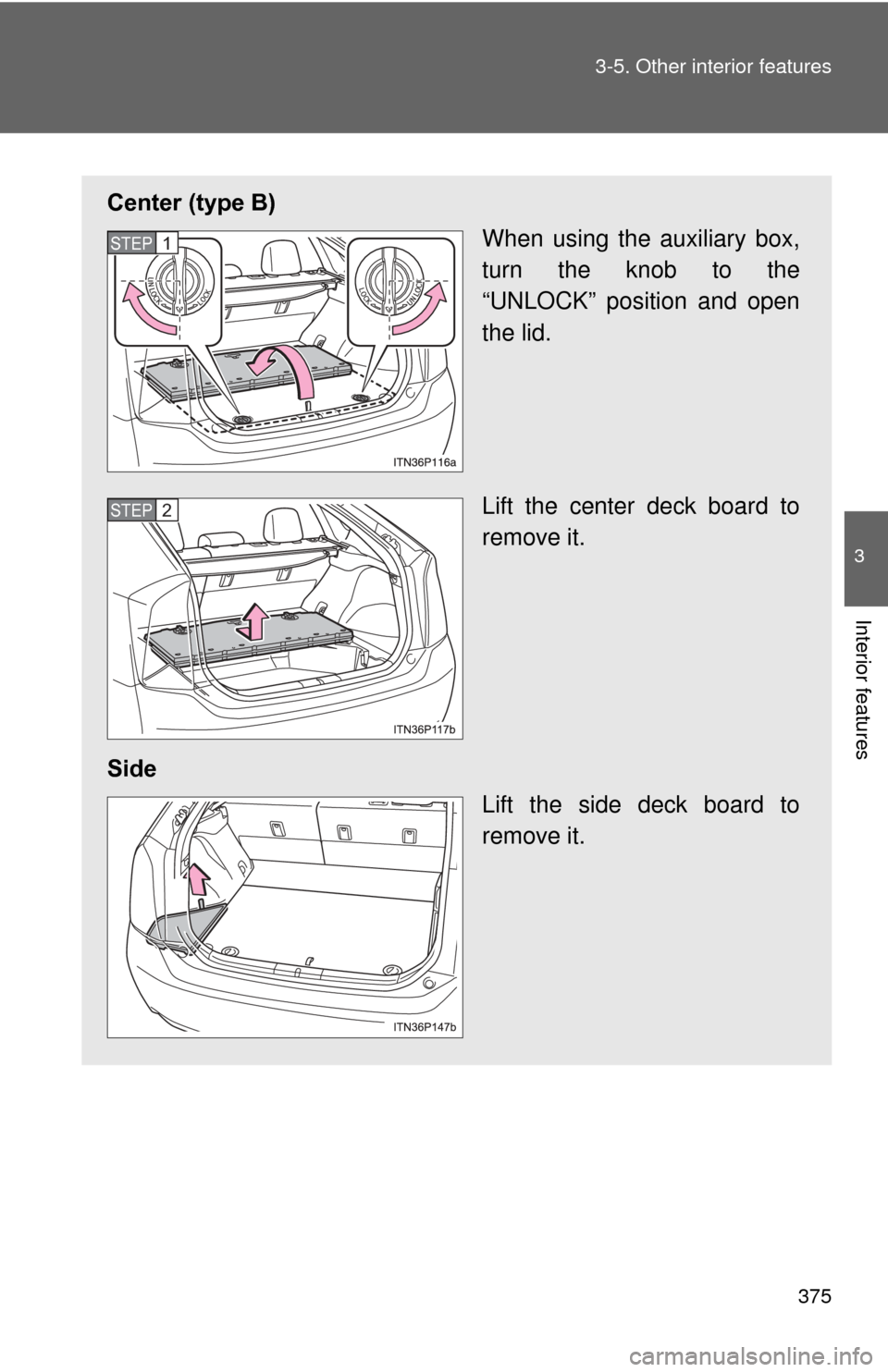

Center (type B)
When using the auxiliary box,
turn the knob to the
“UNLOCK” position and open
the lid.
Lift the center deck board to
remove it.
Side Lift the side deck board to
remove it.
STEP 1
STEP 2

376 3-5. Other interior features

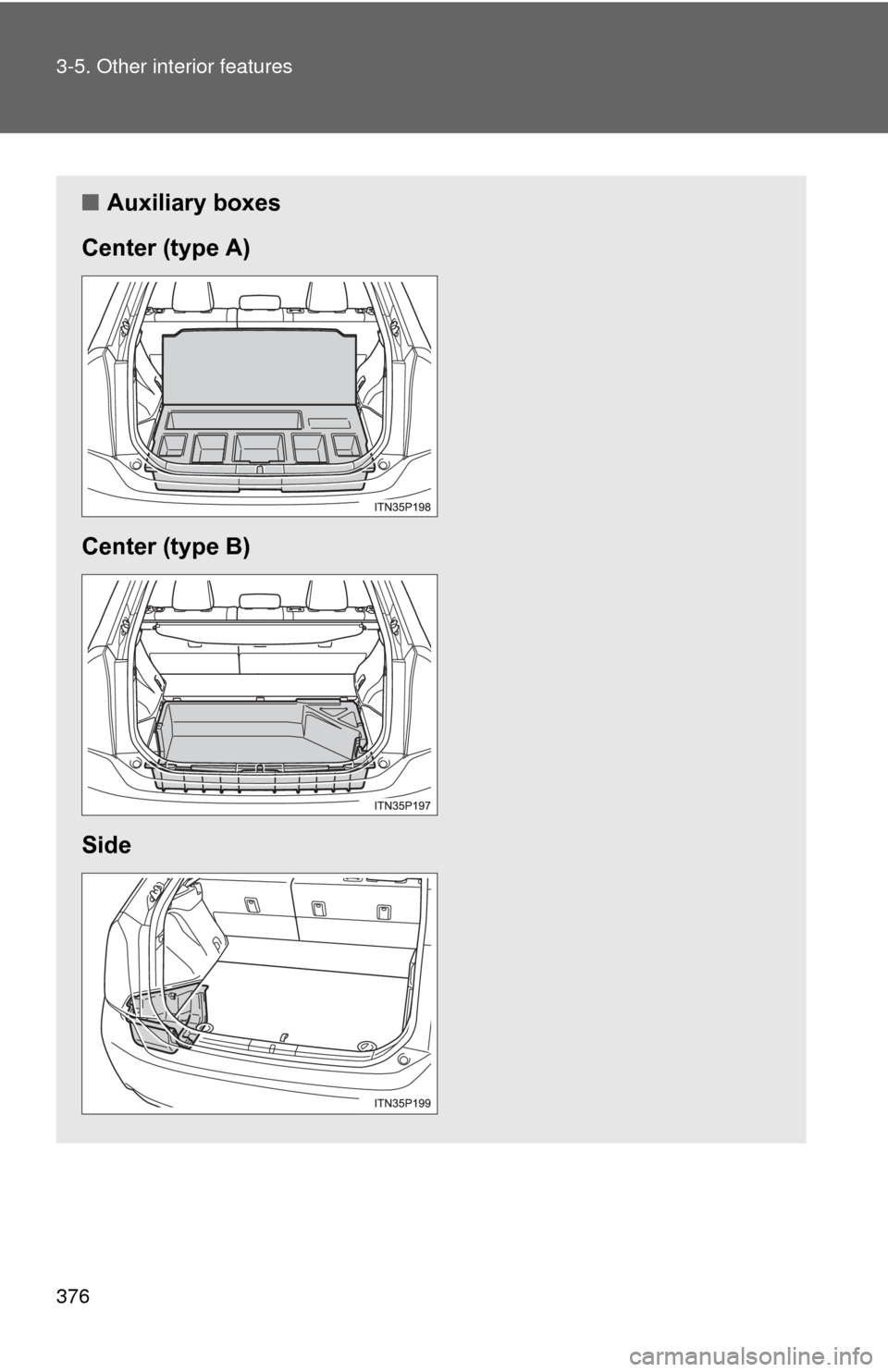

■Auxiliary boxes
Center (type A)
Center (type B)
Side

377
3-5. Other interior features
3
Interior features
Removing the luggage cover
Lift it up.
■Luggage cover (if equipped)
Pull out the luggage cover and
secure it to the hook brackets.

378 3-5. Other interior features
Stowing the luggage cover (vehicles with center auxiliary box
type B only)
Remove the side deck board and
open the center deck board.
Adjust the cover so that “TOP” is
facing up.
Replace the side deck board an d the center deck board.
STEP 1
STEP 2
STEP 3

379
3-5. Other interior features
3
Interior features
CAUTION
■
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
■ Caution while driving
Keep the lid of each storage spaces closed while driving. In the event of sud-
den braking or sudden swerving, an accident may occur due to an occupant
being struck by an open auxiliary box or the items stored inside.
■ Caution for the luggage cover
●Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
● Make sure that the rear edge of the cover is laying flat. If the cover is
installed with the rear edge raised, the view from the rear window may be
obstructed, which could cause an accident.
● Make sure that seat belts are not caught up in the luggage cover. If a seat
belt is caught up in the cover, it may not be able to restrain passengers
properly.

380
3-5. Other interior features
Garage door opener
The garage door opener (HomeLink® Universal Transceiver) is manufac-
tured under license from HomeLink®.
Programming the HomeLink® (for U.S.A. owners)
The HomeLink
® compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Buttons
Indicator light
: If equipped
The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, hom e lighting systems, secu-
rity systems, and other devices.
