TOYOTA PRIUS 2018 Accessories, Audio & Navigation (in English)

201
1. BASIC OPERATION
PRIUS_Wide Navi_OM47C03U_(U)
17.08.29 10:11
NAVIGATION SYSTEM
7
1Display the “Map Information” screen.
(→P.197)
2Select “Route Trace” .
The “Route Trace” indicator illuminates
and the route trace starts.
3Check that the traveled line is dis-
played.
■STOP RECORDING THE ROUTE
TRACE
1Select “Route Trace” again.
2A confirmation screen will be dis-
played.
“Yes”: Select to keep the recorded
route trace.
“No” : Select to erase the recorded
route trace.
ROUTE TRACE
The traveled route can be stored and
retraced on the map screen. This fea-
ture is available when the map scale is
30 miles (50 km) or less.
INFORMATION
● The traveled route can be stored up to
124 miles (200 km).

202
1. BASIC OPERATION
PRIUS_Wide Navi_OM47C03U_(U)
17.08.29 10:11
1Place the cursor over an icon.
2Select “Info”.
 POI information 
Memory point information
 Destination information
DISPLAYING INFORMATION
ABOUT THE ICON WHERE
THE CURSOR IS SET
When the cursor is placed over an icon
on the map screen, the name bar is
displayed on the upper part of the
screen. If “Info” appears on the right
side of the name bar, detailed informa-
tion can be displayed.
No.Function
Select to register as a memory point.
To change the icon, name, etc.:
→P.239
Select to set as a destination.
Select to call the registered number.
Select to delete destination or mem-
ory point.
Select to display the edit memory
point screen.
INFORMATION
● Even when traffic information is not cur-
rently being received, traffic information
and “Info” will be displayed for a while
after traffic information has been
received.

203
1. BASIC OPERATION
PRIUS_Wide Navi_OM47C03U_(U)
17.08.29 10:11
NAVIGATION SYSTEM
7

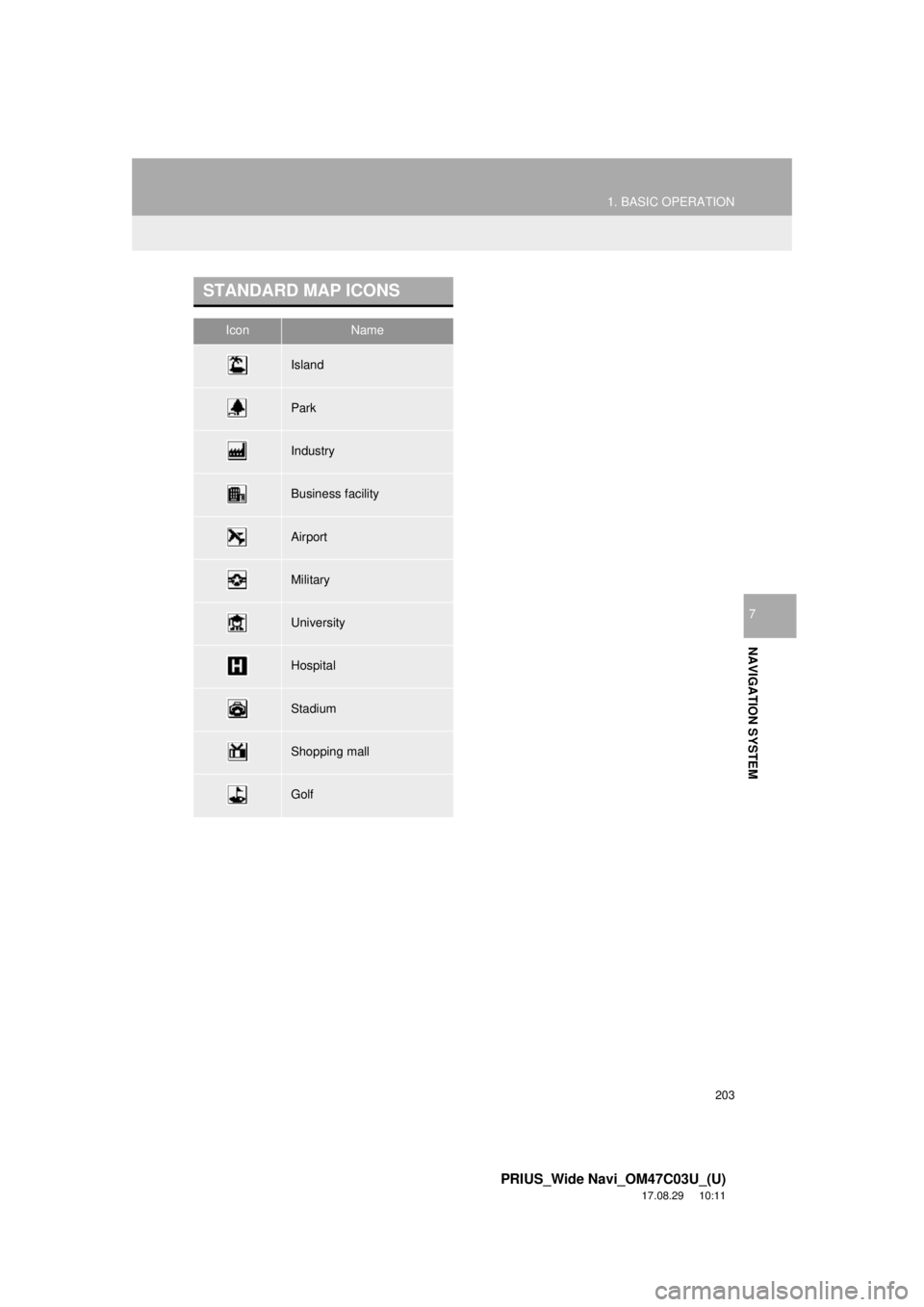

STANDARD MAP ICONS
IconName
Island
Park
Industry
Business facility
Airport
Military
University
Hospital
Stadium
Shopping mall
Golf

204
1. BASIC OPERATION
PRIUS_Wide Navi_OM47C03U_(U)
17.08.29 10:11
4. TRAFFIC INFORMATION
1Press the “MENU” button.
2Select “Info”.
3Select “Traffic Information” .
4Select the desired item.
1Display the “Traffic Information”
screen. (→P.204)
2Select “Traffic Event List”.
3Select the desired traffic information.
“On Current Road” : Select to display traf-
fic information for the current road.
“On Current Route” : Select to display
traffic information for the set route.
When set to on, the indicator will illumi-
nate.
4Check that the traffic information is dis-
played.
“Detail” : Select to display detailed traffic
information.
Traffic data can be received via HD or
Entune App Suite to display traffic in-
formation on the map screen.
No.FunctionPage
Select to display a list of
current traffic information.204
Select to display a map
with predictive traffic data.205
Select to display traffic
along the saved routes.205
DISPLAYING TRAFFIC
INFORMATION
A list of current traffic information can
be displayed along with information on
the incident’s distance and position rel-
ative to the vehicle.

205
1. BASIC OPERATION
PRIUS_Wide Navi_OM47C03U_(U)
17.08.29 10:11
NAVIGATION SYSTEM
7
1Display the “Traffic Information”
screen. (→P.204)
2Select “Predictive Traffic Map” .
3Scroll the map to the desired point and
set the time of predictive traffic infor-
mation.
 The time of the predictive traffic informa-
tion can be displayed in 15-minute steps
up to +45 minutes.
“”: Moves the time forward 15 minutes.
“”: Moves the time back 15 minutes.
1Display the “Traffic Information”
screen. ( →P.204)
2Select “My Traffic Routes” .
If map data has been updated, a confirma-
tion screen will be displayed. Select “OK”
or “Do Not Tell Me Again” .
3Select the desired route.
“Options” : Select to add, edit or delete
personal routes. (→P.251)
 If routes have not been registered yet, a
confirmation screen will be displayed.
Select “Yes” to register the route.
4Select the desired traffic information.
DISPLAYING PREDICTIVE
TRAFFIC INFORMATION
A map with predictive traffic data can
be displayed.MY TRAFFIC ROUTES
Traffic information along the saved
routes can be displayed. To use this
function, it is necessary to register a
route. ( →P.252)

206
1. BASIC OPERATION
PRIUS_Wide Navi_OM47C03U_(U)
17.08.29 10:11
5Check that the traffic information is dis-
played.
“Detail” : Select to displa y detailed traffic
information.
1Select “Options” on the map screen.
2Select “Map Information” .
3Select “Traffic Information” .
When set to on, the indicator will illumi-
nate.
4Check that the traffic information is dis-
played.
DISPLAYING TRAFFIC
INFORMATION ON THE MAP
No.Information/Function
The icons show traffic incident, road
repair, traffic obstacles, etc. Select to
display traffic information and start
voice guidance for the traffic informa-
tion.
The color of the arrow changes de-
pending on the traffic information re-
ceived.
The indicator is displayed as follows.
: Traffic information has
been received.
: Traffic information has
been received via HD.
No icon: Traffic information has not
been received.
INFORMATION
● Traffic information may take some time
to load after the system is turned on.

207
PRIUS_Wide Navi_OM47C03U_(U)
17.08.29 10:11
NAVIGATION SYSTEM
7
2. DESTINATION SEARCH
1. DESTINATION SEARCH SCREEN
The “Destination” screen enables to search for a destination. To display the “Des-
tination” screen, press the “MENU” button, and select “Destination” on the
“Menu” screen.

208
2. DESTINATION SEARCH
PRIUS_Wide Navi_OM47C03U_(U)
17.08.29 10:11

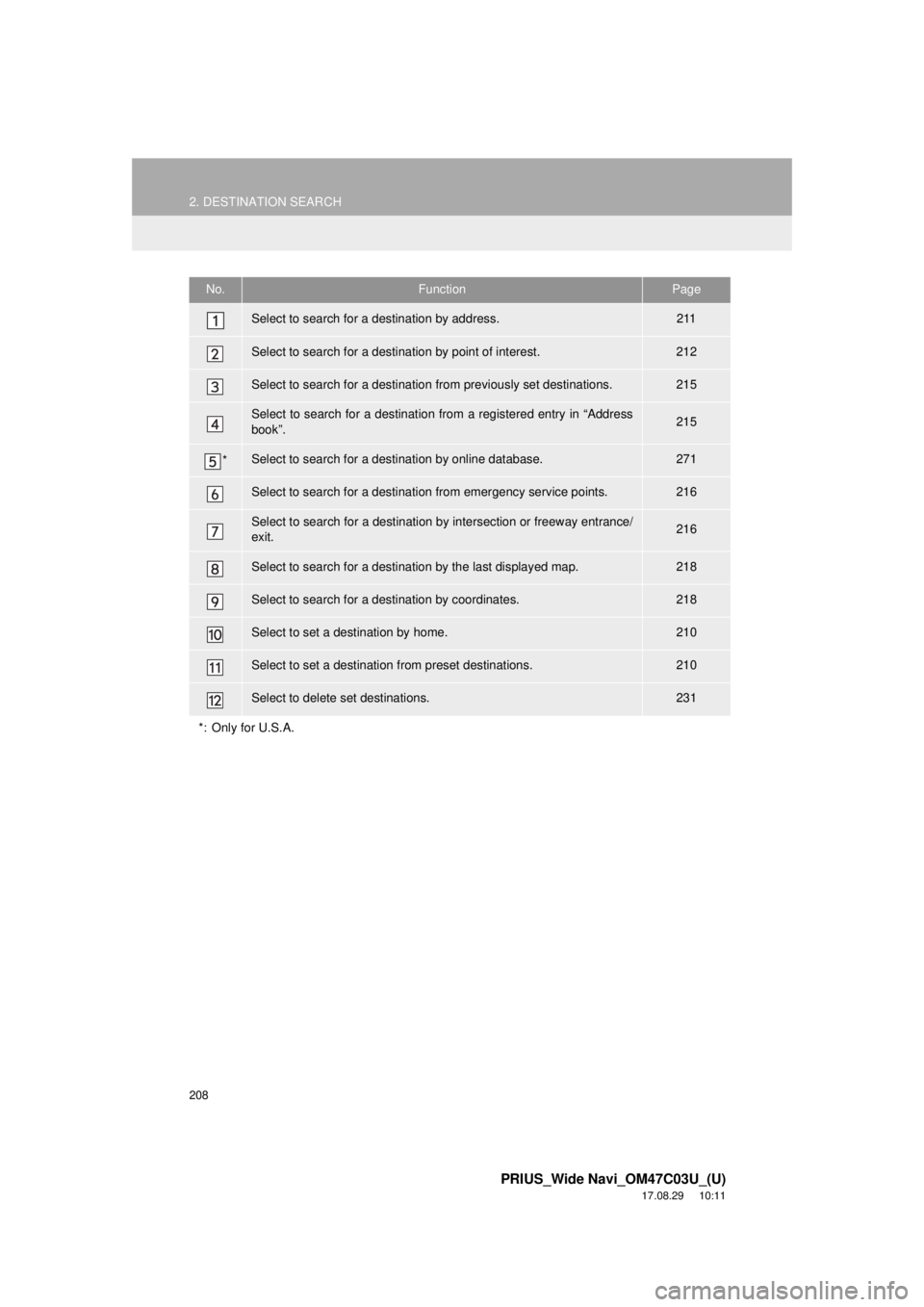

No.FunctionPage
Select to search for a destination by address. 211
Select to search for a destination by point of interest. 212
Select to search for a destination from previously set destinations.215
Select to search for a destination from a registered entry in “Address
book”.215
*Select to search for a destination by online database.271
Select to search for a destination from emergency service points.216
Select to search for a destination by intersection or freeway entrance/
exit.216
Select to search for a destination by the last displayed map.218
Select to search for a destination by coordinates.218
Select to set a destination by home.210
Select to set a destination from preset destinations.210
Select to delete set destinations.231
*: Only for U.S.A.

209
2. DESTINATION SEARCH
PRIUS_Wide Navi_OM47C03U_(U)
17.08.29 10:11
NAVIGATION SYSTEM
7
2. SEARCH OPERATION
1Press the “MENU” button.
2Select “Destination”.
3Search for a destination.
There are different kinds of methods to
search for a destination. ( →P.207)
4Select “Go” when the confirm destina-
tion screen is displayed.
No.Function
Select to adjust the position in small-
er increments. ( →P.196)
Select to register as a memory point.
Select to call the registered number.
Select to search for the route.
(→ P.219)
If a destination has already been
set, “Go Directly” and “Add to
Route” will be displayed.
“Go Directly” : Select to delete the
existing destination(s) and set a new
one.
“Add to Route” : Select to add a
destination.

210
2. DESTINATION SEARCH
PRIUS_Wide Navi_OM47C03U_(U)
17.08.29 10:11
1Display the “Destination” screen.
(→P.209)
2Select “Address” , “Point of Interest”
or “Intersection & Freeway” .
3Select “Select State/Province” or
“Change State/Province” .
If a state (province) has not been selected
yet, “Select State/Province” is dis-
played.
4Select the desired state (province).
 To change countries, select the “United
States” , “Canada” or “Mexico” tab.
 For map database information and
updates: →P. 2 5 9
1Display the “Destination” screen.
(→ P.209)
2Select “Go Home” .
The navigation system performs a search
for the route and the entire route map is
displayed. ( →P.219)
1Display the “Destination” screen.
(→ P.209)
2Select any of the preset destination
buttons ( 1-5).
The navigation system performs a search
for the route and the entire route map is
displayed. ( →P.219)
SELECTING SEARCH AREA
The selected state (province) can be
changed to set a destination from a
different state (province) by using
“Address”, “Point of Interest” or
“Intersection & Freeway” .
SETTING HOME AS
DESTINATION
To use this function, it is necessary to
register a home address. (→P.236)
SETTING PRESET
DESTINATIONS AS
DESTINATION
To use this function, it is necessary to
register preset destinations to the
preset screen buttons (1-5). ( →P.237)
