TOYOTA PRIUS 2023 Owners Manual

1092. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)

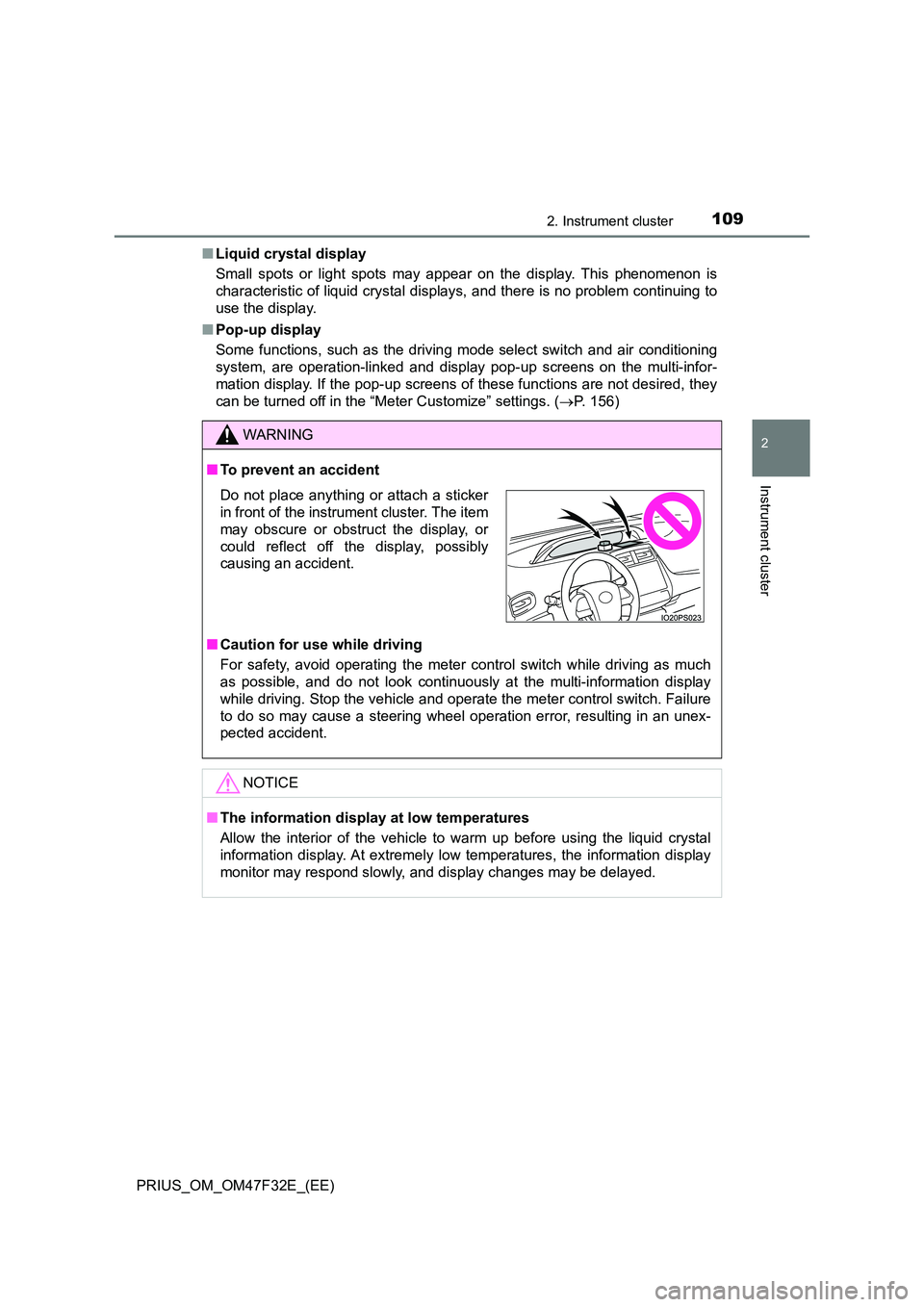

■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ Pop-up display
Some functions, such as the driving mode select switch and air conditioning
system, are operation-linked and display pop-up screens on the multi-infor-
mation display. If the pop-up screens of these functions are not desired, they
can be turned off in the “Meter Customize” settings. ( P. 156)
WARNING
■To prevent an accident
■ Caution for use while driving
For safety, avoid operating the meter control switch while driving as much
as possible, and do not look continuously at the multi-information display
while driving. Stop the vehicle and operate the meter control switch. Failure
to do so may cause a steering wheel operation error, resulting in an unex-
pected accident.
NOTICE
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
Do not place anything or attach a sticker
in front of the instrument cluster. The item
may obscure or obstruct the display, or
could reflect off the display, possibly
causing an accident.

1102. Instrument cluster
PRIUS_OM_OM47F32E_(EE)

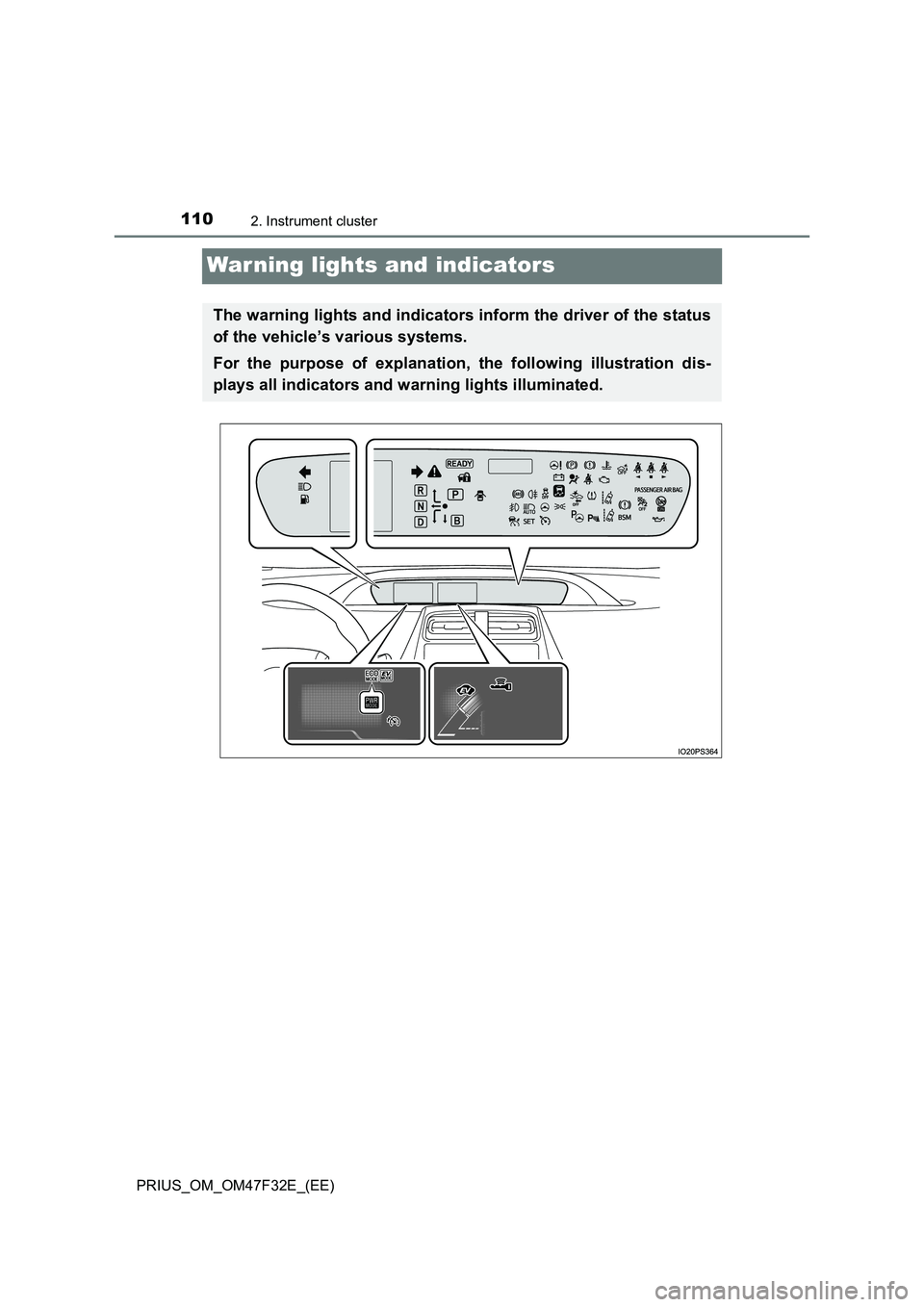

War ning lights and indicators
The warning lights and indicators inform the driver of the status
of the vehicle’s various systems.
For the purpose of explanation, the following illustration dis-
plays all indicators and warning lights illuminated.

1112. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)
Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
Warning lightsPages
*1Brake system warning light (Red) P. 580
*1Brake system warning light (Yellow) P. 580
*1Charging system warning light P. 580
*1Low engine oil pressure warning light P. 581
*1Malfunction indicator lamp P. 581
*1SRS warning light P. 581
*1ABS warning light P. 581
*1Electric power steering system warning light
(Red/yellow) P. 581
*1, 2PCS warning light (if equipped) P. 582
LTA indicator (Orange) (if equipped) P. 582
*1Slip indicator light P. 582
*1High coolant temperature warning light P. 583
*1, 3PKSB OFF indicator (if equipped) P. 583
Open door warning light P. 583

1122. Instrument cluster
PRIUS_OM_OM47F32E_(EE)

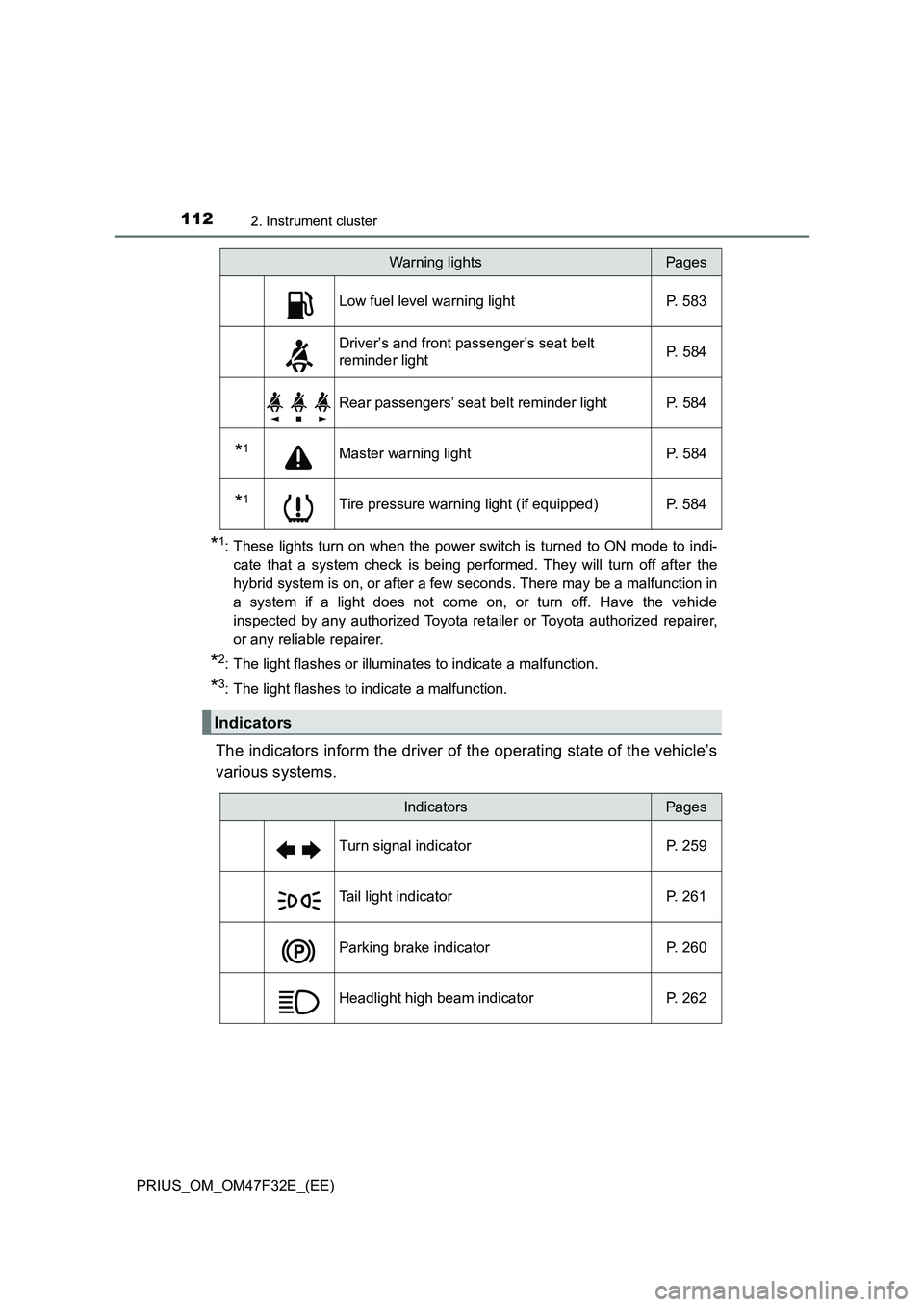

*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the vehicle
inspected by any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
*2: The light flashes or illuminates to indicate a malfunction.
*3: The light flashes to indicate a malfunction.
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Low fuel level warning light P. 583
Driver’s and front passenger’s seat belt
reminder lightP. 584
Rear passengers’ seat belt reminder light P. 584
*1Master warning light P. 584
*1Tire pressure warning light (if equipped) P. 584
Indicators
Warning lightsPages
IndicatorsPages
Turn signal indicator P. 259
Tail light indicator P. 261
Parking brake indicator P. 260
Headlight high beam indicator P. 262

1132. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)

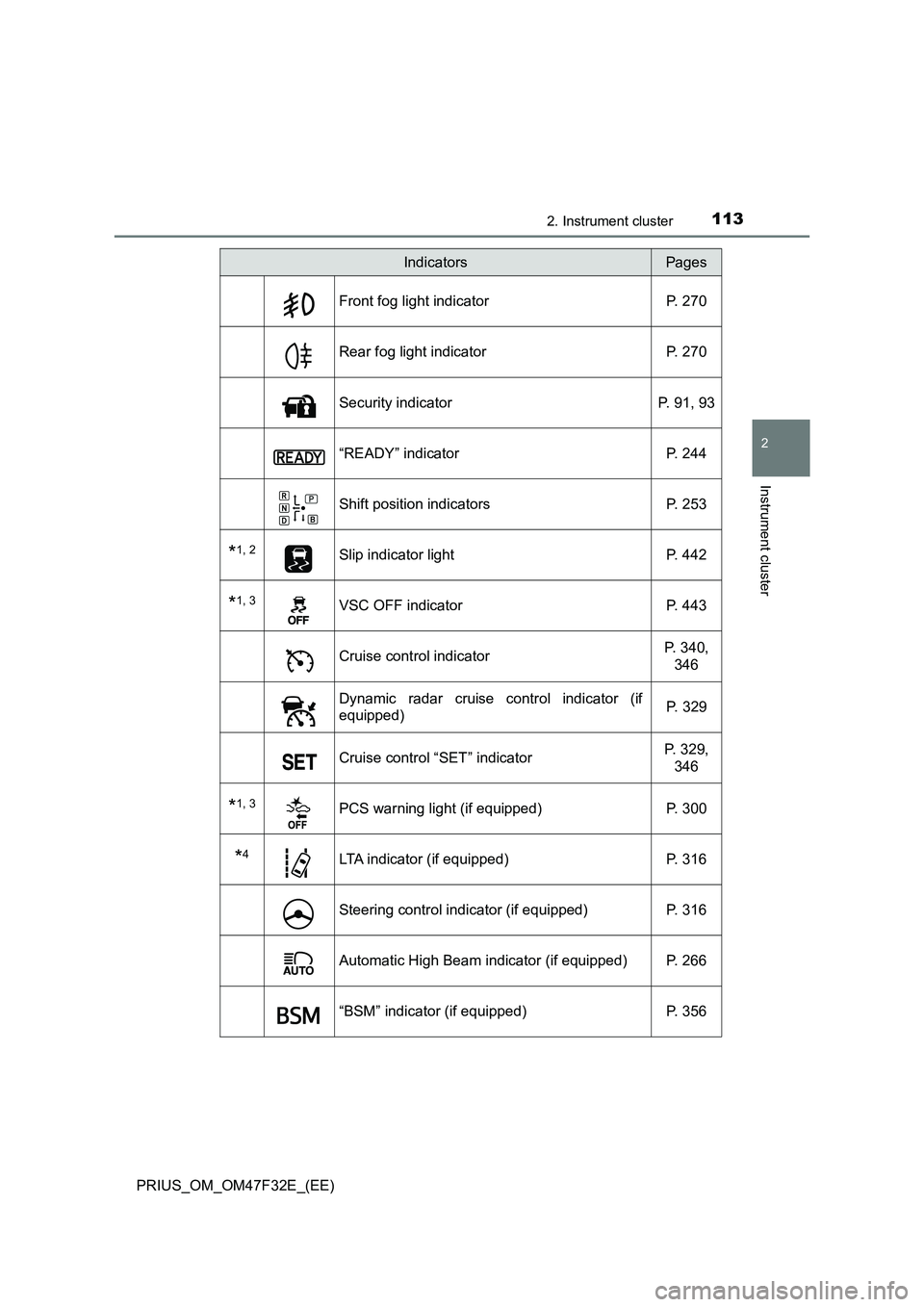

Front fog light indicator P. 270
Rear fog light indicator P. 270
Security indicator P. 91, 93
“READY” indicator P. 244
Shift position indicators P. 253
*1, 2Slip indicator light P. 442
*1, 3VSC OFF indicator P. 443
Cruise control indicator P. 340,
346
Dynamic radar cruise control indicator (if
equipped) P. 329
Cruise control “SET” indicatorP. 329,
346
*1, 3PCS warning light (if equipped) P. 300
*4LTA indicator (if equipped) P. 316
Steering control indicator (if equipped) P. 316
Automatic High Beam i ndicator (if equipped) P. 266
“BSM” indicator (if equipped) P. 356
IndicatorsPages

1142. Instrument cluster
PRIUS_OM_OM47F32E_(EE)
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the vehicle
inspected by any authorized Toyota re tailer or Toyota authorized repairer,
or any reliable repairer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off.
*4: Depending on the operating condition, the color and illuminating/flashing
state of the light change.
■Main display and multi-information display
*: The displayed indicator changes according to the current driving mode.
Toyota parking assist-sensor indicator
(if equipped) P. 381
*1, 3PKSB OFF indicator (if equipped) P. 396
*1S-IPA indicator (if equipped) P. 409
*1“PASSENGER AIR BAG” indicator P. 51
Indicators and symbols displayed on the display
IndicatorsPages
IndicatorsPages
EV drive mode indicator P. 250
*“ECO MODE” indicator P. 351
*“PWR MODE” indicator P. 351
EV Indicator P. 133
Speed limiter indicator (if equipped) P. 353

1152. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)■

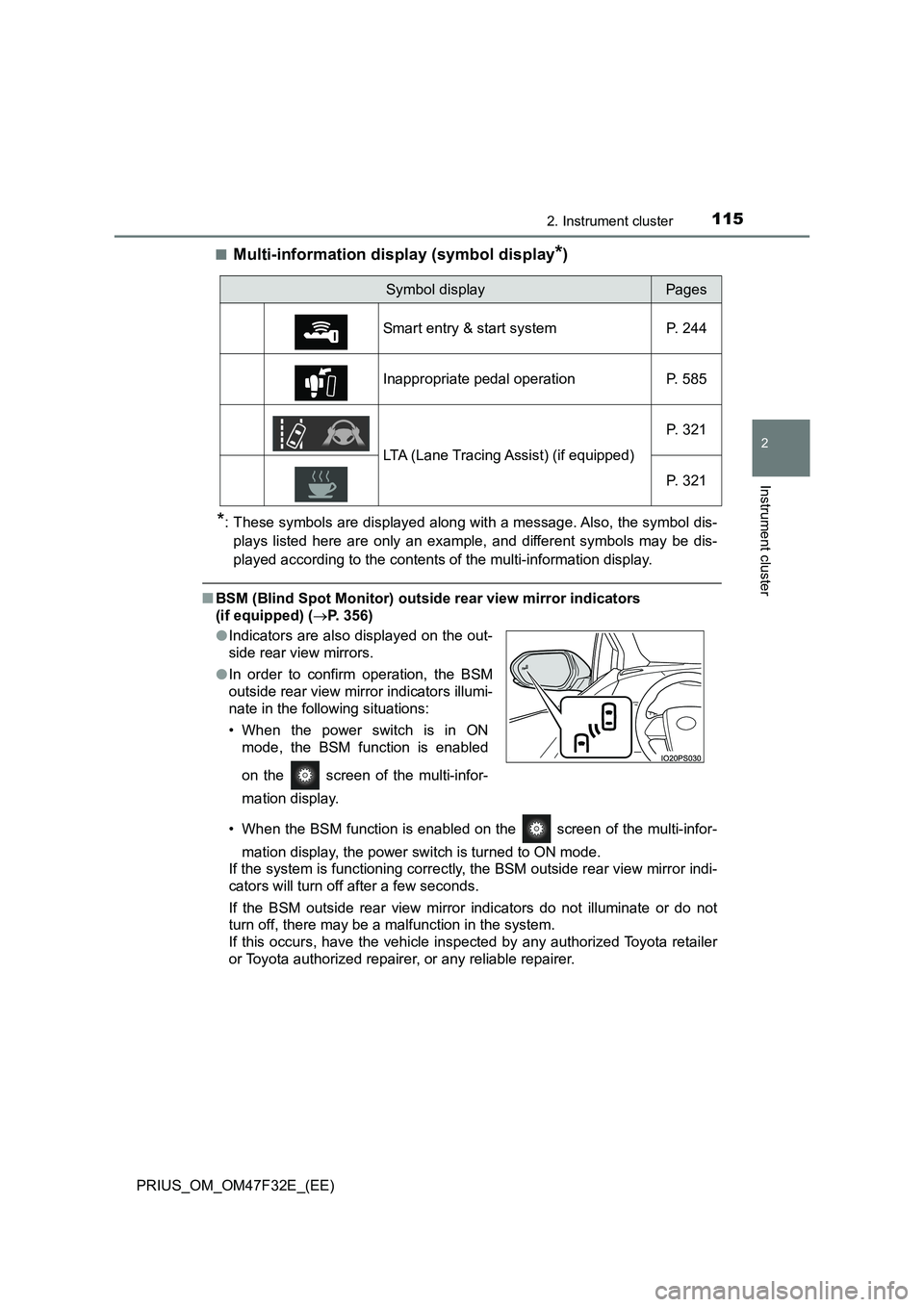

Multi-information display (symbol display*)
*: These symbols are displayed along with a message. Also, the symbol dis-
plays listed here are only an example, and different symbols may be dis-
played according to the contents of the multi-information display.
■BSM (Blind Spot Monitor) outside rear view mirror indicators
(if equipped) (P. 356)
• When the BSM function is enabled on the screen of the multi-infor-
mation display, the power switch is turned to ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
Symbol displayPages
Smart entry & start system P. 244
Inappropriate pedal operation P. 585
LTA (Lane Tracing Assist) (if equipped)P. 321
P. 321
●Indicators are also displayed on the out-
side rear view mirrors.
●In order to confirm operation, the BSM
outside rear view mirror indicators illumi-
nate in the following situations:
• When the power switch is in ON
mode, the BSM function is enabled
on the screen of the multi-infor-
mation display.

1162. Instrument cluster
PRIUS_OM_OM47F32E_(EE)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer imme-
diately if this occurs.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the high coolant temperature warning
light comes on or flashes. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. ( P. 645)

117
2
2. Instrument cluster
Instrument cluster
PRIUS_OM_OM47F32E_(EE)

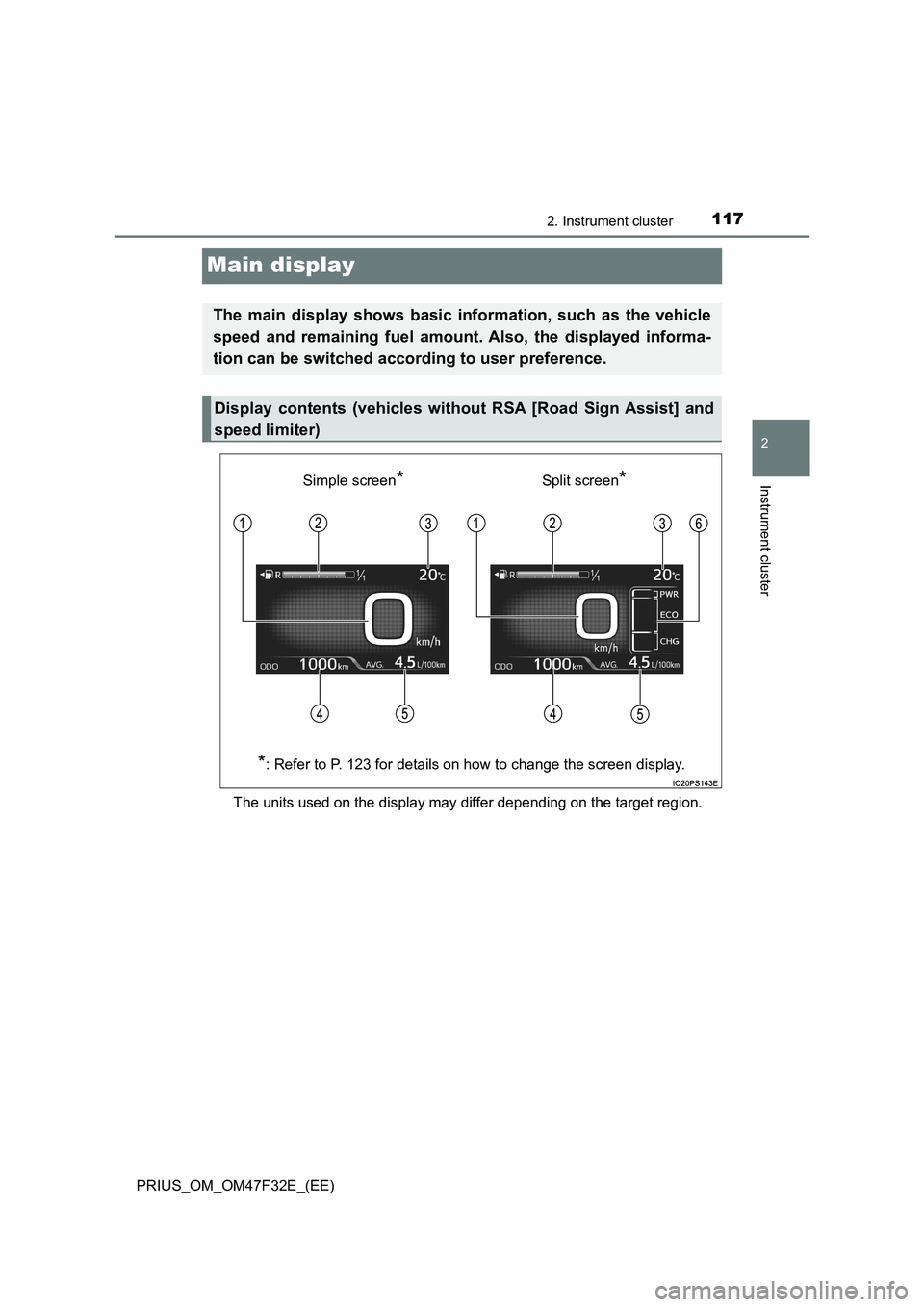

Main display
The units used on the display may differ depending on the target region.
The main display shows basic information, such as the vehicle
speed and remaining fuel amount. Also, the displayed informa-
tion can be switched according to user preference.
Display contents (vehicles without RSA [Road Sign Assist] and
speed limiter)
Simple screen*Split screen*
*
: Refer to P. 123 for details on how to change the screen display.

1182. Instrument cluster
PRIUS_OM_OM47F32E_(EE)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F).
The temperature display flashes for approximately 10 seconds when the
outside temperature drops to approximately 3C (37F) or less, and then
stops flashing.
Mileage display (odometer/trip meters/driving range)
The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. (P. 121)
Average fuel consumption display
The average fuel consumption that is linked with the contents of the mile-
age display can be displayed. (P. 121)
Sub-screen
When split screen is selected for the main display, information such as the
Hybrid System Indicator and current fuel consumption can be displayed.
(P. 123)
1
2
3
4
5
6
