TOYOTA PRIUS 2023 Owners Manual

1192. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)The units used on the display may differ depending on the target region.

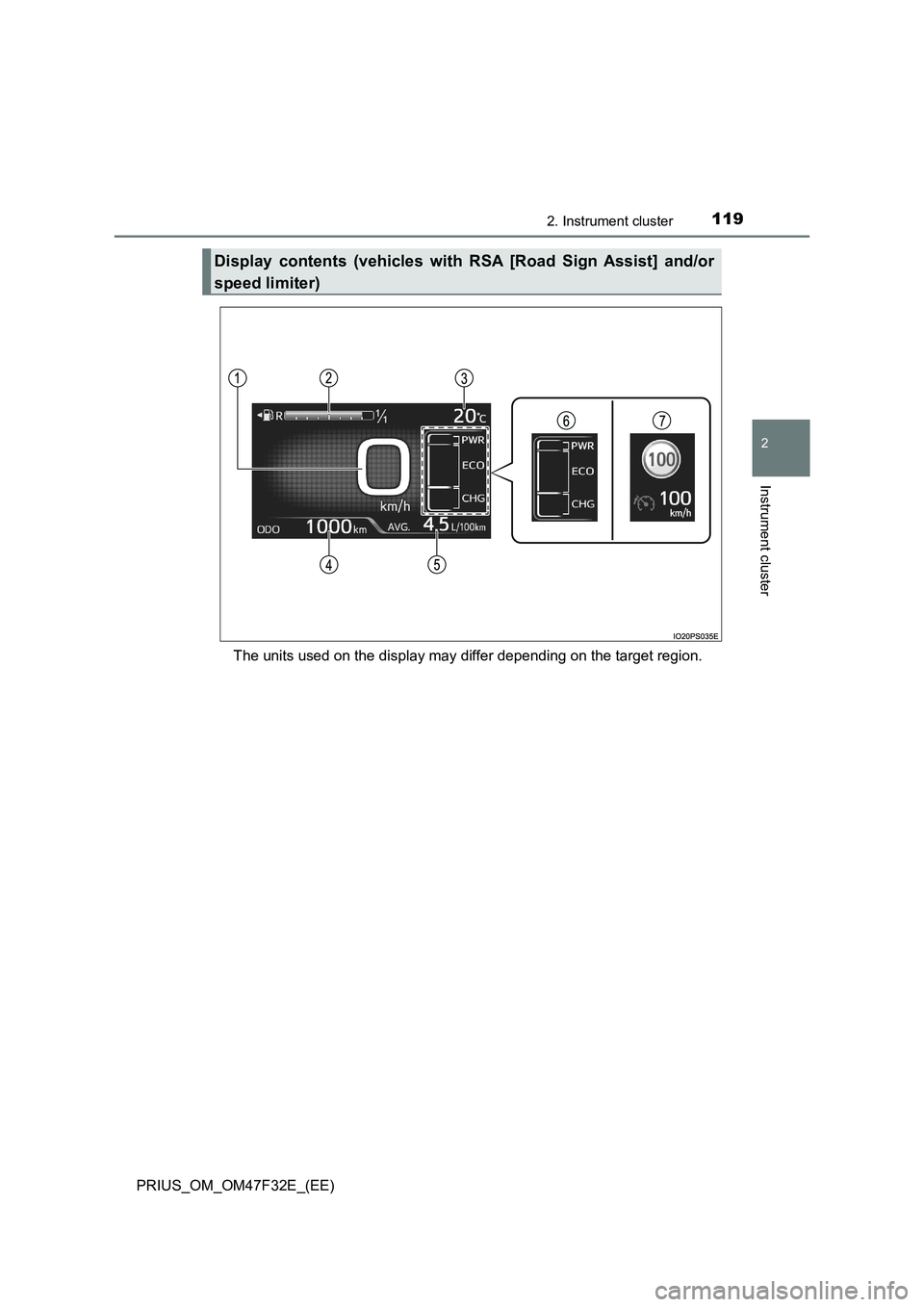

Display contents (vehicles with RSA [Road Sign Assist] and/or
speed limiter)

1202. Instrument cluster
PRIUS_OM_OM47F32E_(EE)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F).
The temperature display flashes for approximately 10 seconds when the
outside temperature drops to approximately 3°C (37°F) or less, and then
stops flashing.
Mileage display (odometer/trip meters/driving range)
The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. (P. 121)
Average fuel consumption display
The average fuel consumption that is linked with the contents of the mile-
age display can be displayed. (P. 121)
Sub-screen (when RSA [Road Sign Assist] and speed limiter are
off)
Information such as the Hybrid System Indicator and current fuel con-
sumption can be displayed. (P. 124)
Sub-screen (when RSA [Road Sign Assist] and/or speed limiter is
on)
Displays information related to RSA (Road Sign Assist)* or speed limiter.
(P. 323, 353)
*: When RSA (Road Sign Assist) information is displayed in the screen
of the multi-information display (P. 152), RSA (Road Sign Assist) infor-
mation is not displayed on the sub-screen.
1
2
3
4
5
6
7

1212. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)
Each time is pressed, the mileage display and fuel consumption
display change in the following order from 1 to 6.
Mileage display
Average fuel consumption dis-
play
After 1 to 6 are displayed, the dis-
plays return to 1.
Use the displayed average fuel
consumption as a reference.
Switching the mileage display and average fuel consumption
display
1
2

1222. Instrument cluster
PRIUS_OM_OM47F32E_(EE)
*1: If is pressed and held while this item is displayed, the information is
reset.
*2: This item is reset each time the hybrid system starts.
Mileage display Average fuel consumption display
1ODO (Odometer)
Total mileage
Average fuel consumption since
last reset
Average fuel consumption since
last reset
*1
2TRIP A (Trip meter A)
Mileage since last reset
*1
TRIP A average fuel consumption
Average fuel consumption since
TRIP A was reset
*1
3TRIP B (Trip meter B)
Mileage since last reset
*1
TRIP B average fuel consumption
Average fuel consumption since
TRIP B was reset
*1
4
(Mileage since hybrid sys-
tem was started)
Mileage since hybrid system
started
*2
Average fuel consumption after
hybrid system started
Average fuel consumption since
hybrid system was started
*2
5
(Distance to empty)
Approximate distance vehicle
can travel based on current
remaining fuel amount
Blank screen
6Blank screenBlank screen
12

1232. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)

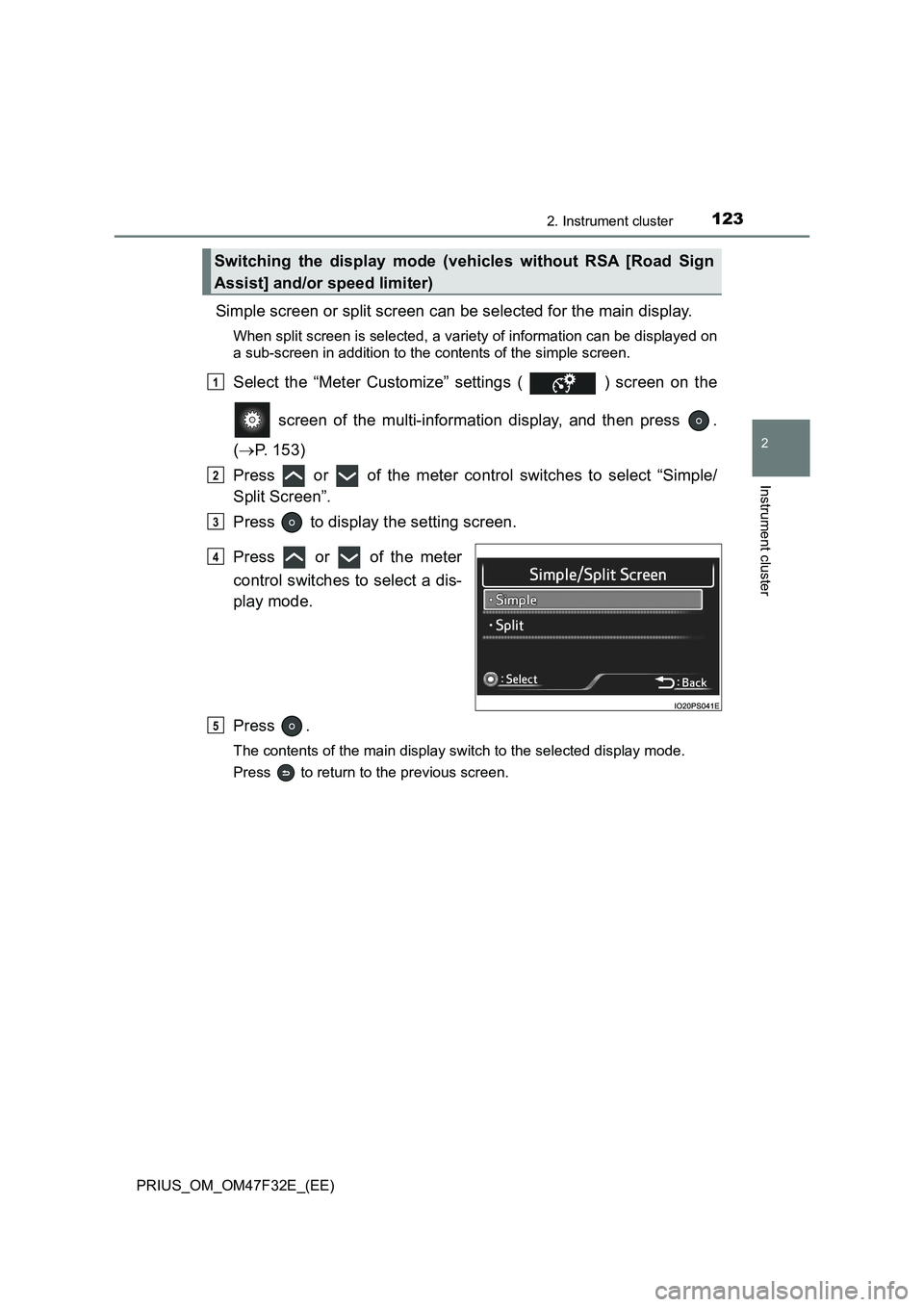

Simple screen or split screen can be selected for the main display.
When split screen is selected, a variety of information can be displayed on
a sub-screen in addition to the contents of the simple screen.
Select the “Meter Customize” settings ( ) screen on the
screen of the multi-information display, and then press .
(P. 153)
Press or of the meter control switches to select “Simple/
Split Screen”.
Press to display the setting screen.
Press or of the meter
control switches to select a dis-
play mode.
Press .
The contents of the main display switch to the selected display mode.
Press to return to the previous screen.
Switching the display mode (vehicles without RSA [Road Sign
Assist] and/or speed limiter)
1
2
3
4
5

1242. Instrument cluster
PRIUS_OM_OM47F32E_(EE)
Vehicles without RSA (Road Sign Assist) and speed limiter
When split screen is selected for the main display, display contents on
the sub-screen can be selected.
Vehicles with RSA (Road Sign Assist) and/or speed limiter
When RSA and speed limiter are off, display contents on the sub-
screen can be selected.
Press or of the meter
control switches and select the
sub-screen.
When the sub-screen is selected,
is displayed on the sub-
screen.

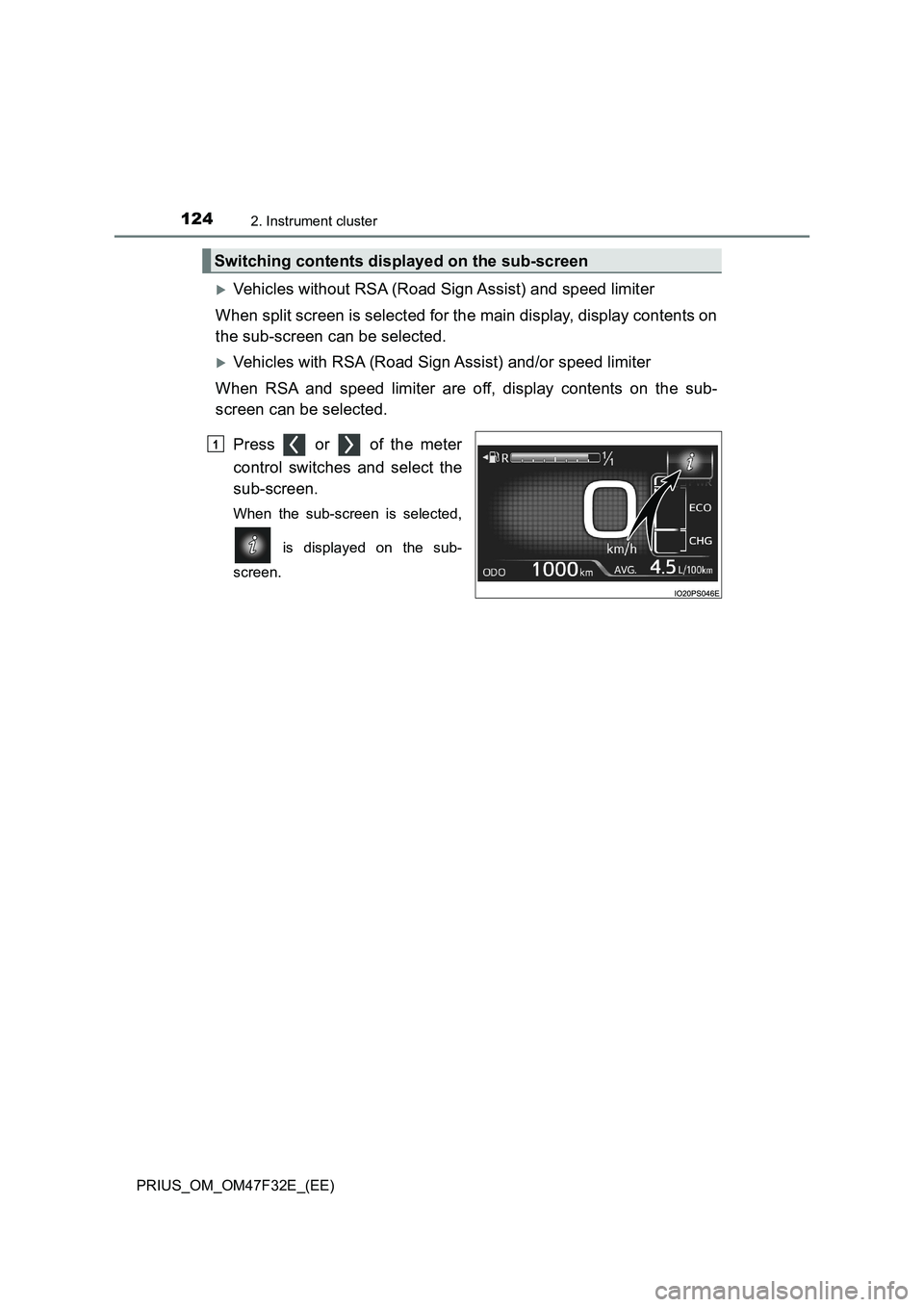

Switching contents displayed on the sub-screen
1

1252. Instrument cluster
2
Instrument cluster
PRIUS_OM_OM47F32E_(EE)
Press or of the meter control switches to select the display
item.
One of the following 3 items can be displayed.
2
Display contentsDetail
Hybrid System Indicator
A convenient Hybrid System Indicator is displayed.
Refer to P. 132 for details on how to read the Hybrid
System Indicator.
Current fuel consumption
The current fuel consumption during driving is dis-
played.
• The mark indicates the value displayed in the
average fuel consumption display (P. 121).
Switching the average fuel consumption display
also changes the position of the mark.
• When the average fuel consumption is reset, the
position of the mark is reset to 0.
Hybrid battery (traction battery) status
The same contents as the hybrid battery (traction
battery) status on the energy monitor are displayed.
(P. 131)

1262. Instrument cluster
PRIUS_OM_OM47F32E_(EE)
■Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
●When “-” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
■Distance to empty
●This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
●When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the power switch off. If the vehicle is refueled without
turning the power switch off, the display may not be updated.
■Switching the driving mode (P. 351)
*: The animation displayed when the driving mode is switched can be turned
off in the “Meter Customize” settings. (P. 156) When the driving mode is switched, the
driving mode indicator changes and an
animation
* is displayed on the multi-infor-
mation display.
Also, the background color of the main
display, energy monitor (P. 130) and
Hybrid System Indicator (P. 132)
change as follows.
Driving modesBackground color
Normal mode Green
Power modeRed
Eco drive modeBlue

127
2
2. Instrument cluster
Instrument cluster
PRIUS_OM_OM47F32E_(EE)

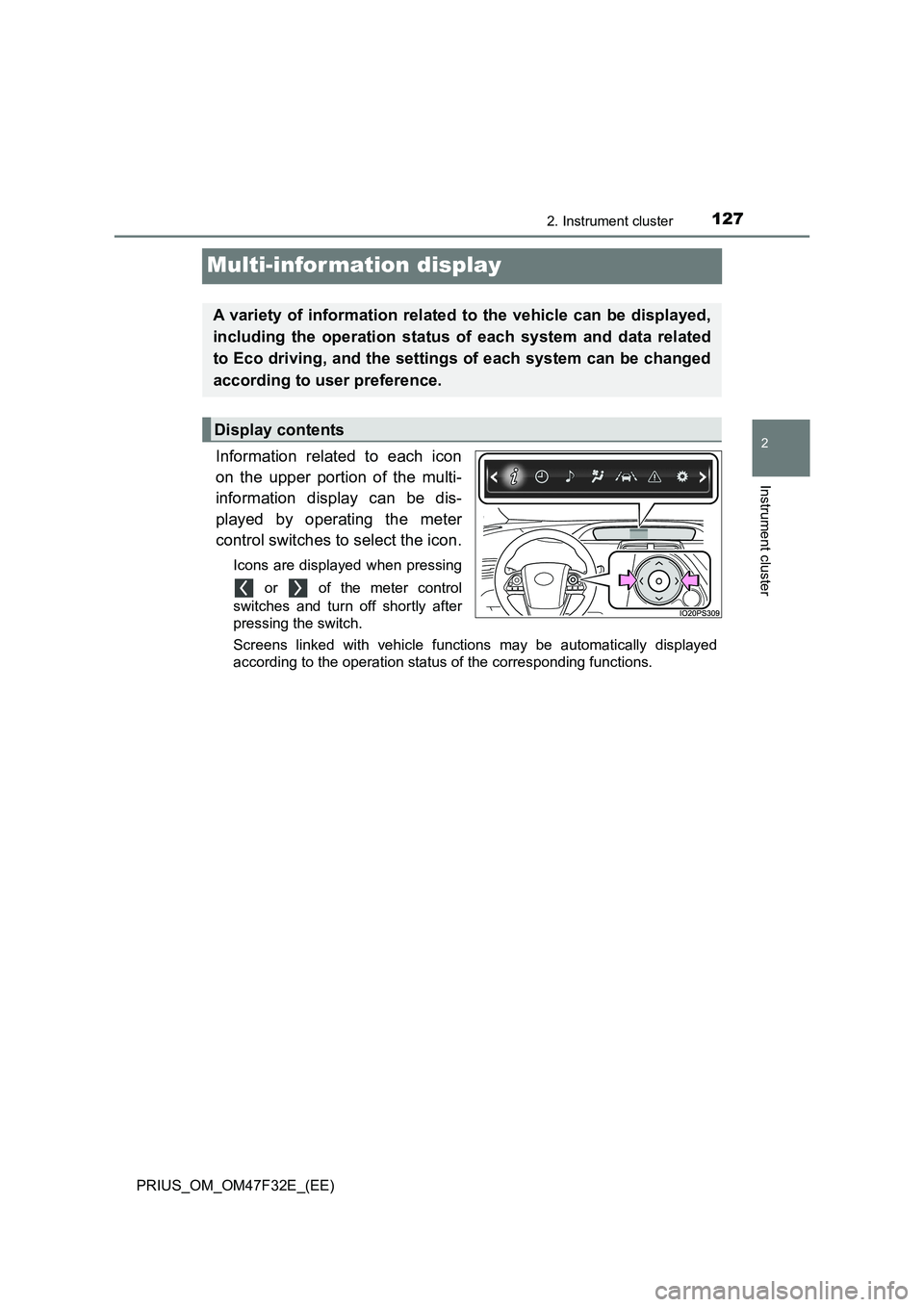

Multi-information display
Information related to each icon
on the upper portion of the multi-
information display can be dis-
played by operating the meter
control switches to select the icon.
Icons are displayed when pressing
or of the meter control
switches and turn off shortly after
pressing the switch.
Screens linked with vehicle functions may be automatically displayed
according to the operation status of the corresponding functions.
A variety of information related to the vehicle can be displayed,
including the operation status of each system and data related
to Eco driving, and the settings of each system can be changed
according to user preference.
Display contents

1282. Instrument cluster
PRIUS_OM_OM47F32E_(EE)
*1: If equipped
*2: When there is a warning message that can be displayed, the color of
changes to amber.
Menu iconsContentsPages
Drive information
The energy monitor that shows the operation
status of the hybrid system, or other informa-
tion such as fuel consumption is displayed.P. 129
Clock setting display
The clock settings can be changed.P. 147
Audio system-linked display
The audio system settings can be changed.P. 147
Air conditioning system settings screen
The air conditioning system settings can be
changed.
P. 148
Driving assist system information
The information related to driving assist sys-
tems such as the LTA (Lane Tracing Assist)
*1
and dynamic radar cruise control with full-
speed range
*1 is displayed.
P. 152
Warning message display*2
The warning messages are displayed.P. 152
Settings display
The settings of the vehicle functions, meter
display, etc. can be changed.
P. 153
