TOYOTA PRIUS C 2016 NHP10 / 1.G Owners Manual

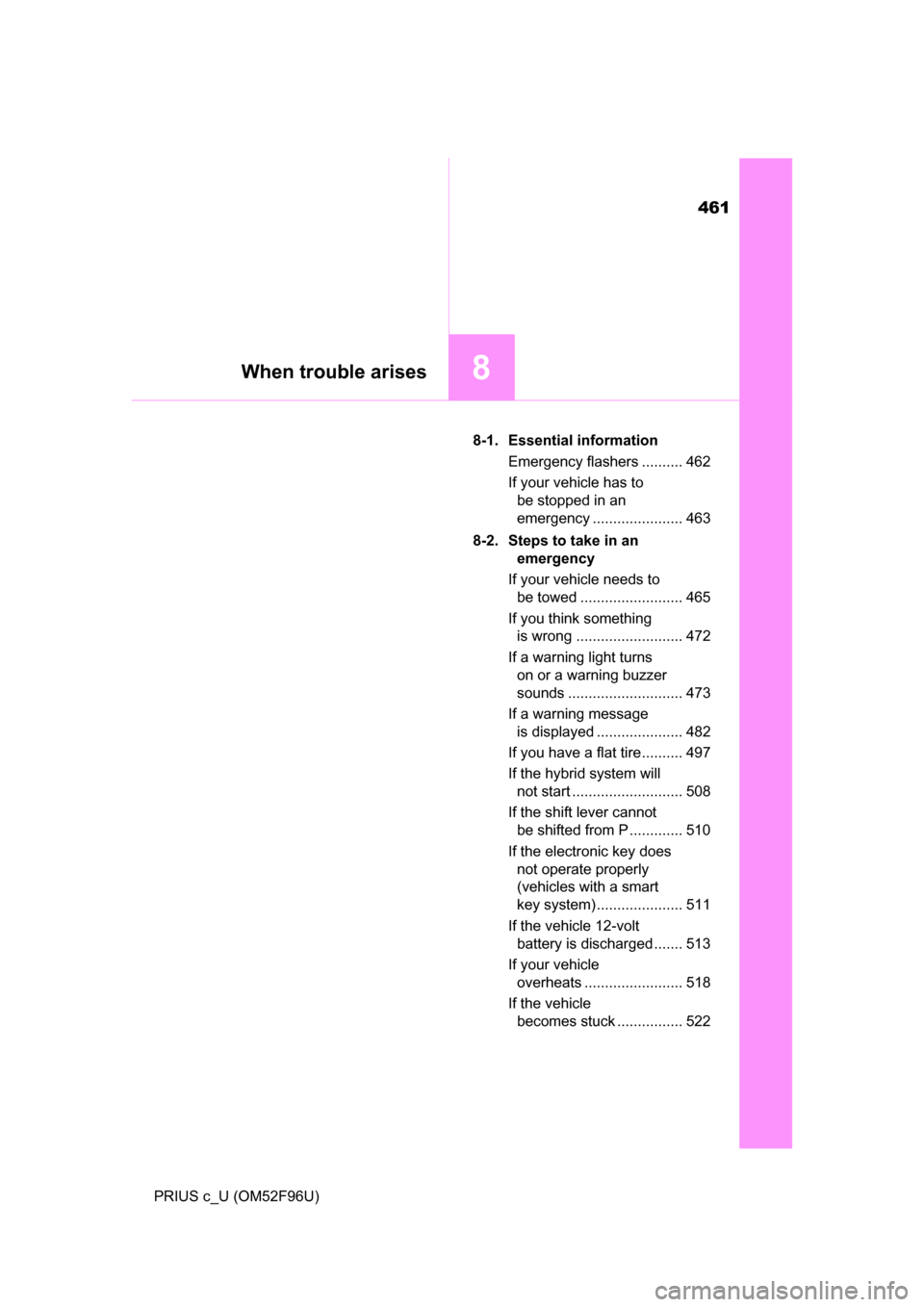

461
8When trouble arises
PRIUS c_U (OM52F96U)8-1. Essential information
Emergency flashers .......... 462
If your vehicle has to be stopped in an
emergency ...................... 463
8-2. Steps to take in an emergency
If your vehicle needs to be towed ......................... 465
If you think something is wrong .......................... 472
If a warning light turns on or a warning buzzer
sounds ............................ 473
If a warning message is displayed ..................... 482
If you have a flat tire.......... 497
If the hybrid system will not start ........................... 508
If the shift lever cannot be shifted from P ............. 510
If the electronic key does not operate properly
(vehicles with a smart
key system) ..................... 511
If the vehicle 12-volt battery is discharged ....... 513
If your vehicle overheats ........................ 518
If the vehicle becomes stuck ................ 522

462
PRIUS c_U (OM52F96U)

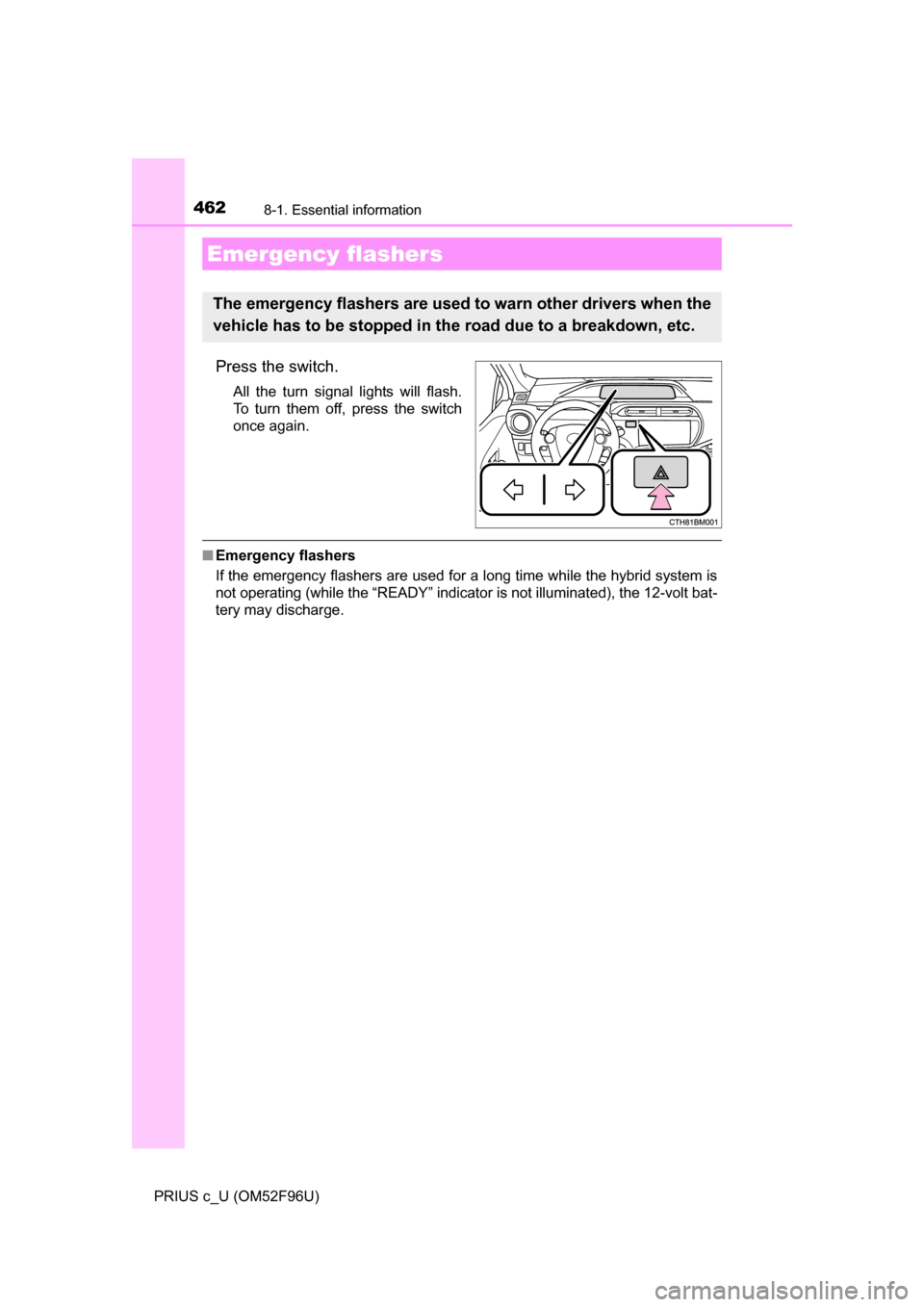

8-1. Essential information
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicator is not illuminated), the 12-volt \
bat-
tery may discharge.
Emergency flashers
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in th e road due to a breakdown, etc.

4638-1. Essential information
8
When trouble arises
PRIUS c_U (OM52F96U)
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart key
system: Stop the hybrid system
by turning the engine switch to
the “ACC” position.
Vehicles with a smart key sys-
tem: To stop the hybrid system,
press and hold the “POWER”
switch for 2 consecutive sec-
onds or more, or press it briefly
3 times or more in succession.
Stop the vehicle in a safe place by the road.
If your vehicle has to be stopped in an
emergency
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, st op the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
Press and hold for 2 seconds or
more, or press briefly 3 times or
more
4
5

4648-1. Essential information
PRIUS c_U (OM52F96U)

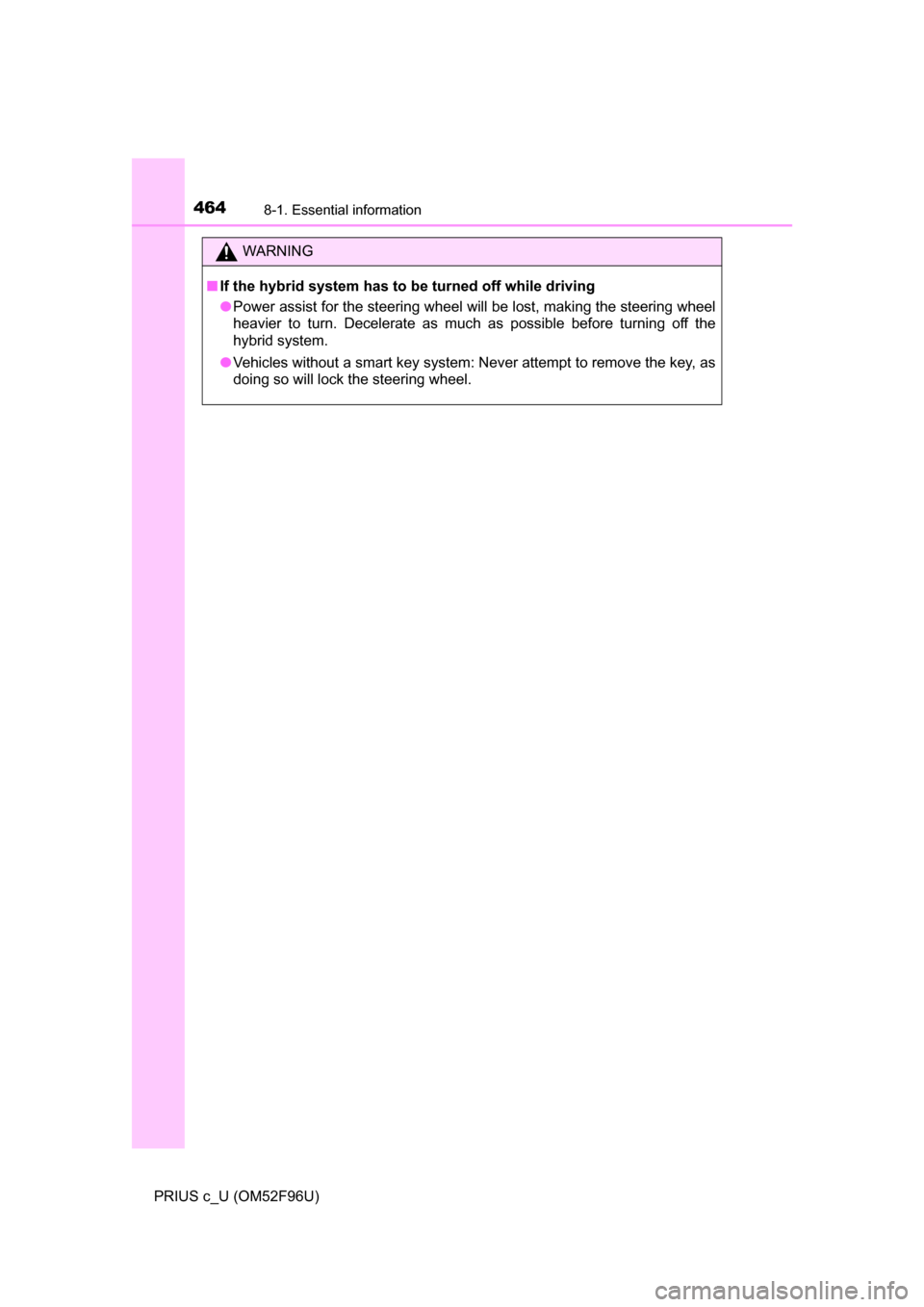

WARNING
■If the hybrid system has to be turned off while driving
● Power assist for the steering wheel will be lost, making the steering wheel
heavier to turn. Decelerate as much as possible before turning off the
hybrid system.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.

465
8
When trouble arises
PRIUS c_U (OM52F96U)

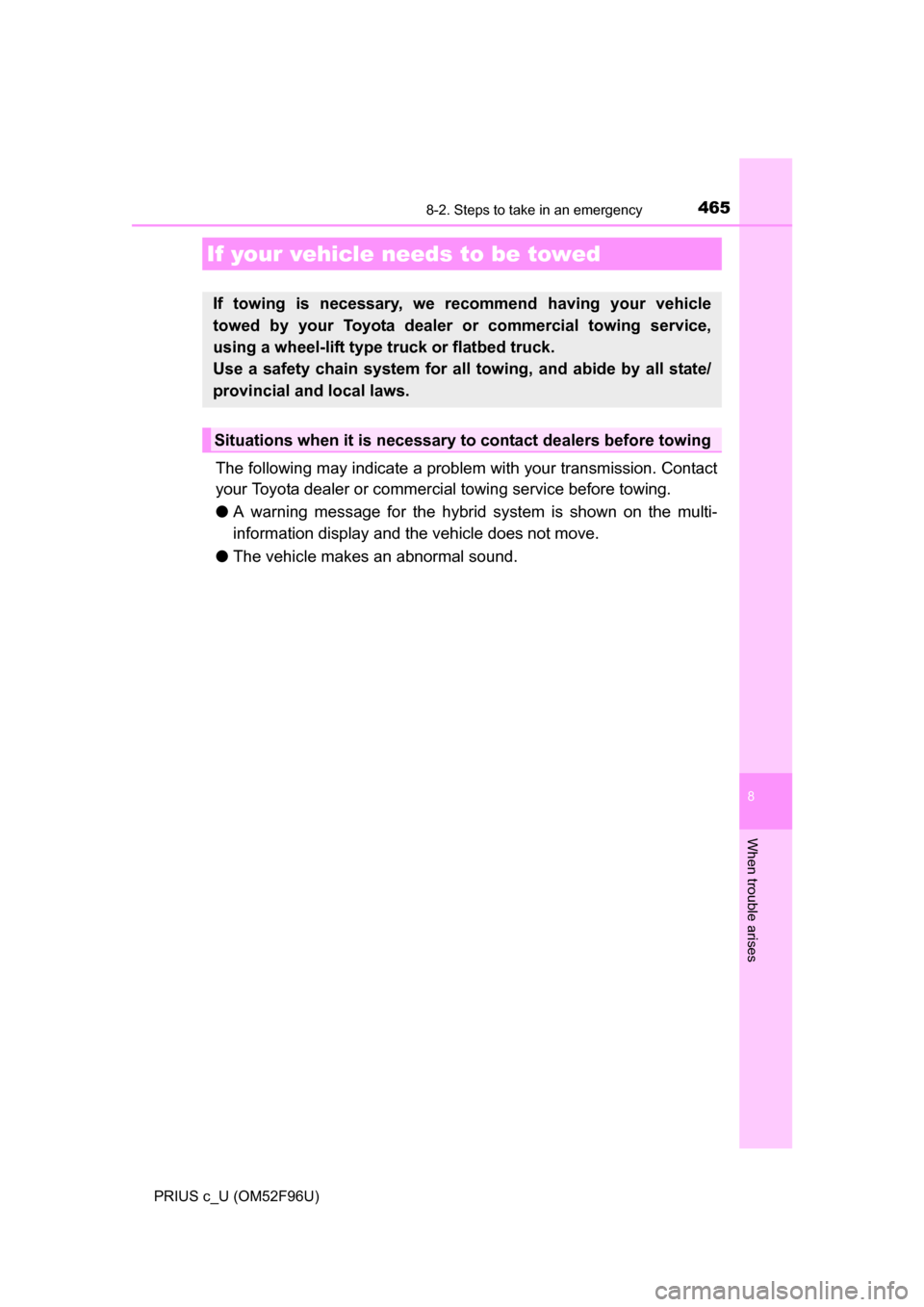

8-2. Steps to take in an emergency
The following may indicate a problem with your transmission. Contact
your Toyota dealer or commercial towing service before towing.
●A warning message for the hybrid system is shown on the multi-
information display and the vehicle does not move.
● The vehicle makes an abnormal sound.
If your vehicle needs to be towed
If towing is necessary, we re commend having your vehicle
towed by your Toyota dealer or commercial towing service,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
Situations when it is necessary to contact dealers before towing

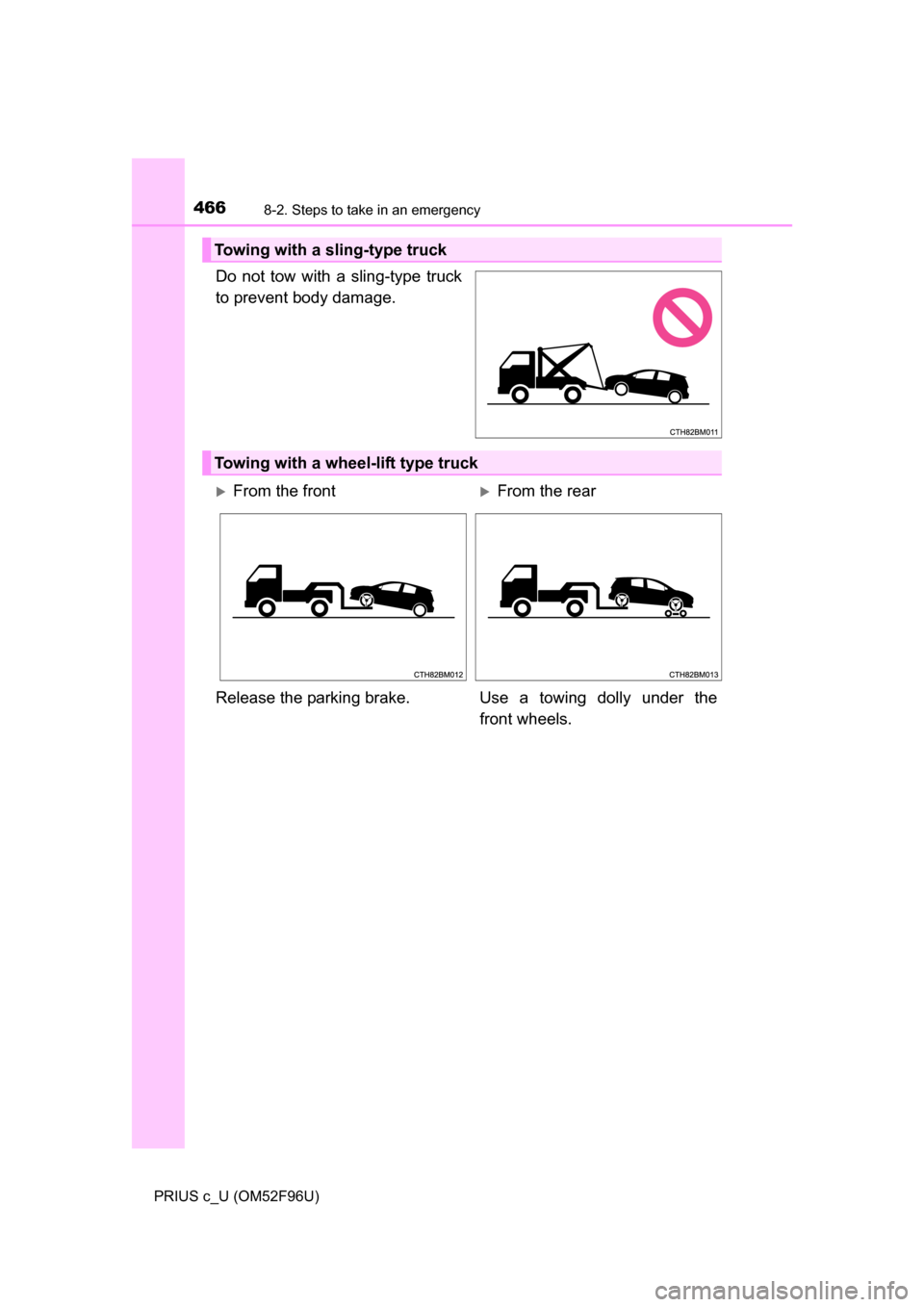

4668-2. Steps to take in an emergency
PRIUS c_U (OM52F96U)
Do not tow with a sling-type truck
to prevent body damage.
Towing with a sling-type truck
Towing with a wheel-lift type truck
From the frontFrom the rear
Release the parking brake. Use a towing dolly under the front wheels.

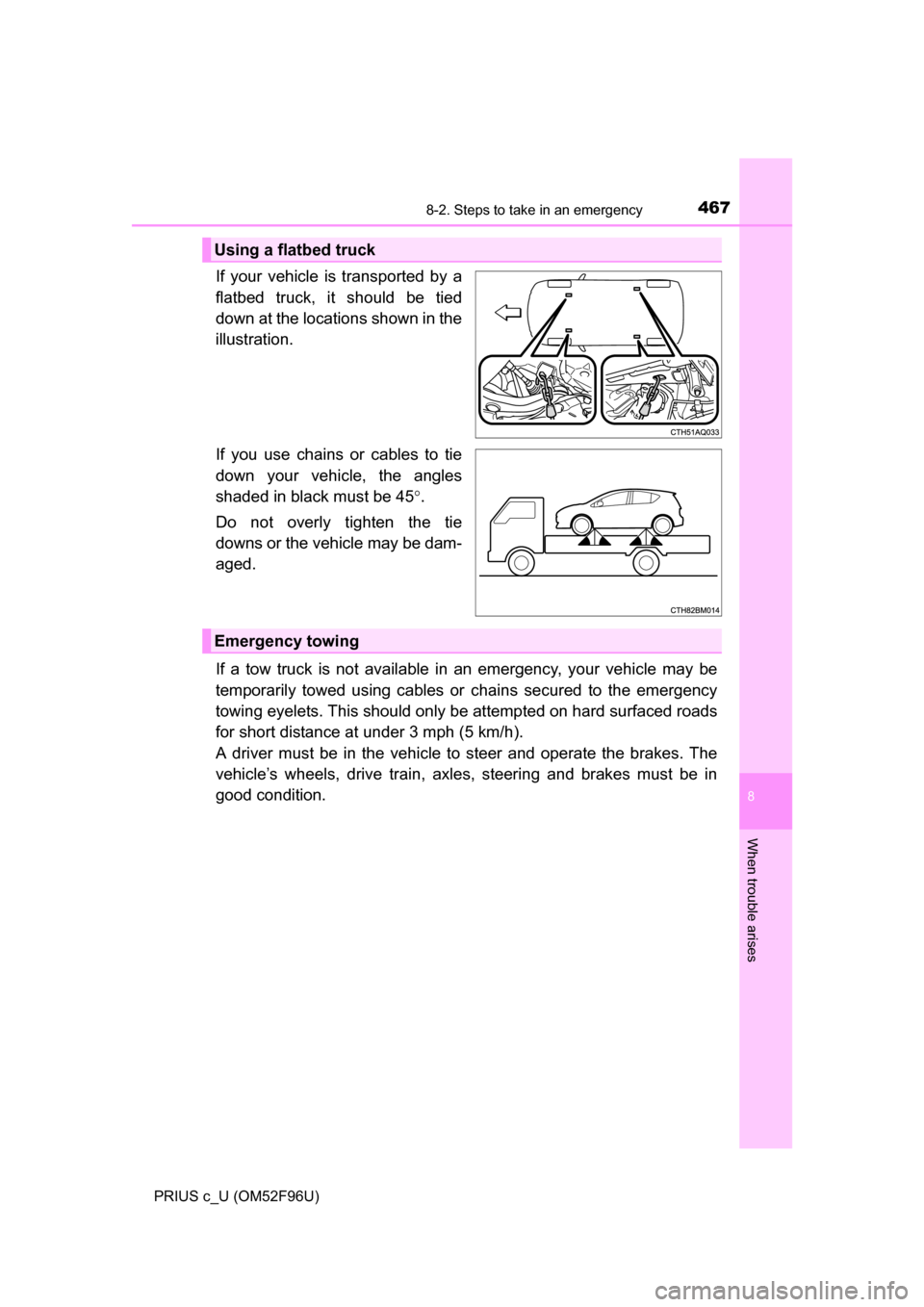

4678-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52F96U)
If your vehicle is transported by a
flatbed truck, it should be tied
down at the locations shown in the
illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be dam-
aged.
If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using cables or chains secured to the emergency
towing eyelets. This should only be attempted on hard surfaced roads
for short distance at under 3 mph (5 km/h).
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Using a flatbed truck
Emergency towing

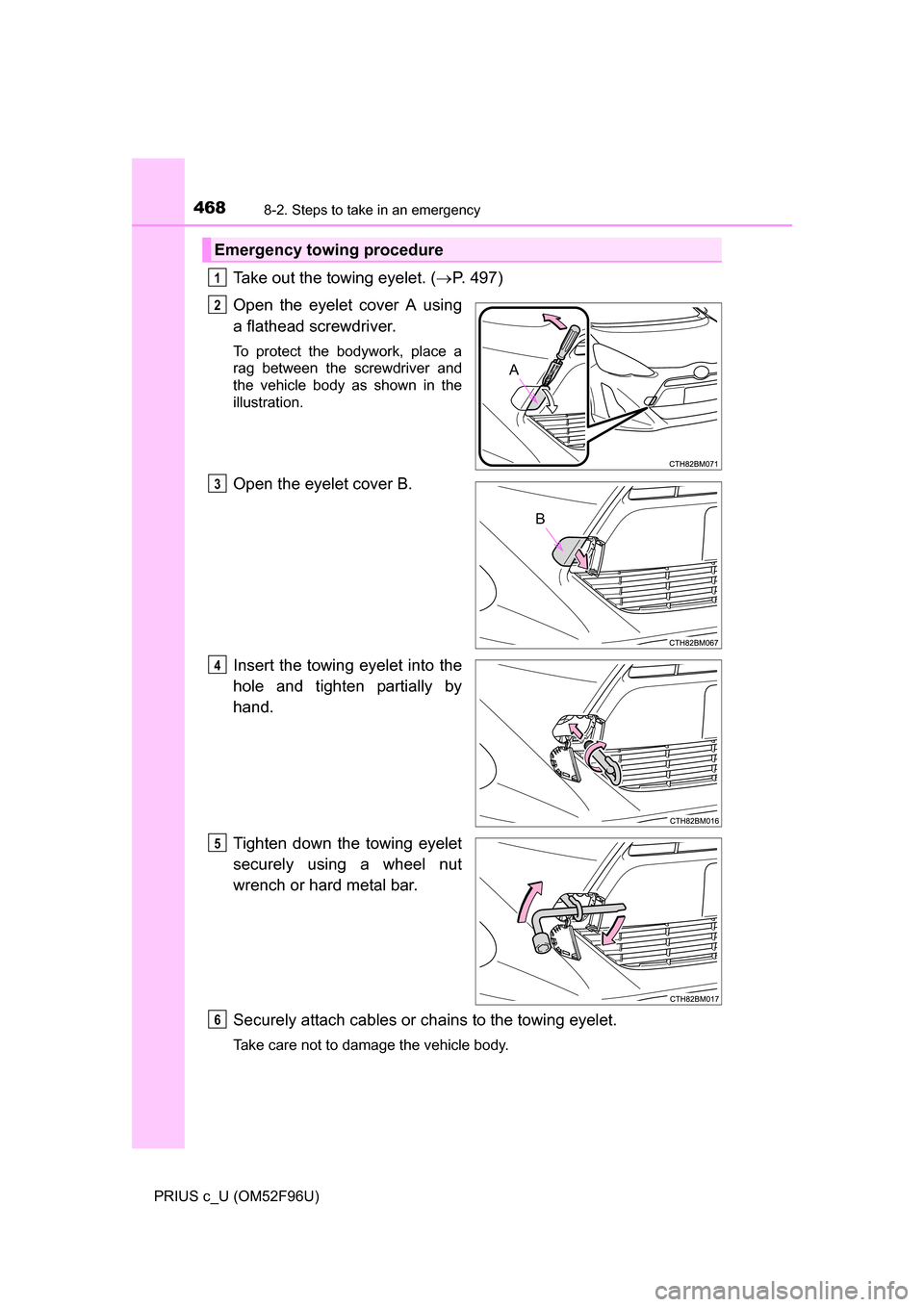

4688-2. Steps to take in an emergency
PRIUS c_U (OM52F96U)
Take out the towing eyelet. (P. 497)
Open the eyelet cover A using
a flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body as shown in the
illustration.
Open the eyelet cover B.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench or hard metal bar.
Securely attach cables or chains to the towing eyelet.
Take care not to damage the vehicle body.
Emergency towing procedure
1
A
2
B
3
4
5
6

4698-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52F96U)

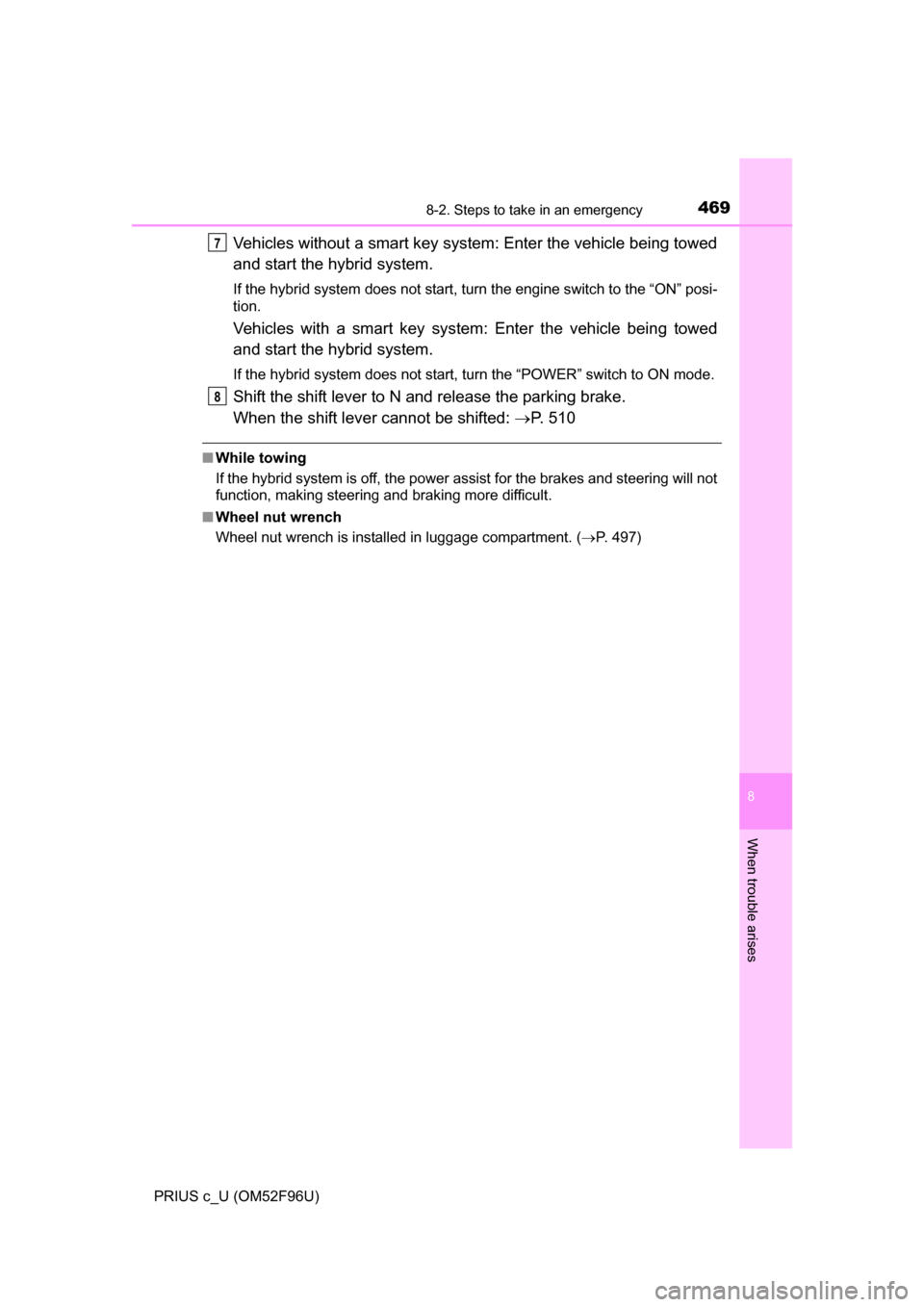

Vehicles without a smart key system: Enter the vehicle being towed
and start the hybrid system.
If the hybrid system does not start, turn the engine switch to the “ON” posi-
tion.
Vehicles with a smart key system: Enter the vehicle being towed
and start the hybrid system.
If the hybrid system does not start, turn the “POWER” switch to ON mode.
Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted: P. 5 1 0
■While towing
If the hybrid system is off, the power assist for the brakes and steering will not
function, making steering and braking more difficult.
■ Wheel nut wrench
Wheel nut wrench is installed in luggage compartment. ( P. 497)
7
8

4708-2. Steps to take in an emergency
PRIUS c_U (OM52F96U)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When towing the vehicle
■ While towing
●When towing using cables or chains, avoid sudden starts, etc. which place
excessive stress on the towing eyelets, cables or chains. The towing eye-
lets, cables or chains may become damaged, broken debris may hit peo-
ple, and cause serious damage.
● Do not turn the engine switch to the “LOCK” position (vehicles without a
smart key system) or the “POWER” switch off (vehicles with a smart key
system).
There is a possibility that the steering wheel is locked and cannot be oper-
ated.
■ Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing.
Be sure to transport the vehicle with the
front wheels raised or with all four wheels
raised off the ground. If the vehicle is
towed with the front wheels contacting
the ground, the drivetrain and related
parts may be damaged or electricity gen-
erated by the operation of the motor may
cause a fire to occur depending on the
nature of the damage or malfunction.
