5018-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52F96U)
Chock the tires.
For vehicles with steel wheels,
remove the wheel cover using
the wrench.
To protect the wheel cover, place
a rag between the wrench and
the wheel cover.
Slightly loosen the wheel nuts
(one turn).
Vehicles with steel wheels: Make
sure to remove the wheel cover
before loosening the wheel nuts.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3

5028-2. Steps to take in an emergency
PRIUS c_U (OM52F96U)
Turn the tire jack portion “A” by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They
indicate the jack point positions.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
4
5
6

5038-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52F96U)

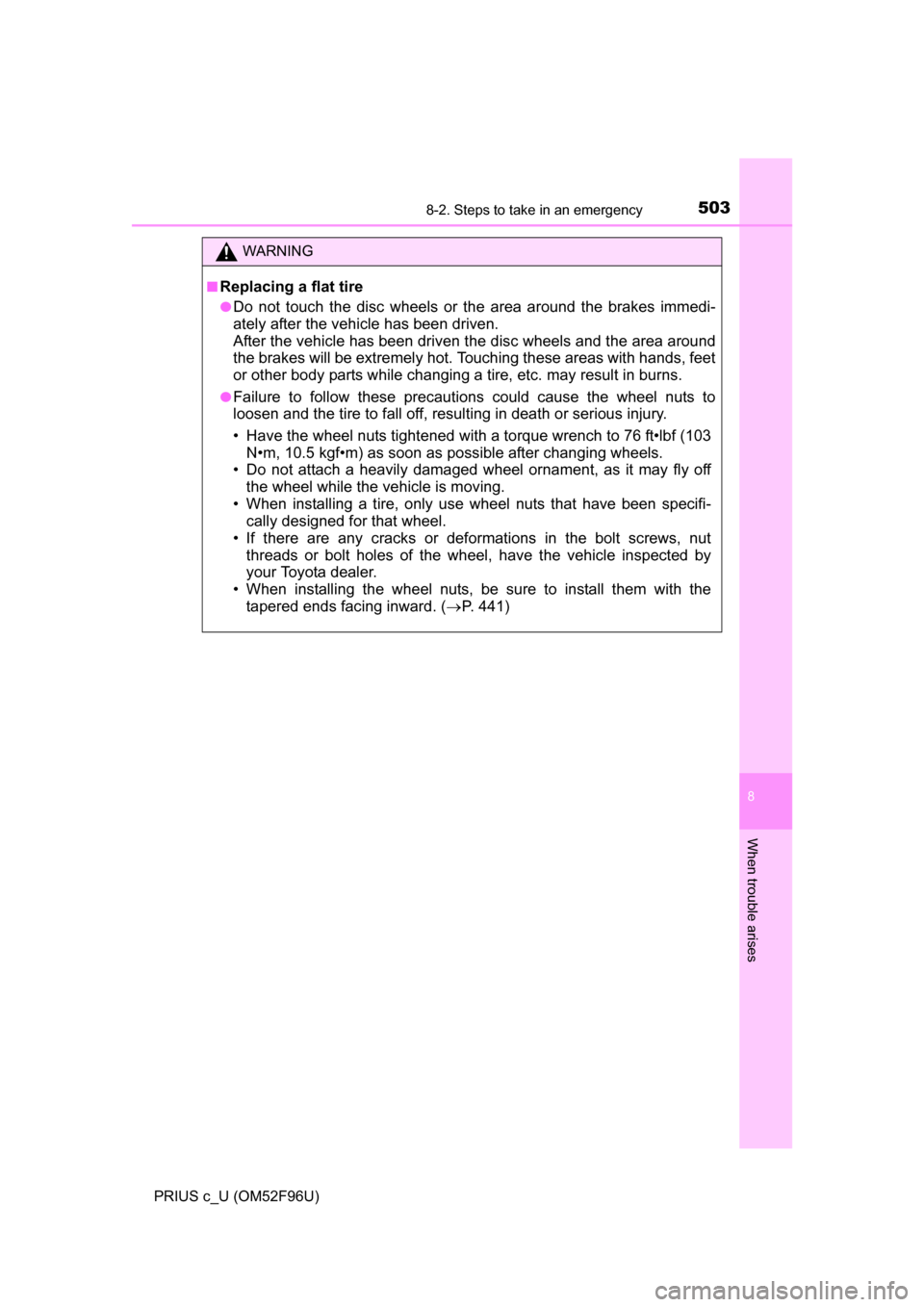

WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touc hing these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off
the wheel while the vehicle is moving.
• When installing a tire, only use wh eel nuts that have been specifi-
cally designed for that wheel.
• If there are any cracks or deforma tions in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, be sure to install them with the tapered ends facing inward. ( P. 441)

5048-2. Steps to take in an emergency
PRIUS c_U (OM52F96U)
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing a steel wheel
with a compact spare tire,
tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
When replacing an aluminum
wheel with a compact spare
tire, tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc
wheel seat.
Lower the vehicle.
Installing the compact spare tire
1
2
Tapered portionDisc
wheel
seat
Tapered portion
Disc
wheel
seat
3

5058-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52F96U)
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire in the luggage
compartment as shown in the
illustration.
Stow all the tools.
Stow the spare wheel cushions, tire jack and luggage floor cover in
the luggage compartment.
■The compact spare tire
●The compact spare tire is identif ied by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflatio n pressure of the compact spare tire.
(  P. 533)
■After completing the tire change
The tire pressure warning system must be reset. ( P. 429)
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, lo w inflation pressure of the spare tire will not be
indicated by the tire pressure warning system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the light
remains on.
4
5
6
7

5068-2. Steps to take in an emergency
PRIUS c_U (OM52F96U)■
If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit
tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the
vehicle.
Fit tire chains to the front tires.
WARNING
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically
designed for use with your vehicle. Do not use your compact spare tire
on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possi-
ble.
●Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Fail-
ure to observe this precaution may lead to an accident causing death or
serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in
their storage location to reduce the po ssibility of personal injury during a
collision or sudden braking.
1
2
3
• ABS & Brake assist
• VSC
•TRAC
• Cruise control (if equipped)
• PCS (Pre-collision system) (if
equipped)
• LDA (Lane Departure Alert with steering control) (if equipped)
• Automatic High Beam (ifequipped)
• EPS
• Rear view monitor system (if
equipped)
• Navigation system (if equipped)

5078-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52F96U)
NOTICE
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire
compared to when driving with standard tires. Be careful when driving
over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. ( P. 429)

5088-2. Steps to take in an emergency
PRIUS c_U (OM52F96U)
One of the following may be the cause of the problem:
●Vehicles with a smart key system: The electronic key may not be
functioning properly. ( P. 5 1 1 )
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle. ( P. 214)
● Vehicles with immobilizer system : There may be a malfunction in
the immobilizer system. ( P. 8 2 )
● There may be a malfunction in the steering lock system.
● Vehicles with a smart key system : The hybrid system may be mal-
functioning due to an electrical problem such as an open circuit or a
blown fuse. However, depending on the type of malfunction, an
interim measure is available to start the hybrid system. ( P. 509)
One of the following may be the cause of the problem:
● The 12-volt battery may be discharged. ( P. 513)
● The 12-volt battery terminal connections may be loose or corroded.
( P. 424)
One of the following may be the cause of the problem:
● The 12-volt battery may be discharged. ( P. 513)
● One or both of the 12-volt batter y terminals may be disconnected.
(  P. 424)
Contact your Toyota dealer if the problem cannot be repaired, or if repair
procedures are unknown.
If the hybrid system will not star t
Reasons for the hybrid system not starting vary depending on
the situation. Check the follo wing and perform the appropriate
procedure:
The hybrid system will not start even though the correct starting
procedure is being followed. ( P. 182, 186)
The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.
The interior lights and headlight s do not turn on, or the horn
does not sound.

5098-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52F96U)
When the hybrid system does not start, the following steps can be
used as an interim measure to start the hybrid system if the “POWER”
switch is functioning normally.
Do not use this starting procedure except in case of emergency.
Set the parking brake.
Shift the shift lever to P.
Turn the “POWER” switch to ACCESSORY mode.
Press and hold the “POWER” switch for about 15 seconds.
Even if the hybrid system can be started using the above steps, the
system may be malfunctioning. Have the vehicle inspected by your
Toyota dealer.
Emergency start function (vehicles with a smart key system)
1
2
3
4

5108-2. Steps to take in an emergency
PRIUS c_U (OM52F96U)
Set the parking brake.
Vehicles without a smart key system:
Turn the engine switch to the “ACC” position.
Vehicles with a smart key system:
Turn the “POWER” switch to ACCESSORY mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent tool.
To prevent damaging the cover,
wrap the tip of the flathead screw-
driver with a tape.
Press the shift lock override
button.
The shift lever can be shifted while
the button is pressed.
If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake
pedal, there may be a problem with the shift lock system (a sys-
tem to prevent accidental operation of the shift lever). Have the
vehicle inspected by your Toyota dealer immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted:
1
2
3
4
5
