4. Things you must know
PRIUS PHV_QG_OM47866U_(U)
■When continually using EV mode only
After driving for approximately 124 miles (200 km) with the gasoline engine
off, the gasoline engine may start for a short amount of time in order to pro-
tect the system.
■Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop
automatically in the following conditions*:
●During gasoline engine warm-up
●When the temperature of the hybrid battery (traction battery) is high or
low
●During hybrid battery (traction battery) charging
●When the heater is switched on
*:Depending on the circumstances, the gasoline engine may also not stop
automatically in situations other than those above.
CAUTION
■While driving
Because there is no engine noise when the vehicle is being driven using the
electric motor, pedestrians in the vicinity may not notice the vehicle. Even
though the vehicle is equipped with the vehicle proximity notification system,
drive with care as pedestrians in the vicinity may still not notice the vehicle if
the surrounding area is noisy.

36
4. Things you must know
PRIUS PHV_QG_OM47866U_(U)
NOTICE
■Hybrid battery (traction battery) air vents
●Do not put foreign objects near the air vents. The hybrid battery (traction
battery) may overheat, leading to a reduction in hybrid battery (traction
battery) output or a malfunction.
●Clean the air vents regularly to prevent the hybrid battery (traction battery)
from overheating.
●Do not wet or allow foreign substances to enter the air vents as this may
cause a short circuit and damage the hybrid battery (traction battery).
●Do not carry large amounts of water such as water cooler bottles in the
vehicle. If water spills onto the hybrid battery (traction battery), the battery
may be damaged. Have the vehicle inspected by your Toyota dealer.
●If the rear seat belt becomes separated from the guide, it could obstruct
the hybrid battery (traction battery) air vent. Set the rear seat belt into the
guide to use.

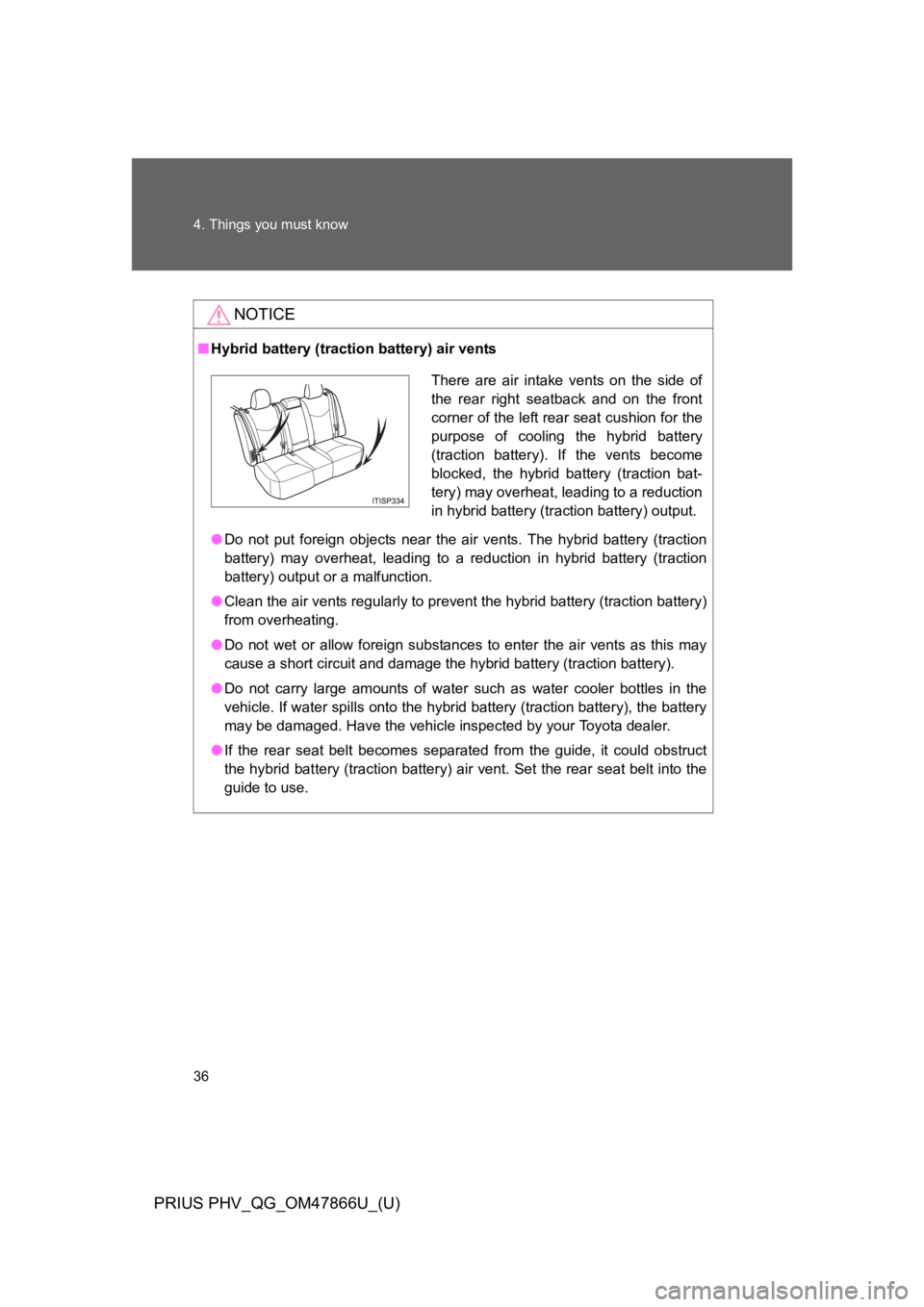

There are air intake vents on the side of
the rear right seatback and on the front
corner of the left rear seat cushion for the
purpose of cooling the hybrid battery
(traction battery). If the vents become
blocked, the hybrid battery (traction bat-
tery) may overheat, leading to a reduction
in hybrid battery (traction battery) output.

8
PRIUS PHV_OM_OM47856U_(U)
Fuel filler door P. 178
Pictorial indexExterior
Fog lights∗ P. 300
Daytime running lights (for Canada)
and headlights
Parking lights
Front side marker lights
P. 294, 297
P. 294
P. 294
Hood P. 445
Windshield wipers P. 302Outside rear view mirrors
P. 173
Front turn signal lights P. 256
Daytime running lights
(for the U.S.A.) P. 297

9
PRIUS PHV_OM_OM47856U_(U)
Tires
●Rotation
●Replacement
●Inflation pressure
●Information
P. 479
P. 451
P. 623
P. 629
Rear side marker lights P. 294
Side doors P. 138
Tail lights P. 294
∗:If equipped
*:Refer to “DISPLAY AUDIO SYSTEM OWNER’S MANUAL” or “NAVIGATION SYSTEM OWNER’S MANUAL”.
Rear turn signal lights P. 256
License plate lights P. 294
Camera*
Back door P. 144
Rear window wiper∗ P. 306
Rear window defoggers P. 377
Charging port P. 77

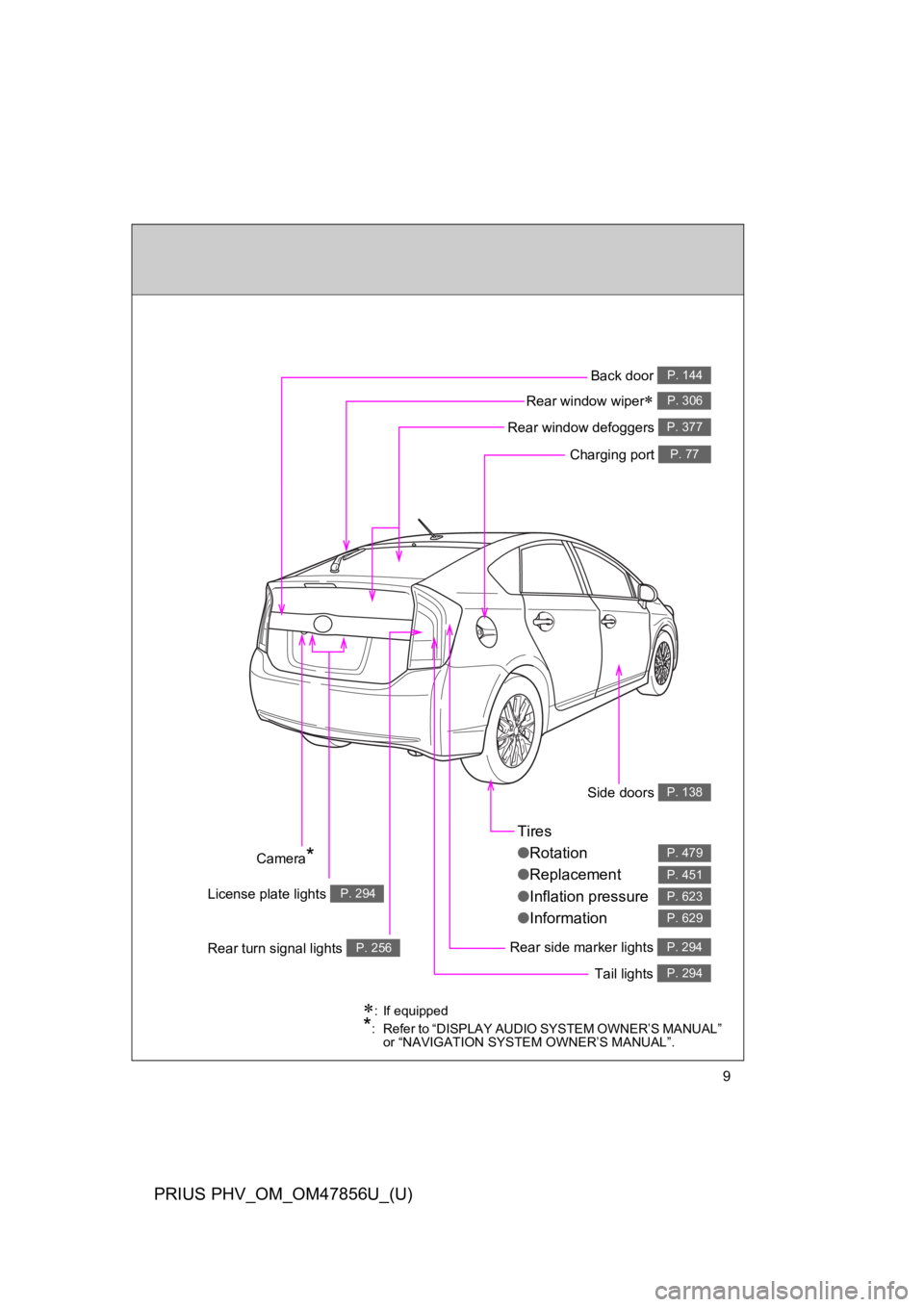

10
PRIUS PHV_OM_OM47856U_(U)
Floor mat P. 403
Pictorial indexInterior
SRS side airbags P. 187
SRS front passenger airbag
P. 187
Front seats P. 150
Rear seats P. 153
Glove boxes P. 388
Head restraints P. 156
Seat belts P. 160
Armrest∗ P. 401
Cup holders∗ P. 390

11
PRIUS PHV_OM_OM47856U_(U)
A
Anti-glare inside rear view mirror
Garage door opener switches∗
P. 170
P. 409
Sun visors P. 394
SRS curtain shield airbags P. 187
Rear interior light P. 386
Vanity mirrors P. 395
Front interior/personal lights P. 385
∗:If equipped
*:Refer to “DISPLAY AUDIO SYSTEM OWNER’S MANUAL” or “NAVIGATION SYSTEM OWNER’S MANUAL”.
Microphone* P. 417
“SOS” button∗
Auxiliary box
P. 417
P. 393
Assist grips P. 402

12
PRIUS PHV_OM_OM47856U_(U)
B
Window lock switch P. 175
Power window switches P. 175
Door lock switch P. 138
Inside lock button P. 138
Pictorial indexInterior

13
PRIUS PHV_OM_OM47856U_(U)
C
Console box P. 389
*:Refer to “DISPLAY AUDIO SYSTEM OWNER’S MANUAL” or “NAVIGATION SYSTEM OWNER’S MANUAL”.
Cup holders P. 390
AUX port/USB port* P. 383
Power outlet P. 397

14
PRIUS PHV_OM_OM47856U_(U)
D
Pictorial indexInterior
Power outlet P. 397
Seat heater switches P. 399
Auxiliary box P. 393

15
PRIUS PHV_OM_OM47856U_(U)
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch∗
P. 294
P. 256
P. 300
Pre-collision braking off switch∗ P. 338
Parking brake pedal P. 257
Tire pressure warning reset switch P. 481
Windshield wipers and
washer switch
Rear window wiper and
washer switch∗
P. 302
P. 306
Gauges and meters
Multi-information display
P. 259
P. 268
Audio system*2 P. 378
Navigation system*1
SRS driver airbag
Horn
P. 187
P. 258
SRS knee airbag P. 187
Tilt and telescopic steering control lever P. 169
∗:If equipped
*1:Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
*2:Refer to “DISPLAY AUDIO SYSTEM OWNER’S MANUAL”.
