911-3. Theft deterrent system
1
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
For safety and security
■When the message asking if you wish to cancel the intrusion sensor is
not displayed
The message may not be displayed if other message is displayed. In this
case, turn the power switch to ON mode, follow the instructions on the display
and turn the power switch off again.
■ Canceling and automatic re-enabling of the intrusion sensor
● The alarm will still be set even when the intrusion sensor is canceled.
● After the intrusion sensor is canceled, pressing the power switch or unlock-
ing the doors using the entry function or wireless remote control will re-
enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
■ Intrusion sensor detection considerations
The sensor may trigger the alar m in the following situations:
• The movement of people outside the vehicle
● People or pets are in the vehicle.
● A side window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles
IO13PH005
● Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.
IO13PH007
Page 92 of 816

921-3. Theft deterrent system
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
●The vehicle is inside an automatic or high-pressure car wash.
● The vehicle experiences impacts, such as hail, lightning strikes, and other
kinds of repeated impacts or vibrations.
● The vehicle is parked in a place where
extreme vibrations or noises occur, such
as in a parking garage.
● Ice or snow is removed from the vehicle,
causing the vehicle to receive repeated
impacts or vibrations.
NOTICE
■ To ensure the intrusion sensor functions correctly
● Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.
IO13PH008
IO13PH009
● To ensure that the sensors operate
properly, do not touch or cover them.
● Do not spray air fresheners or other
products directly into the sensor holes.
Page 93 of 816

93
2Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

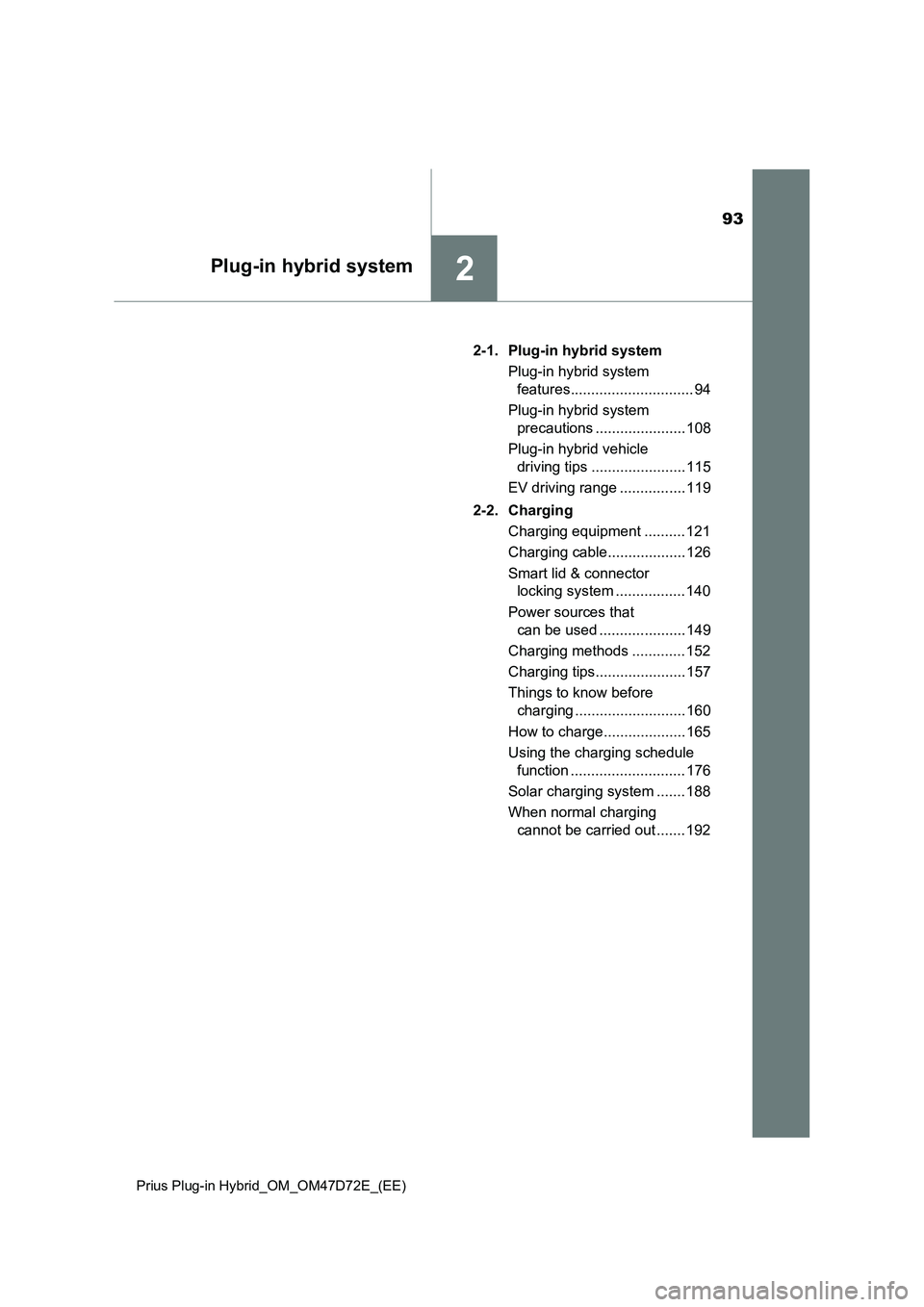

2-1. Plug-in hybrid system
Plug-in hybrid system
features.............................. 94
Plug-in hybrid system
precautions ...................... 108
Plug-in hybrid vehicle
driving tips ....................... 115
EV driving range ................ 119
2-2. Charging
Charging equipment .......... 121
Charging cable................... 126
Smart lid & connector
locking system ................. 140
Power sources that
can be used ..................... 149
Charging methods ............. 152
Charging tips...................... 157
Things to know before
charging ........................... 160
How to charge.................... 165
Using the charging schedule
function ............................ 176
Solar charging system ....... 188
When normal charging
cannot be carried out ....... 192
Page 94 of 816

942-1. Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Plug-in hybrid system features

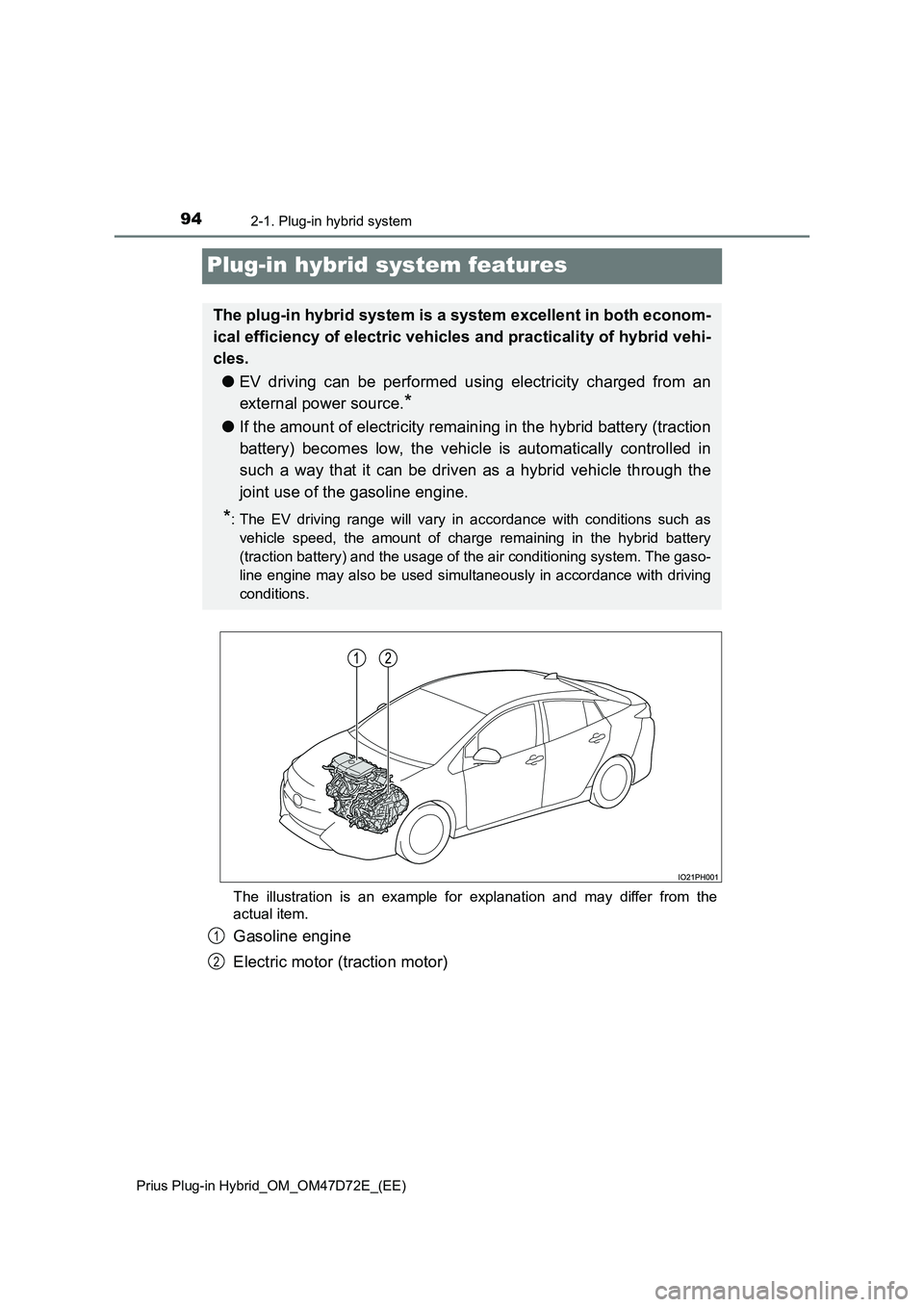

The illustration is an example for explanation and may differ from the
actual item.
Gasoline engine
Electric motor (traction motor)
The plug-in hybrid system is a system excellent in both econom-
ical efficiency of electric vehicles and practicality of hybrid vehi-
cles.
● EV driving can be performed using electricity charged from an
external power source.*
● If the amount of electricity remaining in the hybrid battery (traction
battery) becomes low, the vehicle is automatically controlled in
such a way that it can be driven as a hybrid vehicle through the
joint use of the gasoline engine.
*: The EV driving range will vary in accordance with conditions such as
vehicle speed, the amount of charge remaining in the hybrid battery
(traction battery) and the usage of the air conditioning system. The gaso-
line engine may also be used simultaneously in accordance with driving
conditions.
1
2
Page 95 of 816

952-1. Plug-in hybrid system
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

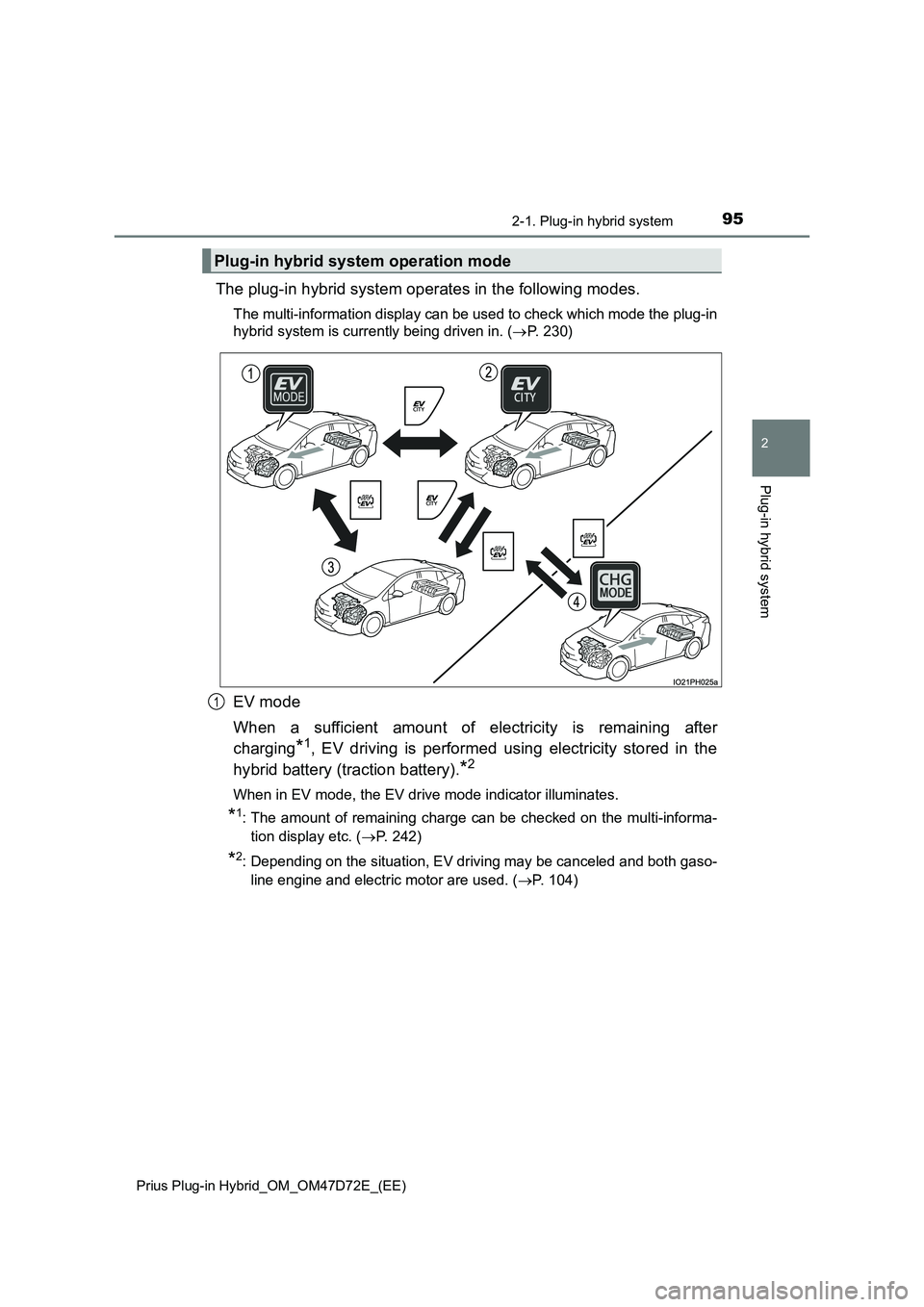

The plug-in hybrid system operates in the following modes.
The multi-information display can be used to check which mode the plug-in
hybrid system is currently being driven in. (P. 230)
EV mode
When a sufficient amount of electricity is remaining after
charging
*1, EV driving is performed using electricity stored in the
hybrid battery (traction battery).
*2
When in EV mode, the EV drive mode indicator illuminates.
*1: The amount of remaining charge can be checked on the multi-informa-
tion display etc. (P. 242)
*2: Depending on the situation, EV driving may be canceled and both gaso-
line engine and electric motor are used. (P. 104)
Plug-in hybrid system operation mode
1
Page 96 of 816

962-1. Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
EV City mode (P. 9 8 )
When a sufficient amount of electricity for EV driving is remaining in
the hybrid battery (traction battery)
*1, the operation mode can be
switched to EV City mode.
EV City mode limits motor output and minimizes the operation of
the gasoline engine.
*2 Therefore, the vehicle can be driven with
only electric motor (traction motor) in city areas, etc.
When in EV City mode, the EV City mode indicator illuminates.
*1: The amount of remaining charge can be checked on the multi-informa-
tion display etc. (P. 242)
*2: When acceleration is required, fully depress the accelerator pedal to
start the gasoline engine.
HV mode
When in HV mode, the vehicle is driven using both the gasoline
engine and electric motor (traction motor). (P. 102)
●If electricity needed for EV driving in EV mode is not remaining,
the operation mode will be automatically switched to HV mode.
●The operation mode can be switched to HV mode at any timing
by operating the switch to keep electricity for EV driving etc.
*
(P. 98). Switching to HV mode when driving on a highway or
when driving uphill is recommended in order to conserve battery
power.
When in HV mode, the EV drive mode indicator and EV City mode indi-
cator turn off.
*: The EV driving range may reduce even after switching to HV mode.
2
3
Page 97 of 816

972-1. Plug-in hybrid system
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

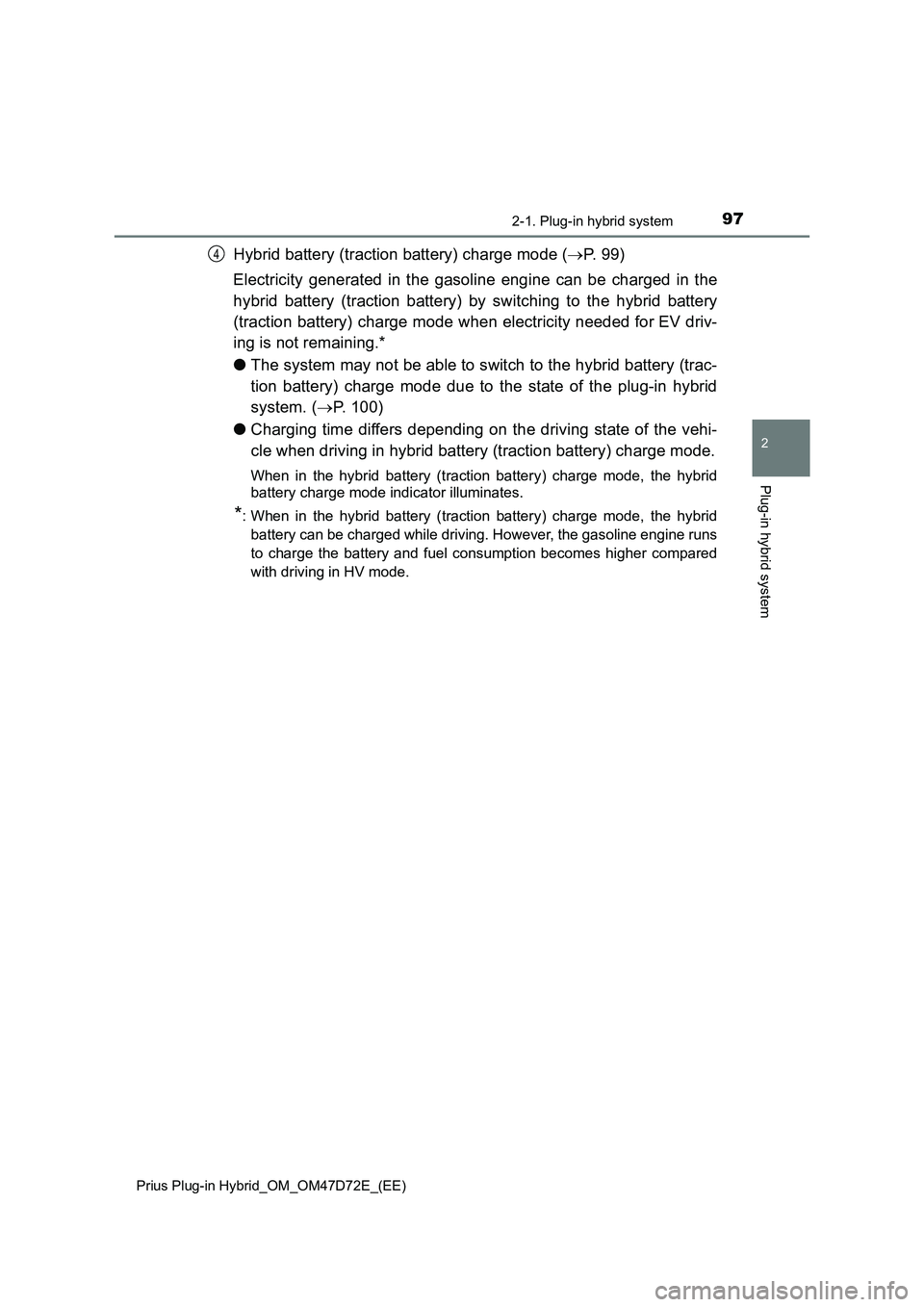

Hybrid battery (traction battery) charge mode (P. 9 9 )
Electricity generated in the gasoline engine can be charged in the
hybrid battery (traction battery) by switching to the hybrid battery
(traction battery) charge mode when electricity needed for EV driv-
ing is not remaining.*
●The system may not be able to switch to the hybrid battery (trac-
tion battery) charge mode due to the state of the plug-in hybrid
system. (P. 100)
●Charging time differs depending on the driving state of the vehi-
cle when driving in hybrid battery (traction battery) charge mode.
When in the hybrid battery (traction battery) charge mode, the hybrid
battery charge mode indicator illuminates.
*: When in the hybrid battery (traction battery) charge mode, the hybrid
battery can be charged while driving. However, the gasoline engine runs
to charge the battery and fuel consumption becomes higher compared
with driving in HV mode.
4
Page 98 of 816

982-1. Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

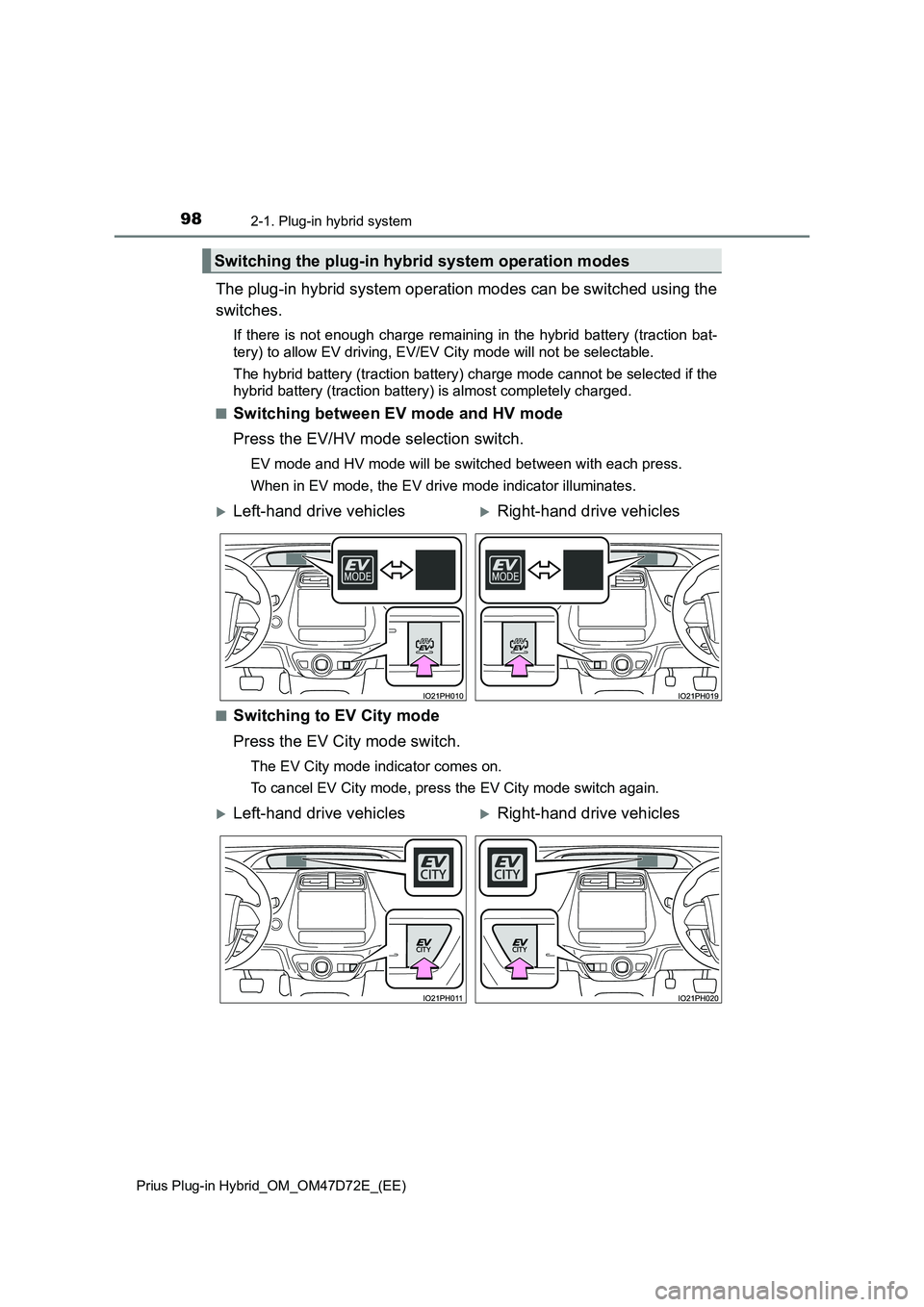

The plug-in hybrid system operation modes can be switched using the
switches.
If there is not enough charge remaining in the hybrid battery (traction bat-
tery) to allow EV driving, EV/EV City mode will not be selectable.
The hybrid battery (traction battery) charge mode cannot be selected if the
hybrid battery (traction battery) is almost completely charged.
■
Switching between EV mode and HV mode
Press the EV/HV mode selection switch.
EV mode and HV mode will be switched between with each press.
When in EV mode, the EV drive mode indicator illuminates.
■
Switching to EV City mode
Press the EV City mode switch.
The EV City mode indicator comes on.
To cancel EV City mode, press the EV City mode switch again.
Switching the plug-in hybrid system operation modes
Left-hand drive vehiclesRight-hand drive vehicles
Left-hand drive vehiclesRight-hand drive vehicles
Page 99 of 816

992-1. Plug-in hybrid system
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

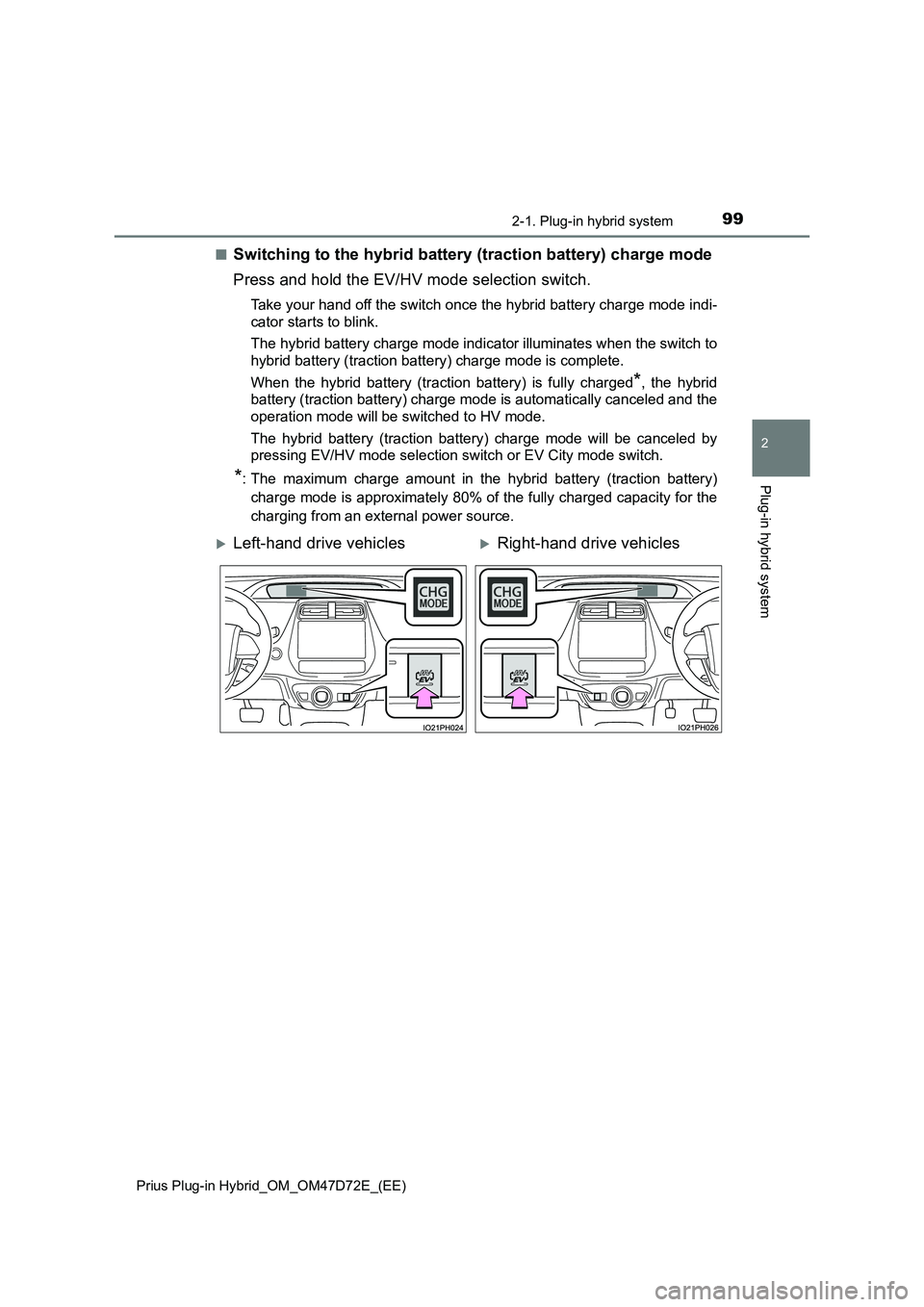

■Switching to the hybrid battery (traction battery) charge mode
Press and hold the EV/HV mode selection switch.
Take your hand off the switch once the hybrid battery charge mode indi-
cator starts to blink.
The hybrid battery charge mode indicator illuminates when the switch to
hybrid battery (traction battery) charge mode is complete.
When the hybrid battery (traction battery) is fully charged
*, the hybrid
battery (traction battery) charge mode is automatically canceled and the
operation mode will be switched to HV mode.
The hybrid battery (traction battery) charge mode will be canceled by
pressing EV/HV mode selection switch or EV City mode switch.
*: The maximum charge amount in the hybrid battery (traction battery)
charge mode is approximately 80% of the fully charged capacity for the
charging from an external power source.
Left-hand drive vehiclesRight-hand drive vehicles
Page 100 of 816

1002-1. Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47D72E_(EE)

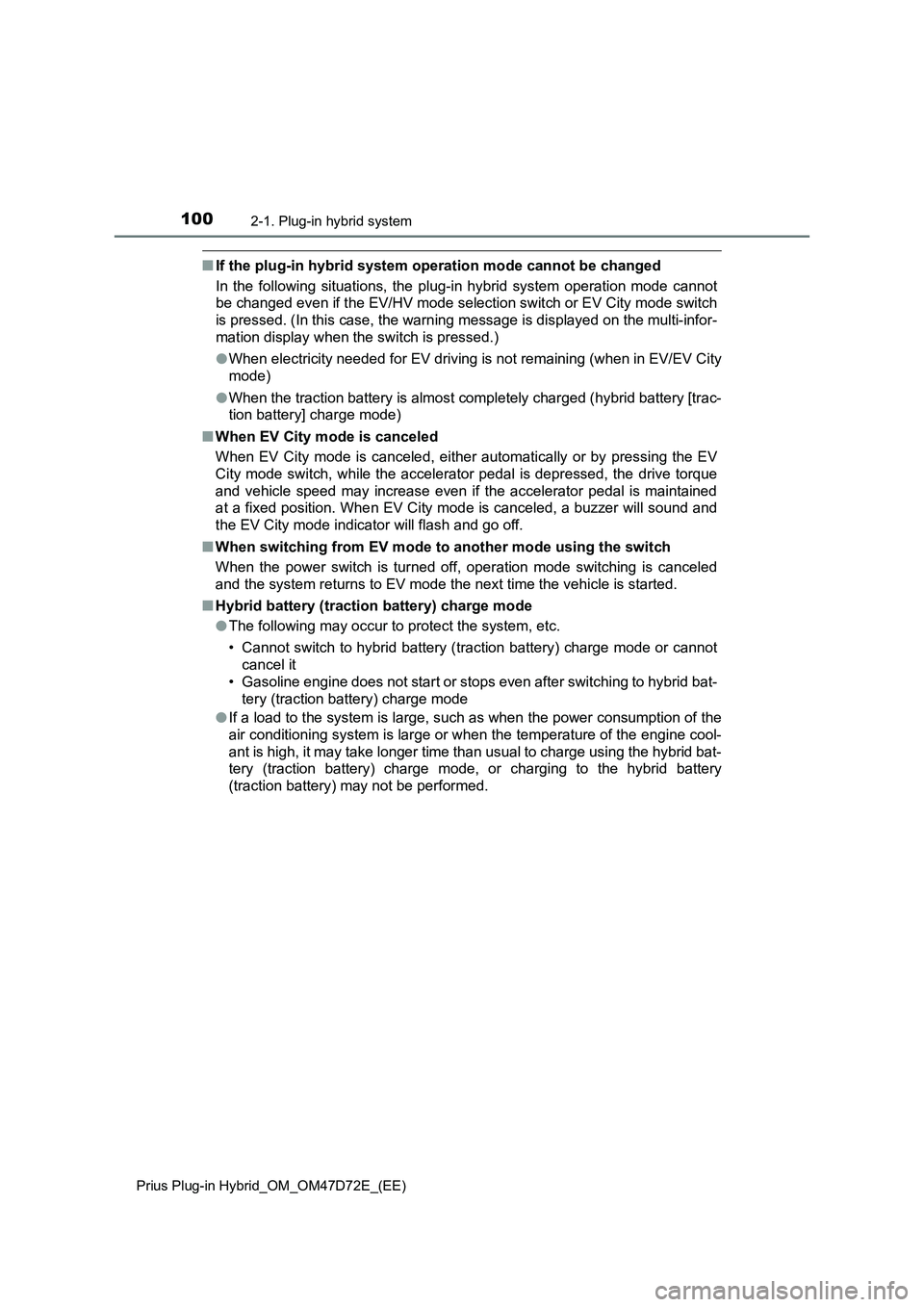

■If the plug-in hybrid system operation mode cannot be changed
In the following situations, the plug-in hybrid system operation mode cannot
be changed even if the EV/HV mode selection switch or EV City mode switch
is pressed. (In this case, the warning message is displayed on the multi-infor-
mation display when the switch is pressed.)
●When electricity needed for EV driving is not remaining (when in EV/EV City
mode)
●When the traction battery is almost completely charged (hybrid battery [trac-
tion battery] charge mode)
■When EV City mode is canceled
When EV City mode is canceled, either automatically or by pressing the EV
City mode switch, while the accelerator pedal is depressed, the drive torque
and vehicle speed may increase even if the accelerator pedal is maintained
at a fixed position. When EV City mode is canceled, a buzzer will sound and
the EV City mode indicator will flash and go off.
■When switching from EV mode to another mode using the switch
When the power switch is turned off, operation mode switching is canceled
and the system returns to EV mode the next time the vehicle is started.
■Hybrid battery (traction battery) charge mode
●The following may occur to protect the system, etc.
• Cannot switch to hybrid battery (traction battery) charge mode or cannot
cancel it
• Gasoline engine does not start or stops even after switching to hybrid bat-
tery (traction battery) charge mode
●If a load to the system is large, such as when the power consumption of the
air conditioning system is large or when the temperature of the engine cool-
ant is high, it may take longer time than usual to charge using the hybrid bat-
tery (traction battery) charge mode, or charging to the hybrid battery
(traction battery) may not be performed.
