2313. Instrument cluster
3
Instrument cluster
The operation contents of the driving support systems and settings
related to the com bination meter disp lay can be changed.
Driving support systems such as the PCS (Pre-Collision System) and Blind
Spot Monitor (if equipped) is turned on and off by simply pressing .
Make sure not to cancel the systems accidentally.
■
Setting procedure
Press or of the meter cont rol switches on the steering
wheel and select .
Press or of the meter control switches and select the
item to change, and then press .
If the function is turned on and
off or the sensitivity, etc. is
changed on the setting screen,
the setting is changed each time
the is pressed.
For functions that allow opera-
tion contents, display contents,
etc., of a function to be selected,
the setting screen is displayed.
When the setting screen is displayed, select the setting or
desired value (time, etc.) wit h the meter control switches.
*1, 2
For selectable operation con-
tents and setting values, select
the desired setting or value, and
then press .
To stop the selection, press .
When the setting check screen
is displayed, select proceed or
cancel and press .
*1: Depending on the items, a subsequent setting screen may be dis played
after selecting an item.
*2: For items which set the adjustment level or time, after the it em is set,
the setting screen remains displayed until is pressed.

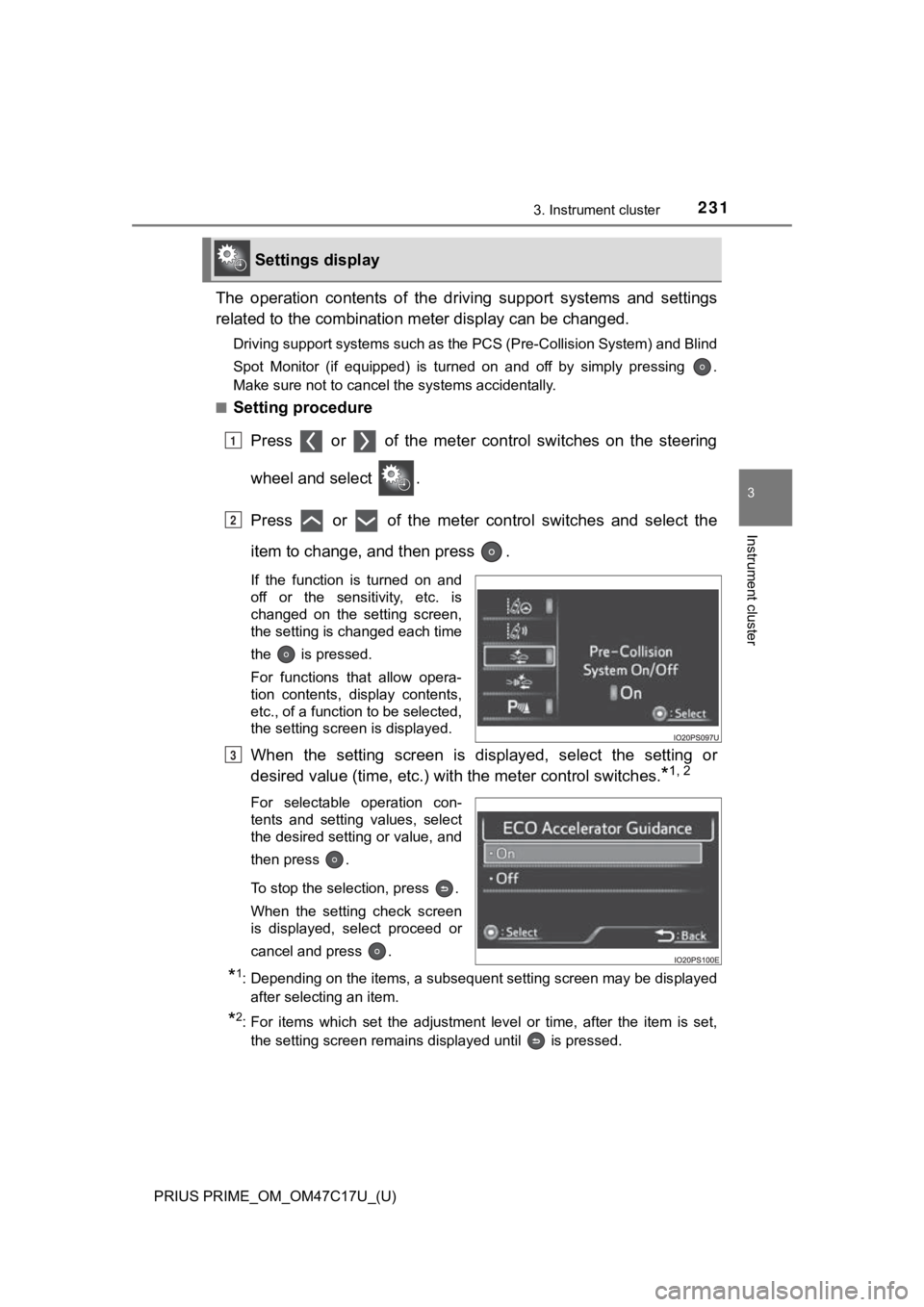

Settings display
1
2
3

232
PRIUS PRIME_OM_OM47C17U_(U)
3. Instrument cluster

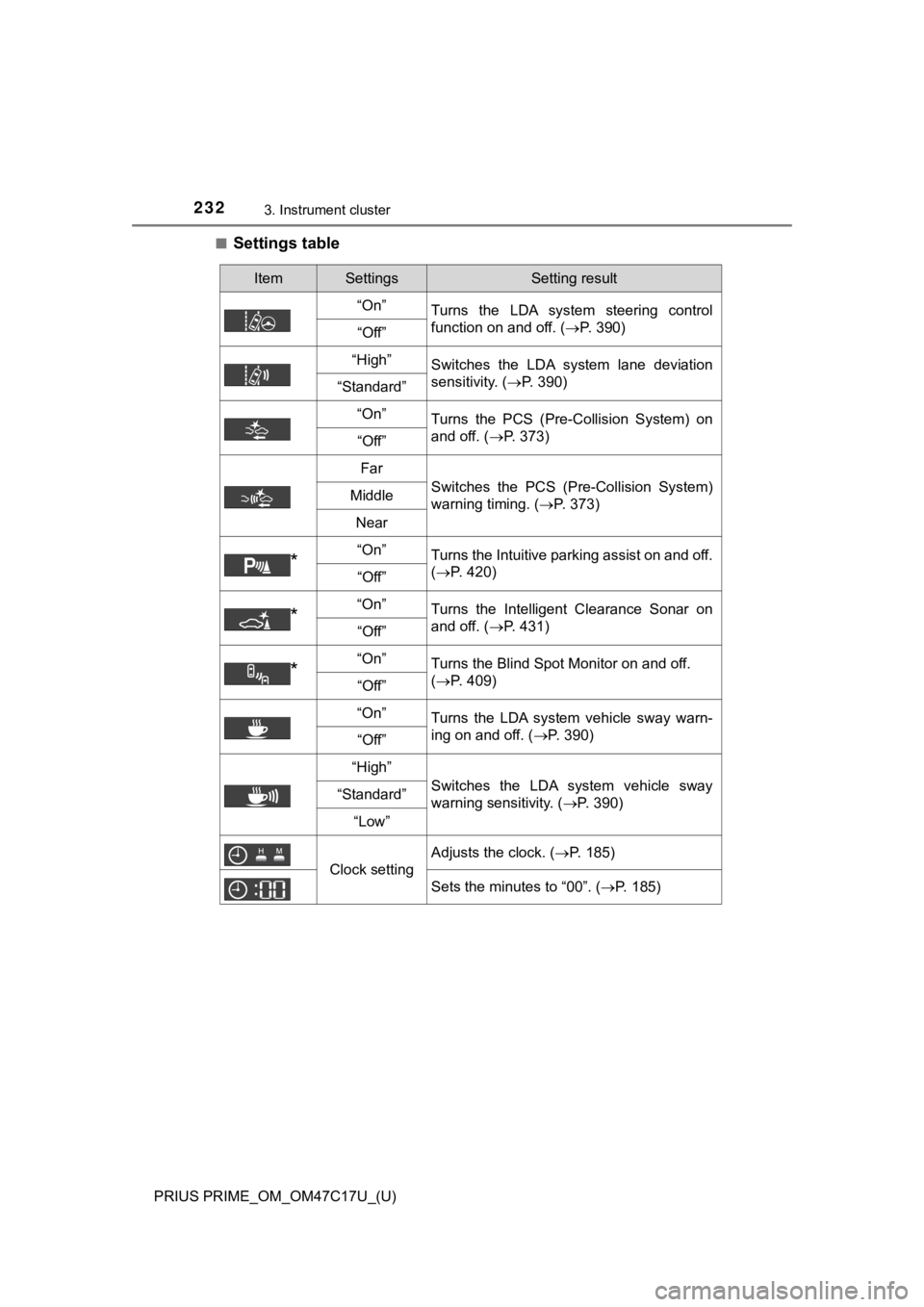

■Settings table
ItemSettingsSetting result
“On” Turns the LDA system steering control
function on and off. ( P. 390)
“Off”
“High”Switches the LDA system lane deviation
sensitivity. (P. 390)
“Standard”
“On”
Turns the PCS (Pre-Collision System) on
and off. ( P. 373)
“Off”
Far
Switches the PCS (Pre-Collision System)
warning timing. ( P. 373)Middle
Near
*“On”Turns the Intuitive parking assist on and off.
(P. 420)
“Off”
*“On”Turns the Intelligent Clearance Sonar on
and off. ( P. 431)
“Off”
*“On”Turns the Blind Spot Monitor on and off.
(P. 409)
“Off”
“On”
Turns the LDA system vehicle sway warn-
ing on and off. ( P. 390)
“Off”
“High”
Switches the LDA system vehicle sway
warning sensitivity. ( P. 390)“Standard”
“Low”
Clock setting
Adjusts the clock. (P. 185)
Sets the minutes to “00”. ( P. 185)

PRIUS PRIME_OM_OM47C17U_(U)
2333. Instrument cluster
3
Instrument cluster
*: If equipped
■

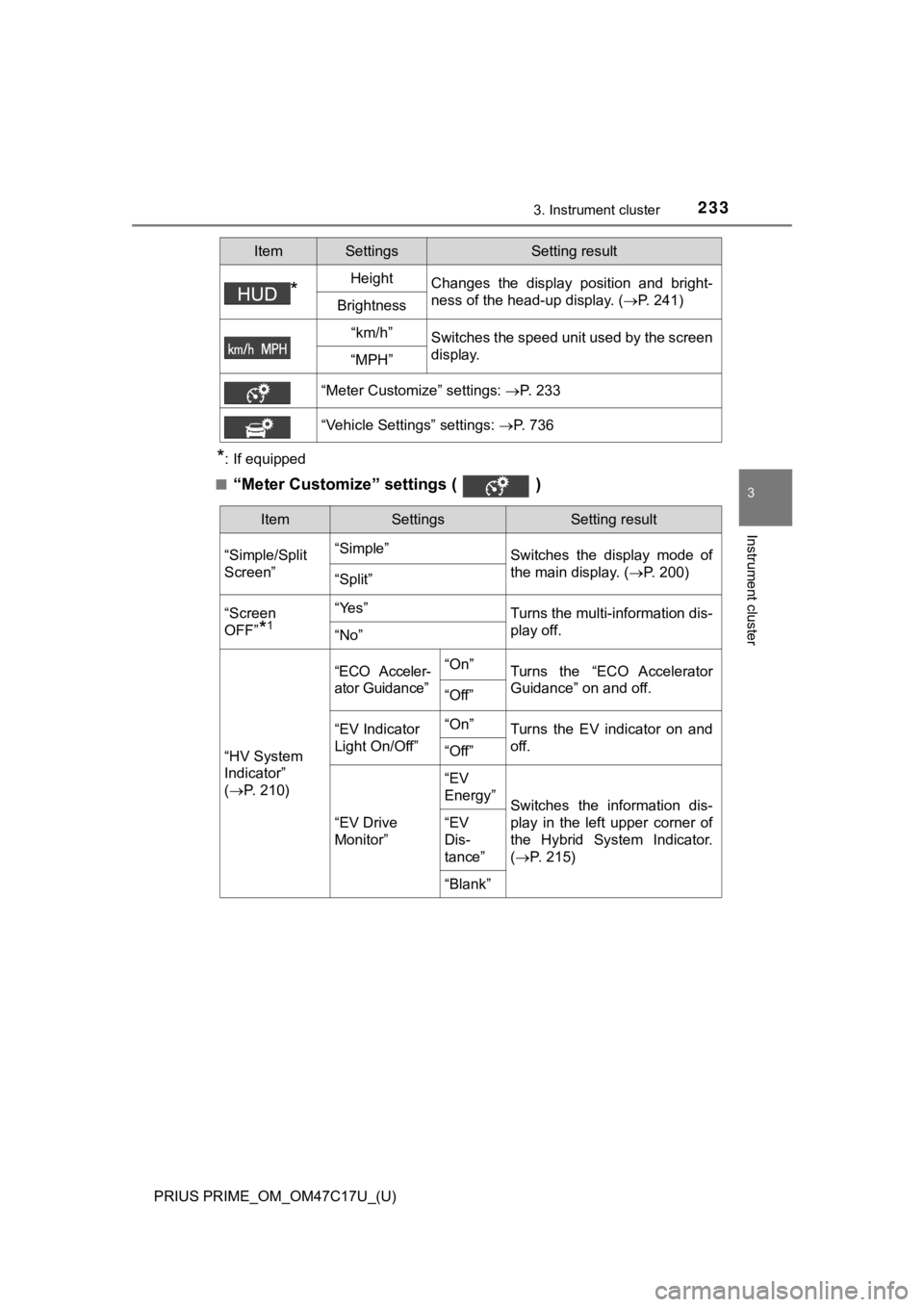

“Meter Customize” settings ( )
*HeightChanges the display position and bright-
ness of the head-up display. ( P. 241)
Brightness
“km/h”Switches the speed unit used by the screen
display.
“MPH”
“Meter Customize” settings: P. 233
“Vehicle Settings” settings: P. 736
ItemSettingsSetting result
ItemSettingsSetting result
“Simple/Split
Screen” “Simple”
Switches the display mode of
the main display. (P. 200)
“Split”
“Screen
OFF”
*1
“Yes”Turns the multi-information dis-
play off.
“No”
“HV System
Indicator”
(  P. 2 1 0 )
“ECO Acceler-
ator Guidance”“On”Turns the “ECO Accelerator
Guidance” on and off.
“Off”
“EV Indicator
Light On/Off” “On”Turns the EV indicator on and
off.
“Off”
“EV Drive
Monitor”“EV
Energy”
Switches the information dis-
play in the left upper corner of
the Hybrid System Indicator.
(
 P. 2 1 5 )
“EV
Dis-
tance”
“Blank”

234
PRIUS PRIME_OM_OM47C17U_(U)
3. Instrument cluster

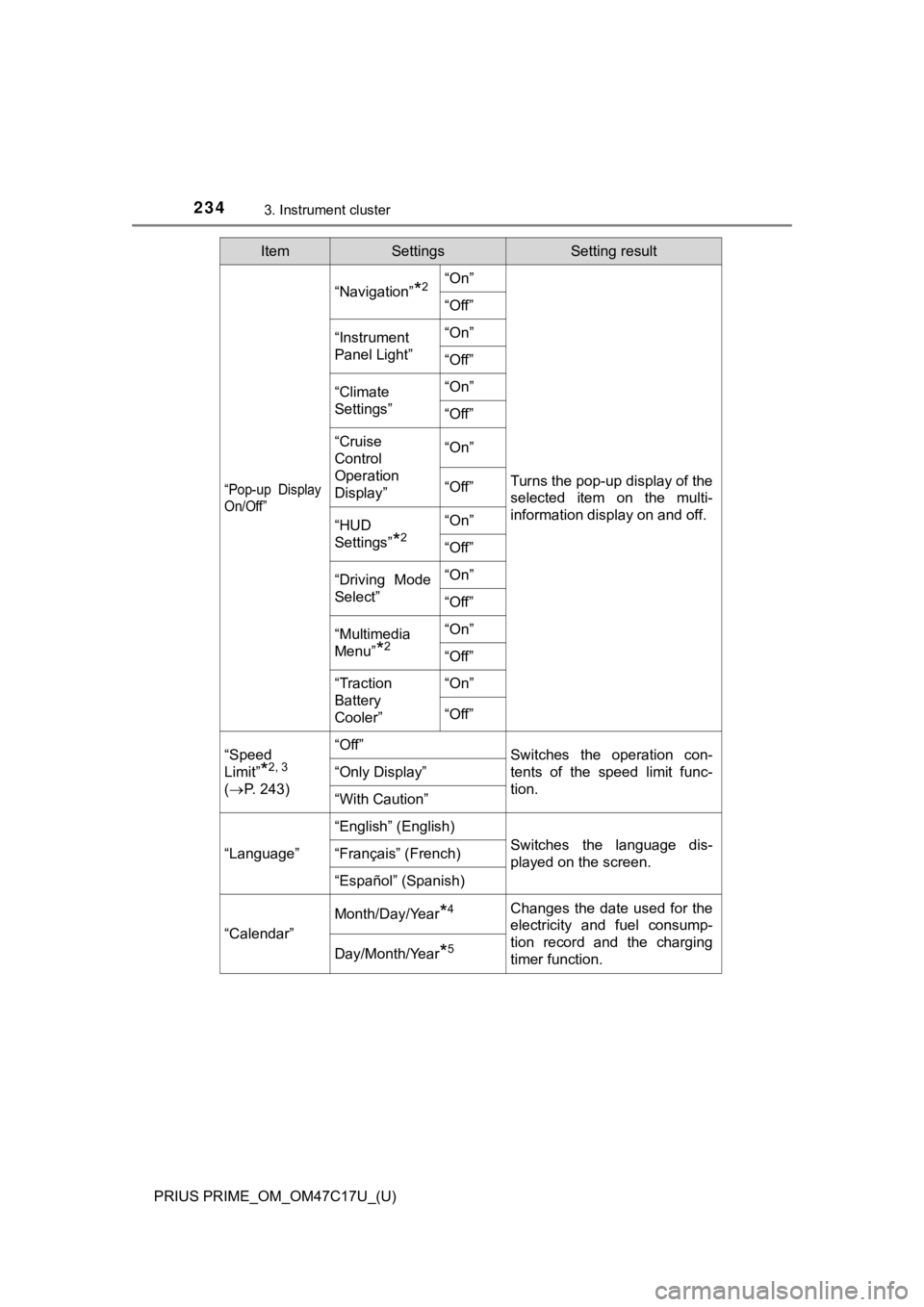

“Pop-up Display
On/Off”
“Navigation”*2“On”
Turns the pop-up display of the
selected item on the multi-
information display on and off.
“Off”
“Instrument
Panel Light”“On”
“Off”
“Climate
Settings”“On”
“Off”
“Cruise
Control
Operation
Display”“On”
“Off”
“HUD
Settings”
*2
“On”
“Off”
“Driving Mode
Select”
“On”
“Off”
“Multimedia
Menu”
*2
“On”
“Off”
“Traction
Battery
Cooler”“On”
“Off”
“Speed
Limit”
*2, 3
(
 P. 2 4 3 )
“Off”Switches the operation con-
tents of the speed limit func-
tion.
“Only Display”
“With Caution”
“Language”
“English” (English)
Switches the language dis-
played on the screen.“Français” (French)
“Español” (Spanish)
“Calendar”
Month/Day/Year*4Changes the date used for the
electricity and fuel consump-
tion record and the charging
timer function.
Day/Month/Year*5
ItemSettingsSetting result

PRIUS PRIME_OM_OM47C17U_(U)
2353. Instrument cluster
3
Instrument cluster
*1: When the screen is turned off, pressing displays the setting screen
again.
*2: If equipped
*3: U.S.A. only
*4: Except for Canada
*5: For Canada

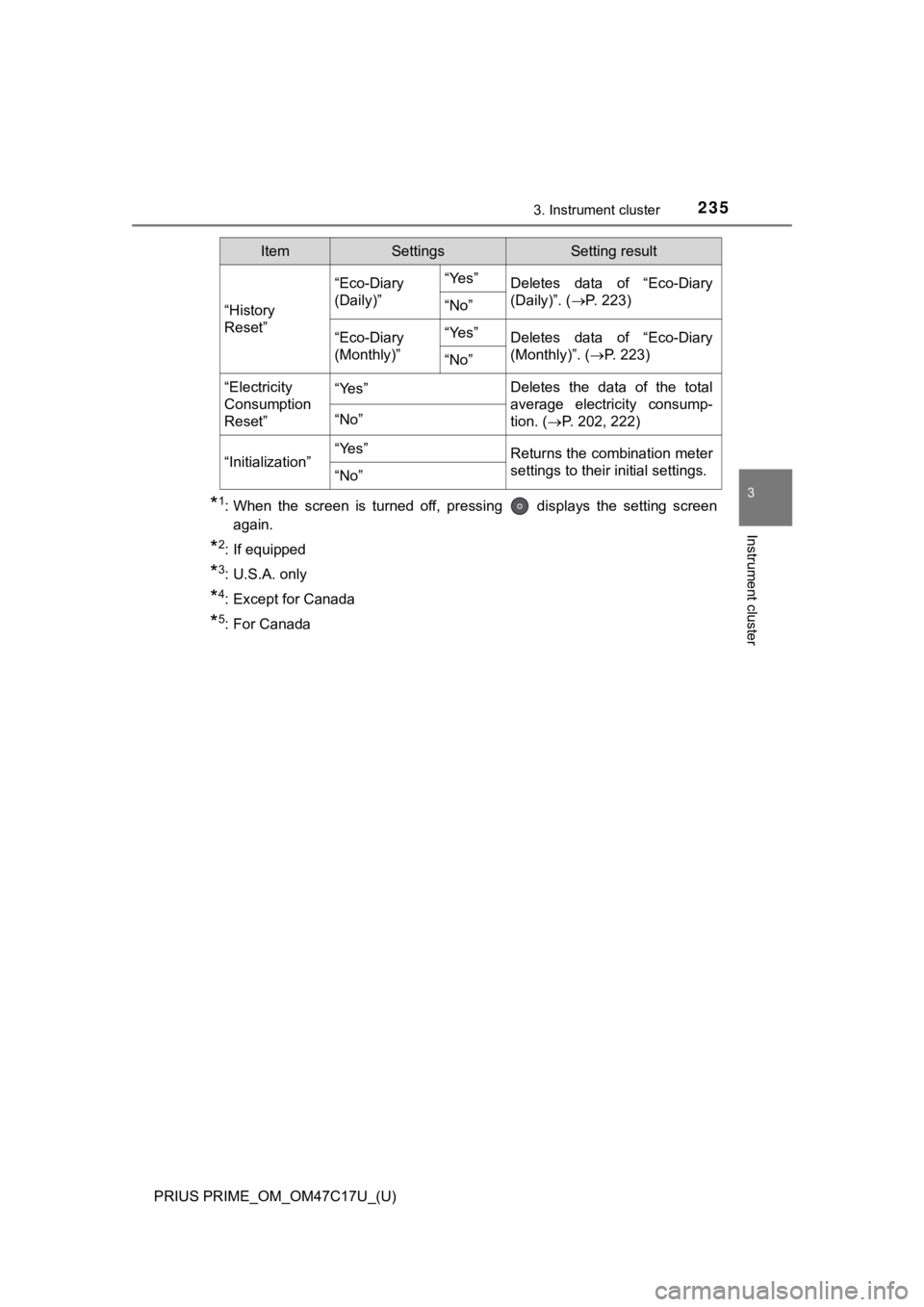

“History
Reset”
“Eco-Diary
(Daily)”“Yes”Deletes data of “Eco-Diary
(Daily)”. ( P. 223)
“No”
“Eco-Diary
(Monthly)”“Yes”Deletes data of “Eco-Diary
(Monthly)”. ( P. 223)
“No”
“Electricity
Consumption
Reset”“Yes”Deletes the data of the total
average electricity consump-
tion. (P. 202, 222)
“No”
“Initialization”“Yes”Returns the combination meter
settings to their initial settings.
“No”
ItemSettingsSetting result

236
PRIUS PRIME_OM_OM47C17U_(U)
3. Instrument cluster
■Setting items
●“Meter Customize” and “Vehicle Settings” setting items are not selectable
during driving and cannot be operated.
Also, the settings screen is temporarily canceled in the follow ing situations.
• A warning message is displayed.
• The vehicle starts off.
● Settings for functions not equipped to the vehicle are not disp layed.
● When a function is turned off, the related settings for that fu nction are not
selectable.
■ Calendar setting
Calendar setting contents are linked to the recorded informatio n of “Eco-
Diary” ( P. 223). When the calendar date is changed, “Eco-Diary” record is
processed as follows:
*: Month/date information not recorded is set to “0” or “0.0”.

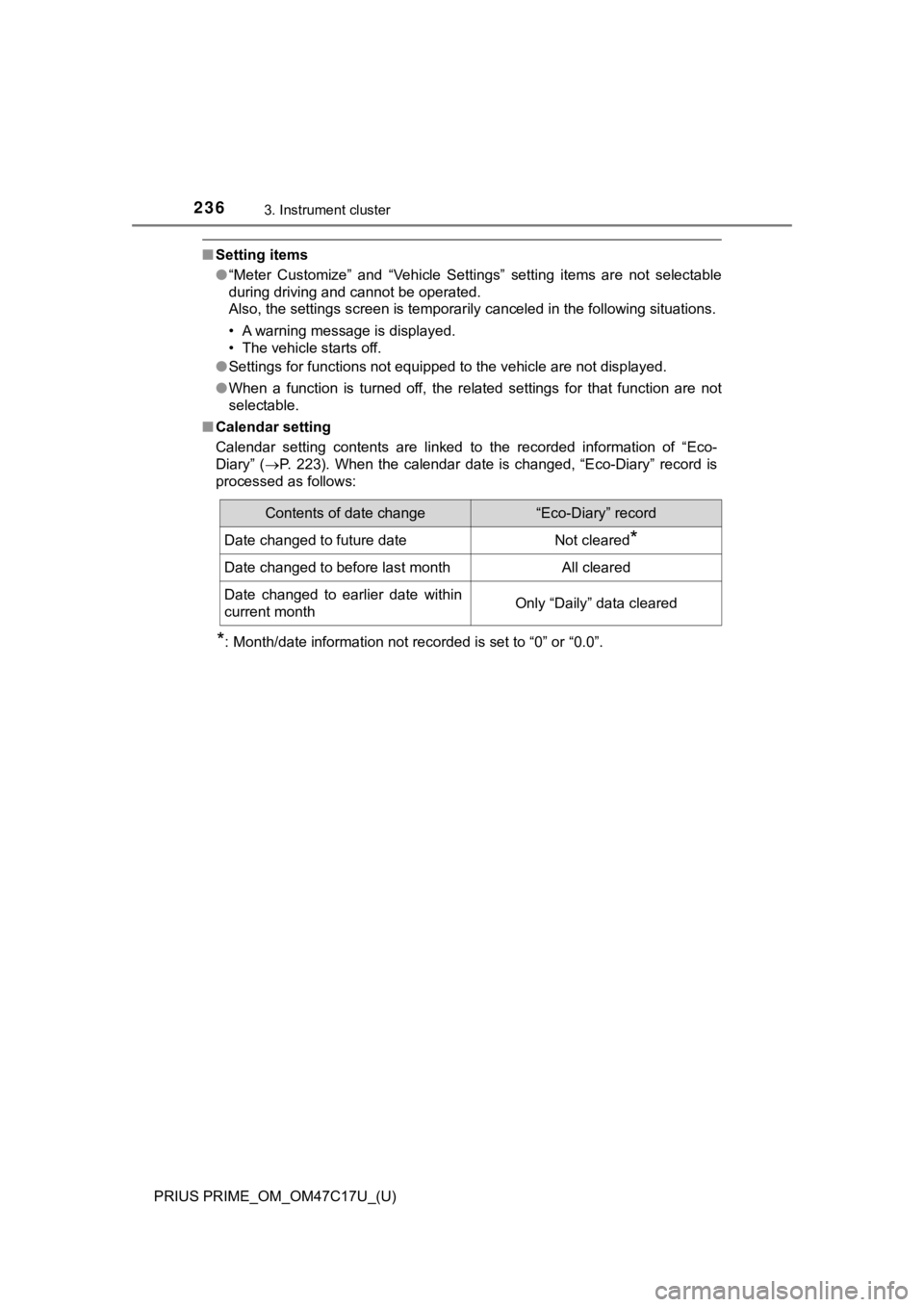

Contents of date change“Eco-Diary” record
Date changed to future dateNot cleared*
Date changed to before last monthAll cleared
Date changed to earlier date within
current monthOnly “Daily” data cleared

PRIUS PRIME_OM_OM47C17U_(U)
2373. Instrument cluster
3
Instrument cluster
WARNING
■Cautions while setting up the display
As the hybrid system needs to be operating during setting up th e display,
ensure that the vehicle is parked in a place with adequate vent ilation. In a
closed area such as a garage, exhaust gases including harmful c arbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■ While setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid sy stem is oper-
ating while setting up the display features.

238
PRIUS PRIME_OM_OM47C17U_(U)
3. Instrument cluster
Head-up display
The units used on the display may differ depending on the target region.
: If equipped

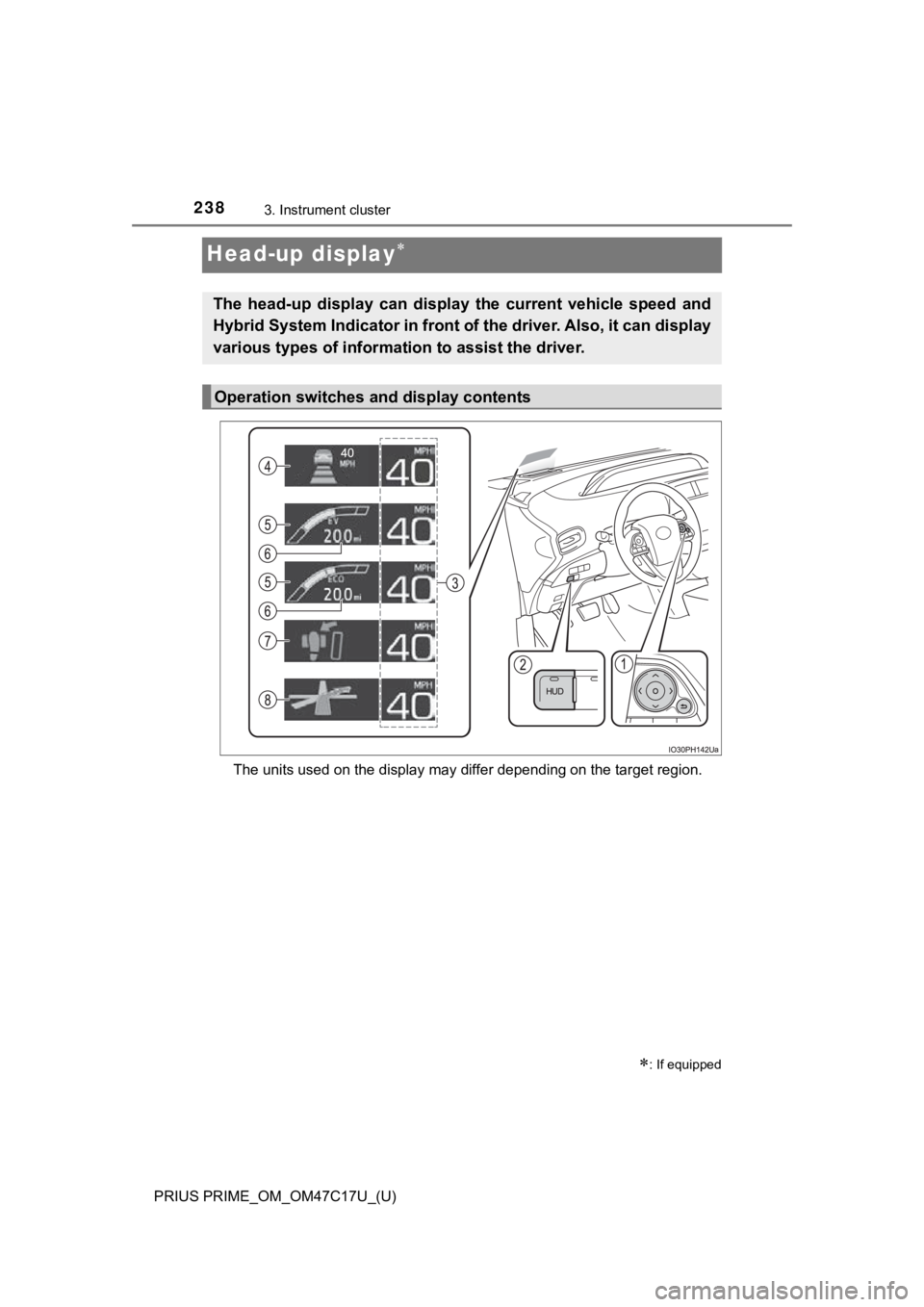

The head-up display can display the current vehicle speed and
Hybrid System Indicator in front of the driver. Also, it can display
various types of informati on to assist the driver.
Operation switches and display contents

PRIUS PRIME_OM_OM47C17U_(U)
2393. Instrument cluster
3
Instrument cluster
Meter control switches
These switches are used when adjusting the display position and bright-
ness of the head-up display. ( P. 241)
“HUD” (Head-up display) switch (P. 2 4 0)
Vehicle speed display
Cruise control display
(P. 391)
Hybrid System Indicator ( P. 210)
The display contents of the Hybrid System Indicator are differe nt in EV
mode and HV mode.
EV driving range
Indicates the estimated distance that can be driven using the c urrent
remaining hybrid battery (traction battery). ( P. 100)
When the air conditioning system is operating, the driving rang e with the
air conditioning system on is displayed.
The EV driving range may shorten even when not driving due to p ower
consumption by the system.
Insert display ( P. 2 4 2)
This display inserts information from each driving support syst em accord-
ing to driving conditions.
Route guidance display ( P. 243)
This display is automatically shown when the navigation system is per-
forming route guidance.
1
2
3
4
5
6
7
8

240
PRIUS PRIME_OM_OM47C17U_(U)
3. Instrument cluster

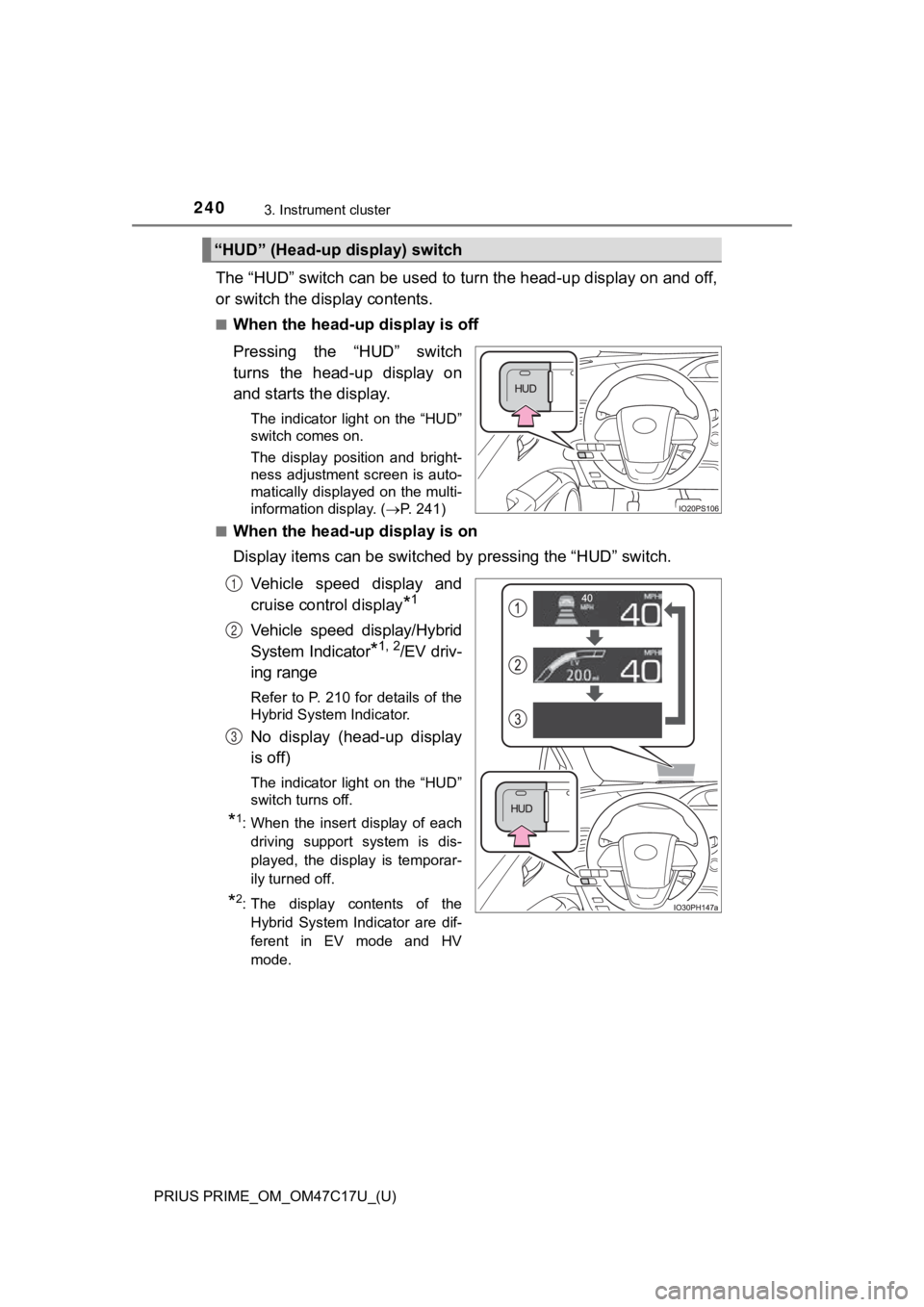

The “HUD” switch can be used to turn the head-up display on and off,
or switch the display contents.
■When the head-up display is off
Pressing the “HUD” switch
turns the head-up display on
and starts the display.
The indicator light on the “HUD”
switch comes on.
The display position and bright-
ness adjustment screen is auto-
matically displayed on the multi-
information display. ( P. 241)
■
When the head-up display is on
Display items can be switched by pressing the “HUD” switch.
Vehicle speed display and
cruise control display
*1
Vehicle speed display/Hybrid
System Indicator
*1, 2/EV driv-
ing range
Refer to P. 210 for details of the
Hybrid System Indicator.
No display (head-up display
is off)
The indicator light on the “HUD”
switch turns off.
*1: When the insert display of each driving support system is dis-
played, the display is temporar-
ily turned off.
*2: The display contents of theHybrid System Indicator are dif-
ferent in EV mode and HV
mode.
“HUD” (Head-up display) switch
1
2
3
