6918-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47C17U_(U)
8
When trouble arises
NOTICE
■To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liqui d sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sea lant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. After use of liquid sealant, make sure to replace the tire
pressure warning valve and transmitter when repairing or replac ing the
tire. ( P. 5 9 9 )
Page 692 of 788

692
PRIUS PRIME_OM_OM47C17U_(U)
8-2. Steps to take in an emergency
If the hybrid system will not start
One of the following may be the cause of the problem:
● The charging cable may be a ttached to the vehicle. (P. 136)
● The electronic key may no t be functioning properly.
* ( P. 694)
● There may not be sufficient f uel in the vehicle’s tank.
Refuel the vehicle. ( P. 92)
● There may be a malfunction in the immobilizer system.
* ( P. 7 5 )
● There may be a malfunction i n the shift control system.
*
( P. 327, 673)
● The hybrid system may be malfunc tioning due to an electrical prob-
lem such as electronic key battery depletion or a blown fuse. H ow-
ever, depending on the type of malfunction, an interim measure is
available to start the hybrid system. ( P. 693)
● There is a possibility that the t emperature of the hybrid battery
(traction battery) is extremely low (approximately below -22°F
[-30°C]). ( P. 92, 326)
*: It may not be possible to shift the shift position other than P.
One of the following may be the cause of the problem:
● The 12-volt battery may be discharged. ( P. 698)
● The 12-volt battery terminal connections may be loose or corrod ed.
( P. 591)
Reasons for the hybrid system not starting vary depending on
the situation. Check the followi ng and perform the appropriate
procedure:
The hybrid system will not start even though the correct starting
procedure is being followed. ( P. 324)
The interior lights and headlights are dim, or the horn does no t
sound or sounds at a low volume.
Page 693 of 788

6938-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47C17U_(U)
8
When trouble arises
One of the following may be the cause of the problem:
● The 12-volt battery may be discharged. ( P. 698)
● One or both of the 12-volt battery terminals may be disconnecte d.
( P. 591)
Contact your Toyota dealer if the problem cannot be repaired, o r if repair
procedures are unknown.
When the hybrid system does not start, the following steps can be
used as an interim measure to sta rt the hybrid system if the power
switch is functioning normally.
Do not use this starting procedur e except in cases of emergency.
Set the parking brake.
Turn the power switch to ACCESSORY mode.
Press and hold the power switch for about 15 seconds while
depressing the brake pedal firmly.
Even if the hybrid system can be started using the above steps, the
system may be malfunctioning. Hav e the vehicle inspected by your
Toyota dealer.
The interior lights and headlights do not turn on, or the horn
does not sound.
Emergency start function
1
2
3
Page 694 of 788

694
PRIUS PRIME_OM_OM47C17U_(U)
8-2. Steps to take in an emergency

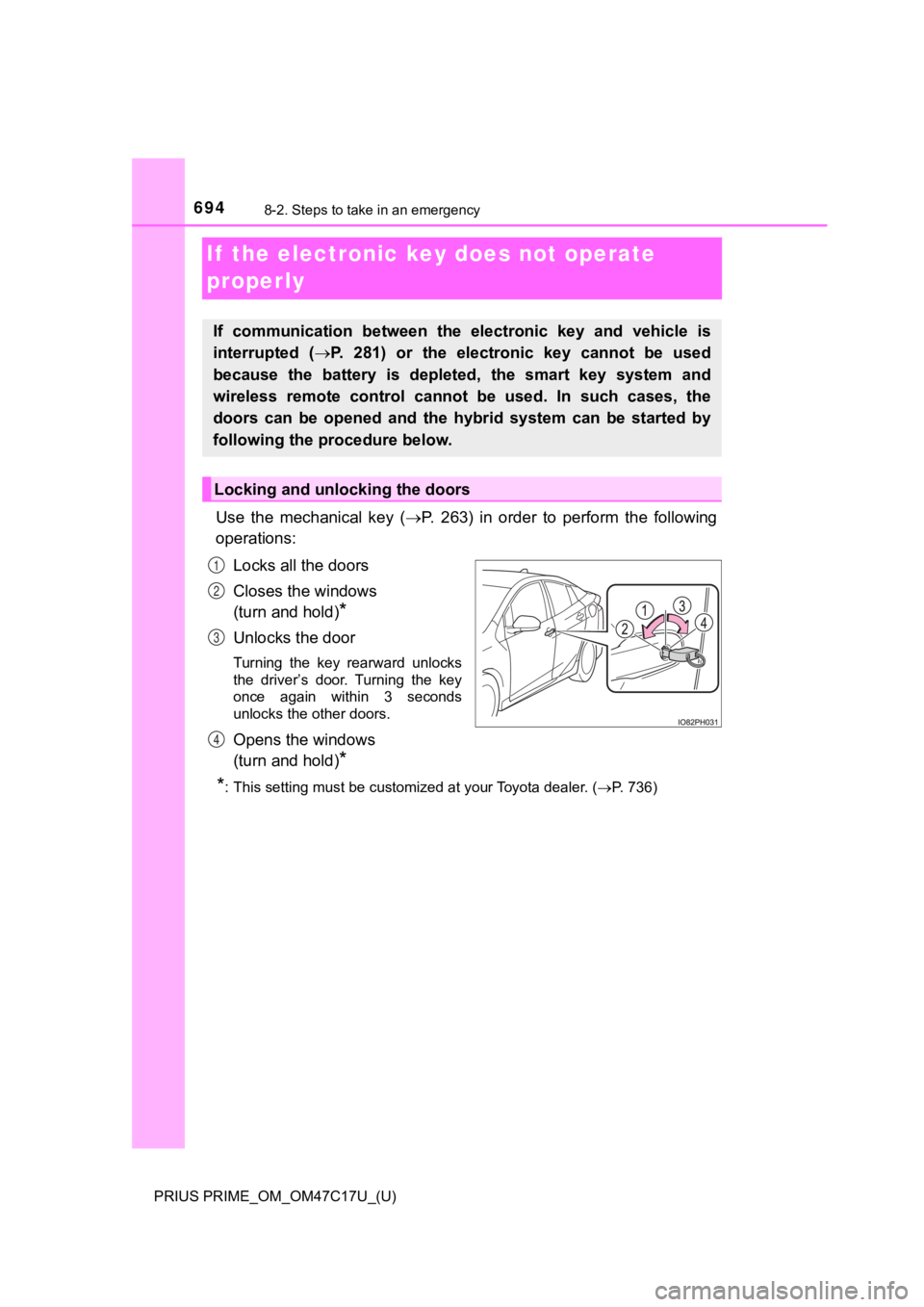

If the electronic key does not operate
properly
Use the mechanical key ( P. 263) in order to perform the following
operations:
Locks all the doors
Closes the windows
(turn and hold)
*
Unlocks the door
Turning the key rearward unlocks
the driver’s door. Turning the key
once again within 3 seconds
unlocks the other doors.
Opens the windows
(turn and hold)
*
*
: This setting must be customized at your Toyota dealer. ( P. 736)
If communication between the electronic key and vehicle is
interrupted ( P. 281) or the electronic key cannot be used
because the battery is depleted, the smart key system and
wireless remote control can not be used. In such cases, the
doors can be opened and the hybrid system can be started by
following the procedure below.
Locking and unlocking the doors
1
2
3
4
Page 695 of 788

6958-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47C17U_(U)
8
When trouble arises

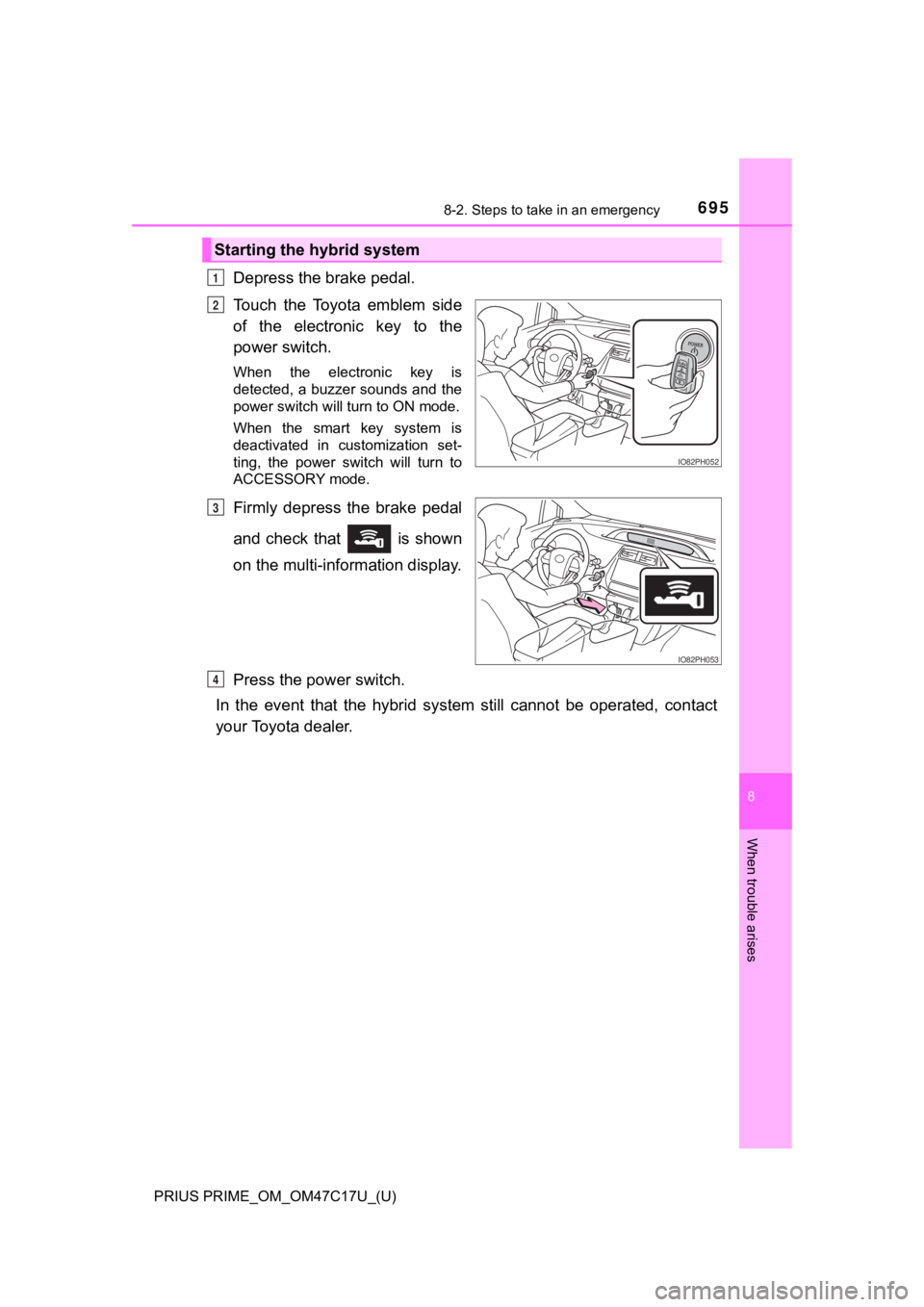

Depress the brake pedal.
Touch the Toyota emblem side
of the electronic key to the
power switch.
When the electronic key is
detected, a buzzer sounds and the
power switch will turn to ON mode.
When the smart key system is
deactivated in customization set-
ting, the power switch will turn to
ACCESSORY mode.
Firmly depress the brake pedal
and check that is shown
on the multi-information display.
Press the power switch.
In the event that the hybrid sy stem still cannot be operated, contact
your Toyota dealer.
Starting the hybrid system
1
IO82PH052
2
IO82PH053
3
4
Page 696 of 788

6968-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47C17U_(U)■
Locking the charging port lid
Close the charging port lid. ( P. 104)
Lock the doors using t he mechanical key. (P. 694)
The charging port lid can be locked if the step and is perfor med in
reverse.
■
Unlocking the charging port lid
Unlock the doors using the mechanical key. ( P. 694)
Open the charging port lid. ( P. 1 0 3 )
*: Vehicles with smart lid & connector locking system only
■
Locking the charging connector Unlock the doors using the mechanical key. ( P. 694)
Open the charging port lid. ( P. 1 0 3 )
Insert the charging connector into the charging inlet. (P. 137)
Push the charging conne ctor lock switch. (P. 138)
The charging connector will be locked.
■
Unlocking the charging port lid
Unlock the doors using the mechanical key. ( P. 694)
Push the charging conne ctor lock switch. (P. 140)
The charging connector will be unlocked.
*: Vehicles with smart lid & connector locking system only
Locking and unlocking the charging port lid*
Locking and unlocking the charging connector*
1
2
12
1
2
1
2
3
4
1
2
Page 697 of 788

6978-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47C17U_(U)
8
When trouble arises
■Stopping the hybrid system
Set the parking brake, shift the shift position to P and press the power switch
as you normally do when stopping the hybrid system.
■ Replacing the key battery
As the above procedure is a temporary measure, it is recommende d that the
electronic key battery be replaced immediately when the battery is depleted.
( P. 631)
■ Changing power switch modes
Release the brake pedal and press the power switch in step abo ve. The
hybrid system does not start and modes will be changed each tim e the switch
is pressed. ( P. 326)
■ When the electronic key does not work properly
●Make sure that the smart key system has not been deactivated in the cus-
tomization setting. If it is off, turn the function on.
(Customizable features: P. 736)
● Check if battery-saving mode is set. If it is set, cancel the f unction.
( P. 280)
WARNING
■ When using the mechanical key and operating the power windows
Operate the power window after checking to make sure that there is no pos-
sibility of any passenger having any of their body parts caught in the win-
dow.
Also, do not allow children to operate the mechanical key. It is possible for
children and other passengers to get caught in the power window .
3
Page 698 of 788

698
PRIUS PRIME_OM_OM47C17U_(U)
8-2. Steps to take in an emergency
If the 12-volt batter y is discharged

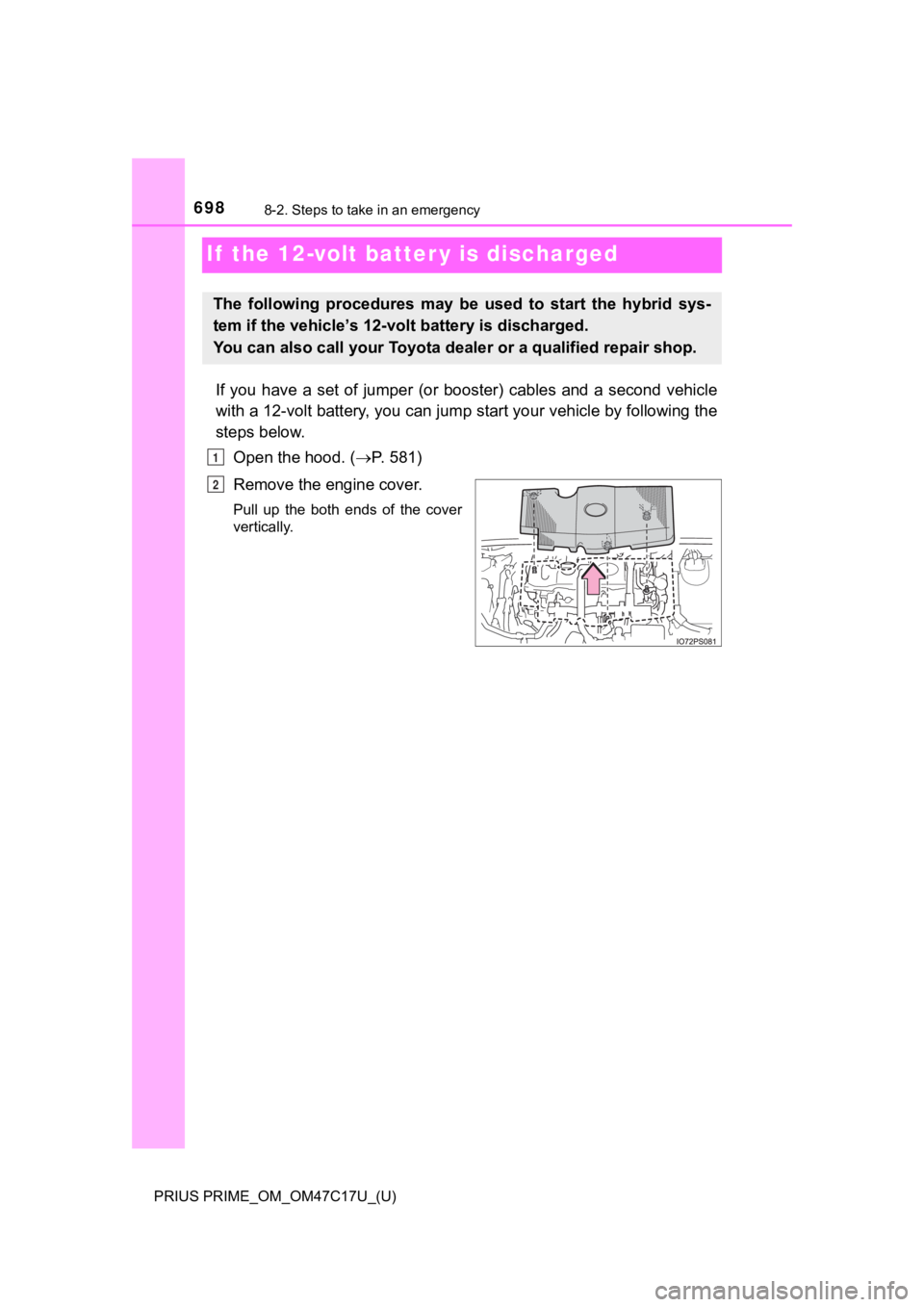

If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by foll owing the
steps below.
Open the hood. ( P. 581)
Remove the engine cover.
Pull up the both ends of the cover
vertically.
The following procedures may be used to start the hybrid sys-
tem if the vehicle’s 12-volt battery is discharged.
You can also call your Toyota de aler or a qualified repair shop.
1
2
Page 699 of 788

6998-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47C17U_(U)
8
When trouble arises

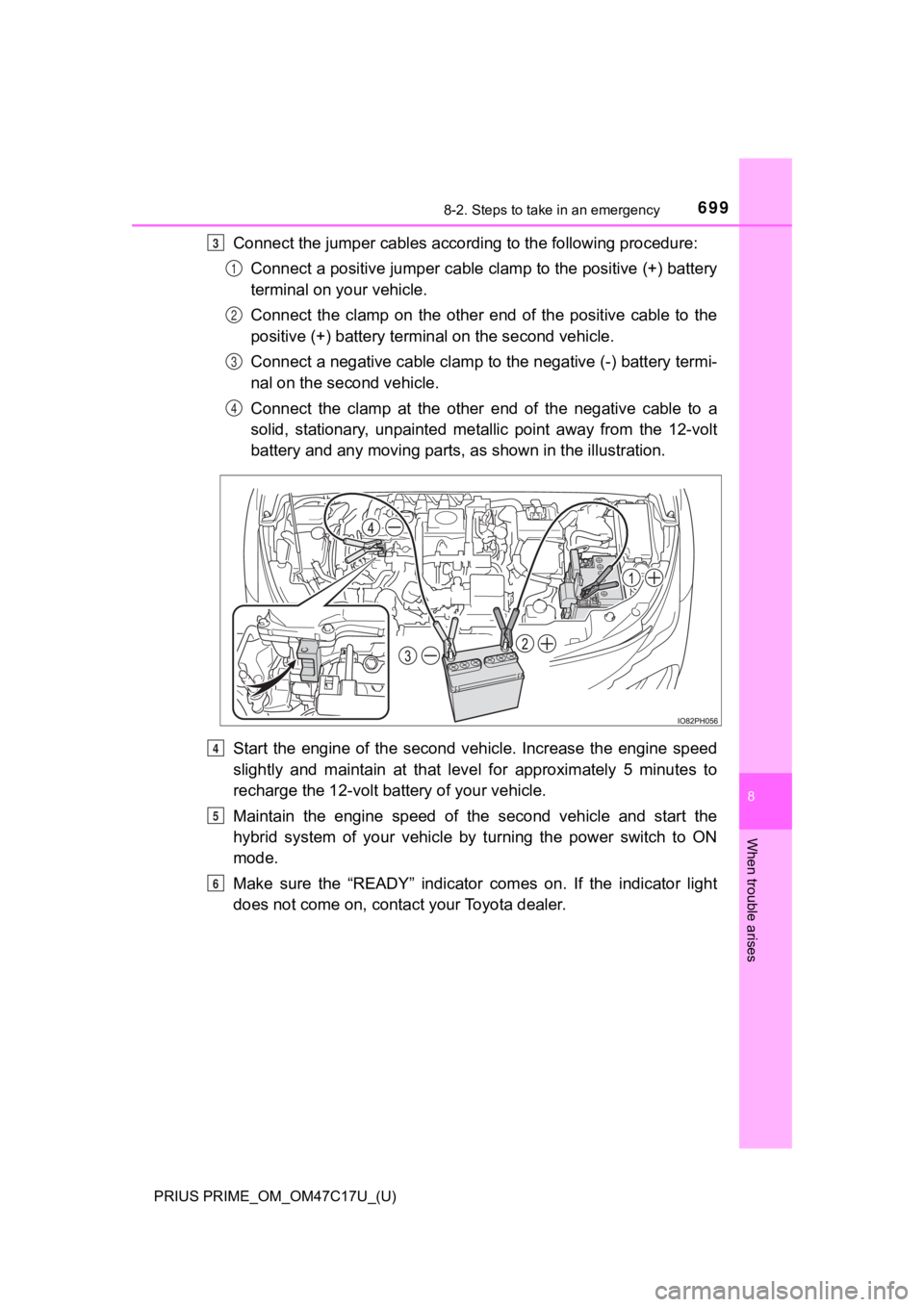

Connect the jumper cables according to the following procedure:Connect a positive jumper cable clamp to the positive (+) batte ry
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
positive (+) battery termi nal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery term i-
nal on the s econd vehicle.
Connect the clamp at the other e nd of the negative cable to a
solid, stationary, unpainted metallic point away from the 12-vo lt
battery and any movin g parts, as shown in the illustration.
Start the engine of the second v ehicle. Increase the engine speed
slightly and maintain at that lev el for approximately 5 minutes to
recharge the 12-volt battery of your vehicle.
Maintain the engine speed of the second vehicle and start the
hybrid system of your vehicle by turning the power switch to ON
mode.
Make sure the “READY” indicator comes on. If the indicator ligh t
does not come on, contac t your Toyota dealer.3
1
2
3
4
4
5
6
Page 700 of 788

7008-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47C17U_(U)
Once the hybrid system has started, remove the jumper cables in
the exact reverse order from which they were connected.
To install the engine cover, conduct the removal procedure in
reverse. After installing, check that the fixed pins are inserted
securely.
Once the hybrid system starts, have the vehicle inspected at yo ur
Toyota dealer as soon as possible.
■ When opening the cover of the positive (+) battery terminal
P. 591
■ Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■ To prevent 12-volt battery discharge
●Turn off the headlights and the audio system while the hybrid s ystem is off.
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic .
■ When the 12-volt battery is removed or discharged
● Information stored in the ECU is cleared. When the 12-volt batt ery is
depleted, have the vehicle inspected at your Toyota dealer.
● Some systems may require initialization. ( P. 747)
■ When removing the 12-vo lt battery terminals
When the 12-volt battery terminals are removed, the information stored in the
ECU is cleared. Before removing the 12-volt battery terminals, contact your
Toyota dealer.
■ Charging the 12-volt battery
The electricity stored in the 12-volt battery will discharge gr adually even when
the vehicle is not in use, due to natural discharge and the dra ining effects of
certain electrical appliances. If the vehicle is left for a lon g time, the 12-volt
battery may discharge, and the hybrid system may be unable to s tart. (The
12-volt battery recharges automatically while the hybrid system is operating.)
7
8
