TOYOTA PRIUS PRIME 2018 (in English) Owner's Guide

29
Color Head-up display (HUD) (if equipped)
The color head-up display can display the current vehicle speed and hybrid system
indicator in front of the driver. Also, it can display various types of information to
assist the driver.
Meter control switches adjust
position and brightness of HUD Head-up display (HUD) switch
activates or switches between itemsVehicle speed display
Hybrid system current driving and
energy regeneration status
Insert display driving support
system information
Route guidance display
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES

30
ENTUNE™ PREMIUM AUDIO WITH INTEGRATED NAVIGATION & APP SUITE
Audio
HOME SCREEN - the home screen offers a two panel and a three panel layout. Information and
layout will vary depending on selected set up.
FEATURES & OPERATIONS
Eject CD
Seek station/
CD track select
Map card
insert Touch screen displayTurn to tune radio
stations manually
or select tracks
or files Touch to pause or
resume playing
Refer to the “Navigation System Owner’s Manual” for more details.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Entune system if it will distract you.
Push to turn ON/OFF.
Button
Access telephone
option screen. AUDIO Button
Access to audio
functions.
HOME Button
Access to
Home screen. 7” Display
APPS Button
Access to
Entune
® App
Suite, sports,
stocks, news,
TRAFlCAND
weather.

31Home button
Access to Home
screen.
Menu button
Access to Menu
screen.
Volume button
Push to turn
ON/OFF.
Audio information
display area Touch screen display
Access audio and
navigation functions.
Refer to the “Navigation System Owner’s Manual” for more details.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Entune system if it will distract you.

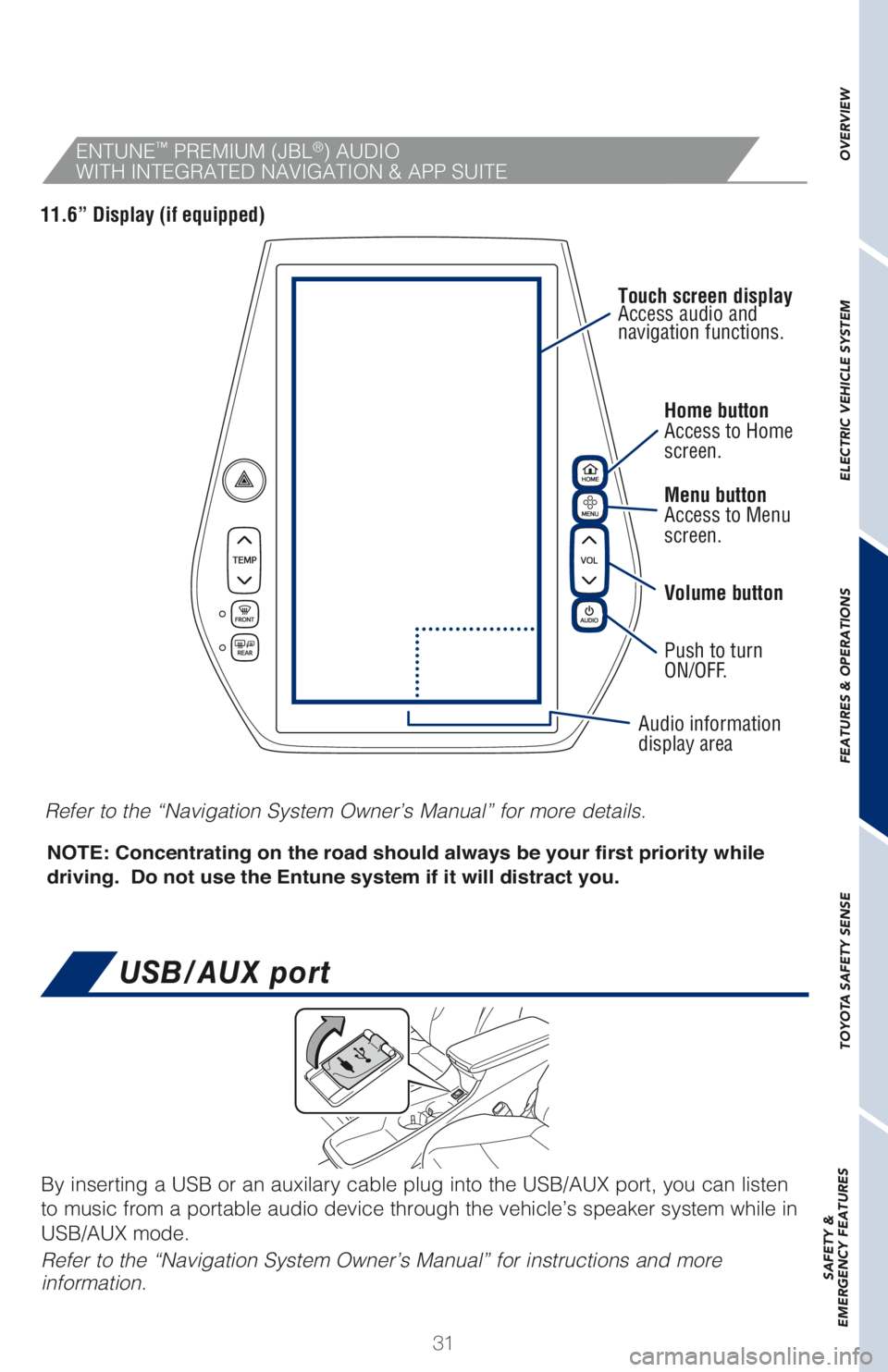

11.6” Display (if equipped)
USB/AUX port
By inserting a USB or an auxilary cable plug into the USB/AUX port, you can listen
to music from a portable audio device through the vehicle’s speaker system while in
USB/AUX mode.
Refer to the “Navigation System Owner’s Manual” for instructions and more
information.
ENTUNE™ PREMIUM (JBL®) AUDIO
WITH INTEGRATED NAVIGATION & APP SUITEOVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES

32
FEATURES & OPERATIONS

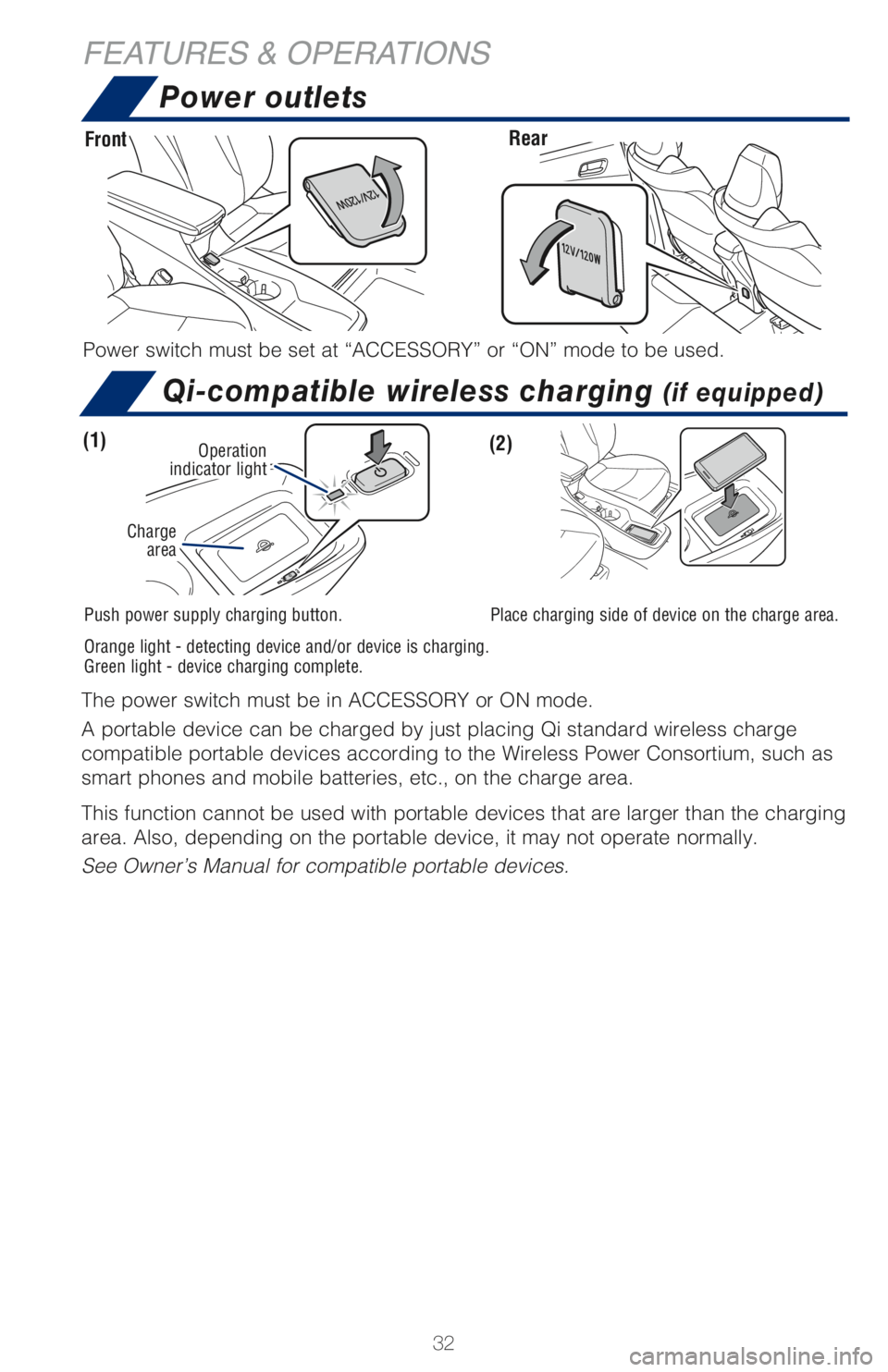

Qi-compatible wireless charging (if equipped)
The power switch must be in ACCESSORY or ON mode.
A portable device can be charged by just placing Qi standard wireless charge
compatible portable devices according to the Wireless Power Consortium, such as
smart phones and mobile batteries, etc., on the charge area.
This function cannot be used with portable devices that are larger than the charging
area. Also, depending on the portable device, it may not operate normally.
See Owner’s Manual for compatible portable devices.
Power outlets
FrontRear
Power switch must be set at “ACCESSORY” or “ON” mode to be used.
Push power supply charging button.
(1)(2)
Place charging side of device on the charge area.
Operation
indicator light
Charge
area
Orange light - detecting device and/or device is charging.
Green light - device charging complete.

33

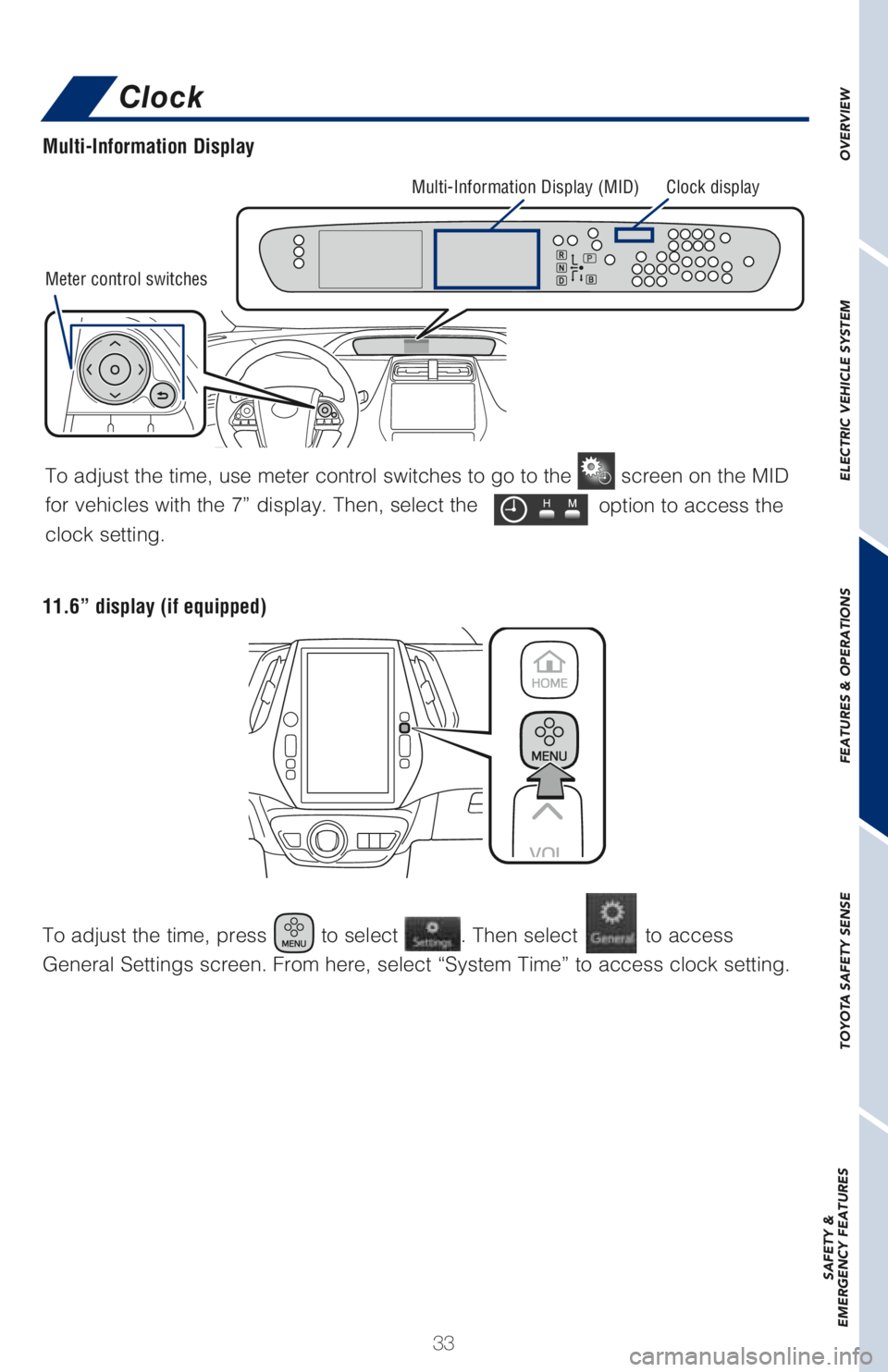

Clock
To adjust the time, use meter control switches to go to the screen on the MID
for vehicles with the 7” display. Then, select the
option to access the
clock setting.
To adjust the time, press
to select . Then select to access
General Settings screen. From here, select “System Time” to access clock setting.
Multi-Information Display (MID)
Clock display
Meter control switches
Multi-Information Display
11.6” display (if equipped)
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES

34
FEATURES & OPERATIONS

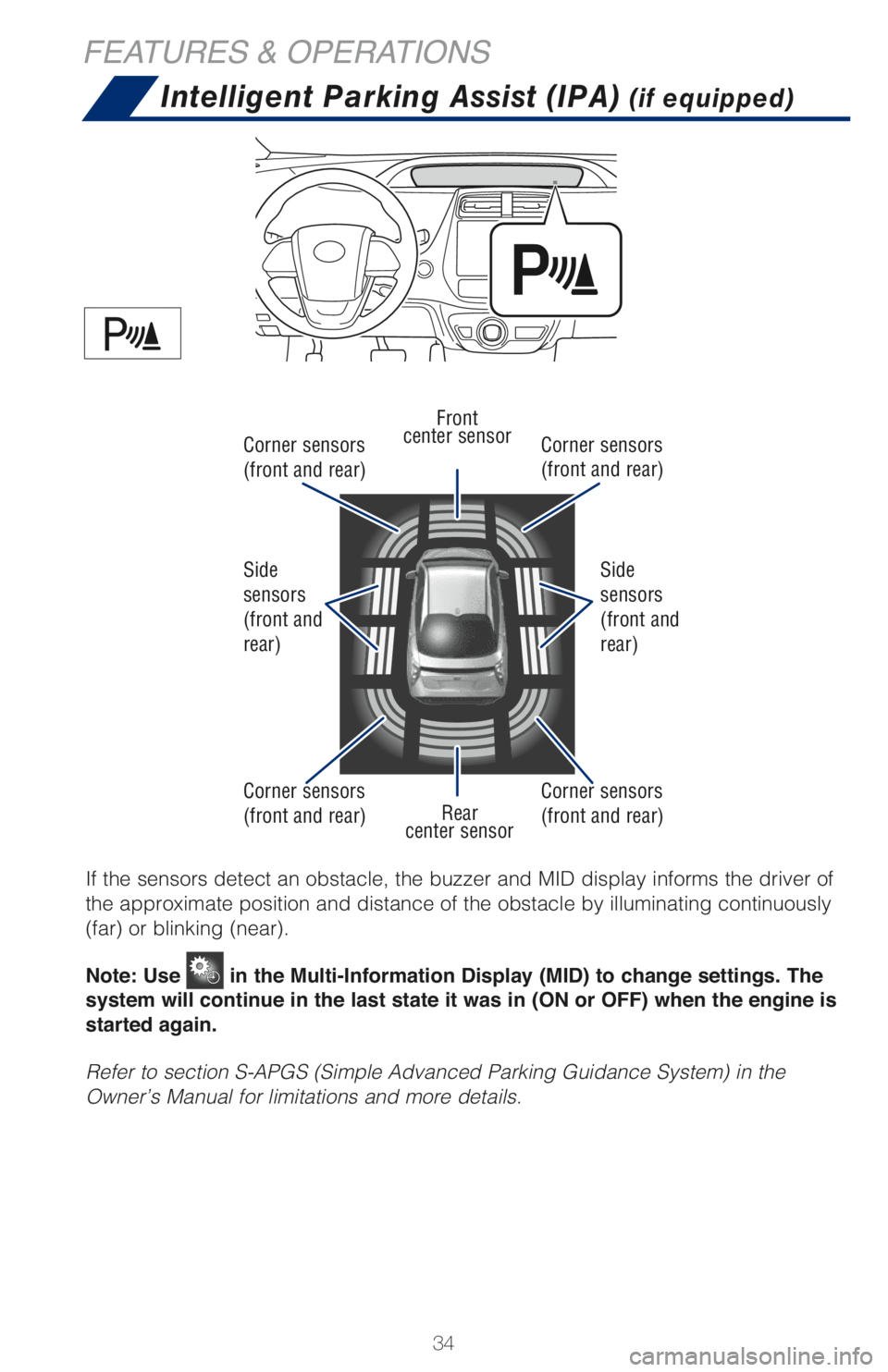

Intelligent Parking Assist (IPA) (if equipped)
If the sensors detect an obstacle, the buzzer and MID display informs the driver of
the approximate position and distance of the obstacle by illuminating continuously
(far) or blinking (near).
Note: Use
in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to section S-APGS (Simple Advanced Parking Guidance System) in the
Owner’s Manual for limitations and more details.
Front
center sensor
Rear
center sensor Corner sensors
(front and rear)
Corner sensors
(front and rear) Side
sensors
(front and
rear)Side
sensors
(front and
rear) Corner sensors
(front and rear)
Corner sensors
(front and rear)

35

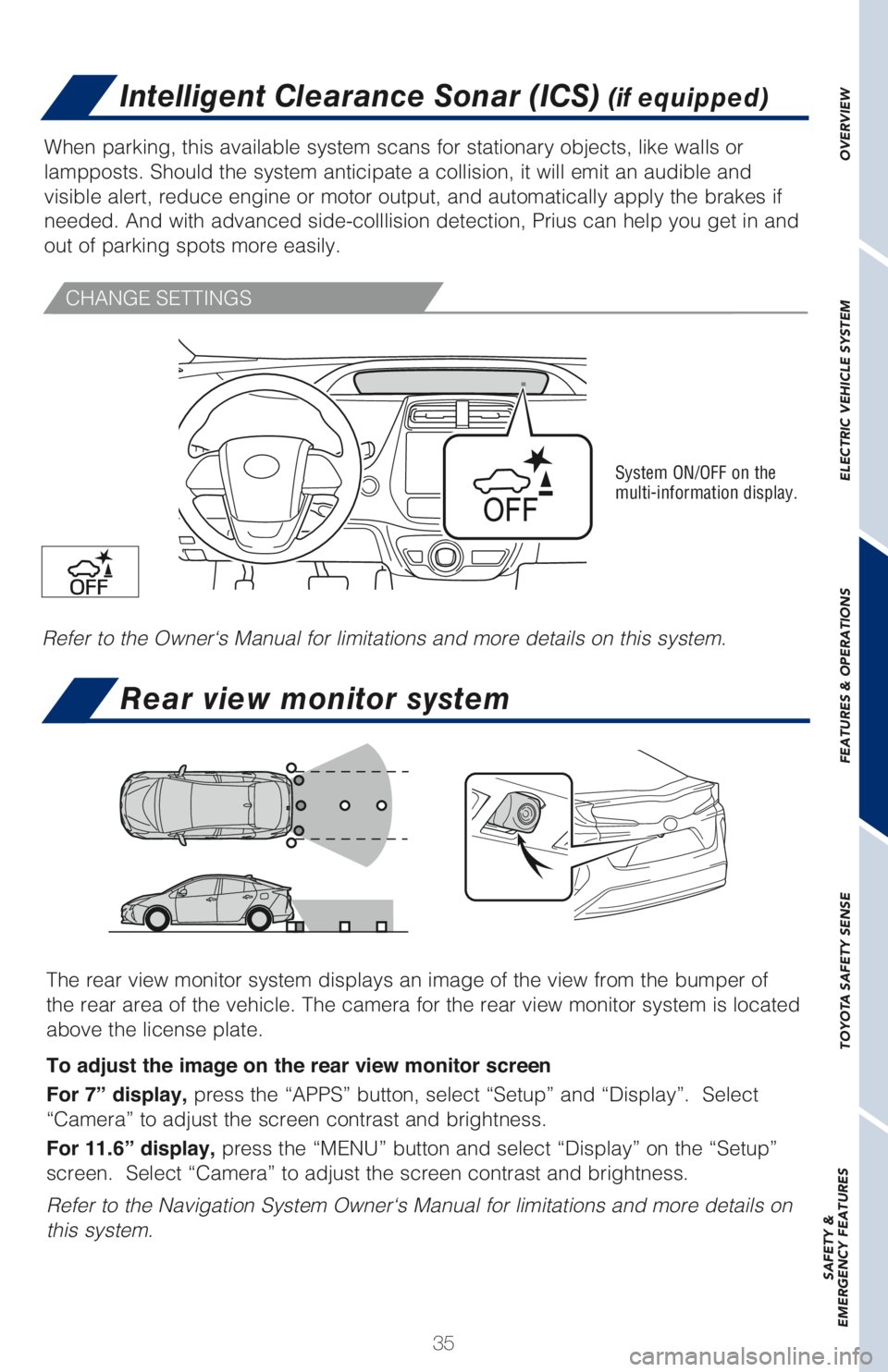

Intelligent Clearance Sonar (ICS) (if equipped)
When parking, this available system scans for stationary objects, like walls or
lampposts. Should the system anticipate a collision, it will emit an audible and
visible alert, reduce engine or motor output, and automatically apply the brakes if
needed. And with advanced side-colllision detection, Prius can help you get in and
out of parking spots more easily.
Refer to the Owner‘s Manual for limitations and more details on this system.
System ON/OFF on the
multi-information display.
CHANGE SETTINGS
Rear view monitor system
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen
For 7” display, press the “APPS” button, select “Setup” and “Display”. Select
“Camera” to adjust the screen contrast and brightness.
For 11.6” display, press the “MENU” button and select “Display” on the “Setup”
screen. Select “Camera” to adjust the screen contrast and brightness.
Refer to the Navigation System Owner‘s Manual for limitations and more details on
this system.
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES

36

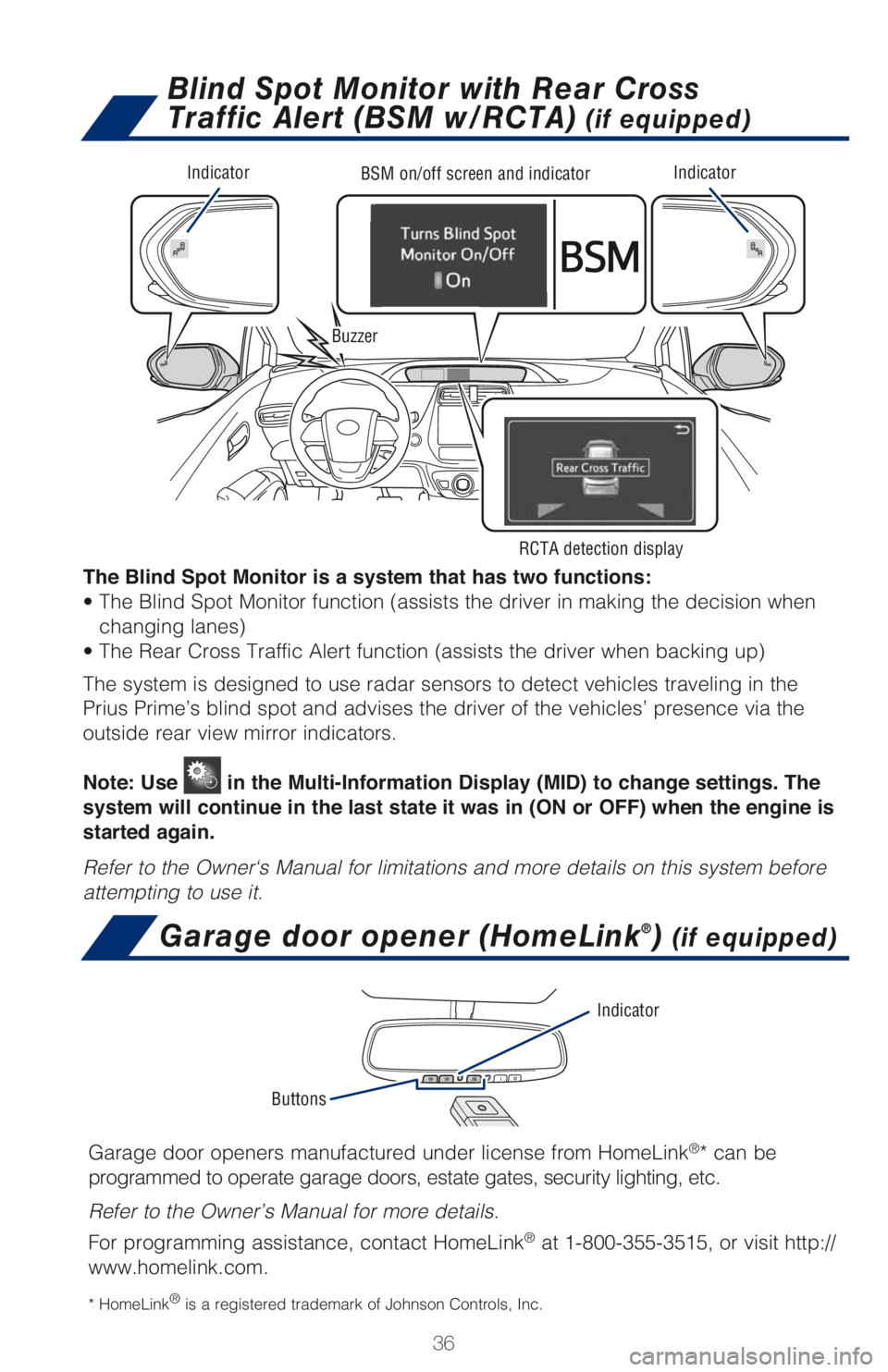

Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA)
(if equipped)
Garage door opener (HomeLink®) (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit http://
www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
IndicatorIndicatorBSM on/off screen and indicator
Buzzer
RCTA detection display
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the decision when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system is designed to use radar sensors to detect vehicles traveling in the
Prius Prime’s blind spot and advises the driver of the vehicles’ presence via the
outside rear view mirror indicators.
Note: Use
in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Buttons
Indicator

37

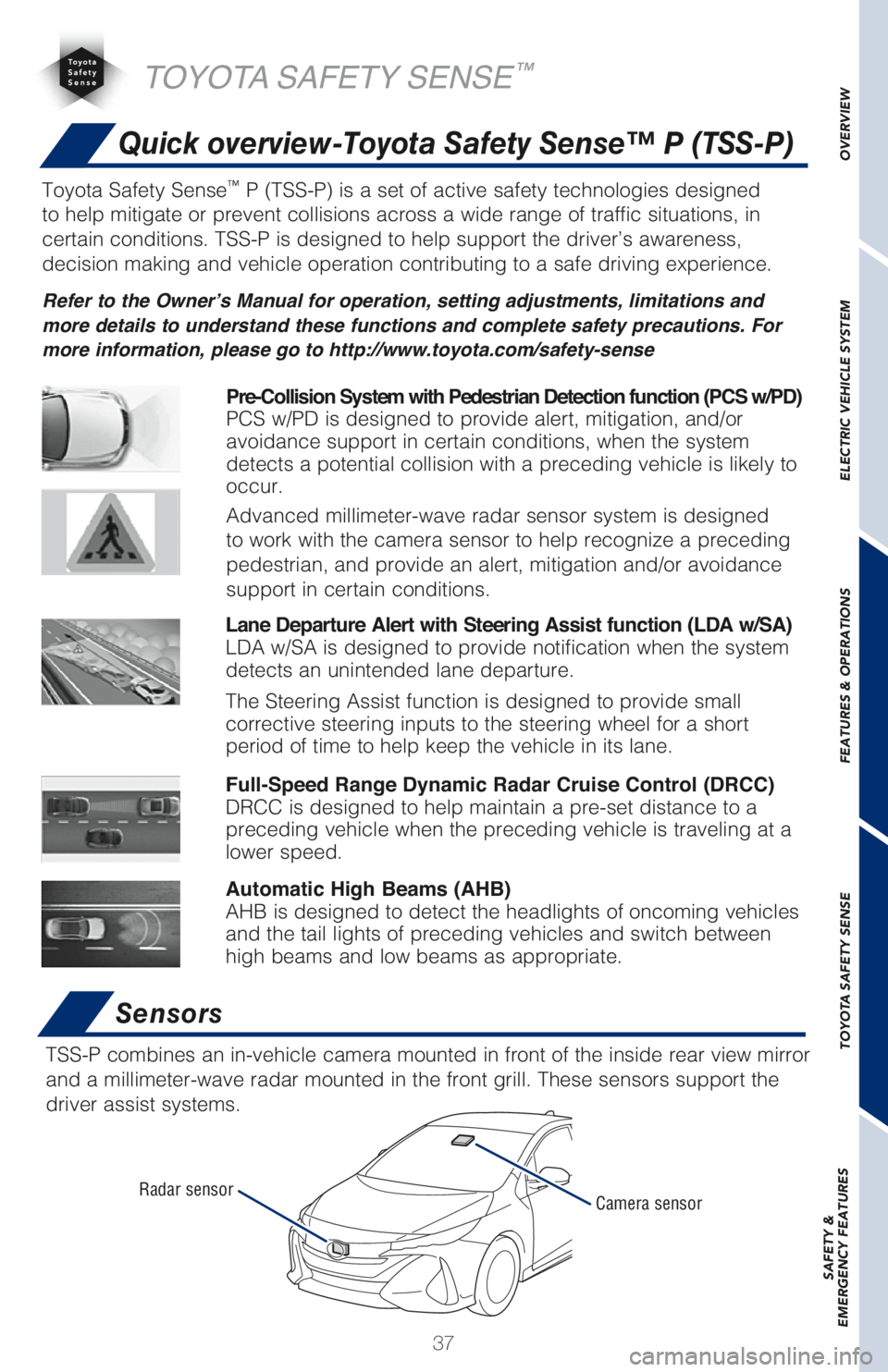

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear view mirror
and a millimeter-wave radar mounted in the front grill. These sensors support the
driver assist systems.
Camera sensor Radar sensor
TOYOTA SAFETY SENSE™
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic situations, in
certain conditions. TSS-P is designed to help support the driver’s awareness,
decision making and vehicle operation contributing to a safe driving experience.
5HIHUWRWKH2ZQHU

38

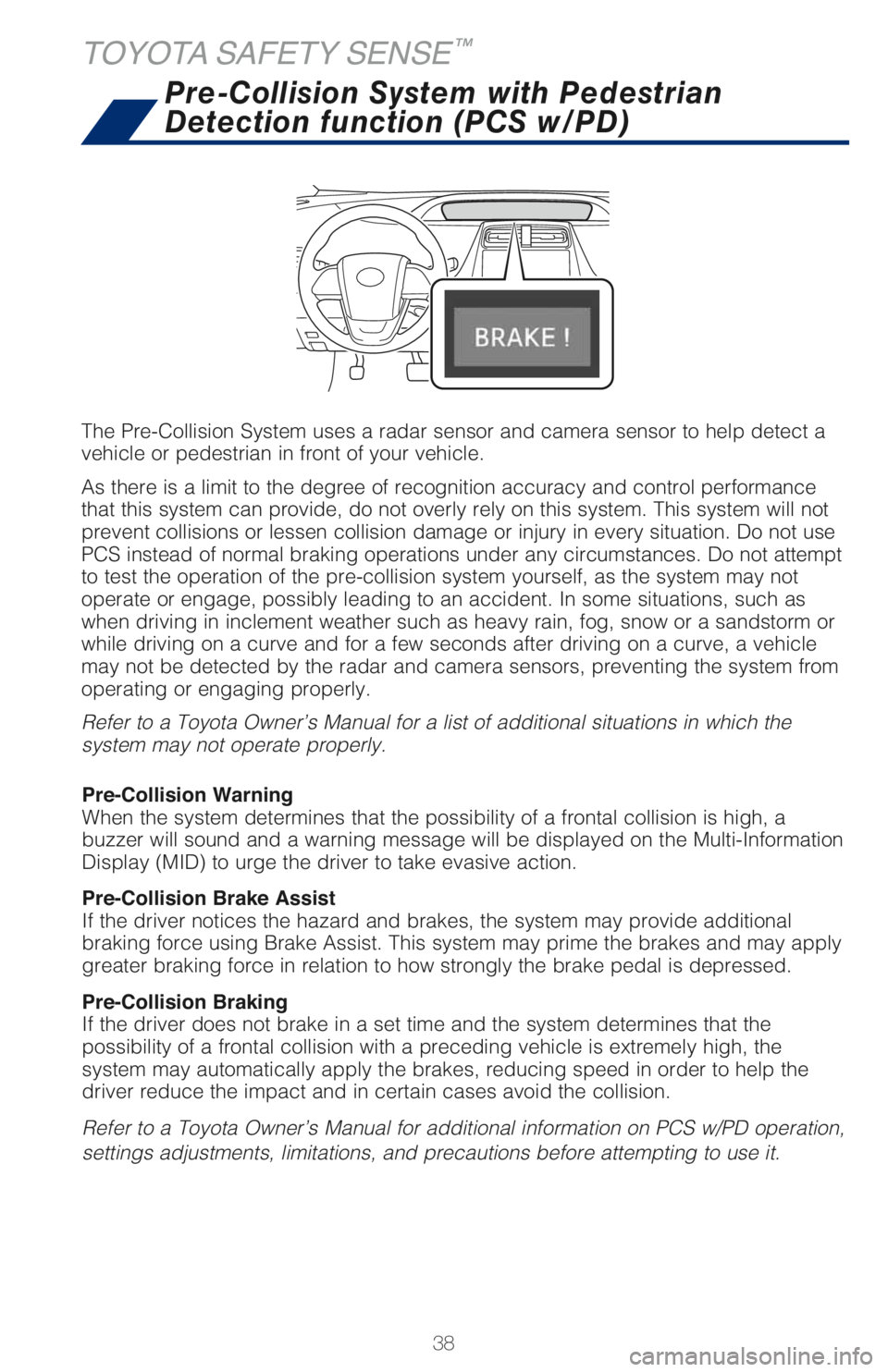

The Pre-Collision System uses a radar sensor and camera sensor to help detect a
vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control performance
that this system can provide, do not overly rely on this system. This system will not
prevent collisions or lessen collision damage or injury in every situation. Do not use
PCS instead of normal braking operations under any circumstances. Do not attempt
to test the operation of the pre-collision system yourself, as the system may not
operate or engage, possibly leading to an accident. In some situations, such as
when driving in inclement weather such as heavy rain, fog, snow or a sandstorm or
while driving on a curve and for a few seconds after driving on a curve, a vehicle
may not be detected by the radar and camera sensors, preventing the system from
operating or engaging properly.
Refer to a Toyota Owner’s Manual for a list of additional situations in which the
system may not operate properly.
Refer to a Toyota Owner’s Manual for additional information on PCS w/PD operation,
settings adjustments, limitations, and precautions before attempting to use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision is high, a
buzzer will sound and a warning message will be displayed on the Multi-Information
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additional
braking force using Brake Assist. This system may prime the brakes and may apply
greater braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines that the
possibility of a frontal collision with a preceding vehicle is extremely high, the
system may automatically apply the brakes, reducing speed in order to help the
driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with Pedestrian
Detection function (PCS w/PD)
TOYOTA SAFETY SENSE™
