5-6. Driving tips
5
Driving
Winter driving tips
●Use fluids that are appropriate t o the prevailing outside tempera-
tures. • Engine oil
• Engine/power control unit coolant
• Washer fluid
● Have a service technician inspect the condition of the 12-volt bat-
tery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the same size and brand, and that cha ins match
the size of the tires.
Perform the following accordi ng to the driving conditions:
● Do not try to forcibly open a window or move a wiper that is fr ozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to p revent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ic e or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a ma n-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

492
PRIUS PRIME_OM_OM47D13U_(U)
5-6. Driving tips
Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to roa d con-
ditions.
Park the vehicle and shift the shift position to P and block th e wheel
under the vehicle without setting the parking brake. The parkin g brake
may freeze up, preventing it fro m being released. If the vehicle is
parked without setting the parking brake, make sure to block th e
wheels.
Failure to do so may be dangerous because it may cause the vehi cle
to move unexpectedly, possi bly leading to an accident.
Use the correct tire chain size when mounting the tire chains. Chain
size is regulated for each tire size.
Side chain
0.12 in. (3.0 mm)
1.18 in. (30.0 mm)
0.39 in. (10.0 mm)
Cross chain 0.16 in. (4.0 mm)
0.98 in. (25.0 mm)
0.55 in. (14.0 mm)
Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always chec k local regulations before installing
chains.
When driving the vehicle
When parking the vehicle
Selecting tire chains
1
2
3
4
5
6
Regulations on the use of tire chains

PRIUS PRIME_OM_OM47D13U_(U)
4935-6. Driving tips
5
Driving
■Tire chain installation
Observe the following precautions when installing and removing chains:
● Install and remove tire chains in a safe location.
● Install tire chains on the front tires only. Do not install tir e chains on the rear
tires.
● Install tire chains on front tires as tightly as possible. Reti ghten chains after
driving 1/4 - 1/2 mile (0.5 - 1.0 km).
● Install tire chains following the instructions provided with th e tire chains.
■ Consumption of fuel and electricity
In cold temperatures, resistance of the parts of a vehicle (tra nsmission, tires,
etc.) generally increases, resulting in increase of energy cons umption. As a
result, fuel economy is likely to decrease.
Consumption of fuel and electricity of this vehicle is also lik ely to become
worse in cold temperatures.
WARNING
■ Driving with snow tires
Observe the following precautions to reduce the risk of acciden ts.
Failure to do so may result in a loss of vehicle control and ca use death or
serious injury.
● Use tires of the specified size.
● Maintain the recommended level of air pressure.
● Do not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.
● Use snow tires on all, not just some wheels.
■ Driving with tire chains
Observe the following precautions to reduce the risk of acciden ts.
Failure to do so may result in the vehicle being unable to be d riven safely,
and may cause death or serious injury.
● Do not drive in excess of the speed limit specified for the tir e chains being
used, or 30 mph (50 km/h), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Slow down sufficiently before entering a curve to ensure that v ehicle con-
trol is maintained.
● Do not use LDA (Lane Departure Alert with steering control).
■ When parking the vehicle
When parking the vehicle without applying the parking brake, ma ke sure to
chock the wheels. If you do not chock the wheels, the vehicle m ay move
unexpectedly, possibly resulting in an accident.

494
PRIUS PRIME_OM_OM47D13U_(U)
5-6. Driving tips
NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow tires from Toyota dealer s or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affect s the opera-
tion of the tire pressure warning valves and transmitters.
■ Fitting tire chains
The tire pressure warning valves and transmitters may not funct ion correctly
when tire chains are fitted.

495
PRIUS PRIME_OM_OM47D13U_(U)
6Interior features
6-1. Using the air conditioning system and defogger
Automatic air conditioning system (vehicles with
7-inch display) ................. 496
Automatic air conditioning system (vehicles with
11.6-inch display) ............ 507
Remote Air Conditioning System ............................ 518
Heated steering wheel/ seat heaters .................... 522 6-2. Using the interior lights
Interior lights list ................ 524• Front interior light .......... 525
• Front personal lights ..... 525
• Rear interior light .......... 526
6-3. Using the storage features List of storage features ..... 527• Glove box...................... 528
• Console box .................. 528
• Cup holders .................. 529
• Bottle holders/door pockets ................. 530
• Auxiliary boxes.............. 531
Luggage compartment features ........................... 532
6-4. Using the other interior features
Other interior features ....... 539 • Sun visors ..................... 539
• Vanity mirrors................ 539
• Power outlets ................ 540
• Wireless charger ........... 541
• Coat hooks.................... 552
• Assist grips ................... 552
Garage door opener.......... 553

496
PRIUS PRIME_OM_OM47D13U_(U)
6-1. Using the air conditioning system and defogger

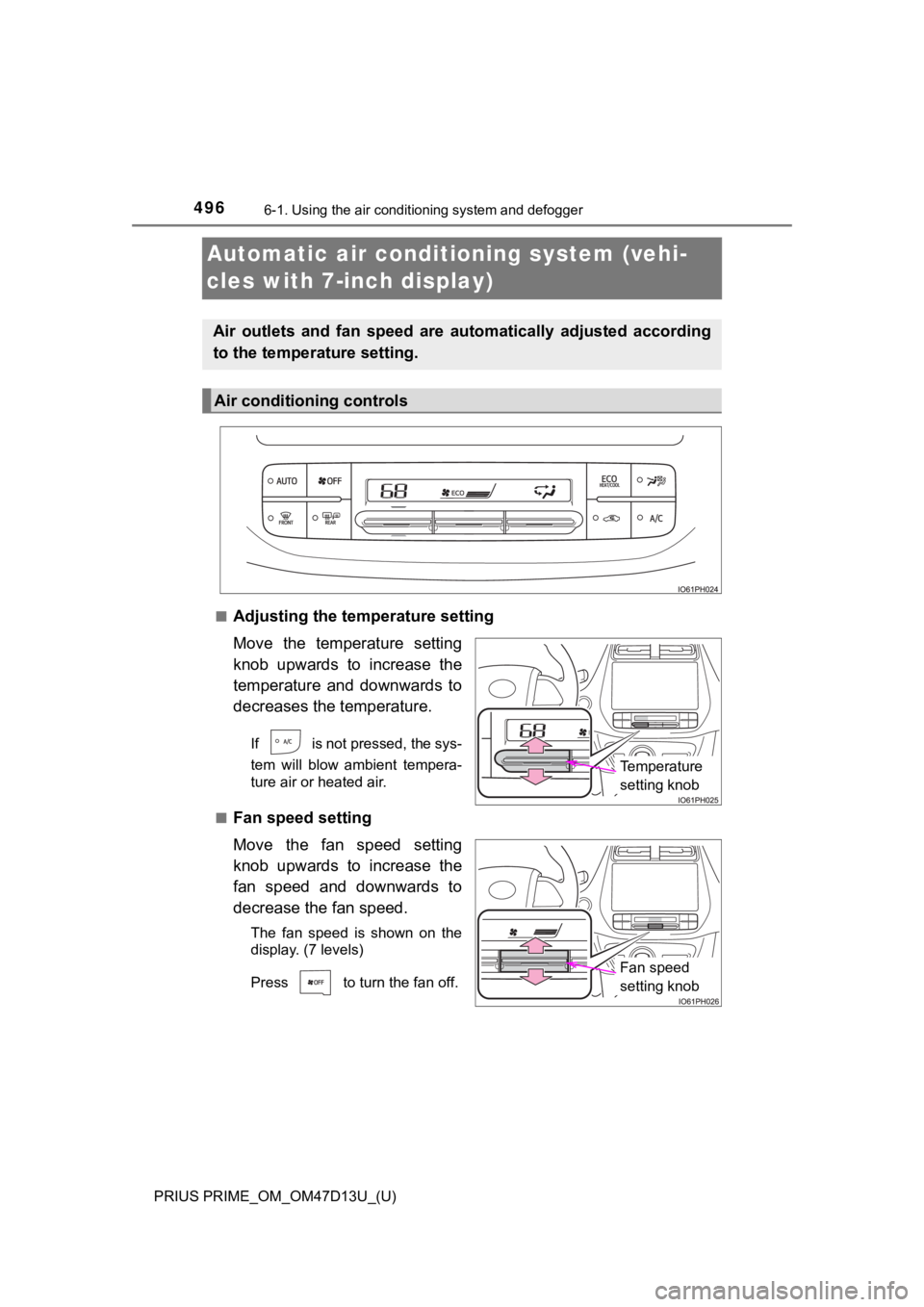

Automatic air conditioning system (vehi-
cles with 7-inch display)
■Adjusting the temperature setting
Move the temperature setting
knob upwards to increase the
temperature and downwards to
decreases the temperature.
If is not pressed, the sys-
tem will blow ambient tempera-
ture air or heated air.
■
Fan speed setting
Move the fan speed setting
knob upwards to increase the
fan speed and downwards to
decrease the fan speed.
The fan speed is shown on the
display. (7 levels)
Press to turn the fan off.
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Air conditioning controls
Temperature
setting knob
Fan speed
setting knob

PRIUS PRIME_OM_OM47D13U_(U)
4976-1. Using the air conditioning system and defogger
6
Interior features
■Change the airflow mode
Move the airflow change knob
upwards or downwards to
change the airflow mode.
The air outlets used are
switched each time the knob is
operated.
Air flows to the upper body
Air flows to the upper body
and feet
Air flows to the feet
Air flows to the feet and the
windshield defogger oper-
ates
■S-FLOW mode
In S-FLOW mode, priority for the airflow is given to the front seats,
reducing the airflow and air conditioning effect on the rear se ats.
When a passenger is not detected in the front passenger seat,
depending on the set temperature and ambient temperature, prior -
ity for the airflow will be given to the driver’s seat only.
However, air will always be blown from the side outlet of the front pas-
senger seat.
The following S-FLOW modes are available:
Automatic S-FLOW mode
The system determines whether o r not a rear passenger is in the
vehicle by the opening and closing of a rear door. When a rear
passenger is determined to be in the vehicle, S-FLOW mode will
be automatically disabled.
To enable S-FLOW mode again, press and enter manual
S-FLOW mode. ( P. 503)
The indicator will illuminate when S-FLOW mode is
enabled.
Airflow change
knob
1
2
3
4

4986-1. Using the air conditioning system and defogger
PRIUS PRIME_OM_OM47D13U_(U)
Manual S-FLOW mode
When is pressed, S-FLOW mode will be manually
enabled/disabled. (P. 503)
The indicator will illuminate when S-FLOW mode is enabled.
When the power switch is turned to ON mode, the system is oper-
ated in automatic S-FLOW mode.
■Other functions
● Switching between outside air and recirculated air modes
(  P. 499)
● Defogging the windshield ( P. 5 0 0 )
● Defogging the rear window and outside rear view mirrors
(  P. 500)

PRIUS PRIME_OM_OM47D13U_(U)
4996-1. Using the air conditioning system and defogger
6
Interior features
Press .
Adjust the temperature setting. (P. 4 9 6 )
To stop the operation, press .
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the
indicator goes off. However, automatic mode for functions other
than that operat ed is maintained.
■Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode and recirculated air mode
each time is pressed.
The indicator illuminates when the recirculated air mode is
selected.
■
Air conditioning eco mode
The air conditioning system is c ontrolled with low fuel consumption
prioritized such as re ducing fan speed, etc.
Press .
The air conditioning eco mode switches between on and off each time
is pressed.
“ECO” is displayed on the air conditioning screen when the air condi-
tioning eco mode is on.
Using automatic mode
Other functions
1
2
3

5006-1. Using the air conditioning system and defogger
PRIUS PRIME_OM_OM47D13U_(U)■
Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
Set to outside air mode if the recirculated air mode is used.
(It
may switch automatically.)
To defog the windshield and the side windows early, turn the ai r flow and
temperature up.
The indicator illuminates when the defoggers are on.
To return to the previous mode, press again when the wind-
shield is defogged. Also, turning the power switch off during o peration
can return to the previous mode.
■
Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
Defoggers switch between on and off each time is pressed.
The indicator illuminates when defoggers are on.
The defoggers will automatically turn off after a period of tim e.
■
Eco score (A/C score)
 P. 2 2 2
