TOYOTA PRIUS PRIME 2019 Owners Manual (in English)

PRIUS PRIME_OM_OM47D13U_(U)
5316-3. Using the storage features
6
Interior features
Auxiliary boxes
Ty p e AType B (if equipped)
Press in the lid.
The overhead console is useful for
temporarily storing small items.
Vehicles with the wireless char-
ger: P. 5 4 1
Ty p e C
Lift the lid while pulling up the
knob.
WARNING
Type A:
Do not store items heavier than 0.44 lb. (200 g).
Doing so may cause the auxiliary box to open and the items insi de may fall
out, resulting in an accident.

532
PRIUS PRIME_OM_OM47D13U_(U)
6-3. Using the storage features
Luggage compartment features
■When installing the deck board
Auxiliary boxes
CenterRight side
Pull the strap upwards to lift up
the deck board.
The luggage cover, charging cable,
tool bag, etc. can be stowed.
Pull the strap upwards to lift up
the deck board.
Insert the claw in to the hole, and return
the deck board.
WARNING
If the deck board is removed, return it to its original positio ns before driving.
In the event of sudden braking, an accident may occur due to an occupant
being struck by the deck board or the items stored in the auxil iary box.

PRIUS PRIME_OM_OM47D13U_(U)
5336-3. Using the storage features
6
Interior features
When using the hooks, press the
bottom side to lift it up.
There also is a hook on the other
side.
The warning reflector can be
stowed.
(The warning reflector itself is not
included as an original equipment)
Depending on the size and shape of the warning reflector case, etc., you may
not be able to store it.
NOTICE
To prevent damage to the deck board, do not apply too much load on the
deck board.
Grocery bag hooks
NOTICE
In order to prevent damage to the grocery bag hooks, do not pla ce large
objects or objects that weight more than 8.8 lb. (4 kg) onto th e hooks.
Warning reflector storage space
WARNING
When storing the warning reflector, etc., make sure that it is properly stored.
If the warning reflector is not properly stored, it may fly out during emer-
gency braking and lead to an accident.

534
PRIUS PRIME_OM_OM47D13U_(U)
6-3. Using the storage features
Ty p e A
■Installing the luggage cover
Remove the luggage cover from the bag.
Slowly unfold the luggage cover.
■Stowing the luggage cover
Hold the luggage cover with
both hands. Point your
thumbs in opposite direc-
tions.
Luggage cover
1
2
Attach the hook to the hook
brackets.3
Black cap
Gray cap
N

PRIUS PRIME_OM_OM47D13U_(U)
5356-3. Using the storage features
6
Interior features

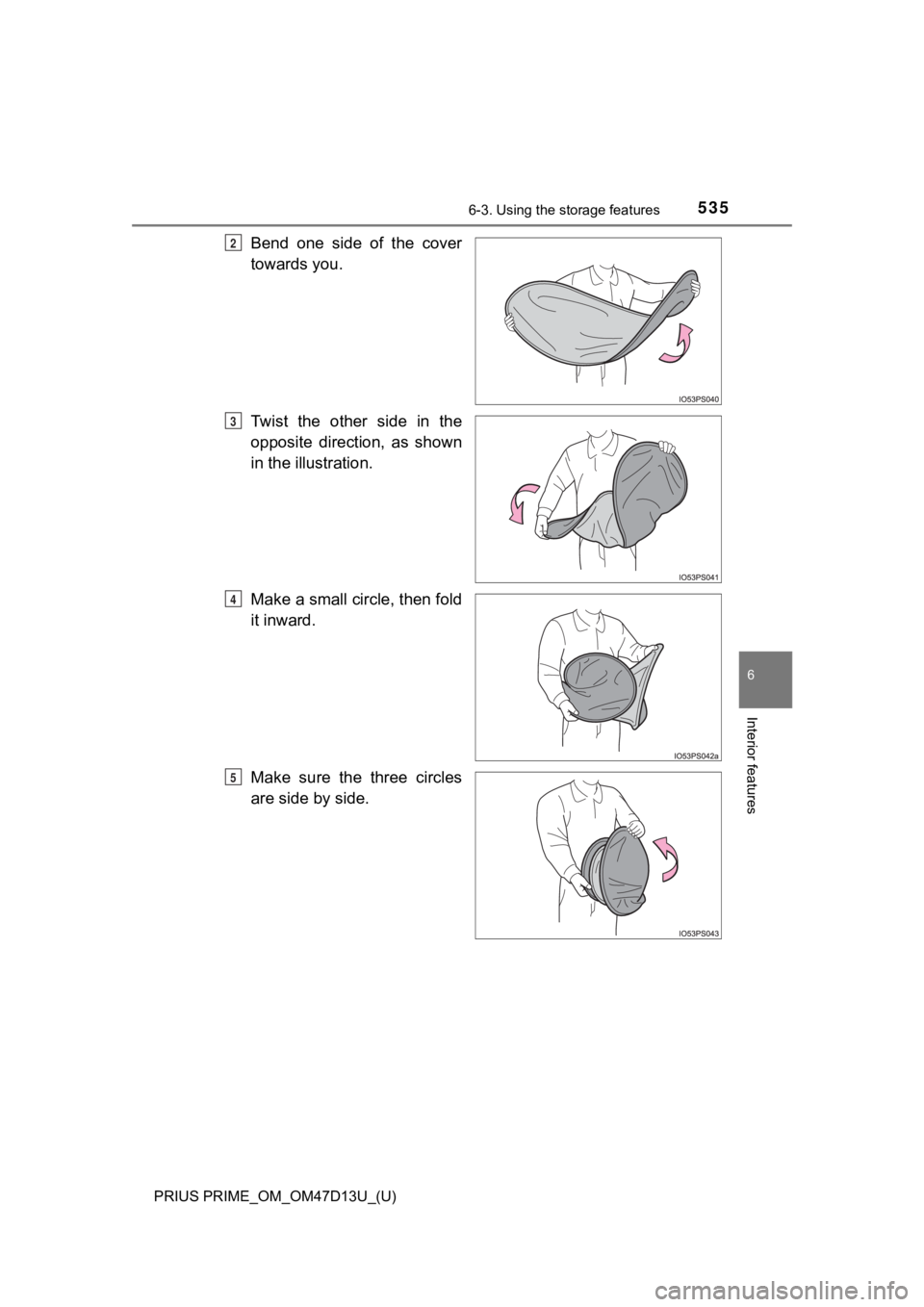

Bend one side of the cover
towards you.
Twist the other side in the
opposite direction, as shown
in the illustration.
Make a small circle, then fold
it inward.
Make sure the three circles
are side by side.2
3
4
5

536
PRIUS PRIME_OM_OM47D13U_(U)
6-3. Using the storage features
Put it in the bag.
Ty p e B
■Installing the luggage cover
Install one side of the luggage
cover to the holder. While push-
ing that side in, install the other
side to the opposite holder.
■Using the luggage cover
Pull out the luggage cover and
secure it to the hook brackets.
6

PRIUS PRIME_OM_OM47D13U_(U)
5376-3. Using the storage features
6
Interior features
■Removing the luggage cover
Push one end of the luggage
cover inward and remove it
from the holder.
■Stowing the luggage cover
Remove the deck boards.
Store cover in the center aux-
iliary box.
Return the deck boards to its original position and close it.
1
2
3

538
PRIUS PRIME_OM_OM47D13U_(U)
6-3. Using the storage features
WARNING
●Do not place anything on the luggage cover. In the event of sudden brak-
ing or turning, the item may go flying and strike an occupant. This could
lead to an unexpected accident, resulting in death or serious i njury.
● Do not allow children to climb on the luggage cover. Climbing o n the lug-
gage cover could result in damage to the luggage cover, possibl y causing
death or serious injury to the child.
● Make sure that the rear edge of the cover is laying flat. If th e cover is
installed with the rear edge raised, the view from the rear win dow may be
obstructed, which could cause an accident.
● Make sure that seat belts are not caught up in the luggage cover. If a seat
belt is caught up in the cover, it may not be able to restrain passengers
properly.
● Type A only: Forcefully opening the luggage cover is dangerous. When
removing the luggage cover from the bag and expanding it, be sure to hold
the luggage cover with both hands. Also, confirm that there are no people
nearby before expanding the luggage cover.
● Type A only: Be sure to attach the cord correctly.

539
PRIUS PRIME_OM_OM47D13U_(U)
6-4. Using the other interior features
6
Interior features
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
The light turns on when the cover
is opened.
If the vanity light remain on when the power switch is turned o ff, the light will
go off automatically after 20 minutes.
Sun visors
1
2
Vanity mirrors
NOTICE
To prevent 12-volt battery discharge, do not leave the vanity l ights on for
extended periods while the hybrid system is off.

540
PRIUS PRIME_OM_OM47D13U_(U)
6-4. Using the other interior features
Please use as a power supply for electronic goods that use less than
12 V DC/10 A (power consumption of 120 W).
■ The power outlet can be used when
The power switch is in ACCESSORY or ON mode.
■ When stopping the hybrid system
Disconnect electrical devices with charging functions, such as mobile battery
packs.
If such devices are left connected, the hybrid system may not s top normally.
Power outlets
FrontRear
Open the lid. Open the lid.
NOTICE
● To avoid damaging the power outlets, close the lid when the power outlet
is not in use.
Foreign objects or liquids that enter the power outlets may cau se a short
circuit.
● To prevent 12-volt battery discharge, do not use the power outl et longer
than necessary when the hybrid system is off.
