TOYOTA PRIUS PRIME 2020 Owners Manual (in English)

201
PRIUS PRIME_OM_OM47C77U_(U)
3. Instrument cluster
3
Instrument cluster

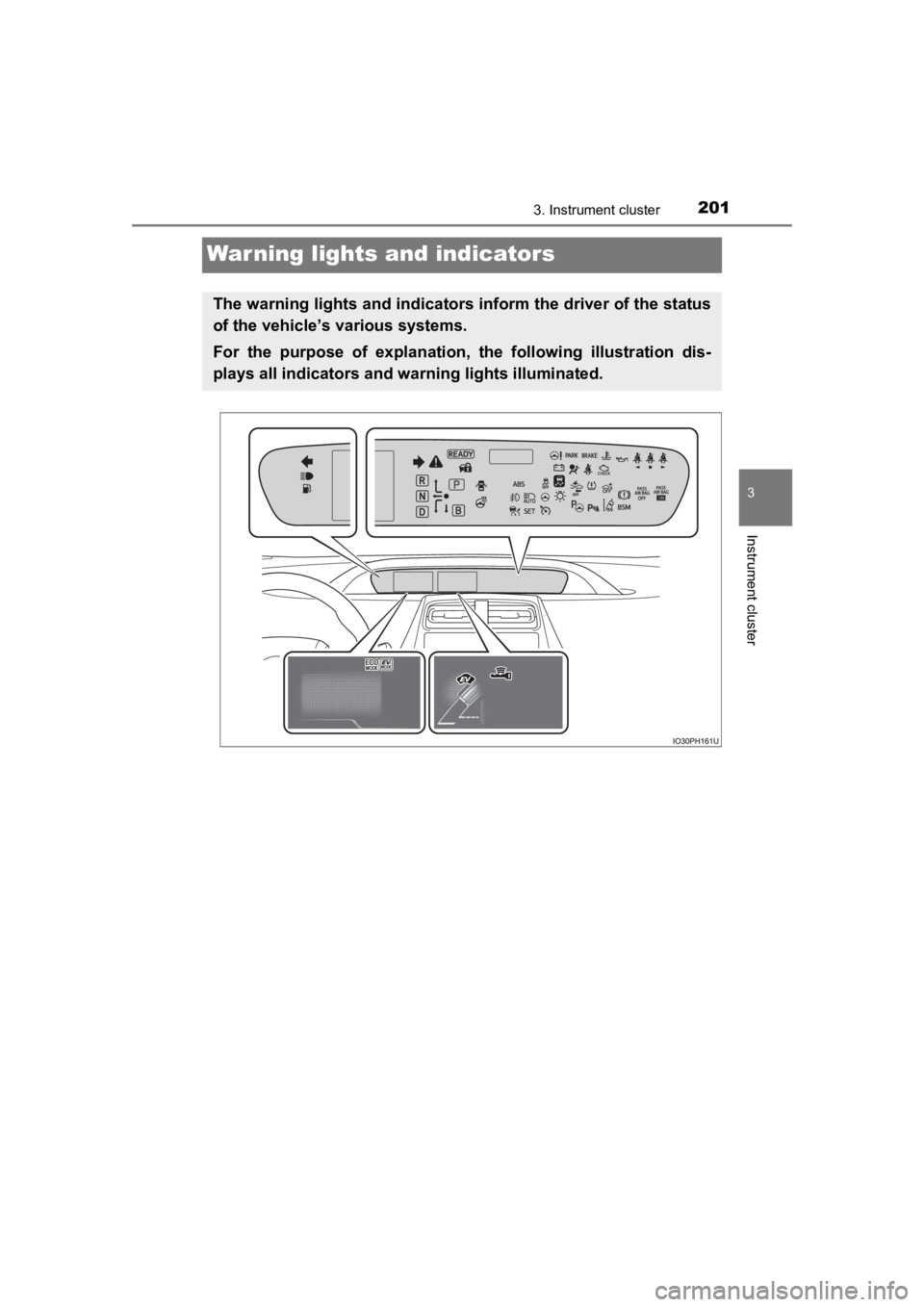

Warning lights and indicators
The warning lights and indicators inform the driver of the status
of the vehicle’s various systems.
For the purpose of explanation, t he following illustration dis-
plays all indicators and wa rning lights illuminated.

202
PRIUS PRIME_OM_OM47C77U_(U)
3. Instrument cluster

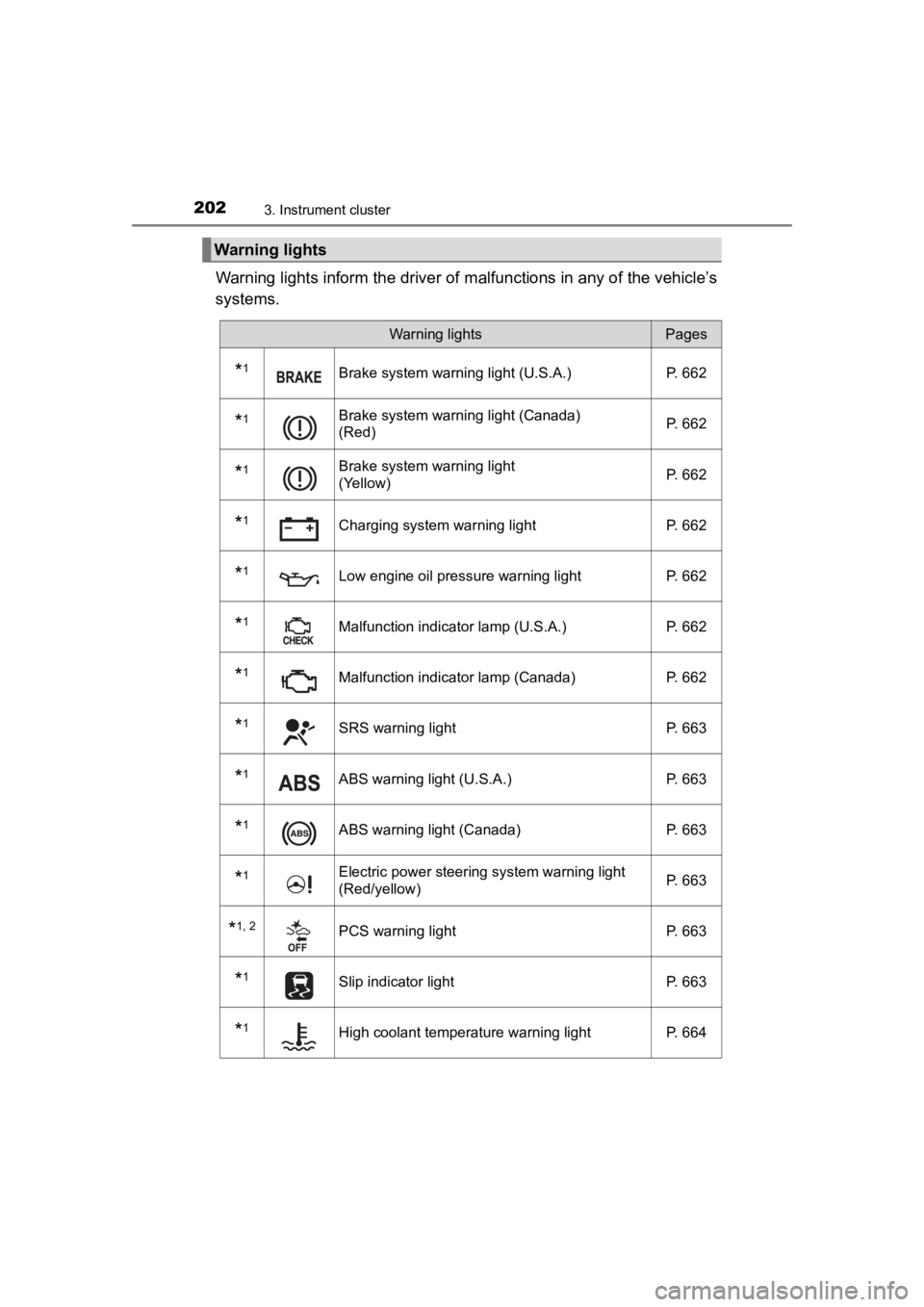

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
Warning lightsPages
*1Brake system warning light (U.S.A.) P. 662
*1Brake system warning light (Canada)
(Red)P. 662
*1Brake system warning light
(Yellow)P. 662
*1Charging system warning light
P. 662
*1Low engine oil pressure warning lightP. 662
*1Malfunction indicator lamp (U.S.A.) P. 662
*1Malfunction indicator lamp (Canada)P. 662
*1SRS warning light P. 663
*1ABS warning light (U.S.A.) P. 663
*1ABS warning light (Canada)P. 663
*1Electric power steering system warning light
(Red/yellow)P. 663
*1, 2PCS warning light
P. 663
*1Slip indicator lightP. 663
*1High coolant temperature warning lightP. 664

PRIUS PRIME_OM_OM47C77U_(U)
2033. Instrument cluster
3
Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the veh icle
inspected by your Toyota dealer.
*2: The light flashes or illuminates to indicate a malfunction.
*3: The light flashes to indicate a malfunction.

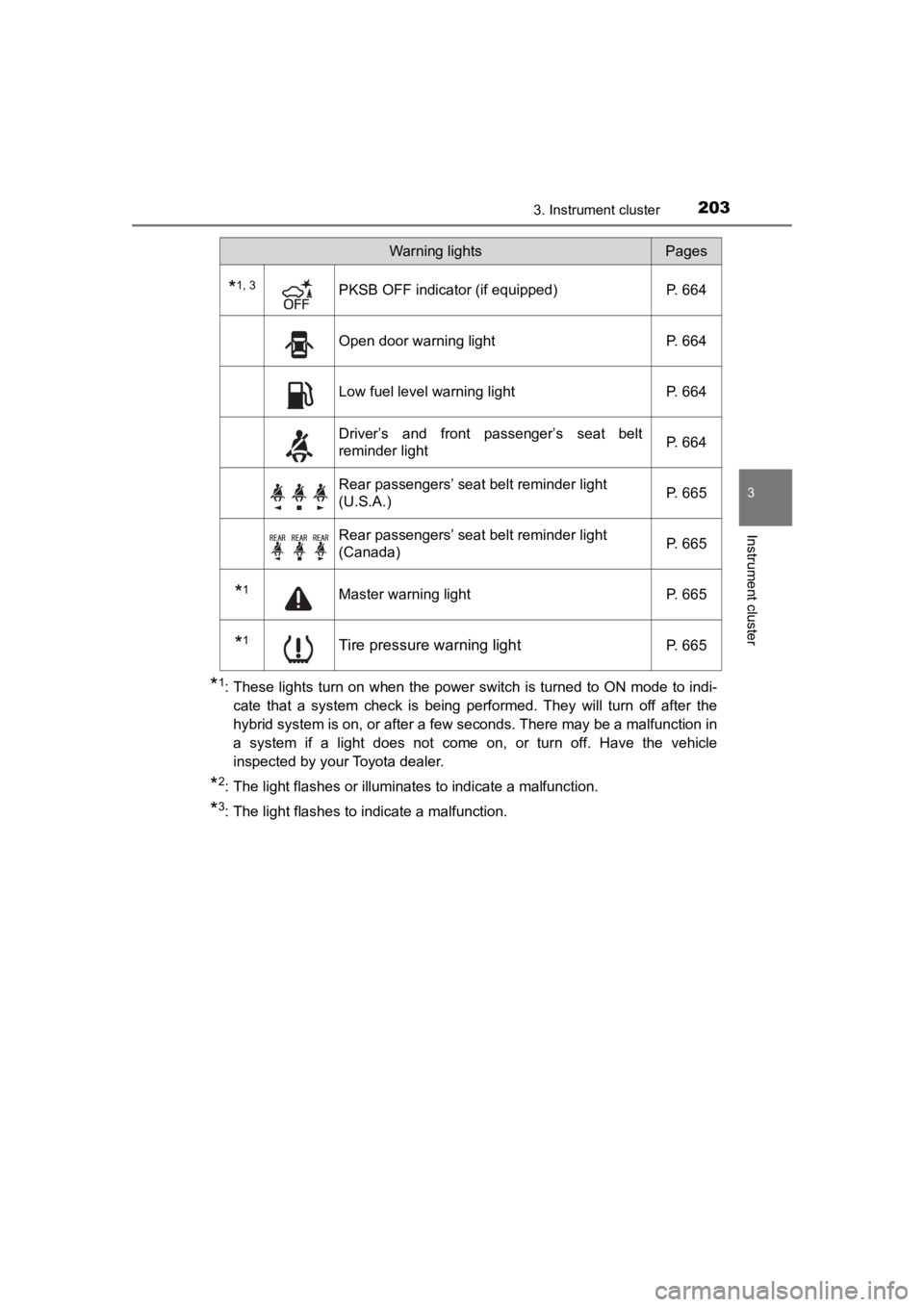

*1, 3PKSB OFF indicator (if equipped) P. 664
Open door warning light P. 664
Low fuel level warning lightP. 664
Driver’s and front passenger’s seat belt
reminder light P. 664
Rear passengers’ seat belt reminder light
(U.S.A.)
P. 665
Rear passengers’ seat belt reminder light
(Canada)P. 665
*1Master warning light
P. 665
*1Tire pressure warning lightP. 665
Warning lightsPages

204
PRIUS PRIME_OM_OM47C77U_(U)
3. Instrument cluster

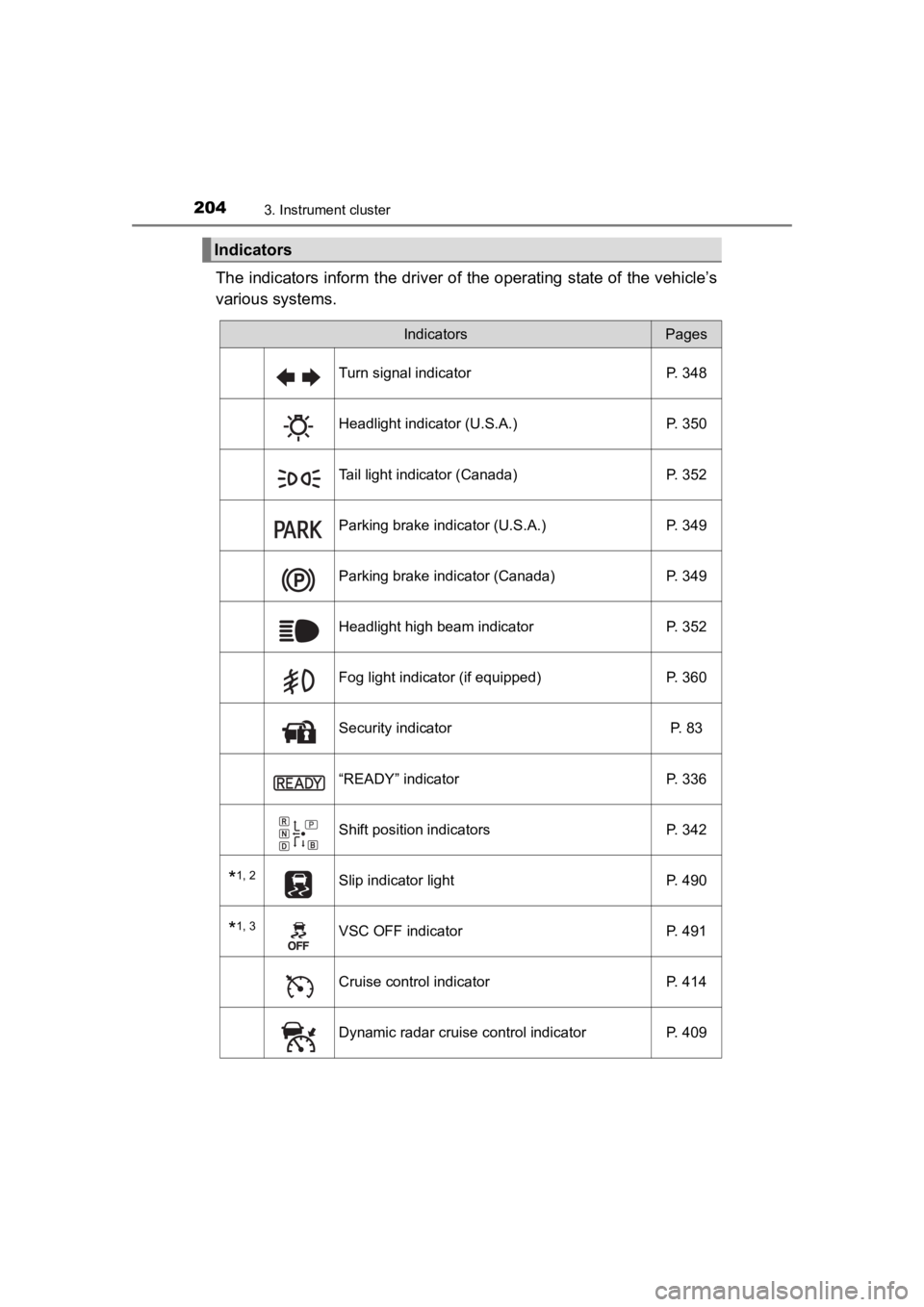

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
IndicatorsPages
Turn signal indicator P. 348
Headlight indicator (U.S.A.) P. 350
Tail light indicator (Canada) P. 352
Parking brake indicator (U.S.A.) P. 349
Parking brake indicator (Canada)P. 349
Headlight high beam indicator P. 352
Fog light indicator (if equipped) P. 360
Security indicator P. 83
“READY” indicatorP. 336
Shift position indicatorsP. 342
*1, 2Slip indicator light P. 490
*1, 3VSC OFF indicatorP. 491
Cruise control indicator P. 414
Dynamic radar cruise control indicatorP. 409

PRIUS PRIME_OM_OM47C77U_(U)
2053. Instrument cluster
3
Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the veh icle
inspected by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off.

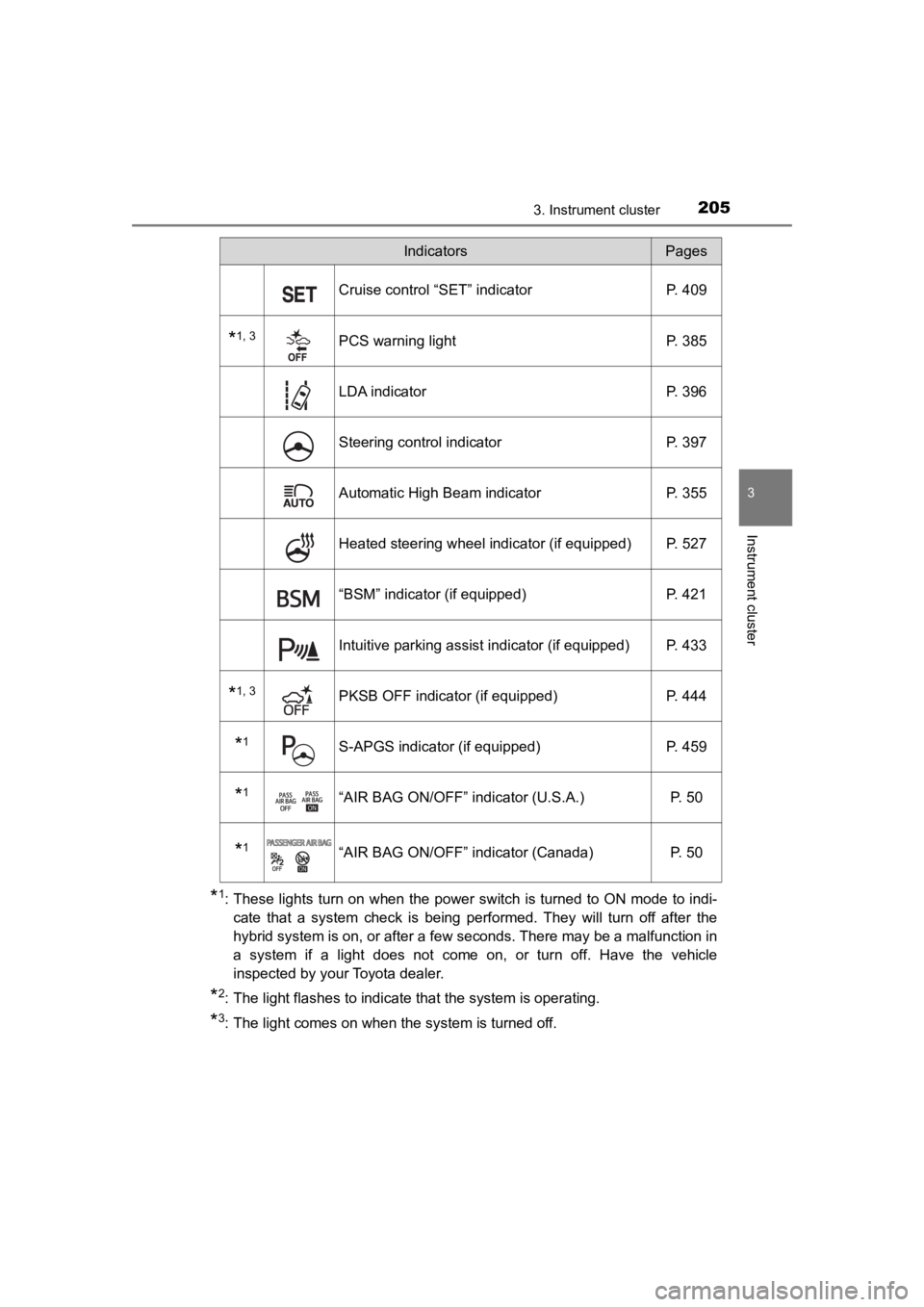

Cruise control “SET” indicator P. 409
*1, 3PCS warning light P. 385
LDA indicatorP. 396
Steering control indicatorP. 397
Automatic High Beam indicator P. 355
Heated steering wheel indicator (if equipped) P. 527
“BSM” indicator (if equipped)P. 421
Intuitive parking assist indicator (if equipped) P. 433
*1, 3PKSB OFF indicator (if equipped)P. 444
*1S-APGS indicator (if equipped) P. 459
*1“AIR BAG ON/OFF” indicator (U.S.A.) P. 50
*1“AIR BAG ON/OFF” indicator (Canada)P. 50
IndicatorsPages

206
PRIUS PRIME_OM_OM47C77U_(U)
3. Instrument cluster
■Main display and multi-information display
*1: The displayed indicator changes according to the current plug-in hybrid
system operation mode.
*2: The displayed indicator changes according to the current drivi ng mode.

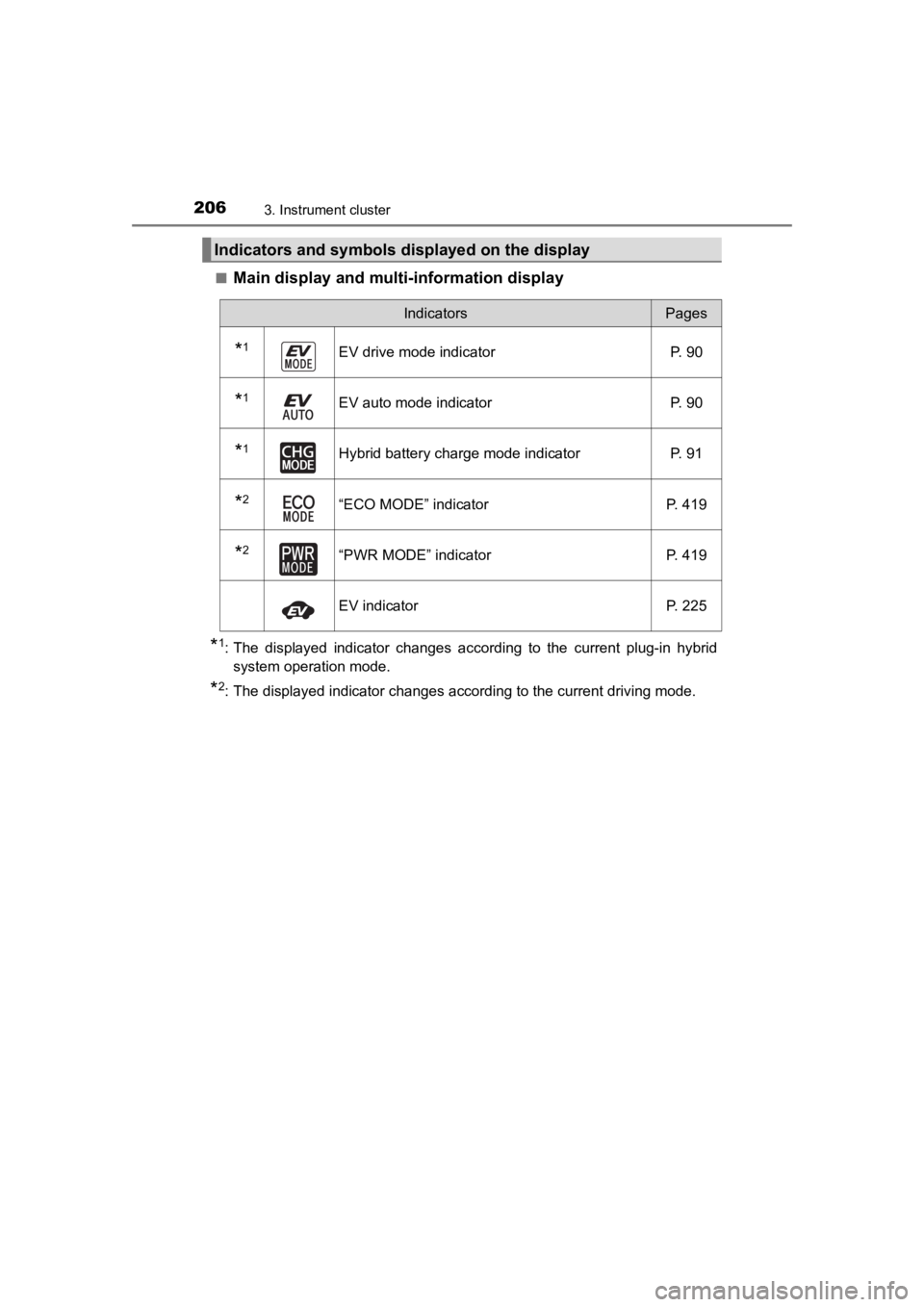

Indicators and symbols displayed on the display
IndicatorsPages
*1EV drive mode indicatorP. 90
*1EV auto mode indicator P. 90
*1Hybrid battery charge mode indicatorP. 91
*2“ECO MODE” indicatorP. 419
*2“PWR MODE” indicatorP. 419
EV indicator P. 225

PRIUS PRIME_OM_OM47C77U_(U)
2073. Instrument cluster
3
Instrument cluster

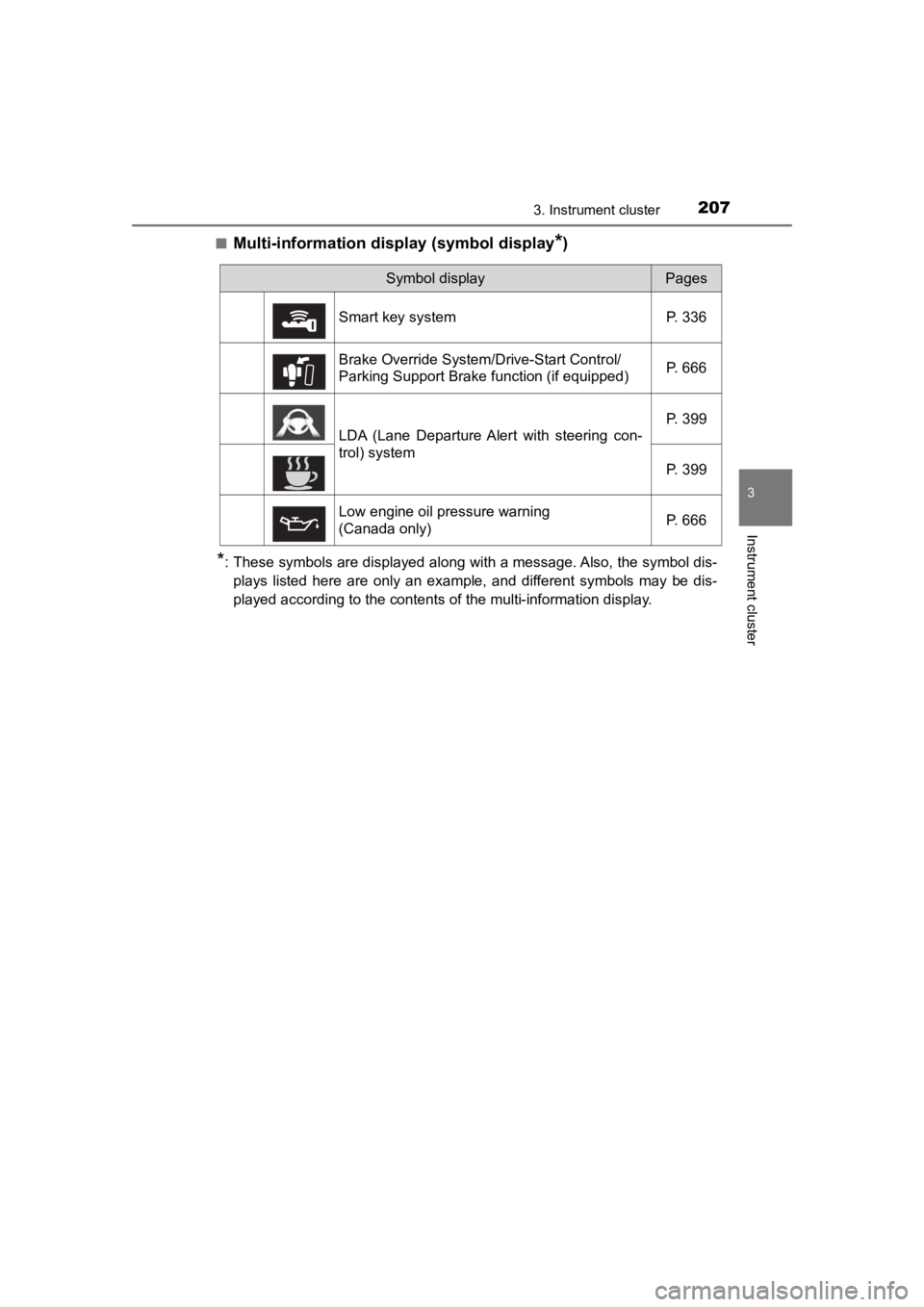

■Multi-information display (symbol display*)
*: These symbols are displayed along with a message. Also, the symbol dis-
plays listed here are only an example, and different symbols ma y be dis-
played according to the contents of the multi-information displ ay.
Symbol displayPages
Smart key system P. 336
Brake Override System/Drive-Start Control/
Parking Support Brake function (if equipped) P. 666
LDA (Lane Departure Alert with steering con-
trol) systemP. 399
P. 399
Low engine oil pressure warning
(Canada only) P. 666

208
PRIUS PRIME_OM_OM47C77U_(U)
3. Instrument cluster

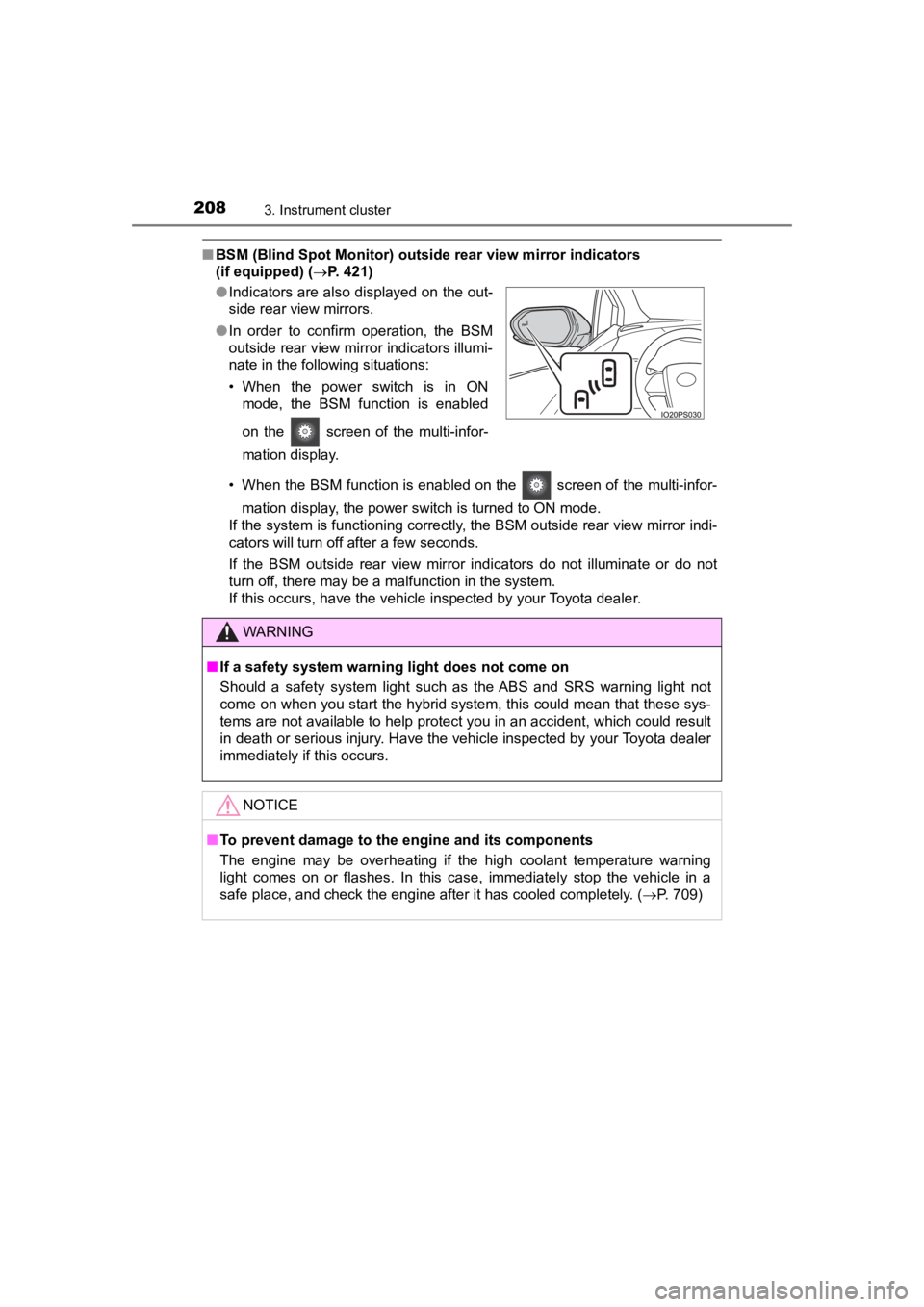

■BSM (Blind Spot Monitor) outsid e rear view mirror indicators
(if equipped) ( P. 421)
• When the BSM function is enabled on the screen of the multi-infor- mation display, the power switch is turned to ON mode.
If the system is functioning correctly, the BSM outside rear vi ew mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminat e or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota deale r.
●
Indicators are also displayed on the out-
side rear view mirrors.
● In order to confirm operation, the BSM
outside rear view mirror indicators illumi-
nate in the following situations:
• When the power switch is in ON
mode, the BSM function is enabled
on the screen of the multi-infor-
mation display.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning li ght not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.
NOTICE
■To prevent damage to the engine and its components
The engine may be overheating if the high coolant temperature warning
light comes on or flashes. In this case, immediately stop the v ehicle in a
safe place, and check the engine after it has cooled completely. (P. 709)

209
PRIUS PRIME_OM_OM47C77U_(U)
3. Instrument cluster
3
Instrument cluster

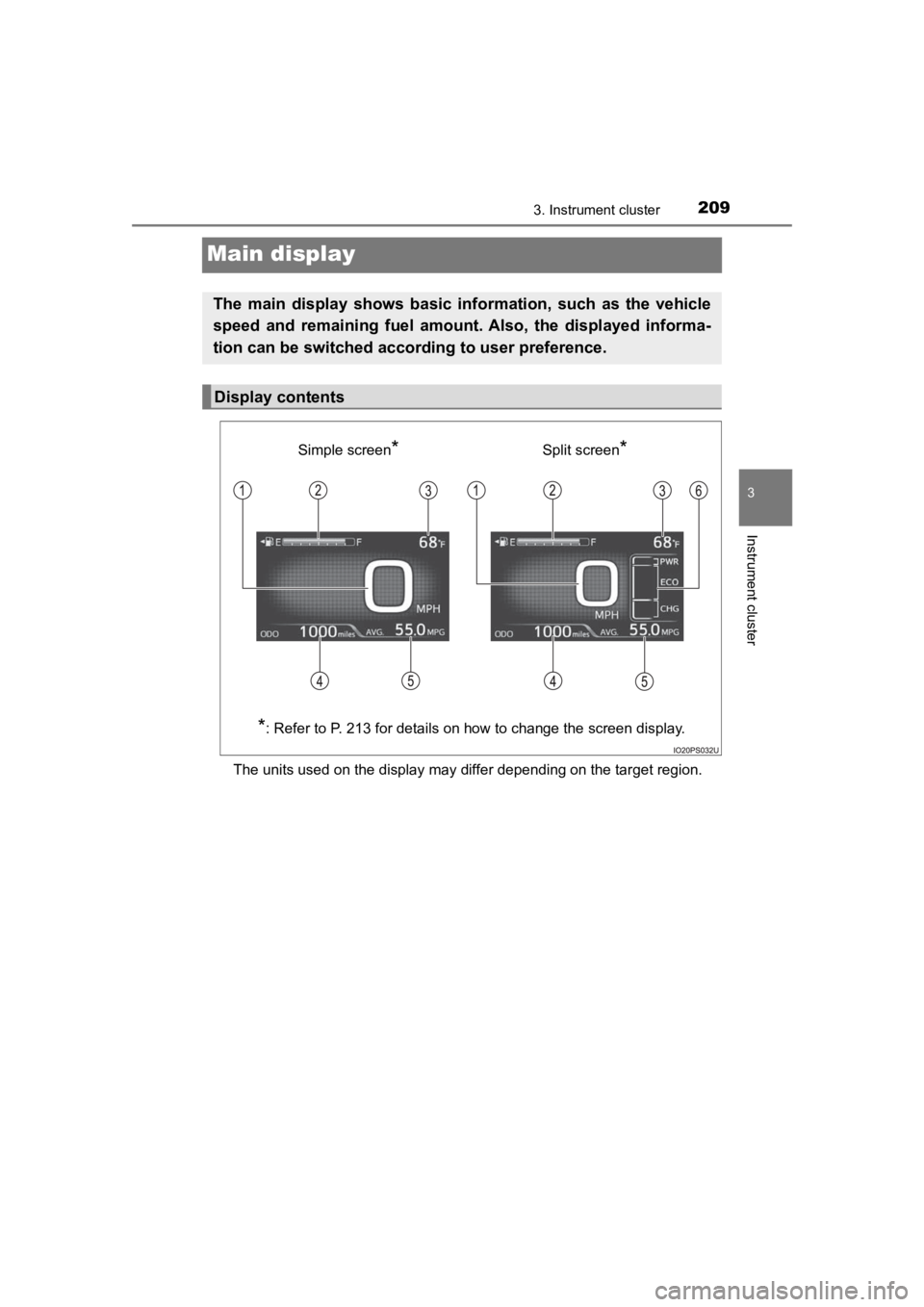

Main display
The units used on the display may differ depending on the target region.
The main display shows basic information, such as the vehicle
speed and remaining fuel amount. Also, the displayed informa-
tion can be switched according to user preference.
Display contents
Simple screen*Split screen*
*
: Refer to P. 213 for details on how to change the screen display.

210
PRIUS PRIME_OM_OM47C77U_(U)
3. Instrument cluster
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C).
The temperature display flashes for approximately 10 seconds wh en the
outside temperature drops to approximately 37 F (3 C) or less, and then
stops flashing.
Mileage display (odometer/tr ip meters/driving range)
The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. ( P. 211)
Average fuel consumption display
The average electricity and fuel consumption that is linked wit h the con-
tents of the mileage display can be displayed. ( P. 2 1 1 )
Sub-screen
When split screen is selected for the main display, information such as the
Hybrid System Indicator and current fuel consumption can be dis played.
( P. 213)
1
2
3
4
5
6
