TOYOTA PRIUS PRIME 2022 Owners Manual

591
PRIUS PRIME_OM_OM47E74U_(U)
7-2. Maintenance
7
Maintenance and care
Emission inspection and maintenance (I/M)
programs
The OBD system determines that a problem exists somewhere in th e
emission control system. Your vehicle may not pass the I/M test and
may need to be repaired. Contact your Toyota dealer to service the
vehicle.
● When the 12-volt battery is disconnected or discharged
Readiness codes that are set duri ng ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may
not be completely set.
● When the fuel tan k cap is loose
The malfunction indicator lamp comes on indicating a temporary
malfunction and your vehicle m ay not pass the I/M test.
The error code in th e OBD system will not be cleared unless the vehi-
cle is driven 40 or more times.
Contact your Toyota dea ler to prepare the vehicle for re-testin g.
Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system
monitors the operation of t he emission control system.
If the malfunction indicator lamp comes on
Your vehicle may not pass the I/M test in the following situations:
When the malfunction indicator lamp still remains on after sev-
eral driving trips
If your vehicle does not pass the I/M test

592
PRIUS PRIME_OM_OM47E74U_(U)
7-3. Do-it-yourself maintenance

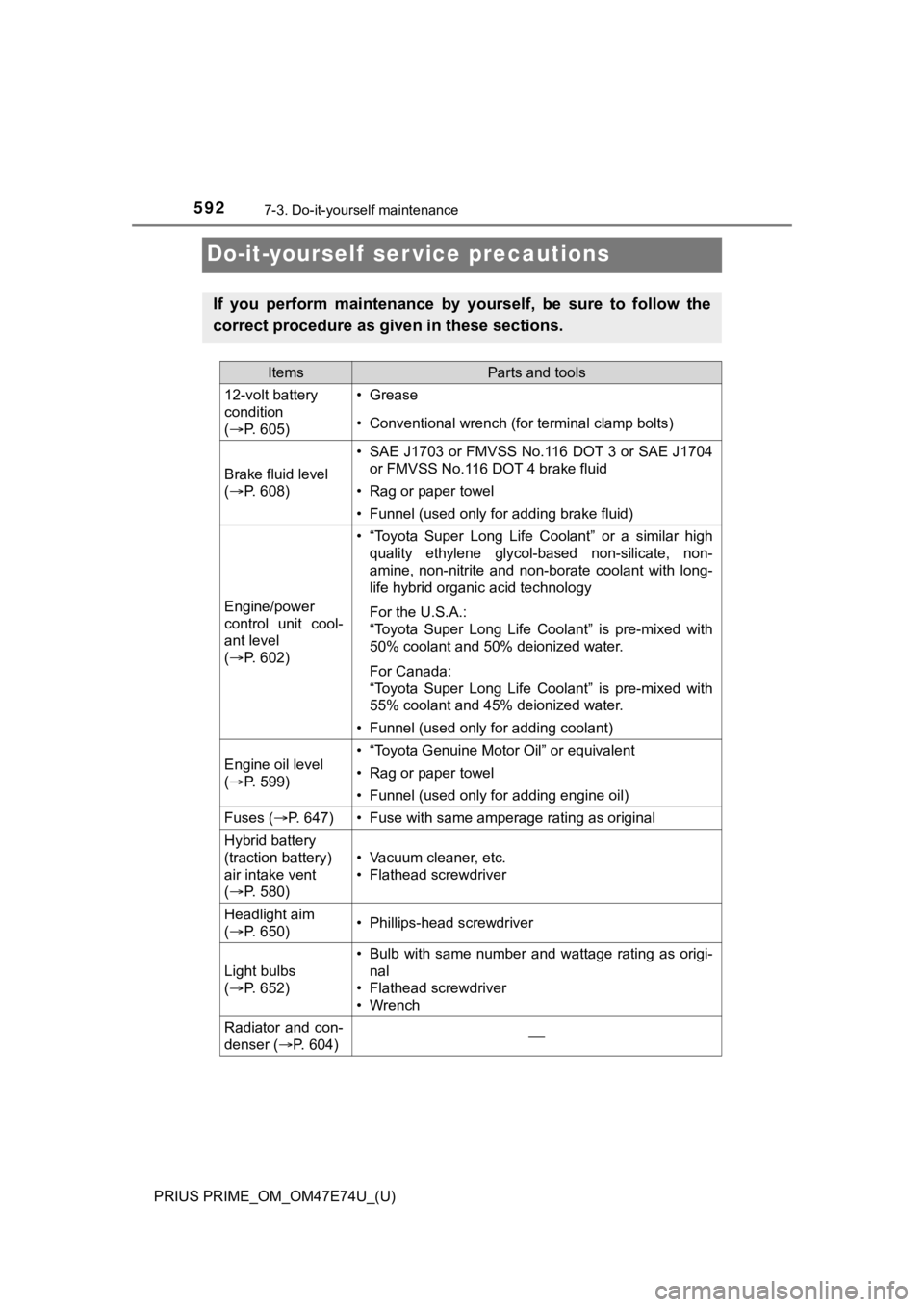

Do-it-yourself ser vice precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
12-volt battery
condition
(  P. 6 0 5 )•Grease
• Conventional wrench (for terminal clamp bolts)
Brake fluid level
( P. 6 0 8 )
• SAE J1703 or FMVSS No.116 DOT 3 or SAE J1704
or FMVSS No.116 DOT 4 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine/power
control unit cool-
ant level
( P. 6 0 2 )
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
For the U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
For Canada:
“Toyota Super Long Life Coolant” is pre-mixed with
55% coolant and 45% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( P. 5 9 9 )• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( P. 647)• Fuse with same amperage rating as original
Hybrid battery
(traction battery)
air intake vent
( P. 5 8 0 )
• Vacuum cleaner, etc.
• Flathead screwdriver
Headlight aim
( P. 6 5 0 )• Phillips-head screwdriver
Light bulbs
( P. 6 5 2 )
• Bulb with same number and wattage rating as origi-
nal
• Flathead screwdriver
• Wrench
Radiator and con-
denser ( P. 604)

PRIUS PRIME_OM_OM47E74U_(U)
5937-3. Do-it-yourself maintenance
7
Maintenance and care

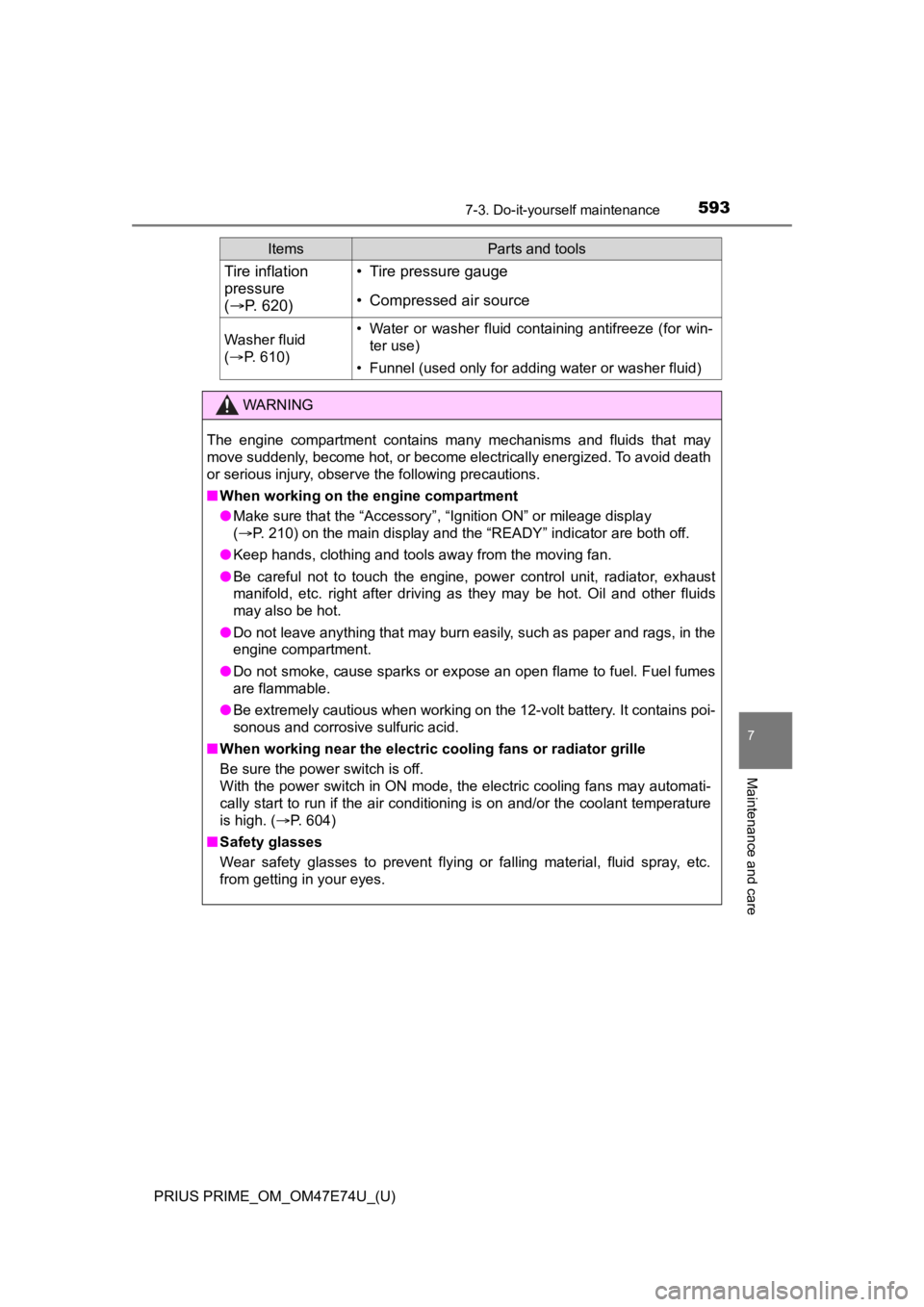

Tire inflation
pressure
( P. 620)• Tire pressure gauge
• Compressed air source
Washer fluid
( P. 610)• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)
WARNING
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
■ When working on the engine compartment
● Make sure that the “Accessory”, “Ignition ON” or mileage display
(P. 210) on the main display and the “READY” indicator are both off.
● Keep hands, clothing and tools away from the moving fan.
● Be careful not to touch the engine, power control unit, radiato r, exhaust
manifold, etc. right after driving as they may be hot. Oil and other fluids
may also be hot.
● Do not leave anything that may burn easily, such as paper and r ags, in the
engine compartment.
● Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes
are flammable.
● Be extremely cautious when working on the 12-volt battery. It contains poi-
sonous and corrosive sulfuric acid.
■ When working near the electric cooling fans or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coolant temperature
is high. (P. 604)
■ Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.
from getting in your eyes.
ItemsParts and tools

594
PRIUS PRIME_OM_OM47E74U_(U)
7-3. Do-it-yourself maintenance
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.

595
PRIUS PRIME_OM_OM47E74U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care

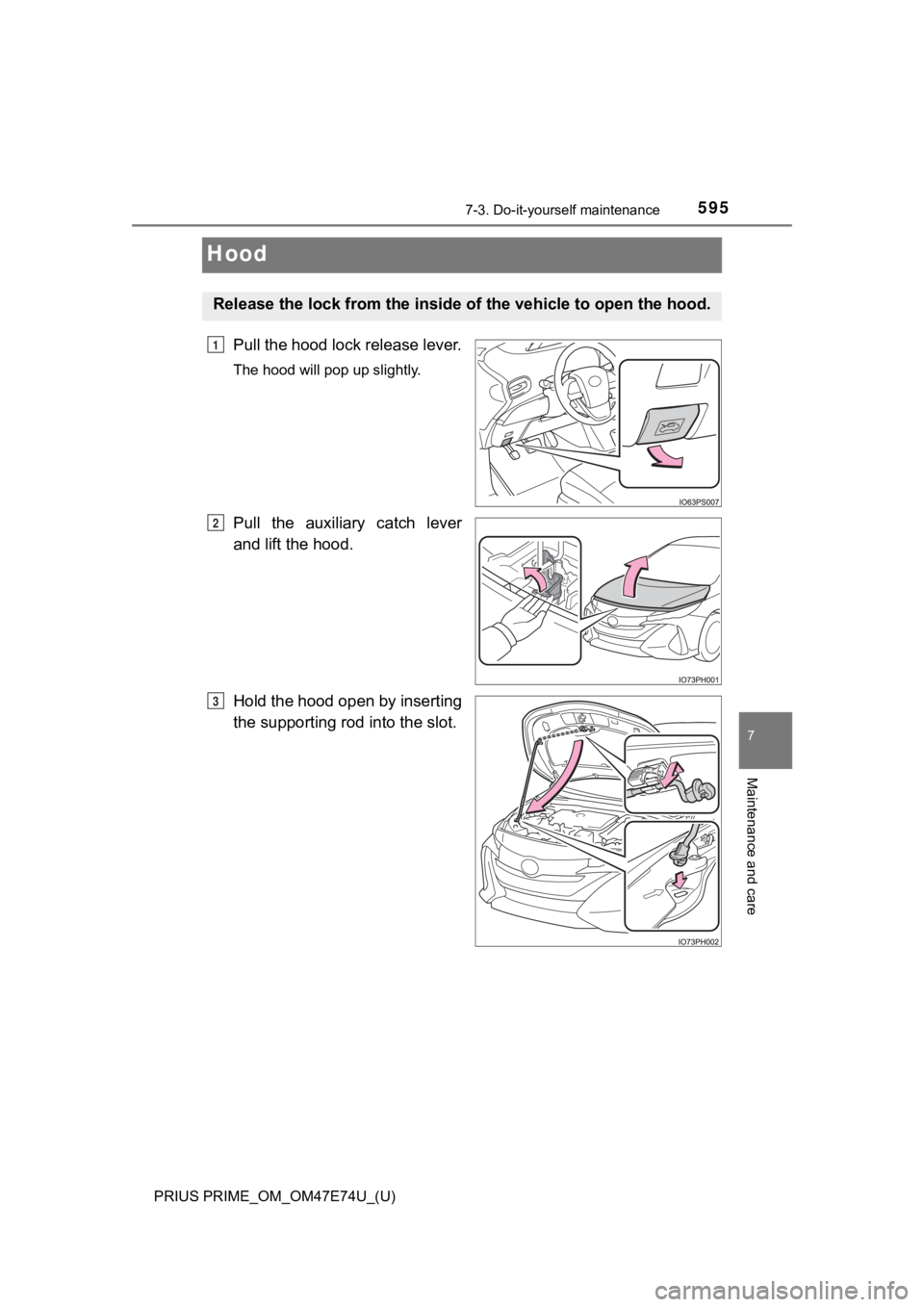

Hood
Pull the hood lock release lever.
The hood will pop up slightly.
Pull the auxiliary catch lever
and lift the hood.
Hold the hood open by inserting
the supporting rod into the slot.
Release the lock from the inside of the vehicle to open the hood.
1
2
3

596
PRIUS PRIME_OM_OM47E74U_(U)
7-3. Do-it-yourself maintenance

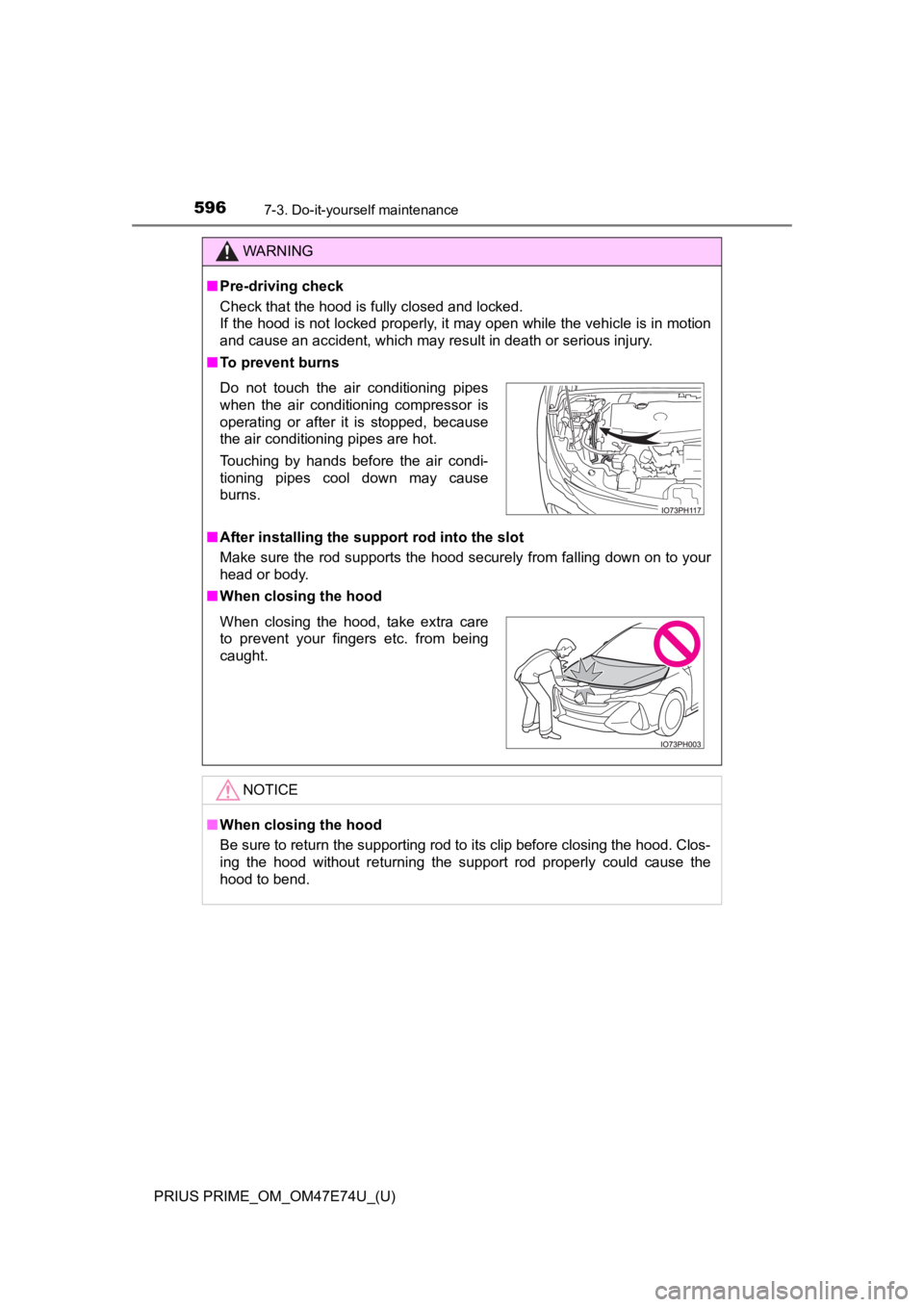

WARNING
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehic le is in motion
and cause an accident, which may result in death or serious inj u r y.
■ To prevent burns
■ After installing the sup port rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
■ When closing the hood
NOTICE
■When closing the hood
Be sure to return the supporting rod to its clip before closing the hood. Clos-
ing the hood without returning the support rod properly could cause the
hood to bend.
Do not touch the air conditioning pipes
when the air conditioning compressor is
operating or after it is stopped, because
the air conditioning pipes are hot.
Touching by hands before the air condi-
tioning pipes cool down may cause
burns.
When closing the hood, take extra care
to prevent your fingers etc. from being
caught.

597
PRIUS PRIME_OM_OM47E74U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care

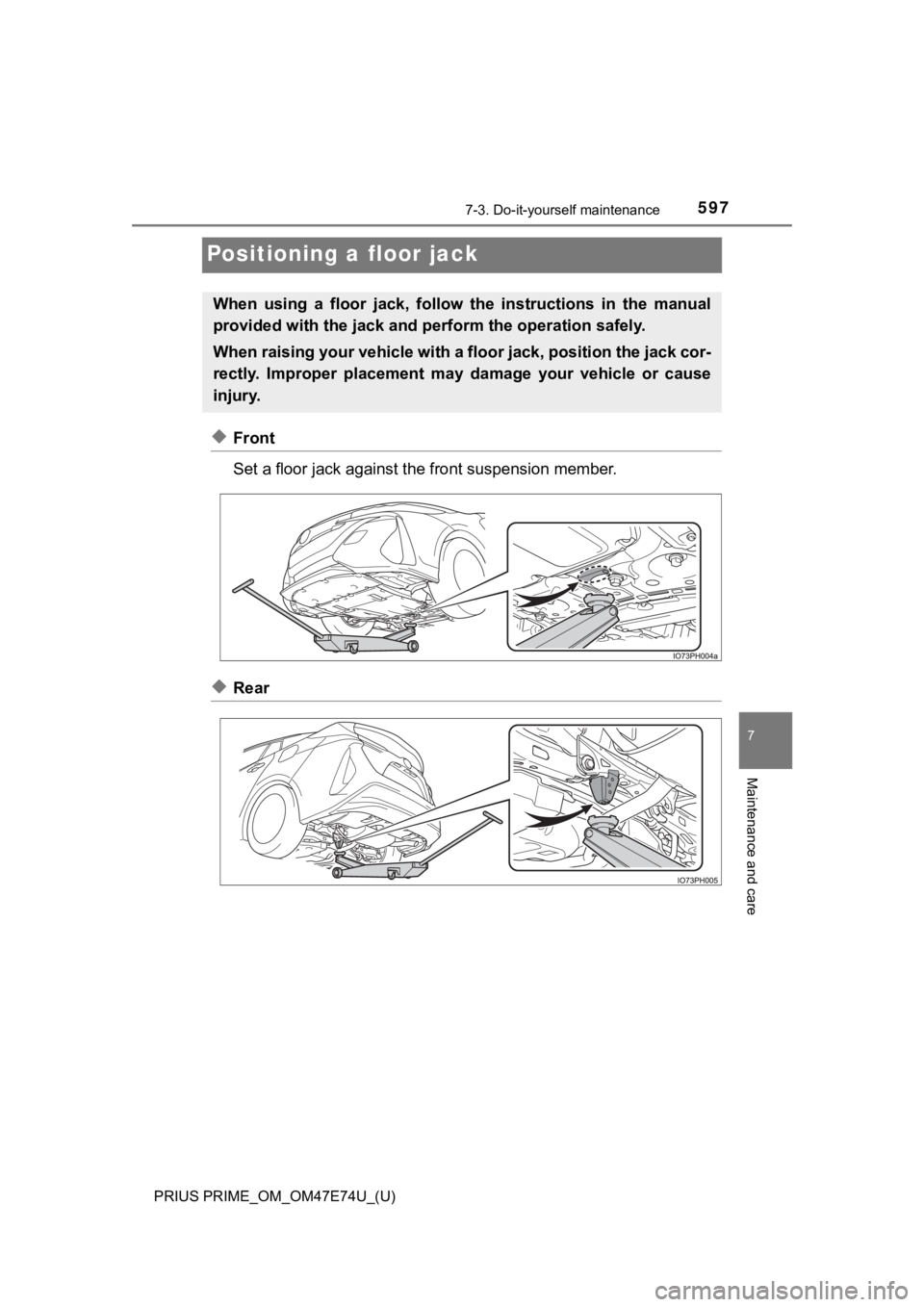

Positioning a floor jack
◆Front
Set a floor jack against the front suspension member.
◆Rear
When using a floor jack, follow the instructions in the manual
provided with the jack and pe rform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.

598
PRIUS PRIME_OM_OM47E74U_(U)
7-3. Do-it-yourself maintenance
Engine compartment
IO73PH112
Engine coolant reservoir ( P. 602)
Fuse boxes ( P. 647)
Engine oil level dipstick ( P. 599)
Engine oil filler cap ( P. 600)
Brake fluid reservoir ( P. 608) Washer fluid tank (
P. 610)
12-volt battery ( P. 605)
Power control unit coolant
reservoir ( P. 602)
Radiator ( P. 604)
Condenser ( P. 604)
Electric cooling fans1
2
3
4
5
6
7
8
9
10
11

PRIUS PRIME_OM_OM47E74U_(U)
5997-3. Do-it-yourself maintenance
7
Maintenance and care

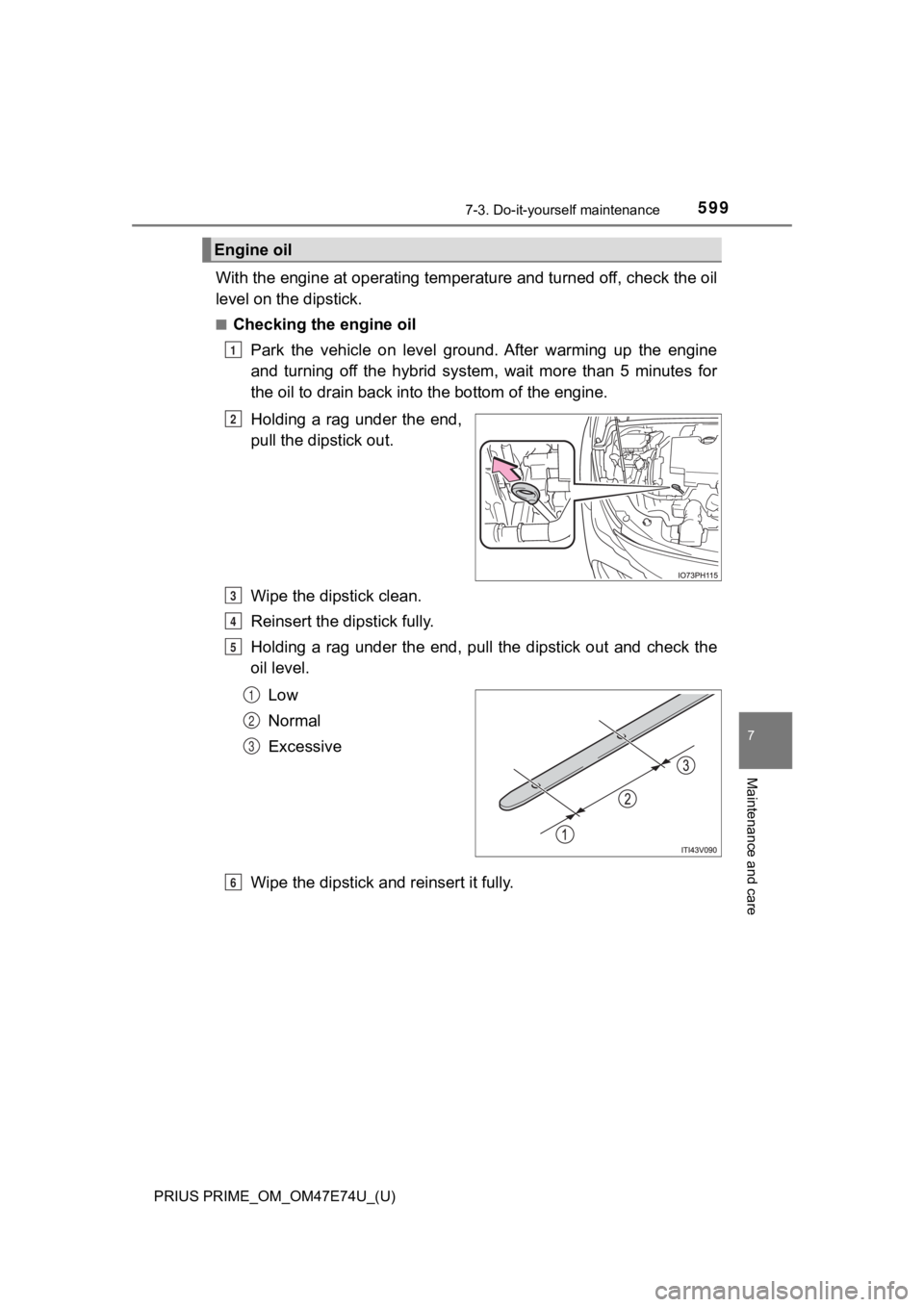

With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning off the hybrid system, wait more than 5 minutes for
the oil to drain back into the bottom of the engine.
Holding a rag under the end,
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check th e
oil level.
Low
Normal
Excessive
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
3
4
5
1
2
3
6

600
PRIUS PRIME_OM_OM47E74U_(U)
7-3. Do-it-yourself maintenance

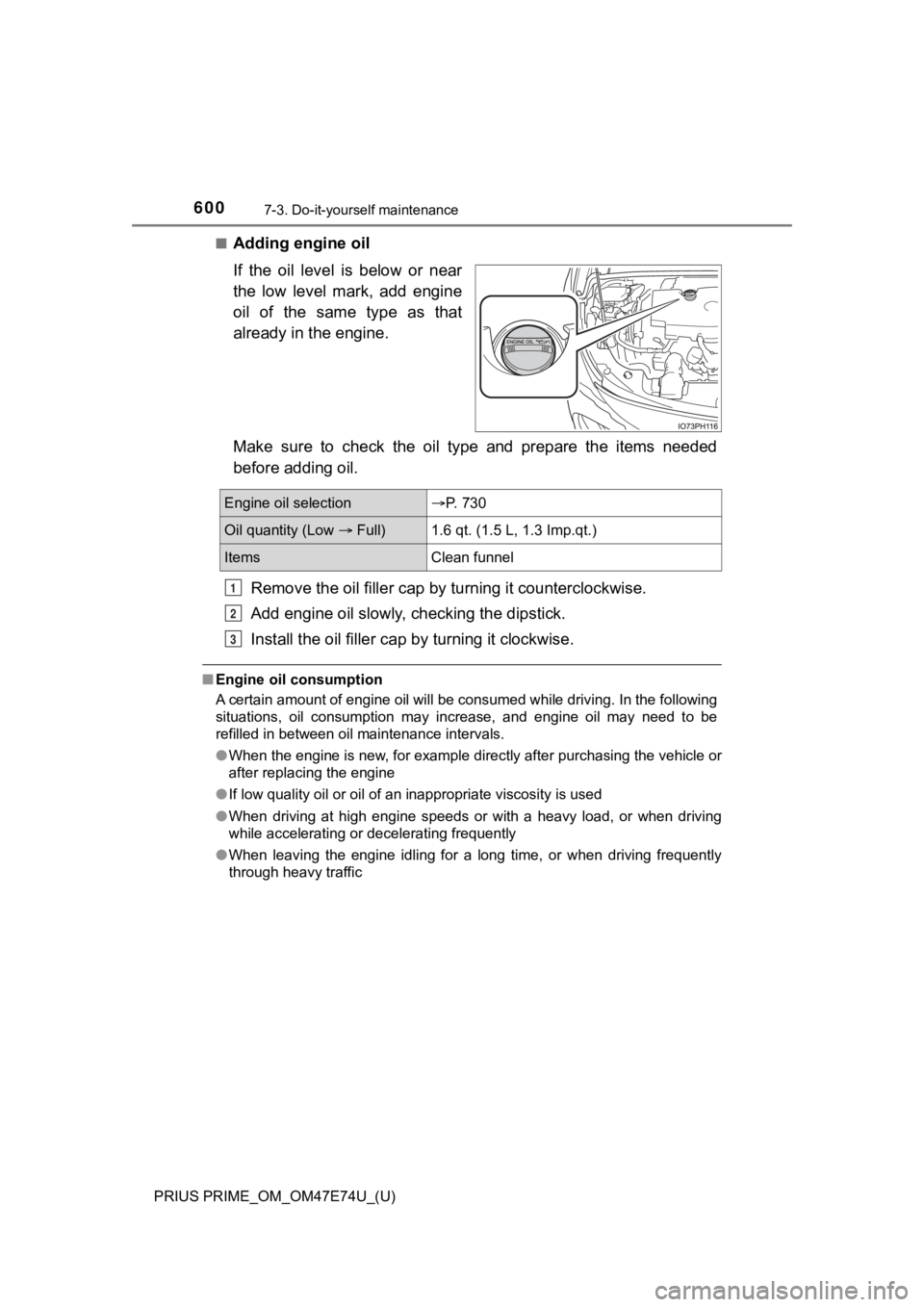

■Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.Remove the oil fille r cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may ne ed to be
refilled in between oil maintenance intervals.
● When the engine is new, for example directly after purchasing t he vehicle or
after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, or when driving
while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
Engine oil selectionP. 730
Oil quantity (Low  Full)1.6 qt. (1.5 L, 1.3 Imp.qt.)
ItemsClean funnel
1
2
3
