TOYOTA PRIUS V 2012 Accessories, Audio & Navigation (in English)

181
2. SETUP
4
PHONE
PRIUS v (US) NAVI 47675U
11.05.17 14:27
■SETTING PORTABLE PLAYER
CONNECTION METHOD
1Touch “Connect Portable Player
from” .
2Touch the desired connection method.
“Vehicle” : Touch to connect the audio
system to the portable player.
“Portable Player” : Touch to connect the
portable player to the audio system.
 Depending on the portable player, the
“Vehicle” or “Portable Player” connec-
tion method may be best. As such, refer to
the manual that comes with the portable
player.
3Touch “OK”.
1Press the “SETUP” button.
2Touch “Bluetooth*” on the “Setup”
screen.
3Touch “Connect Phone” .
4Touch the phone to be connected.
The indicator of the selected Bluetooth®
phone will turn on.
*: Bluetooth is a regi stered trademark of
Bluetooth SIG, Inc.
SELECTING A Bluetooth®
PHONE
If more than one Bluetooth® phone has
been registered, it is necessary to se-
lect which phone to connect to.
It is possible to select from up to 5 reg-
istered Bluetooth
® devices (Phones
(HFP) and portable players (AVP)
(maximum of 5) can be registered.)
Although up to 5 Bluetooth
® phones
can be registered in the system, only
one Bluetooth
® phone can function at
a time.

182
2. SETUP
PRIUS v (US) NAVI 47675U
11.05.17 14:27
5The “Connect Bluetooth*” screen is
displayed.
6When the result message is displayed,
the Bluetooth
® phone can be used. 
When a phone is connected while
Bluetooth
® audio is playing
 This screen is displayed, and the
Bluetooth® audio will stop temporarily.
When another Bluetooth® device is con-
nected
 When another Bluetooth® device is cur-
rently connected, this screen is displayed.
To disconnect the Bluetooth
® device,
touch “Yes”.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
 If the desired Bluetooth® phone is not
on the list, touch “Add New” to register
the phone. (See page 178.)
 The currently connected Bluetooth
®
phone’s screen button will have a
Bluetooth® mark displayed on it. If the
currently connected Bluetooth® phone’s
screen button is touched, the
Bluetooth
® phone can be disconnected.
To u c h “Yes” to disconnect.

183
2. SETUP
4
PHONE
PRIUS v (US) NAVI 47675U
11.05.17 14:27
1Press the “SETUP” button.
2Touch “Bluetooth*” on the “Setup”
screen.
3Touch “Connect Portable Player” .
4Touch the desired portable player to be
connected.
The indicator of the selected portable
player will turn on.
5The “Connect Bluetooth*” screen is
displayed.
6When the result message is displayed,
the portable player can be used.
*: Bluetooth is a regi stered trademark of
Bluetooth SIG, Inc.
SELECTING PORTABLE
PLAYER
If more than one portable player has
been registered, it is necessary to se-
lect which portable player to connect
to.
It is possible to select from up to 5 reg-
istered Bluetooth
® devices (Phones
(HFP) and portable players (AVP)
(maximum of 5) can be registered.)
Although up to 5 portable players can
be registered in the system, only one
portable player can function at a time.
 If the desired portable player is not on
the list, touch “Add New” to register the
portable player. (See page 178.)
 The currently connected portable
player’s screen button will have a
Bluetooth
® mark displayed on it. If the
currently connected portable player’s
screen button is touched, the portable
player can be disconnected. Touch
“Yes” to disconnect.

184
2. SETUP
PRIUS v (US) NAVI 47675U
11.05.17 14:27
When another Bluetooth® device is con-
nected
 When another Bluetooth® device is cur-
rently connected, this screen is displayed.
To disconnect it, touch “Yes”.
1Press the “SETUP” button.
2Touch “Bluetooth*” on the “Setup”
screen.
3Touch “Detailed Bluetooth* Set-
tings” .
4This screen is displayed.
The information displays the following
items:
 If it is desirable to change the settings,
refer to the following pages.
 When the settings have been changed,
touch “Save” .
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
DETAILED Bluetooth®
SETTINGS
The Bluetooth® settings can be con-
firmed and changed.
Screen buttonInformation
“Device Name”
This name will be dis-
played on the device
when it is connected. It
can be changed to a de-
sired name.
“Passcode”
The password that was
set when the Bluetooth®
device was registered
can be changed.
“Device
Address”The device address is
unique to each device. It
cannot be changed.
“Profiles”
The compatibility profile
of the Bluetooth® device
is displayed on the
screen. (See pages 132
and 241.)

185
2. SETUP
4
PHONE
PRIUS v (US) NAVI 47675U
11.05.17 14:27
■CHANGING “Bluetooth* Power”
When “Bluetooth* Power” is “On” :
The Bluetooth
® device is automatically
connected when the “POWER” switch is in
ACCESSORY or ON mode.
When “Bluetooth* Power” is “Off” : The
Bluetooth
® device is disconnected, and
the system will not connect to it next time.
 The “Bluetooth* Power” auto connection
state can be set on or off.
• “On” : The auto connection is turned on.
• “Off” : The auto connection is turned off.
 The auto connection state cannot be
changed from “On” to “Off” while driving,
but it can be changed from “Off” to “On” .
1Touch “Bluetooth* Power” .
2Touch “On” or “Off”.
3Touch “Save” .
In the event the state of “Bluetooth*
Power” is changed from “Off” to “On” ,
Bluetooth
® connection will begin.
■EDITING THE DEVICE NAME
1Touch “Device Name” .
2Use the software keyboard to input the
device name and touch “OK”.
3Touch “Save” .
*: Bluetooth is a regi stered trademark of
Bluetooth SIG, Inc.
CHANGING THE Bluetooth®
SETTINGS
The Bluetooth
® settings can be
changed according to the following
procedures.
The “Bluetooth* Power” display shows
the following state.

186
2. SETUP
PRIUS v (US) NAVI 47675U
11.05.17 14:27
■EDITING THE PASSCODE
1Touch “Passcode” .
2Input a passcode and touch “OK”.
3Touch “Save” .
■Bluetooth® DEVICE CONNECTION
STATUS DISPLAY SETTINGS
1Touch “Display Phone Status” or
“Display Portable Player Status” .
2Touch “On”.
3Touch “Save” .
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
When “Bluetooth* Power” is “On”
and the “POWER” switch is in
ACCESSORY or ON mode, the
Bluetooth
® phone and portable
player’s connection status can be
displayed. (See “CHANGING
“Bluetooth* Power”” on page 185.)

187
2. SETUP
4
PHONE
PRIUS v (US) NAVI 47675U
11.05.17 14:27
1Touch “Default” .
2Touch “Yes”.
If the state of “Bluetooth* Power” is
changed from “Off” into “On” , Bluetooth®
connection will begin.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
INITIALIZING THE Bluetooth®
SETTINGS
The settings can be initialized.

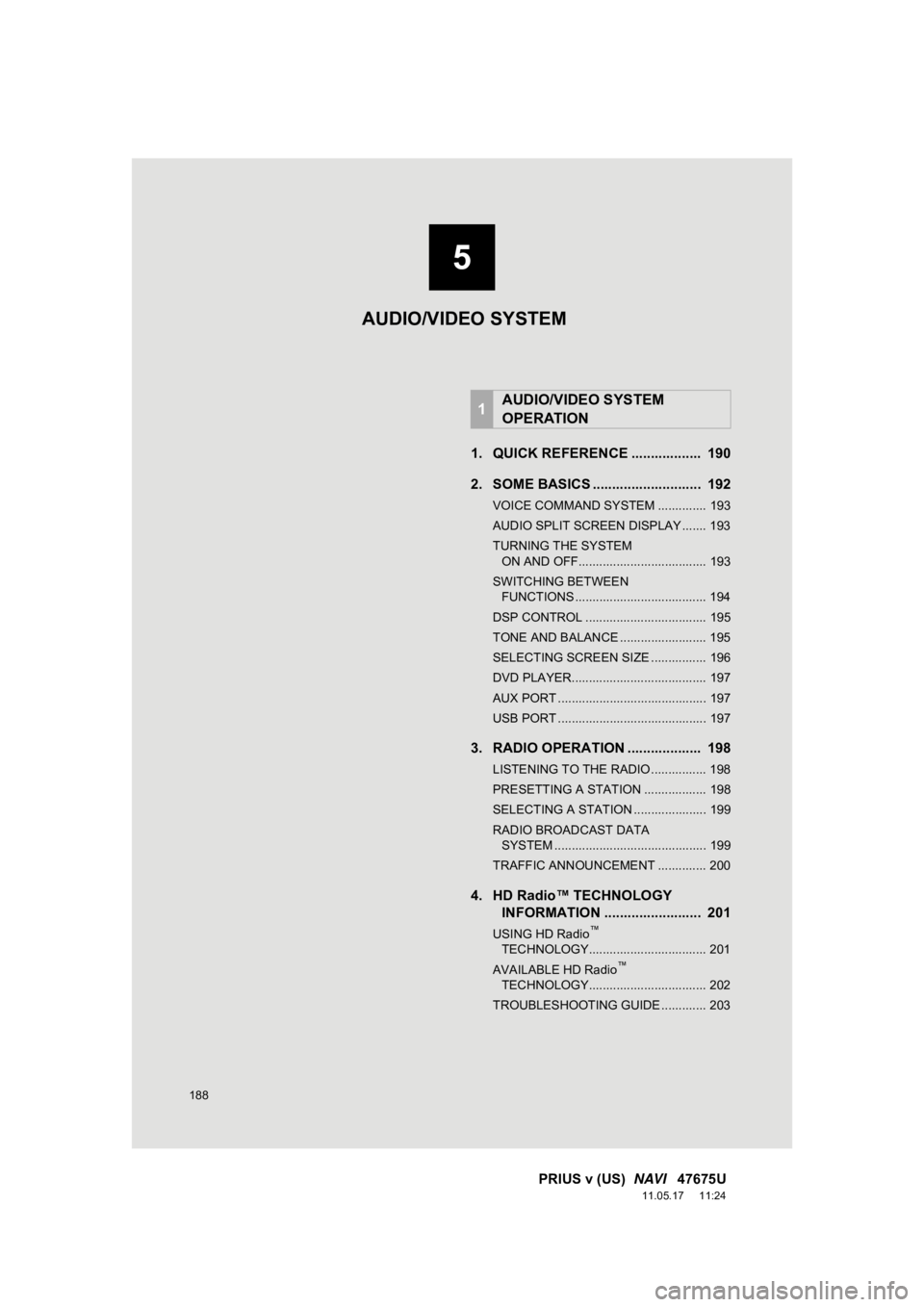

188
PRIUS v (US) NAVI 47675U
11.05.17 11:24
1. QUICK REFERENCE .................. 190
2. SOME BASICS ............................ 192
VOICE COMMAND SYSTEM .............. 193
AUDIO SPLIT SCREEN DISPLAY ....... 193
TURNING THE SYSTEM
ON AND OFF..................................... 193
SWITCHING BETWEEN FUNCTIONS ...................................... 194
DSP CONTROL ................................... 195
TONE AND BALANCE ......................... 195
SELECTING SCREEN SIZE ................ 196
DVD PLAYER....................................... 197
AUX PORT ........................................... 197
USB PORT ........................................... 197
3. RADIO OPERATION ... ................ 198
LISTENING TO THE RADIO ................ 198
PRESETTING A STATION .................. 198
SELECTING A STATION ..................... 199
RADIO BROADCAST DATA
SYSTEM ............................................ 199
TRAFFIC ANNOUNCEMENT .............. 200
4. HD Radio™ TECHNOLOGY INFORMATION ......................... 201
USING HD Radio™
TECHNOLOGY.................................. 201
AVAILABLE HD Radio
™
TECHNOLOGY.................................. 202
TROUBLESHOOTING GUIDE ............. 203
1AUDIO/VIDEO SYSTEM
OPERATION
5

AUDIO/VIDEO SYSTEM

5
189
1
2
3
4
5
6
7
8
9
PRIUS v (US) NAVI 47675U
11.05.17 11:24
5. RADIO OPERATION
(XM Satellite Radio
BROADCAST) ........... ................ 205
HOW TO SUBSCRIBE TO
AN XM Satellite Radio....................... 205
DISPLAYING THE RADIO ID .............. 206
LISTENING TO SATELLITE RADIO ............................................... 206
CHANNEL CATEGORY ...................... 207
PRESETTING A CHANNEL ................ 207
SELECTING A CHANNEL................... 207
DISPLAYING THE TITLE AND NAME ....................................... 208
IF THE SATELLITE RADIO TUNER MALFUNCTIONS .............................. 209
6. RADIO OPERATION (INTERNET RADIO
BROADCAST) ........... ................ 211
LISTENING TO INTERNET
RADIO ............................................... 211
7. DVD PLAYER OPERATION ........ 212
INSERTING A DISC ............................ 212
EJECTING A DISC .............................. 212
PLAYING A DISC ................................ 213
PLAYING AN AUDIO DISC ................. 213
PLAYING AN MP3/WMA DISC ........... 215
OPERATING A DVD DISC .................. 218
PLAYING A DVD DISC ....................... 219
DVD OPTIONS .................................... 221
IF THE PLAYER MALFUNCTIONS .............................. 229
DVD PLAYER AND DVD VIDEO DISC INFORMATION ....................... 230
8. USB MEMORY OPERATION ...... 232
CONNECTING A USB MEMORY ........ 232
PLAYING A USB MEMORY ................ 233
9. iPod OPERATION ....................... 237
CONNECTING iPod ............................. 237
PLAYING iPod ..................................... 237
10. Bluetooth® AUDIO
OPERATION ............................. 241
CONNECTING A Bluetooth®
AUDIO PLAYER ................................ 244
PLAYING Bluetooth
® AUDIO ............... 245
11. AUDIO/VIDEO REMOTE CONTROLS (STEERING
SWITCHES)............................... 250
12. AUDIO/VIDEO SYSTEM OPERATING HINTS.................. 252
RADIO RECEPTION ............................ 252
iPod ...................................................... 253
USB MEMORY .................................... 254
CARING FOR YOUR DVD
PLAYER AND DISC .......................... 254
MP3/WMA FILES ................................. 256
CD-R AND CD-RW DISCS .................. 258
TERMS ................................................ 258
1. AUDIO SETTINGS ...................... 262
HD Radio™ SYSTEM SETTINGS ....... 262
iPod SETTINGS ................................... 263
2SETUP
AUDIO/VIDEO SYSTEM

190
PRIUS v (US) NAVI 47675U
11.05.17 14:27

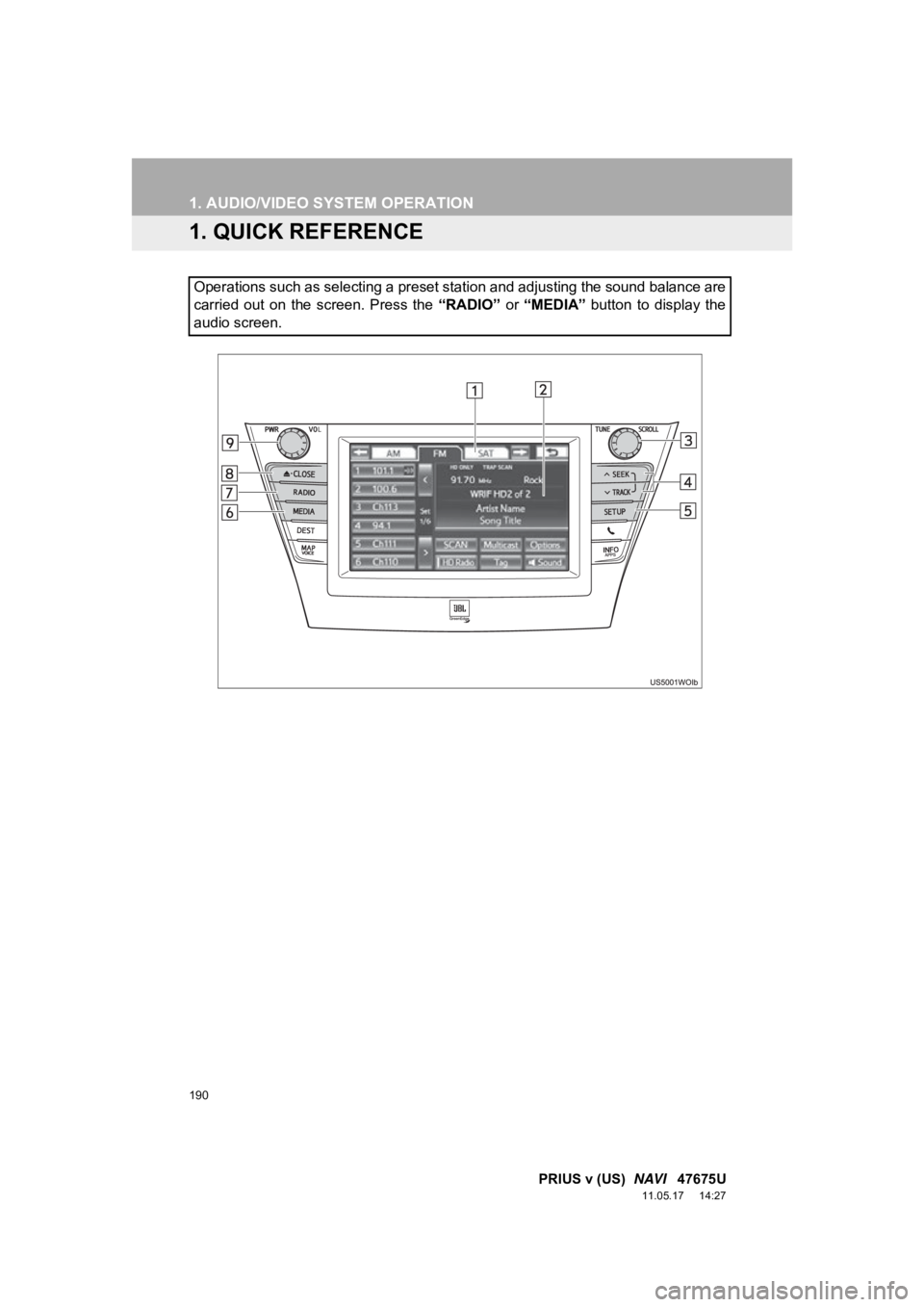

1. AUDIO/VIDEO SYSTEM OPERATION
1. QUICK REFERENCE
Operations such as selecting a preset station and adjusting the sound balance are
carried out on the screen. Press the “RADIO” or “MEDIA” button to display the
audio screen.
