TOYOTA — RS3200 PLUS Security System Page 10

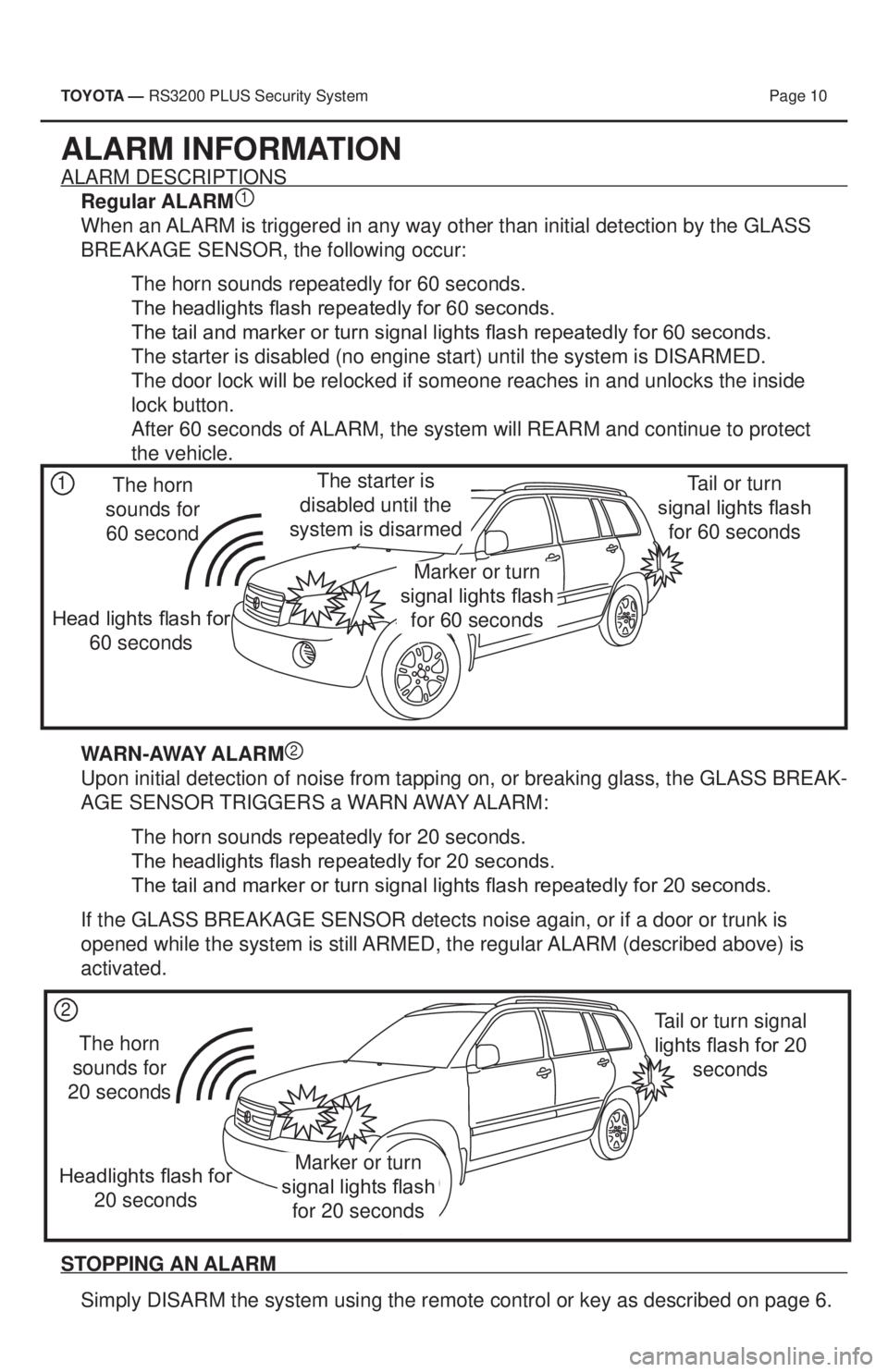

ALARM INFORMATION
ALARM DESCRIPTIONSRegular ALARM
When an ALARM is triggered in any way other than initial detection by the GLASS \
BREAKAGE SENSOR, the following occur:
The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker or turn signal lights flash repeatedly for 60 seconds.
The starter is disabled (no engine start) until the system is DISARMED\
.
The door lock will be relocked if someone reaches in and unlocks the ins\
ide
lock button.
After 60 seconds of ALARM, the system will REARM and continue to protect
the vehicle.
WARN-AWAY ALARM
Upon initial detection of noise from tapping on, or breaking glass, the GLASS BREAK-
AGE SENSOR TRIGGERS a WARN AWAY ALARM: The horn sounds repeatedly for 20 seconds.
The headlights flash repeatedly for 20 seconds.
The tail and marker or turn signal lights flash repeatedly for 20 seconds.
If the GLASS BREAKAGE SENSOR detects noise again, or if a door or trunk \
is
opened while the system is still ARMED, the regular ALARM (described above) is
activated.
STOPPING AN ALARM Simply DISARM the system using the remote control or key as described on\
page 6.
123
123
The horn
sounds for
20 seconds Tail or turn signal
lights flash for 20
seconds
123
Headlights flash for 20 secondsMarker or turn
signal lights flash for 20 seconds
The horn
sounds for 60 secondThe starter is
disabled until the
system is disarmed
Marker or turn
signal lights flash for 60 seconds Tail or turn
signal lights flash for 60 seconds
123
Head lights flash for 60 seconds

Page 11 T OYOTA — RS3200 PLUS Security System

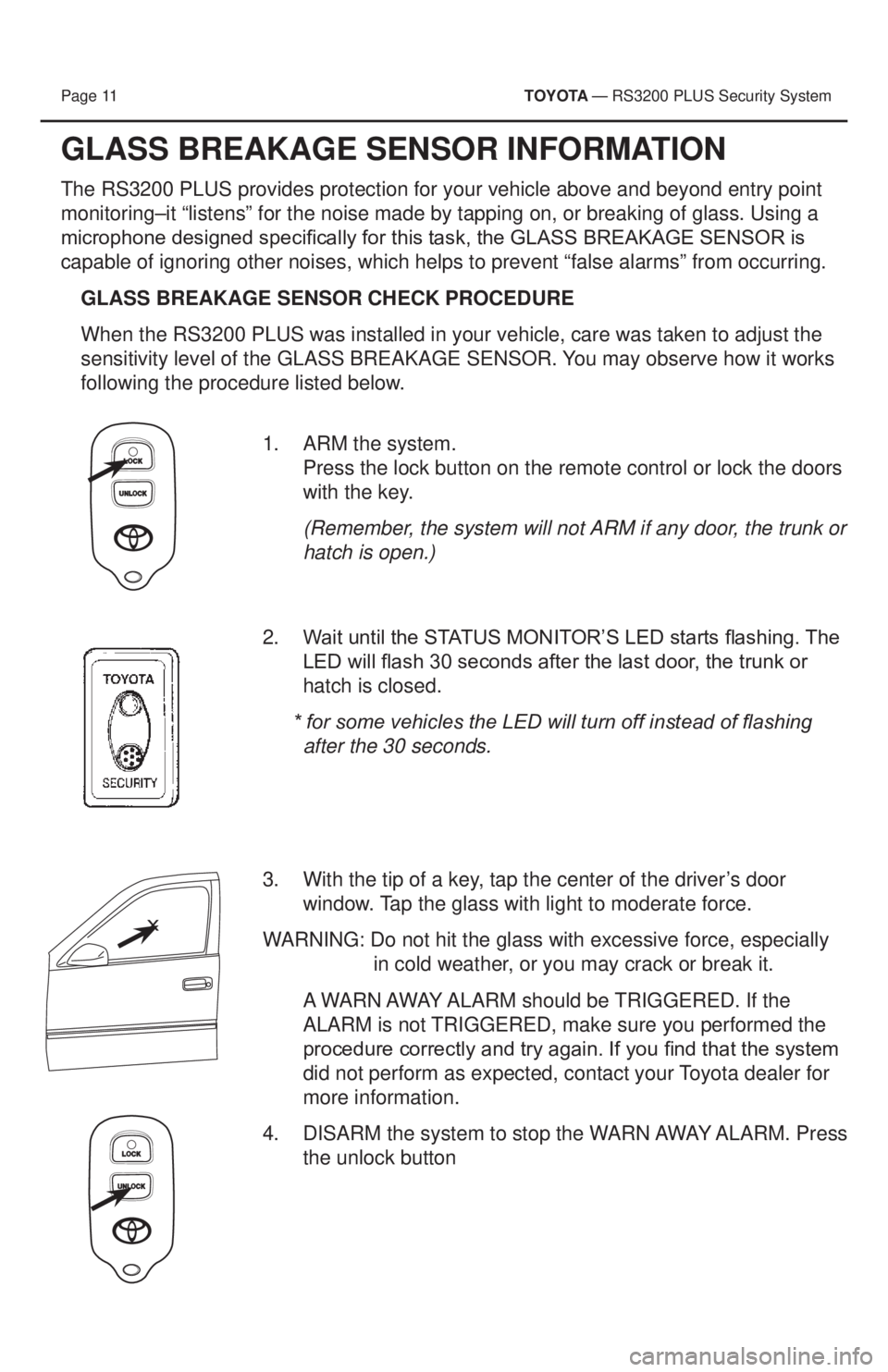

GLASS BREAKAGE SENSOR INFORMATION
The RS3200 PLUS provides protection for your vehicle above and beyond en\
try point
monitoring–it “listens” for the noise made by tapping on, or br\
eaking of glass. Using a
microphone designed specifically for this task, the GLASS BREAKAGE SENSOR is
capable of ignoring other noises, which helps to prevent “false alarm\
s” from occurring.
GLASS BREAKAGE SENSOR CHECK PROCEDURE
When the RS3200 PLUS was installed in your vehicle, care was taken to ad\
just the
sensitivity level of the GLASS BREAKAGE SENSOR. You may observe how it works
following the procedure listed below.
1.

ARM the system.

Press the lock button on the remote control or lock the doors
with the key.
(Remember, the system will not ARM if any door, the trunk or
hatch is open.)

2.

W
ait until the STATUS MONITOR’S LED starts flashing. The
LED will flash 30 seconds after the last door, the trunk or
hatch is closed.
* for some vehicles the LED will turn off instead of flashing after the 30 seconds.



3.

With the tip of a key
, tap the center of the driver’s door
window. Tap the glass with light to moderate force.
WARNING: Do not hit the glass with excessive force, especially in cold weather, or you may crack or break it.
A WARN AWAY ALARM should be TRIGGERED. If the
ALARM is not TRIGGERED, make sure you performed the
procedure correctly and try again. If you find that the system
did not perform as expected, contact your Toyota dealer for
more information.
4.

DISARM the system to stop the W
ARN AWAY ALARM. Press
the unlock button

TOYOTA — RS3200 PLUS Security System Page 12

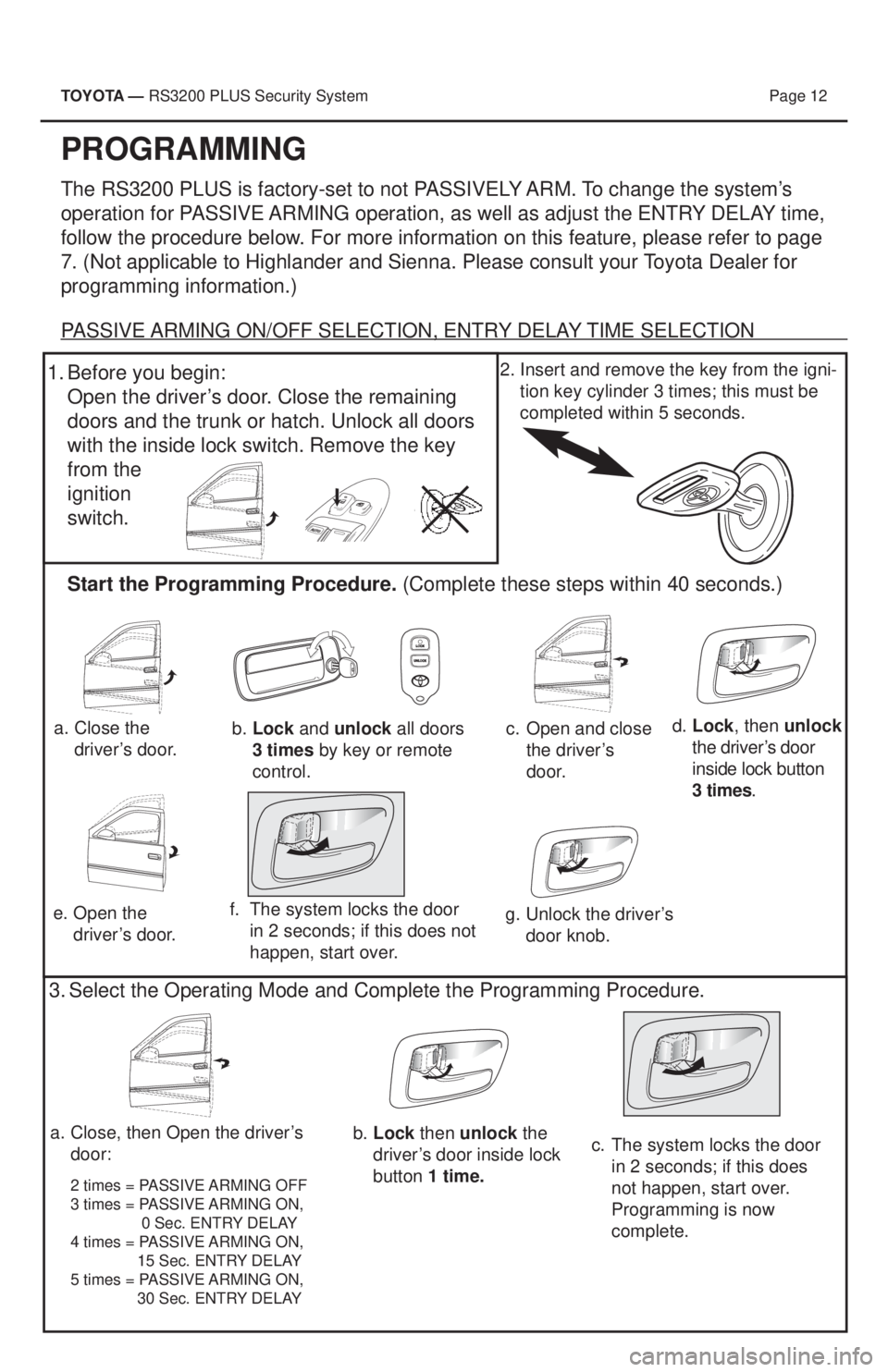

PROGRAMMING
The RS3200 PLUS is factory-set to not PASSIVELY ARM. To change the system’s
operation for PASSIVE ARMING operation, as well as adjust the ENTRY DELAY time,
follow the procedure below. For more information on this feature, please refer to page
7. (Not applicable to Highlander and Sienna. Please consult your Toyota Dealer for
programming information.)
PASSIVE ARMING ON/OFF SELECTION, ENTRY DELAY TIME SELECTION
1.

Before you begin:
Open the driver

’s door. Close the remaining
doors and the trunk or hatch. Unlock all doors
with the inside lock switch. Remove the key
from the
ignition
switch.
d. Lock , then unlock
the driver’s door
inside lock button
3 times.
f. The system locks the door
in 2 seconds; if this does not
happen, start over
.
Start the Programming Procedure. (Complete these steps within 40 seconds.)
b. Lock then unlock the
driver’s door inside lock
button 1 time.c. The system locks the door
in 2 seconds; if this does
not happen, start over.
Programming is now
complete.
3. Select the Operating Mode and Complete the Programming Procedure.
a. Close, then Open the driver ’s
door:
2 times = PASSIVE ARMING OFF
3 times = PASSIVE ARMING ON,
0 Sec. ENTR

Y DELAY
4 times = PASSIVE ARMING ON,
15 Sec. ENTR

Y DELAY
5 times = PASSIVE ARMING ON,
30 Sec. ENTR

Y DELAY
a. Close the
driver’s door. b.
Lock and unlock all doors
3 times by key or remote
control.c. Open and close
the driver ’s
door.
e.

Open the
driver

’s door.
g. Unlock the driver ’s
door knob.
2. Insert and remove the key from the igni-
tion key cylinder 3 times; this must be
completed within 5 seconds.

Page 13 T OYOTA — RS3200 PLUS Security System

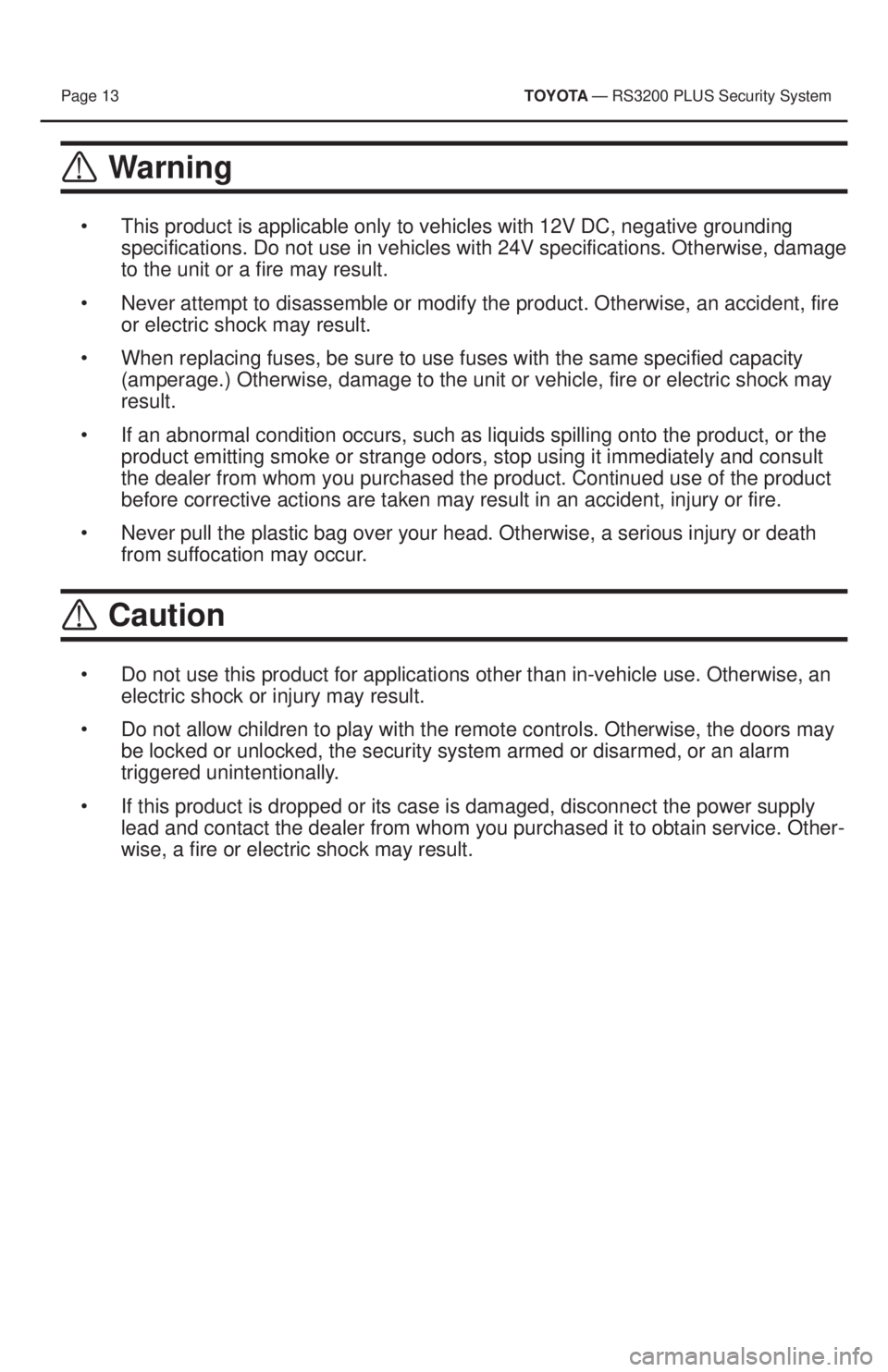

Warning
• This product is applicable only to vehicles with 12V DC, negative ground\
ing
specifications. Do not use in vehicles with 24V specifications. Otherwis\
e, damage
to the unit or a fire may result.
•

Never attempt to disassemble or modify the product. Otherwise, an accide\
nt, fire
or electric shock may result.
•


When replacing fuses, be sure to use fuses with the same specified capac\
ity
(amperage.) Otherwise, damage to the unit or vehicle, fire or electric\
shock may
result.
•


If an abnormal condition occurs, such as liquids spilling onto the produ\
ct, or the
product emitting smoke or strange odors, stop using it immediately and c\
onsult
the dealer from whom you purchased the product. Continued use of the pro\
duct
before corrective actions are taken may result in an accident, injury or\
fire.
•


Never pull the plastic bag over your head. Otherwise, a serious injury o\
r death
from suf

focation may occur.

Caution
• Do not use this product for applications other than in-vehicle use. Othe\
rwise, an
electric shock or injury may result.
•

Do not allow children to play with the remote controls. Otherwise, the d\
oors may
be locked or unlocked, the security system armed or disarmed, or an alar\
m
triggered unintentionally

.
•

If this product is dropped or its case is damaged, disconnect the power \
supply
lead and contact the dealer from whom you purchased it to obtain service\
. Other-
wise, a fire or electric shock may result.
