TOYOTA PRIUS V 2013 Owners Manual (in English)

91
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
PRIUS v_OM_OM47820U_(U)
CAUTION
■When folding the seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
position to P.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
● Do not operate the rear seat if it is occupied.
● Be careful not to get feet or hands caught in the moving parts or joints of
the seats during operation.
● Do not allow children to operate the seat.
● After operation, rock the seat gently to ensure that it is firmly in place.
■ Reclining adjustment
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● After adjusting the seat, make sure that the seat is locked in position.

92 1-4. Adjustable components (seats, mirrors, steering wheel)
PRIUS v_OM_OM47820U_(U)
CAUTION
■After returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Make sure that the seatback is securely locked in position by lightly push-
ing it back and forth.
● Check that the seat belts are not twisted or caught in the seatback.
● Re-couple the rear center seat belt if it has been uncoupled. ( P. 96)
● If the seat belt has been stowed using the seat belt hanger, check that the
seat belt has been removed from the hanger. ( P. 90)

93
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
PRIUS v_OM_OM47820U_(U)

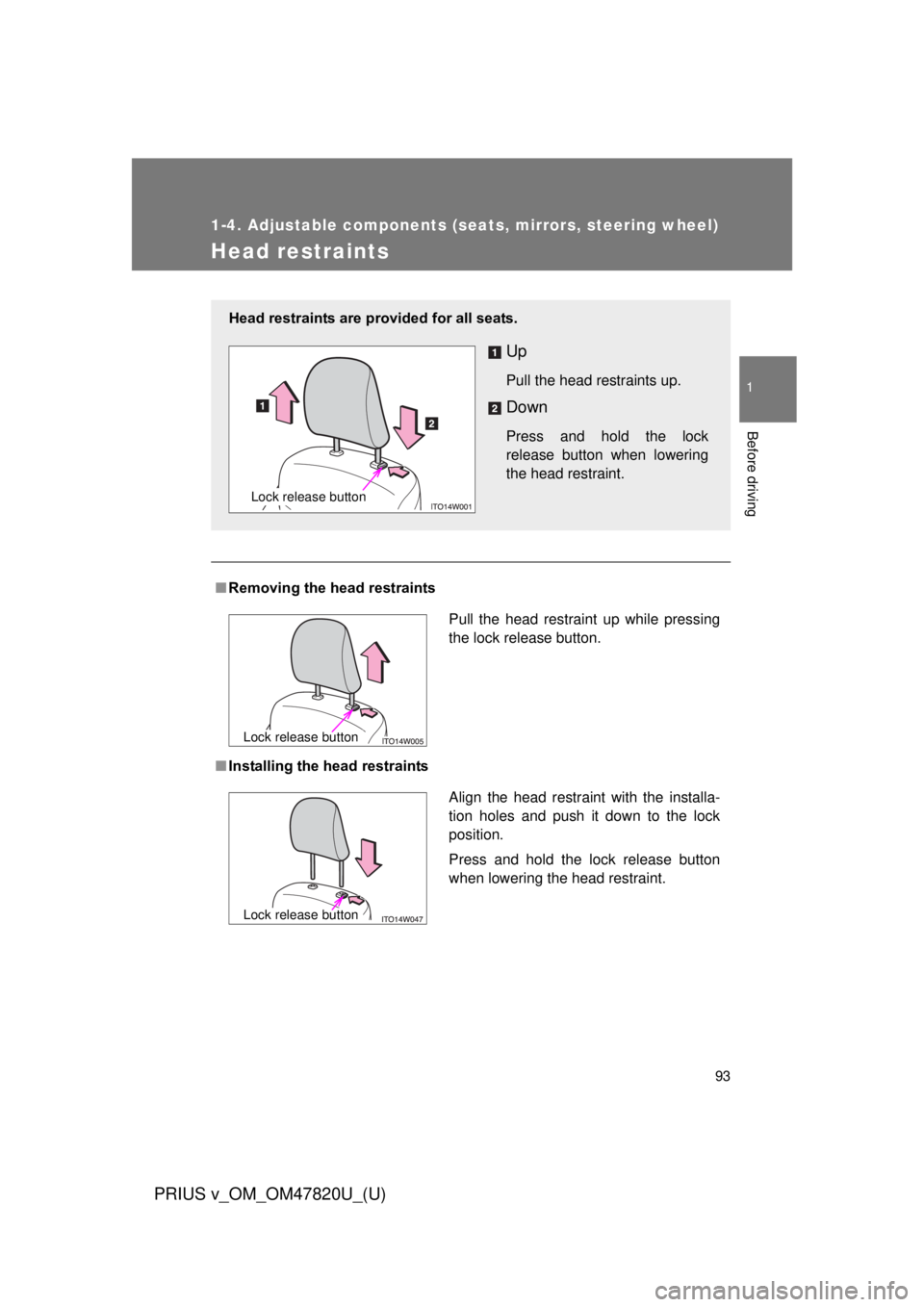

Head restraints
■Removing the head restraints
■ Installing the head restraints
Head restraints are provided for all seats.
Up
Pull the head restraints up.
Down
Press and hold the lock
release button when lowering
the head restraint.
Lock release button
Pull the head restraint up while pressing
the lock release button.
Lock release button
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Lock release button

94 1-4. Adjustable components (seats, mirrors, steering wheel)
PRIUS v_OM_OM47820U_(U)
■Adjusting the height of the head restraints (front seats)
■ Adjusting the rear cent er seat head restraint
Always raise the head restraint one level from the stowed position when
using.
CAUTION
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

95
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
PRIUS v_OM_OM47820U_(U)

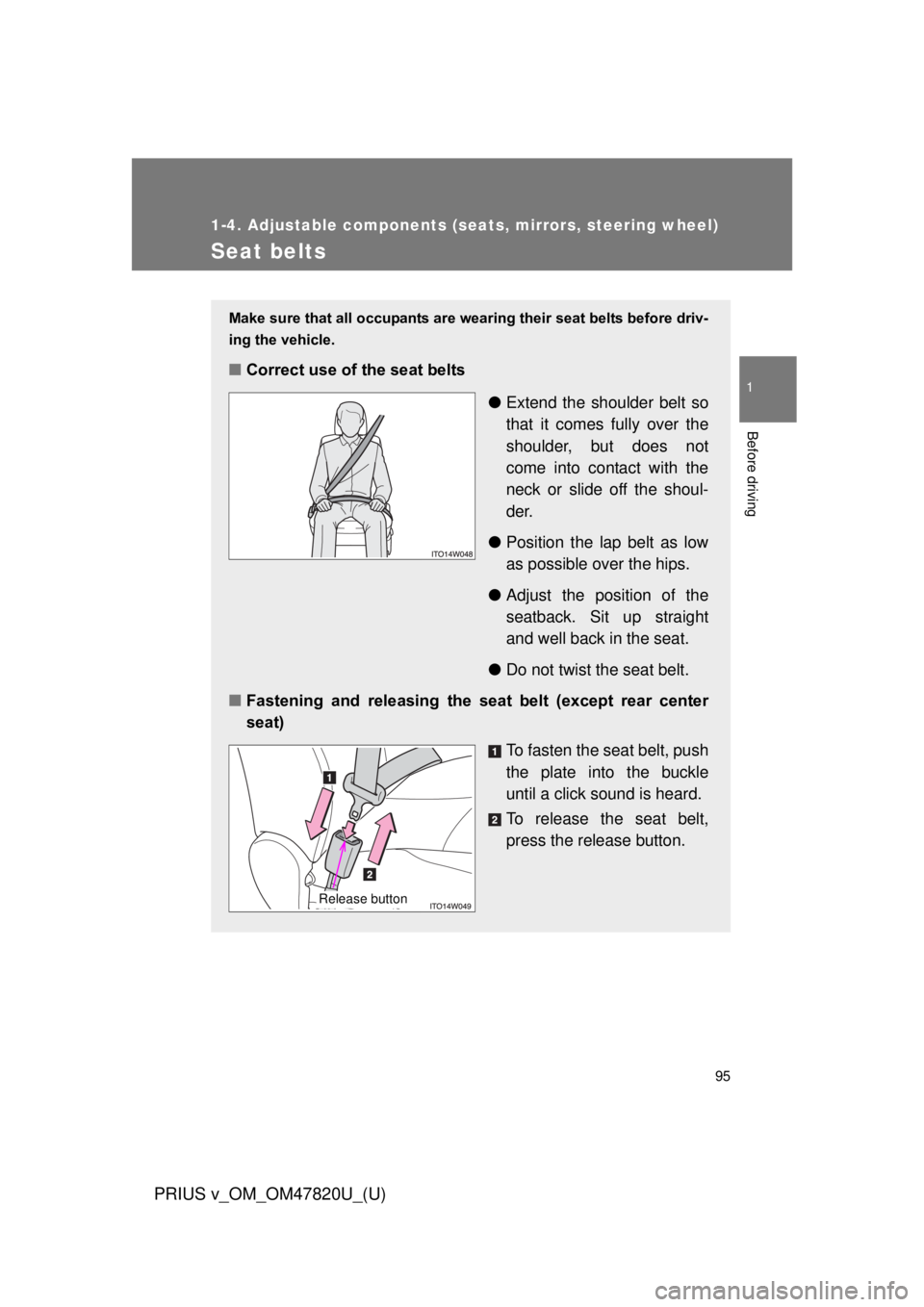

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■Correct use of the seat belts
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the
seatback. Sit up straight
and well back in the seat.
● Do not twist the seat belt.
■ Fastening and releasing the s eat belt (except rear center
seat)
To fasten the seat belt, push
the plate into the buckle
until a click sound is heard.
To release the seat belt,
press the release button.
Release button

96 1-4. Adjustable components (seats, mirrors, steering wheel)
PRIUS v_OM_OM47820U_(U)

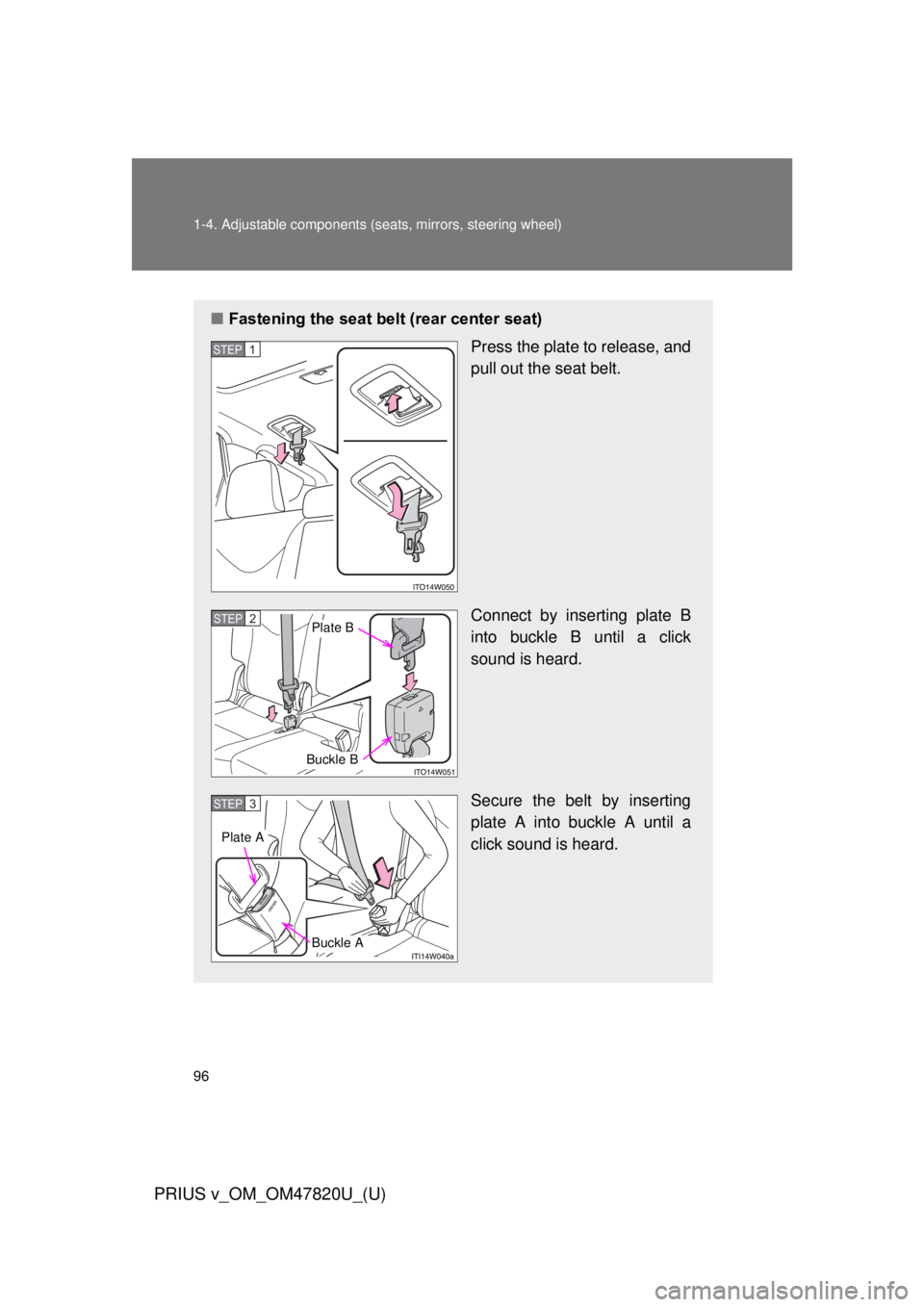

■Fastening the seat belt (rear center seat)
Press the plate to release, and
pull out the seat belt.
Connect by inserting plate B
into buckle B until a click
sound is heard.
Secure the belt by inserting
plate A into buckle A until a
click sound is heard.
STEP 1
STEP 2 Plate B
Buckle B
STEP 3
Plate A
Buckle A

97
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
PRIUS v_OM_OM47820U_(U)

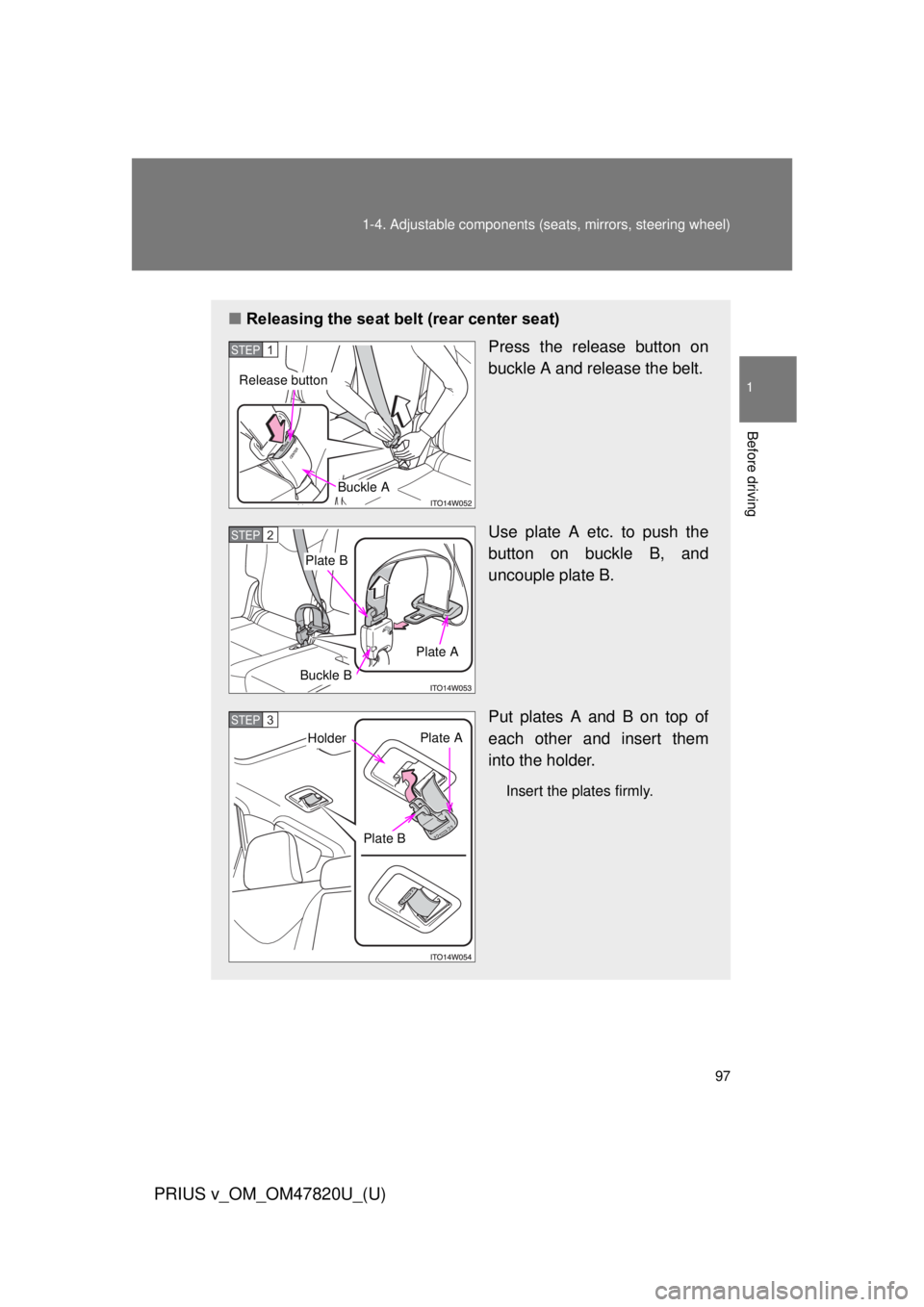

■Releasing the seat belt (rear center seat)
Press the release button on
buckle A and release the belt.
Use plate A etc. to push the
button on buckle B, and
uncouple plate B.
Put plates A and B on top of
each other and insert them
into the holder.
Insert the plates firmly.
STEP 1
Release button
Buckle A
STEP 2
Plate B
Plate A
Buckle B
STEP 3
HolderPlate A
Plate B

98 1-4. Adjustable components (seats, mirrors, steering wheel)
PRIUS v_OM_OM47820U_(U)

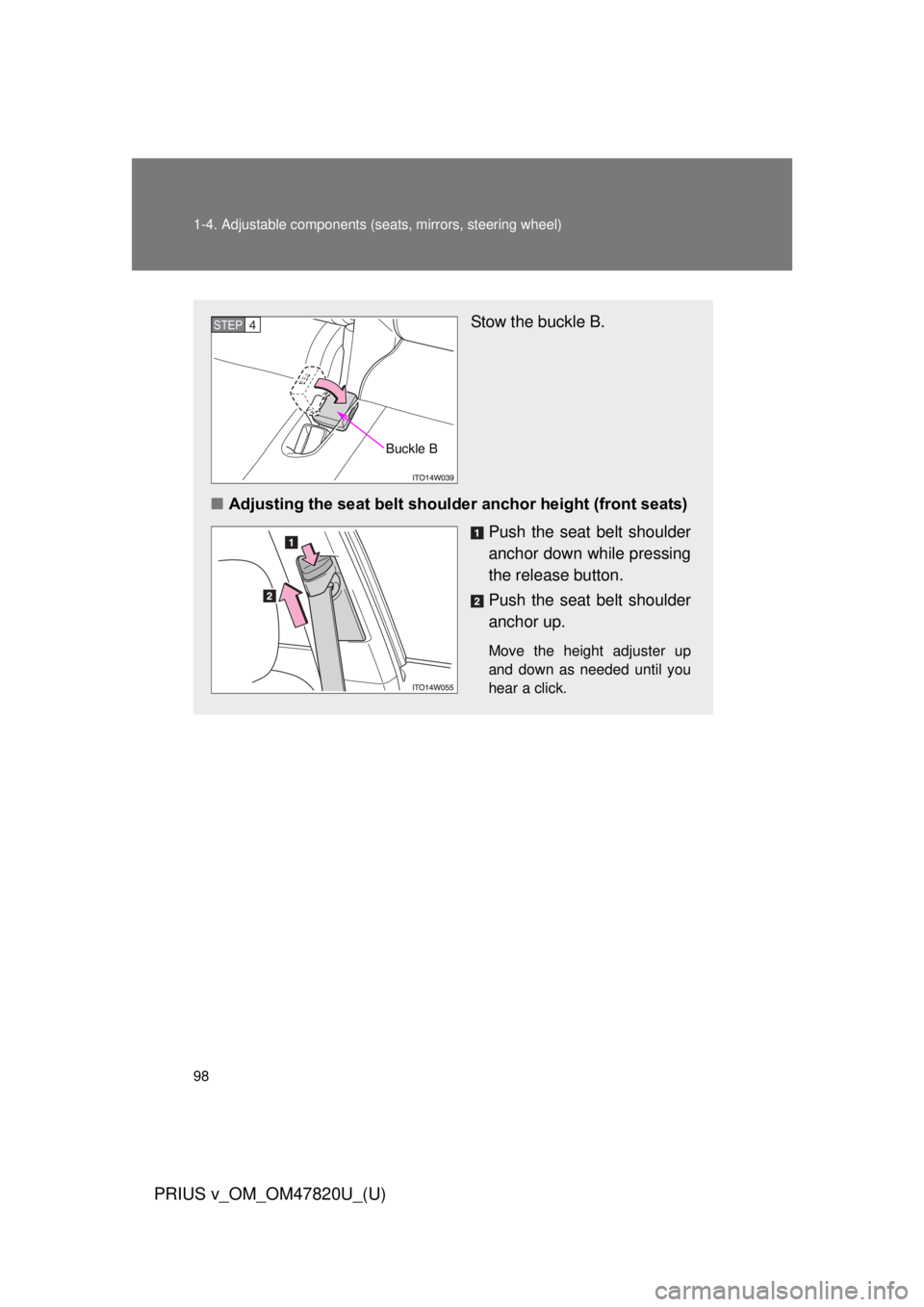

Stow the buckle B.
■ Adjusting the seat belt shoulde r anchor height (front seats)
Push the seat belt shoulder
anchor down while pressing
the release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up
and down as needed until you
hear a click.
STEP 4
Buckle B

99
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
PRIUS v_OM_OM47820U_(U)
Seat belt comfort guide (rear center seat)
If the shoulder belt sits close to a person’s neck, use the seat belt
comfort guide.
Pull the comfort guide from the
seatback pocket.
Slide the belt past the slot of the
guide.
The elastic cord must be behind
the seat belt.
Buckle the seat belt and position
it comfortably.
STEP 1
STEP 2
STEP 3

100 1-4. Adjustable components (seats, mirrors, steering wheel)
PRIUS v_OM_OM47820U_(U)
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal or
side collision.
The pretensioner does not acti-
vate in the event of a minor frontal
impact, a minor side impact, a
rear impact or a vehicle rollover.
Pre-collision seat belts (front seats of vehicles with pre-collision
system)If the pre-collision sens or detects that a collision is unavoidable, the
pre-collision system will retract the seat belt, thus enhancing the
effectiveness of the seat be lt pretensioner in a crash.
The same will happen if the driver makes an emergency braking or loses
control of the vehicle. (P. 258)
