TOYOTA PRIUS V 2013 Owners Manual (in English)

191
2-1. Driving procedures
PRIUS v_OM_OM47820U_(U)
2
When driving
■
About engine braking
When shift position B is selected, releasing the accelerator pedal will apply
engine braking.
● When the vehicle is driven at high speeds, compared to ordinary gaso-
line-fueled vehicles, the engine braking deceleration is felt less than that
of other vehicles.
● The vehicle can be accelerated even when shift position B is selected.
If the vehicle is driven continuously in the B position, fuel efficiency will
become low. Usually, shift the shift position to D.
■ When canceling Eco drive mode/power mode
● Press the switch again. Also, power mode will be canceled automatically
when the “POWER” switch is turned off. However, Eco drive mode will
not be canceled automatically until the switch is pressed, even if the
“POWER” switch is turned off.
● When in Eco drive mode, if the power mode switch is pressed or the
operation is reversed, the mode will switch to that of the last switch to be
pressed.
■ Switching the drive mode when in EV drive mode
 P. 184
■ After recharging/reconnecting the 12-volt battery
 P. 388
■ Customization
Settings (e.g. Reverse warning buzzer) can be changed.
(Customizable features P. 527)

192 2-1. Driving procedures
PRIUS v_OM_OM47820U_(U)
CAUTION
■When driving on slippery road surfaces
Do not accelerate or shift the shift position suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.
■ For the shift lever
Do not remove the shift lever knob or use anything but a genuine Toyota shift
lever knob. Also, do not hang anything on the shift lever.
Doing so could prevent the shift lever from returning to position, causing
unexpected accidents to occur when the vehicle is in motion.
■ P position switch
Do not press the P position switch while the vehicle is moving.
If the P position switch is pressed when driving at very low speeds (for
example, directly before stopping the vehicle), the vehicle may stop sud-
denly when the shift position switches to P, which could lead to an accident.

193
2-1. Driving procedures
PRIUS v_OM_OM47820U_(U)
2
When driving
NOTICE
■
Hybrid battery (tract ion battery) charge
If the shift position is in N, the hybrid battery (traction battery) will not be
charged. To help prevent the battery from discharging, avoid leaving the N
position selected for an extended period of time.
■ Situations where P position contro l system malfunctions are possible
If any of the following situations occurs, P position control system malfunc-
tions are possible.
Immediately stop the vehicle in a safe place on level ground, apply the park-
ing brake, and then contact your Toyota dealer.
● When the “P LOCK MALFUNCTION WHEN PARKING, PARK IN FLAT
PLACE AND APPLY PARKING BRAKE SECURELY” warning message
appears on the instrument cluster. ( P. 450)
● When the parking lock system warning light is illuminated.
● When everything except the shift position indicator selection frame is illu-
minated.
● When the shift position indicator remains off.
■ Notes regarding shift lever an d P position switch operation
Avoid repeatedly operating the shift lever and P position switch in quick suc-
cession.
The system protection function may activate and it will not be temporarily
possible to shift the shift position other than P. If this happens, please wait
for a while before attempting to change the shift position again.

194
2-1. Driving procedures
PRIUS v_OM_OM47820U_(U)

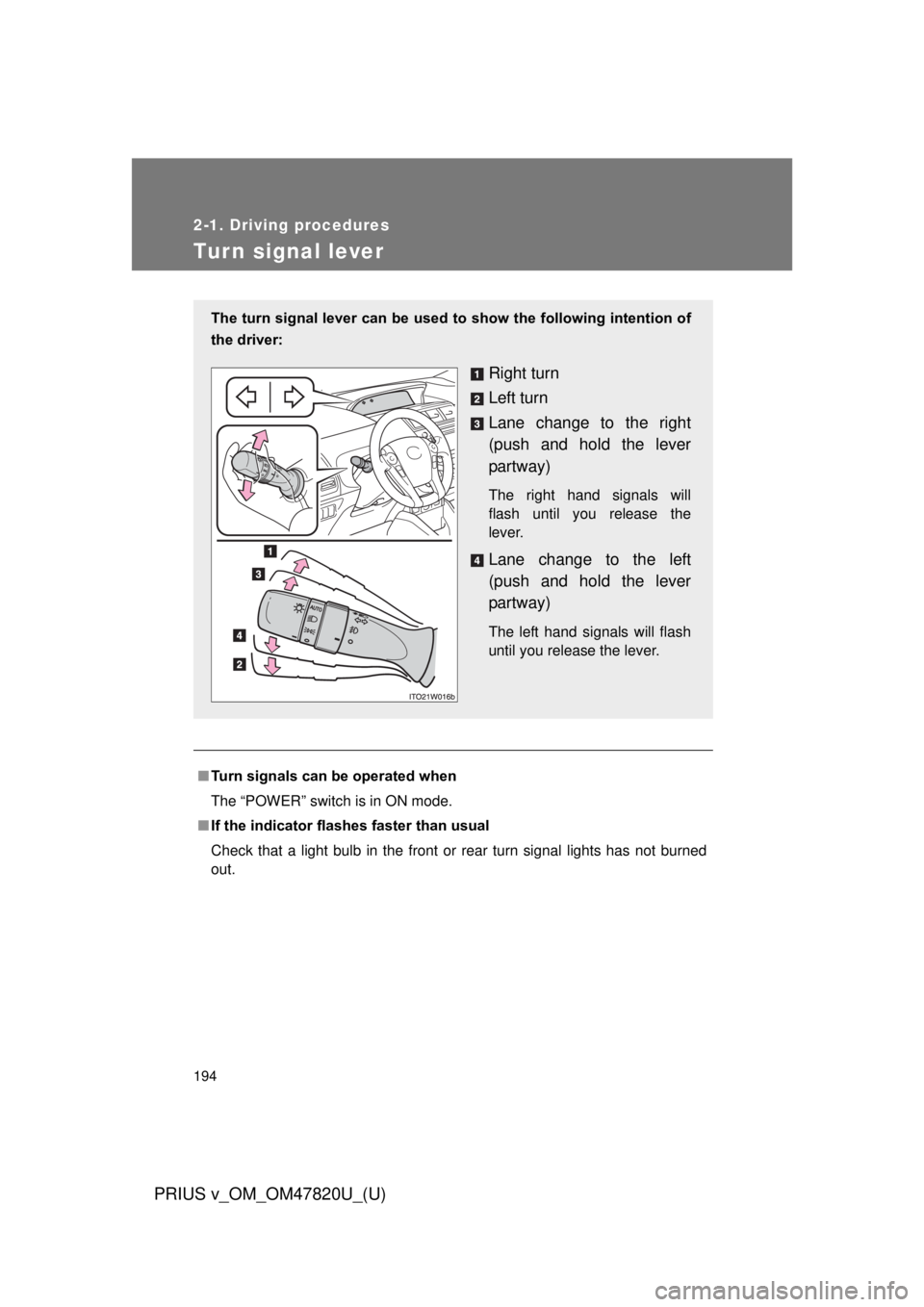

Tur n signal lever
■Turn signals can be operated when
The “POWER” switch is in ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
The turn signal lever can be used to show the following intention of
the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signals will
flash until you release the
lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signals will flash
until you release the lever.

195
2-1. Driving procedures
PRIUS v_OM_OM47820U_(U)
2
When driving

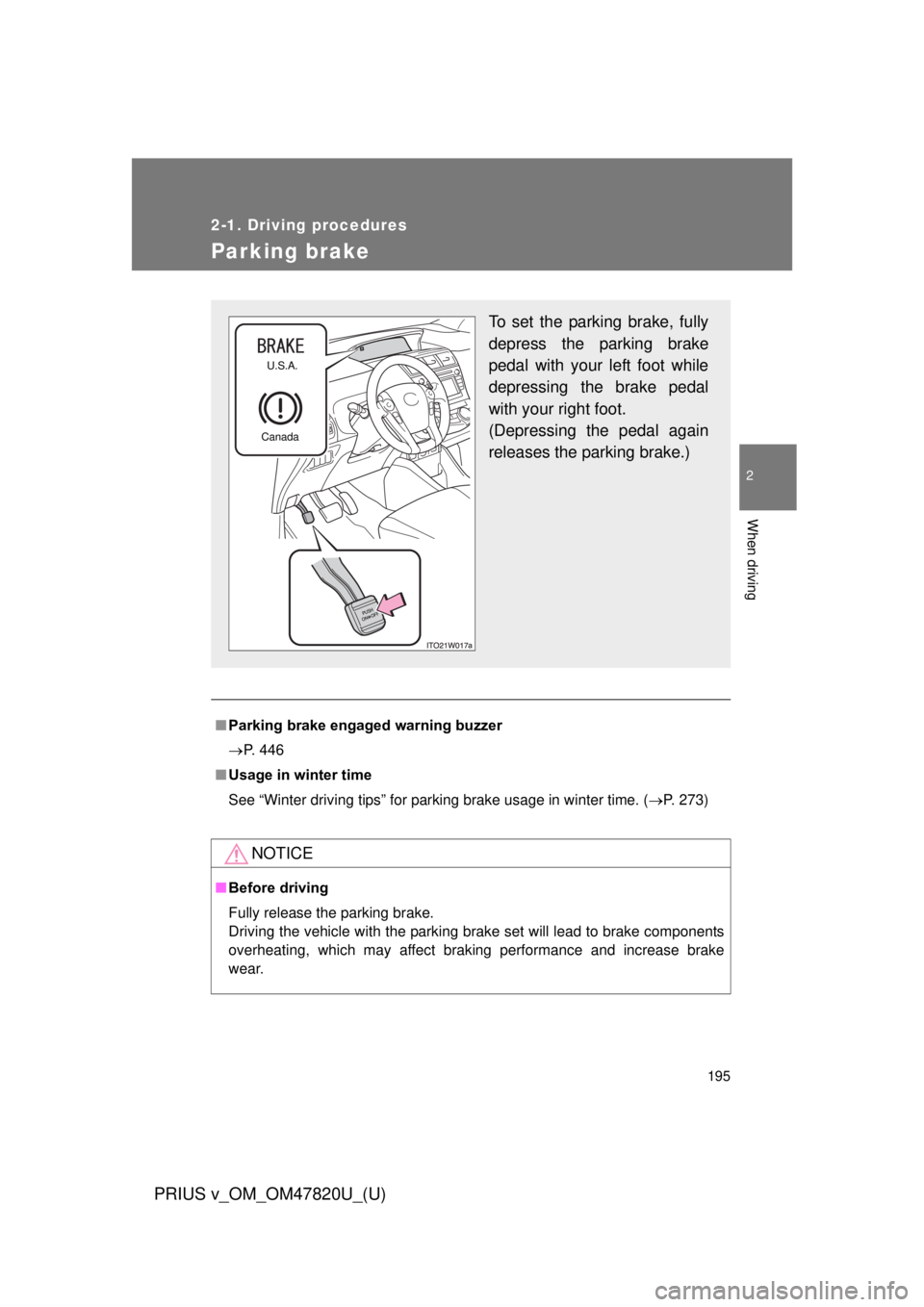

Parking brake
■Parking brake engaged warning buzzer
 P. 446
■ Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. ( P. 273)
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
To set the parking brake, fully
depress the parking brake
pedal with your left foot while
depressing the brake pedal
with your right foot.
(Depressing the pedal again
releases the parking brake.)
U.S.A.
Canada

196
2-1. Driving procedures
PRIUS v_OM_OM47820U_(U)

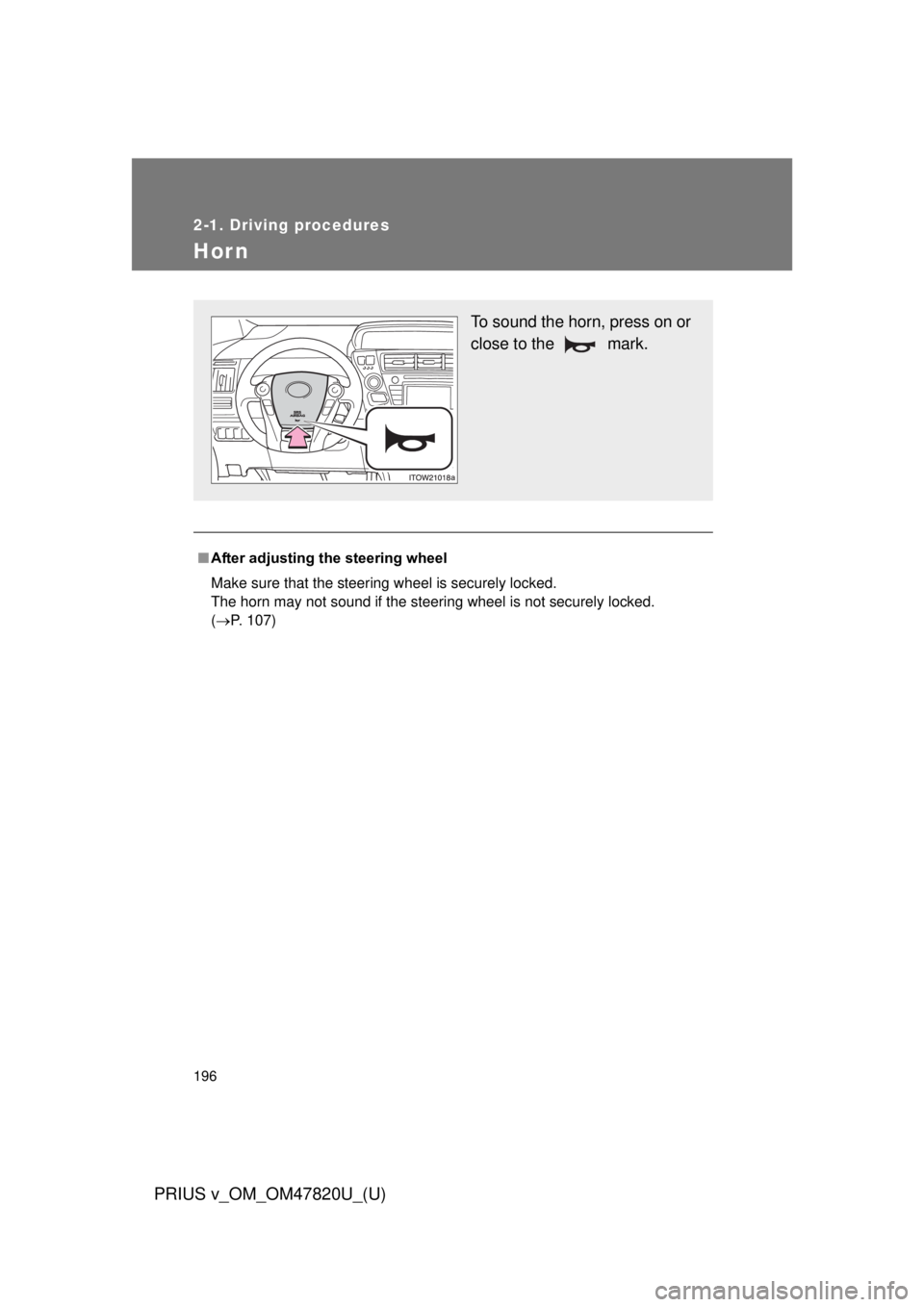

Hor n
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 107)
To sound the horn, press on or
close to the mark.

197
PRIUS v_OM_OM47820U_(U)
2
When driving
2-2. Instrument cluster

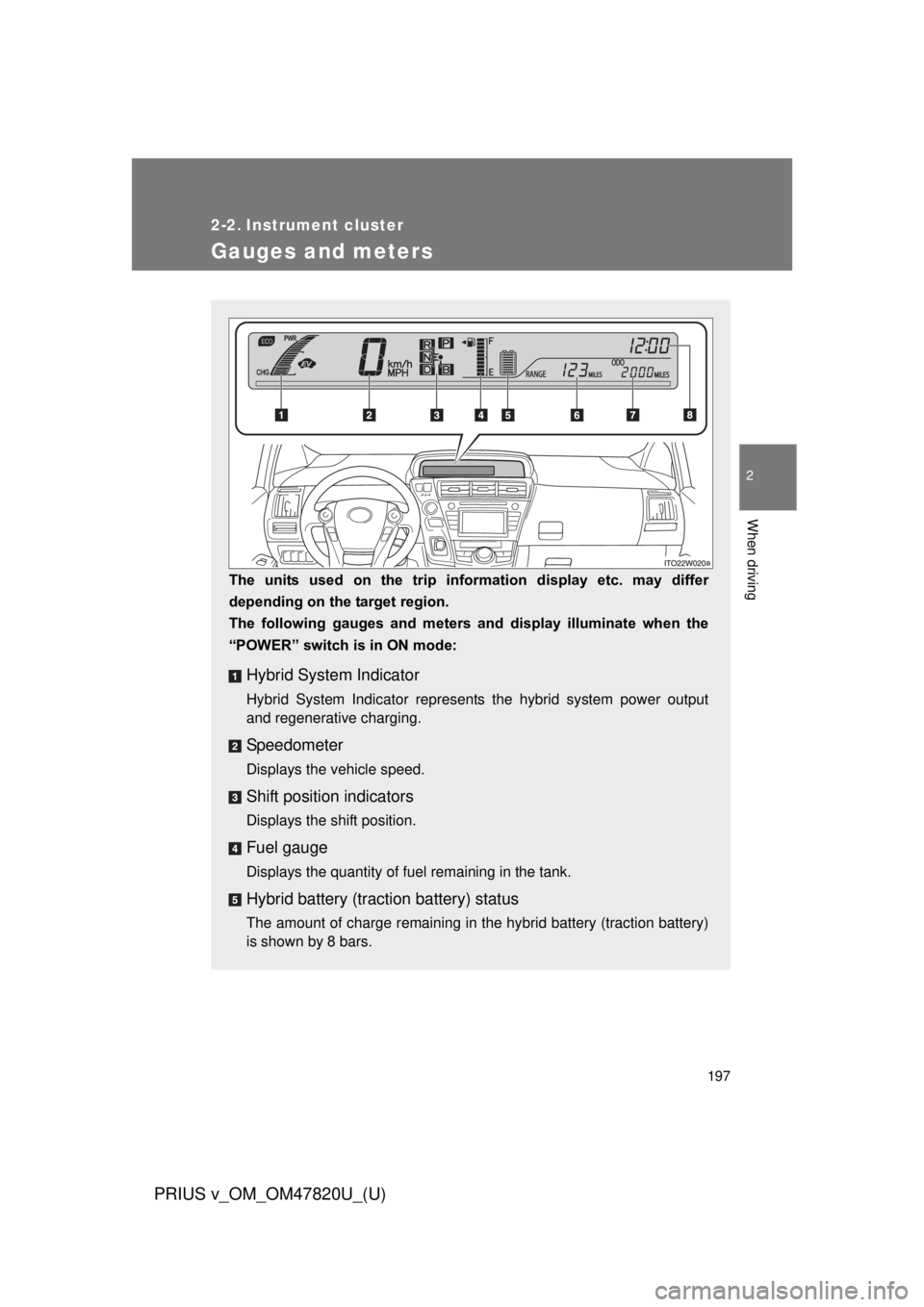

Gauges and meters
The units used on the trip information display etc. may differ
depending on the target region.
The following gauges and meters and display illuminate when the
“POWER” switch is in ON mode:
Hybrid System Indicator
Hybrid System Indicator represents the hybrid system power output
and regenerative charging.
Speedometer
Displays the vehicle speed.
Shift position indicators
Displays the shift position.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Hybrid battery (traction battery) status
The amount of charge remaining in the hybrid battery (traction battery)
is shown by 8 bars.

198 2-2. Instrument cluster
PRIUS v_OM_OM47820U_(U)

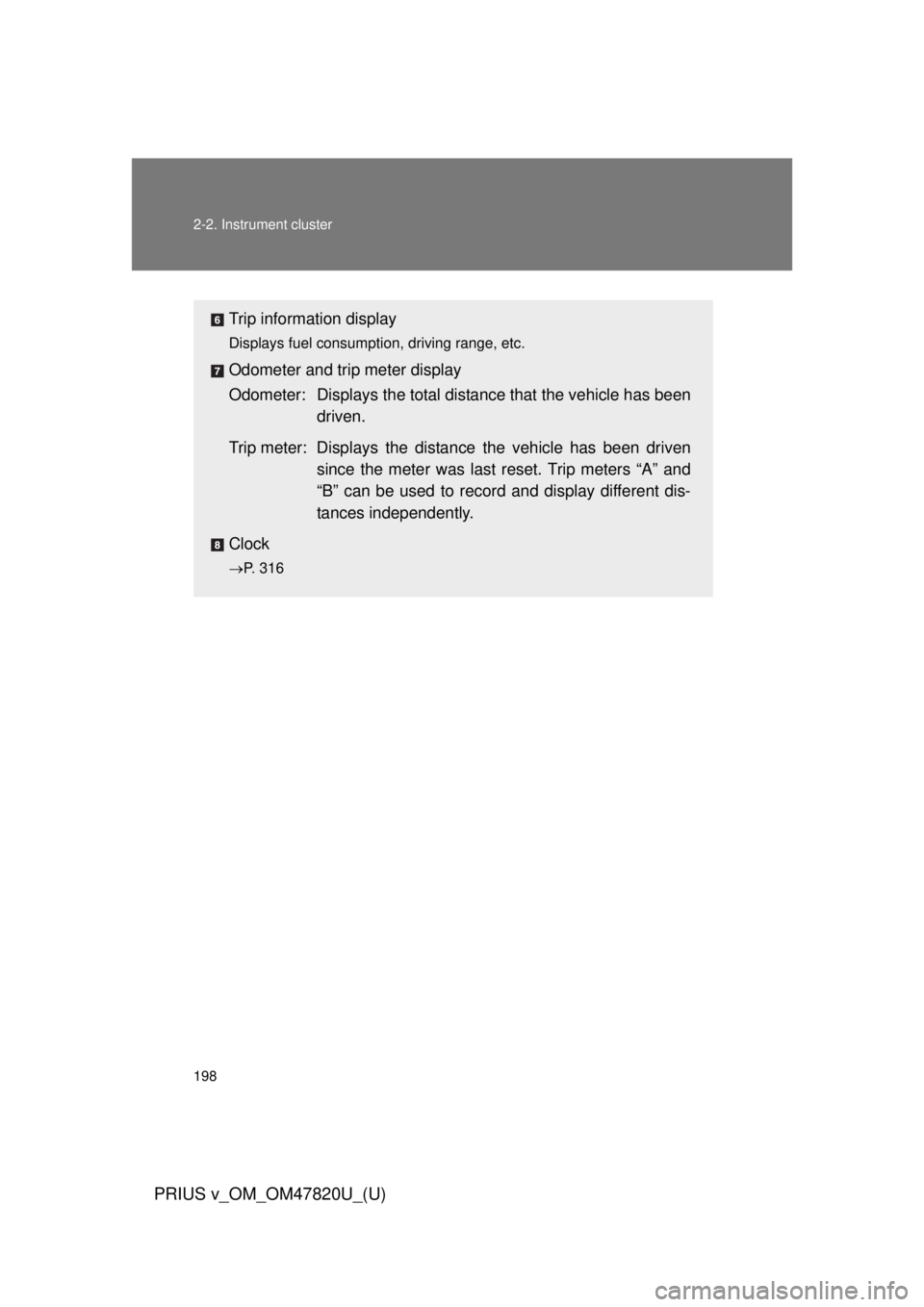

Trip information display
Displays fuel consumption, driving range, etc.
Odometer and trip meter display
Odometer: Displays the total distance that the vehicle has been
driven.
Trip meter: Displays the distan ce the vehicle has been driven
since the meter was last reset. Trip meters “A” and
“B” can be used to record and display different dis-
tances independently.
Clock
 P. 316

199
2-2. Instrument cluster
PRIUS v_OM_OM47820U_(U)
2
When driving
MPH or km/h button
The speed units can be selected MPH or km/h.
Press the button to switch the
display between MPH and km/h.
Instrument panel light controlThe brightness of the instrument pa nel lights can be adjusted by turn-
ing the dial.
Brighter
Darker
When the headlight switch is
turned to ON, the brightness will
be reduced slightly unless the
control dial is turned fully up.

200 2-2. Instrument cluster
PRIUS v_OM_OM47820U_(U)
Changing the displaySwitches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the “TRIP” button will
reset the trip meter.
Switching the trip information displayItems displayed can be switched
by pressing the “DISP” button.
