TOYOTA PRIUS V 2013 Owners Manual (in English)

431
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
■
Front turn signal lights
Remove the fender liner bolts and pull down the fender liner.
( P. 429)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
ITO43P144
STEP 3
STEP 4

432 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
■Rear turn signal lights and back-up lights
Open the back door and remove
the cover.
To prevent damage, cover the tip
of the screwdriver with a rag.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Back-up light
Remove the light bulb. Rear turn signal light
Back-up light
When installing, reverse the steps listed.
STEP 1
STEP 2
ITO43P147
STEP 3
STEP 4

433
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
■
License plate lights
Open the back door and remove
the cover.
To prevent damage, cover the tip
of the screwdriver with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
ITO43P150
STEP 3
STEP 4

434 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlight low beams (LED type)
● Stop lights
● Tail lights
● Rear side marker lights
● High mounted stoplight
■LED lights
The headlight low beams (LED type), stop lights, tail lights, rear side marker
lights and high mounted stoplight consist of a number of LEDs. If any of the
LEDs burn out, take your vehicle to your Toyota dealer to have the light
replaced.
■ Condensation build-up on the inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
 P. 420

435
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
CAUTION
■
Replacing light bulbs
● Be sure to stop the hybrid system and turn off the lights. Do not attempt to
replace the bulb immediately after turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

436 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)

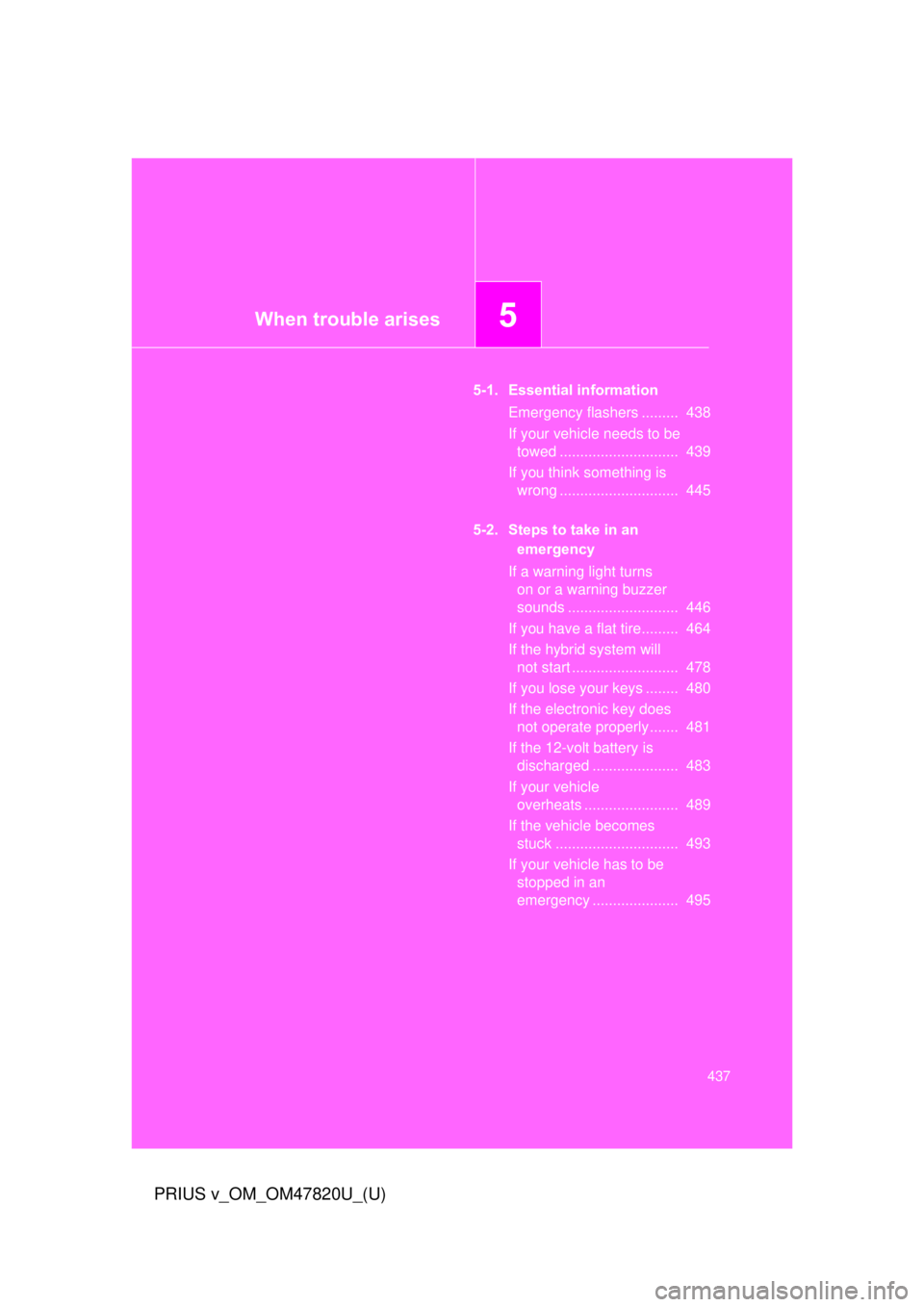

When trouble arises5
437
PRIUS v_OM_OM47820U_(U)
5-1. Essential informationEmergency flashers ......... 438
If your vehicle needs to be towed ............................. 439
If you think something is wrong ............................. 445
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds ........................... 446
If you have a flat tire......... 464
If the hybrid system will not start .......................... 478
If you lose your keys ........ 480
If the electronic key does not operate properly....... 481
If the 12-volt battery is discharged ..................... 483
If your vehicle overheats ....................... 489
If the vehicle becomes stuck .............................. 493
If your vehicle has to be stopped in an
emergency ..................... 495

438
PRIUS v_OM_OM47820U_(U)
5-1. Essential information
Emergency flashers
NOTICE
■To prevent 12-volt battery discharge
Do not leave the emergency flashers on longer than necessary when the
hybrid system is not operating.
Use the emergency flashers if th e vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.

5
When trouble arises
439
5-1. Essential information
PRIUS v_OM_OM47820U_(U)
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your hybrid transmission.
Contact your Toyota dealer before towing.
● The hybrid system is operating but the vehicle will not move.
● The vehicle makes an abnormal sound.
If there is a malfunction in the P position control system, the smart
key system or the immobilizer system , or if the 12-volt battery is dis-
charged, the vehicle cannot be tow ed with the front wheels on the
ground, as the front wheels may be locked. In this case, transport the
vehicle with both front wheels or all four wheels lifted.
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commerci al towing service, using a lift-type
truck or flat bed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.

440 5-1. Essential information
PRIUS v_OM_OM47820U_(U)
Emergency towingIf a tow truck is not available in
an emergency, your vehicle may
be temporarily towed using a
cable or chain secured to the
emergency towing eyelet(s).
This should only be attempted
on hard surfaced roads for short
distances at under 18 mph
(30 km/h).
A driver must be in the vehicle to
steer and operate the brakes.
The vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.
