Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by your Toyota dealer.
■Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 508)

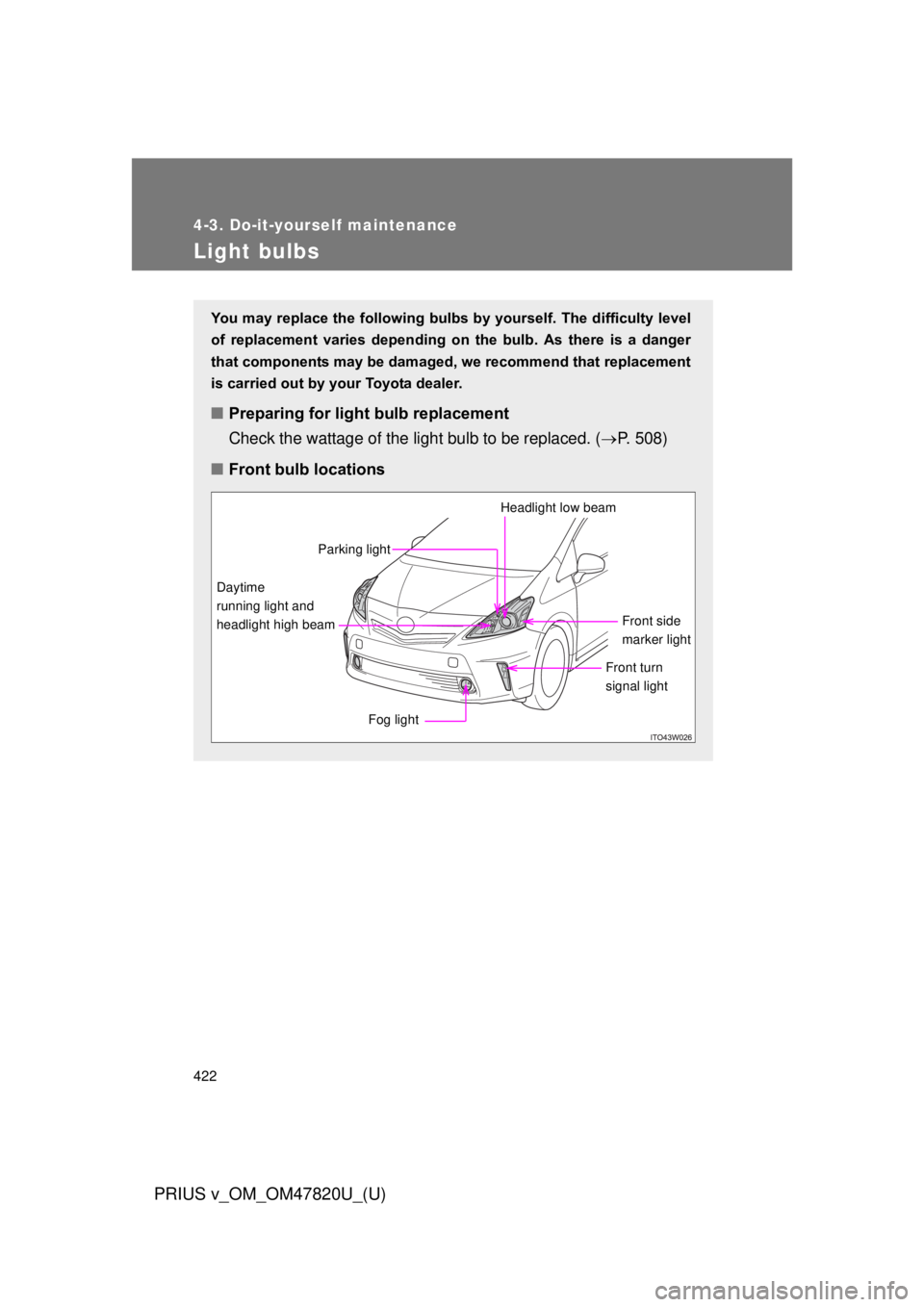

■ Front bulb locations
Front side
marker light
Headlight low beam
Daytime
running light and
headlight high beam
Fog light
Front turn
signal light
Parking light

423
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
■

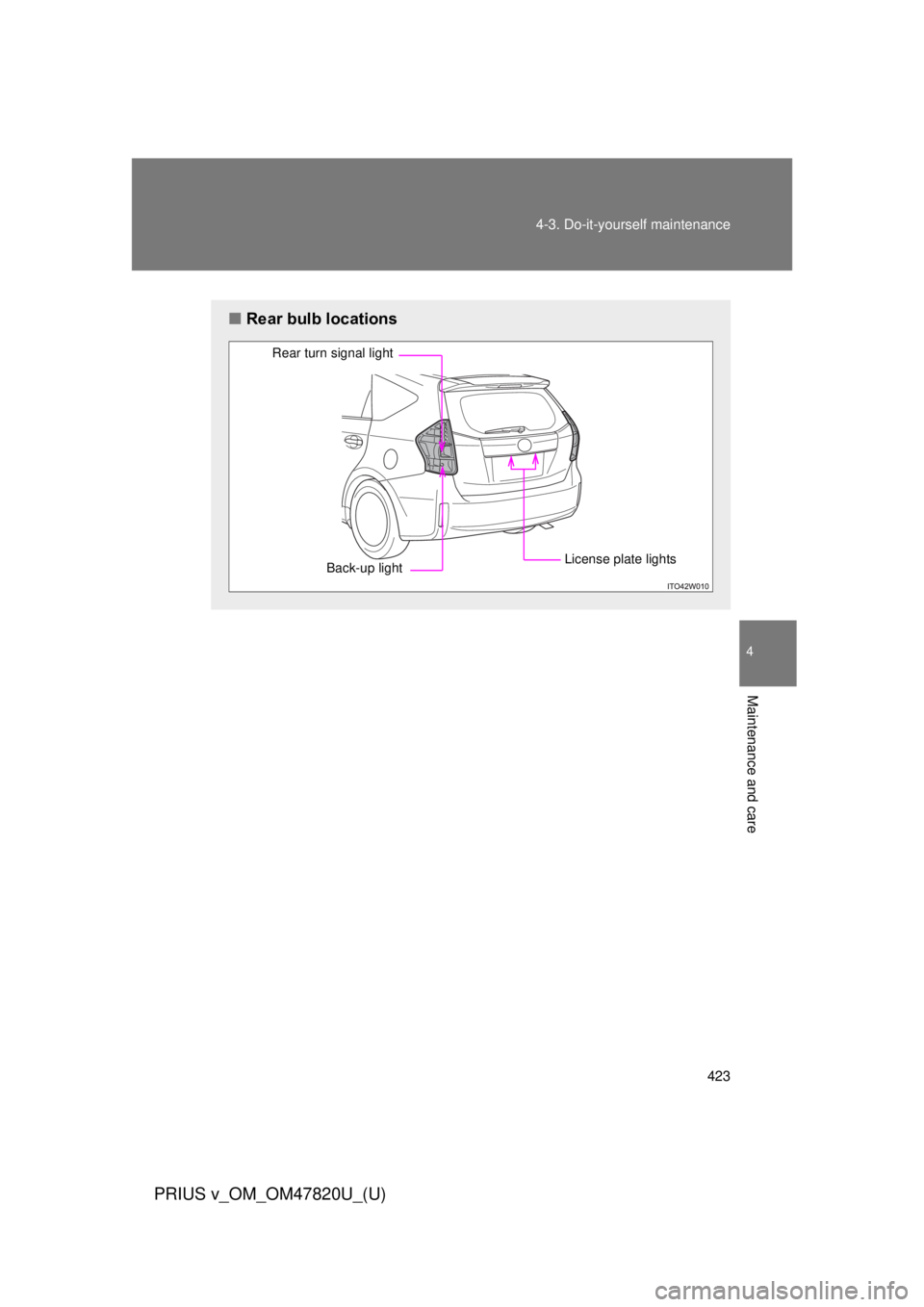

Rear bulb locations
Rear turn signal light
Back-up light License plate lights

424 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
Replacing light bulbs■ Headlight low beams (halogen headlights)

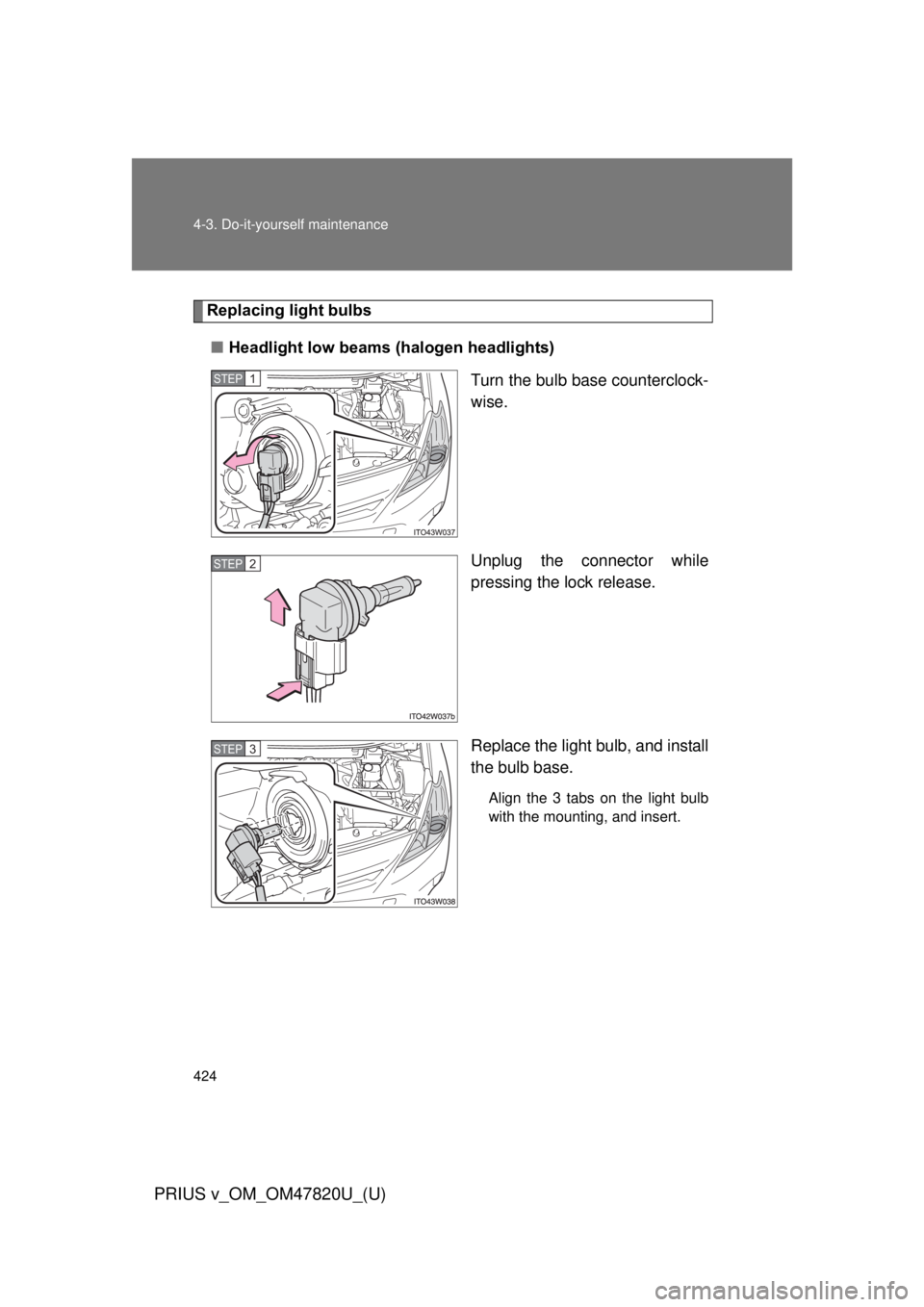

Turn the bulb base counterclock-
wise.
Unplug the connector while
pressing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
STEP 1
STEP 2
STEP 3

425
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
Turn and secure the bulb base.

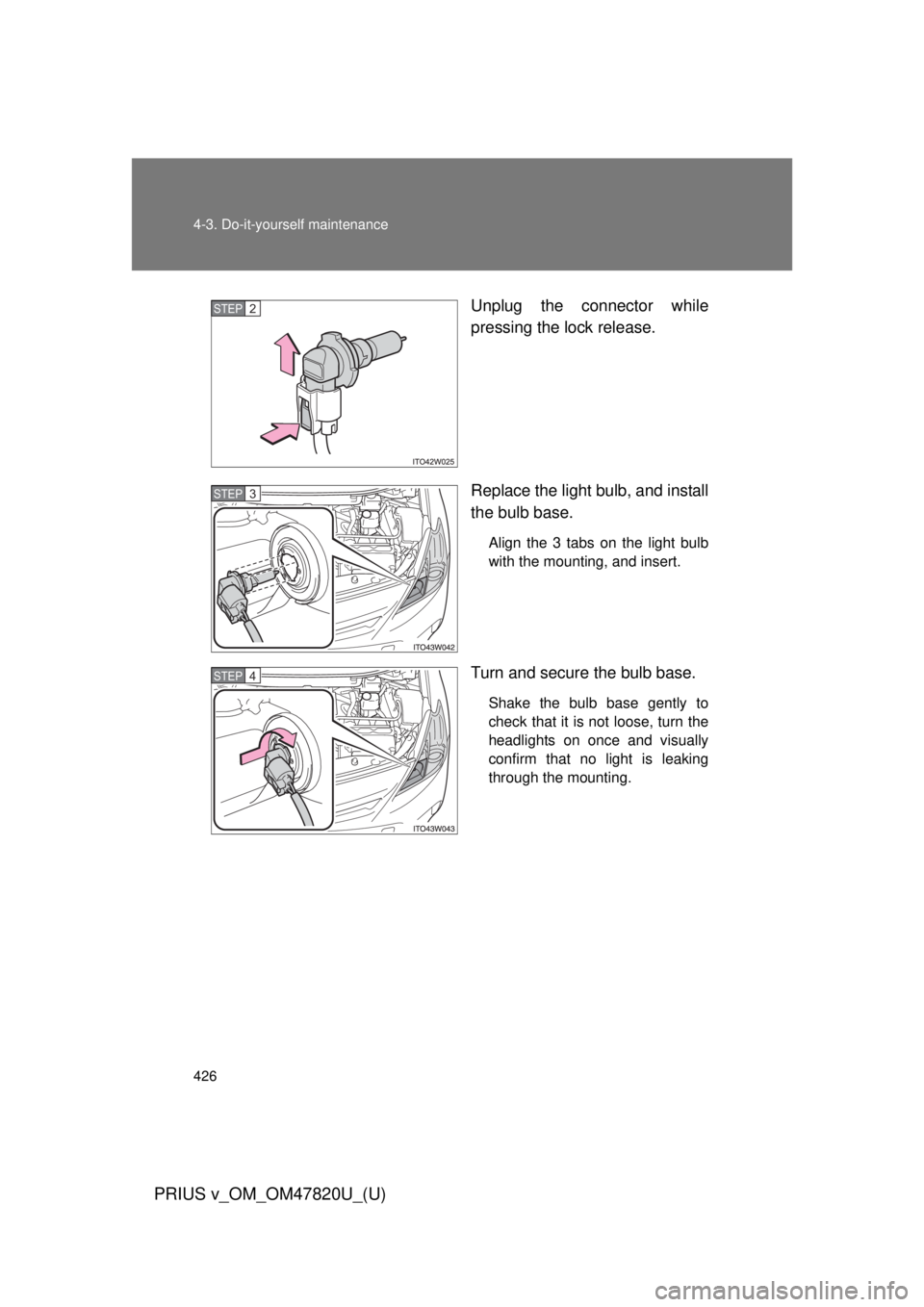

Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
■
Daytime running lights and headlight high beams

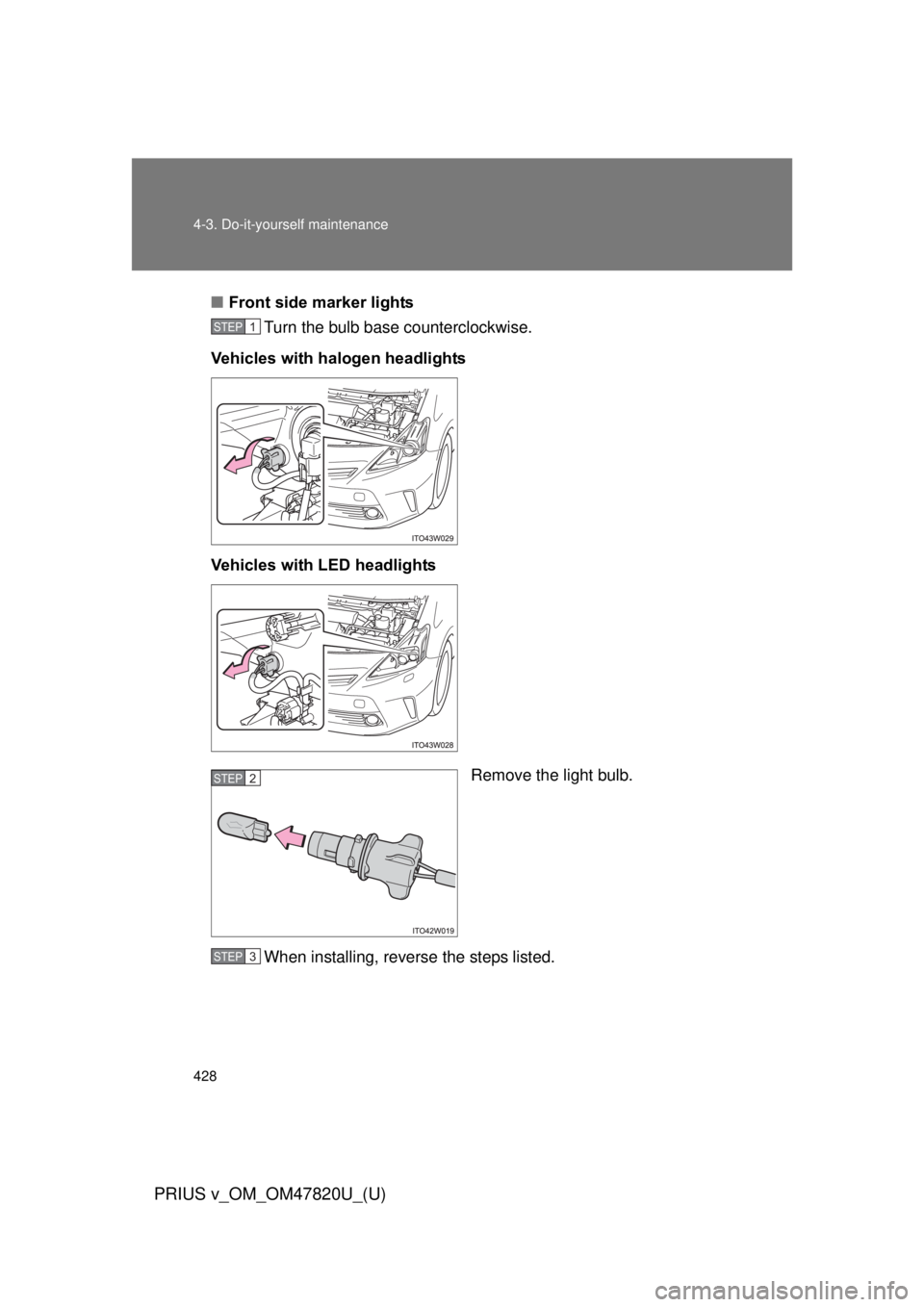

Turn the bulb base counterclockwise.
Vehicles with halogen headlights
Vehicles with LED headlights

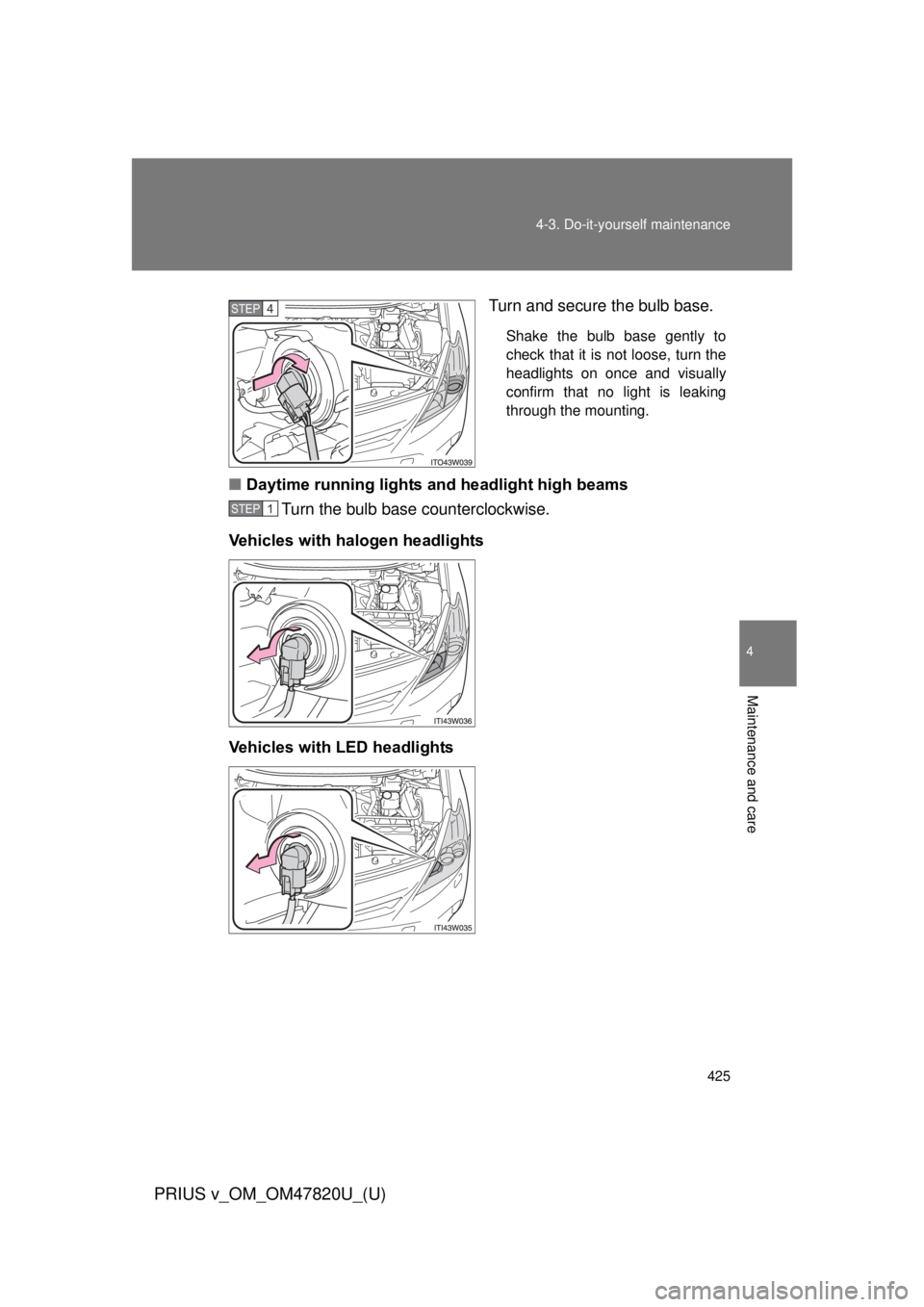

STEP 4
STEP 1

426 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
Unplug the connector while
pressing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
STEP 2
STEP 3
STEP 4

427
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
■
Parking lights
Turn the bulb base counterclockwise.
Vehicles with halogen headlights
Vehicles with LED headlights
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3

428 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
■Front side marker lights
Turn the bulb base counterclockwise.
Vehicles with halogen headlights
Vehicles with LED headlights
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3

429
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
■
Fog lights (if equipped)

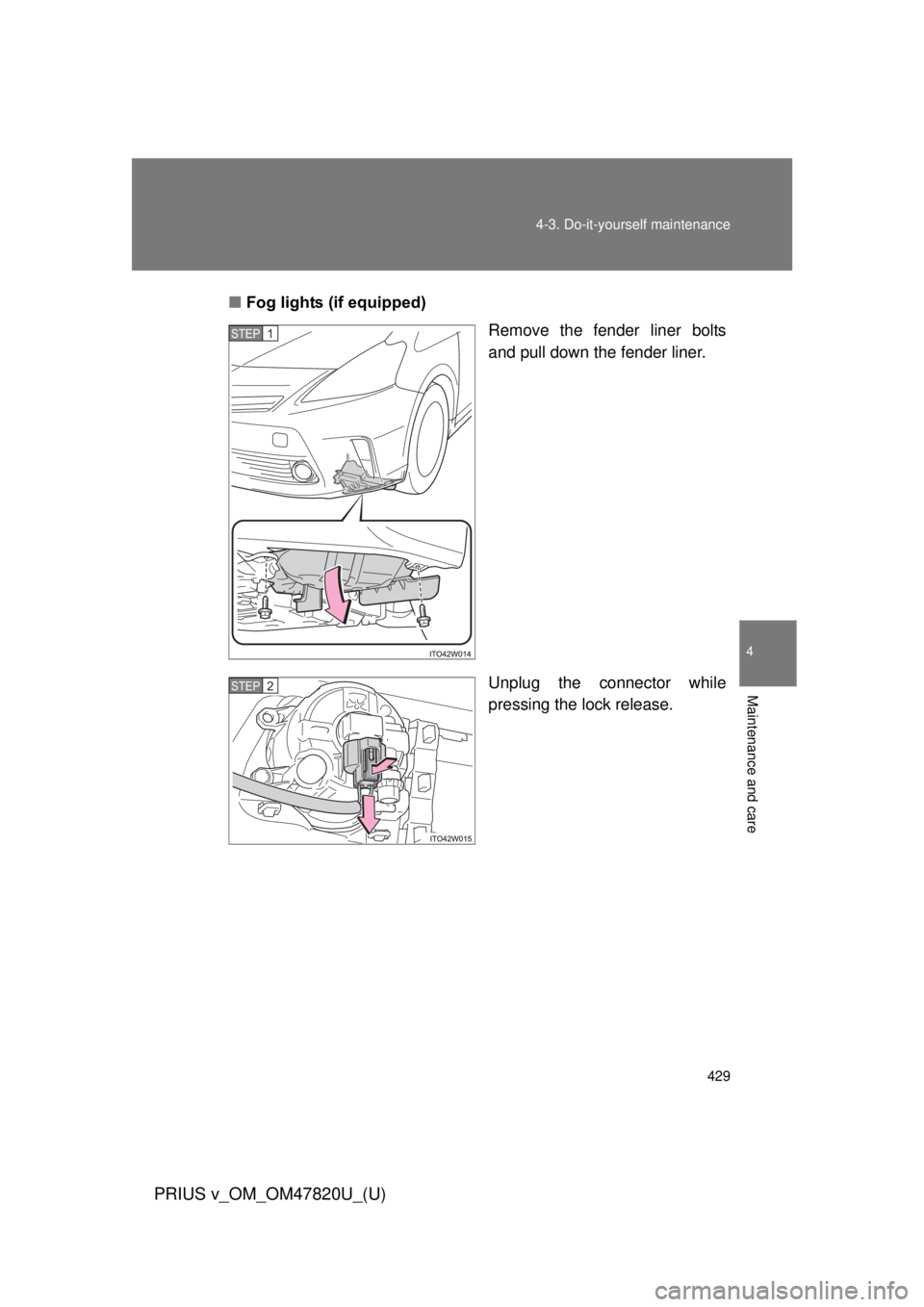

Remove the fender liner bolts
and pull down the fender liner.
Unplug the connector while
pressing the lock release.
STEP 1
STEP 2

430 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
Turn the bulb base counterclock-
wise.
When installing, reverse the steps listed.STEP 3
STEP 4
