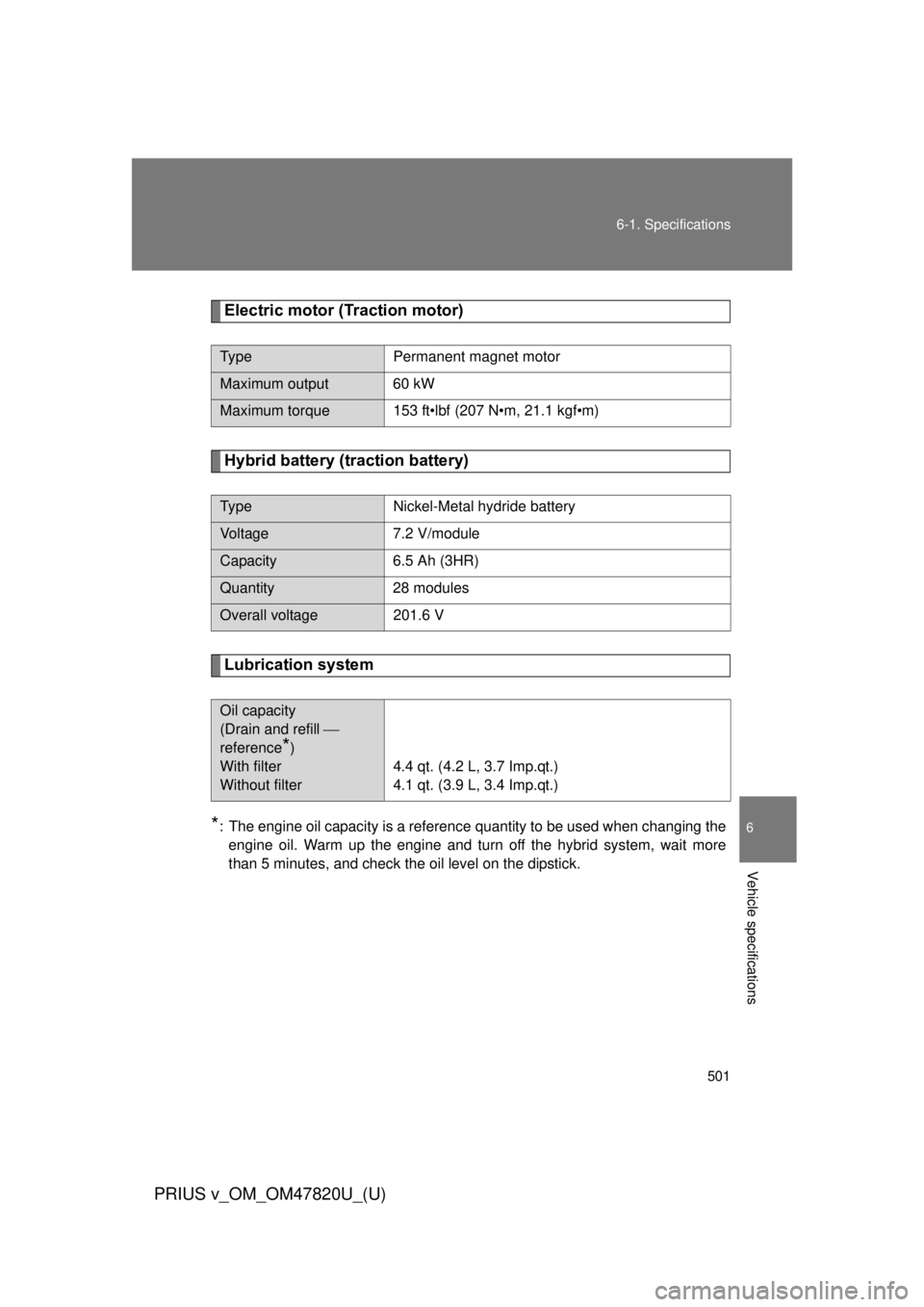

6-1. Specifications
6
Vehicle specifications
PRIUS v_OM_OM47820U_(U)
Electric motor (Traction motor)
Hybrid battery (traction battery)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn off the hybrid system, wait more
than 5 minutes, and check the oil level on the dipstick.
Ty p ePermanent magnet motor
Maximum output 60 kW
Maximum torque 153 ft•lbf (207 N•m, 21.1 kgf•m)
Ty p eNickel-Metal hydride battery
Voltage 7.2 V/module
Capacity6.5 Ah (3HR)
Quantity 28 modules
Overall voltage 201.6 V
Oil capacity
(Drain and refill 
reference
*)
With filter
Without filter
4.4 qt. (4.2 L, 3.7 Imp.qt.)
4.1 qt. (3.9 L, 3.4 Imp.qt.)

502 6-1. Specifications
PRIUS v_OM_OM47820U_(U)
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allowscold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Outside temperature

503
6-1. Specifications
6
Vehicle specifications
PRIUS v_OM_OM47820U_(U)
How to read oil container label:
The ILSAC (International Lubric
ant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
Cooling system
Capacity
Gasoline
engine7.3 qt. (6.9 L, 6.1 Imp.qt.)
Power
control
unit 2.9 qt. (2.7 L, 2.4 Imp.qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.

504 6-1. Specifications
PRIUS v_OM_OM47820U_(U)
Ignition system
Electrical system
*: Voltage is checked 30 seconds after the hybrid system and all lights areturned off.
Spark plug
Make DENSO SC20HR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
12-volt battery
Open voltage
*
at 68  F (20 C):
Fully charged12.5 V or over
Half charged 11.0  12.5 V
Discharged Under 11.0 V
Charging rates 5 A max.

505
6-1. Specifications
6
Vehicle specifications
PRIUS v_OM_OM47820U_(U)
Transmission
*1: The fluid capacity is the quantity of reference.
If replacement is necessary, contact your Toyota dealer.
Brakes
*2: Minimum pedal clearance when depressed with a force of 44.1 lbf (196 N,20.0 kgf) while the hybrid system is operating.
*3: Parking brake pedal travel when depressed with a force of 67.5 lbf (300 N,30.6 kgf).
Fluid capacity*13.6 qt. (3.4 L, 3.0 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.
Pedal clearance*22.94 in. (74.8 mm) Min.
Pedal free play 0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit 0.04 in. (1.0 mm)
Parking brake pedal travel*38 11 clicks
Fluid type SAE J1703 or FMVSS No. 116 DOT 3

506 6-1. Specifications
PRIUS v_OM_OM47820U_(U)
Steering
Tires and wheels
Ty p e A
Ty p e B
Free playLess than 1.2 in. (30 mm)
Tire sizeP205/60R16 91V
Tire inflation pressure
(Recommended cold tire
inflation pressure) Front tire
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear tire 33psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size 16  6 1/2J
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire sizeP215/50R17 90W
Tire inflation pressure
(Recommended cold tire
inflation pressure) Front tire
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear tire 32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Wheel size 17  7J
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

507
6-1. Specifications
6
Vehicle specifications
PRIUS v_OM_OM47820U_(U)
Compact spare tire
Tire sizeT135/70D17 102M
Spare tire inflation pressure
(Recommended cold tire
inflation pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size
17  4T
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

508 6-1. Specifications
PRIUS v_OM_OM47820U_(U)
Light bulbs
A: H11 halogen bulbs
B: HB3 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs (clear)
E: Double end bulbs

*
: If equipped
Light BulbsBulb No.WTy p e
Exterior Halogen headlights
Low beam
High beam
LED headlights High beam H11
HB3
HB3 55
60
60A
B
B
Fog lights
*H11 55 A
Front turn signal lights WY21W 21 C
Front side marker lights W5W 5 D
Parking lights W5W 5 D
Rear turn signal lights WY21W 21 C
Back-up lights W21W 21 D
License plate lights W5W 5 D
InteriorPersonal/interior lights
Vehicles without panoramic roof
Vehicles with panoramic roof 
5
8D
D
Rear interior light 8E
Vanity lights 8D
Door courtesy lights 5D
Luggage compartment light 5E

509
6-1. Specifications
6
Vehicle specifications
PRIUS v_OM_OM47820U_(U)
Fuel infor mation
■Fuel tank opening fo r unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
■ Gasoline quality standards
● Automotive manufacturers in the U.S.A., Europe and Japan have devel-
oped a specification for fuel quality called the World-Wide Fuel Charter
(WWFC), which is expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emis-
sion levels. In the U.S., category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets,
and improves customer satisfaction through better performance.
■ Recommendation of the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives
to avoid the build-up of engine deposits.
● All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives con-
centration program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
You must only use unleaded gasoline in your vehicle.
Select octane rating 87 (Research Oc tane Number 91) or higher. Use
of unleaded gasoline with an octane rating lower than 87 may result
in engine knocking. Persistent kno cking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications
of ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

510 6-1. Specifications
PRIUS v_OM_OM47820U_(U)
■Recommendation of the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
■ Non-recommendation of the use of blended gasoline
● If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
■ Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methyl-
cyclopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.
● Use only gasoline containing a maxi-
mum of 10% ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 10% etha-
nol, including from any pump labeled
E15, E30, E50, E85 (which are only
some examples of fuel containing more
than 10% ethanol).DO NOT use gasoline
containing more than
10% ethanol.
(15% ethanol)
(50% ethanol)
(85% ethanol)
