TOYOTA PROACE 2019 Owners Manual (in English)

501

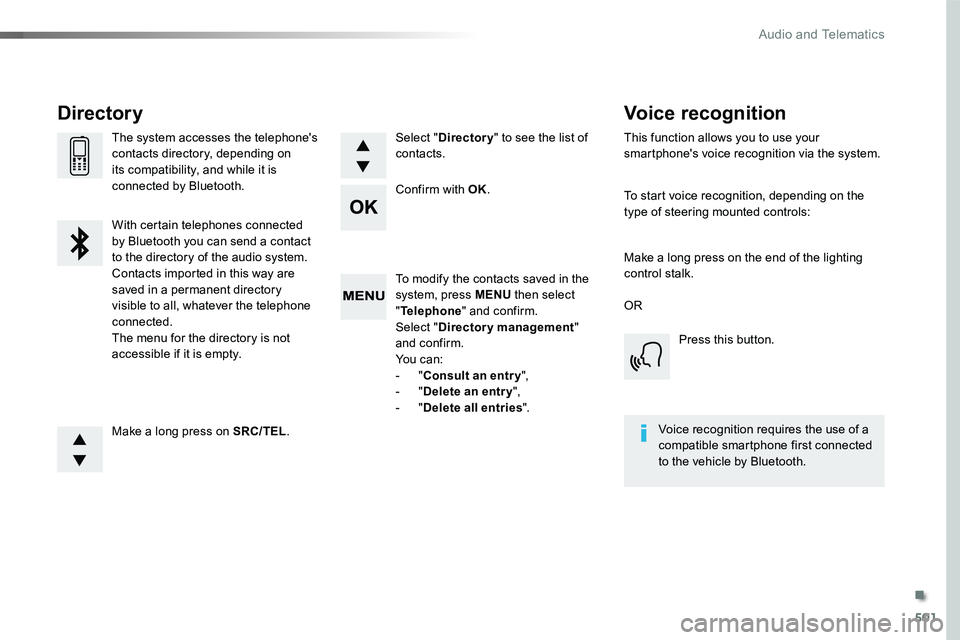

To modify the contacts saved in the system, press MENU then select "Telephone" and confirm.Select "Directory management" and confirm.Yo u c a n :- "Consult an entr y",- "Delete an entry",- "Delete all entries".
Make a long press on SRC/TEL.
The system accesses the telephone's contacts directory, depending on its compatibility, and while it is connected by Bluetooth.
With certain telephones connected by Bluetooth you can send a contact to the directory of the audio system.Contacts imported in this way are saved in a permanent directory visible to all, whatever the telephone connected.The menu for the directory is not accessible if it is empty.
Select "Directory" to see the list of contacts.
Directory
Confirm with OK.
OR
Voice recognition
This function allows you to use your smartphone's voice recognition via the system.
To start voice recognition, depending on the type of steering mounted controls:
Make a long press on the end of the lighting control stalk.
Press this button.
Voice recognition requires the use of a compatible smartphone first connected to the vehicle by Bluetooth.
.
Audio and Telematics

502

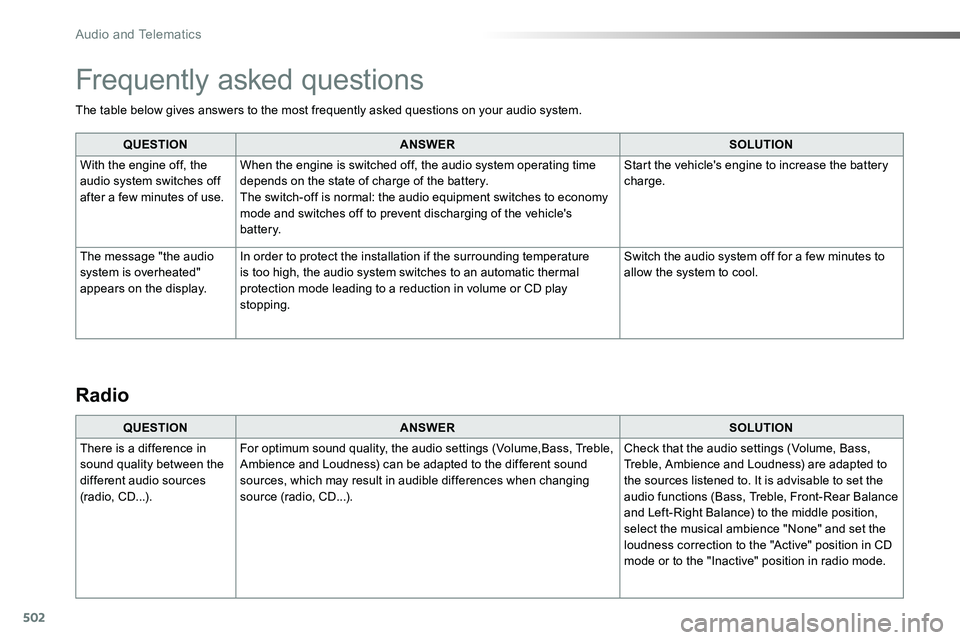

The table below gives answers to the most frequently asked questions on your audio system.
QUESTIONANSWERSOLUTION
With the engine off, the audio system switches off after a few minutes of use.
When the engine is switched off, the audio system operating time depends on the state of charge of the battery.The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is too high, the audio system switches to an automatic thermal protection mode leading to a reduction in volume or CD play stopping.
Switch the audio system off for a few minutes to allow the system to cool.
Frequently asked questions
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources (radio, CD...).
For optimum sound quality, the audio settings (Volume,Bass, Treble, Ambience and Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience and Loudness) are adapted to the sources listened to. It is advisable to set the audio functions (Bass, Treble, Front-Rear Balance and Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
Radio
Audio and Telematics

503

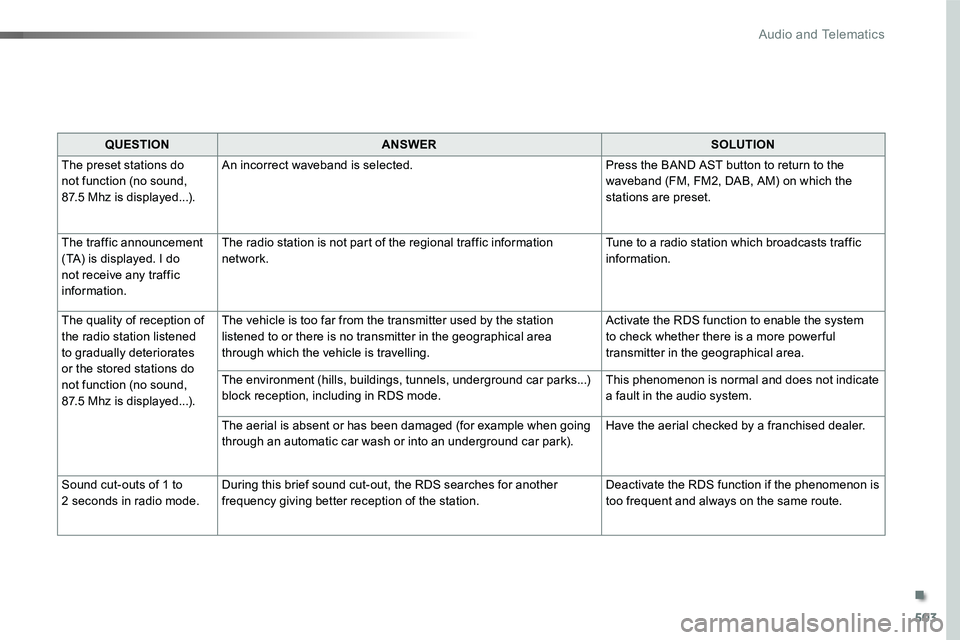

QUESTIONANSWERSOLUTION
The preset stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected.Press the BAND AST button to return to the waveband (FM, FM2, DAB, AM) on which the stations are preset.
The traffic announcement (TA) is displayed. I do not receive any traffic information.
The radio station is not part of the regional traffic information network.Tune to a radio station which broadcasts traffic information.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more power ful transmitter in the geographical area.
The environment (hills, buildings, tunnels, underground car parks...) block reception, including in RDS mode.This phenomenon is normal and does not indicate a fault in the audio system.
The aerial is absent or has been damaged (for example when going through an automatic car wash or into an underground car park).Have the aerial checked by a franchised dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.During this brief sound cut-out, the RDS searches for another frequency giving better reception of the station.Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
.
Audio and Telematics

504

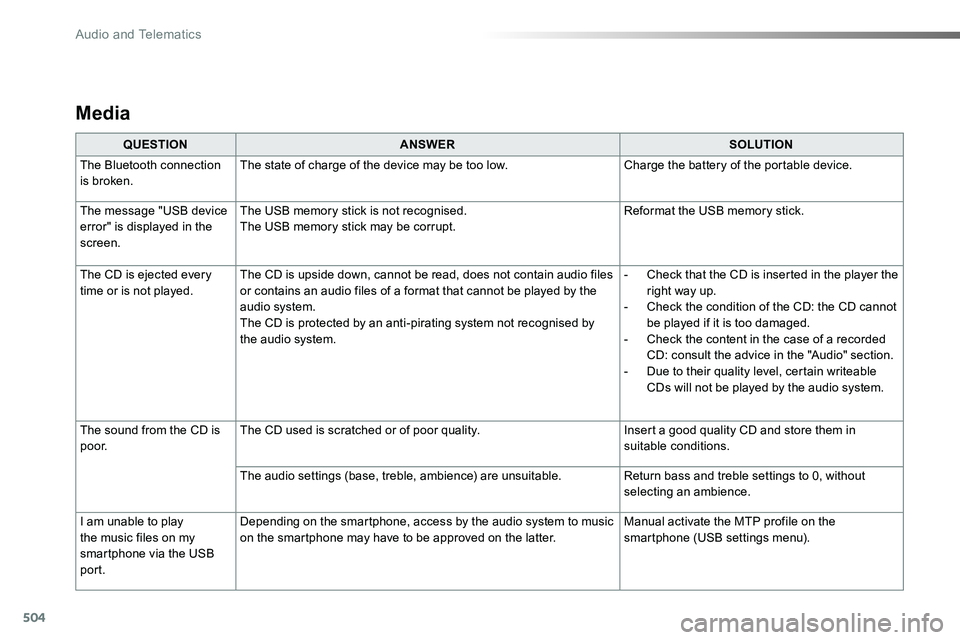

Media
QUESTIONANSWERSOLUTION
The Bluetooth connection is broken.The state of charge of the device may be too low.Charge the battery of the portable device.
The message "USB device
error" is displayed in the screen.
The USB memory stick is not recognised.
The USB memory stick may be corrupt.
Reformat the USB memory stick.
The CD is ejected every time or is not played.The CD is upside down, cannot be read, does not contain audio files or contains an audio files of a format that cannot be played by the audio system.The CD is protected by an anti-pirating system not recognised by the audio system.
- Check that the CD is inserted in the player the right way up.- Check the condition of the CD: the CD cannot be played if it is too damaged.- Check the content in the case of a recorded CD: consult the advice in the "Audio" section.- Due to their quality level, certain writeable CDs will not be played by the audio system.
The sound from the CD is p o o r.The CD used is scratched or of poor quality.Insert a good quality CD and store them in suitable conditions.
The audio settings (base, treble, ambience) are unsuitable.Return bass and treble settings to 0, without selecting an ambience.
I am unable to play
the music files on my smartphone via the USB port.
Depending on the smartphone, access by the audio system to music
on the smartphone may have to be approved on the latter.
Manual activate the MTP profile on the
smartphone (USB settings menu).
Audio and Telematics

505

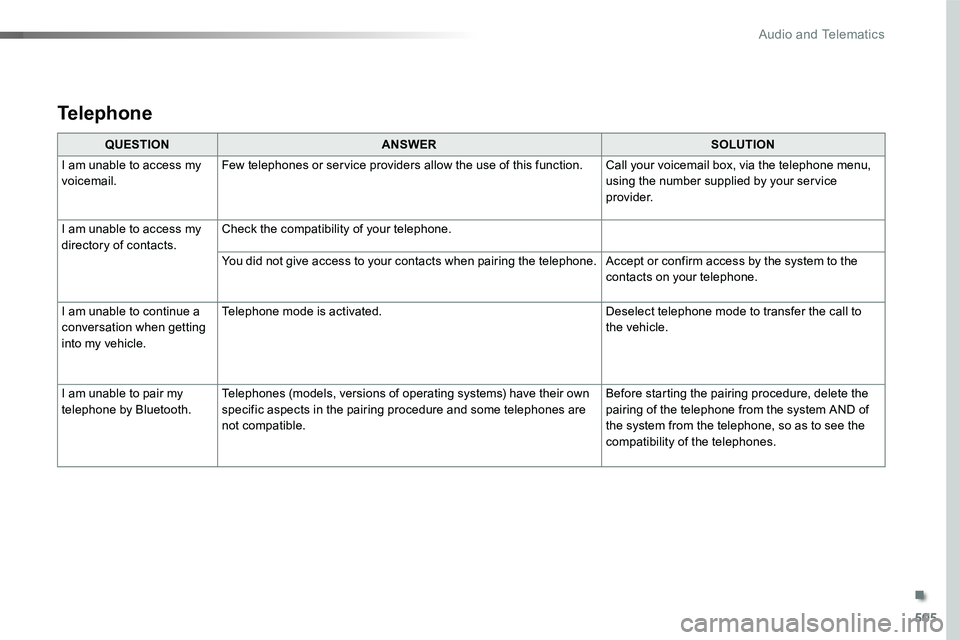

QUESTIONANSWERSOLUTION
I am unable to access my voicemail.Few telephones or service providers allow the use of this function.Call your voicemail box, via the telephone menu, using the number supplied by your service provider.
I am unable to access my directory of contacts.Check the compatibility of your telephone.
You did not give access to your contacts when pairing the telephone.Accept or confirm access by the system to the contacts on your telephone.
I am unable to continue a conversation when getting into my vehicle.
Telephone mode is activated.Deselect telephone mode to transfer the call to the vehicle.
I am unable to pair my telephone by Bluetooth.Telephones (models, versions of operating systems) have their own specific aspects in the pairing procedure and some telephones are not compatible.
Before starting the pairing procedure, delete the pairing of the telephone from the system AND of the system from the telephone, so as to see the compatibility of the telephones.
Telephone
.
Audio and Telematics

506

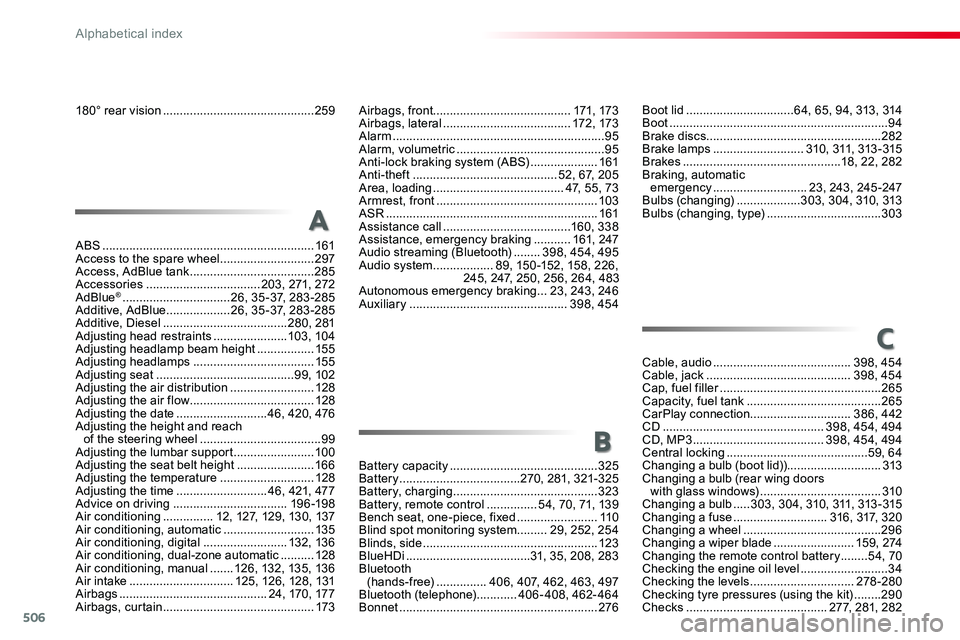

180° rear vision .............................................259
ABS ...............................................................161Access to the spare wheel ............................297Access, AdBlue tank .....................................285Accessories ..................................203, 271, 272AdBlue® ................................26, 35 -37, 283 -285Additive, AdBlue ...................26, 35 -37, 283 -285Additive, Diesel .....................................280, 281Adjusting head restraints ......................103, 104Adjusting headlamp beam height .................155Adjusting headlamps ....................................155Adjusting seat .........................................99, 102Adjusting the air distribution .........................128Adjusting the air flow .....................................128Adjusting the date ...........................46, 420, 476Adjusting the height and reach of the steering wheel ....................................99Adjusting the lumbar support ........................10 0Adjusting the seat belt height .......................166Adjusting the temperature ............................128Adjusting the time ...........................46, 421, 477Advice on driving ..................................19 6 -198Air conditioning ...............12, 127, 129, 130, 137Air conditioning, automatic ...........................13 5Air conditioning, digital .........................132, 13 6Air conditioning, dual-zone automatic ..........128Air conditioning, manual .......126, 132, 135, 136Air intake ...............................125, 126, 128, 131Airbags ............................................24, 170, 177Airbags, curtain .............................................173
Airbags, front.........................................171, 173Airbags, lateral ......................................172 , 173Alarm ...............................................................95Alarm, volumetric ............................................95Anti-lock braking system (ABS) ....................161Anti-theft ...........................................52, 67, 205Area, loading .......................................47, 55, 73Armrest, front ................................................103ASR ...............................................................161Assistance call ......................................160, 338Assistance, emergency braking ...........161, 247Audio streaming (Bluetooth) ........398, 454, 495Audio system ..................89, 150 -152, 158, 226, 245, 247, 250, 256, 264, 483Autonomous emergency braking ...23, 243, 246Auxiliary ...............................................398, 454
A
C
B
Boot lid ................................64, 65, 94, 313, 314Boot .................................................................94Brake discs ....................................................282Brake lamps ...........................310, 311, 313 - 315Brakes ...............................................18, 22, 282Braking, automatic emergency ............................23, 243, 245 -247Bulbs (changing) ...................303, 304, 310, 313Bulbs (changing, type) ..................................303
Cable, audio .........................................398, 454Cable, jack ...........................................398, 454Cap, fuel filler ................................................265Capacity, fuel tank ........................................265CarPlay connection..............................386, 442CD ................................................398, 454, 494CD, MP3 .......................................398, 454, 494Central locking ..........................................59, 64Changing a bulb (boot lid))............................313Changing a bulb (rear wing doors with glass windows) ....................................310Changing a bulb .....303, 304, 310, 311, 313 -315Changing a fuse ............................316, 317, 320Changing a wheel .........................................296Changing a wiper blade ........................159, 274Changing the remote control battery ........54, 70Checking the engine oil level ..........................34Checking the levels ...............................278-280Checking tyre pressures (using the kit) ........290Checks ..........................................277, 281, 282
Battery capacity ............................................325Battery ....................................270, 281, 321-325Battery, charging ...........................................323Battery, remote control ...............54, 70, 71, 139Bench seat, one-piece, fixed ........................11 0Blind spot monitoring system .........29, 252, 254Blinds, side ....................................................123BlueHDi .....................................31, 35, 208, 283Bluetooth (hands-free) ...............406, 407, 462, 463, 497Bluetooth (telephone) ............406 - 408, 462- 464Bonnet ...........................................................276
Alphabetical index

507
Checks, routine .....................................281, 282Child lock on rear windows ...........................195Child lock ...............................................19 4, 195Child lock, electric .........................................19 4Child seats .....169, 174-176, 180 -182, 184, 193Child seats, conventional ..............180 -182, 18 4Child seats, ISOFIX ......................187, 188, 190Children (safety) ............................................19 4Children .................................182, 187, 188, 190Closing the boot ..............................................94Closing the doors .............59, 64, 74, 75, 77, 82, 91, 93Compressor, tyre inflation ............................290Connection, Bluetooth ................380, 406 - 408,436, 462- 464, 498Connection, MirrorLink ........382, 384, 438, 440Connection, Wi-Fi network ...................381, 437Connectivity ..........................................378, 434Control stalk, lighting ..............................30, 146Control stalk, wipers .............................15 6, 157Control, emergency boot release ...................94Control, emergency door ..........................53, 68Control, heated seats ............................103, 105Courtesy lamp ...............................................312Courtesy lamp, front ..............141, 142, 312, 315Courtesy lamp, rear ...............141, 142, 312, 315Courtesy lamps ......................141, 142, 312, 315Cover, load space .........................................123Crew cab, fixed .............................................117Cruise control by Road Sign Assist ..............227Cruise control ................224, 227, 232, 233, 237Cruise control, adaptive ........................227, 236
Filling the fuel tank ................................265, 267Filter, air ........................................................281Filter, oil .........................................................281Filter, particle ........................................280, 281Filter, passenger compartment .....................281Finisher .........................................................302Fitting a wheel ...............................................299Fitting roof bars .............................................273Fitting the mat ...............................................11 9Fittings, interior .....................................120, 123Fittings, rear ..................................................123Flap, fuel filler ................................................265
D
F
E
DAB (Digital Audio Broadcasting) - Digital radio ...................396, 397, 452, 453, 490, 491Date (setting) ...................................46, 420, 476Daytime running lamps .........146, 149, 304-306Deactivating the passenger airbag .......171, 17 7Deactivation of DSC (ESC) ...........................163Deadlocking ........................................51, 58, 65Defrosting ..............................................132, 144Demisting ......................................................132Demisting, rear screen .........................13 3, 13 4Demisting, rear ......................................13 3, 13 4Diagnostic system, engine ..............................21Dial ............................................................15, 16Dials and gauges ............................................14Dimensions ...........................................328-330Dipstick ....................................................34, 278Direction indicators .............................................148, 304, 307, 308, 310, 313, 315Display screen, instrument panel ......14-16, 208Display, head-up ...........................................222Door pockets .................................................120Doors ...............................................................74Doors, rear wing door ....64, 65, 91-93, 310, 311Doors, rear ......................................................91Driver Attention Alert ............................250, 251Driver’s fatigue warning ........................250, 251Driver's door open warning .............................75Driving abroad...............................................148Driving economically.......................................12Driving time warning .............................250, 251DSC ...............................................................161Dynamic stability control (DSC) ....................................25, 161, 163, 164
EBA ...............................................................161EBFD .............................................................161Eco-driving (advice) ........................................12Economy mode .............................................270Electric windows .............................................98Electronic brake force distribution (EBFD) ...161Emergency call .....................................160, 338Emergency warning lamps ...................160, 287Emissions control system, SCR .....................27Energy economy mode .................................270Engine compartment ....................................277Engine, Diesel ............21, 267, 277, 327, 333, 335, 336Environment ................................12, 54, 70, 139ESC (electronic stability control) ....................25ESC system .....................................................25ESC/ASR .......................................................161
.
Alphabetical index

508
Indicator, AdBlue® range .................................35Indicator, coolant temperature ........................31Indicator, engine oil level ................................34Indicators, direction ......................................148Inflating tyres and accessories (using the kit) ..............................................290Inflating tyres ..................................................12Instrument panel ........................................14 -16Instrument panel, LCD text .............................15Instrument panel, LCD ........................14, 35 -37Instrument panel, matrix .................................16Intelligent Traction Control ............................162ISOFIX ..................................................187, 190
Hazard warning lamps ..........................160, 287Hazard warning lamps, automatic operation .....................................................160Head restraints, front ............................103, 104Headlamp adjustment ...................................155Headlamp adjustment ...................................155Headlamp beam height .................................155Headlamp dipping, automatic .......................15 4Headlamp wash ............................................15 8Headlamps, automatic dipping ...............29, 153Headlamps, automatic illumination ..................................146, 149, 150Headlamps, dipped beam ................29, 146, 304, 306, 308Headlamps, halogen ............................304, 306Headlamps, main beam ...................29, 146, 304, 307, 308Headlamps, Xenon ..............................304, 308Head-up display ...........................222, 223, 244Heated bench seat ........................................105Heating .............................12, 125, 126, 135 -138Heating, additional ..................................95, 138Heating, programmable ..........................95, 138Hill start assist control ..................................206Horn...............................................................161
H
Flap, removable ............................................10 6Flashing indicators ........................................148Foglamp, rear .........................147, 310, 313, 315Foglamps ......................................................304Foglamps, front .....................147, 152, 304, 309Foglamps, rear ..............................................147Forward collision warning .......23, 243 -245, 247Frequency (radio) ..................................395, 451Fuel consumption ......................................12, 42Fuel tank..........................................................20Fuel..........................................................12, 267Fusebox, engine compartment .....................320Fuses .............................................316, 317, 320
G . P. S . ............................................................366Gauge, fuel....................................................265Gear efficiency indicator ...............................208Gear lever .......................................................12Gear lever, automatic gearbox .....................209Gear lever, electronic gearbox .....................282Gear lever, manual gearbox .........................207Gearbox, automatic ......12, 14-16, 21, 199, 204, 206, 209, 218, 219, 233, 237, 282, 321Gearbox, electronic ...........12, 14-16, 202, 206, 214, 218, 219, 282Gearbox, manual ..........12, 14-16, 21, 206, 207, 218, 219, 233, 237, 282Glove box ......................................................120Guide-me-home ............................................150
GJack ......................................122, 296, 398, 454
Key with remote control ...........50, 64, 199, 205Key ...................................47-50, 71, 74, 75, 199Key, electronic .........................................47, 204Kit, hands-free .............406, 407, 462, 463, 497Kit, puncture repair .......................................290Kit, temporary puncture repair .............289, 290
Identification, vehicle ....................................337Ignition on......................................................203Ignition ...................................201, 203, 410, 466Immobiliser, electronic ................52, 67, 71, 205Indicator lamps, operation ..............................17
J
KI
Alphabetical index

509
Maintenance, routine ......................................12Markings, identification .................................337Mat ........................................................119, 202Memorising a speed .....................................224Menu ...................352, 354, 356, 358, 360, 362, 370, 372, 374, 378, 384, 386, 388, 390, 392, 400, 402, 404, 412, 414, 416, 434, 440, 442, 444, 446, 448, 456, 458, 460, 468, 470, 472Menu, main ...................................................487Menus (audio) ......................................345, 433Messages ..............................................410, 466Messages, quick ...................................411, 467Mirror, rear view ............................................145Mirror, vanity .................................................11 9Mirrors, door..................133, 134, 143, 144, 252Misfuel prevention .........................................266Mountings, Isofix ...................................186, 190MP3 CD .........................................................494
Labels ......................................................11, 11 6Labels, identification .....................................337Ladder ...........................................................272Lane Departure Alert (LDWS) ........29, 248, 249Level, brake fluid ...........................................279Level, Diesel additive ............................280, 281Level, engine coolant ..............................31, 279Level, engine oil ......................................34, 278Level, headlamp wash ..........................158, 280Level, power steering fluid ............................279Level, screenwash fluid ........................158, 280Levels and checks ................................27 7-2 8 0Lighting dimmer ..............................................39Lighting ....................................................30, 146Lighting, cornering ........................................152Lighting, guide-me home ..............................150Lighting, welcome .........................................151Load reduction mode ....................................270Load restraint ................................................12 2Loading area fittings .....................................12 2Loading ...................................................12, 273Localised Assistance Call .............................338Locating your vehicle ................................52, 67Locking from the inside .............................72, 73Locking ....................................50, 55, 57, 64, 71Low fuel level ..........................................20, 265Lumbar ..........................................................10 0
LM
Navigation ............352, 354, 356, 358, 360, 362Navigation, connected ..................370, 372, 374Net, cargo......................................................10 6Net, high load retaining .................................123Number plate lamps ..............................311, 314
N
Oil change .....................................................278Oil consumption ............................................278Oil, engine .....................................................278On-board tools ......................................287, 289Opening the bonnet ......................................276Opening the boot ................................47, 59, 94Opening the doors .......47, 59, 74, 78 - 81, 83, 93Opening to 180° ..............................................91Opening to 90/180/235° ..................................92
Pads, brake ...................................................282Paint colour code ..........................................337Parking brake ..................................18, 205, 282Parking sensors, audible and visual .............256Parking sensors, front ...................................256Parking sensors, rear............................255, 256Plates, identification......................................337Platform cab ..........................................315, 332Player, Apple® ..............................399, 455, 495Player, MP3 CD .............................................494Player, USB ..................................398, 454, 492Port, USB .............................122, 398, 454, 492Pressures, tyres ...................290, 295, 302, 337Pre-tensioning seat belts ..............................169Priming pump ................................................327Priming the fuel system ................................327Profiles ..................................................418, 474Protecting children ........................171, 174 -176 , 182, 187, 188, 190, 193Puncture ........................................................290
O
P
.
Alphabetical index

510

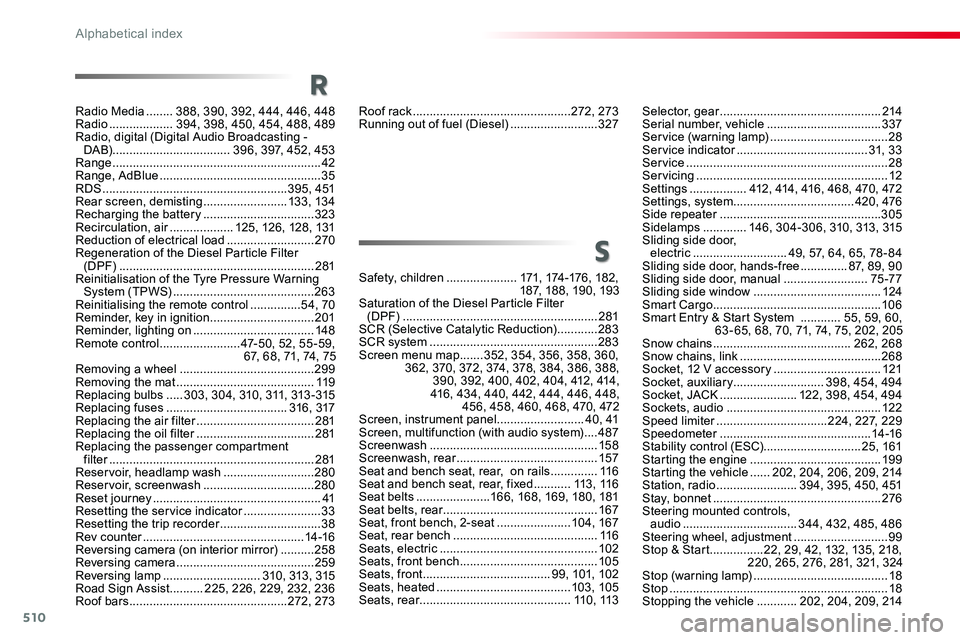

Roof rack ...............................................272, 273Running out of fuel (Diesel) ..........................327
Safety, children .....................171, 174-176, 182, 187, 188, 190, 193Saturation of the Diesel Particle Filter (DPF) ..........................................................281SCR (Selective Catalytic Reduction) ............283SCR system ..................................................283Screen menu map .......352, 354, 356, 358, 360, 362, 370, 372, 374, 378, 384, 386, 388, 390, 392, 400, 402, 404, 412, 414, 416, 434, 440, 442, 444, 446, 448, 456, 458, 460, 468, 470, 472Screen, instrument panel ..........................40, 41Screen, multifunction (with audio system) ....487Screenwash ..................................................15 8Screenwash, rear ..........................................157Seat and bench seat, rear, on rails ..............11 6Seat and bench seat, rear, fixed ...........113 , 11 6Seat belts ......................166, 168, 169, 180, 181Seat belts, rear ..............................................167Seat, front bench, 2-seat ......................104, 167Seat, rear bench ...........................................11 6Seats, electric ...............................................102Seats, front bench .........................................105Seats, front ......................................99, 101, 102Seats, heated ........................................103, 105Seats, rear .............................................11 0 , 113
S
Selector, gear ................................................214Serial number, vehicle ..................................337Service (warning lamp) ...................................28Service indicator .......................................31, 33Service ............................................................28Servicing .........................................................12Settings .................412, 414, 416, 468, 470, 472Settings, system ....................................420, 476Side repeater ................................................305Sidelamps .............146, 304-306, 310, 313, 315Sliding side door, electric ............................49, 57, 64, 65, 78 - 84Sliding side door, hands-free ..............87, 89, 90Sliding side door, manual .........................75 -77Sliding side window ......................................124Smart Cargo ..................................................10 6Smart Entry & Start System ............55, 59, 60, 63 - 65, 68, 70, 71, 74, 75, 202, 205Snow chains .........................................262, 268Snow chains, link ..........................................268Socket, 12 V accessory ................................121Socket, auxiliary ...........................398, 454, 494Socket, JACK .......................122, 398, 454, 494Sockets, audio ..............................................12 2Speed limiter .................................224, 227, 229Speedometer .............................................14 -16Stability control (ESC).............................25, 161Starting the engine .......................................19 9Starting the vehicle ......202, 204, 206, 209, 214Station, radio ........................394, 395, 450, 451Stay, bonnet ..................................................276Steering mounted controls, audio ..................................344, 432, 485, 486Steering wheel, adjustment ............................99Stop & Start ................22, 29, 42, 132, 135, 218, 220, 265, 276, 281, 321, 324Stop (warning lamp) ........................................18Stop .................................................................18Stopping the vehicle ............202, 204, 209, 214
Radio Media ........388, 390, 392, 444, 446, 448Radio ...................394, 398, 450, 454, 488, 489Radio, digital (Digital Audio Broadcasting - DA B)...................................396, 397, 452, 453Range ..............................................................42Range, AdBlue ................................................35RDS .......................................................395, 451Rear screen, demisting .........................13 3, 13 4Recharging the battery .................................323Recirculation, air ...................125, 126, 128, 131Reduction of electrical load ..........................270Regeneration of the Diesel Particle Filter (DPF) ..........................................................281Reinitialisation of the Tyre Pressure Warning System (TPWS) ..........................................263Reinitialising the remote control ...............54, 70Reminder, key in ignition ...............................201Reminder, lighting on ....................................148Remote control ........................47-50, 52, 55 -59, 67, 68, 71, 74, 75Removing a wheel ........................................299Removing the mat .........................................11 9Replacing bulbs .....303, 304, 310, 311, 313 -315Replacing fuses ....................................316, 317Replacing the air filter ...................................281Replacing the oil filter ...................................281Replacing the passenger compartment filter .............................................................281Reservoir, headlamp wash ...........................280Reservoir, screenwash .................................280Reset journey ..................................................41Resetting the service indicator .......................33Resetting the trip recorder ..............................38Rev counter ................................................14 -16Reversing camera (on interior mirror) ..........258Reversing camera .........................................259Reversing lamp .............................310, 313, 315Road Sign Assist ..........225, 226, 229, 232, 236Roof bars ...............................................272, 273
R
Alphabetical index
