TOYOTA PROACE 2020 Owners Manual (in English)

101
F Place the head restraint in the low position, and if fitted to your vehicle, raise the armrest and fold the table on the back of the seat.

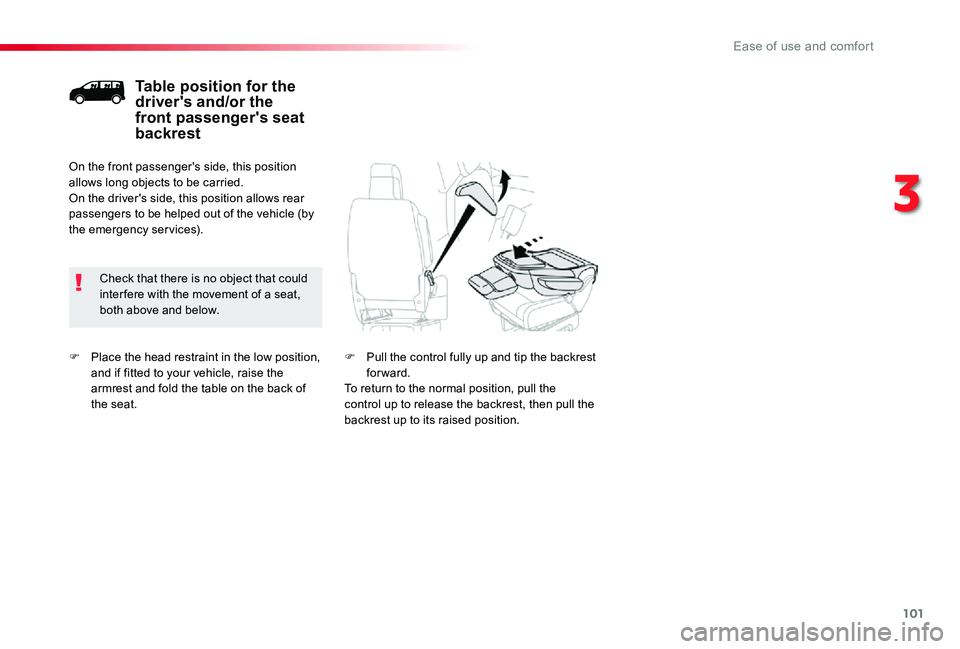

Table position for the driver's and/or the front passenger's seat backrest
Check that there is no object that could inter fere with the movement of a seat, both above and below.
On the front passenger's side, this position allows long objects to be carried.On the driver's side, this position allows rear passengers to be helped out of the vehicle (by the emergency services).
F Pull the control fully up and tip the backrest forward.To return to the normal position, pull the control up to release the backrest, then pull the backrest up to its raised position.
3
Ease of use and comfort

102
Electric front seat
Forwards-backwardsBackrest angle
Height
To avoid discharging the battery, carry out these adjustments with the engine running.
For more information on the Seat belts, refer to the corresponding section.
F Push the control for wards or rear wards to slide the seat.F Tilt the control for wards or rear wards to adjust the angle of the seat backrest.
F Tilt the control upwards or downwards to obtain the desired height.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of jamming the seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.
Ease of use and comfort

103
With the engine running, the front seats can be heated separately.
Heated seats control
If fitted to your vehicle.F To raise the head restraint, pull it upwards.F To remove the head restraint, press the lug A and pull the head restraint upwards.F To put the head restraint back in place, engage the head restraint rods in the apertures keeping them in line with the seat backrest.F To lower the head restraint, press the lug A and the head restraint at the same time.
The head restraint rods have notches which prevent the head restraint lowering; this is a safety device in case of impact.The adjustment is correct when the upper edge of the head restraint is level with the top of the head.Never drive with the head restraints removed; they must be in place and adjusted correctly.
Head restraint height
adjustment
Additional adjustments
Armrest
The armrest has notched positions.F Raise the armrest fully up.F Lower it fully down.F Raise the armrest to the desired position.
F Use the adjustment wheel to switch on and select the level of heating required:
0: Of f.1: Low.2: Medium.3: High.
3
Ease of use and comfort

104
Head restraint height
adjustment
F To raise the head restraint, pull it upwards.F To remove the head restraint, press the lug A and pull the head restraint upwards.F To put the head restraint back in place, engage the head restraint stems in the openings keeping them in line with the seat back.F To lower the head restraint, press the lug A and the head restraint at the same time.
The head restraint rods have notches which prevent the head restraint lowering; this is a safety device in case of impact.The adjustment is correct when the upper edge of the head restraint is level with the top of the head.Never drive with the head restraints removed; they must be in place and adjusted correctly.
2-seat front bench seat
If fitted to your vehicle, this is fixed and has a seat belt on the backrest for the seat alongside the driver.
For more information on the Seat belts,
refer to the corresponding section.
Ease of use and comfort

105

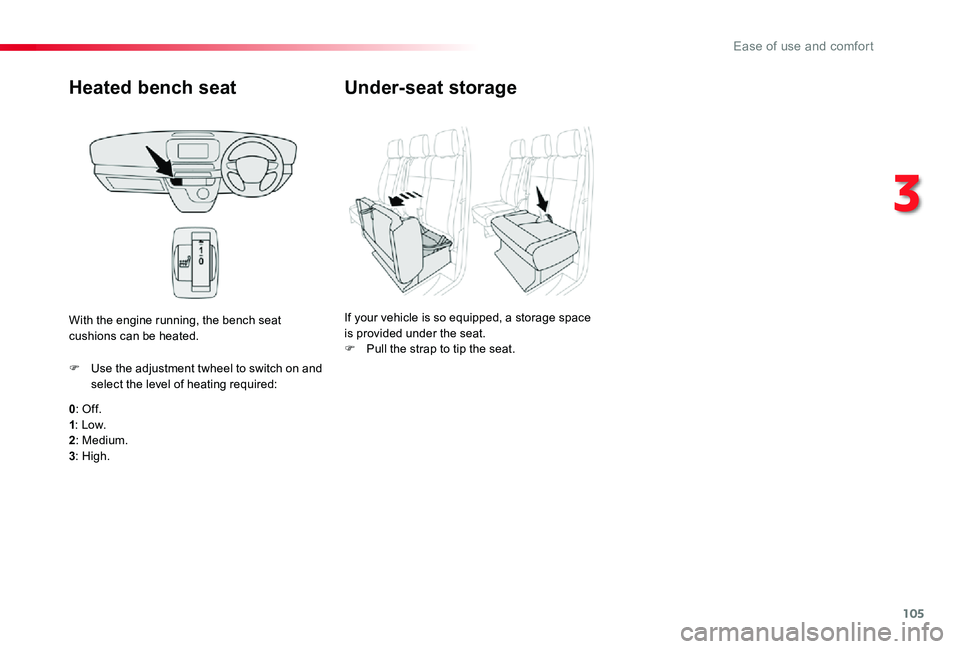

Heated bench seat
0: Of f.1: Low.2: Medium.
3: High.
F Use the adjustment twheel to switch on and select the level of heating required:
With the engine running, the bench seat cushions can be heated.
Under-seat storage
If your vehicle is so equipped, a storage space is provided under the seat.F Pull the strap to tip the seat.
3
Ease of use and comfort

106

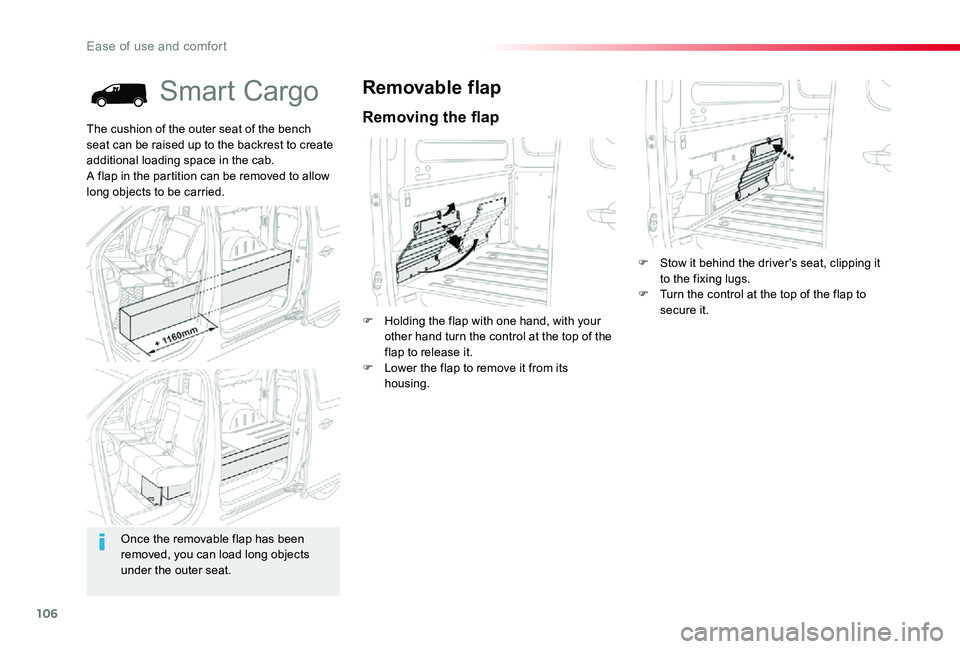

Smart Cargo
Removing the flap
Removable flap
F Holding the flap with one hand, with your other hand turn the control at the top of the flap to release it.F Lower the flap to remove it from its housing.
The cushion of the outer seat of the bench seat can be raised up to the backrest to create additional loading space in the cab.A flap in the partition can be removed to allow long objects to be carried.
Once the removable flap has been removed, you can load long objects under the outer seat.
F Stow it behind the driver's seat, clipping it to the fixing lugs.F Turn the control at the top of the flap to secure it.
Ease of use and comfort

107
When the outer seat is raised and the flap removed, you must fit the non-slip net.Refer to the Non-slip net section.Never place your hand under the seat cushion to guide the seat upward; risk of trapping your fingers.Only the strap should be used.

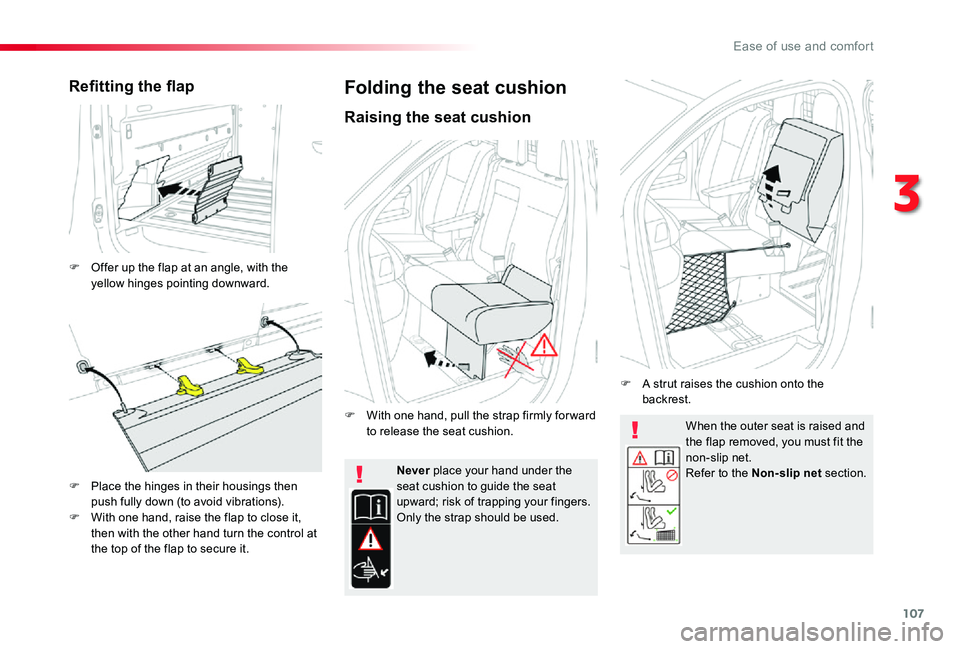

Refitting the flap
F Offer up the flap at an angle, with the yellow hinges pointing downward.
F Place the hinges in their housings then push fully down (to avoid vibrations).F With one hand, raise the flap to close it, then with the other hand turn the control at the top of the flap to secure it.
Folding the seat cushion
Raising the seat cushion
F With one hand, pull the strap firmly for ward to release the seat cushion.
F A strut raises the cushion onto the backrest.
3
Ease of use and comfort

108

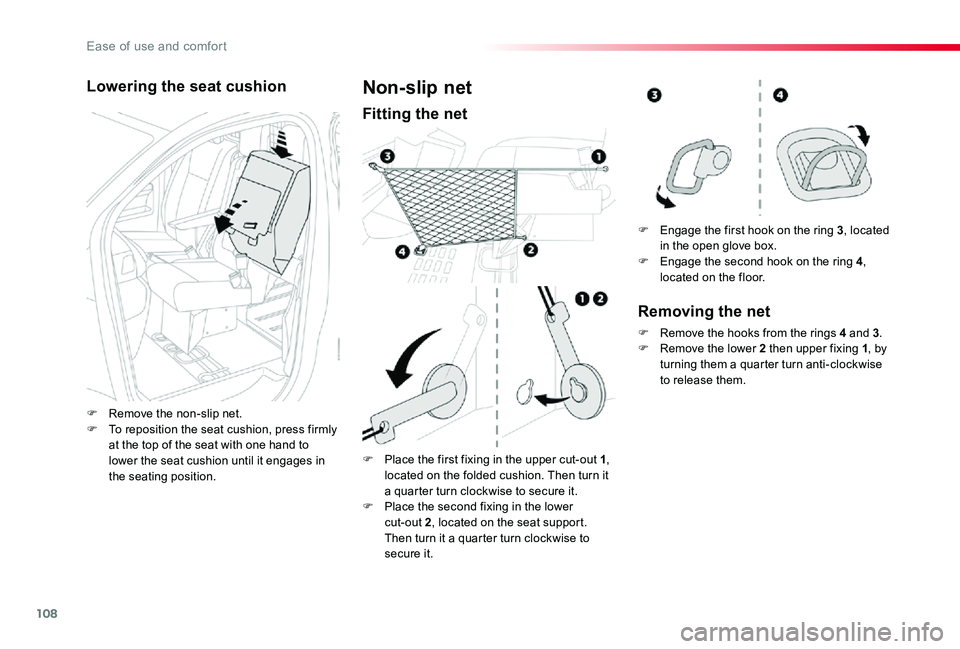

Lowering the seat cushion
F Remove the non-slip net.F To reposition the seat cushion, press firmly at the top of the seat with one hand to lower the seat cushion until it engages in the seating position.
Non-slip net
Fitting the net
F Place the first fixing in the upper cut-out 1, located on the folded cushion. Then turn it a quarter turn clockwise to secure it.F Place the second fixing in the lower cut-out 2, located on the seat support. Then turn it a quarter turn clockwise to secure it.
F Engage the first hook on the ring 3, located in the open glove box.F Engage the second hook on the ring 4, located on the floor.
Removing the net
F Remove the hooks from the rings 4 and 3.F Remove the lower 2 then upper fixing 1, by turning them a quarter turn anti-clockwise to release them.
Ease of use and comfort

109
Work tableIf fitted to your vehicle, the backrest of the bench centre seat tips for ward to form a pivoting work table, creating a mobile office (when stationary).F Pull the grip at the top of the backrest.
Never use the table while driving.An object on the table could turn in to a projectile and cause injuries under heavy braking or in the event of an impact.
Centre seat storage
F Pull the strap for ward to tip the seat cushion.
Ensure that the size, shape and volume of loads carried are compatible with the driving and safety regulations and do not compromise the driver's field of vision.Lash all loads appropriately, to prevent or limit their movement and avoid the risk of injury.Install the non-slip net (supplied with the vehicle) every time the seat is raised and the partition flap removed.Do not use the net for other purposes.Check the condition of the non-slip net regularly. Replace it when it shows signs of wear or tears, going to an authorized Toyota dealer or repairer, or another duly qualified and equipped professional to obtain a replacement non-slip net to the specification and quality defined by Toyota for your vehicle.Refit the flap in the partition when no longer carrying a long load.
3
Ease of use and comfort

110

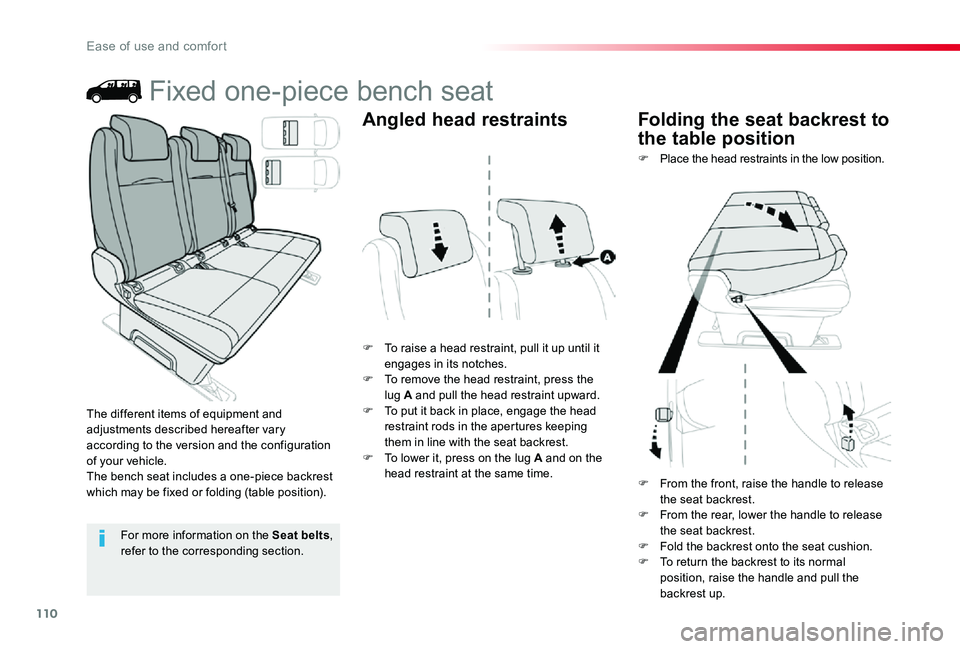

Fixed one-piece bench seat
F To raise a head restraint, pull it up until it engages in its notches.F To remove the head restraint, press the lug A and pull the head restraint upward.F To put it back in place, engage the head restraint rods in the apertures keeping them in line with the seat backrest.F To lower it, press on the lug A and on the head restraint at the same time.
F Place the head restraints in the low position.
The different items of equipment and adjustments described hereafter vary according to the version and the configuration of your vehicle.The bench seat includes a one-piece backrest which may be fixed or folding (table position).
Angled head restraintsFolding the seat backrest to
the table position
For more information on the Seat belts, refer to the corresponding section.
F From the front, raise the handle to release the seat backrest.F From the rear, lower the handle to release the seat backrest.
F Fold the backrest onto the seat cushion.F To return the backrest to its normal position, raise the handle and pull the backrest up.
