Over view

12
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Eco- driving
Optimise the use of your
gearboxWith a manual gearbox, move off gently and change up without waiting. During acceleration change up early.
With an automatic or electronic gearbox, give preference to automatic mode and avoid pressing the accelerator pedal heavily or suddenly.
The gear efficiency indicator invites you to
engage the most suitable gear: as soon as the indication is displayed in the instrument panel, follow it straight away.For vehicles fitted with an electronic or automatic gearbox, this indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather than the brake pedal, and press the accelerator progressively. These practices contribute towards a reduction in fuel consumption and CO2 emissions and also help to reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds above 25 mph (40 km/h) when the traffic is flowing well.
Control the use of your
electrical equipment
Switch off the demisting and defrosting controls, if not automatic.Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light does not require their use.
Avoid running the engine before moving off, particularly in winter; your vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices (film, music, video game...), you will contribute towards limiting the consumption of electrical energy, and so of fuel.Disconnect your portable devices before leaving the vehicle.
Before moving off, if the passenger compartment is too warm, ventilate it by opening the windows and air vents before using the air conditioning.Above 30 mph (50 km/h), close the windows and leave the air vents open.Remember to make use of equipment that can help keep the temperature in the passenger compartment down (sunroof and window blinds...).Switch off the air conditioning, unless it has automatic regulation, as soon as the desired temperature is attained.
Eco-driving

14
LCD instrument panel
1. Analogue speedometer (mph or km/h).2. Engine coolant temperature gauge.3. Cruise control or speed limiter settings.4. Digital speedometer (mph or km/h).5. Gear efficiency indicator. Gear with an automatic or electronic gearbox.
A. Main lighting dimmer.B. Service indicator reset. If fitted to your vehicle, trip recorder reset. Date and time adjustment. Instantaneous information on:- servicing,- remaining driving range with the emissions control fluid (AdBlue®).
6. Fuel gauge.7. Engine oil level indicator.8. Ser vice indicator, then total distance recorder (miles or km). These functions are displayed in turn when the ignition is switched on.9. Trip recorder (miles or km).10. Rev counter (x 1 000 rpm or tr/min).
Dials and screensControl buttons
Instruments

15
1. Analogue speedometer (mph or km/h).2. Fuel gauge.3. Engine coolant temperature gauge.4. Cruise control or speed limiter settings.5. Digital speedometer (mph or km/h).
A. Service indicator reset. Recall of instantaneous information on:- servicing,- remaining driving range with the emissions fluid (AdBlue®).B. Main lighting dimmer.C. Trip recorder reset.
6. Gear efficiency indicator. Gear with an automatic or electronic gearbox.7. Ser vice indicator, then total distance recorder (miles or km), trip recorder (miles or km), display of messages, ...8. Rev counter (x 1 000 rpm or tr/min).
Dials and screensControl buttons
LCD text instrument panel
1
Instruments

16
Matrix instrument panel
1. Analogue speedometer (mph or km/h).2. Fuel gauge.3. Engine coolant temperature gauge.4. Cruise control or speed limiter settings.5. Gear efficiency indicator. Gear with an automatic or electronic gearbox.
A. Service indicator reset. Alert log display. Recall of information on:- servicing,- remaining driving range with the emissions fluid (AdBlue®).B. Main lighting dimmer.C. Trip recorder reset.
6. Display area: alert or state of function messages, trip computer, digital speedometer (mph or km/h), ...7. Ser vice indicator, then total distance recorder (miles or km). These functions are displayed in turn when the ignition is switched on.8. Trip recorder (miles or km).9. Rev counter (x 1 000 rpm or tr/min).
Dials and screensControl buttons
Instruments

17
Indicator and warning
lamps
Visual indicators informing the driver that a system is in operation or is switched off (indicator lamp), or has a fault (warning lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehicle's ignition is switched on.When the engine is started, these same warning lamps should go off.If they remain on, before moving off, refer to the information on the warning lamp concerned.
Associated warnings
Certain warning lamps may come on in one of two modes: fixed (continuous) or flashing.Only by relating the type of illumination to the operation of the vehicle can it be determined whether the situation is normal or a fault has occurred. In the event of a fault, the illumination of the warning lamp may be accompanied by an audible signal and/or a message.
Warning lamps
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on the part of the driver.Any fault resulting in the illumination of a warning lamp must be investigated further using the associated message.If you encounter any problems, contact anauthorized Toyota dealer or repairer, or anotherduly qualified and equipped professional.
Operation indicator lamps
If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the corresponding system has come into operation.
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.This is may be accompanied by an audible signal and the display of a message.
1
Instruments

24
Warning / indicator lampStateCauseAction / Observations
Passenger's front airbagfixed in the seat belt and front passenger's airbag warning lamps display.
The control switch, located at the passenger's end of the dashboard, is set to the "OFF" position.The passenger's front airbag is deactivated.You can install a rearward facing child seat, unless there is a fault with the airbags (airbag warning lamp on).
Turn the control switch to the "ON" position to activate the passenger's front airbag; in this case, you must not install a child seat in the rear ward facing position on this seat.
Airbagson temporarily.This warning lamp comes on for a few seconds when you turn on the ignition, then goes off.
This warning lamp should go off when the engine is started.If it does not go off, contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional immediately
fixed.One of the airbag or seat belt pretensioner systems has a fault.Have them checked by an authorized Toyota dealeror repairer, or another duly qualified and equippedprofessional immediately.
Passenger's airbag systemfixed.The control switch, located at the passenger's end of the dashboard, is at the "ON" position.The passenger's front airbag is activated.In this case, do not install a rear ward facing child seat on the front passenger seat.
Turn the control switch to the "OFF" position to deactivate the passenger's front airbag.You can install a rear ward facing child seat, unless there is a fault with the airbags (airbag warning lamp on).
Instruments

28
Warning / indicator lampStateCauseAction / Observations
Rear foglampsfixed.The rear foglamps are on.Turn the ring on the stalk rear ward to switch off the rear foglamps.
Serviceon temporarily.A minor fault has occurred for which there is no specific warning lamp.Identify the fault by means of the associated message, for example:- low engine oil level,- low screenwash/headlamp wash fluid level,- discharged remote control battery,- low tyre pressures,- saturation of the particle filter (DPF) on Diesel vehicles.- ...For more information on Checks and in particular the particle filter, refer to the corresponding section.For any other faults, contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
fixed.A major fault has occurred for which there is no specific warning lamp.Identify the fault by reading the message and contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
+
fixed, associated with flashing and then fixed display of the ser vice spanner.
The servicing interval has been exceeded.Only on BlueHDi Diesel versions.Your vehicle must be ser viced as soon as possible.
Instruments

32

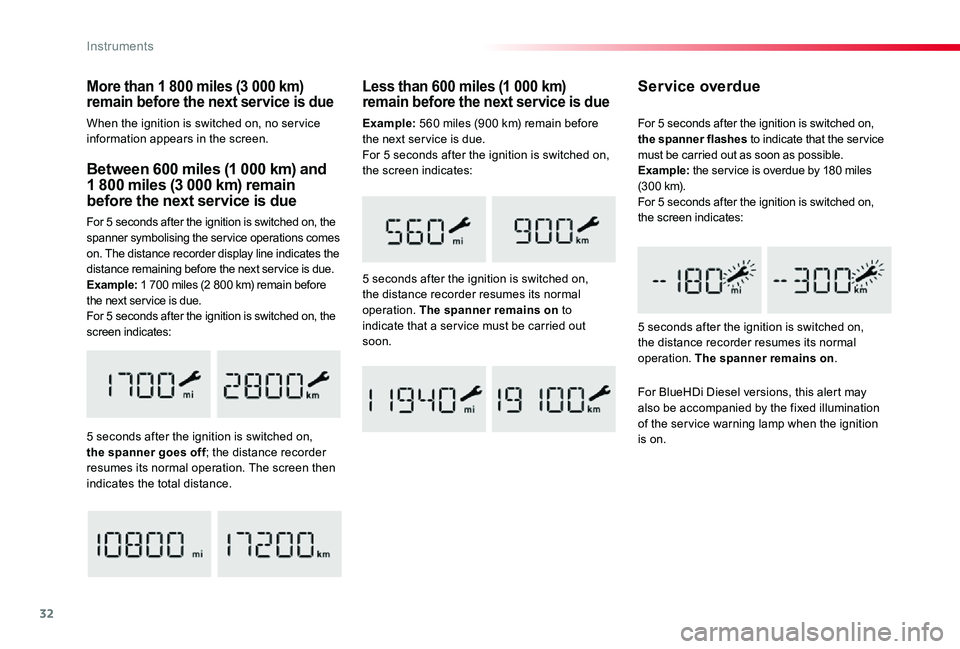

Between 600 miles (1 000 km) and 1 800 miles (3 000 km) remain before the next service is due
For 5 seconds after the ignition is switched on, the spanner symbolising the ser vice operations comes on. The distance recorder display line indicates the distance remaining before the next ser vice is due.Example: 1 700 miles (2 800 km) remain before the next ser vice is due.For 5 seconds after the ignition is switched on, the screen indicates:
5 seconds after the ignition is switched on, the spanner goes off; the distance recorder resumes its normal operation. The screen then indicates the total distance.
Service overdue
5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on.
For 5 seconds after the ignition is switched on, the spanner flashes to indicate that the ser vice must be carried out as soon as possible.Example: the ser vice is overdue by 180 miles (3 0 0 k m).For 5 seconds after the ignition is switched on, the screen indicates:
Less than 600 miles (1 000 km) remain before the next service is due
5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on to indicate that a ser vice must be carried out soon.
For BlueHDi Diesel versions, this alert may also be accompanied by the fixed illumination of the ser vice warning lamp when the ignition is on.
More than 1 800 miles (3 000 km) remain before the next service is due
When the ignition is switched on, no ser vice information appears in the screen.Example: 560 miles (900 km) remain before the next ser vice is due.For 5 seconds after the ignition is switched on, the screen indicates:
Instruments
