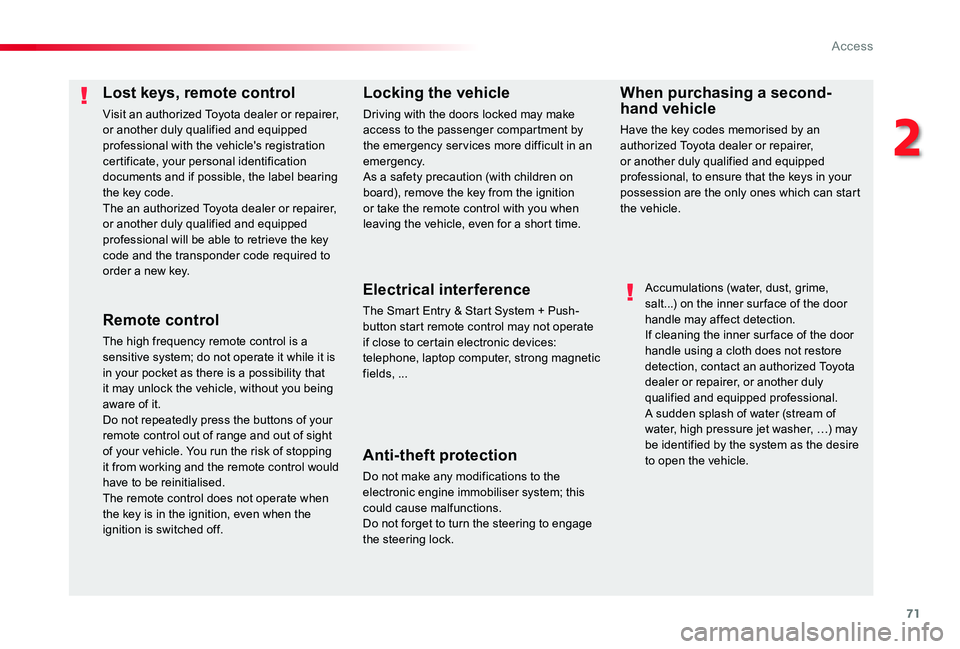

Page 71 of 430

71
Lost keys, remote control
Visit an authorized Toyota dealer or repairer, or another duly qualified and equipped professional with the vehicle's registration certificate, your personal identification documents and if possible, the label bearing the key code.The an authorized Toyota dealer or repairer, or another duly qualified and equipped professional will be able to retrieve the key code and the transponder code required to order a new key.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency ser vices more difficult in an emergency.As a safety precaution (with children on board), remove the key from the ignition or take the remote control with you when leaving the vehicle, even for a short time.
When purchasing a second-hand vehicle
Have the key codes memorised by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional, to ensure that the keys in your possession are the only ones which can start the vehicle.
Electrical interference
The Smart Entry & Start System + Push-button start remote control may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...
Accumulations (water, dust, grime, salt...) on the inner sur face of the door handle may affect detection.If cleaning the inner sur face of the door handle using a cloth does not restore detection, contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.A sudden splash of water (stream of water, high pressure jet washer, …) may be identified by the system as the desire to open the vehicle.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised.The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.Do not forget to turn the steering to engage the steering lock.
2
Access

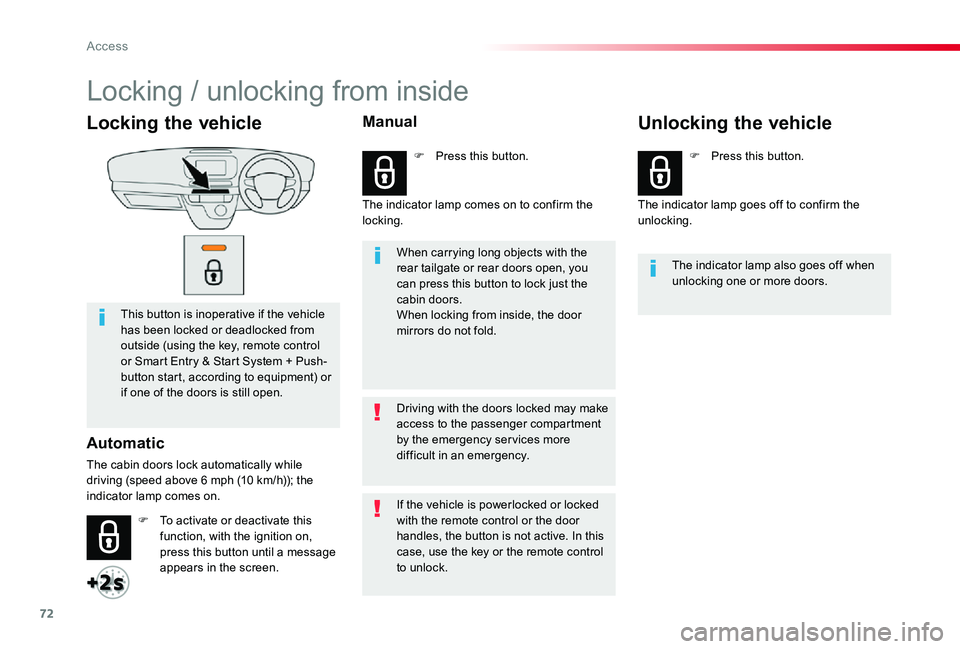

Page 72 of 430

72
Locking the vehicle
This button is inoperative if the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System + Push-button start, according to equipment) or if one of the doors is still open.
Automatic
The cabin doors lock automatically while driving (speed above 6 mph (10 km/h)); the indicator lamp comes on.
When carrying long objects with the rear tailgate or rear doors open, you can press this button to lock just the cabin doors.When locking from inside, the door mirrors do not fold.
The indicator lamp also goes off when unlocking one or more doors.
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
F To activate or deactivate this function, with the ignition on, press this button until a message appears in the screen.
F Press this button.F Press this button.
If the vehicle is powerlocked or locked with the remote control or the door handles, the button is not active. In this
case, use the key or the remote control to unlock.
Manual
The indicator lamp comes on to confirm the locking.The indicator lamp goes off to confirm the unlocking.
Unlocking the vehicle
Locking / unlocking from inside
Access
Page 73 of 430

73
F Vehicle unlocked, press this button.
F Loading area locked, press this button.
For more information on the Key, Remote control or Smar t Entr y & Star t System, and in particular, programming the selective locking of the loading area, refer to the corresponding section.
This button is inoperative if the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System, depending on equipment) or if one of the doors is still open.
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
The indicator lamp goes off when one or more of the loading area doors is unlocked.To save energy, with the ignition off and the vehicle totally locked, the indicator lamp goes off.
To deactivate this automatic locking, go to an authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Automatic
The loading area doors always lock while driving.
Locking / unlocking
the loading area
Manual
The indicator lamp comes on to confirm the locking of the vehicle.
F Vehicle locked, press this button.
The indicator lamp goes off to confirm the unlocking of the vehicle.
Cab and loading area selectivity deactivated.
Cab and loading area selectivity activated.
F Loading area unlocked, press this button.
The indicator lamp comes on to confirm the locking of the loading area.
The indicator lamp goes off to confirm the unlocking of the loading area.
2
Access

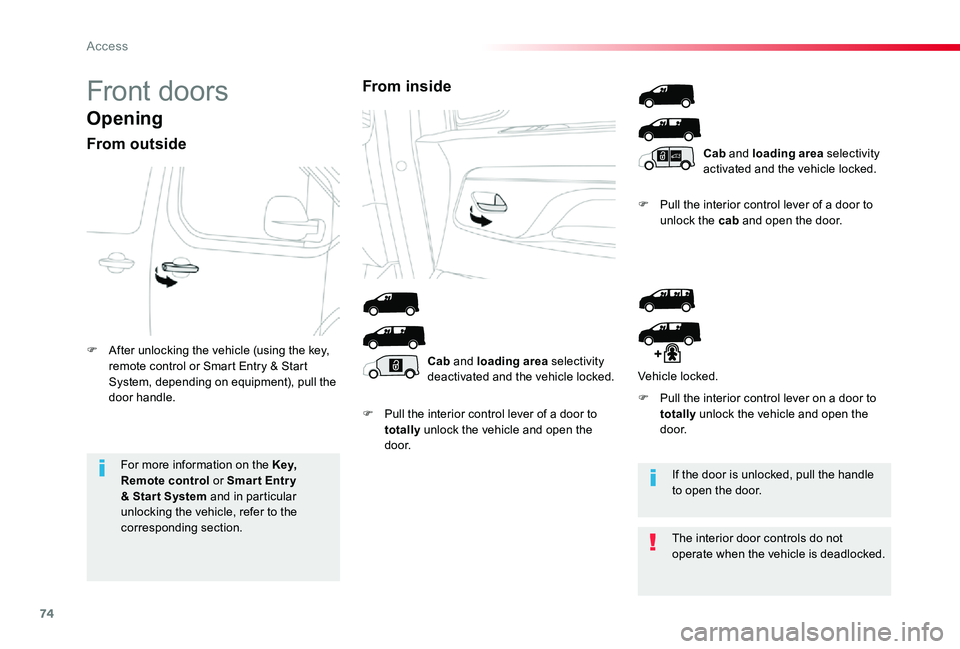

Page 74 of 430

74
Front doors
Opening
From outside
F Pull the interior control lever of a door to totally unlock the vehicle and open the d o o r.
F Pull the interior control lever of a door to unlock the cab and open the door.
F Pull the interior control lever on a door to totally unlock the vehicle and open the d o o r.
F After unlocking the vehicle (using the key, remote control or Smart Entry & Start System, depending on equipment), pull the door handle.
Cab and loading area selectivity deactivated and the vehicle locked.
Cab and loading area selectivity activated and the vehicle locked.
Vehicle locked.
For more information on the Key, Remote control or Smar t Entr y & Star t System and in particular unlocking the vehicle, refer to the corresponding section.
From inside
The interior door controls do not
operate when the vehicle is deadlocked.
If the door is unlocked, pull the handle to open the door.
Access

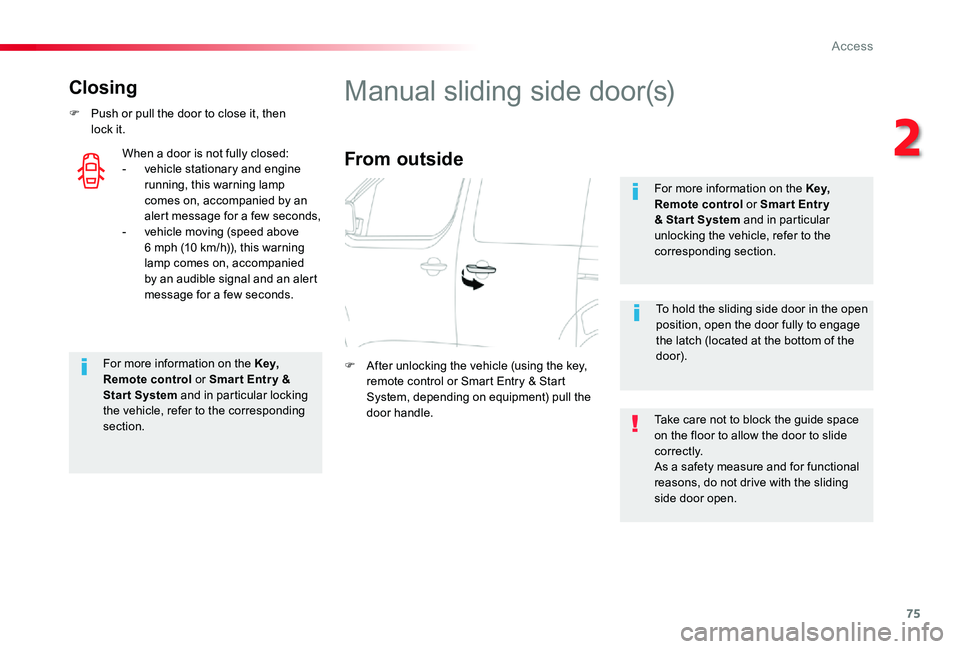

Page 75 of 430

75
Closing
F Push or pull the door to close it, then lock it.
For more information on the Key, Remote control or Smar t Entr y & Start System and in particular locking the vehicle, refer to the corresponding section.
When a door is not fully closed:- vehicle stationary and engine running, this warning lamp comes on, accompanied by an alert message for a few seconds,- vehicle moving (speed above 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and an alert message for a few seconds.
Manual sliding side door(s)
From outside
F After unlocking the vehicle (using the key, remote control or Smart Entry & Start System, depending on equipment) pull the door handle.Take care not to block the guide space on the floor to allow the door to slide c o r r e c t l y.As a safety measure and for functional reasons, do not drive with the sliding side door open.
For more information on the Key, Remote control or Smar t Entr y & Star t System and in particular unlocking the vehicle, refer to the corresponding section.
To hold the sliding side door in the open position, open the door fully to engage the latch (located at the bottom of the door).
2
Access

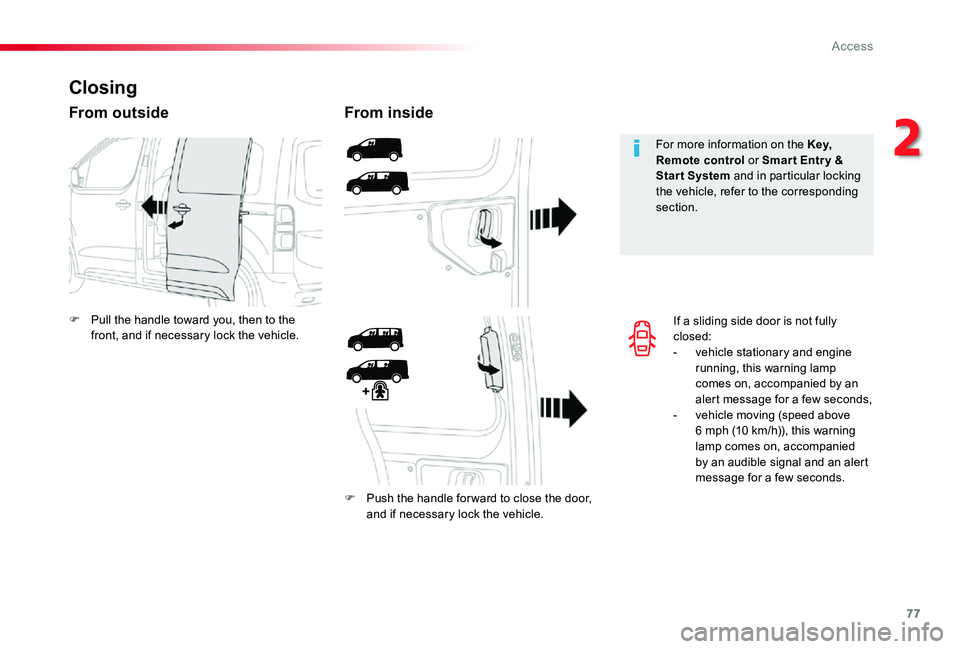

Page 77 of 430

77
If a sliding side door is not fully closed:- vehicle stationary and engine running, this warning lamp comes on, accompanied by an alert message for a few seconds,- vehicle moving (speed above 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and an alert message for a few seconds.
For more information on the Key, Remote control or Smar t Entr y & Start System and in particular locking the vehicle, refer to the corresponding section.
Closing
From outside
F Pull the handle toward you, then to the front, and if necessary lock the vehicle.
From inside
F Push the handle for ward to close the door, and if necessary lock the vehicle.
2
Access

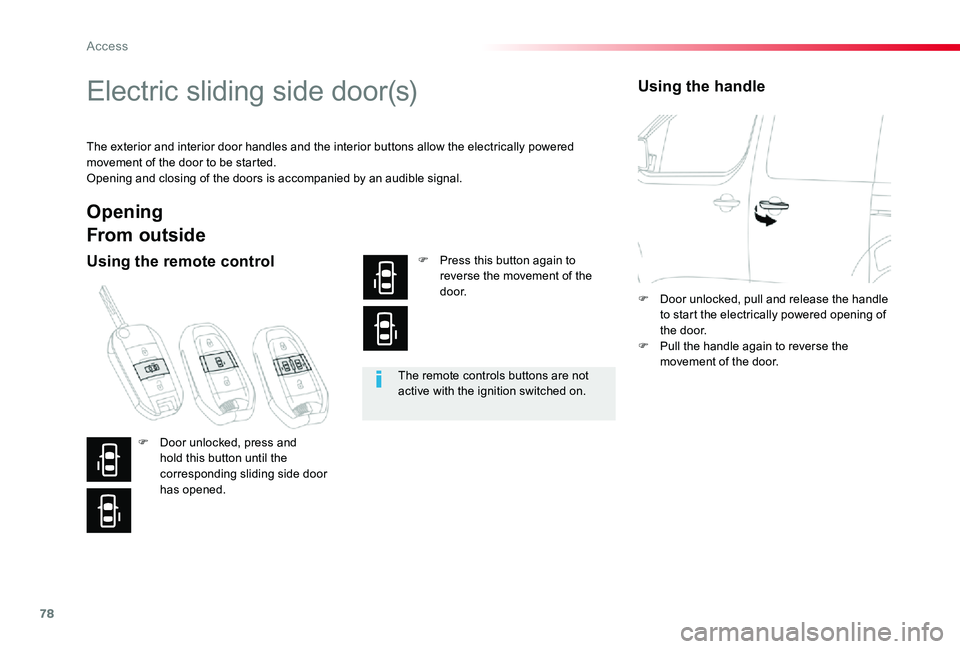

Page 78 of 430

78
Electric sliding side door(s)
The exterior and interior door handles and the interior buttons allow the electrically powered movement of the door to be started.Opening and closing of the doors is accompanied by an audible signal.
The remote controls buttons are not active with the ignition switched on.
Opening
From outside
Using the remote controlF Press this button again to reverse the movement of the d o o r.
Using the handle
F Door unlocked, press and hold this button until the corresponding sliding side door has opened.
F Door unlocked, pull and release the handle to start the electrically powered opening of the door.F Pull the handle again to reverse the movement of the door.
Access
Page 79 of 430

79
F Pull the handle toward the rear to unlock the loading area and start the electrically powered opening of the door.
F Pull the handle toward the rear to start the electrically powered opening of the door.
Using the handle
Cab and loading area selectivity activated.
Child lock off (deactivated).
F Pull the handle toward the rear to totally unlock the vehicle and start the electrically powered opening of the door.
From inside
Cab and loading area selectivity deactivated.
For more information on the Key, Remote control or Smar t Entr y & Start System and in particular total or selective unlocking, refer to the corresponding section.
Cab and loading area selectivity deactivated.
From inside, total
unlocking then
opening
F To unlock the vehicle and start the electrically powered opening of a door, press the button for the corresponding d o o r.F Pressing the button again reverses the movement of the door.
The button is inoperative and accompanied by an audible signal, if:- the vehicle is moving,- the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System, depending on equipment).Depending on equipment, the button for the left hand door is inoperative and accompanied by an audible signal, if the fuel filler flap is open.
Using the button(s) at the front
Vehicle locked
Vehicle unlocked
2
Access
Page 80 of 430

80
F To unlock the loading area only and start the electrically powered opening of a door, press the button for the corresponding d o o r.F Pressing the button again reverses the movement of the door.
The button is inoperative and accompanied by an audible signal, if:- the vehicle is moving,- the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System, depending on equipment).Depending on equipment, the button for the left hand door is inoperative and accompanied by an audible signal, if the fuel filler flap is open.
For more information on the Key, Remote control or Smar t Entr y & Start System and in particular total or selective unlocking, refer to the corresponding section.
Using the button(s) at the frontFrom inside,
selective unlocking
then opening
Cab and loading area selectivity activated.
Access

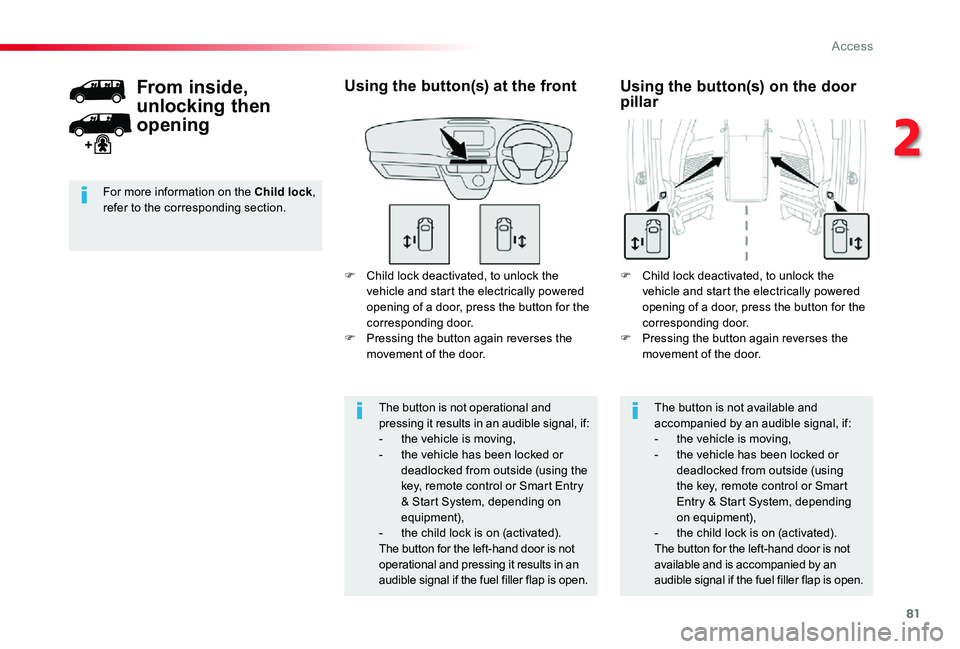

Page 81 of 430

81
F Child lock deactivated, to unlock the vehicle and start the electrically powered opening of a door, press the button for the corresponding door.F Pressing the button again reverses the movement of the door.
The button is not operational and pressing it results in an audible signal, if:- the vehicle is moving,- the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System, depending on equipment),- the child lock is on (activated).The button for the left-hand door is not operational and pressing it results in an audible signal if the fuel filler flap is open.
The button is not available and accompanied by an audible signal, if:- the vehicle is moving,- the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System, depending on equipment),- the child lock is on (activated).The button for the left-hand door is not available and is accompanied by an audible signal if the fuel filler flap is open.
Using the button(s) at the frontFrom inside,
unlocking then
opening
Using the button(s) on the door pillar
F Child lock deactivated, to unlock the vehicle and start the electrically powered opening of a door, press the button for the corresponding door.F Pressing the button again reverses the movement of the door.
For more information on the Child lock, refer to the corresponding section.
2
Access
