In the event of a breakdown
8

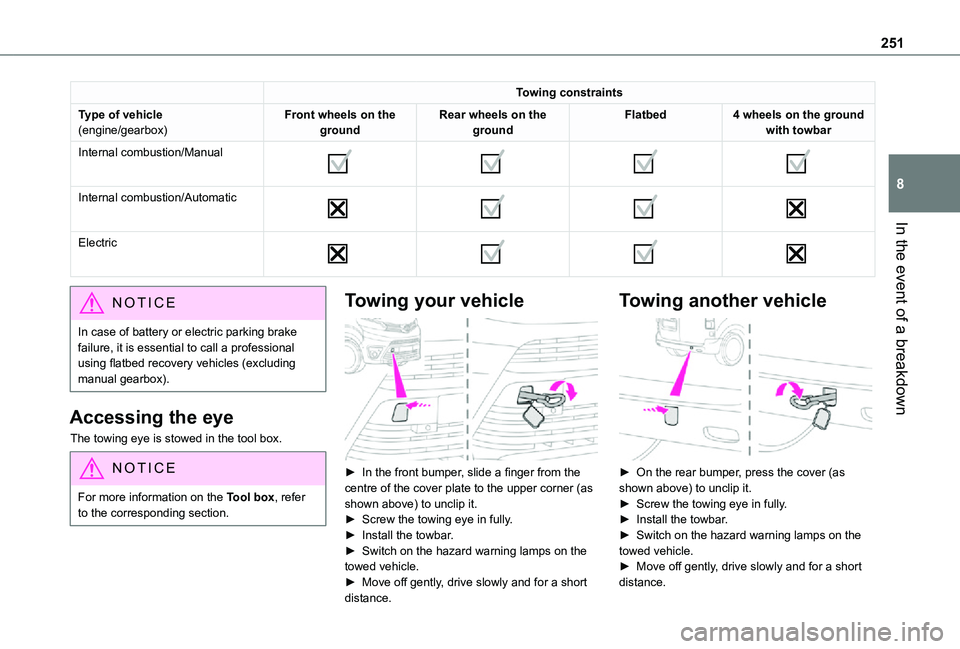

Towing constraints
Type of vehicle(engine/gearbox)Front wheels on the groundRear wheels on the groundFlatbed4 wheels on the ground with towbar
Internal combustion/Manual







Internal combustion/Automatic







Electric







NOTIC E
In case of battery or electric parking brake failure, it is essential to call a professional using flatbed recovery vehicles (excluding manual gearbox).
Accessing the eye
The towing eye is stowed in the tool box.
NOTIC E
For more information on the Tool box, refer to the corresponding section.
Towing your vehicle

► In the front bumper, slide a finger from the centre of the cover plate to the upper corner (as shown above) to unclip it.► Screw the towing eye in fully.► Install the towbar.► Switch on the hazard warning lamps on the towed vehicle.► Move off gently, drive slowly and for a short
distance.
Towing another vehicle

► On the rear bumper, press the cover (as shown above) to unclip it.► Screw the towing eye in fully.► Install the towbar.► Switch on the hazard warning lamps on the towed vehicle.► Move off gently, drive slowly and for a short distance.

252

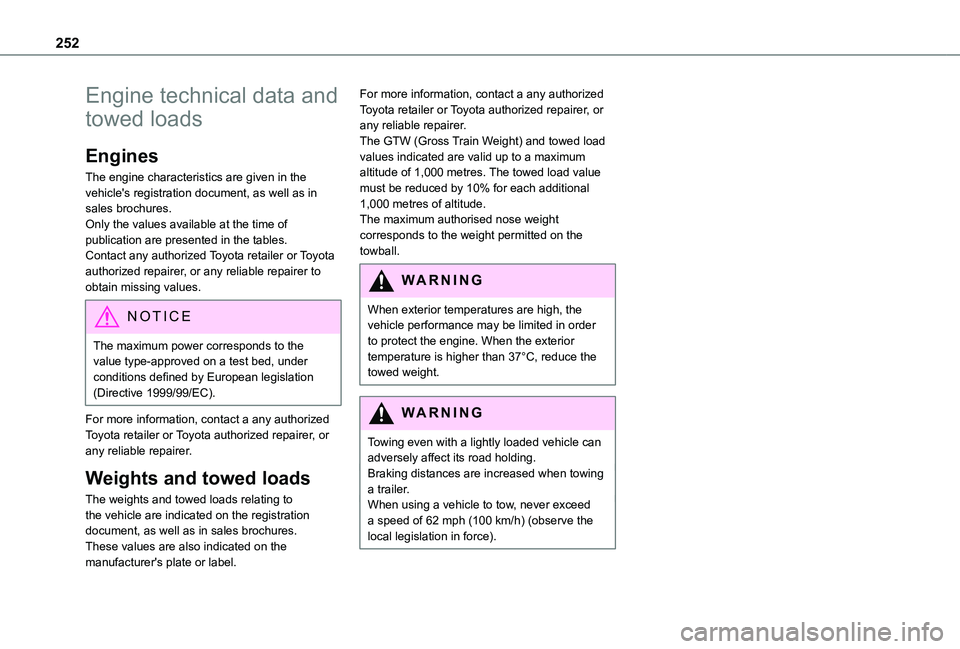

Engine technical data and
towed loads
Engines
The engine characteristics are given in the vehicle's registration document, as well as in sales brochures.Only the values available at the time of publication are presented in the tables.Contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer to obtain missing values.
NOTIC E
The maximum power corresponds to the value type-approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).
For more information, contact a any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
Weights and towed loads
The weights and towed loads relating to the vehicle are indicated on the registration document, as well as in sales brochures.These values are also indicated on the manufacturer's plate or label.
For more information, contact a any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.The GTW (Gross Train Weight) and towed load values indicated are valid up to a maximum altitude of 1,000 metres. The towed load value must be reduced by 10% for each additional 1,000 metres of altitude.The maximum authorised nose weight corresponds to the weight permitted on the towball.
WARNI NG
When exterior temperatures are high, the vehicle performance may be limited in order to protect the engine. When the exterior temperature is higher than 37°C, reduce the towed weight.
WARNI NG
Towing even with a lightly loaded vehicle can adversely affect its road holding.Braking distances are increased when towing a trailer.When using a vehicle to tow, never exceed a speed of 62 mph (100 km/h) (observe the local legislation in force).

253
Technical data
9

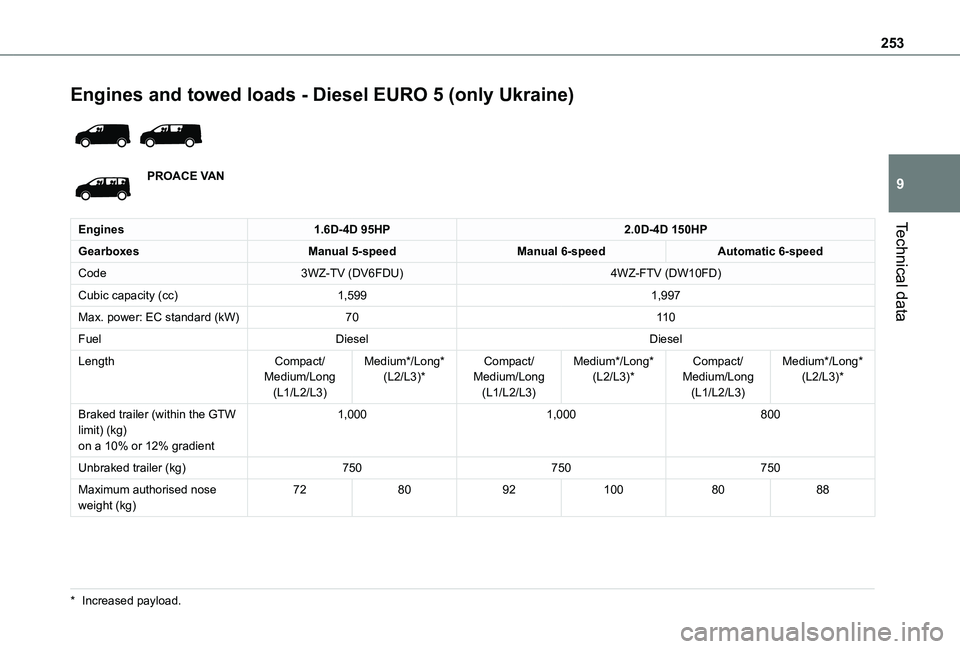

Engines and towed loads - Diesel EURO 5 (only Ukraine)

PROACE VAN
Engines1.6D-4D 95HP2.0D-4D 150HP
GearboxesManual 5-speedManual 6-speedAutomatic 6-speed
Code3WZ-TV (DV6FDU)4WZ-FTV (DW10FD)
Cubic capacity (cc)1,5991,997
Max. power: EC standard (kW)7011 0
FuelDieselDiesel
LengthCompact/Medium/Long(L1/L2/L3)
Medium*/Long*(L2/L3)*Compact/Medium/Long(L1/L2/L3)
Medium*/Long*(L2/L3)*Compact/Medium/Long(L1/L2/L3)
Medium*/Long*(L2/L3)*
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient
1,0001,000800
Unbraked trailer (kg)750750750
Maximum authorised nose weight (kg)7280921008088
* Increased payload.

254

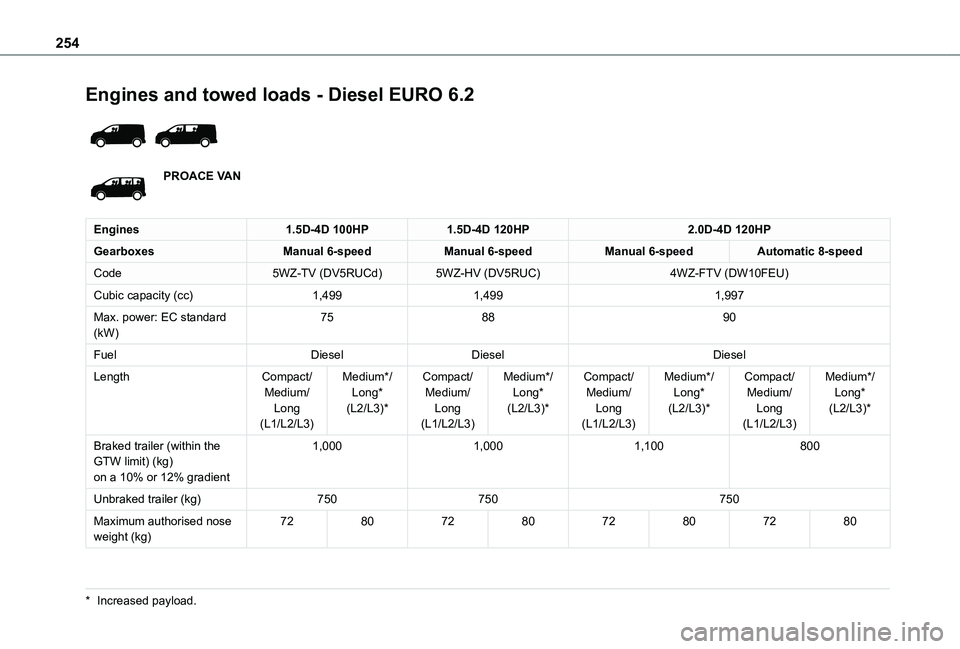

Engines and towed loads - Diesel EURO 6.2

PROACE VAN
Engines1.5D-4D 100HP1.5D-4D 120HP2.0D-4D 120HP
GearboxesManual 6-speedManual 6-speedManual 6-speedAutomatic 8-speed
Code5WZ-TV (DV5RUCd)5WZ-HV (DV5RUC)4WZ-FTV (DW10FEU)
Cubic capacity (cc)1,4991,4991,997
Max. power: EC standard (kW)758890
FuelDieselDieselDiesel
LengthCompact/Medium/Long(L1/L2/L3)
Medium*/Long*(L2/L3)*
Compact/Medium/Long(L1/L2/L3)
Medium*/Long*(L2/L3)*
Compact/Medium/Long(L1/L2/L3)
Medium*/Long*(L2/L3)*
Compact/Medium/Long(L1/L2/L3)
Medium*/Long*(L2/L3)*
Braked trailer (within the GTW limit) (kg)on a 10% or 12% gradient
1,0001,0001,100800
Unbraked trailer (kg)750750750
Maximum authorised nose weight (kg)7280728072807280
* Increased payload.

255
Technical data
9
Engines2.0D-4D 150HP2.0D-4D 180HP
GearboxesManual 6-speedAutomatic 8-speed
Code4WZ-FTV (DW10FDU)4WZ-FHV (DW10FDCU)
Cubic capacity (cc)1,9971,997
Max. power: EC standard (kW)11 0130
FuelDieselDiesel
LengthCompact/Medium/Long(L1/L2/L3)Medium*/Long*(L2/L3)*Compact/Medium/Long(L1/L2/L3)Medium*/Long*(L2/L3)*
Braked trailer (within the GTW limit) (kg)on a 10% or 12% gradient
1,100800
Unbraked trailer (kg)750750
Maximum authorised nose weight (kg)921008088

256

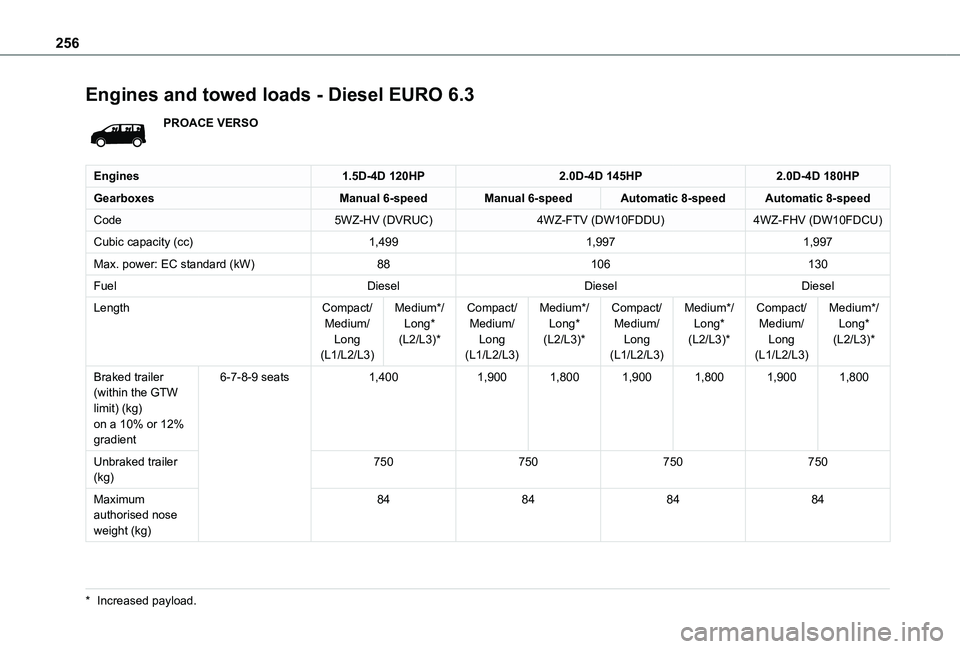

Engines and towed loads - Diesel EURO 6.3
PROACE VERSO
Engines1.5D-4D 120HP2.0D-4D 145HP2.0D-4D 180HP
GearboxesManual 6-speedManual 6-speedAutomatic 8-speedAutomatic 8-speed
Code5WZ-HV (DVRUC)4WZ-FTV (DW10FDDU)4WZ-FHV (DW10FDCU)
Cubic capacity (cc)1,4991,9971,997
Max. power: EC standard (kW)88106130
FuelDieselDieselDiesel
LengthCompact/Medium/Long(L1/L2/L3)
Medium*/Long*(L2/L3)*
Compact/Medium/Long(L1/L2/L3)
Medium*/Long*(L2/L3)*
Compact/Medium/Long(L1/L2/L3)
Medium*/Long*(L2/L3)*
Compact/Medium/Long(L1/L2/L3)
Medium*/Long*(L2/L3)*
Braked trailer (within the GTW limit) (kg)on a 10% or 12% gradient
6-7-8-9 seats1,4001,9001,8001,9001,8001,9001,800
Unbraked trailer (kg)750750750750
Maximum authorised nose weight (kg)
84848484
* Increased payload.

257
Technical data
9

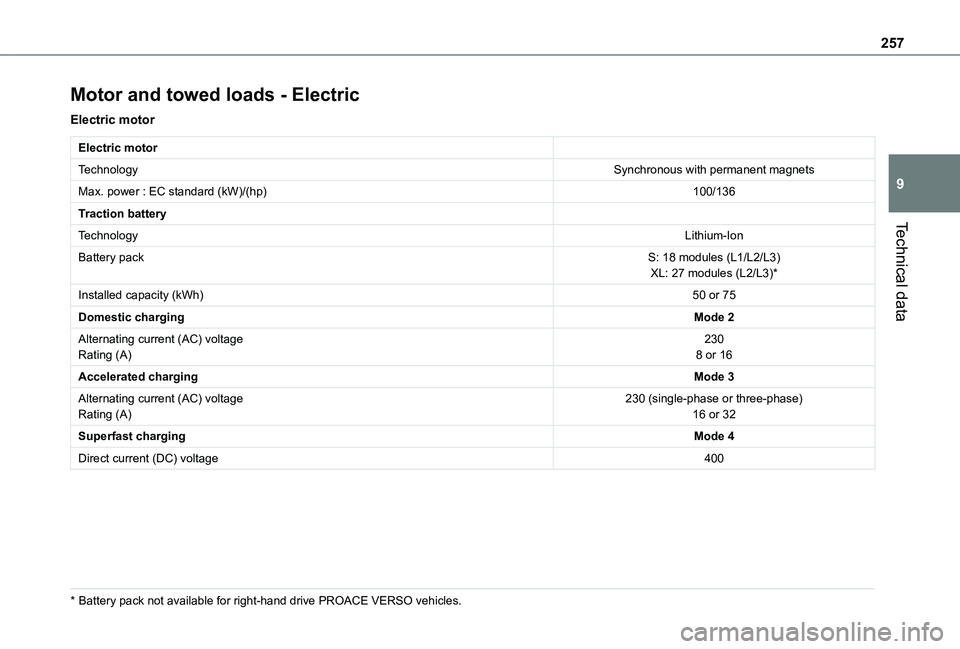

Motor and towed loads - Electric
Electric motor
Electric motor
TechnologySynchronous with permanent magnets
Max. power : EC standard (kW)/(hp)100/136
Traction battery
TechnologyLithium-Ion
Battery packS: 18 modules (L1/L2/L3)XL: 27 modules (L2/L3)*
Installed capacity (kWh)50 or 75
Domestic chargingMode 2
Alternating current (AC) voltageRating (A)2308 or 16
Accelerated chargingMode 3
Alternating current (AC) voltageRating (A)230 (single-phase or three-phase)16 or 32
Superfast chargingMode 4
Direct current (DC) voltage400
* Battery pack not available for right-hand drive PROACE VERSO vehicles.

258

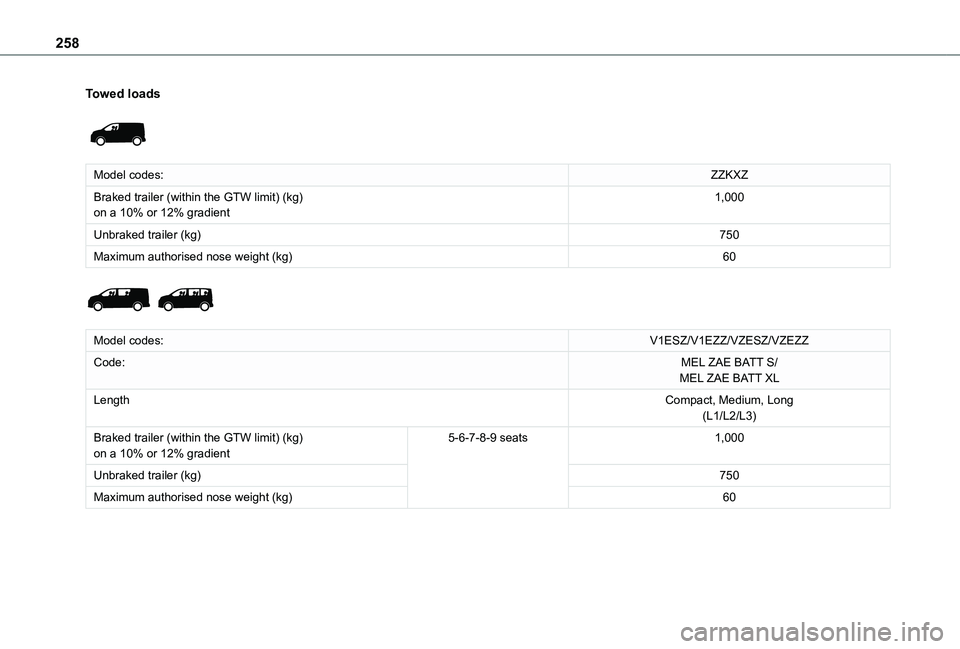

Towed loads

Model codes:ZZKXZ
Braked trailer (within the GTW limit) (kg)on a 10% or 12% gradient1,000
Unbraked trailer (kg)750
Maximum authorised nose weight (kg)60

Model codes:V1ESZ/V1EZZ/VZESZ/VZEZZ
Code:MEL ZAE BATT S/MEL ZAE BATT XL
LengthCompact, Medium, Long(L1/L2/L3)
Braked trailer (within the GTW limit) (kg)on a 10% or 12% gradient5-6-7-8-9 seats1,000
Unbraked trailer (kg)750
Maximum authorised nose weight (kg)60

259
Technical data
9

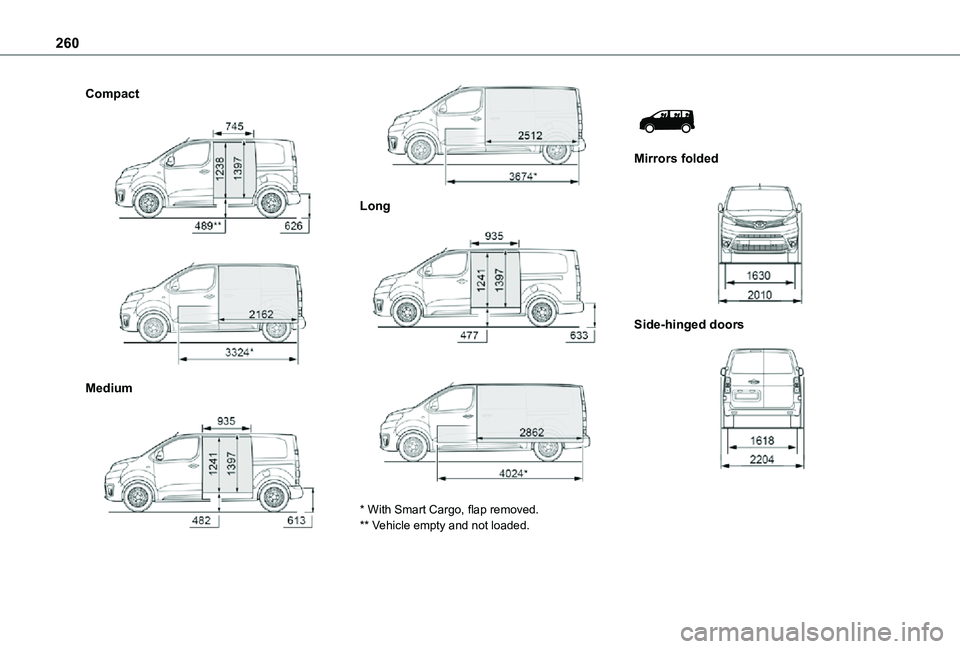

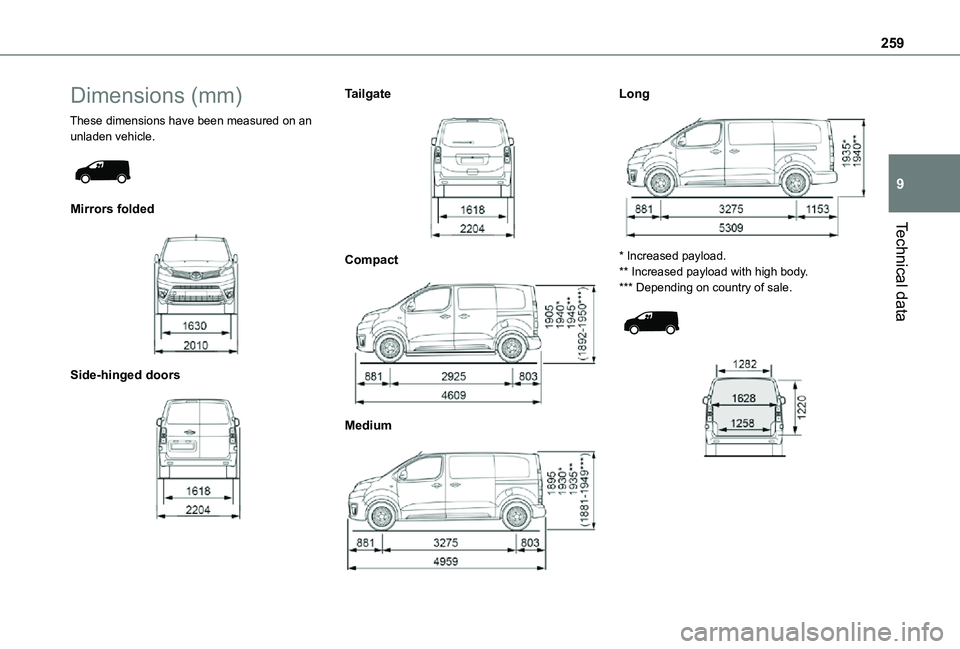

Dimensions (mm)
These dimensions have been measured on an unladen vehicle.

Mirrors folded

Side-hinged doors

Tailgate

Compact

Medium

Long

* Increased payload.** Increased payload with high body.*** Depending on country of sale.

260
Compact


Medium


Long


* With Smart Cargo, flap removed.** Vehicle empty and not loaded.


Mirrors folded

Side-hinged doors
