TOYOTA PROACE VERSO EV 2021 Owner's Guide

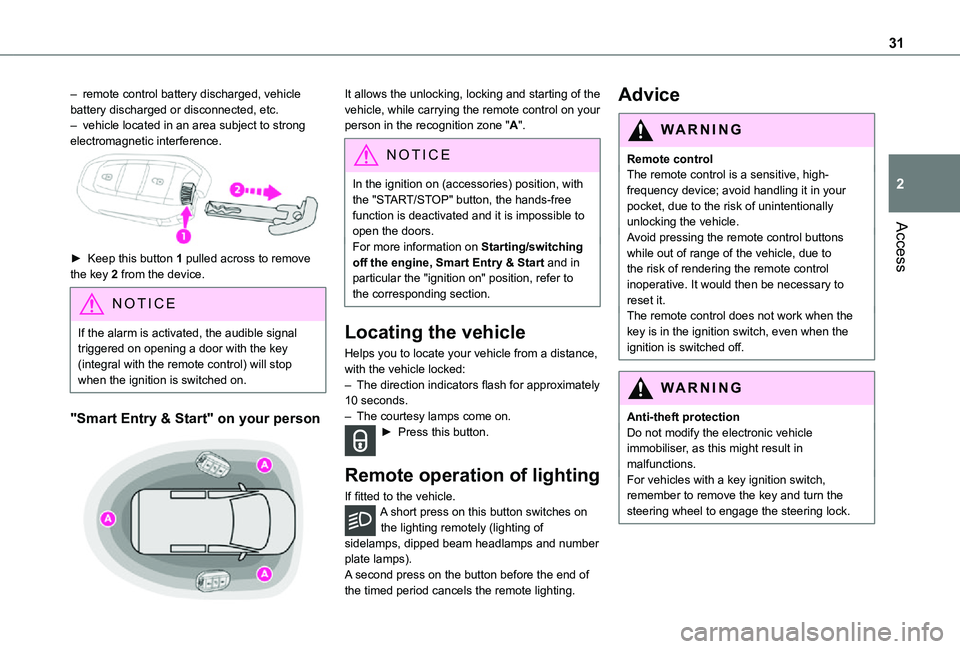

31
Access
2
– remote control battery discharged, vehicle battery discharged or disconnected, etc.– vehicle located in an area subject to strong electromagnetic interference.
â–º Keep this button 1 pulled across to remove the key 2 from the device.
NOTIC E
If the alarm is activated, the audible signal triggered on opening a door with the key (integral with the remote control) will stop when the ignition is switched on.
"Smart Entry & Start" on your person

It allows the unlocking, locking and starting of the vehicle, while carrying the remote control on your person in the recognition zone "A".
NOTIC E
In the ignition on (accessories) position, with the "START/STOP" button, the hands-free function is deactivated and it is impossible to open the doors.
For more information on Starting/switching off the engine, Smart Entry & Start and in particular the "ignition on" position, refer to the corresponding section.
Locating the vehicle
Helps you to locate your vehicle from a distance, with the vehicle locked:– The direction indicators flash for approximately 10 seconds.– The courtesy lamps come on.► Press this button.
Remote operation of lighting
If fitted to the vehicle.A short press on this button switches on the lighting remotely (lighting of sidelamps, dipped beam headlamps and number plate lamps).A second press on the button before the end of the timed period cancels the remote lighting.
Advice
WARNI NG
Remote controlThe remote control is a sensitive, high-frequency device; avoid handling it in your pocket, due to the risk of unintentionally unlocking the vehicle.Avoid pressing the remote control buttons
while out of range of the vehicle, due to the risk of rendering the remote control inoperative. It would then be necessary to reset it.The remote control does not work when the key is in the ignition switch, even when the ignition is switched off.
WARNI NG
Anti-theft protectionDo not modify the electronic vehicle immobiliser, as this might result in malfunctions.For vehicles with a key ignition switch, remember to remove the key and turn the steering wheel to engage the steering lock.

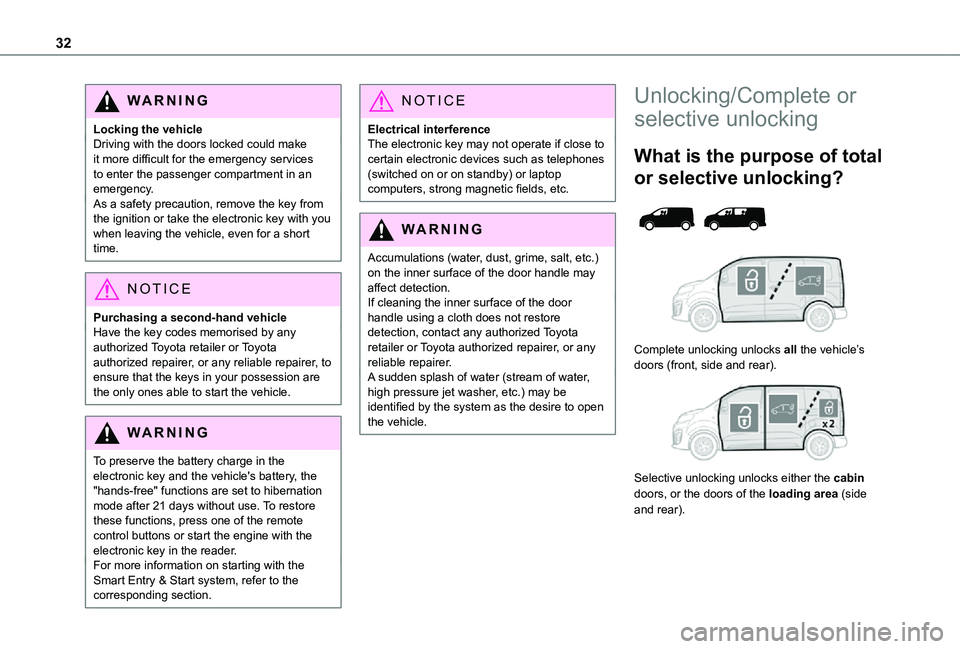

32
WARNI NG
Locking the vehicleDriving with the doors locked could make it more difficult for the emergency services to enter the passenger compartment in an emergency.As a safety precaution, remove the key from the ignition or take the electronic key with you when leaving the vehicle, even for a short time.
NOTIC E
Purchasing a second-hand vehicleHave the key codes memorised by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer, to ensure that the keys in your possession are the only ones able to start the vehicle.
WARNI NG
To preserve the battery charge in the electronic key and the vehicle's battery, the "hands-free" functions are set to hibernation mode after 21 days without use. To restore these functions, press one of the remote control buttons or start the engine with the electronic key in the reader.For more information on starting with the Smart Entry & Start system, refer to the corresponding section.
NOTIC E
Electrical interferenceThe electronic key may not operate if close to certain electronic devices such as telephones (switched on or on standby) or laptop computers, strong magnetic fields, etc.
WARNI NG
Accumulations (water, dust, grime, salt, etc.) on the inner surface of the door handle may affect detection.If cleaning the inner surface of the door handle using a cloth does not restore detection, contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.A sudden splash of water (stream of water, high pressure jet washer, etc.) may be identified by the system as the desire to open the vehicle.
Unlocking/Complete or
selective unlocking
What is the purpose of total
or selective unlocking?


Complete unlocking unlocks all the vehicle’s doors (front, side and rear).

Selective unlocking unlocks either the cabin doors, or the doors of the loading area (side and rear).

33
Access
2
NOTIC E
The separation of the cabin and loading area unlocking is a security measure.It is used to lock out access to the part of the vehicle in which you are not present.
Activation/Deactivation


â–º To activateselective unlocking between the cab and the loading area or to deactivate selective unlocking and return to total unlocking mode, switch on the ignition and press this button for more than two seconds.An audible signal and, depending on equipment, a display message, confirm that the request has been acknowledged.
NOTIC E
Selective unlocking between cab and loading area is activated by default.
Unlocking/Complete
unlocking
NOTIC E
Unlocking is signalled by rapid flashing of the direction indicators for a few seconds.Depending on version, the door mirrors unfold and the alarm is deactivated.
With the key
â–º To unlock the vehicle fully, turn the key in the front left-hand door lock towards the front of the vehicle.If the vehicle has an alarm, it will not be deactivated. Opening a door will trigger the alarm, which can be stopped by switching the ignition on.
With the remote control
â–º Depending on equipment, press one of these buttons to
unlock the vehicle.
Using the remote control with electric
sliding side door(s)
â–º To fully unlock the vehicle and open the side door, press and hold this button until the door has opened.
With Smart Entry & Start on your
person
To unlock the vehicle, the remote control must be in recognition zone A.â–º To unlock the vehicle fully, pass your hand behind one of the door handles (front door(s), manual sliding side door(s) or left-hand side-hinged door) and then pull the handle to open the corresponding door.
With electric sliding side door(s)


â–º With the Smart Entry & Start on your person, pass your hand behind the handle to unlock the vehicle, then pull and release the handle. This action also causes the corresponding door to open.

34
With tailgate


â–º With the Smart Entry & Start on your person, to unlock the vehicle, pull the tailgate handle and then lift it up to open it.
With an opening rear screen in the tailgate


â–º With the Smart Entry & Start on your person, to unlock the vehicle, press the tailgate opening rear screen unlocking control. The screen will open slightly; then, lift it up to open it.
Selective unlocking

NOTIC E
Unlocking is signalled by rapid flashing of the direction indicators for a few seconds.Depending on version, the door mirrors unfold and the alarm is deactivated.
With the remote control
â–º To unlock the cabin doors alone, press this button once.â–º To unlock the side and rear doors of the loading area, press this button a second time.If the vehicle is fitted with this function:â–º Press this button to unlock the loading area only.
Using the remote control with electric
sliding side door(s)
â–º To unlock the loading area alone without opening the side door, press the relevant door button or keep the button pressed down to open the door.
With Smart Entry & Start on your
person

â–º To unlock the cabin alone, pass your hand behind a handle of the front left or right doors, then pull the handle to open the door.
NOTIC E
The door locking state of the loading area remains unchanged.


â–º To unlock the loading area alone, the remote control on your person in recognition zone A, B or C, pass your hand behind a handle of the front left or right doors, then pull the handle to open the corresponding door.
NOTIC E
Depending on the version, the door mirrors unfold only when the cabin is unlocked, the alarm is deactivated.

35
Access
2
With electric sliding side door(s)


â–º With the Smart Entry & Start on your person, pass your hand behind the left-hand or right-hand door handle to unlock the loading area, then pull and release the handle. This action also causes the corresponding door to open.
With tailgate


â–º With the Smart Entry & Start on your person, to unlock the loading area, pull the tailgate handle and then lift it up.
NOTIC E
Unlocking is signalled by rapid flashing of the direction indicators for a few seconds.
Locking
With the key
â–º To lock the vehicle fully, turn the key in the front left-hand door lock towards the rear of the vehicle.If your vehicle has an alarm, it will not be activated.
With the remote control
â–º To lock the vehicle completely, press this button.
With Smart Entry & Start on
your person
To lock the vehicle, the remote control must be in recognition zone A.

â–º To lock the vehicle, press the markings on one of the door handles (front door(s), manual sliding side door(s) or left-hand side-hinged door).
With electric sliding side door(s)
â–º With the Smart Entry & Start on your person, to lock the vehicle fully, press the markings on one of the front door handles.
With tailgate

â–º With the Smart Entry & Start on your person, press the tailgate locking control to lock the vehicle.
NOTIC E
Depending on version, keeping the locking controls depressed closes the windows. If the control is released, the window stops in its current position.
WARNI NG
Ensure that no person or object might prevent the windows from closing properly.Pay particular attention to children when operating windows.

36
NOTIC E
If the vehicle is not fitted with an alarm, locking is signalled by fixed lighting of the direction indicators for approximately two seconds. Depending on version, the door mirrors fold at the same time.
WARNI NG
Driving with the doors locked could make it more difficult for the emergency services to enter the passenger compartment in an emergency.As a safety measure, never leave the vehicle without taking the remote control with you, even for a short time.
Deadlocking
WARNI NG
Deadlocking deactivates the exterior and interior door controls, as well as the central locking button on the dashboard.The horn remains operational.You must therefore never leave anyone inside
the vehicle when it is deadlocked.
With the key
â–º To deadlock the vehicle, turn the key in the front left-hand door lock towards the rear of the vehicle.â–º Then, within five seconds, turn the key towards the rear again.
With the remote control
â–º To deadlock the vehicle, press this button.â–º Then press this button again within five seconds after locking.
NOTIC E
At the same time, depending on version, the electric door mirrors fold in.
NOTIC E
If the vehicle is not fitted with an alarm, deadlocking is confirmed by fixed illumination of the direction indicators for about two seconds.
With Smart Entry & Start on your
person
To lock the vehicle, the remote control must be in
recognition zone A.

â–º To lock the vehicle fully, press the markings on one of the door handles (front door(s), manual sliding side door(s) or left-hand side-hinged door).â–º To deadlock the vehicle, press the markings again within five seconds.
With electric sliding side door(s)
â–º With the Smart Entry & Start on your person, to lock the vehicle fully, press the markings on one of the front door handles.â–º To deadlock the vehicle, press the markings again within five seconds.
With tailgate


â–º With the Smart Entry & Start on your person, press the tailgate locking control to lock the entire vehicle.â–º To deadlock the vehicle, press the control again within five seconds.

37
Access
2
NOTIC E
If the vehicle is not fitted with an alarm, deadlocking is signalled by fixed lighting of the direction indicators for approximately two seconds.
Back-up procedures
Lost keys, remote control,
electronic key
Go to any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer with the vehicle's registration certificate, your personal identification documents and if possible, the label bearing the key code.Any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer will be able to retrieve the key code and the transponder code, enabling a new key to be
ordered.
Complete unlocking/locking
of the vehicle with the key
Use this procedure in the following situations:– Remote control battery discharged.– Remote control malfunction.– Vehicle battery discharged.– Vehicle in an area subject to strong electromagnetic interference.
In the first case, change the remote control battery.In the second case, reinitialise the remote control.Refer to the corresponding sections.â–º Insert the key in the door lock.â–º Turn the key towards the front/rear to unlock/lock the vehicle.â–º Turn the key rearwards again within 5 seconds to deadlock the vehicle.
NOTIC E
If the vehicle is fitted with an alarm, it will not be activated when locking with the key.If the alarm is activated, the siren sounds when the door is opened; switch on the ignition to stop it.
NOTIC E
If the vehicle is unlocked with the key in the lock after locking it with the remote control or the Smart Entry & Start system, all doors and the boot are unlocked.If the vehicle is unlocked with the key in the lock after locking it with the key, only the doors (front door and sliding side door(s)) are unlocked. The side-hinged doors and tailgate are not unlocked. Switching on the ignition unlocks them.
Central locking not
functioning
Use these procedures in the following cases:– Central locking malfunction.– Battery disconnected or discharged.
WARNI NG
In the event of a malfunction of the central
locking system, the battery must be disconnected to ensure that the vehicle is locked fully.
Front left-hand door
â–º Insert the key into the door lock.â–º Turn the key towards the rear of the vehicle to lock it, or towards the front to unlock it.
Front passenger door and sliding
side door
Unlockingâ–º Pull the interior door opening handle.Lockingâ–º Open the door.â–º For the side door, check that the child lock is not on. Refer to the corresponding section.

38
Front passenger door

Sliding side doorâ–º Remove the black cap on the edge of the door, using the key.â–º Insert the key in the aperture without forcing it, then without turning it, move the latch sideways towards the inside of the door.â–º Remove the key and refit the black cap.â–º Close the doors and check from the outside that the vehicle is locked.
Side-hinged doors
Unlockingâ–º Use the interior opening handle.Lockingâ–º If fitted to your vehicle, check that the electric child lock is not on.â–º Open the left-hand side-hinged door.

â–º Insert the key into the latch aperture on the edge of the door (without forcing it) and slide the assembly upwards.
â–º Remove the key.â–º Close the door and check from the outside that the vehicle is locked.
Unlocking the tailgate

â–º From inside the vehicle, insert a small screwdriver into hole A on the lock to unlock the tailgate.â–º Move the latch to the left.
NOTIC E
If the fault persists after closing again, the tailgate will remain locked.
Changing the battery
If the battery is flat, this warning lamp comes on, accompanied by an audible signal and the display of a message.
Battery type: CR2032/3 volts.
Without Smart Entry & Start

With Smart Entry & Start

â–º Unclip the cover by inserting a small screwdriver in the slot and lift the cover.
â–º Remove the flat battery from its housing.â–º Put the new battery in place, respecting the polarity. Start by inserting it into the contacts

39
Access
2
located in the corner, then clip the cover onto the unit.â–º Reinitialise the remote control.For more information on Reinitialising the remote control, refer to the corresponding section.
EC O
Do not throw remote control batteries away, as they contain metals that are harmful to the environment. Take them to an approved disposal point.
Reinitialising the remote
control
Following replacement of the battery or in the event of a fault, it may be necessary to reinitialise the remote control.
Without Smart Entry & Start

â–º Switch the ignition off.â–º Turn the key to position 2 (Ignition on).â–º Immediately press the closed padlock button for a few seconds.â–º Switch off the ignition and remove the key from the ignition switch.The remote control is now fully operational again.
With Smart Entry & Start

â–º Insert the mechanical key (incorporated into the remote control) into the lock to open the
vehicle.â–º Place the electronic key against the back-up reader on the steering column and hold it there until the ignition is switched on.â–º With a manual gearbox, place the gear lever in neutral then fully depress the clutch pedal.â–º With an automatic gearbox or drive selector, while in mode P, depress the brake pedal.
â–º Switch on the ignition by pressing the "START/STOP" button.If the fault persists after reinitialisation, contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer without delay.
Central locking


Manual
â–º Press this button to lock/unlock the vehicle (doors, tailgate or side-hinged doors) from inside the vehicle. The indicator lamp comes on to confirm the central locking of the vehicle.
WARNI NG
Central locking does not take place if any of the doors are open.

40
NOTIC E
When locking/deadlocking from the outsideWhen the vehicle is locked or deadlocked from the outside, the indicator lamp flashes and the button is deactivated.â–º After normal locking, pull one of the interior door controls to unlock the vehicle.â–º After deadlocking, you must use the remote control, the "Smart Entry & Start" system or the built-in key to unlock the vehicle.
WARNI NG
Driving with the doors locked makes access for the emergency services more difficult in an emergency.


NOTIC E
When transporting an oversized load (tailgate or side-hinged doors open), press the button to lock only the cab doors.


NOTIC E
When transporting an oversized load (tailgate or side-hinged doors open), press the button to lock only the front and rear doors (sliding side door).
NOTIC E
When locking from inside, the door mirrors do not fold.Central locking from the inside does not operate if one of the doors is open (indicated by a mechanical noise coming from the locks).When the tailgate or side-hinged doors are open, only the other doors are locked (the button does not light up).
Automatic (anti-intrusion
security)
The doors and the tailgate or the side-hinged doors can lock automatically while driving (speed above 6 mph (10 km/h)).
To deactivate/reactivate this function (activated by default):
â–º Press the button until an audible signal is heard and/or a message appears on the screen.
Locking/unlocking the
loading area



NOTIC E
This button is unavailable if the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start, depending on equipment) or if any of the doors are still open.
Automatic
The loading area is always locked when driving.
