441-1. For safe use
RAIZE_OM_General_BZ358E

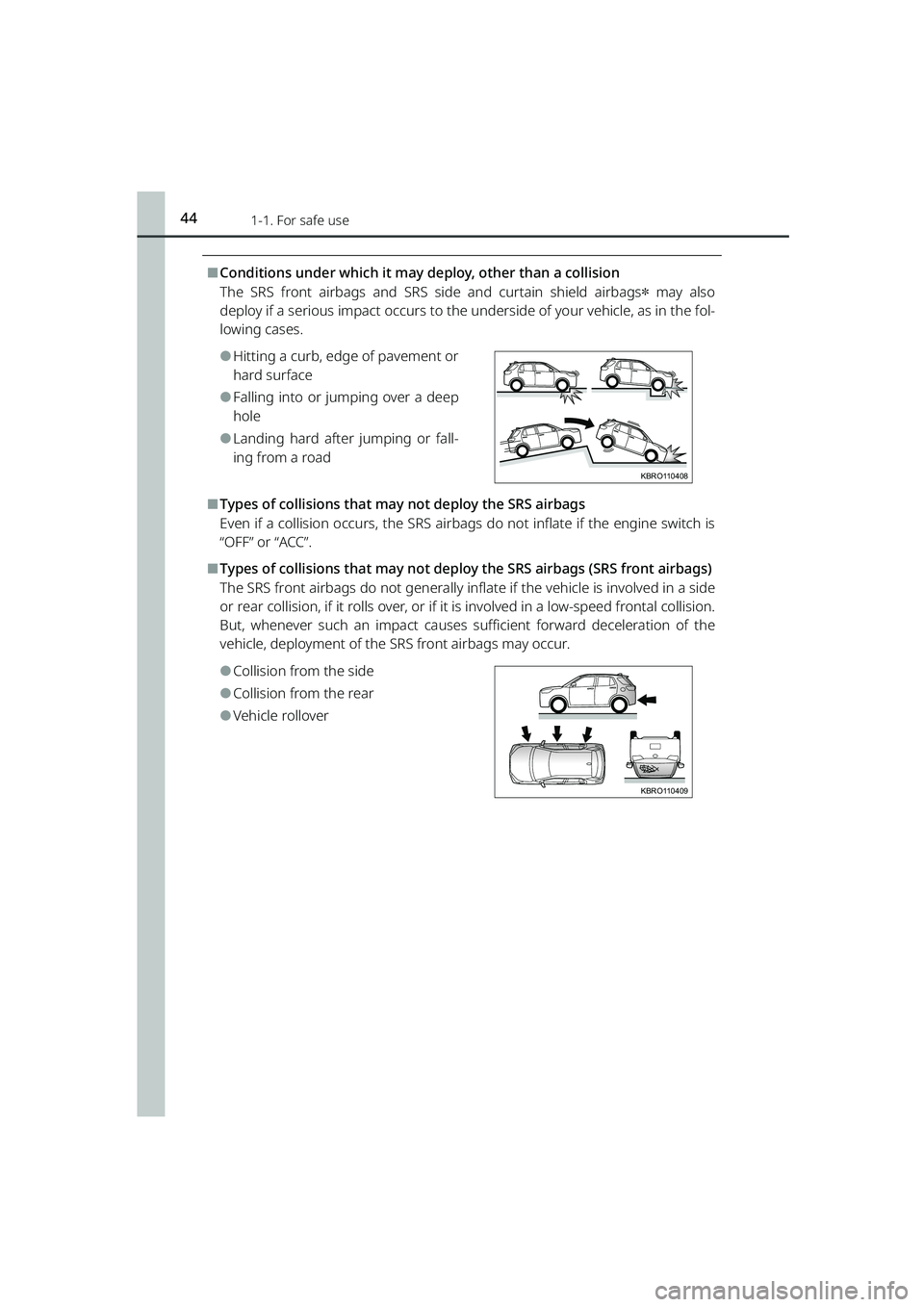

⬛Conditions under which it may deploy, other than a collision
The SRS front airbags and SRS side and curtain shield airbags
✽ may also
deploy if a serious impact occurs to the underside of your vehicle, as in the fol-
lowing cases.
⚫Hitting a curb, edge of pavement or
hard surface
⚫Falling into or jumping over a deep
hole
⚫Landing hard after jumping or fall-
ing from a road
⬛Types of collisions that may not deploy the SRS airbags
Even if a collision occurs, the SRS airbags do not inflate if the engine switch is
“OFF” or “ACC”.
⬛Types of collisions that may not depl oy the SRS airbags (SRS front airbags)
The SRS front airbags do not generally infl ate if the vehicle is involved in a side
or rear collision, if it rolls over, or if it is involved in a low-speed frontal collision.
But, whenever such an impact causes sufficient forward deceleration of the
vehicle, deployment of the SRS front airbags may occur.
⚫Collision from the side
⚫Collision from the rear
⚫Vehicle rollover
KBRO110408
KBRO110409
RAIZE_OM_General_BZ358E.book 44 ページ ２０２２年５月１７日　火曜日　午後１時５９分

691-3. Emergency assistance
RAIZE_OM_General_BZ358E
For safety and security
1

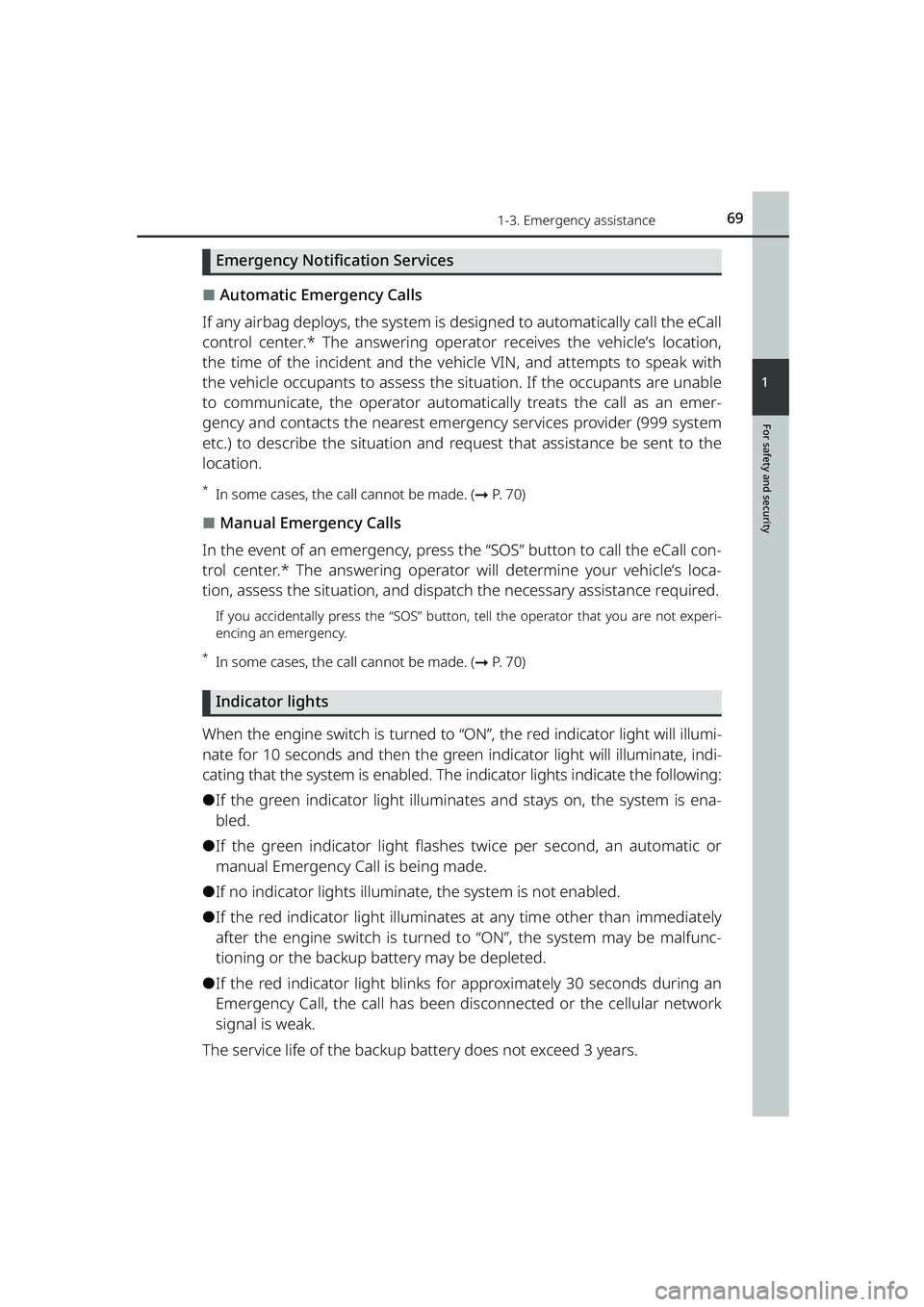

Emergency Notification Services
⬛Automatic Emergency Calls
If any airbag deploys, the system is designed to automatically call the eCall
control center.* The answering operat or receives the vehicle’s location,
the time of the incident and the vehicle VIN, and attempts to speak with
the vehicle occupants to assess the situation. If the occupants are unable
to communicate, the operator automati cally treats the call as an emer-
gency and contacts the nearest emerge ncy services provider (999 system
etc.) to describe the situation and request that assistance be sent to the
location.
*In some cases, the call cannot be made. ( ➞P. 7 0 )
⬛Manual Emergency Calls
In the event of an emergency, press the “SOS” button to call the eCall con-
trol center.* The answering operator will determine your vehicle’s loca-
tion, assess the situation, and dispatch the necessa ry assistance required.
If you accidentally press the “SOS” button, tell the operator that you are not experi-
encing an emergency.
*In some cases, the call cannot be made. ( ➞P. 7 0 )
Indicator lights
When the engine switch is turned to “ON”, the red indicator light will illumi-
nate for 10 seconds and then the gree n indicator light will illuminate, indi-
cating that the system is enabled. The indicator lights indicate the following:
⚫If the green indicator light illuminat es and stays on, the system is ena-
bled.
⚫If the green indicator light flashe s twice per second, an automatic or
manual Emergency Call is being made.
⚫If no indicator lights illuminate, the system is not enabled.
⚫If the red indicator light illuminates at any time other than immediately
after the engine switch is turned to “ON”, the system may be malfunc-
tioning or the backup battery may be depleted.
⚫If the red indicator light blinks for approximately 30 seconds during an
Emergency Call, the call has been disconnected or the cellular network
signal is weak.
The service life of the backup battery does not exceed 3 years.
RAIZE_OM_General_BZ358E.book 69 ページ ２０２２年５月１７日　火曜日　午後１時５９分

72
RAIZE_OM_General_BZ358E
1-4. Theft deterrent system
Engine immobilizer system
The vehicle’s keys have built-in transponder chips, and the vehicle
cannot be started using a key that has not been previously registered
in the vehicle.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guarantee
absolute security against all vehicle thefts.
▶Vehicles without key-free system
After the key has been removed
from the engine switch, the security
indicator on the meter flashes indi-
cating the system activation.
Inserting the registered key to the engine
switch will deactivate the system and turn
off the security indicator on the meter.
▶Vehicles with key-free system
The security indicator on the meter
flashes after the engine switch has
been turned to “OFF” to indicate that
the system is operating.
The system is canceled and the security
indicator on the meter turns off when
you turn the engine switch to “ACC” or
“ON” while carrying the registered key.
⬛Maintenance
The engine immobilizer system is maintenance-free.
⬛Conditions that may cause the system to malfunction
⚫If the key touches or is covered by a metal object
⚫If the key is in close proximity to or touching a key for the security system
(key with a built-in transponder chip) of another vehicle
NOTICE
⬛To ensure the engine immobilizer system operates properly
Do not modify or remove the system.
If modified or removed, the proper oper ation of the system cannot be guaranteed.
KBRO120101E
RAIZE_OM_General_BZ358E.book 72 ページ ２０２２年５月１７日　火曜日　午後１時５９分

731-4. Theft deterrent system
RAIZE_OM_General_BZ358E✽
: If equipped
For safety and security
1
Alarm✽
The alarm
The alarm uses the emergency flashers and sound to give an alert when
an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
⚫A locked door is unlocked and open ed in any way other than using the
key-free function or wireless remote control.
⚫The hood is opened.
Setting the alarm system
The alarm will be set in the following
cases:
Close the doors and hood, and lock
all the doors using the key-free func-
tion or wireless remote control.
⚫When the doors are locked auto-
matically by the security feature.
( ➞ P. 1 3 9 )
The indicator light is flashing when the
system is set.
Deactivating the alarm
Do one of the following to deactivate the alarm:
⚫Unlock the doors using the key-free function or wireless remote control.
⚫Turn the engine switch to “ON”, or start the engine.
KBRO120101E
RAIZE_OM_General_BZ358E.book 73 ページ ２０２２年５月１７日　火曜日　午後１時５９分

741-4. Theft deterrent system
RAIZE_OM_General_BZ358E
Stopping the alarm
Do one of the following to stop the alarm:
⚫Press the lock or unlock button of the wireless remote control.
⚫Press the lock/unlock switch on the front door while carrying the elec-
tronic key with you.
⚫Press the lock button on the back do or while carrying the electronic key
with you (when opening the driver’s door).
⚫Press the back door opener switch on the back door while carrying the
electronic key with you (when closing the driver’s door).
⚫Get in the car with the electronic key.
⚫Turn the engine switch to “ON”, or start the engine.
⬛If the electronic key does not operate properly
If the electronic key does not work du e to battery depletion, etc., perform
the following operation.
a Vehicles with a continuously vari-
able transmission:
Depress the brake pedal.
Vehicles with a manual transmis-
sion:
Depress the clutch pedal.
b Touch the electronic key to the
engine switch, as shown in the
illustration.
KBRO820801E
RAIZE_OM_General_BZ358E.book 74 ページ ２０２２年５月１７日　火曜日　午後１時５９分

822-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
*1The indicator lights up when the engine coolant temperature is low. If the
indicator remains lit blue after the engine is warmed up enough, have it
inspected at Toyota dealer.
*2These lights turn on when the engine swit ch is turned to “ON”, to indicate that
a system check is being performed. Th ey will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the light s do not turn off. Have the vehicle
inspected at your Toyota dealer.
*3It is indicated on the outside rear view mirror.
WARNING
⬛If a safety system warning light does not come on
If warning lights for the safety system such as ABS, and SRS airbags do not
turn on when you turn the engine switch to “ON”, or if the lights remain lit after
a few minutes or when you start the engi ne, the safety system may not operate
in the event of an accident, result ing in serious injury or death.
Have the vehicle inspected at your Toyota dealer immediately.
*2Eco Driving Indicator Light✽169
*2BSM OFF indicator✽211
*2RCTA OFF indicator✽211
*2, 3Outside rear view mirror indicators✽211
Power mode indicator✽190
IndicatorsReference
RAIZE_OM_General_BZ358E.book 82 ページ ２０２２年５月１７日　火曜日　午後１時５９分

852-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Instrument cluster
2
d Shift position display✽
Indicates the selected shift position. ( ➞P. 189)
e Speedometer
Indicates the speed of the vehicle.
fDisplay change button
Switches the display of the multi-information display. (➞P. 87)
g Clock adjustment switches ( ➞P. 88)

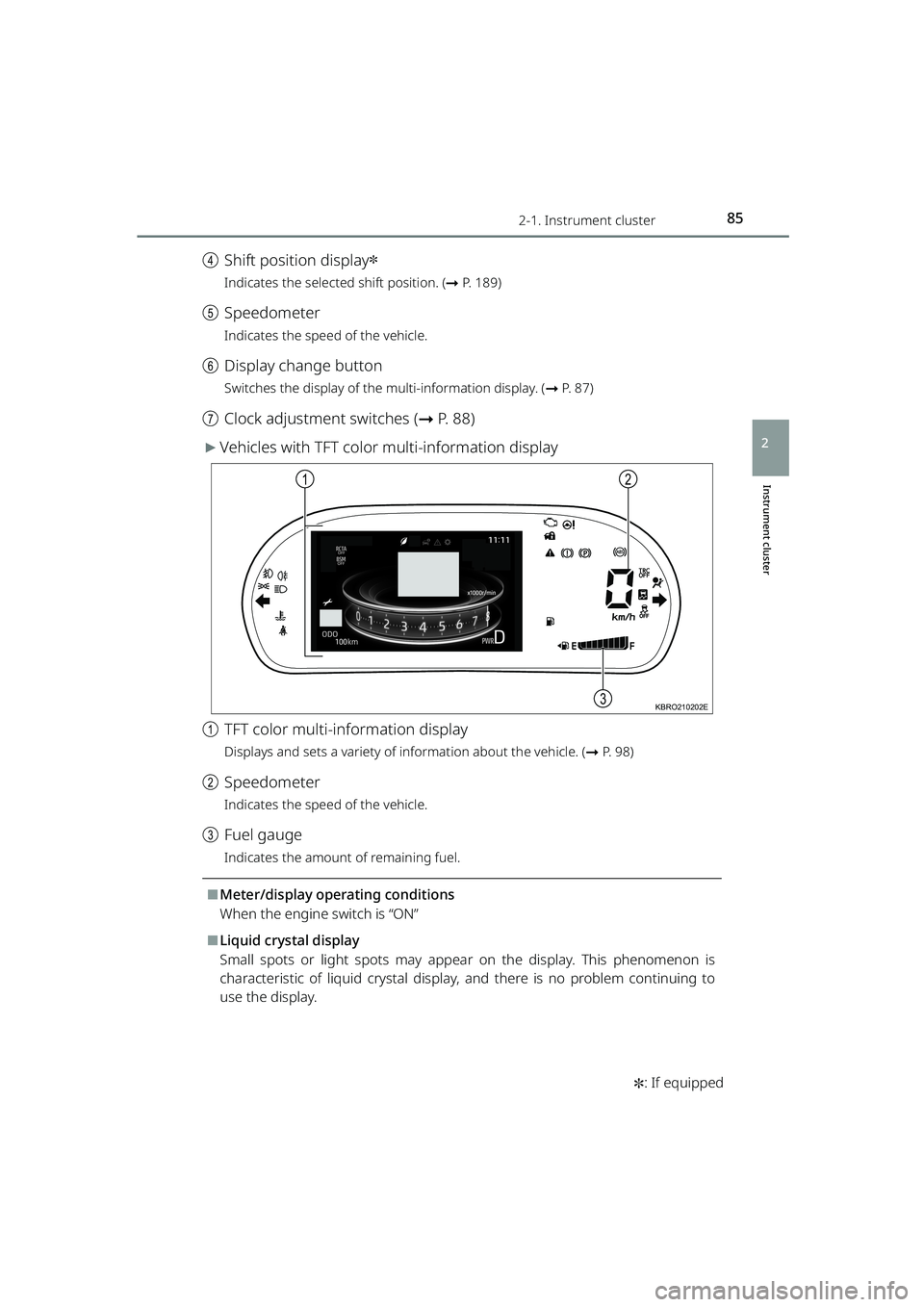

▶Vehicles with TFT color multi-information display
a TFT color multi-information display
Displays and sets a variety of information about the vehicle. ( ➞P. 98)
b Speedometer
Indicates the speed of the vehicle.
cFuel gauge
Indicates the amount of remaining fuel.
⬛Meter/display operating conditions
When the engine switch is “ON”
⬛Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal display, and there is no problem continuing to
use the display.
1
3
2
KBRO210202E
RAIZE_OM_General_BZ358E.book 85 ページ ２０２２年５月１７日　火曜日　午後１時５９分
