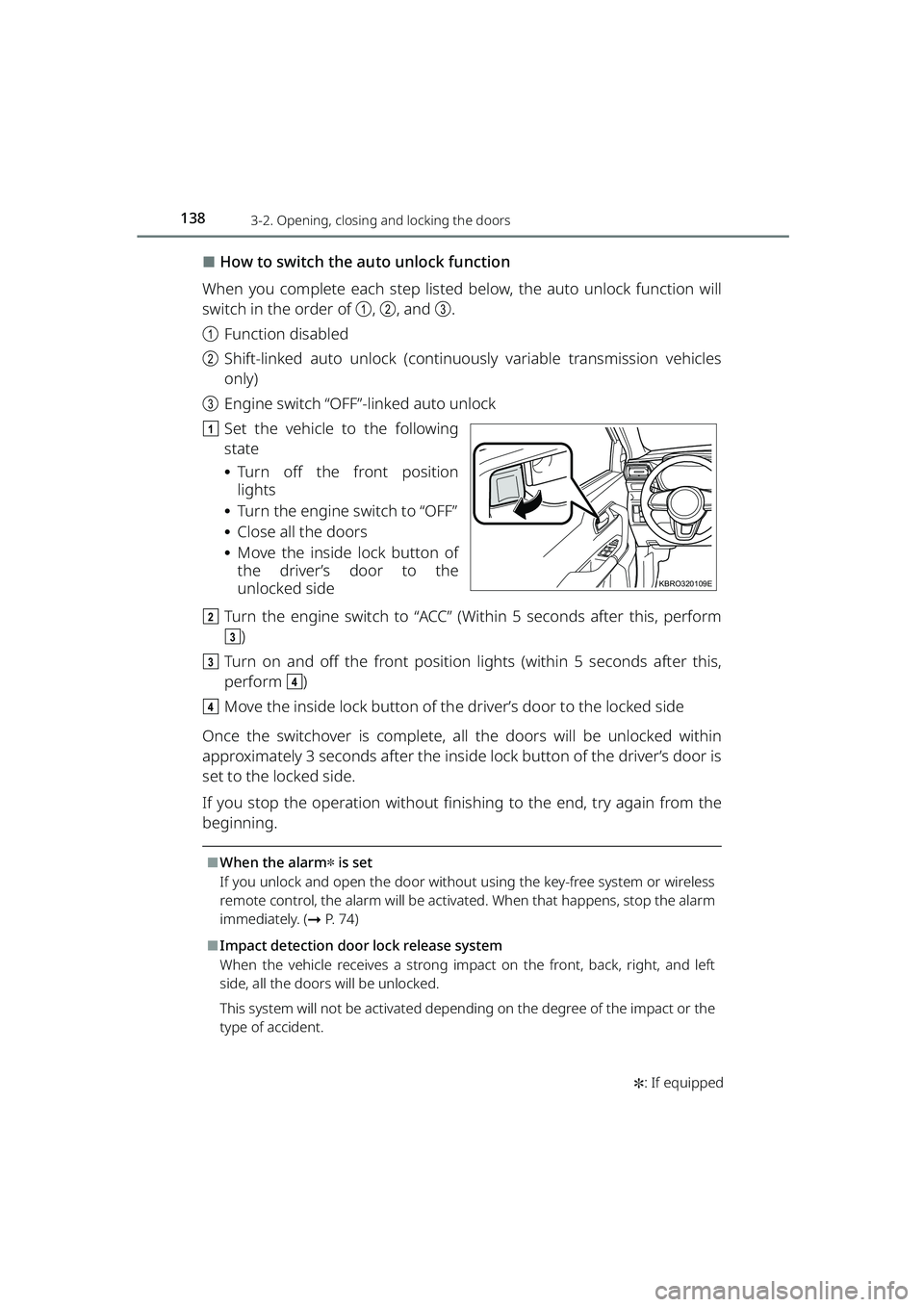

⬛How to switch the auto unlock function
When you complete each step listed below, the auto unlock function will
switch in the order of a, b , and c.
a Function disabled
b Shift-linked auto unlock (continuously variable transmission vehicles
only)
c Engine switch “OFF”-linked auto unlock
a Set the vehicle to the following
state
⦁Turn off the front position
lights
⦁ Turn the engine switch to “OFF”
⦁ Close all the doors
⦁ Move the inside lock button of
the driver’s door to the
unlocked side
b Turn the engine switch to “ACC” (Within 5 seconds after this, perform
c)
c Turn on and off the front position lights (within 5 seconds after this,
perform d)
d Move the inside lock button of th e driver’s door to the locked side
Once the switchover is complete, all the doors will be unlocked within
approximately 3 seconds after the inside lock button of the driver’s door is
set to the locked side.
If you stop the operation without fini shing to the end, try again from the
beginning.
⬛When the alarm✽ is set
If you unlock and open the door withou t using the key-free system or wireless
remote control, the alarm will be activat ed. When that happens, stop the alarm
immediately. ( ➞P. 7 4 )
⬛Impact detection door lock release system
When the vehicle receives a strong impact on the front, back, right, and left
side, all the doors will be unlocked.
This system will not be activated depend ing on the degree of the impact or the
type of accident.
KBRO320109E
RAIZE_OM_General_BZ358E.book 138 ページ ２０２２年５月１７日　火曜日　午後１時５９分

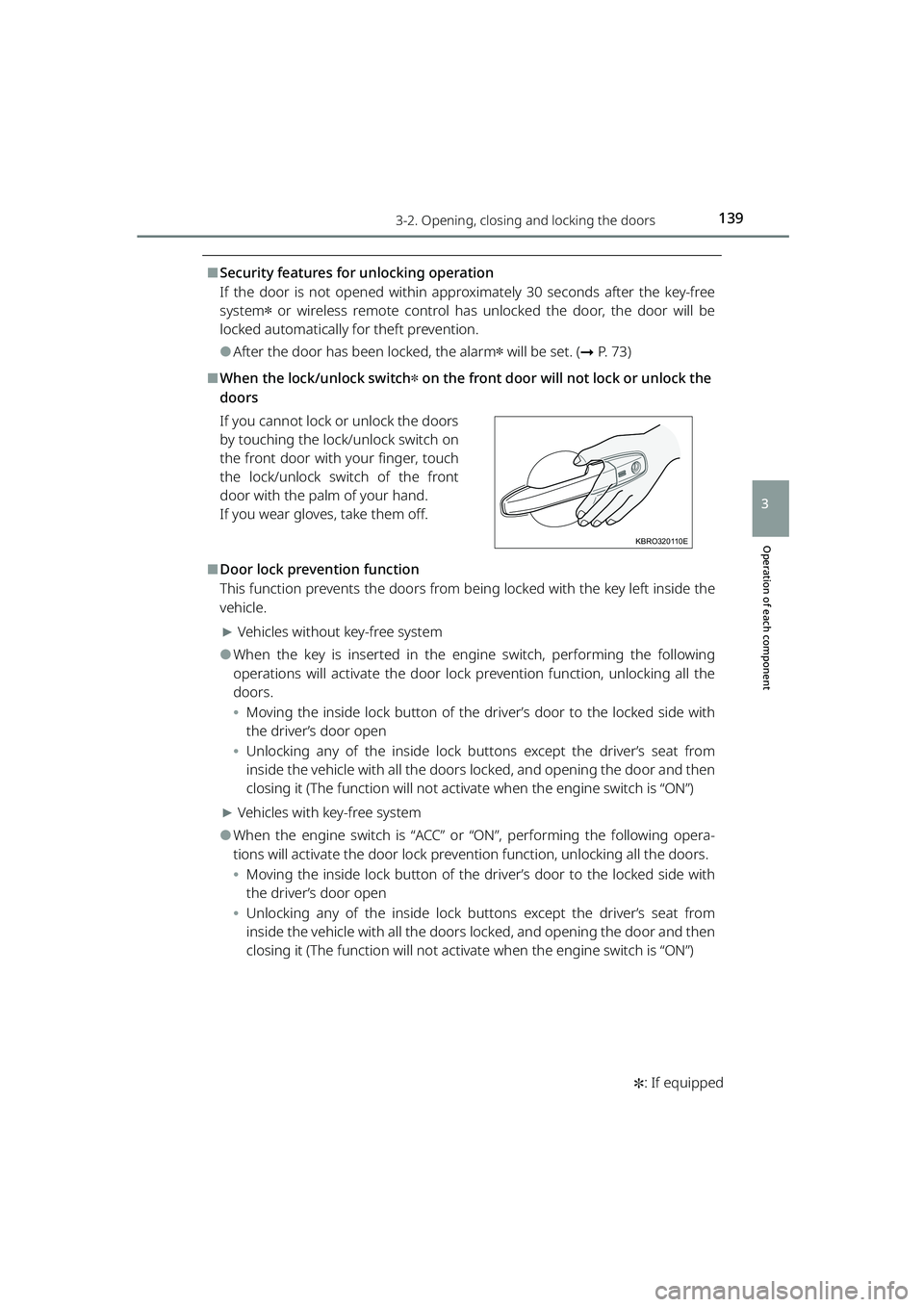

1393-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
✽: If equipped
Operation of each component
3
⬛Security features for unlocking operation
If the door is not opened within appr oximately 30 seconds after the key-free
system
✽ or wireless remote control has unlocked the door, the door will be
locked automatically for theft prevention.
⚫After the door has been locked, the alarm✽ will be set. ( ➞P. 7 3 )
⬛When the lock/unlock switch✽ on the front door will not lock or unlock the
doors
If you cannot lock or unlock the doors
by touching the lock/unlock switch on
the front door with your finger, touch
the lock/unlock switch of the front
door with the palm of your hand.
If you wear gloves, take them off.
⬛Door lock prevention function
This function prevents the doors from be ing locked with the key left inside the
vehicle.
▶Vehicles without key-free system
⚫When the key is inserted in the engine switch, performing the following
operations will activate the door lock prevention function, unlocking all the
doors.
⦁ Moving the inside lock button of the driver’s door to the locked side with
the driver’s door open
⦁ Unlocking any of the inside lock bu ttons except the driver’s seat from
inside the vehicle with all the doors locked, and opening the door and then
closing it (The function will not acti vate when the engine switch is “ON”)
▶Vehicles with key-free system
⚫When the engine switch is “ACC” or “ON”, performing the following opera-
tions will activate the door lock prevention function, unlocking all the doors.
⦁ Moving the inside lock button of the driver’s door to the locked side with
the driver’s door open
⦁ Unlocking any of the inside lock bu ttons except the driver’s seat from
inside the vehicle with all the doors locked, and opening the door and then
closing it (The function will not acti vate when the engine switch is “ON”)
KBRO320110E
RAIZE_OM_General_BZ358E.book 139 ページ ２０２２年５月１７日　火曜日　午後１時５９分

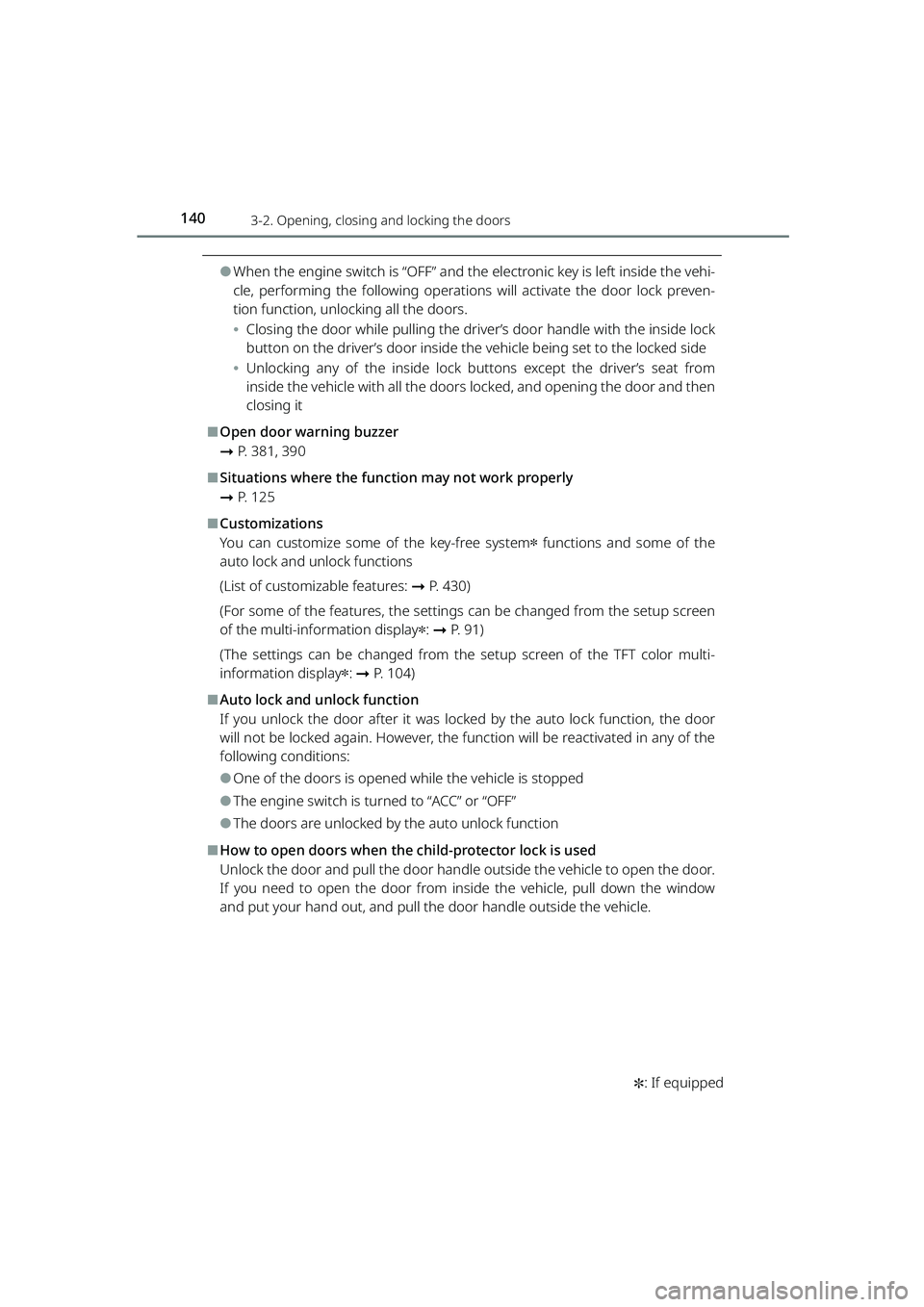

1403-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
✽: If equipped
⚫When the engine switch is “OFF” and the electronic key is left inside the vehi-
cle, performing the following operations will activate the door lock preven-
tion function, unlocking all the doors.
⦁ Closing the door while pulling the driv er’s door handle with the inside lock
button on the driver’s door inside th e vehicle being set to the locked side
⦁ Unlocking any of the inside lock bu ttons except the driver’s seat from
inside the vehicle with all the doors locked, and opening the door and then
closing it
⬛Open door warning buzzer
➞ P. 381, 390
⬛Situations where the function may not work properly
➞P. 1 2 5
⬛Customizations
You can customize some of the key-free system
✽ functions and some of the
auto lock and unlock functions
(List of customizable features: ➞ P. 430)
(For some of the features, the settings can be changed from the setup screen
of the multi-info rmation display
✽: ➞ P. 9 1 )
(The settings can be changed from the setup screen of the TFT color multi-
information display
✽: ➞ P. 104)
⬛Auto lock and unlock function
If you unlock the door after it was lock ed by the auto lock function, the door
will not be locked again. However, the func tion will be reactivated in any of the
following conditions:
⚫One of the doors is opened while the vehicle is stopped
⚫The engine switch is turned to “ACC” or “OFF”
⚫The doors are unlocked by the auto unlock function
⬛How to open doors when the child-protector lock is used
Unlock the door and pull the door handle outside the vehicle to open the door.
If you need to open the door from in side the vehicle, pull down the window
and put your hand out, and pull th e door handle outside the vehicle.
RAIZE_OM_General_BZ358E.book 140 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1433-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3
Closing the back door

Hold the back door inner handle to
lower the back door
Make sure to close it from the outside by
pushing it down.

⬛Luggage compartment light (door-linked) The luggage compartment light
(door-linked) will light up when the
back door or any door other than the
back door is opened.
When the engine switch is “ACC” or
“OFF”, the light will automatically turn
off approximately after 10 minutes.

⬛Unlocking the back door
If the back door cannot be opened by unlocking with the back door opener
switch, check to see if the b ack door is slightly open.
⬛Open door warning buzzer
➞P. 381, 390
⬛Customizations
You can customize the operations performed by the back door switch.
(List of customizable features: ➞ P. 430)
KBRO320203N
KBRO530105N
Parts.fm 143 ページ ２０２２年６月１７日　金曜日　午前９時２分

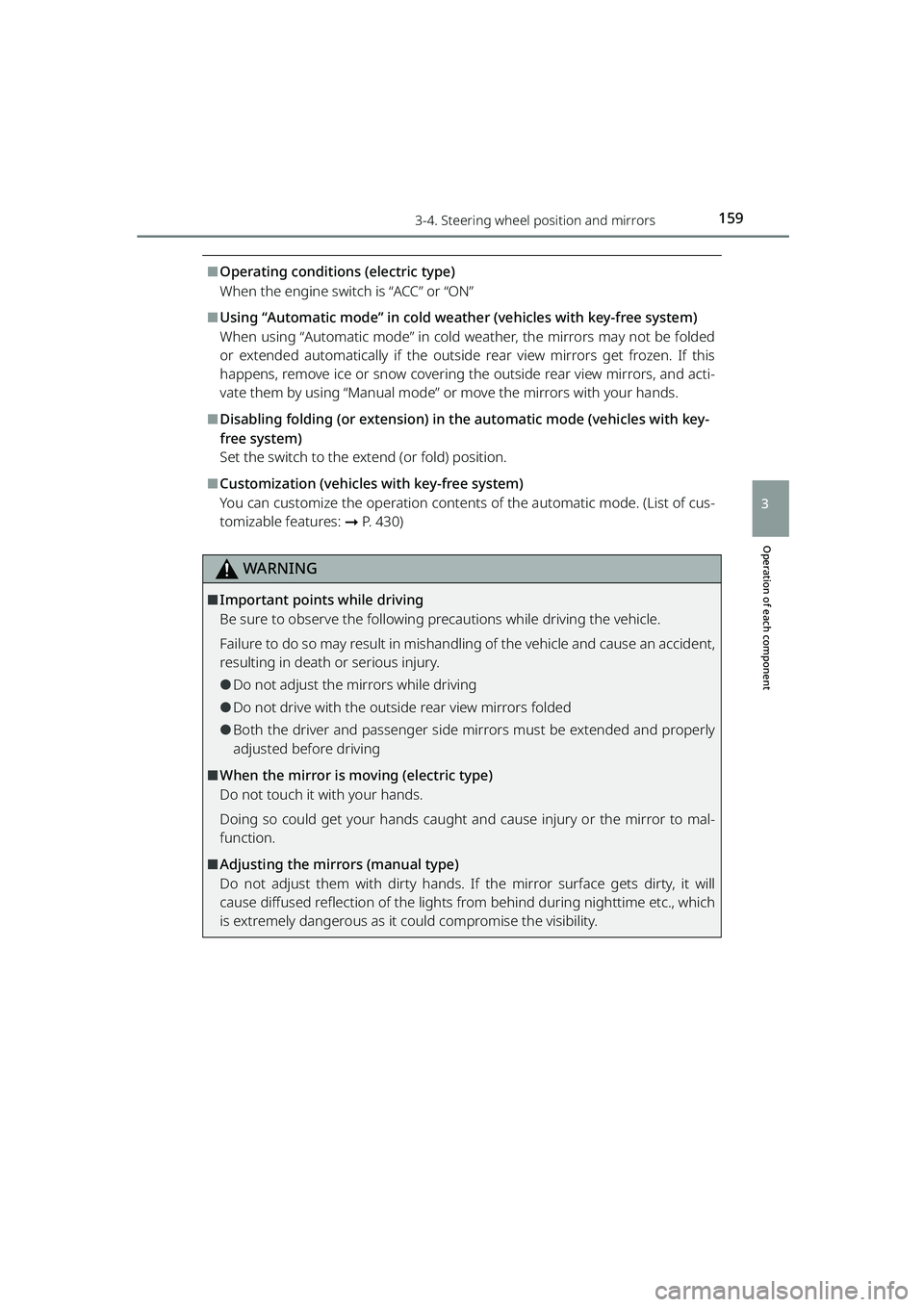

1593-4. Steering wheel position and mirrors
RAIZE_OM_General_BZ358E
Operation of each component
3
⬛Operating conditions (electric type)
When the engine switch is “ACC” or “ON”
⬛Using “Automatic mode” in cold weather (vehicles with key-free system)
When using “Automatic mode” in cold weather, the mirrors may not be folded
or extended automatically if the outsid e rear view mirrors get frozen. If this
happens, remove ice or snow covering the outside rear view mirrors, and acti-
vate them by using “Manual mode” or move the mirrors with your hands.
⬛Disabling folding (or extension) in the automatic mode (vehicles with key-
free system)
Set the switch to the extend (or fold) position.
⬛Customization (vehicles with key-free system)
You can customize the operation contents of the automatic mode. (List of cus-
tomizable features: ➞ P. 430)
WARNING
⬛Important points while driving
Be sure to observe the following pr ecautions while driving the vehicle.
Failure to do so may result in mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
⚫Do not adjust the mirrors while driving
⚫Do not drive with the outside rear view mirrors folded
⚫Both the driver and passenger side mirrors must be extended and properly
adjusted before driving
⬛When the mirror is moving (electric type)
Do not touch it with your hands.
Doing so could get your hands caught and cause injury or the mirror to mal-
function.
⬛Adjusting the mirrors (manual type)
Do not adjust them with dirty hands. If the mirror surface gets dirty, it will
cause diffused reflection of the lights fr om behind during nighttime etc., which
is extremely dangerous as it could compromise the visibility.
RAIZE_OM_General_BZ358E.book 159 ページ ２０２２年５月１７日　火曜日　午後１時５９分

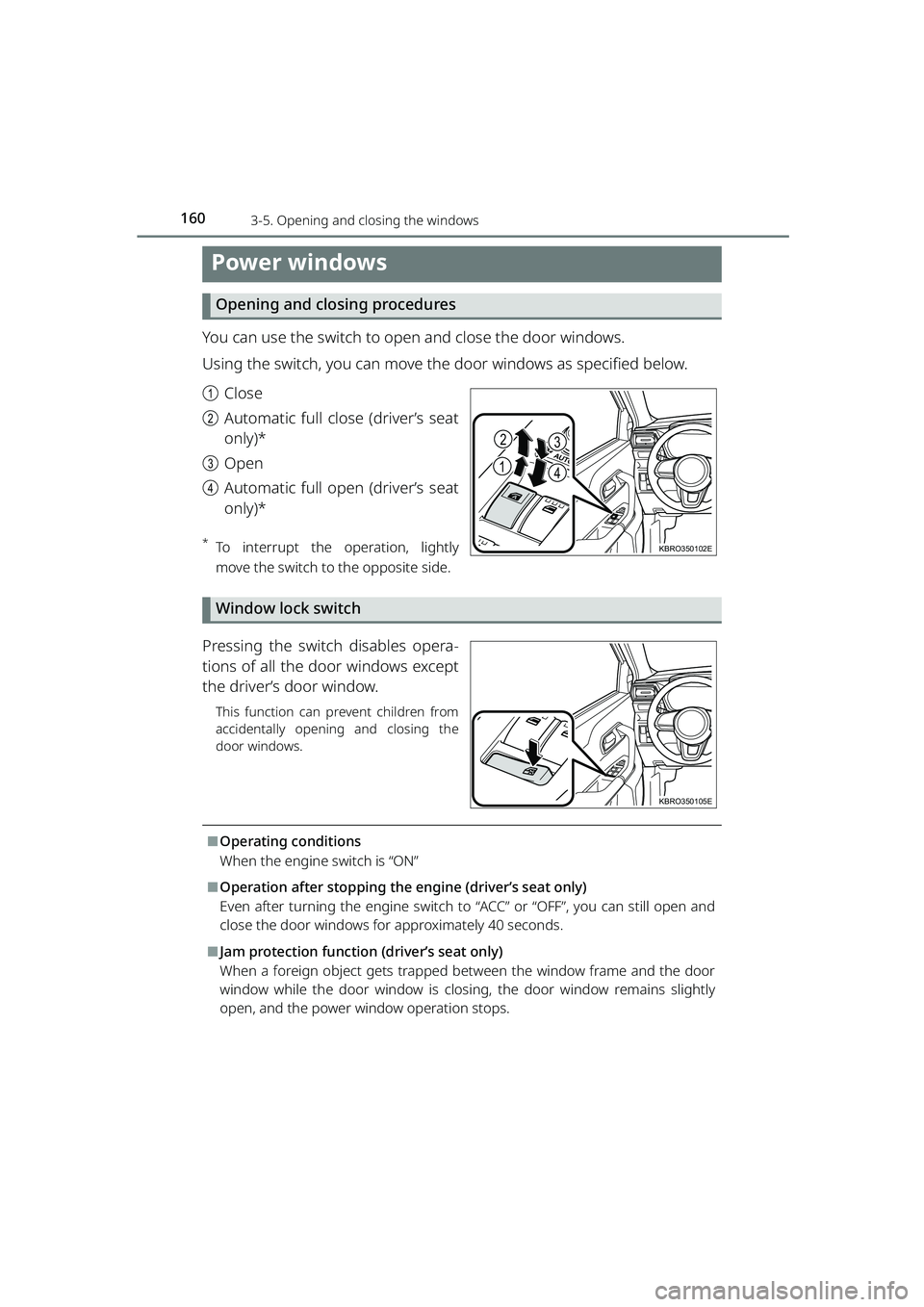

160
RAIZE_OM_General_BZ358E
3-5. Opening and closing the windows
Power windows
Opening and closing procedures
You can use the switch to open and close the door windows.
Using the switch, you can move the door windows as specified below.
aClose
b Automatic full close (driver’s seat
only)*
c Open
d Automatic full open (driver’s seat
only)*
*To interrupt the operation, lightly
move the switch to the opposite side.
Window lock switch
Pressing the switch disables opera-
tions of all the door windows except
the driver’s door window.
This function can prevent children from
accidentally opening and closing the
door windows.
⬛Operating conditions
When the engine switch is “ON”
⬛Operation after stopping the engine (driver’s seat only)
Even after turning the engine switch to “ACC” or “OFF”, you can still open and
close the door windows for approximately 40 seconds.
⬛Jam protection function (driver’s seat only)
When a foreign object gets trapped between the window frame and the door
window while the door window is closin g, the door window remains slightly
open, and the power window operation stops.
1
2
4
3
KBRO350102E
KBRO350105E
RAIZE_OM_General_BZ358E.book 160 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1613-5. Opening and closing the windows
RAIZE_OM_General_BZ358E
Operation of each component
3
⬛Overheat protection function of the power window motor
The power window motor has a built-in overheat protection function. If the
power window motor continues to run at a high load, the overheat protection
function may get activated and temporarily stops the power window opera-
tion. After a dozen seconds, it starts working normally again.
⬛When the driver’s door window will not close
When the driver’s door window will not close all the way due to the jam protec-
tion function being activated abnormall y, perform the following operations
using the window switch on the driver’s door.
a Stop the vehicle and turn the engine switch to “ON”
b Pull the window switch on the driver’s door until it reaches the “automatic
full close” position, close the door wind ow all the way, and keep holding the
switch for 6 seconds
If you release your hand from the swit ch while the door window is moving, you
need to start over from the beginning.
If these operations do not close the door window all the way and the window
still moves in a reverse direction, bring your vehicle to a Toyota dealer for
inspection.
⬛Reconnecting the battery
Follow the steps described below and configure the initial settings to ensure
proper operation of the power windows.
a Turn the engine switch to “ON”
b Hold down the window switch of the driver’s door to open the window all
the way
c Pull the window switch on the driver’s door until it reaches the “automatic
full close” position, close the door wind ow all the way, and keep holding the
switch for 2 seconds
If you release your hands from the switch while the door window is moving,
you need to start over from the step b.
RAIZE_OM_General_BZ358E.book 161 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1623-5. Opening and closing the windows
RAIZE_OM_General_BZ358E
WARNING
Observe the following precautions.
Failure to do so may cause death or serious injury.
⬛Closing the windows
⚫The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is possi-
ble for children and other passengers to have body parts caught in the
power window.
Also, when riding with a child, it is recommended to use the window lock
switch. ( ➞P. 160)
⚫Check to make sure that all passen-
gers do not have any part of their
body in a position where it could be
caught when a window is being
operated.
⚫When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
⬛Jam protection function (driver’s seat only)
⚫Never try to have the passengers put their hands, arms, heads, and necks
out to be caught in the glass window so as to activate the jam protection
function.
⚫The jam protection function may not be activated if a foreign object gets
caught right before the door windows close completely. In addition, the jam
protection function will not be activated if the switch is kept being pulled. Be
careful not to get your fingers caught.
⚫Especially when a small object gets caught, the jam protection function may
not be activated.
KBRO350103E
RAIZE_OM_General_BZ358E.book 162 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1633-5. Opening and closing the windows
RAIZE_OM_General_BZ358E
Operation of each component
3

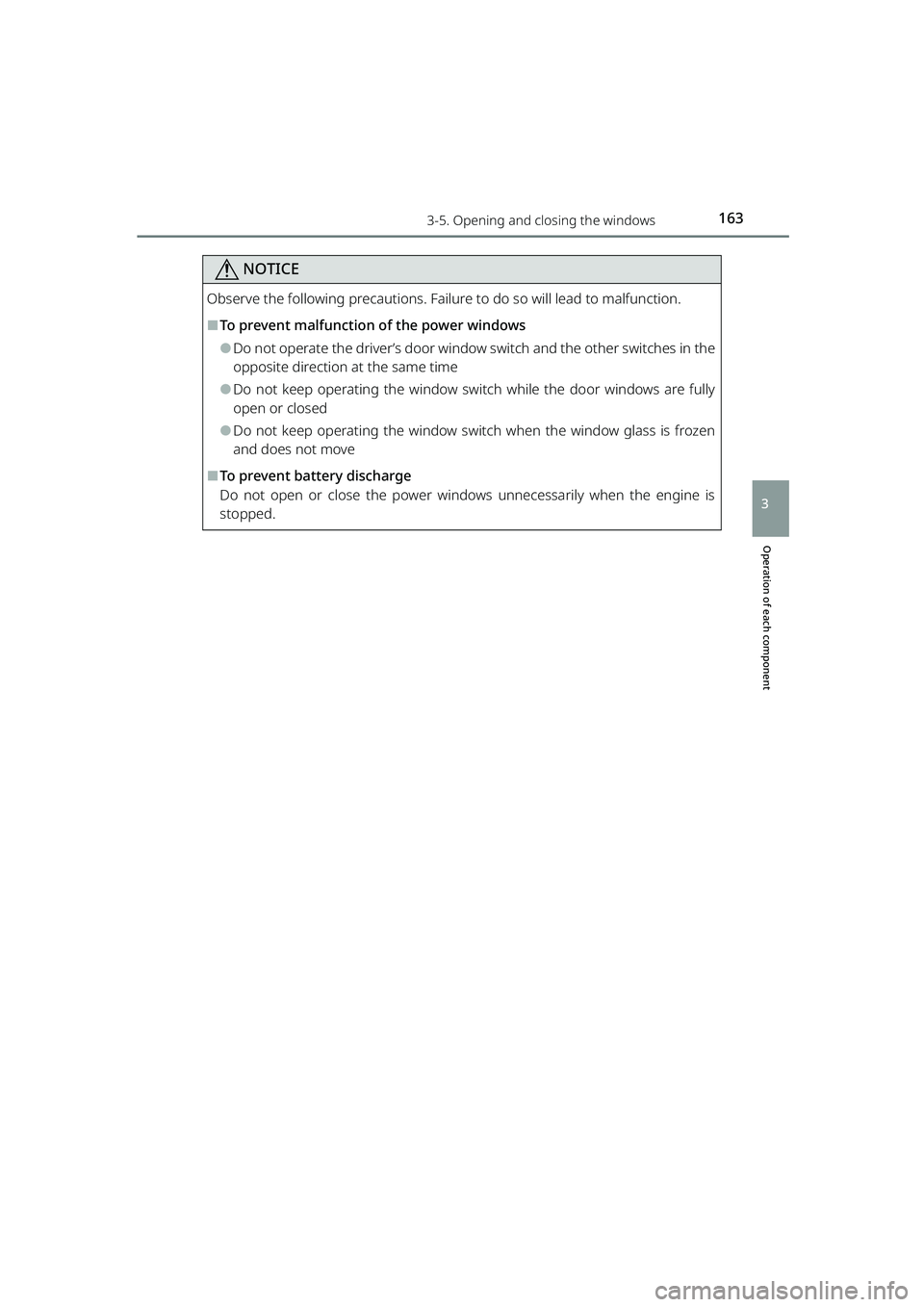

NOTICE
Observe the following precautions. Failure to do so will lead to malfunction.
⬛To prevent malfunction of the power windows
⚫Do not operate the driver’s door window switch and the other switches in the
opposite direction at the same time
⚫Do not keep operating the window switch while the door windows are fully
open or closed
⚫Do not keep operating the window sw itch when the window glass is frozen
and does not move
⬛To prevent battery discharge
Do not open or close the power wi ndows unnecessarily when the engine is
stopped.
RAIZE_OM_General_BZ358E.book 163 ページ ２０２２年５月１７日　火曜日　午後１時５９分

165
4
RAIZE_OM_General_BZ358E
Driving
4-1. Driving the vehicle
Driving the vehicle .....................166
Precautions when loading luggage .....................................177
Trailer towing ..............................179
4-2. Driving procedures
Engine (ignition) switch (vehicles without key-free
system) ......................................180
Engine (ignition) switch (vehicles with key-free
system) ......................................184
Continuously variable transmission .............................189
Driving the manual transmission vehicle ........................................194
Turn signal lever.........................196
Parking brake..............................197
4-3. Operating the lights and windshield wipers
Headlight switch ........................ 198
Fog light switch .......................... 201
Windshield wipers and washer
(front)......................................... 203
Windshield wipers and washer (rear) .......................................... 205
4-4. Refueling
Opening the fuel tank cap....... 207
4-5. Using the driving support systems
BSM (Blind Spot Monitor) ........ 211
Front corner sensors/
Reverse sensors ...................... 221
Rear-view camera ...................... 228
Driving assist systems .............. 232
4-6. Driving tips
Winter driving tips ..................... 238
Eco-friendly driving tips ........... 241
RAIZE_OM_General_BZ358E.book 165 ページ ２０２２年５月１７日　火曜日　午後１時５９分
