922-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped

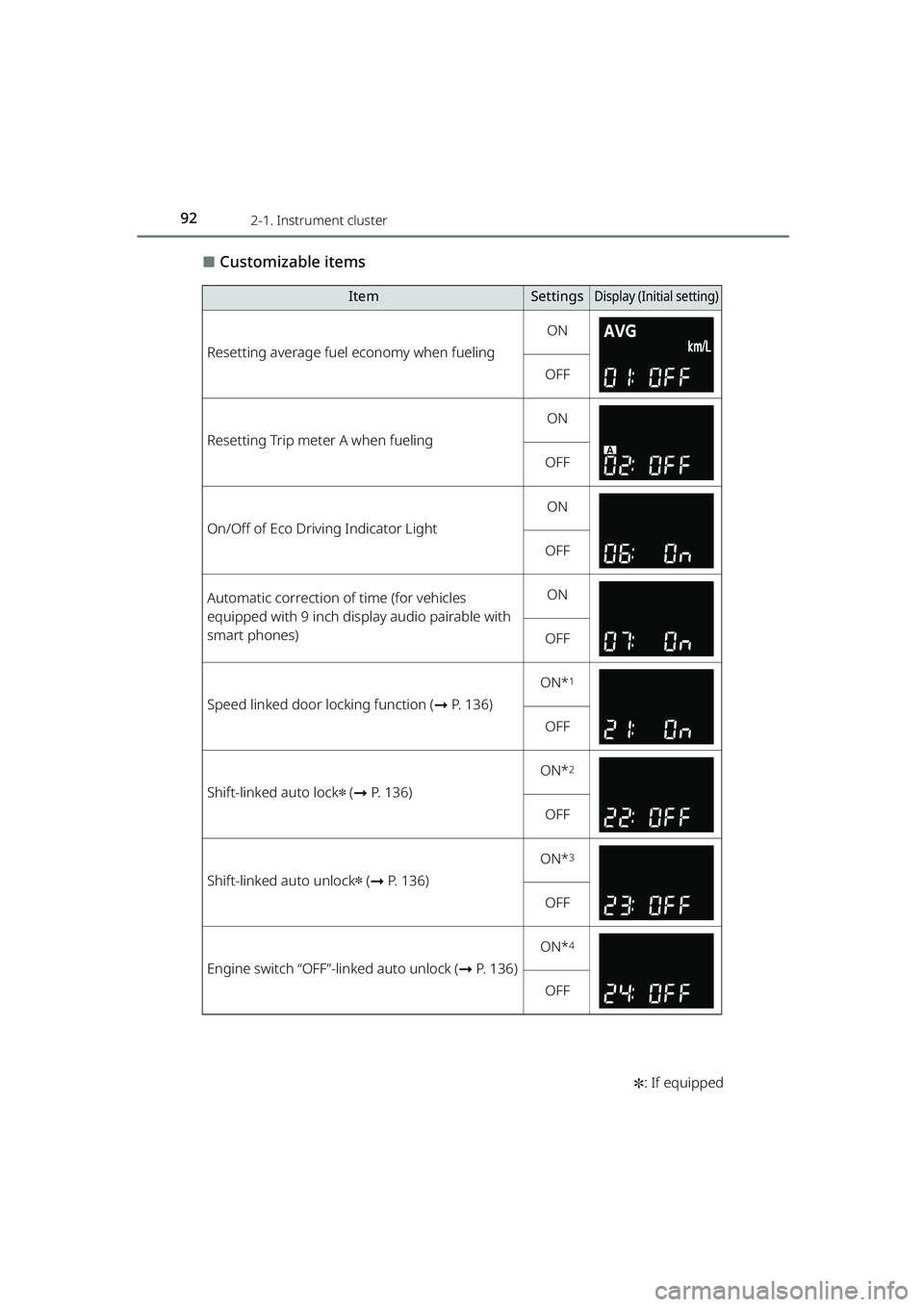

⬛Customizable items
ItemSettingsDisplay (Initi al setting)
Resetting average fuel economy when fueling
ON
OFF
Resetting Trip meter A when fueling
ON
OFF
On/Off of Eco Driving Indicator Light
ON
OFF
Automatic correction of time (for vehicles
equipped with 9 inch display audio pairable with
smart phones)ON
OFF
Speed linked door locking function ( ➞P. 136)
ON*1
OFF
Shift-linked auto lock✽ (➞ P. 136)
ON*2
OFF
Shift-linked auto unlock✽ (➞ P. 136)
ON*3
OFF
Engine switch “OFF”-linked auto unlock ( ➞P. 136)
ON*4
OFF
RAIZE_OM_General_BZ358E.book 92 ページ ２０２２年５月１７日　火曜日　午後１時５９分

932-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Instrument cluster
2
*1When this is set to ON, the setting for shift-linked auto lock✽ turns OFF.
*2When this is set to ON, the setting for speed linked door locking function
turns OFF.
*3When this is set to ON, the setting for door unlocking linked with engine
switch OFF turns OFF.
*4When this is set to ON, the se tting for shift-linked auto unlock✽ turns OFF.

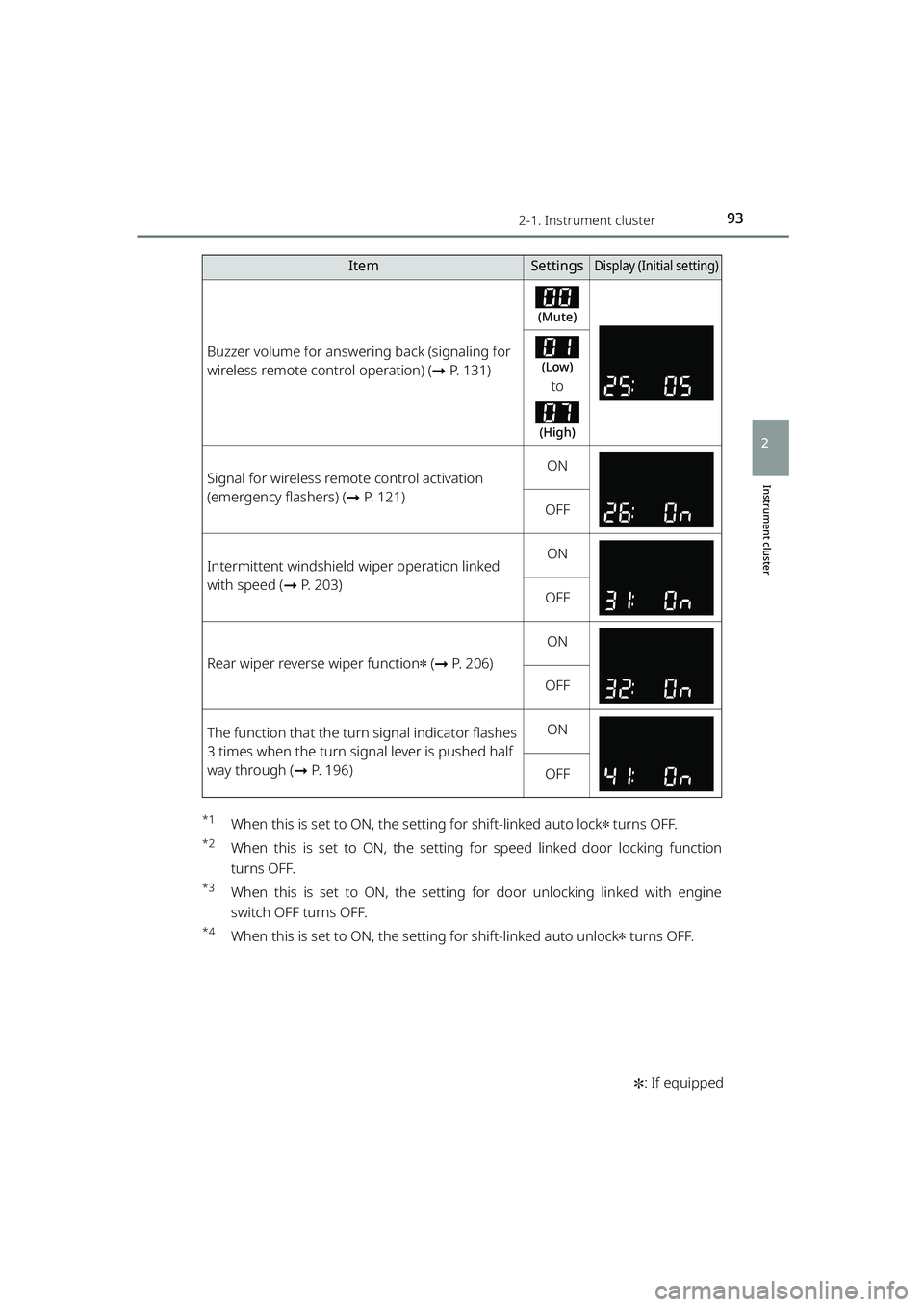

Buzzer volume for answering back (signaling for
wireless remote control operation) ( ➞P. 131)
(Mute)
(Low)
to
(High)
Signal for wireless remote control activation
(emergency flashers) ( ➞P. 121)ON
OFF
Intermittent windshield wiper operation linked
with speed ( ➞P. 203)ON
OFF
Rear wiper reverse wiper function✽ (➞ P. 206)
ON
OFF
The function that the turn signal indicator flashes
3 times when the turn signal lever is pushed half
way through ( ➞P. 196)ON
OFF
ItemSettingsDisplay (Initi al setting)
RAIZE_OM_General_BZ358E.book 93 ページ ２０２２年５月１７日　火曜日　午後１時５９分

942-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
⬛How to initialize settings
a Press and hold the switch while Odometer is displayed to switch to the
user customization screen
b Press the switch until appears
c While is displayed, press and hold the switch. After
appears, press and hold the switch again
After starts flashing, go back to the odometer display to see the fol-
lowing items are initialized.
Engine oil deterioration warning reset✽
Perform this operation after th e engine oil has been changed.
When the engine oil is deteriorated or the engine oil replacement is due soon, the Oil
deteriorate warning light will turn on ( ➞P. 382).
a Press the ODO/TRIP switch to
display trip meter A
b Turn the engine switch to “OFF”
c While pressing the ODO/TRIP
switch, turn “ON” the engine
switch
Do not start the engine yet.
Keep holding the ODO/TRIP switch
until the Oil deteriorate warning light
turns off.
dCheck that the Oil deteriorate
warning light is flashing fast
ItemInitial setting
Resetting average fuel economy when fuelingOFF
Resetting Trip meter A when fuelingOFF
On/Off of Eco Driving Indicator LightON
Automatic correction of time (for vehicles equipped with 9 inch dis-
play audio pairable with smart phones)ON
KBRO210342E
RAIZE_OM_General_BZ358E.book 94 ページ ２０２２年５月１７日　火曜日　午後１時５９分

952-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
⬛About average fuel economy
⚫Immediately after the engine switch has been turned “ON”, it shows the
value when the engine was stopped last.
⚫Fuel economy is not displayed if the da ta cannot be received when refresh-
ing the display, or if in valid data is received.
⬛About cruising distance
⚫Refreshing time for display depend s on driving conditions (running,
stopped).
⚫Note that the cruising distance data shown as when you receive your new
vehicle does not necessarily represent the correct value.
⚫When a malfunction is detected, cruising distance data may not be displayed
for a while.
⬛About outside temperature
⚫When the outside temperature cannot be measured correctly, it shows “- -°C”.
⚫Under the following conditions, the outside temperature may not be dis-
played properly, or update of temperat ure indication may be delayed. These
phenomena are not considered a failure.
⦁ When the vehicle is stopped or is running at low speeds (approx. 20 km/h
[12.4 mph] or lower)
⦁ When the outside temperature drastically changes (in a garage, or at the
entrance/exit of a tunnel)
⚫The outside temperature indication may change depending on the vehicle
conditions, such as speed and wind direction.
⬛About road surface freezing warning indication
⚫Indication of road surface freezing warnin g is just a guide. Be sure to check
the actual condition of the road.
⚫When the engine switch is turned “ON” , the warning will not be displayed if
the outside temperature is already 3°C (37 ℉) or below.
⚫Once the road surface freezing warning is displayed, the warning will not
appear again until the outside temperature becomes 4°C (39 ℉) or higher
and then goes down to 3°C (37 ℉) or lower.
RAIZE_OM_General_BZ358E.book 95 ページ ２０２２年５月１７日　火曜日　午後１時５９分

972-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2

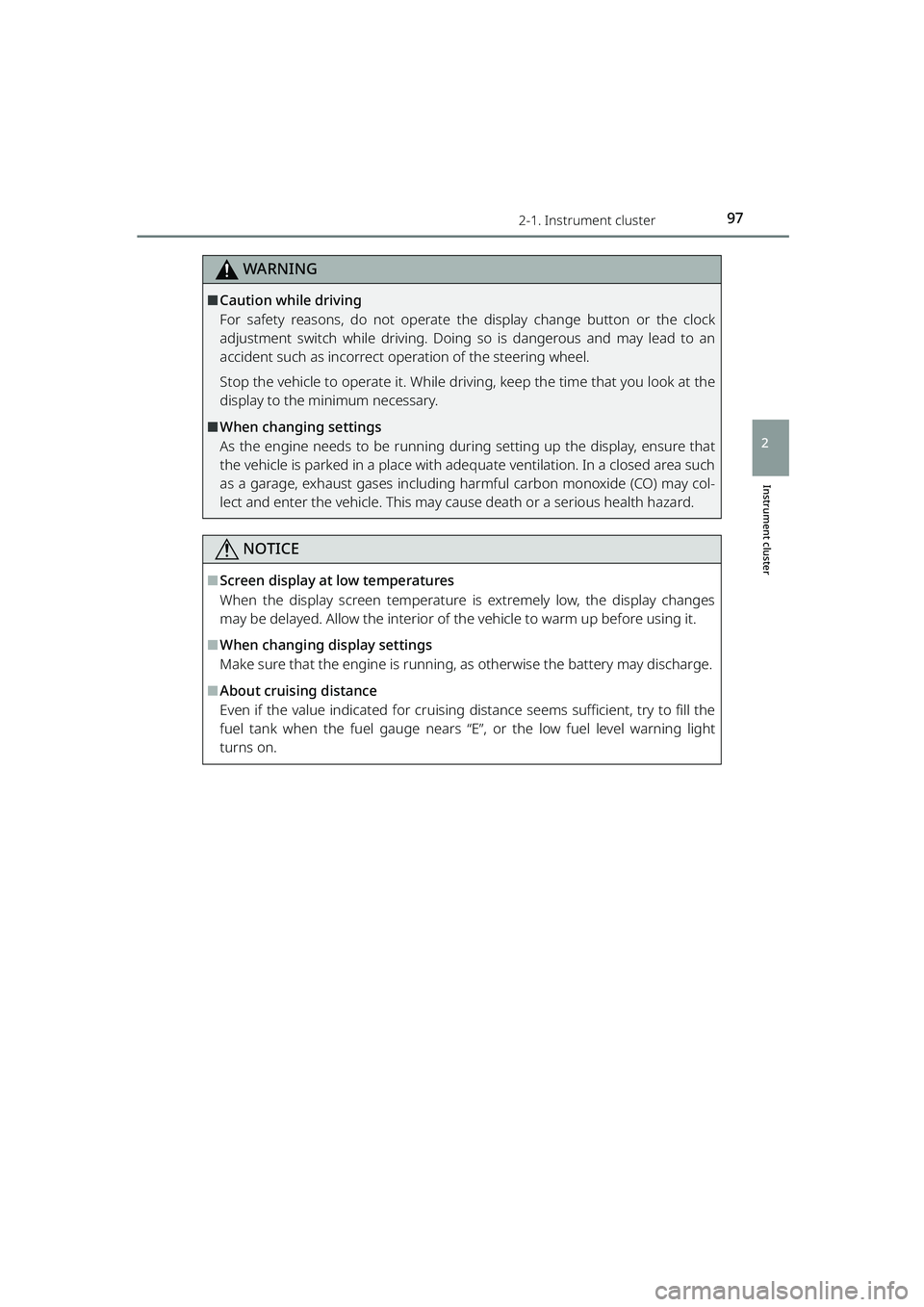

WARNING
⬛Caution while driving
For safety reasons, do not operate the display change button or the clock
adjustment switch while driving. Doing so is dangerous and may lead to an
accident such as incorrect op eration of the steering wheel.
Stop the vehicle to operate it. While drivin g, keep the time that you look at the
display to the minimum necessary.
⬛When changing settings
As the engine needs to be running duri ng setting up the display, ensure that
the vehicle is parked in a place with adeq uate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may col-
lect and enter the vehicle. This may cau se death or a serious health hazard.
NOTICE
⬛Screen display at low temperatures
When the display screen temperature is extremely low, the display changes
may be delayed. Allow the interior of th e vehicle to warm up before using it.
⬛When changing display settings
Make sure that the engine is running, as otherwise the battery may discharge.
⬛About cruising distance
Even if the value indicated for cruising distance seems sufficient, try to fill the
fuel tank when the fuel gauge nears “E”, or the low fuel level warning light
turns on.
RAIZE_OM_General_BZ358E.book 97 ページ ２０２２年５月１７日　火曜日　午後１時５９分

982-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped

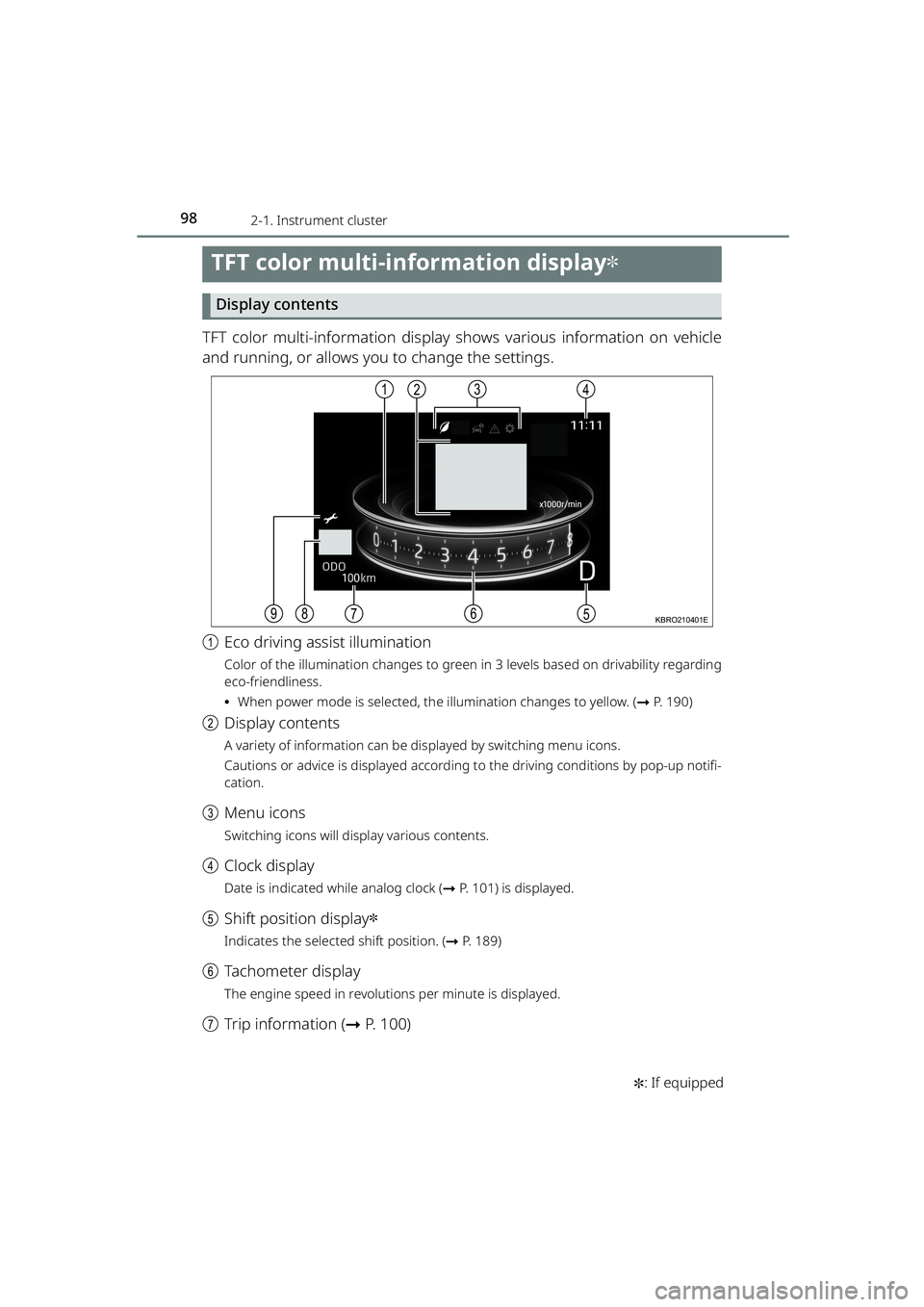

TFT color multi-information display✽
Display contents
TFT color multi-information display sh ows various information on vehicle
and running, or allows you to change the settings.
a Eco driving assist illumination
Color of the illumination changes to green in 3 levels based on drivability regarding
eco-friendliness.
⦁ When power mode is selected, the illumination changes to yellow. ( ➞P. 190)
b Display contents
A variety of information can be di splayed by switching menu icons.
Cautions or advice is displayed according to the driving conditions by pop-up notifi-
cation.
c Menu icons
Switching icons will di splay various contents.
dClock display
Date is indicated while analog clock ( ➞P. 101) is displayed.
e Shift position display✽
Indicates the selected shift position. ( ➞P. 189)
f Tachometer display
The engine speed in revolutions per minute is displayed.
gTrip information ( ➞P. 100)
3
6
1
897
24
5KBRO210401E
RAIZE_OM_General_BZ358E.book 98 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1032-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2

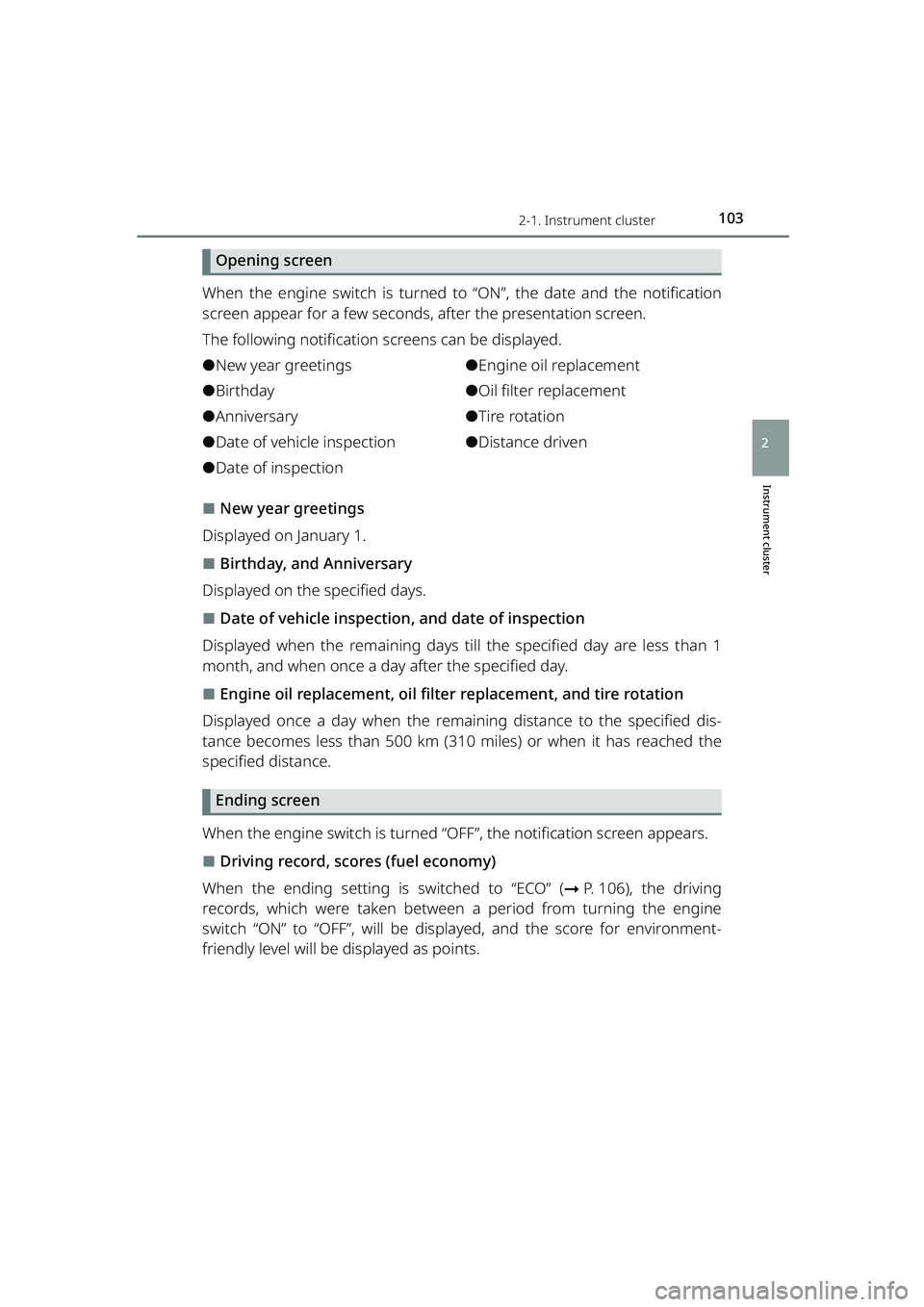

Opening screen
When the engine switch is turned to “ON”, the date and the notification
screen appear for a few seconds, after the presentation screen.
The following notification screens can be displayed.
⚫New year greetings
⚫Birthday
⚫Anniversary
⚫Date of vehicle inspection
⚫Date of inspection
⚫Engine oil replacement
⚫Oil filter replacement
⚫Tire rotation
⚫Distance driven
⬛New year greetings
Displayed on January 1.
⬛Birthday, and Anniversary
Displayed on the specified days.
⬛Date of vehicle inspection , and date of inspection
Displayed when the remaining days till the specified day are less than 1
month, and when once a day after the specified day.
⬛Engine oil replacement, oil filter replacement, and tire rotation
Displayed once a day when the remaining distance to the specified dis-
tance becomes less than 500 km (310 miles) or when it has reached the
specified distance.
Ending screen
When the engine switch is turned “O FF”, the notification screen appears.
⬛Driving record, scores (fuel economy)
When the ending setting is switched to “ECO” ( ➞P. 106), the driving
records, which were taken between a period from turning the engine
switch “ON” to “OFF”, will be displayed, and the score for environment-
friendly level will be displayed as points.
RAIZE_OM_General_BZ358E.book 103 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1042-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped

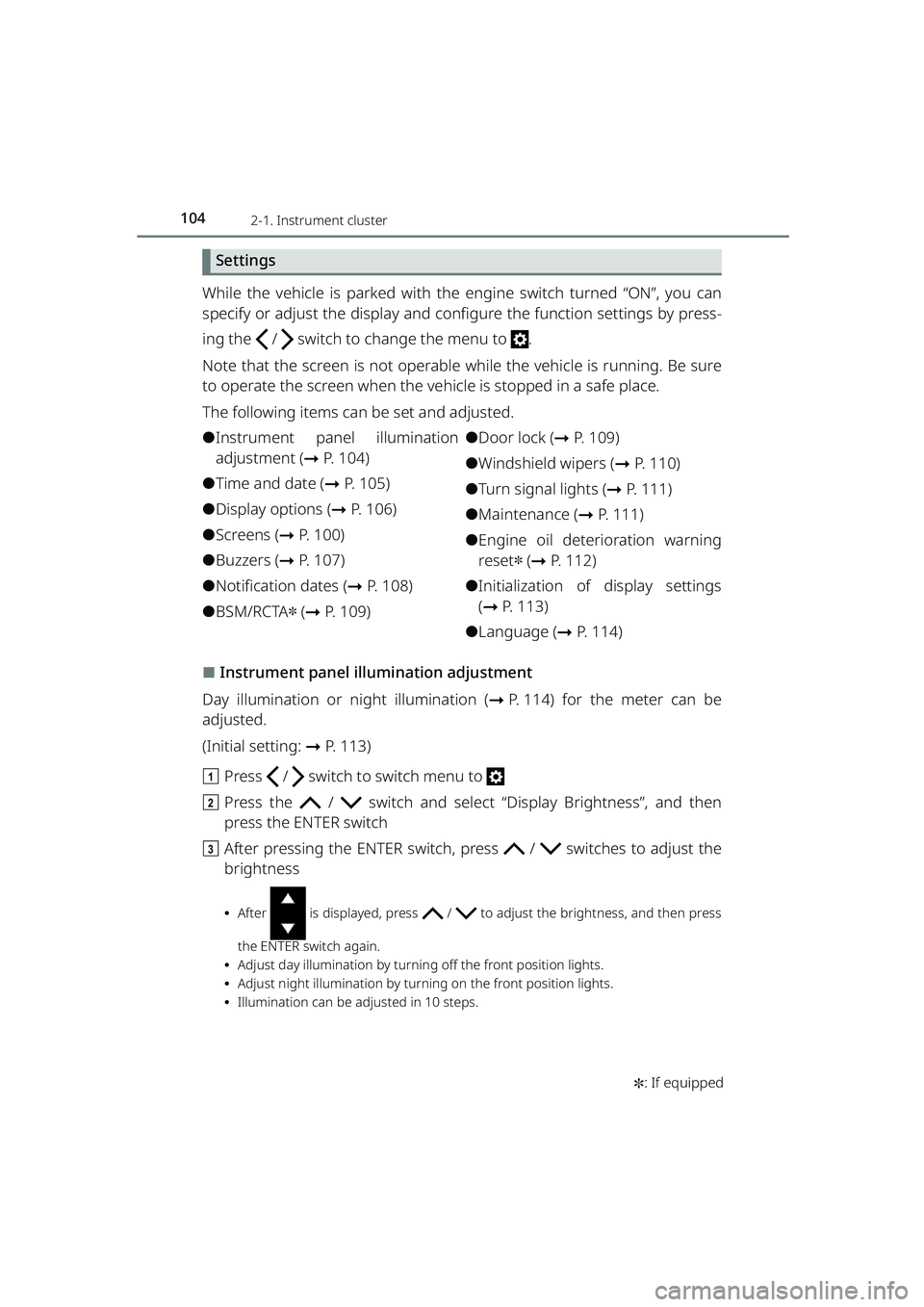

Settings
While the vehicle is parked with the engine switch turned “ON”, you can
specify or adjust the display and configure the function settings by press-
ing the / switch to change the menu to .
Note that the screen is not operable while the vehicle is running. Be sure
to operate the screen when the ve hicle is stopped in a safe place.
The following items can be set and adjusted.
⚫Instrument panel illumination
adjustment (➞ P. 104)
⚫Time and date ( ➞P. 105)
⚫Display options ( ➞P. 106)
⚫Screens ( ➞P. 1 0 0 )
⚫Buzzers (➞ P. 107)
⚫Notification dates ( ➞P. 108)
⚫BSM/RCTA✽ (➞ P. 109)
⚫Door lock ( ➞P. 109)
⚫Windshield wipers ( ➞P. 110)
⚫Turn signal lights ( ➞P. 111)
⚫Maintenance ( ➞P. 111)
⚫Engine oil deterioration warning
reset
✽ (➞ P. 112)
⚫Initialization of display settings
(➞ P. 113)
⚫Language (➞ P. 114)
⬛Instrument panel illumination adjustment
Day illumination or ni ght illumination (➞P. 114) for the meter can be
adjusted.
(Initial setting: ➞P. 113)
a Press / switch to switch menu to
b Press the / switch and select “Display Brightness”, and then
press the ENTER switch
c After pressing the ENTER switch, pr ess / switches to adjust the
brightness
⦁ After is displayed, press / to adjust the brightness, and then press
the ENTER switch again.
⦁ Adjust day illumination by turnin g off the front position lights.
⦁ Adjust night illumination by turning on the front position lights.
⦁ Illumination can be adjusted in 10 steps.
RAIZE_OM_General_BZ358E.book 104 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1092-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Instrument cluster
2
⬛Settings of BSM/RCTA✽
The follow settings can be selected as needed.
⚫ON/OFF of BSM ( ➞P. 211)
⚫ON/OFF of RCTA ( ➞P. 2 1 1 )
⚫Luminance of outside rear view mirror indicators ( ➞P. 211)
(List of customizable features: ➞ P. 430)
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch the
“Settings” screen, select “Vehicle Settings” and press the ENTER switch
c Press the / switch to select “BSM/RCTA” and press the ENTER
switch
d Press / switch to select setting s for each function and press the
ENTER switch
⦁ Each time you press the ENTER switch, the display switches to the screen to be
displayed.
⬛Settings of door locking
The follow settings can be selected as needed.
⚫ON/OFF of speed linked door locking ( ➞P. 136)
Setting this ON will turn OFF the setting for door locking linked with shifting✽.
⚫ON/OFF of door locking linked with shifting ✽(➞ P. 136)
When this set to ON, the setting for speed linked door locking turns OFF.
⚫ON/OFF of door unlocking linked with shifting ✽(➞ P. 136)
When this is set to ON, the setting for door unlocking at the time of the ignition OFF
(when the engine switch is “OFF”) turns OFF.
⚫ON/OFF of door unlocking at the time of the ignition OFF (when the
engine switch is “OFF”) ( ➞P. 136)
Setting this ON will turn OFF the setting for door unlocking linked with shifting✽.
⚫Buzzer volume for answering back (s ignal for key-free system activation)
( ➞ P. 1 2 1 )
⚫ON/OFF of emergency flashers for answering back (signal for key-free
system activation) ( ➞P. 121)
(List of customizable features: ➞ P. 430)
RAIZE_OM_General_BZ358E.book 109 ページ ２０２２年５月１７日　火曜日　午後１時５９分

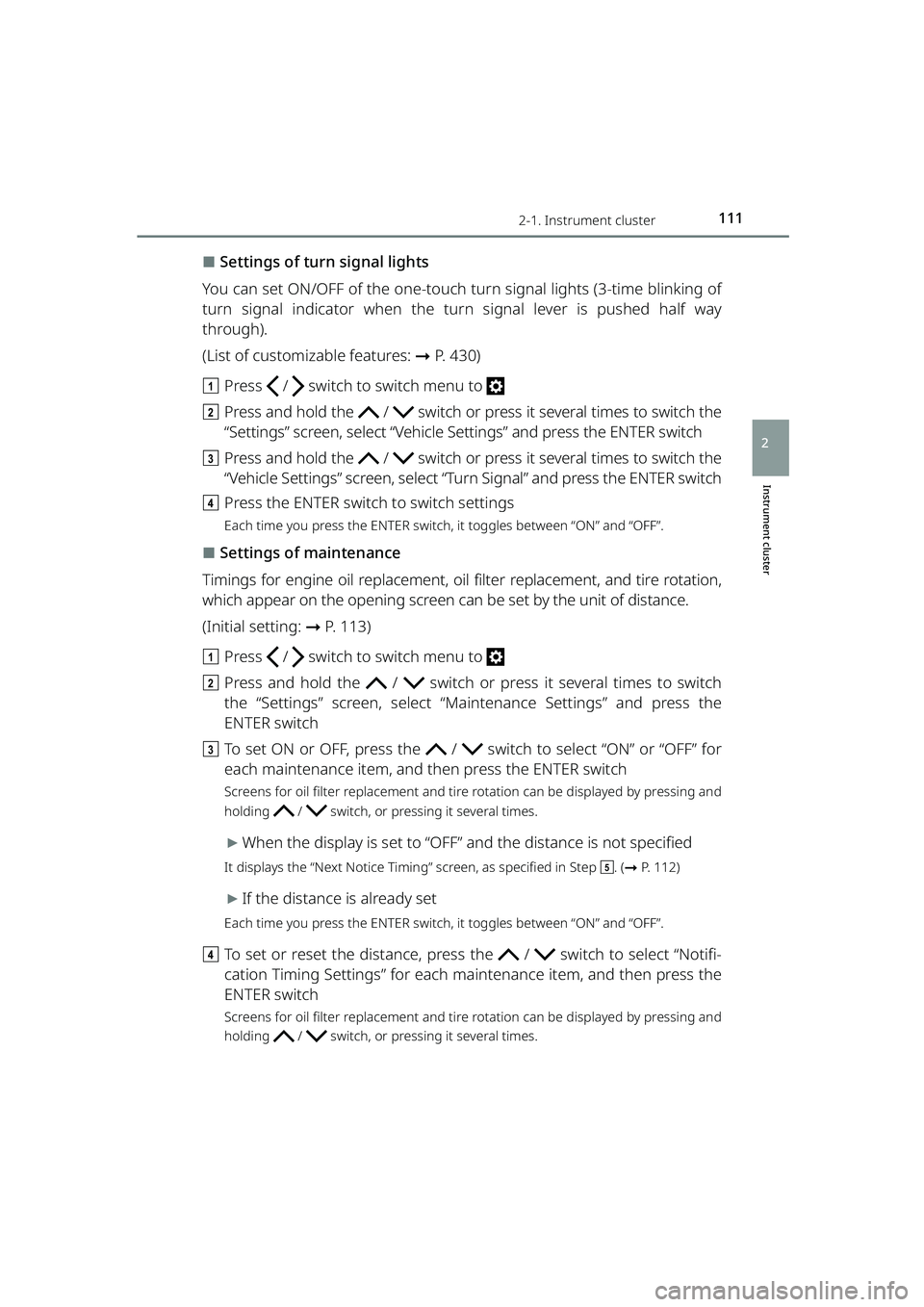

1112-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
⬛Settings of turn signal lights
You can set ON/OFF of the one-touch turn signal lights (3-time blinking of
turn signal indicator when the turn signal lever is pushed half way
through).
(List of customizable features: ➞ P. 430)
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch the
“Settings” screen, select “Vehicle Settings” and press the ENTER switch
c Press and hold the / switch or press it several times to switch the
“Vehicle Settings” screen, select “T urn Signal” and press the ENTER switch
d Press the ENTER switch to switch settings
Each time you press the ENTER switch, it toggles between “ON” and “OFF”.
⬛Settings of maintenance
Timings for engine oil replacement, oil filter replacement, and tire rotation,
which appear on the opening screen ca n be set by the unit of distance.
(Initial setting: ➞P. 113)
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch
the “Settings” screen, select “Mai ntenance Settings” and press the
ENTER switch
c To set ON or OFF, press the / switch to select “ON” or “OFF” for
each maintenance item, and then press the ENTER switch
Screens for oil filter replacement and tire rotation can be displayed by pressing and
holding / switch, or pressing it several times.
▶When the display is set to “OFF” and the distance is not specified
It displays the “Next Notice Timing” screen, as specified in Step e. (➞ P. 112)
▶If the distance is already set
Each time you press the ENTER switch, it toggles between “ON” and “OFF”.
d To set or reset the distance, press the / switch to select “Notifi-
cation Timing Settings” for each ma intenance item, and then press the
ENTER switch
Screens for oil filter replacement and tire rotation can be displayed by pressing and
holding / switch, or pressing it several times.
RAIZE_OM_General_BZ358E.book 111 ページ ２０２２年５月１７日　火曜日　午後１時５９分
