Engine switch TOYOTA RAIZE 2023 Owner's Manual

1122-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped

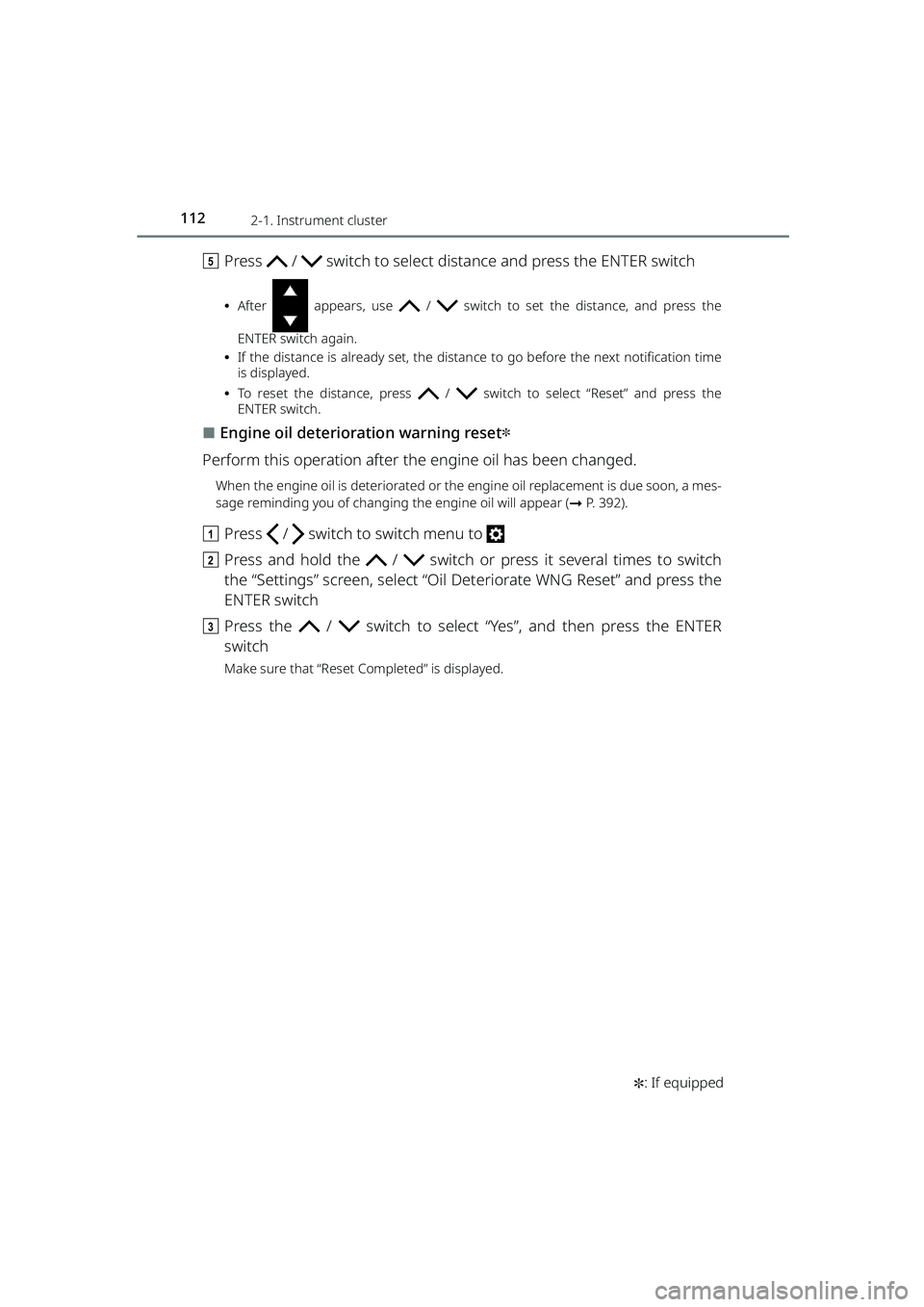

e Press / switch to select di stance and press the ENTER switch
⦁After appears, use / switch to set the distance, and press the
ENTER switch again.
⦁ If the distance is already set, the distance to go before the next notification time
is displayed.
⦁ To reset the distance, press / switch to select “Reset” and press the
ENTER switch.
⬛Engine oil deterioration warning reset✽
Perform this operation after th e engine oil has been changed.
When the engine oil is deteriorated or the engine oil replacement is due soon, a mes-
sage reminding you of changing the engine oil will appear ( ➞P. 392).
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch
the “Settings” screen, select “Oil De teriorate WNG Reset” and press the
ENTER switch
c Press the / switch to select “Yes”, and then press the ENTER
switch
Make sure that “Reset Completed” is displayed.
RAIZE_OM_General_BZ358E.book 112 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1193-1. Keys
RAIZE_OM_General_BZ358E✽
: If equipped
Operation of each component
3
⬛If you have lost your key (vehicles without key-free system) or emergency
key (vehicles with key-free system)
Toyota dealers can make new genuine keys using the key number stamped on
your key number plate and the other key.
Keep the key number plate in a safe place such as your wallet, not in the vehi-
cle.
⬛When boarding an aircraft
When you bring the key to an aircraft, do not press the key switch in the air-
craft. Even when you store the key inside your luggage, be careful not to have
the switch get pressed easily. If the switch is pressed, the key emits a radio
wave that could interfere with aircraft operation.
⬛Low battery
➞ P. 1 2 8
⬛When you see a warning message about the electronic key status or the
engine switch mode (vehicles with key-free system)
To avoid leaving your electronic key insi de the vehicle, allowing the passengers
from taking the key out, or accidenta lly leaving the power on, the TFT color
multi-information display shows a messa ge reminding you to check the elec-
tronic key or engine switch status. If t hat happens, follow the displayed instruc-
tion immediately. ( ➞P. 393)
⬛When the TFT color multi-information display shows “Key Battery Low
Replace Key Battery” (vehicles with key-free system)
The electronic key’s battery is low. Replace it with a new battery. ( ➞P. 344)
⬛Replacing the battery
➞P. 3 4 4
⬛Purchasing keys
You can set up to 8 wireless keys
✽ (up to 4 for ones with the wireless function),
and up to 4 electronic keys
✽. Please contact your Toyota dealer for purchasing
and the usage information.
RAIZE_OM_General_BZ358E.book 119 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1233-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3

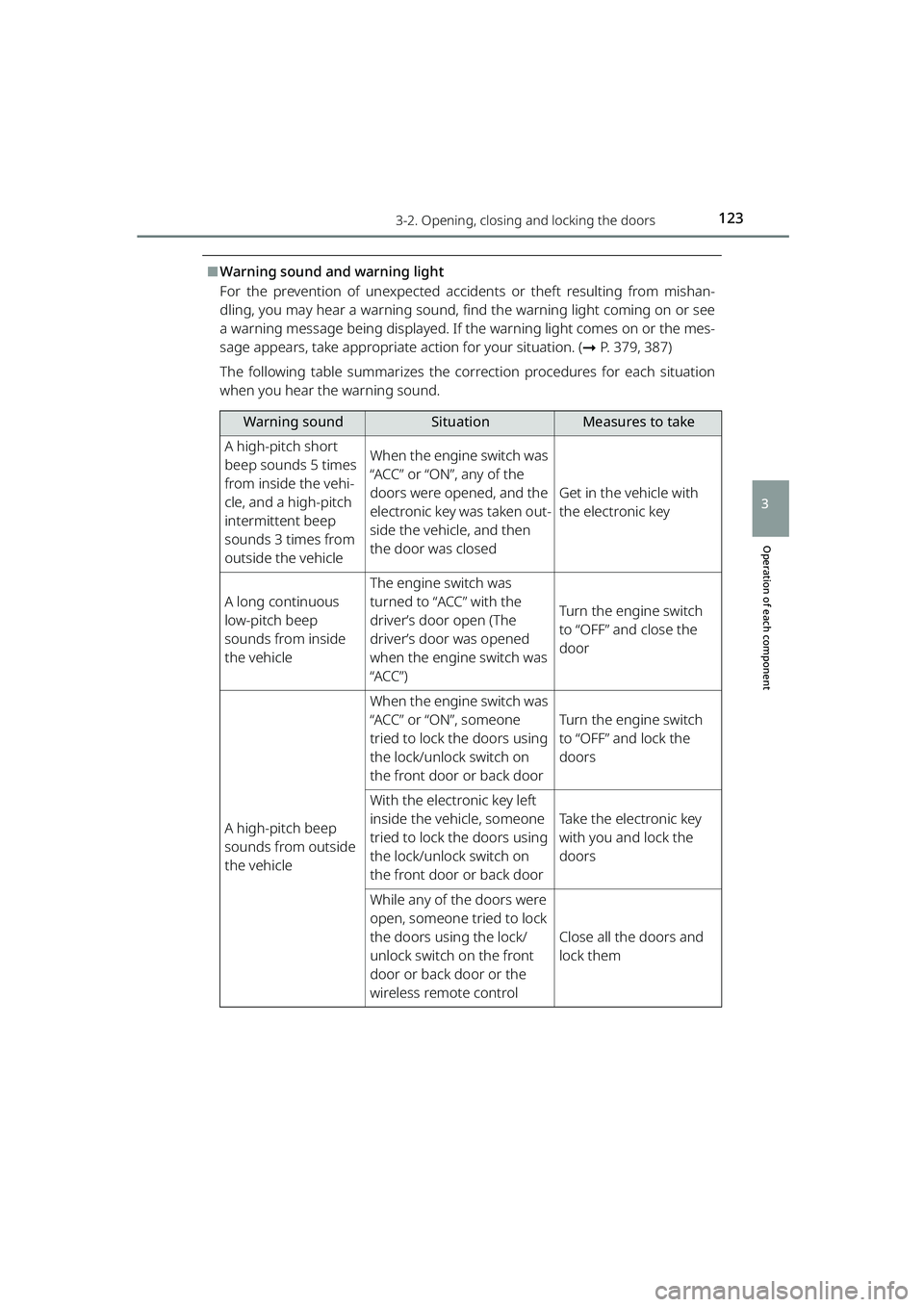

⬛Warning sound and warning light
For the prevention of unexpected accidents or theft resulting from mishan-
dling, you may hear a warning sound, find the warning light coming on or see
a warning message being displayed. If the warning light comes on or the mes-
sage appears, take appropriate action for your situation. ( ➞P. 379, 387)
The following table summarizes the corr ection procedures for each situation
when you hear the warning sound.
Warning soundSituationMeasures to take
A high-pitch short
beep sounds 5 times
from inside the vehi-
cle, and a high-pitch
intermittent beep
sounds 3 times from
outside the vehicleWhen the engine switch was
“ACC” or “ON”, any of the
doors were opened, and the
electronic key was taken out-
side the vehicle, and then
the door was closed
Get in the vehicle with
the electronic key
A long continuous
low-pitch beep
sounds from inside
the vehicle
The engine switch was
turned to “ACC” with the
driver’s door open (The
driver’s door was opened
when the engine switch was
“ACC”)
Turn the engine switch
to “OFF” and close the
door
A high-pitch beep
sounds from outside
the vehicle
When the engine switch was
“ACC” or “ON”, someone
tried to lock the doors using
the lock/unlock switch on
the front door or back door
Turn the engine switch
to “OFF” and lock the
doors
With the electronic key left
inside the vehicle, someone
tried to lock the doors using
the lock/unlock switch on
the front door or back door
Take the electronic key
with you and lock the
doors
While any of the doors were
open, someone tried to lock
the doors using the lock/
unlock switch on the front
door or back door or the
wireless remote control
Close all the doors and
lock them
RAIZE_OM_General_BZ358E.book 123 ページ ２０２２年５月１７日　火曜日　午後１時５９分

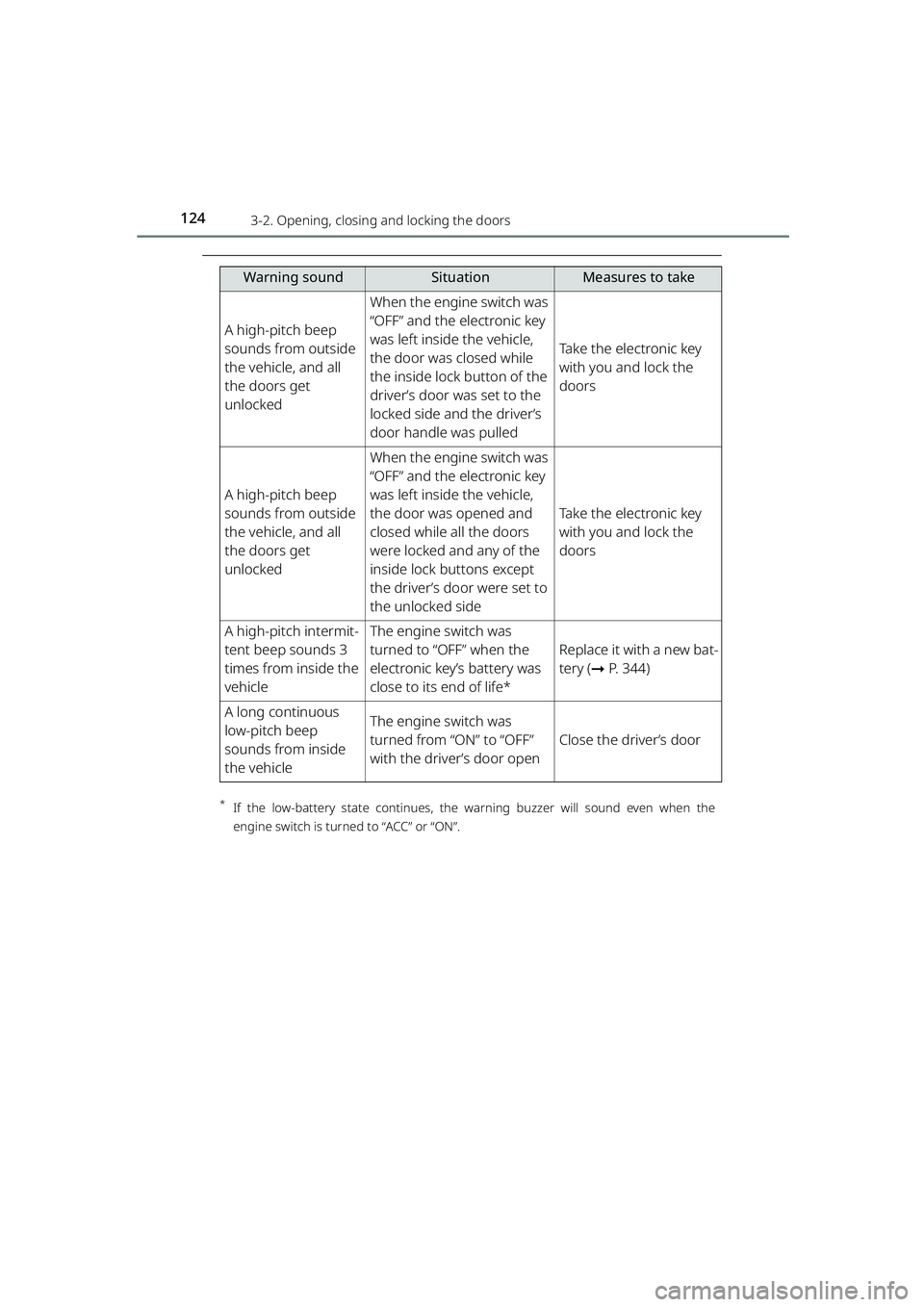

1243-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
*If the low-battery state co ntinues, the warning buzzer will soun d even when the
engine switch is turned to “ACC” or “ON”.
A high-pitch beep
sounds from outside
the vehicle, and all
the doors get
unlocked
When the engine switch was
“OFF” and the electronic key
was left inside the vehicle,
the door was closed while
the inside lock button of the
driver’s door was set to the
locked side and the driver’s
door handle was pulled
Take the electronic key
with you and lock the
doors
A high-pitch beep
sounds from outside
the vehicle, and all
the doors get
unlocked
When the engine switch was
“OFF” and the electronic key
was left inside the vehicle,
the door was opened and
closed while all the doors
were locked and any of the
inside lock buttons except
the driver’s door were set to
the unlocked side
Take the electronic key
with you and lock the
doors
A high-pitch intermit-
tent beep sounds 3
times from inside the
vehicleThe engine switch was
turned to “OFF” when the
electronic key’s battery was
close to its end of life*
Replace it with a new bat-
tery ( ➞P. 344)
A long continuous
low-pitch beep
sounds from inside
the vehicleThe engine switch was
turned from “ON” to “OFF”
with the driver’s door open
Close the driver’s door
Warning soundSituationMeasures to take
RAIZE_OM_General_BZ358E.book 124 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1263-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
⚫When the electronic key is carried with products that transmit radio waves as
follows
⦁ Wireless communication devices such as radios, mobile phones, and cord-
less telephones
⦁ Electronic keys or wireless keys (that emit radio waves) of other vehicles
⦁ Computers or portable information terminals (electronic organizers)
⦁ Digital audio players
⦁ Portable gaming devices
⚫When a metal-containing film is pasted on the rear window glass
⚫When the electronic key is placed near electronic devices such as a charger
⬛Important information
⚫Even when the electronic key is placed in the operating (detection) range, it
may not work properly in the following situations.
⦁ The electronic key is located too close to the door windows or door han-
dles when you lock or unlock the doors or located near the ground or at a
high place
⦁ The electronic key is placed on the instrument panel or the floor, placed
inside the door pockets or in the gl ove box when you start the engine or
switch the modes
⚫Even when you have the electronic key in your pocket, the key may not work
properly depending on the position or shape of your pocket. (Operating
range: ➞P. 122)
⚫Depending on the signal conditions, the electronic key could be trapped
inside the vehicle if you step outside of your vehicle by leaving the electronic
key on the instrument panel or near the door pockets since the external
antenna could detect the signal and lock the doors.
⚫As long as the electronic key is located within the operating range, the doors
can be locked and unlocked by anyone besides the person who is carrying
the key. Note that the doors other th an those detect the electronic key can-
not be unlocked in this case.
Even when the electronic key is located near the door that is opposite from
the unlocked door, the opposite door can detect the electronic key and get
unlocked.
⚫If the electronic key is located near th e door window outside the vehicle, the
key could start the engine sometimes.
RAIZE_OM_General_BZ358E.book 126 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1283-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
⬛Important points when locking the doors
During an automatic car wash, the vehicl e’s internal buzzer may sound if water
splashes on the door handle while the electronic key is left inside the vehicle.
⬛Important points when unlocking the doors
⚫When you pull the door handle while operating the door handle switch, the
door may not get unlocked. In that case, restore the door handle to the orig-
inal position and operate the switch again (except for the back door). When
you verify that the door has been unlocked, pull the door handle.
⚫When another electronic key is placed within the operating range, it may
take longer to unlock the door from the time when you operate the switch
on the door handle.
⬛Leaving the vehicle unused for a long period
⚫To prevent theft, keep the electronic key away from the vehicle for approx. 3
m (9.8 ft.).
⚫You can also disable the key-free system beforehand.
Contact your Toyota dealer for further information.
⬛Starting the system normally
Make sure to carry the electronic ke y with you when you start the system.
When you start the system from outside the vehicle, be careful not to keep the
electronic key too close to the vehicle.
Depending on the electronic key’s position or how you hold it when starting
the system, the key may not be detected correctly, preventing the system from
starting normally. (It could cause the al arm to go off unexpectedly or the door
lock prevention func tion may not work. : ➞P. 139)
⬛When the key-free system does not work properly
⚫Locking and unlocking doors: ➞ P. 4 0 6
⚫Starting the engine: ➞P. 4 0 6
⬛Low battery
⚫The standard battery life is between 1 and 2 years.
⚫The battery still depletes without usin g the wireless remote control. Since
the electronic key is constantly receiving radio waves, the battery depletes
even when it is not in use. If you encounter any of the following situations,
the key may be running out of battery. Replace it with a new battery.
⦁ The key-free system or wireless remote control will not start
⦁ The operating range has become narrower
⦁ The LED of the electronic key will not light
RAIZE_OM_General_BZ358E.book 128 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1293-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3
⚫When the remaining battery becomes lo w, a warning buzzer will sound from
inside the vehicle when the engine is stopped. ( ➞P. 394)
⚫To prevent significant battery drainage, do not store the electronic key within
1 m (3.3 ft.) from the following electr onic devices that are known to emit a
magnetic field.
⦁ TV
⦁ Audio system
⦁ Personal computers
⦁ AC adapters
⦁ Mobile phones, cordless phones, and chargers
⦁ Desk lamps
⦁ Medical electronic devices such as lo w-frequency electric therapy equip-
ment
⦁ Liquid crystal display
⦁ Motors
⦁ Induction cookers
⚫Do not leave electronic keys inside or near the vehicle. Since the electronic
key and the vehicle are constantly communicating with one another, it
speeds up the battery draining. When they enter in the constant communi-
cation state, the indicator of the electro nic key starts blinking. Keep the elec-
tronic key away from the vehic le until the indicator turns off.
⚫If you do not plan on using the electr onic key for a long time, set the key to
the battery-saving mode to mini mize battery consumption. (➞P. 125)
⬛Running out of the battery
➞P. 3 4 4
⬛Functions configurable by Toyota dealers
Toyota dealers can deactivate the key-free system.
(List of customizable features: ➞ P. 430)
⬛When the key-free system was deactivated by a Toyota dealer
⚫Locking and unlocking doors: The doors can be locked and unlocked using
the wireless function or the emergency key. ( ➞P. 133, 406)
⚫Starting the engine and swit ching the engine switch mode: ➞ P. 4 0 6
⚫Stopping the engine: ➞P. 1 8 5
RAIZE_OM_General_BZ358E.book 129 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1353-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3

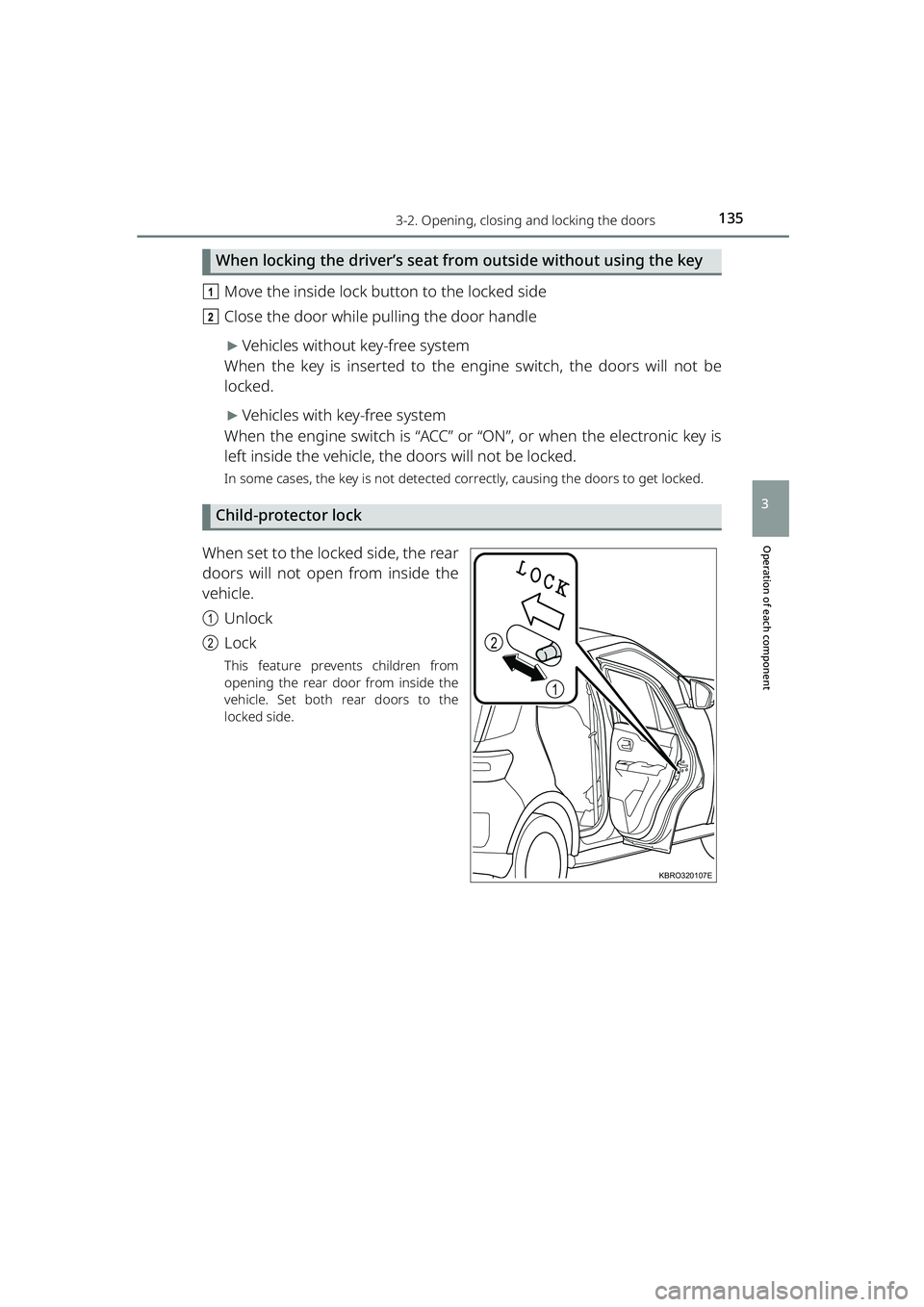

When locking the driver’s seat fr om outside without using the key
aMove the inside lock button to the locked side
b Close the door while pulling the door handle
▶Vehicles without key-free system
When the key is inserted to the engine switch, the doors will not be
locked.
▶Vehicles with key-free system
When the engine switch is “ACC” or “ON”, or when the electronic key is
left inside the vehicle, the doors will not be locked.
In some cases, the key is not detected correctly, causing the doors to get locked.
Child-protector lock
When set to the locked side, the rear
doors will not open from inside the
vehicle.
a Unlock
b Lock
This feature prevents children from
opening the rear door from inside the
vehicle. Set both rear doors to the
locked side.
2
1
KBRO320107E
RAIZE_OM_General_BZ358E.book 135 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1363-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E

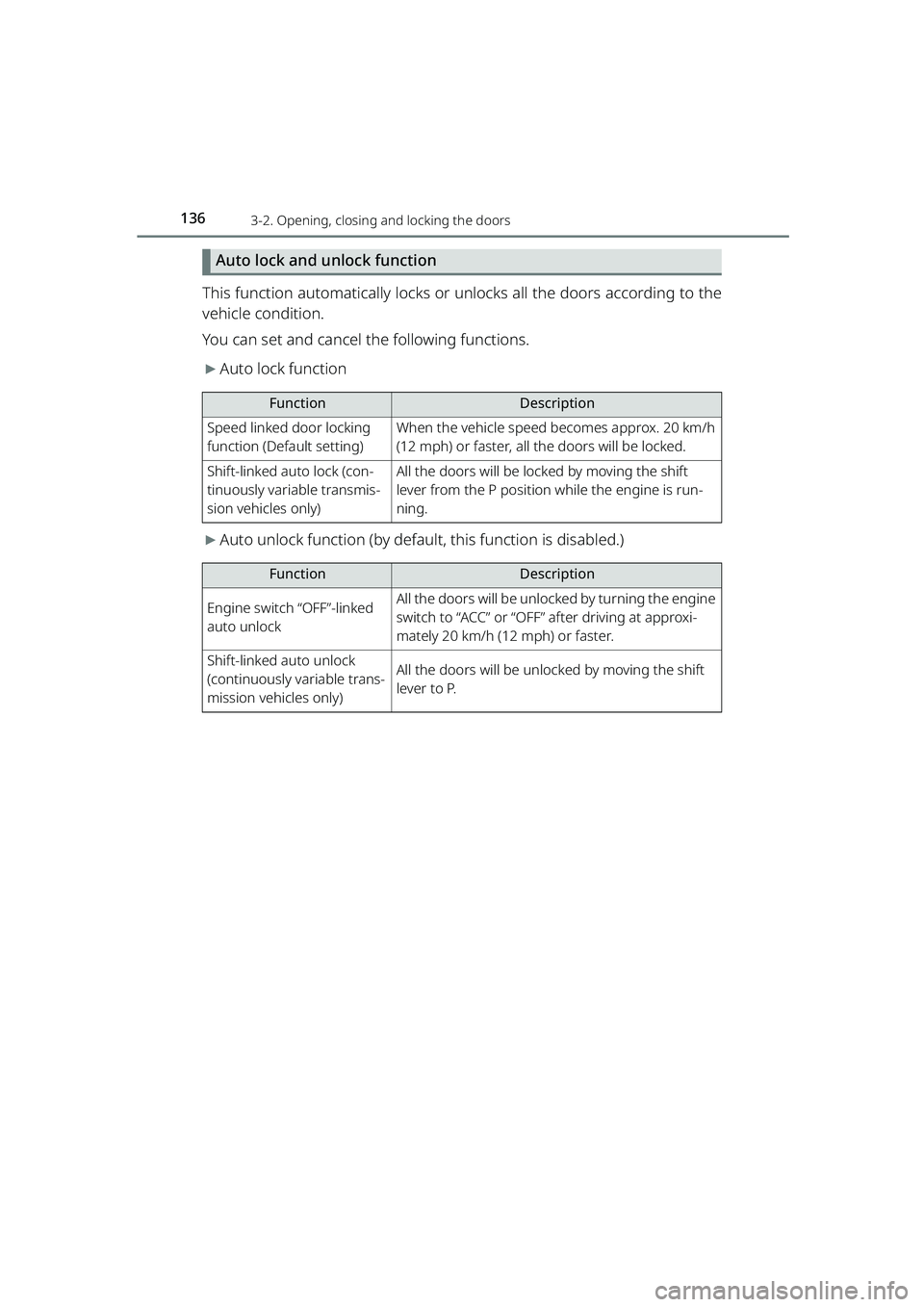

Auto lock and unlock function
This function automatically locks or unlocks all the doors according to the
vehicle condition.
You can set and cancel the following functions.
▶Auto lock function
▶Auto unlock function (by default, this function is disabled.)
FunctionDescription
Speed linked door locking
function (Default setting)When the vehicle speed becomes approx. 20 km/h
(12 mph) or faster, all the doors will be locked.
Shift-linked auto lock (con-
tinuously variable transmis-
sion vehicles only)All the doors will be locked by moving the shift
lever from the P position while the engine is run-
ning.
FunctionDescription
Engine switch “OFF”-linked
auto unlockAll the doors will be unlock ed by turning the engine
switch to “ACC” or “OFF” after driving at approxi-
mately 20 km/h (12 mph) or faster.
Shift-linked auto unlock
(continuously variable trans-
mission vehicles only)All the doors will be unlocked by moving the shift
lever to P.
RAIZE_OM_General_BZ358E.book 136 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1373-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3

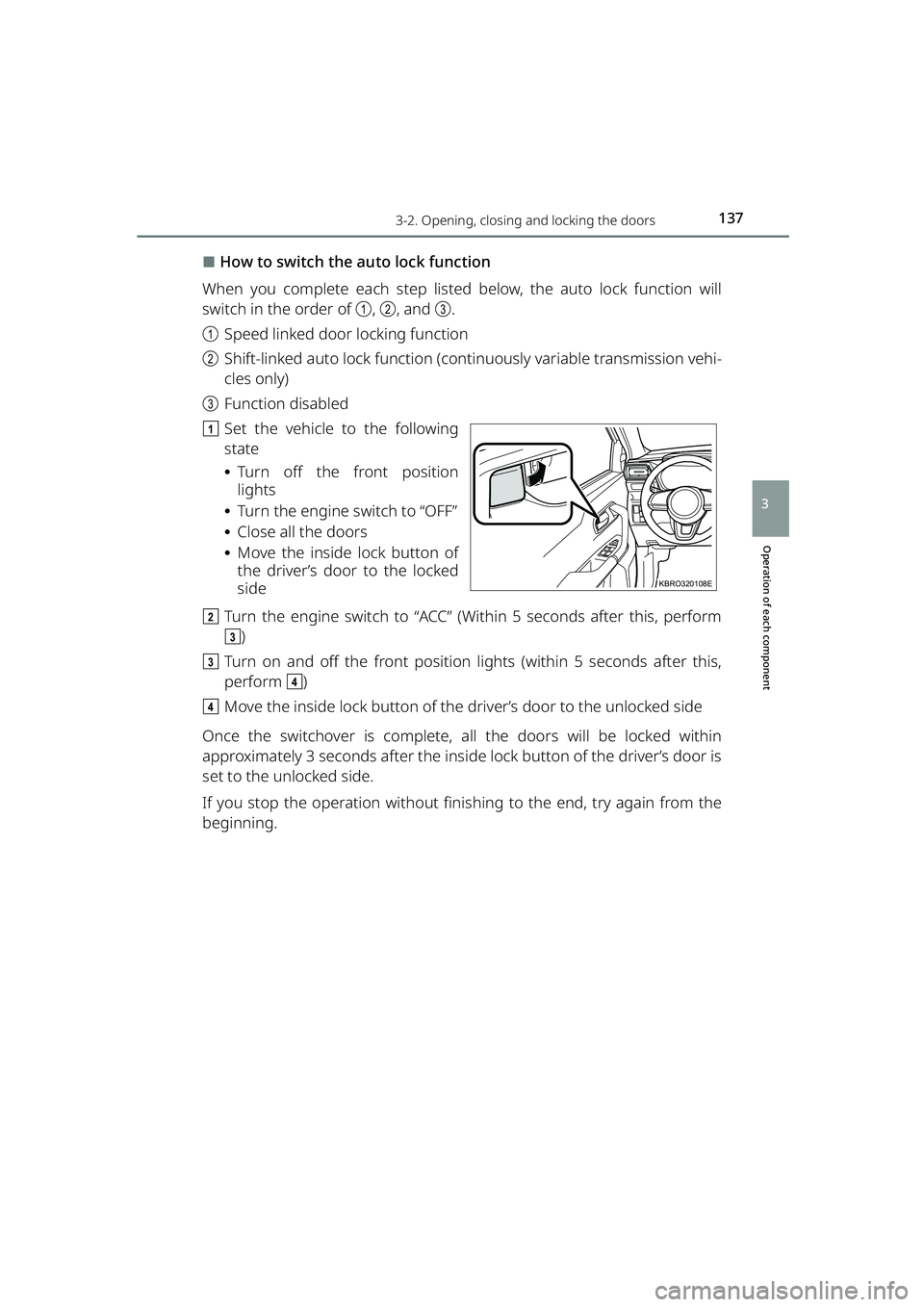

⬛How to switch the auto lock function
When you complete each step listed below, the auto lock function will
switch in the order of a, b , and c.
a Speed linked door locking function
b Shift-linked auto lock function (conti nuously variable transmission vehi-
cles only)
c Function disabled
a Set the vehicle to the following
state
⦁Turn off the front position
lights
⦁ Turn the engine switch to “OFF”
⦁ Close all the doors
⦁ Move the inside lock button of
the driver’s door to the locked
side
b Turn the engine switch to “ACC” (Within 5 seconds after this, perform
c)
c Turn on and off the front position lights (within 5 seconds after this,
perform d)
d Move the inside lock button of the driver’s door to the unlocked side
Once the switchover is complete, all the doors will be locked within
approximately 3 seconds after the inside lock button of the driver’s door is
set to the unlocked side.
If you stop the operation without fini shing to the end, try again from the
beginning.
KBRO320108E
RAIZE_OM_General_BZ358E.book 137 ページ ２０２２年５月１７日　火曜日　午後１時５９分
