TOYOTA RAV4 2001 Service Manual
Manufacturer: TOYOTA, Model Year: 2001, Model line: RAV4, Model: TOYOTA RAV4 2001Pages: 265, PDF Size: 3.21 MB
Page 41 of 265
'01 Rav4_U (L/O 0008)
1912001 RAV4 (OM42483U)
ÐLoosening wheel nuts
3. Loosen all the wheel nuts.
Always loosen the wheel nuts before rais-
ing the vehicle.
Turn the wheel nuts counterclockwise to
loosen. To get maximum leverage, fit the
wrench to the nut so that the handle is
on the right side, as shown above. Grab
the wrench near the end of the handle
and pull up on the handle. Be careful that
the wrench does not slip off the nut.
Do not remove the nuts yetÐjust unscrew
them about one±half turn.
ÐPositioning the jack
4. Position the jack at the following
jack points.
1 Front suspension cross member rear
mounting
2 Rear suspension arm
Make sure the jack is positioned on a
level and solid place.
ÐRaising your vehicle
5. After making sure that no one is in
the vehicle, raise it high enough so
that the spare tire can be installed.
Remember you will need more ground
clearance when putting on the spare tire
than when removing the flat tire.
To raise the vehicle, insert the jack handle
into the jack (it is a loose fit) and turn it
clockwise. As the jack touches the vehicle
and begins to lift, double±check that it is
properly positioned.
ProCarManuals.com
Page 42 of 265
'01 Rav4_U (L/O 0008)
1922001 RAV4 (OM42483U)
CAUTION
Never get under the vehicle when the
vehicle is supported by the jack
alone.
ÐChanging wheels
6. Remove the wheel nuts and change
tires.
Lift the flat tire straight off and put it
aside.
Roll the spare wheel into position and
align the holes in the wheel with the bolts.
Then lift up the wheel and get at least the
top bolt started through its hole. Wiggle
the tire and press it back over the other
bolts.Before putting on wheels, remove any cor-
rosion on the mounting surfaces with a
wire brush or such. Installation of wheels
without good metal±to±metal contact at the
mounting surface can cause wheel nuts to
loosen and eventually cause a wheel to
come off while driving. Therefore after the
first 1600 km (1000 miles), check to see
that the wheel nuts are tight.
ProCarManuals.com
Page 43 of 265
'01 Rav4_U (L/O 0008)
1932001 RAV4 (OM42483U)
ÐReinstalling wheel nuts
7. Reinstall all the wheel nuts finger
tight.
Reinstall the wheel nuts (tapered end in-
ward) and tighten them as much as you
can by hand. Press back on the tire back
and see if you can tighten them more.
ÐLowering your vehicle
8. Lower the vehicle completely and
tighten the wheel nuts.
Turn the jack handle counterclockwise to
lower the vehicle.
Use only the wheel nut wrench and turn
it clockwise to tighten the nuts. Do not
use other tools or any additional leverage
other than your hands, such as a hammer,
pipe or your foot. Make sure the wrench
is securely engaged over the nut.
Tighten each nut a little at a time in the
order shown. Repeat the process until all
the nuts are tight.
CAUTION
When lowering the vehicle, make sure
all portions of your body and all oth-
er persons around will not be injured
as the vehicle is lowered to the
ground.
ProCarManuals.com
Page 44 of 265
'01 Rav4_U (L/O 0008)
1942001 RAV4 (OM42483U)
ÐStowing flat tire
9. Install the flat tire and spare tire
cover on the back door.
CAUTION
Make sure flat tire and spare tire cov-
er are securely in place in their stor-
age location to reduce the possibility
of personal injury during a collision
or sudden braking.
Install the full spare tire cover by the
following procedure:
Guides
Insert the hooks under the guides to the
upper slots. Then lower the cover and
lock the latch handle. Check that the cov-
er is securely in place.
ProCarManuals.com
Page 45 of 265
'01 Rav4_U (L/O 0008)
1952001 RAV4 (OM42483U)
ÐAfter changing wheels
10. Check the air pressure of the re-
placed tire.
Adjust the air pressure to the specification
designated on page 249 in Section 8. If
the pressure is lower, drive slowly to the
nearest service station and fill to the cor-
rect pressure.
Do not forget to reinstall the tire inflation
valve cap as dirt and moisture could get
into the valve core and possibly cause air
leakage. If the cap is missing, have a new
one put on as soon as possible.
11. Restow all the tools and jack secure-
ly.
As soon after changing wheels as pos-
sible, tighten the wheel nuts to the torque
specified on page 249 in Section 8 with
a torque wrench. Have a technician repair
the flat tire and replace the spare tire with
it.
CAUTION
Before driving, make sure all the
tools and jack are securely in place
in their storage location to reduce the
possibility of personal injury during a
collision or sudden braking.
(a) Towing with wheel lift type truckÐ
ÐFrom front
ÐFrom rear
(b) Using flat bed truck
Two±wheel drive models(a) Towing with wheel lift type truckÐ
ÐFrom front
ÐFrom rear
(b) Using flat bed truck
Four±wheel drive models
If your vehicle needs to be
towedÐ
ProCarManuals.com
Page 46 of 265
'01 Rav4_U (L/O 0008)
1962001 RAV4 (OM42483U)
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice. In consultation with them, have
your vehicle towed using either (a) or
(b).
Only when you cannot receive a towing
service from a Toyota dealer or com-
mercial tow truck service, tow your ve-
hicle carefully in accordance with the
instructions given in ªÐEmergency tow-
ingº on page 197 in this section.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following pre-
cautions are observed. If necessary, show
this page to the tow truck driver.TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly.
Two±wheel drive modelsÐ
(a) Towing with wheel lift type truck
From frontÐRelease the parking brake.
NOTICE
When lifting wheels, take care to en-
sure adequate ground clearance for
towing at the opposite end of the
raised vehicle. Otherwise, the bumper
and/or underbody of the towed vehicle
will be damaged during towing.
From rearÐ
Manual transmission:
We recommend using a towing dolly
under the front wheels. If you do not
use a towing dolly, place the ignition
key in the ªACCº position and put the
transmission in neutral.
NOTICE
Do not tow with the key removed or
in the ªLOCKº position when towing
from the rear without a towing dolly.
The steering lock mechanism is not
strong enough to hold the front
wheels straight.
Automatic transmission:
Use a towing dolly under the front
wheels.
NOTICE
Never tow a vehicle with an automatic
transmission from the rear with the
front wheels on the ground, as this
may cause serious damage to the
transmission.
(b) Using flat bed truck
Four±wheel drive modelsÐ
(a) Towing with wheel lift type truck
Use a towing dolly under the wheels not
lifted by the truck.
(b) Using flat bed truck
ProCarManuals.com
Page 47 of 265
'01 Rav4_U (L/O 0008)
1972001 RAV4 (OM42483U)

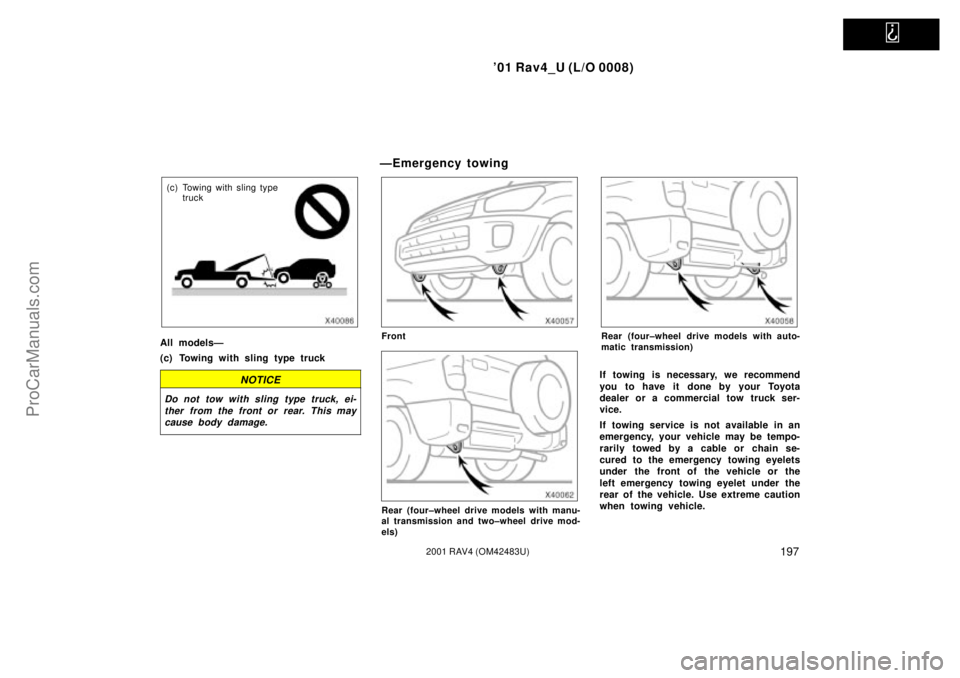

(c) Towing with sling type
truck
All modelsÐ
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.
ÐEmergency towing
Front
Rear (four±wheel drive models with manu-
al transmission and two±wheel drive mod-
els)
Rear (four±wheel drive models with auto-
matic transmission)
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice.
If towing service is not available in an
emergency, your vehicle may be tempo-
rarily towed by a cable or chain se-
cured to the emergency towing eyelets
under the front of the vehicle or the
left emergency towing eyelet under the
rear of the vehicle. Use extreme caution
when towing vehicle.
ProCarManuals.com
Page 48 of 265
'01 Rav4_U (L/O 0008)
1982001 RAV4 (OM42483U)
NOTICE
Only use specified towing eyelet;
otherwise your vehicle may be dam-
aged.
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hard±surfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing ve-
hicles. Avoid sudden starts or erratic
driving maneuvers which would place
excessive stress on the emergency
towing eyelet and towing cable or
chain. The eyelet and towing cable or
chain may break and cause serious
injury or damage.
NOTICE
Use only a cable or chain specifically
intended for use in towing vehicles.
Securely fasten the cable or chain to
the towing eyelet provided.
Before towing, release the parking brake
and put the transmission in neutral (manu-
al) or ªNº (automatic). The key must be
in ªACCº (engine off) or ªONº (engine run-
ning).
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.
Before emergency towing, check that
the eyelet is not broken or damaged
and that the installation bolts are not
loose.
Fasten the towing cable or chain se-
curely to the eyelet.
Do not jerk the eyelet. Apply steady
and even force.
To avoid damaging the eyelet, do not
pull from the side or at a vertical
angle. Always pull straight ahead.
ÐEmergency towing eyelet
precautions
ProCarManuals.com
Page 49 of 265
'01 Rav4_U (L/O 0008)
1992001 RAV4 (OM42483U)

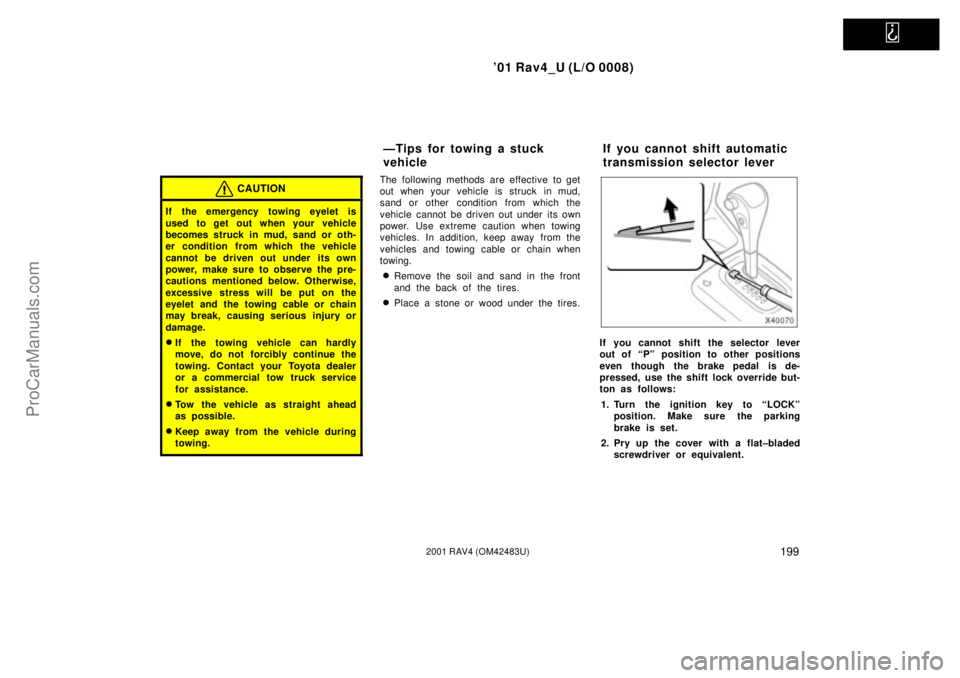

CAUTION
If the emergency towing eyelet is
used to get out when your vehicle
becomes struck in mud, sand or oth-
er condition from which the vehicle
cannot be driven out under its own
power, make sure to observe the pre-
cautions mentioned below. Otherwise,
excessive stress will be put on the
eyelet and the towing cable or chain
may break, causing serious injury or
damage.
If the towing vehicle can hardly
move, do not forcibly continue the
towing. Contact your Toyota dealer
or a commercial tow truck service
for assistance.
Tow the vehicle as straight ahead
as possible.
Keep away from the vehicle during
towing.
The following methods are effective to get
out when your vehicle is struck in mud,
sand or other condition from which the
vehicle cannot be driven out under its own
power. Use extreme caution when towing
vehicles. In addition, keep away from the
vehicles and towing cable or chain when
towing.
Remove the soil and sand in the front
and the back of the tires.
Place a stone or wood under the tires.
If you cannot shift the selector lever
out of ªPº position to other positions
even though the brake pedal is de-
pressed, use the shift lock override but-
ton as follows:
1. Turn the ignition key to ªLOCKº
position. Make sure the parking
brake is set.
2. Pry up the cover with a flat±bladed
screwdriver or equivalent.
ÐTips for towing a stuck
vehicleIf you cannot shift automatic
transmission selector lever
ProCarManuals.com
Page 50 of 265
'01 Rav4_U (L/O 0008)
2002001 RAV4 (OM42483U)
3. Insert your finger into the hole to
push down the shift lock override
button. You can shift out of ªPº
position only while pushing the but-
ton.
4. Shift into ªNº position.
5. Insert the cover.
6. Start the engine. For your safety,
keep the brake pedal depressed.
Be sure to have the system checked by
your Toyota dealer as soon as possible.
If you lose your keys
You can purchase a new key at your
Toyota dealer if you can give them the
key number. If your vehicle is equipped
with the engine immobiliser system, the
dealer will also need your master key.
Vehicles with engine immobiliser systemÐ
Even if you lose only one key, contact
your Toyota dealer to make a new key. If
you lose all your master keys, you cannot
make new keys; the whole engine immobi-
liser system must be replaced.
See the suggestion given in ªKeysº on
page 8 in Section 1±2.
If your keys are locked in the vehicle and
you cannot get a duplicate, many Toyota
dealers can still open the door for you,
using their special tools. If you must
break a window to get in, we suggest
breaking the smallest side window be-
cause it is the least expensive to replace.
Be extremely cautious to avoid cuts from
the glass.You can purchase a new wireless re-
mote control transmitter at your Toyota
dealer.
Have the registered identification numbers
of your transmitters deleted from your ve-
hicle by your Toyota dealer as soon as
possible to avoid the possibility of theft or
an accident. Then, have the identification
number of your new transmitter registered.
At the same time, you must bring all of
the remaining transmitters to have them
registered again as well.
You can use the wireless remote control
system with the new transmitter. Contact
your Toyota dealer for detailed information.
If you lose your wireless
remote control transmitter
ProCarManuals.com
