REPORTING SAFETY DEFECTS FOR U.S.
OWNERS AND UNIFORM TIRE QUALITY
GRADING
Reporting safety defects for U.S. owners254 . . . . . . . . . . . . . . . . . . . . . .
Uniform tire quality grading254 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 9
ProCarManuals.com

'01 Rav4_U (L/O 0008)
2542001 RAV4 (OM42483U)
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Toyota Motor
Sales, U.S.A., Inc.
(Toll±free: 1±800±331±4331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc.To contact NHTSA, you may ei-
ther call the Auto Safety Hotline
toll±free at 1±800±424±9393 (or
366±0123 in Washington, D.C.
area) or write to: NHTSA, U.S.
Department of Transportation,
Washington, D.C. 20590. You can
also obtain other information about
motor vehicle safety from the Hot-
line.Uniform tire quality gradingThis information has been prepared in ac-
cordance with regulations issued by the
National Highway Traffic Safety Adminis-
tration of the U.S. Department of Trans-
portation. It provides the purchasers and/
or prospective purchasers of Toyota
vehicles with information on uniform tire
quality grading.
Your Toyota dealer will help answer any
questions you may have as you read this
information.
DOT quality gradesÐAll passenger car
tires must conform to Federal Safety
Requirements in addition to these
grades. Quality grades can be found
where applicable on the tire sidewall
between tread shoulder and maximum
section width. For example: Treadwear
200 Traction AA Temperature A
Reporting safety defects
for U.S. owners
ProCarManuals.com

'01 Rav4_U (L/O 0008)
2552001 RAV4 (OM42483U)
TreadwearÐThe treadwear grade is a
comparative rating based on the wear rate
of the tire when tested under controlled
conditions on a specified government test
course. For example, a tire graded 150
would wear one and a half (1±1/2) times
as well on the government course as a
tire graded 100. The relative performance
of tires depends upon the actual condi-
tions of their use, however, and may de-
part significantly from the norm due to
variations in driving habits, service prac-
tices and differences in road characteris-
tics and climate.Traction AA, A, B, CÐThe traction
grades, from highest to lowest, are AA, A,
B, and C, and they represent the tire's
ability to stop on wet pavement as mea-
sured under controlled conditions on spe-
cified government test surfaces of asphalt
and concrete. A tire marked C may have
poor traction performance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction.
Temperature A, B, CÐThe temperature
grades are A (the highest), B, and C,
representing the tire's resistance to the
generation of heat and its ability to dissi-
pate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature
can cause the material of the tire to de-
generate and reduce tire life, and exces-
sive temperature can lead to sudden tire
failure. The grade C corresponds to a lev-
el of performance which all passenger car
tires must meet under the Federal Motor
Vehicle Safety Standard No.109. Grades B
and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law.Warning: The temperature grades for this
tire are established for a tire that is prop-
erly inflated and not overloaded. Exces-
sive speed, underinflation, or excessive
loading, either separately or in combina-
tion, can cause heat buildup and possible
tire failure.
ProCarManuals.com

'01 Rav4_U (L/O 0008)
2562001 RAV4 (OM42483U)
ProCarManuals.com

'01 Rav4_U (L/O 0008)
12001 RAV4 (OM42483U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel5 . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1± 1
ProCarManuals.com

'01 Rav4_U (L/O 0008)
22001 RAV4 (OM42483U)

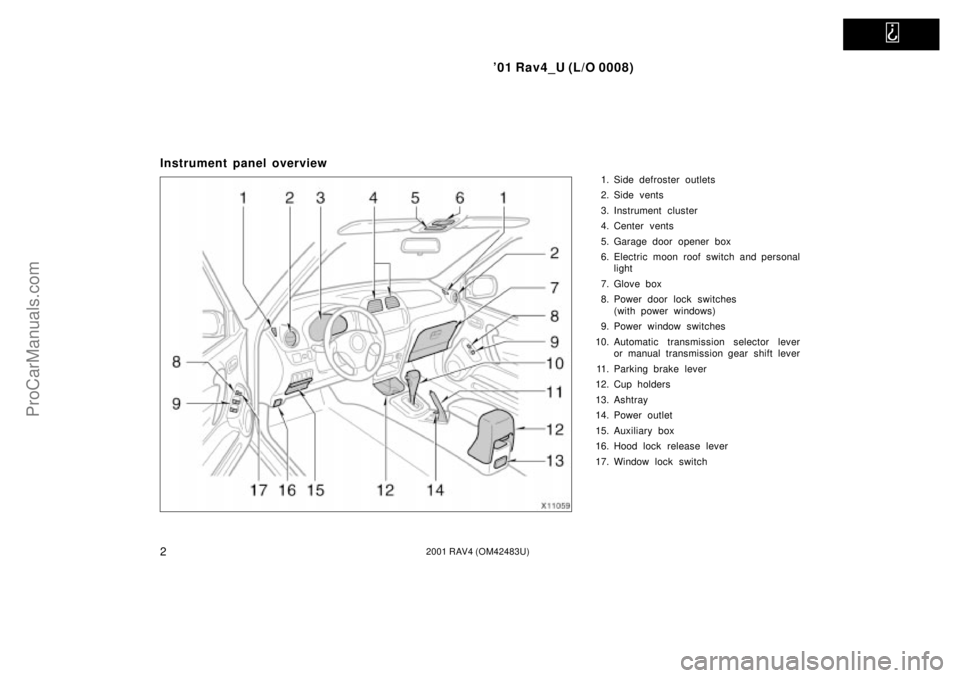

Instrument panel overview
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Garage door opener box
6. Electric moon roof switch and personal
light
7. Glove box
8. Power door lock switches
(with power windows)
9. Power window switches
10. Automatic transmission selector lever
or manual transmission gear shift lever
11. Parking brake lever
12. Cup holders
13. Ashtray
14. Power outlet
15. Auxiliary box
16. Hood lock release lever
17. Window lock switch
ProCarManuals.com

'01 Rav4_U (L/O 0008)
32001 RAV4 (OM42483U)

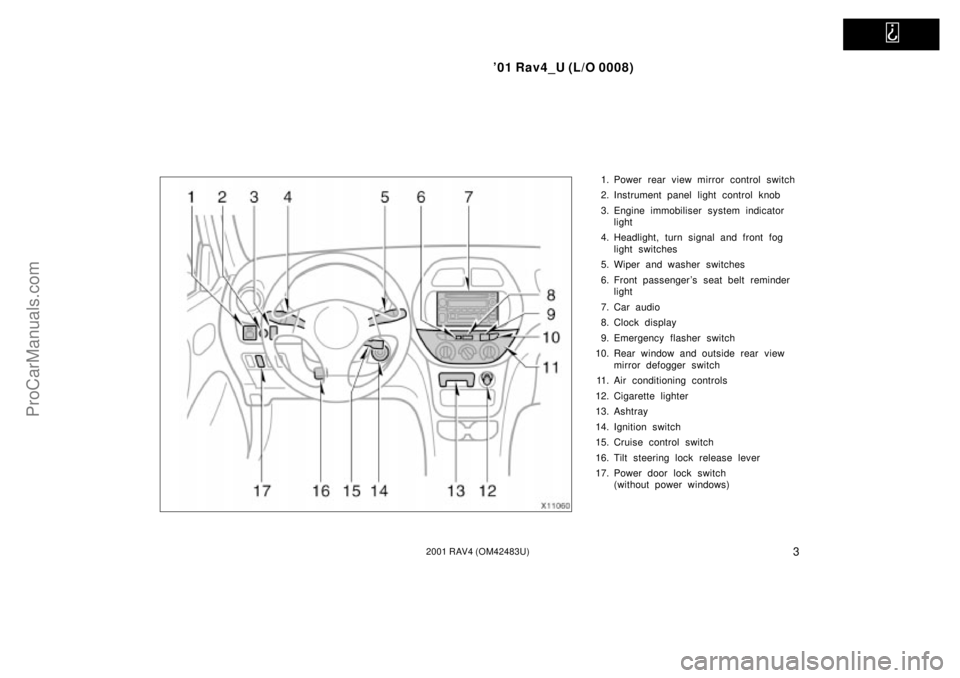

1. Power rear view mirror control switch
2. Instrument panel light control knob
3. Engine immobiliser system indicator
light
4. Headlight, turn signal and front fog
light switches
5. Wiper and washer switches
6. Front passenger 's seat belt reminder
light
7. Car audio
8. Clock display
9. Emergency flasher switch
10. Rear window and outside rear view
mirror defogger switch
11. Air conditioning controls
12. Cigarette lighter
13. Ashtray
14. Ignition switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Power door lock switch
(without power windows)
ProCarManuals.com

'01 Rav4_U (L/O 0008)
42001 RAV4 (OM42483U)

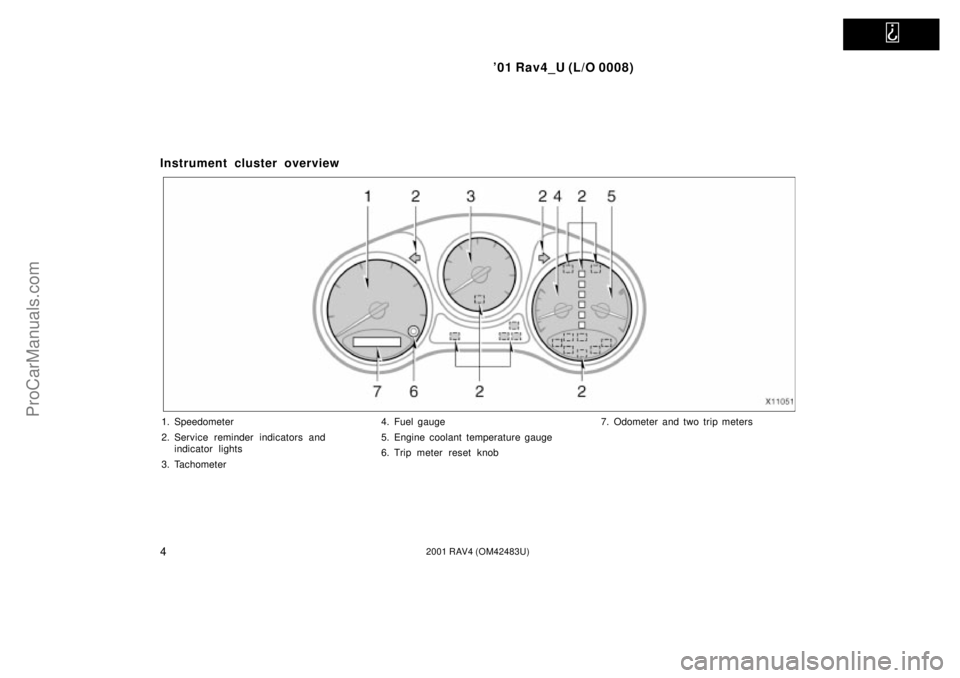

Instrument cluster overview
1. Speedometer
2. Service reminder indicators and
indicator lights
3. Tachometer4. Fuel gauge
5. Engine coolant temperature gauge
6. Trip meter reset knob7. Odometer and two trip meters
ProCarManuals.com

'01 Rav4_U (L/O 0008)
52001 RAV4 (OM42483U)
Indicator symbols on the instrument panel
Brake system warning light*
1
Discharge warning light*
1
Low oil pressure warning light*
1
Malfunction indicator lamp*
1
Headlight high beam indicator light SRS warning light
*
1
Turn signal indicator lights Driver 's seat belt reminder light
*
1Open door warning light*
1
Low fuel level warning light*
1
Automatic transmission fluid temperature warning
light*
1
Anti±lock brake system warning light*
1or
Low windshield washer fluid level warning light*
1
or
Front passenger 's seat belt reminder light*
1
or
Automatic transmission indicator lights
ProCarManuals.com

'01 Rav4_U (L/O 0008)
62001 RAV4 (OM42483U)
*
1: For details, see ªService reminder indicators and warning
buzzersº on page 90 in Section 1±5.
*
2: If this light flashes, see ªCruise controlº on page 103 in
Section 1±6.Cruise control indicator light
*
2
Overdrive±off indicator light
ProCarManuals.com
