OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back door21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1± 2
ProCarManuals.com

'01 Rav4_U (L/O 0008)
82001 RAV4 (OM42483U)

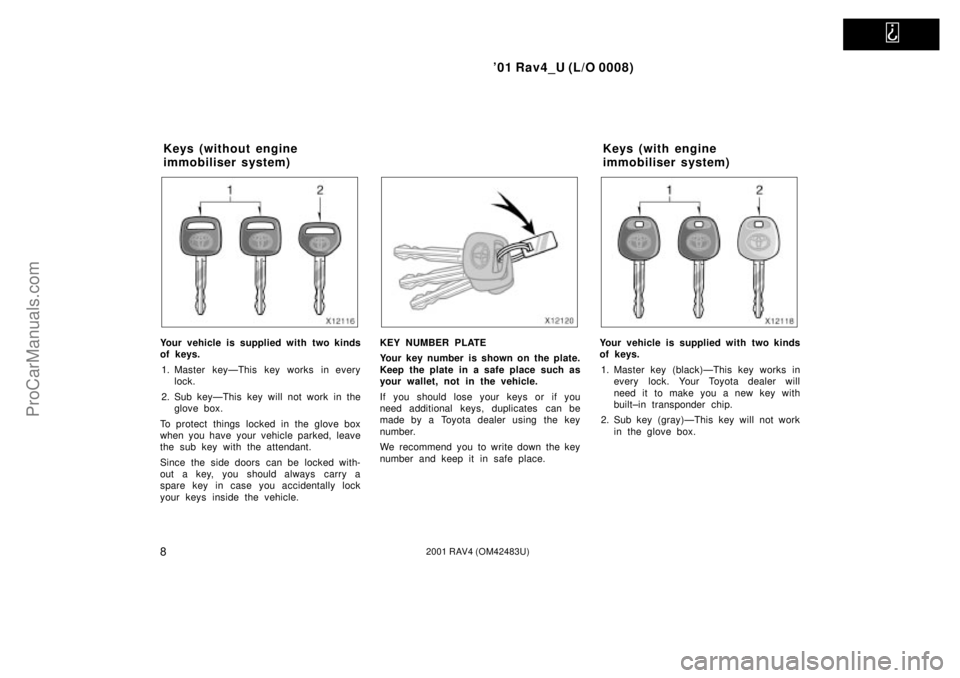

Your vehicle is supplied with two kinds
of keys.
1. Master keyÐThis key works in every
lock.
2. Sub keyÐThis key will not work in the
glove box.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.Your vehicle is supplied with two kinds
of keys.
1. Master key (black)ÐThis key works in
every lock. Your Toyota dealer will
need it to make you a new key with
built±in transponder chip.
2. Sub key (gray)ÐThis key will not work
in the glove box.
Keys (without engine
immobiliser system)Keys (with engine
immobiliser system)
ProCarManuals.com

'01 Rav4_U (L/O 0008)
92001 RAV4 (OM42483U)
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
ProCarManuals.com

'01 Rav4_U (L/O 0008)
102001 RAV4 (OM42483U)

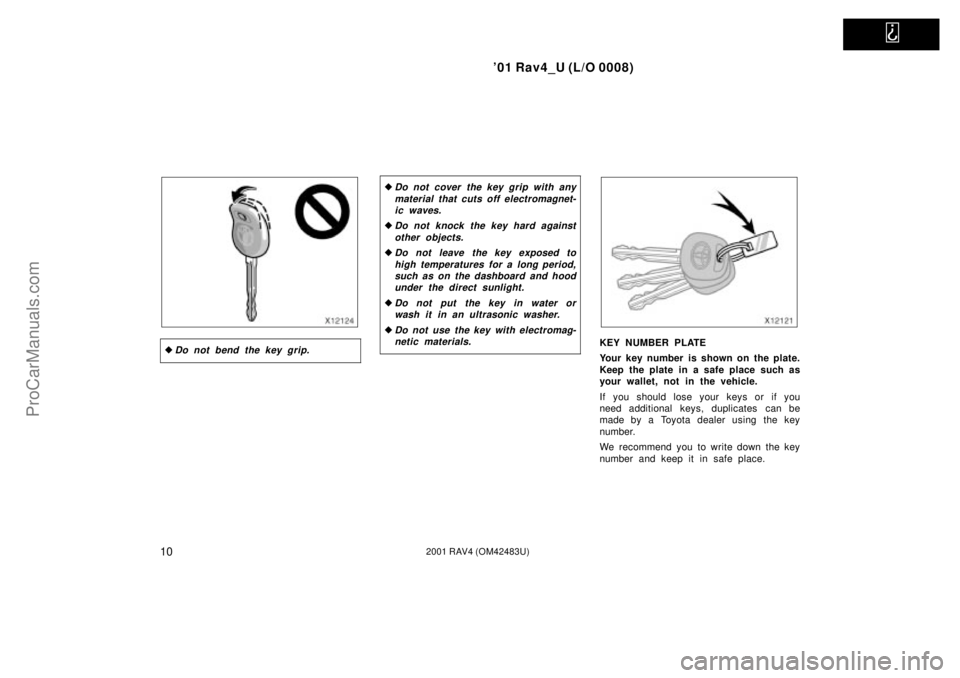

Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
ProCarManuals.com

'01 Rav4_U (L/O 0008)
112001 RAV4 (OM42483U)

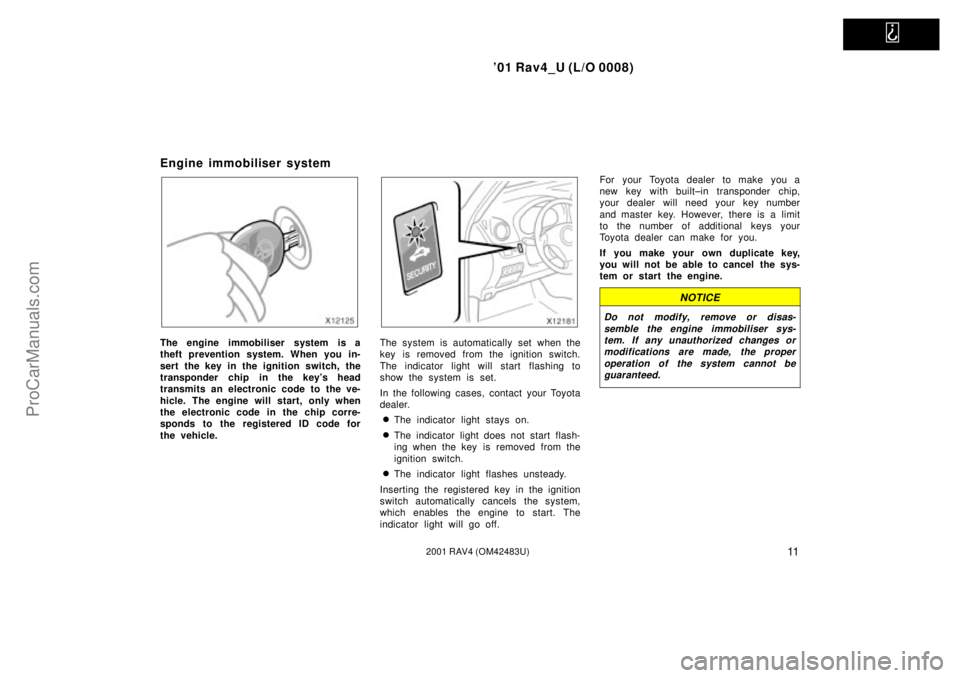

Engine immobiliser system
The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key's head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
In the following cases, contact your Toyota
dealer.

The indicator light stays on.

The indicator light does not start flash-
ing when the key is removed from the
ignition switch.

The indicator light flashes unsteady.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.For your Toyota dealer to make you a
new key with built±in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobiliser sys-
tem. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
ProCarManuals.com

'01 Rav4_U (L/O 0008)
122001 RAV4 (OM42483U)
For vehicles sold in U.S.A.
FCC ID: NI4TMIM±4
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user's authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS±210 of
industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
Side doorsÐ

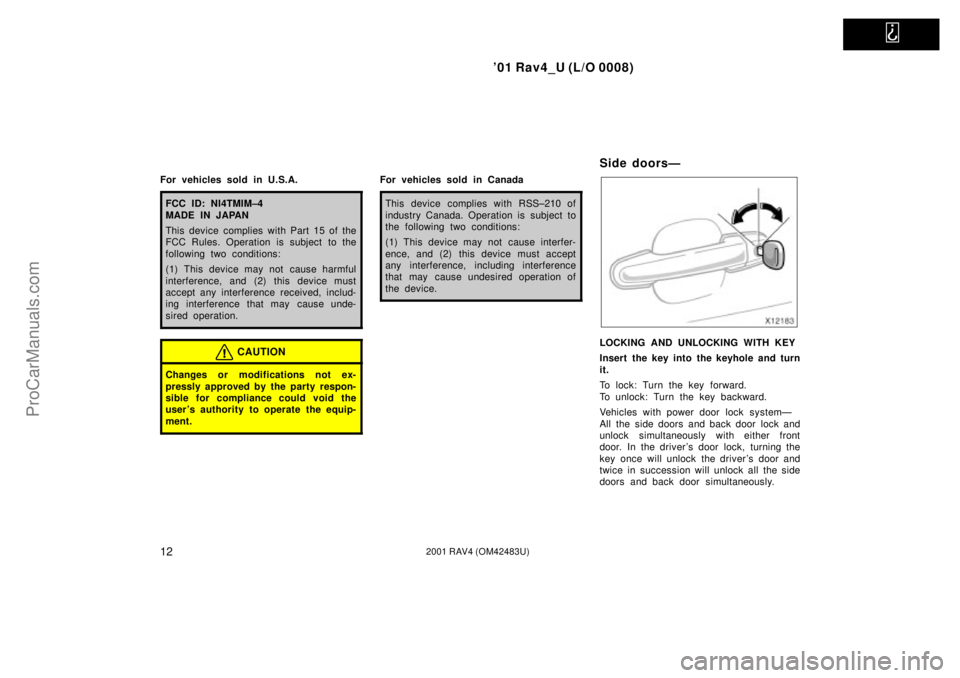

LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock systemÐ
All the side doors and back door lock and
unlock simultaneously with either front
door. In the driver 's door lock, turning the
key once will unlock the driver's door and
twice in succession will unlock all the side
doors and back door simultaneously.
ProCarManuals.com

'01 Rav4_U (L/O 0008)
132001 RAV4 (OM42483U)
When all the side doors and back door
are unlocked simultaneously with a key,
the interior light comes on for about 15
seconds and then fades out, even if the
door is not opened. (For further informa-
tion, see ªInterior lightsº on page 82 in
Section 1±4.)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB

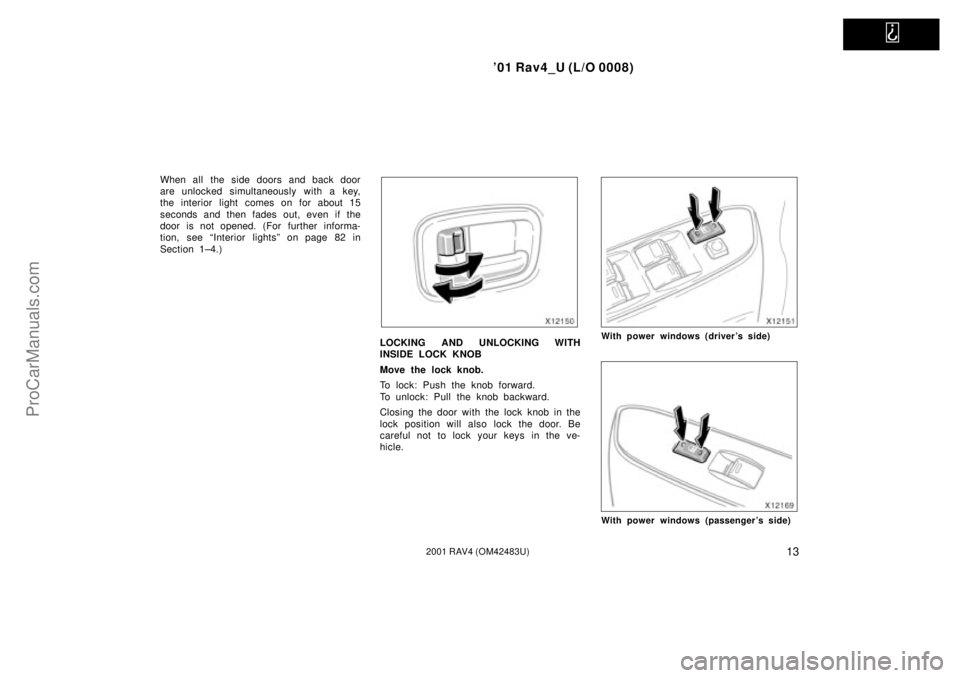

Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.With power windows (driver's side)
With power windows (passenger's side)
ProCarManuals.com

'01 Rav4_U (L/O 0008)
142001 RAV4 (OM42483U)
Without power windows
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
With power windowsÐ
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
Without power windowsÐ
To lock: Push the switch on the ªLOCKº
side.
To unlock: Push the switch on the
ªUNLOCKº side.Operating the switch simultaneously locks
or unlocks all the side doors and back
door.

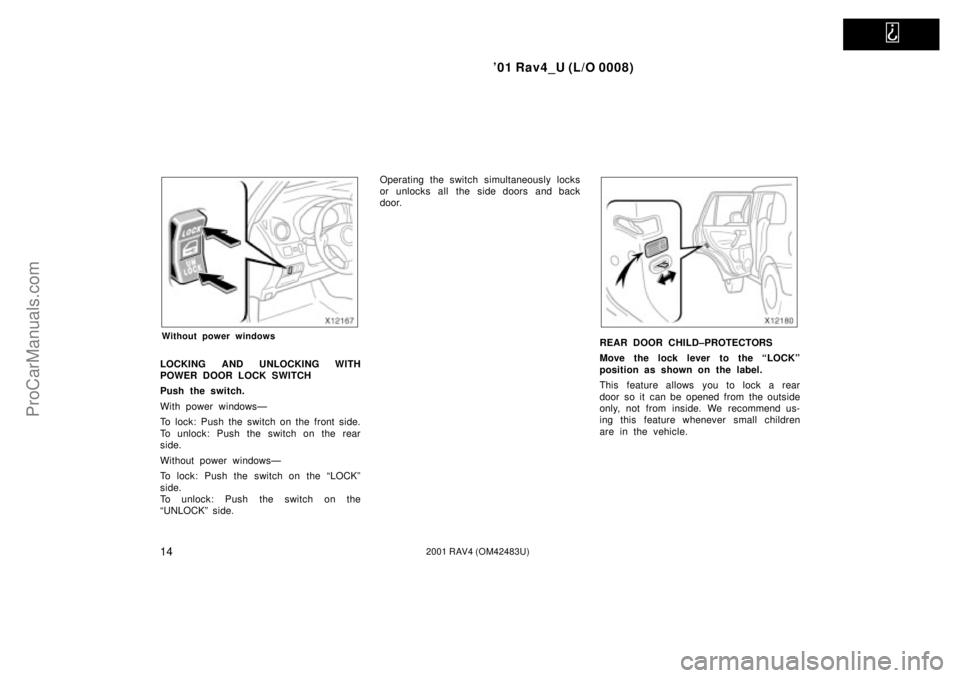

REAR DOOR CHILD±PROTECTORS
Move the lock lever to the ªLOCKº
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.
ProCarManuals.com

'01 Rav4_U (L/O 0008)
152001 RAV4 (OM42483U)
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.

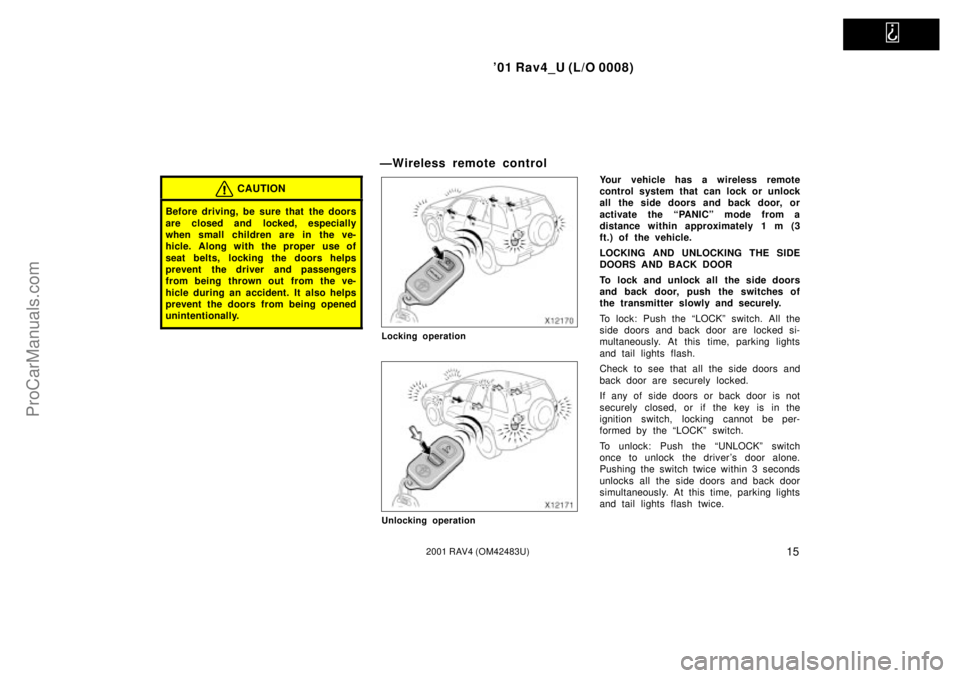

ÐWireless remote control
Locking operation
Unlocking operation
Your vehicle has a wireless remote
control system that can lock or unlock
all the side doors and back door, or
activate the ªPANICº mode from a
distance within approximately 1 m (3
ft.) of the vehicle.
LOCKING AND UNLOCKING THE SIDE
DOORS AND BACK DOOR
To lock and unlock all the side doors
and back door, push the switches of
the transmitter slowly and securely.
To lock: Push the ªLOCKº switch. All the
side doors and back door are locked si-
multaneously. At this time, parking lights
and tail lights flash.
Check to see that all the side doors and
back door are securely locked.
If any of side doors or back door is not
securely closed, or if the key is in the
ignition switch, locking cannot be per-
formed by the ªLOCKº switch.
To unlock: Push the ªUNLOCKº switch
once to unlock the driver 's door alone.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously. At this time, parking lights
and tail lights flash twice.
ProCarManuals.com

'01 Rav4_U (L/O 0008)
162001 RAV4 (OM42483U)
When all the side doors and back door
are unlocked simultaneously with a wire-
less remote control transmitter, the interior
light comes on for about 15 seconds and
then fades out, even if the door is not
opened. (For further information, see ªInte-
rior lightº on page 82 in Section 1±4.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automati-
cally locked again.
If the ªLOCKº or ªUNLOCKº switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the button
and then push again.

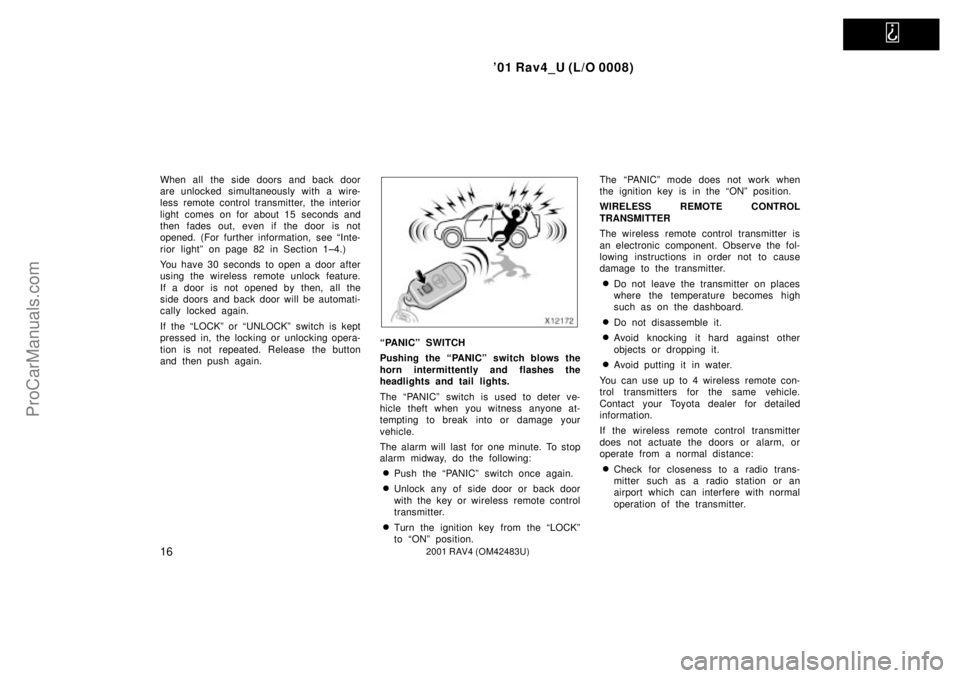

ªPANICº SWITCH
Pushing the ªPANICº switch blows the
horn intermittently and flashes the
headlights and tail lights.
The ªPANICº switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, do the following:

Push the ªPANICº switch once again.

Unlock any of side door or back door
with the key or wireless remote control
transmitter.

Turn the ignition key from the ªLOCKº
to ªONº position.The ªPANICº mode does not work when
the ignition key is in the ªONº position.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.

Do not leave the transmitter on places
where the temperature becomes high
such as on the dashboard.

Do not disassemble it.

Avoid knocking it hard against other
objects or dropping it.

Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:

Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
ProCarManuals.com
