2005 RAV4 from Sep. '04 Prod. (OM42570U)

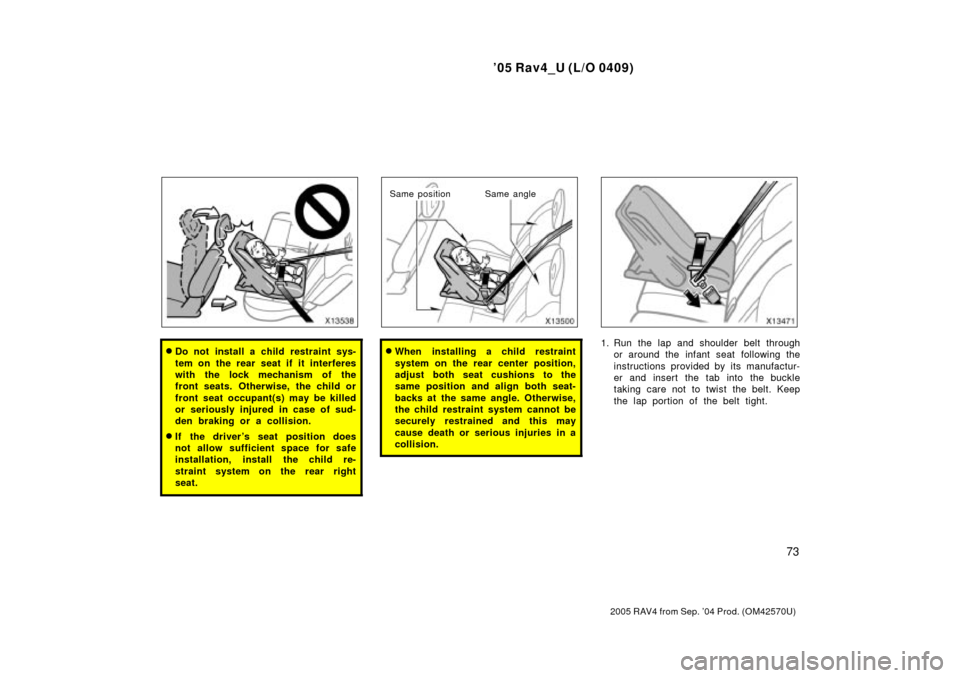

Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

If the driver 's seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
Same angle
Same position

When installing a child restraint
system on the rear center position,
adjust both seat cushions to the
same position and align both seat-
backs at the same angle. Otherwise,
the child restraint system cannot be
securely restrained and this may
cause death or serious injuries in a
collision.1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.

'05 Rav4_U (L/O 0409)
74
2005 RAV4 from Sep. '04 Prod. (OM42570U)
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.

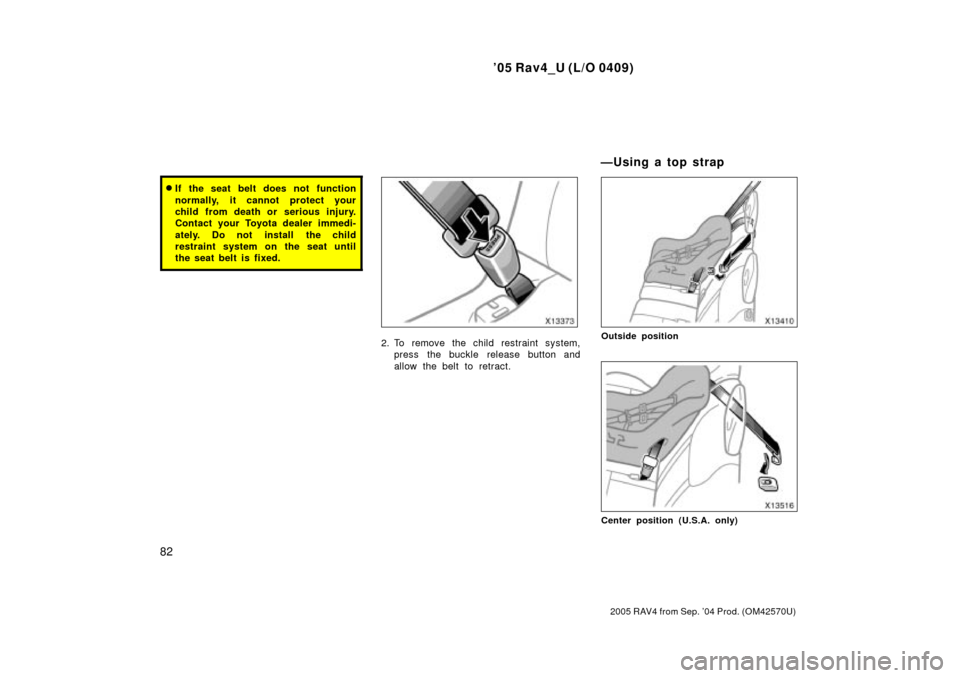

If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.

'05 Rav4_U (L/O 0409)
75
2005 RAV4 from Sep. '04 Prod. (OM42570U)
CAUTION

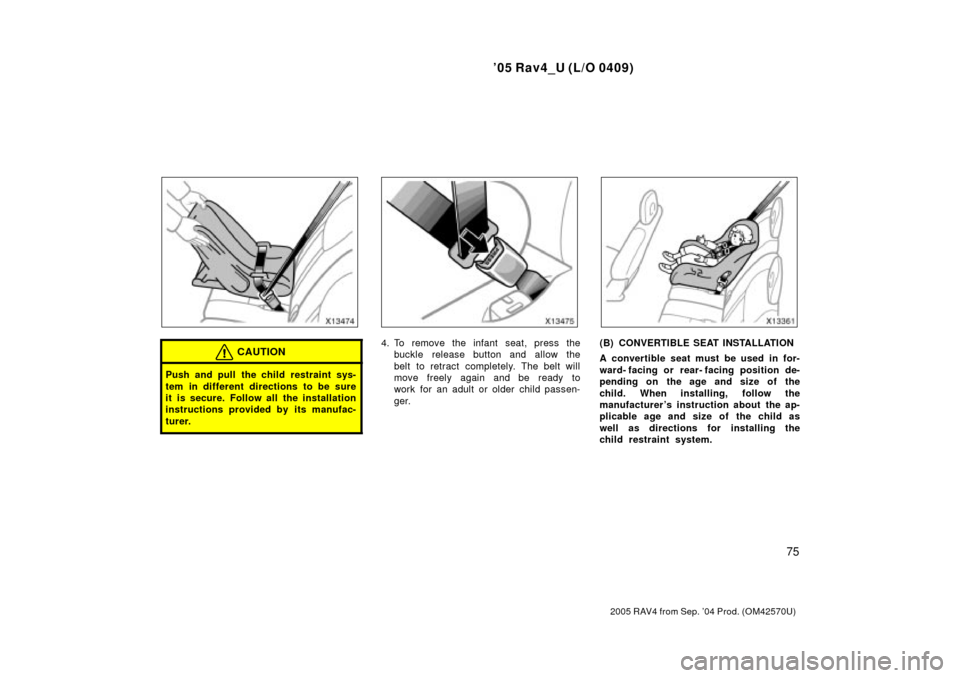

Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the infant seat, press thebuckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
ward- facing or rear- facing position de-
pending on the age and size of the
child. When installing, follow the
manufacturer 's instruction about the ap-
plicable age and size of the child as
well as directions for installing the
child restraint system.

'05 Rav4_U (L/O 0409)
76
2005 RAV4 from Sep. '04 Prod. (OM42570U)
CAUTION

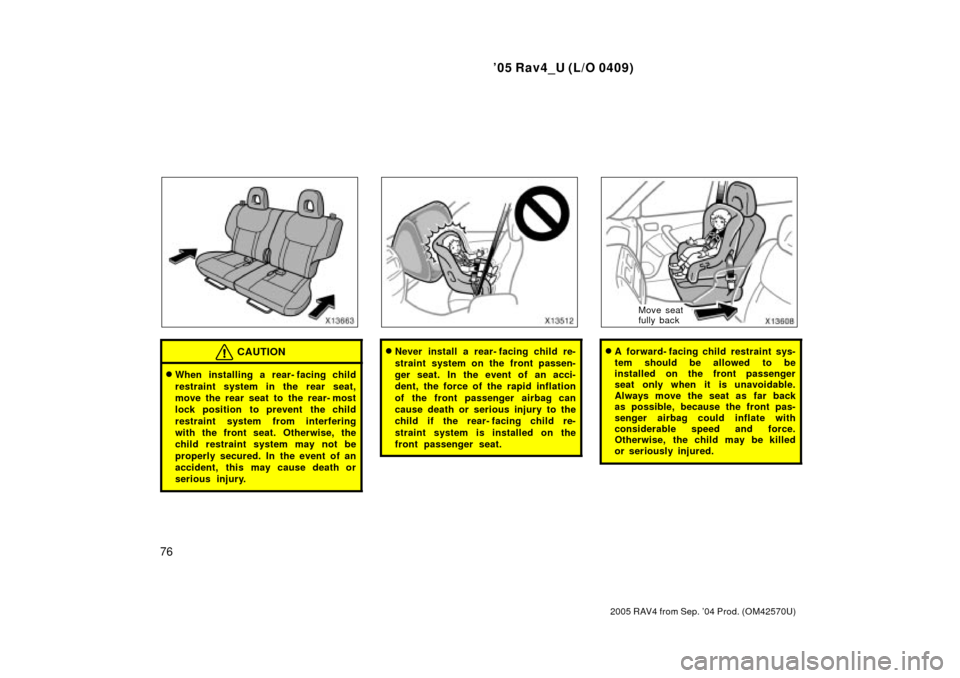

When installing a rear- facing child
restraint system in the rear seat,
move the rear seat to the rear- most
lock position to prevent the child
restraint system from interfering
with the front seat. Otherwise, the
child restraint system may not be
properly secured. In the event of an
accident, this may cause death or
serious injury.

Never install a rear- facing child re-
straint system on the front passen-
ger seat. In the event of an acci-
dent, the force of the rapid inflation
of the front passenger airbag can
cause death or serious injury to the
child if the rear- facing child re-
straint system is installed on the
front passenger seat.
Move seat
fully back

A forward- facing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.

'05 Rav4_U (L/O 0409)
77
2005 RAV4 from Sep. '04 Prod. (OM42570U)

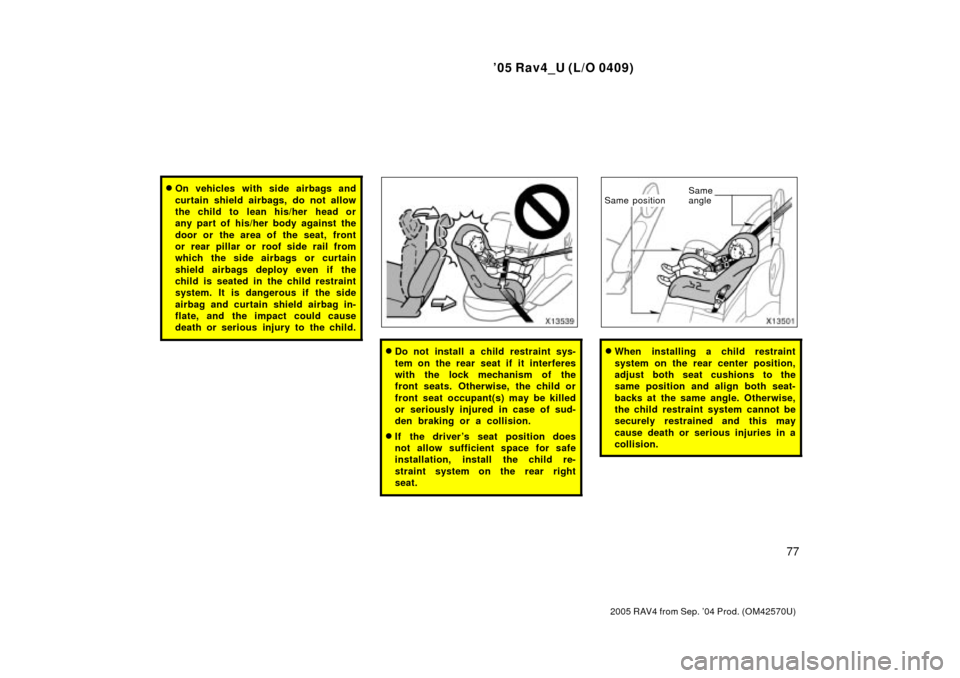

On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.

Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

If the driver 's seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
Same
angle
Same position

When installing a child restraint
system on the rear center position,
adjust both seat cushions to the
same position and align both seat-
backs at the same angle. Otherwise,
the child restraint system cannot be
securely restrained and this may
cause death or serious injuries in a
collision.

'05 Rav4_U (L/O 0409)
78
2005 RAV4 from Sep. '04 Prod. (OM42570U)
1. Run the lap and shoulder belt throughor around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.

If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted slightly, it cannot be ex-
tended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.

'05 Rav4_U (L/O 0409)
79
2005 RAV4 from Sep. '04 Prod. (OM42570U)
3. While pressing the convertible seatfirmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, pressthe buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.

'05 Rav4_U (L/O 0409)
80
2005 RAV4 from Sep. '04 Prod. (OM42570U)
(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
ward- facing position only.
Move seat
fully back
CAUTION

A forward- facing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.

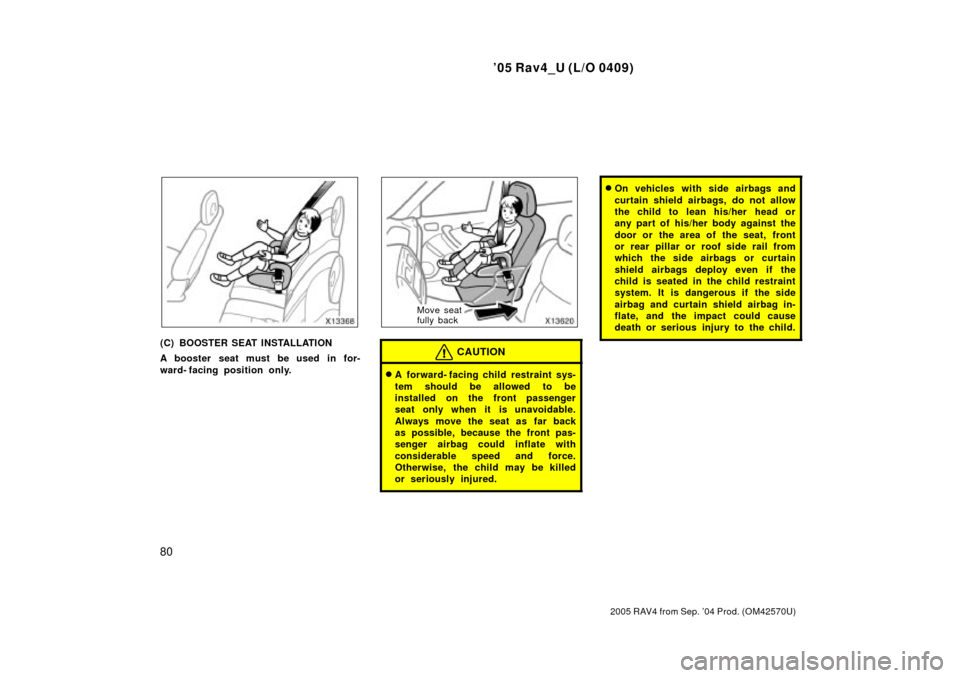

On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.

'05 Rav4_U (L/O 0409)
81
2005 RAV4 from Sep. '04 Prod. (OM42570U)
Same
angle
Same position

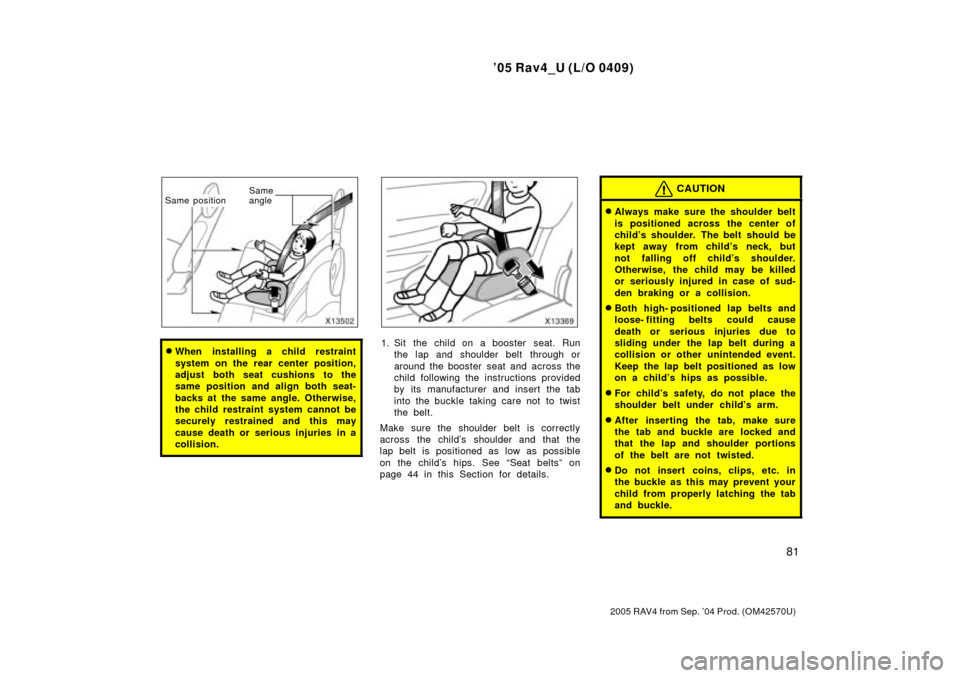

When installing a child restraint
system on the rear center position,
adjust both seat cushions to the
same position and align both seat-
backs at the same angle. Otherwise,
the child restraint system cannot be
securely restrained and this may
cause death or serious injuries in a
collision.1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child's shoulder and that the
lap belt is positioned as low as possible
on the child's hips. See Seat beltsº on
page 44 in this Section for details.
CAUTION

Always make sure the shoulder belt
is positioned across the center of
child's shoulder. The belt should be
kept away from child's neck, but
not falling off child's s houlder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.

Both high- positioned lap belts and
loose- fitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child's hips as possible.

For child's safety, do not place the
shoulder belt under child's arm.

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.

'05 Rav4_U (L/O 0409)
82
2005 RAV4 from Sep. '04 Prod. (OM42570U)

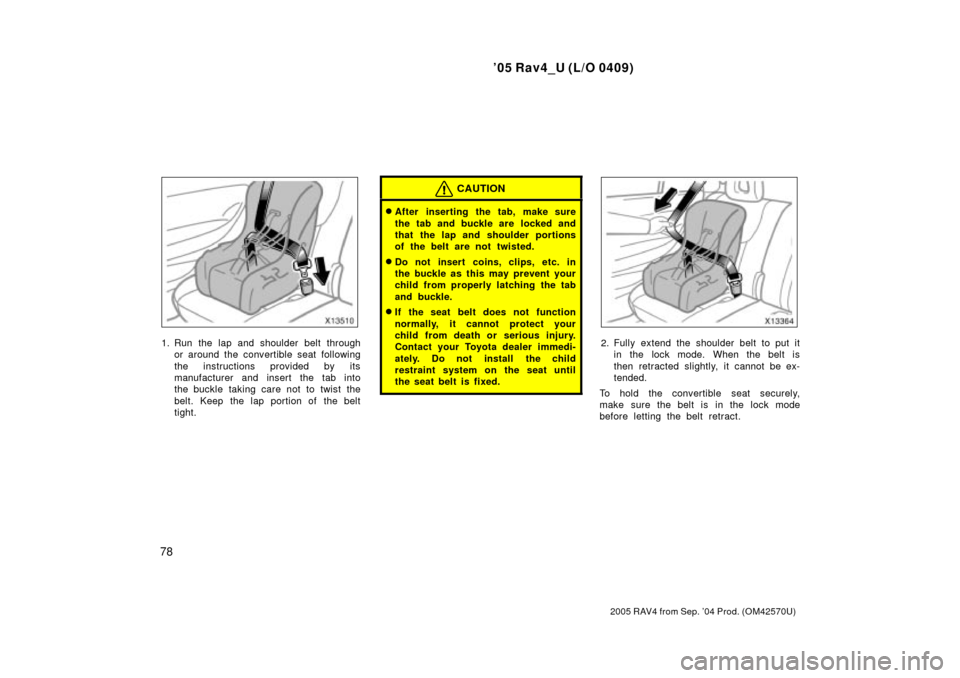

If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. To remove the child restraint system,press the buckle release button and
allow the belt to retract.Outside position
Center position (U.S.A. only)
