TOYOTA RAV4 2012 XA30 / 3.G Owners Manual

321
3-5. Using the
storage features
3
Interior features
Console box
Upper tray Lift the lid.
Lower box Pull the lever up and lift the lid.
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
Console box

322 3-5. Using the storage features

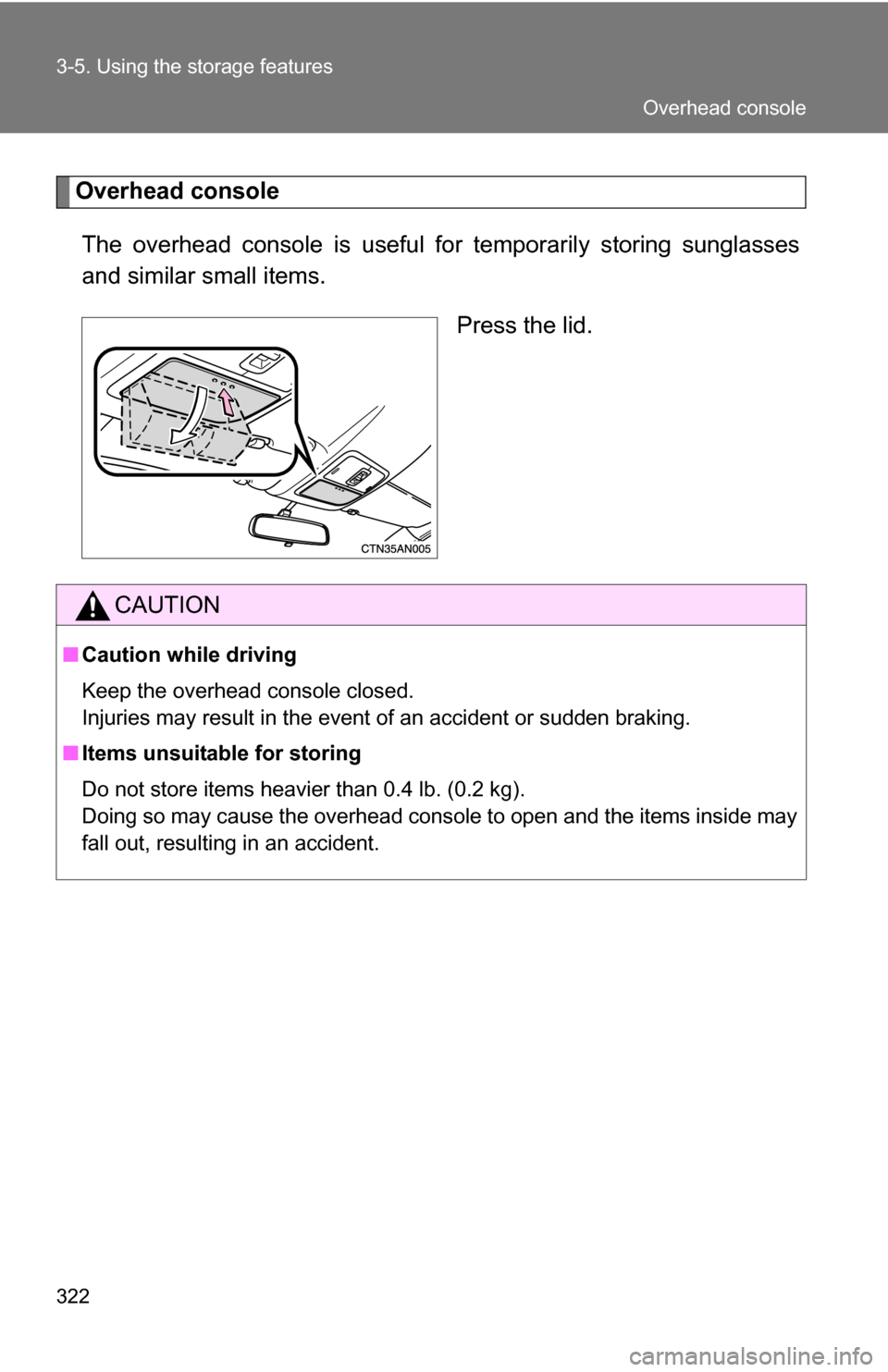

Overhead consoleThe overhead console is useful for temporarily storing sunglasses
and similar small items.
Press the lid.
CAUTION
■Caution while driving
Keep the overhead console closed.
Injuries may result in the event of an accident or sudden braking.
■ Items unsuitable for storing
Do not store items heavier than 0.4 lb. (0.2 kg).
Doing so may cause the overhead console to open and the items inside may
fall out, resulting in an accident.
Overhead console

323
3-5. Using the
storage features
3
Interior features

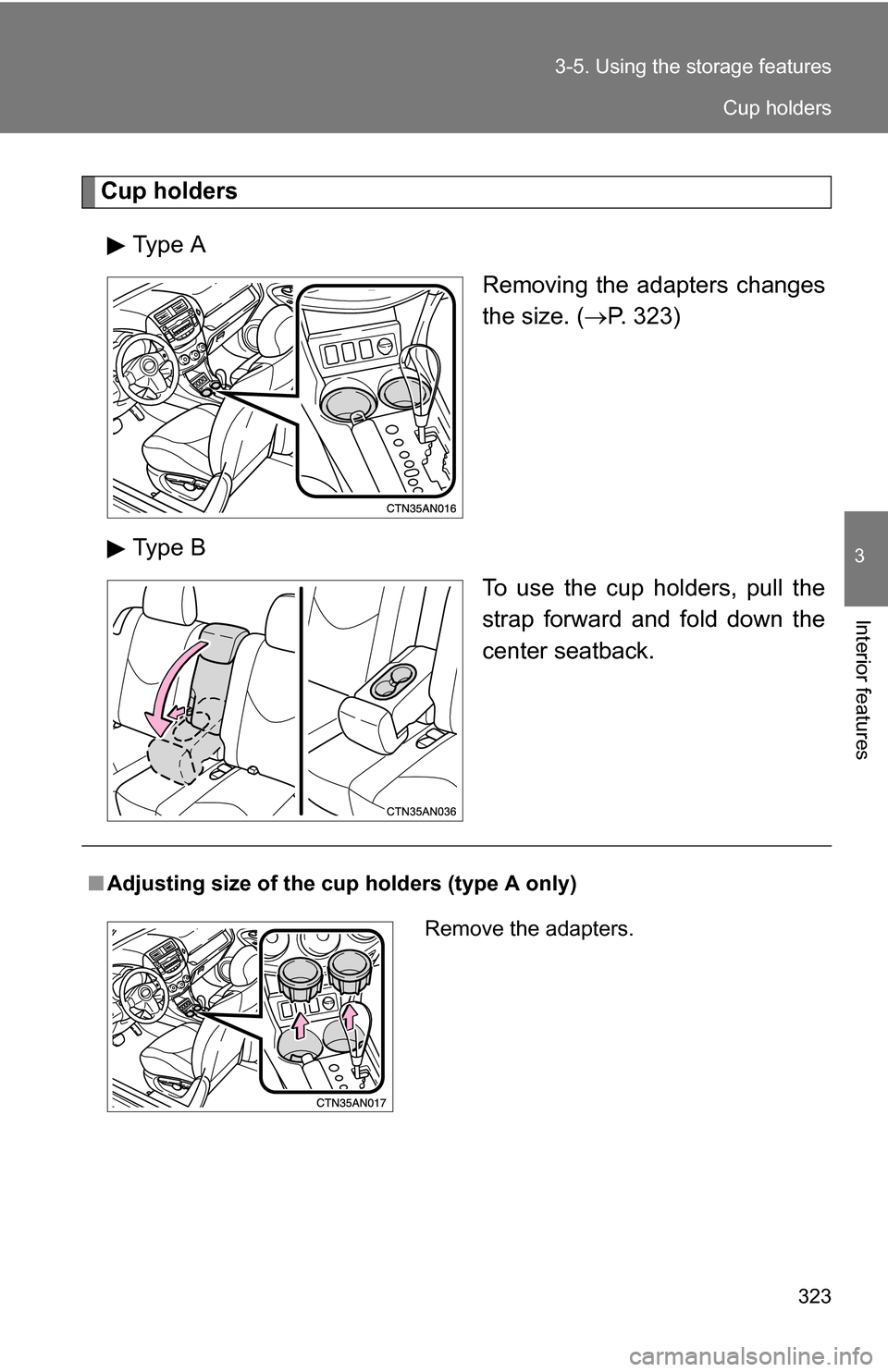

Cup holders
Type A Removing the adapters changes
the size. (P. 323)
Type B To use the cup holders, pull the
strap forward and fold down the
center seatback.
■Adjusting size of the cup holders (type A only)
Remove the adapters.
Cup holders

324 3-5. Using the storage features

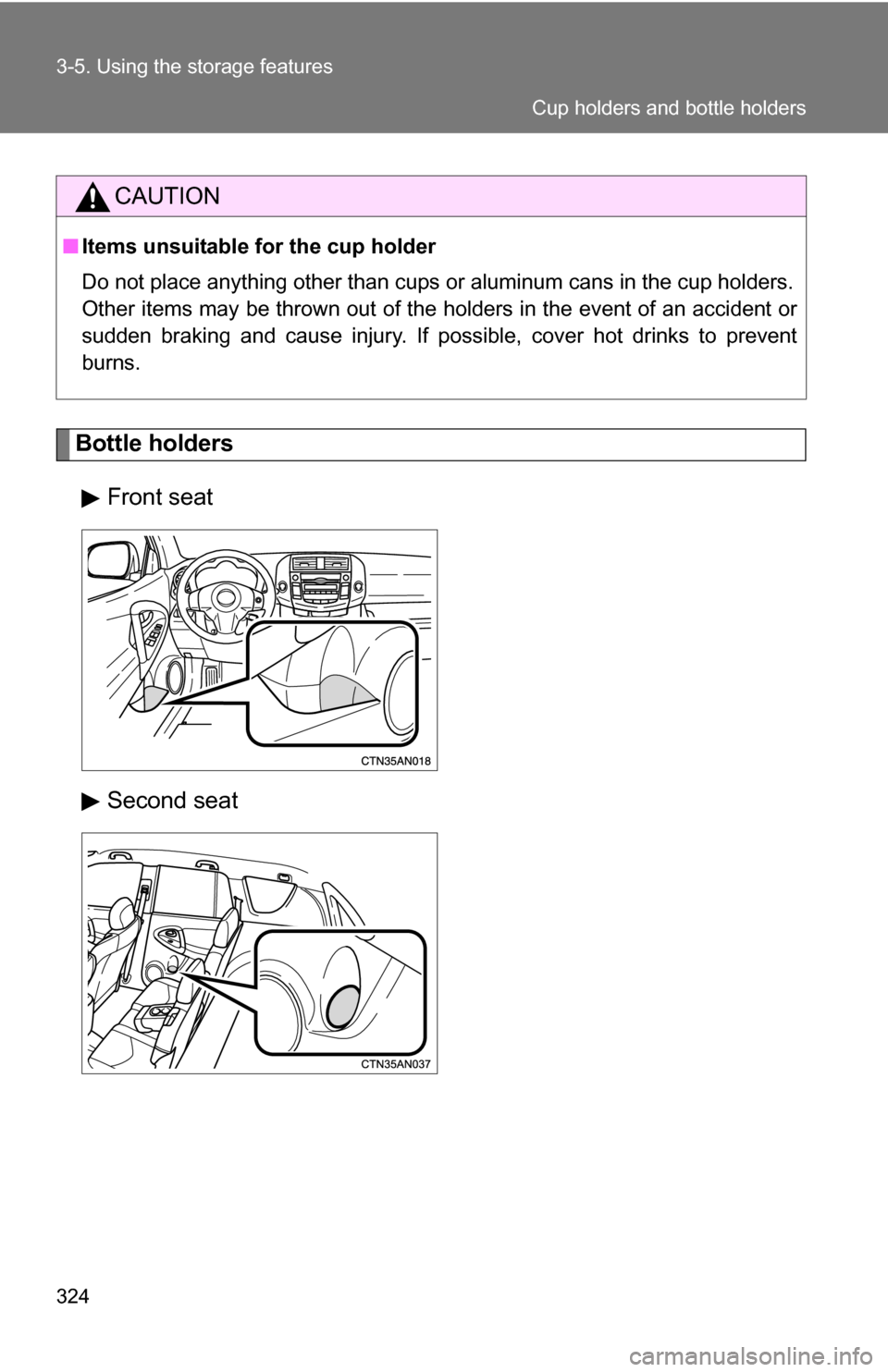

Bottle holdersFront seat
Second seat
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
Cup holders and bottle holders

325
3-5. Using the
storage features
3
Interior features

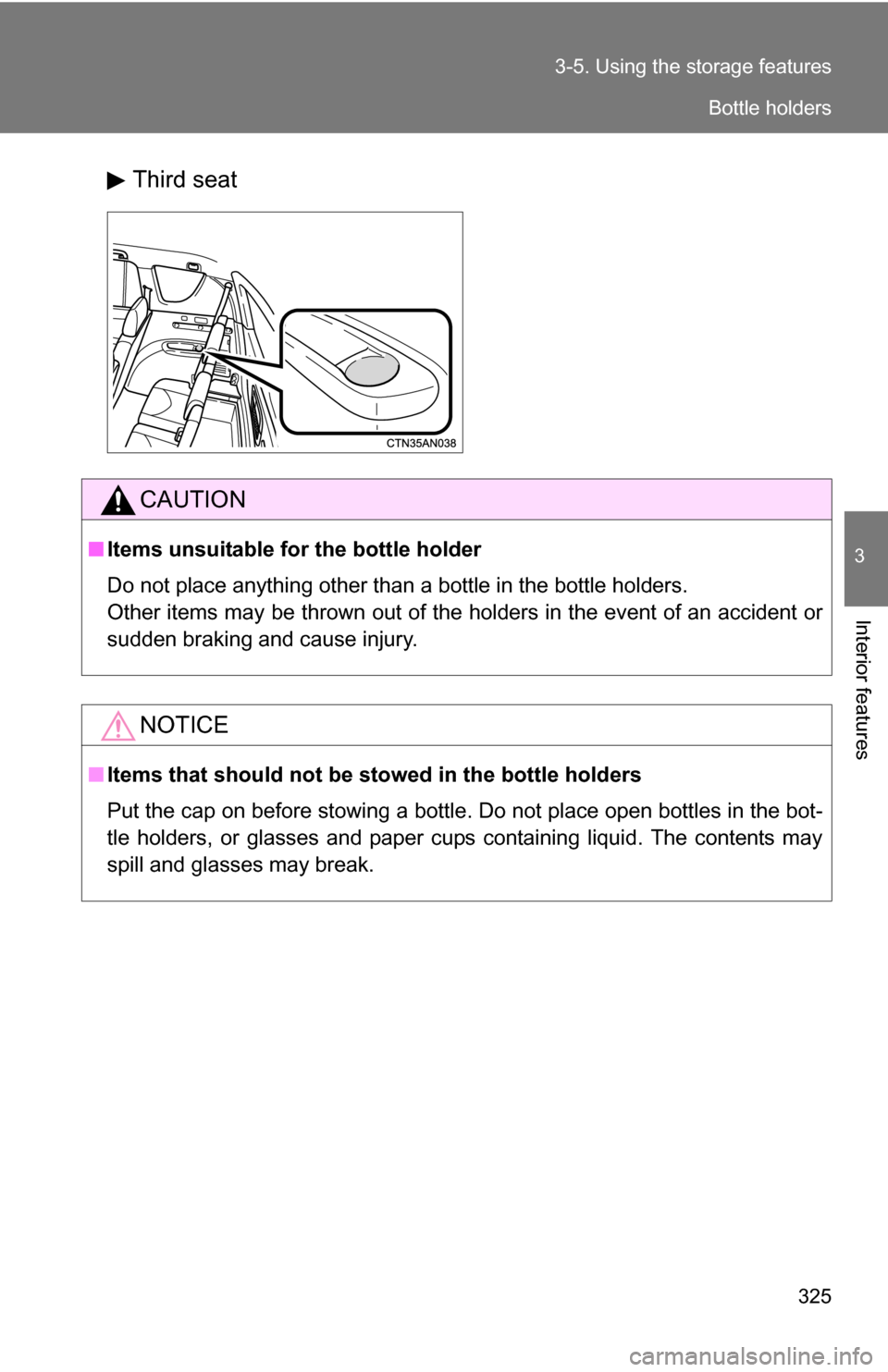

Third seat
CAUTION
■Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
■Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders

326 3-5. Using the storage features

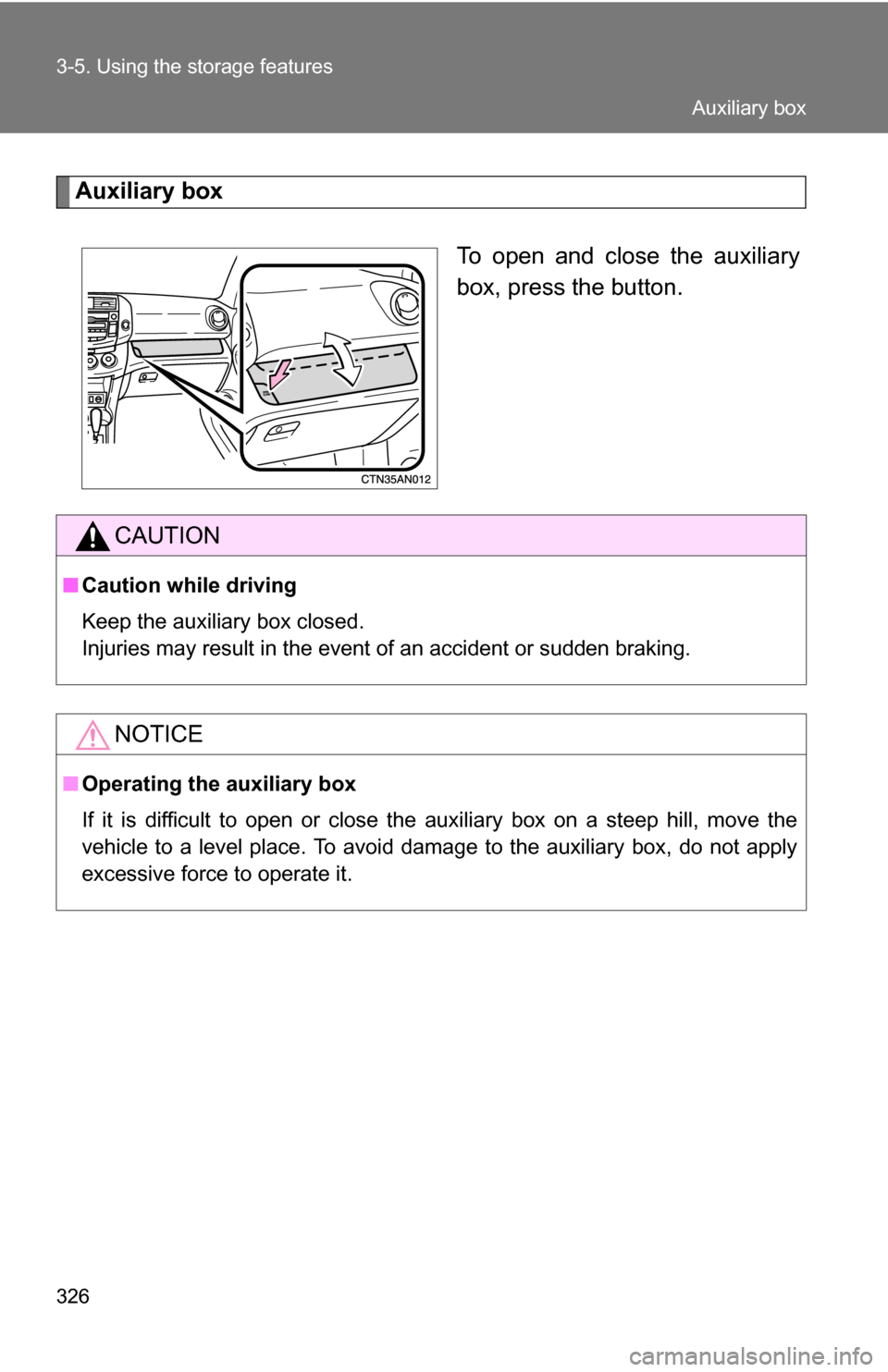

Auxiliary boxTo open and close the auxiliary
box, press the button.
CAUTION
■Caution while driving
Keep the auxiliary box closed.
Injuries may result in the event of an accident or sudden braking.
NOTICE
■Operating the auxiliary box
If it is difficult to open or close the auxiliary box on a steep hill, move the
vehicle to a level place. To avoid damage to the auxiliary box, do not apply
excessive force to operate it.
Auxiliary box

327
3
Interior features
3-6. Other interior features

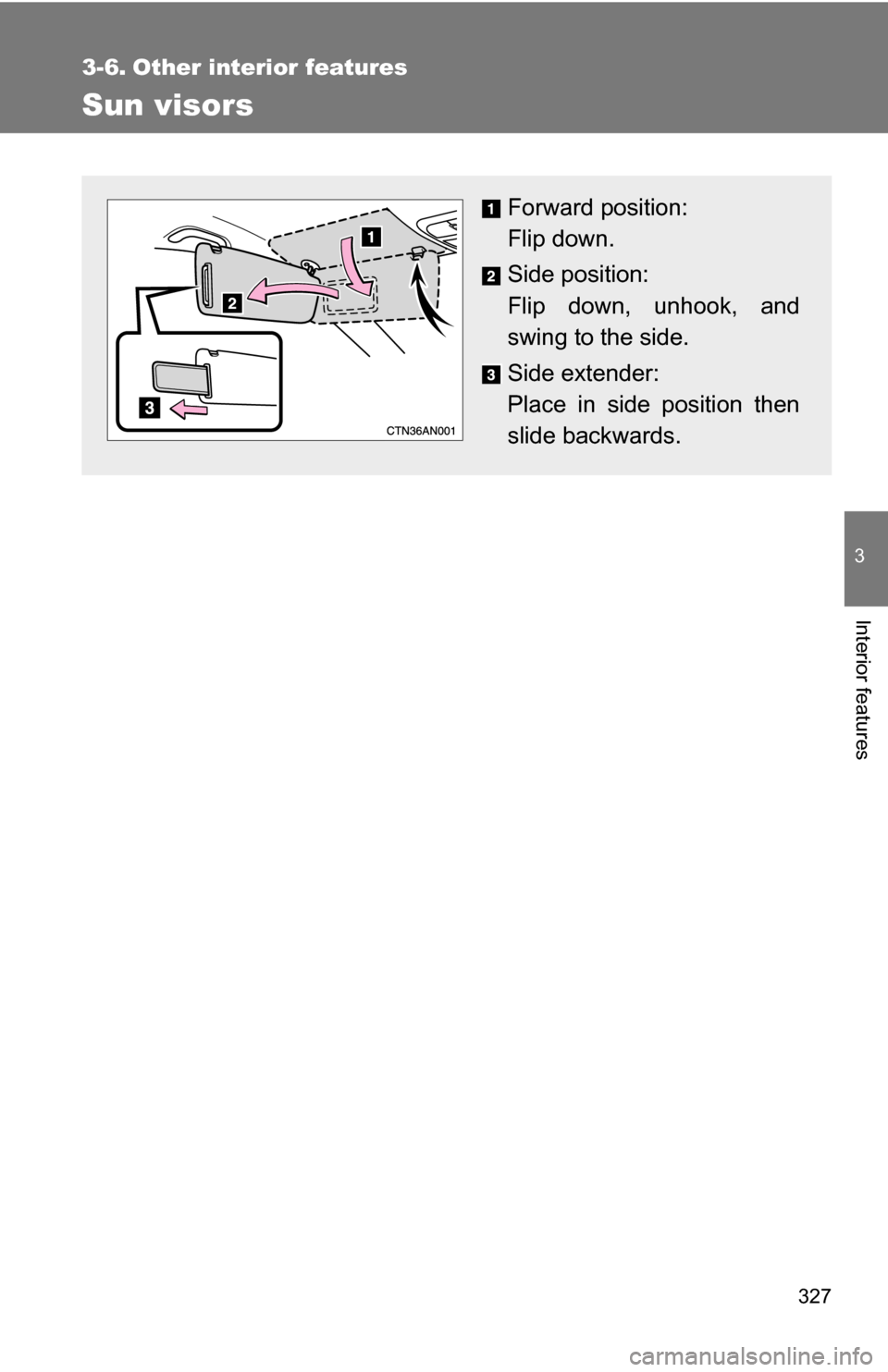

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.
Side extender:
Place in side position then
slide backwards.

328
3-6. Other interior features

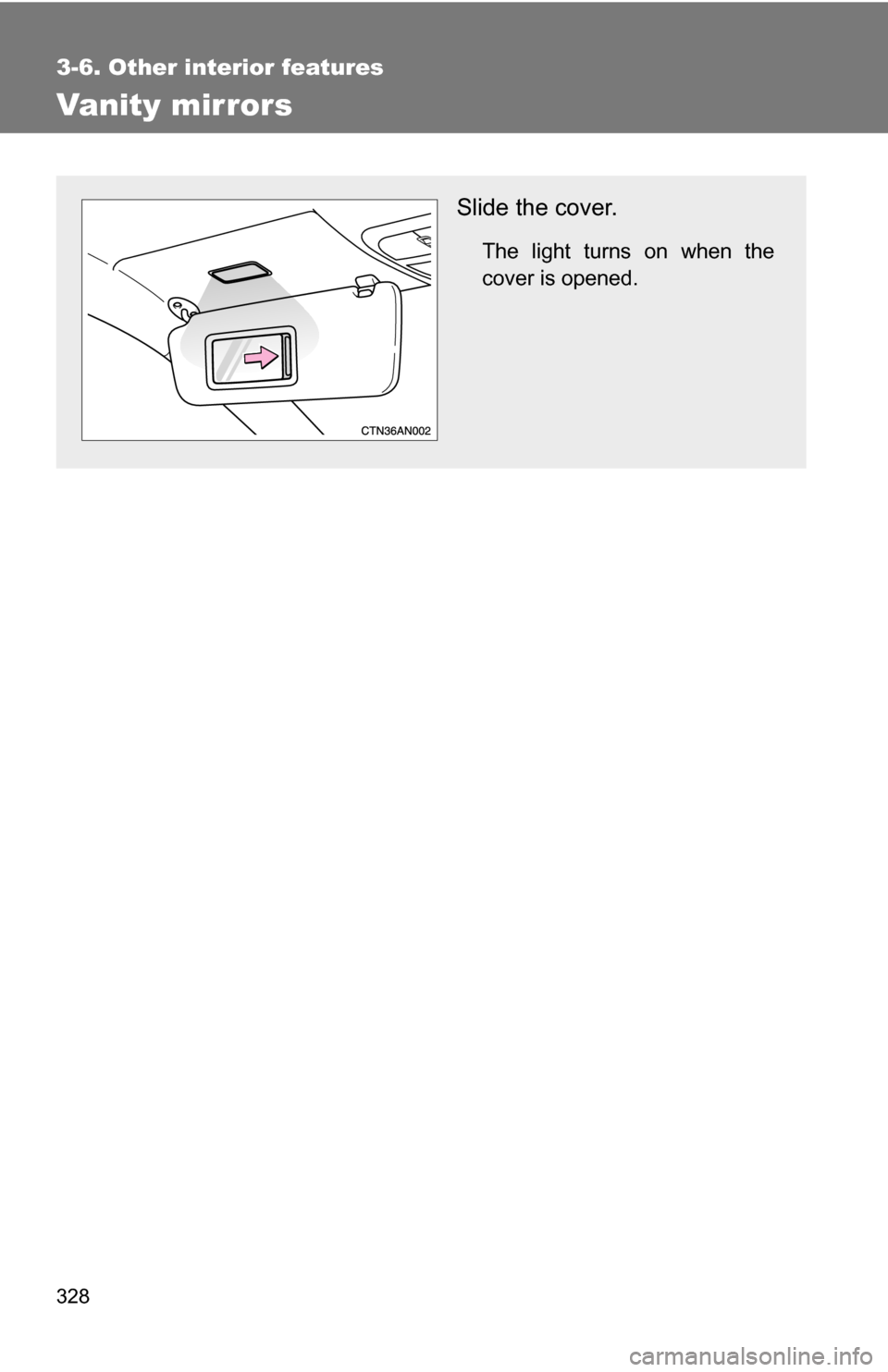

Vanity mirrors
Slide the cover.
The light turns on when the
cover is opened.

329
3-6. Other interior features
3
Interior features

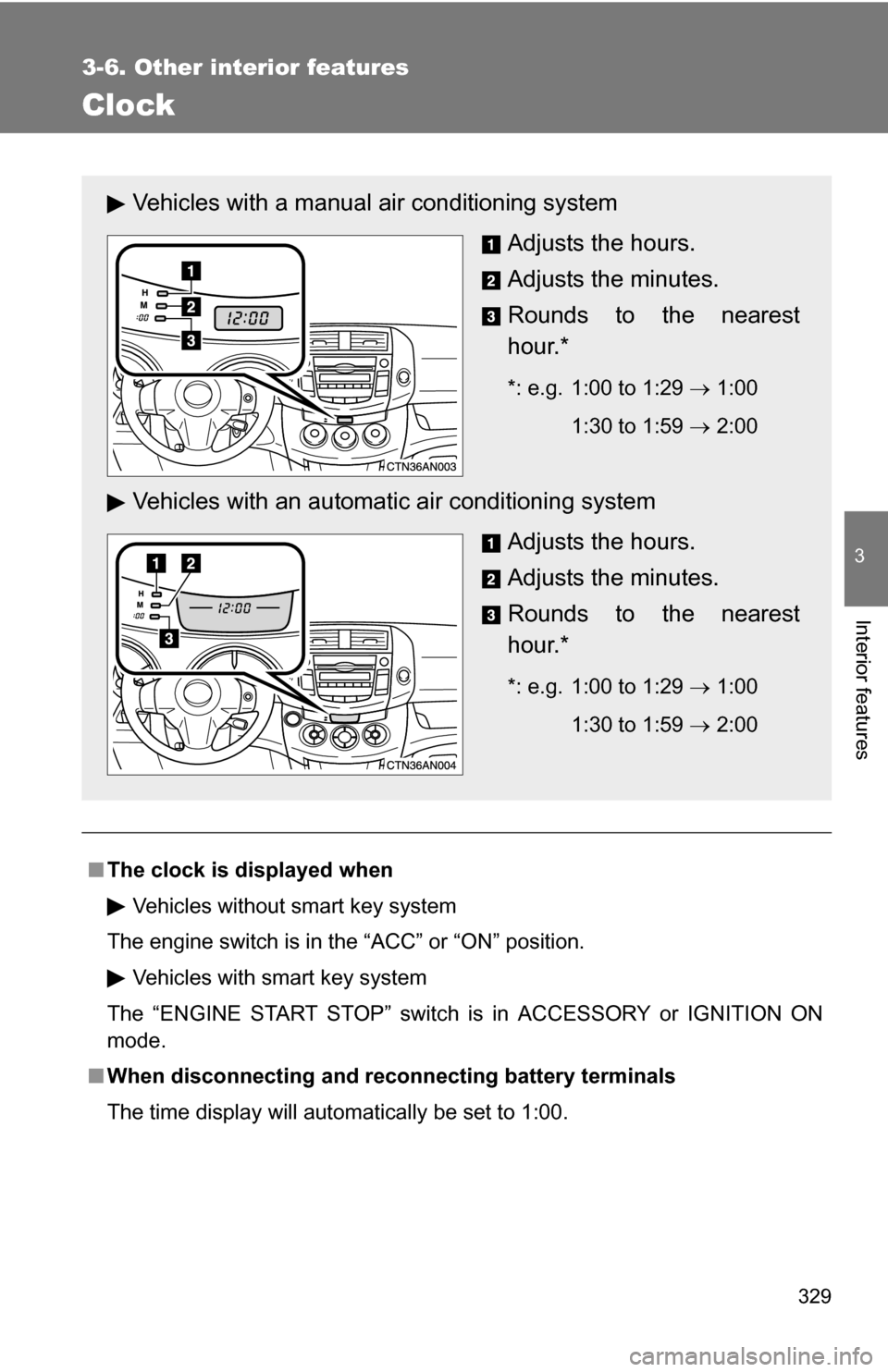

Clock
■The clock is displayed when
Vehicles without smart key system
The engine switch is in the “ACC” or “ON” position. Vehicles with smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
■ When disconnecting and reco nnecting battery terminals
The time display will automatically be set to 1:00.
Vehicles with a manual air conditioning system
Adjusts the hours.
Adjusts the minutes.
Rounds to the nearest
hour.*
*: e.g. 1:00 to 1:29  1:00
1:30 to 1:59  2:00
Vehicles with an automatic air conditioning system
Adjusts the hours.
Adjusts the minutes.
Rounds to the nearest
hour.*
*: e.g. 1:00 to 1:29  1:00
1:30 to 1:59  2:00

330
3-6. Other interior features

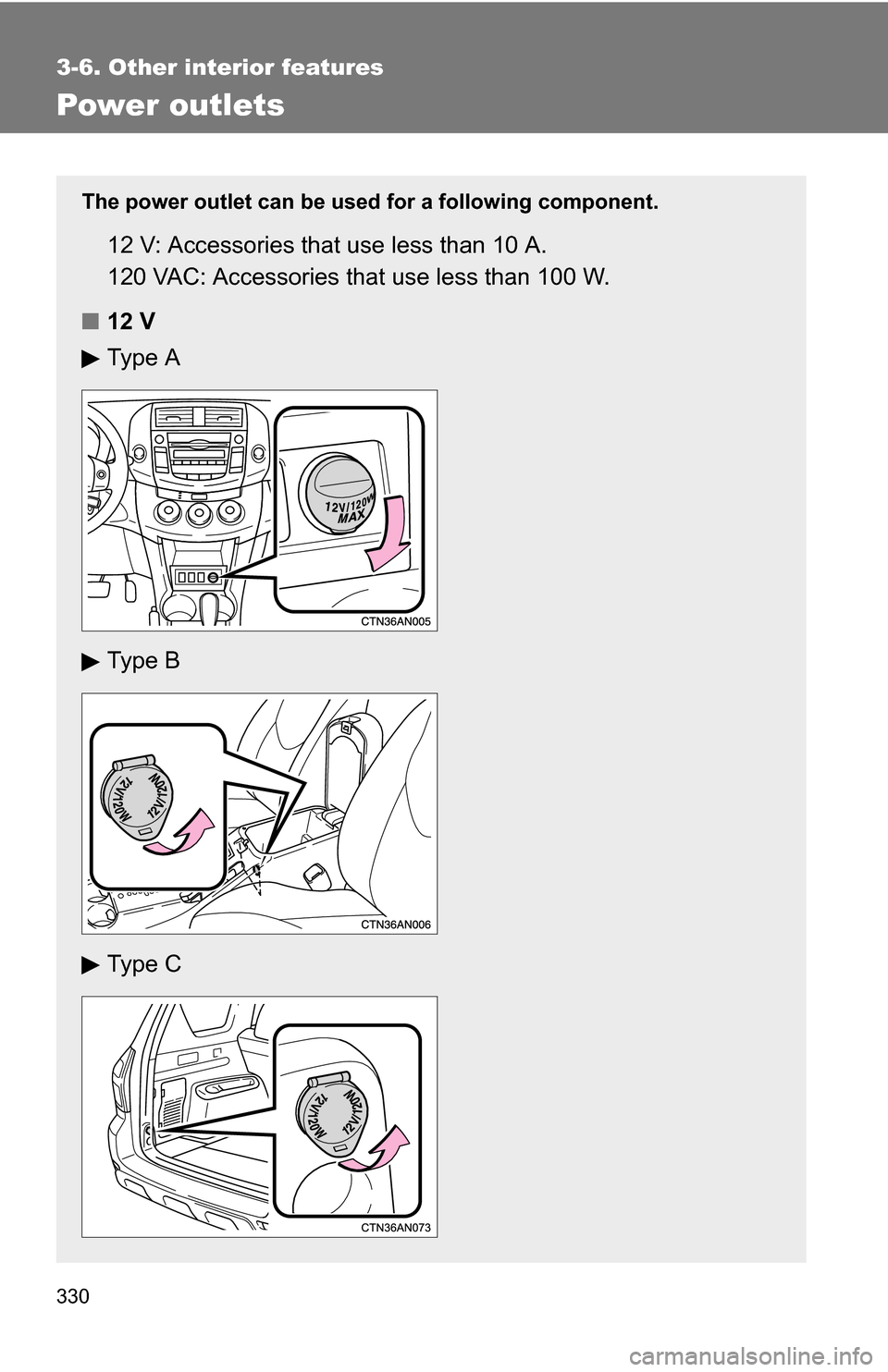

Power outlets
The power outlet can be used for a following component.
12 V: Accessories that use less than 10 A.
120 VAC: Accessories that use less than 100 W.
■ 12 V
Ty p e A
Ty p e B
Ty p e C
