TOYOTA RAV4 2012 XA30 / 3.G Owners Manual

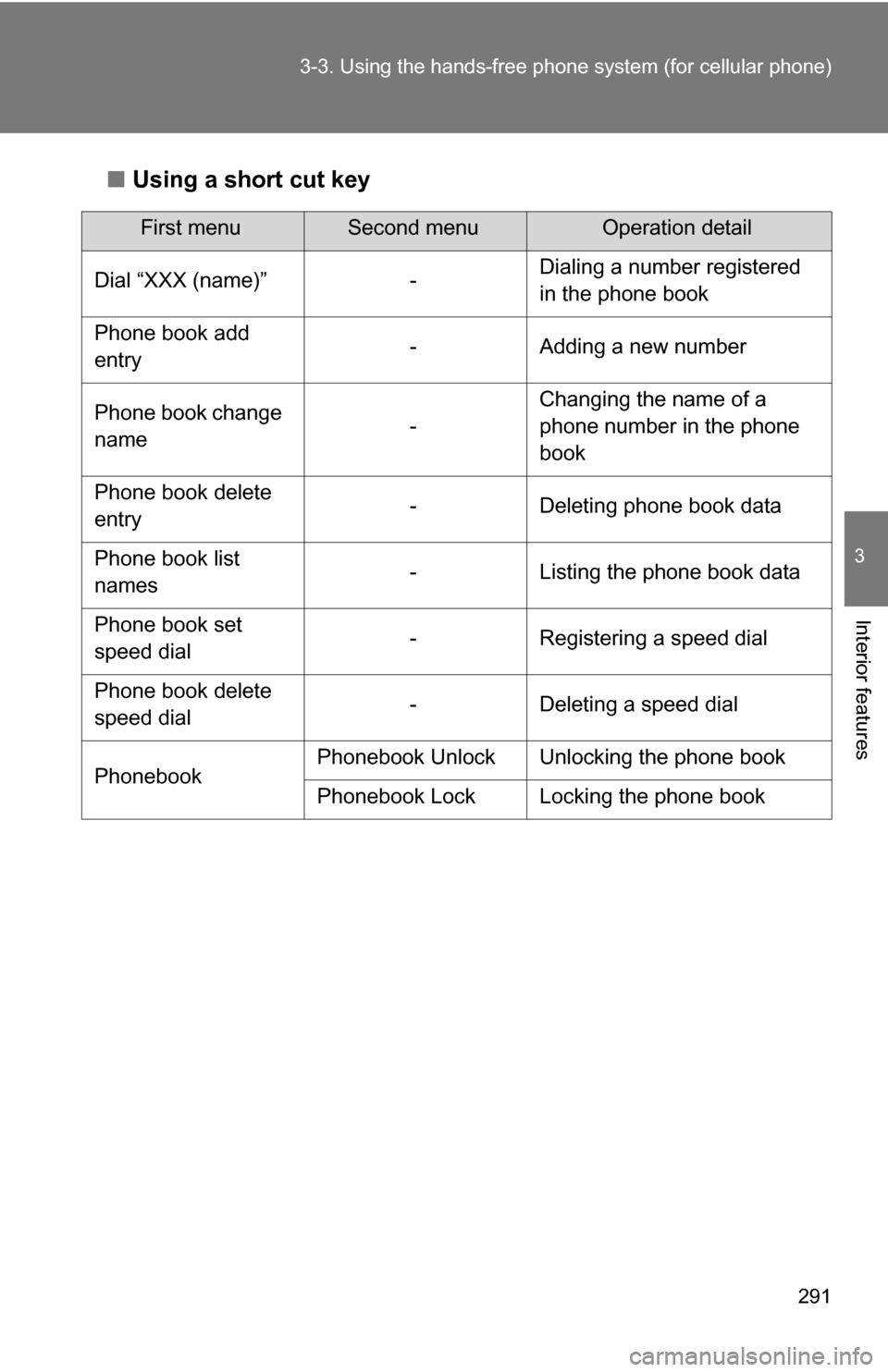

291
3-3. Using the hand
s-free phone system (for cellular phone)
3
Interior features
■Using a short cut key
First menuSecond menuOperation detail
Dial “XXX (name)” - Dialing a number registered
in the phone book
Phone book add
entry - Adding a new number
Phone book change
name -Changing the name of a
phone number in the phone
book
Phone book delete
entry - Deleting phone book data
Phone book list
names - Listing the phone book data
Phone book set
speed dial - Registering a speed dial
Phone book delete
speed dial - Deleting a speed dial
Phonebook Phonebook Unlock Unlocking the phone book
Phonebook Lock Locking the phone book

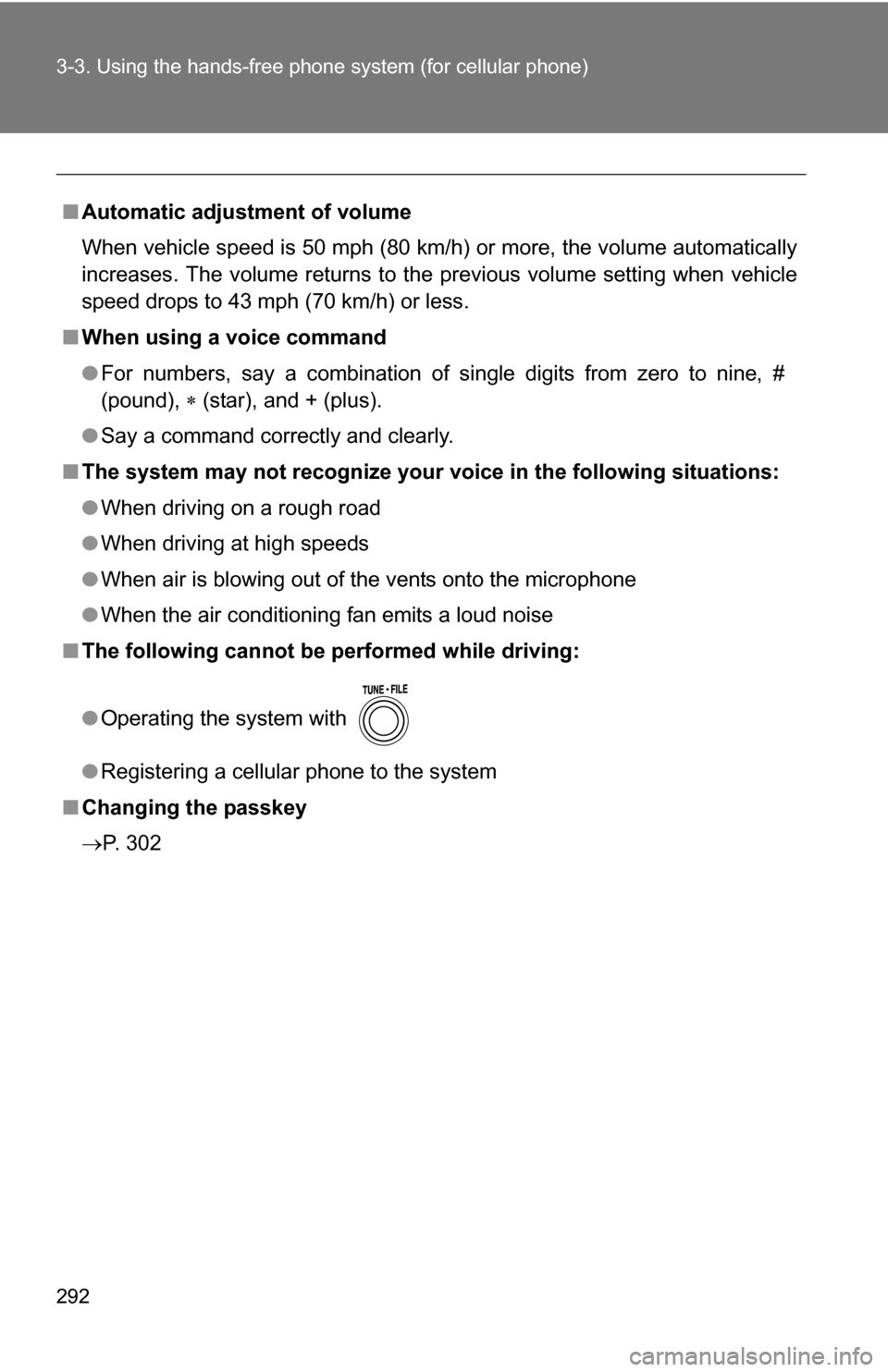

292 3-3. Using the hands-free phone system (for cellular phone)
■Automatic adjustment of volume
When vehicle speed is 50 mph (80 km/h) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 43 mph (70 km/h) or less.
■ When using a voice command
●For numbers, say a combination of single digits from zero to nine, #
(pound),  (star), and + (plus).
● Say a command correctly and clearly.
■ The system may not recognize your voice in the following situations:
●When driving on a rough road
● When driving at high speeds
● When air is blowing out of the vents onto the microphone
● When the air conditioning fan emits a loud noise
■ The following cannot be performed while driving:
●Operating the system with
● Registering a cellular phone to the system
■ Changing the passkey
P. 302

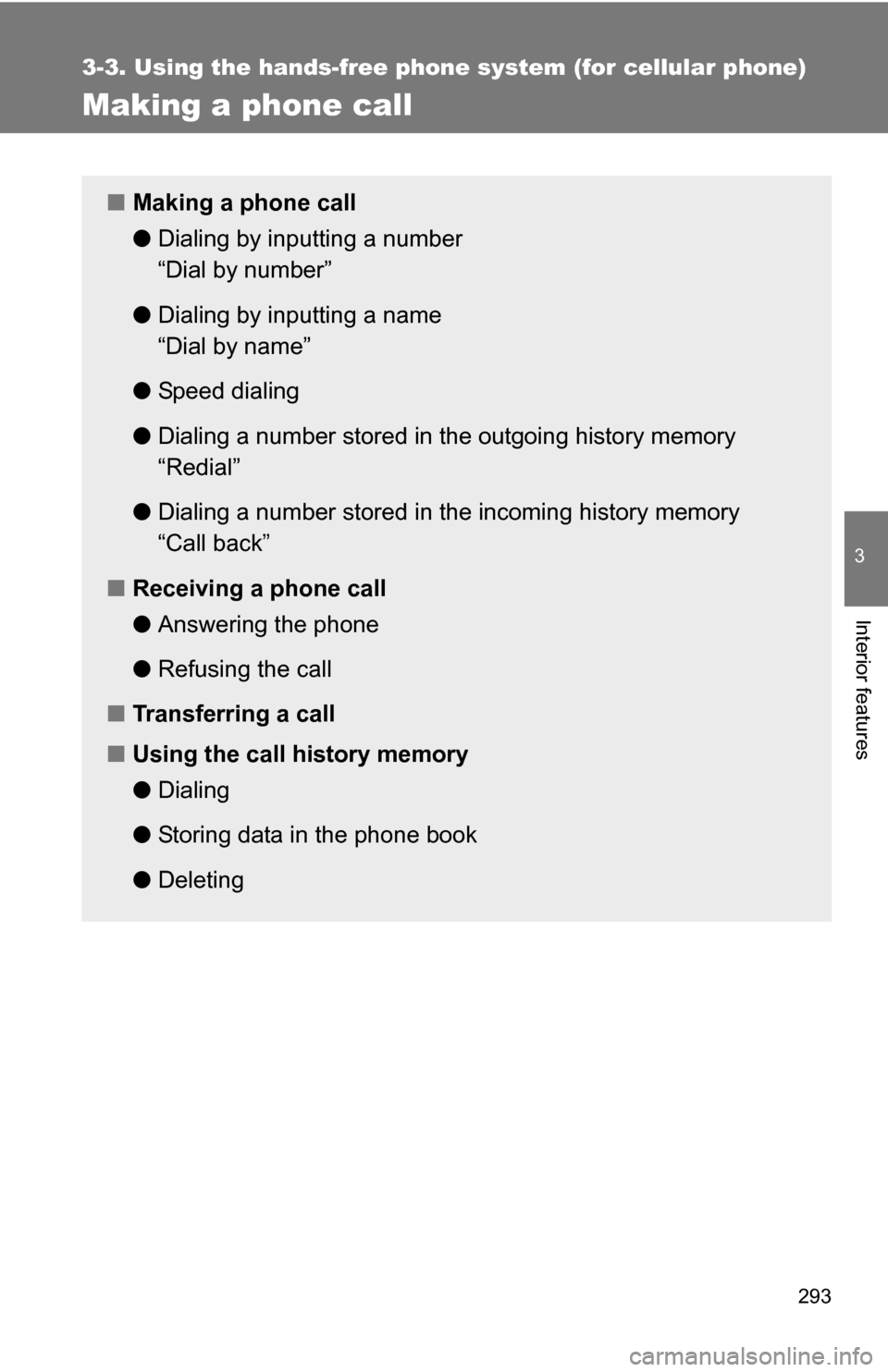

293
3-3. Using the hands-free phone system (for cellular phone)
3
Interior features
Making a phone call
■Making a phone call
●Dialing by inputting a number
“Dial by number”
● Dialing by inputting a name
“Dial by name”
● Speed dialing
● Dialing a number stored in the outgoing history memory
“Redial”
● Dialing a number stored in the incoming history memory
“Call back”
■ Receiving a phone call
●Answering the phone
● Refusing the call
■ Transferring a call
■ Using the call history memory
●Dialing
● Storing data in the phone book
● Deleting

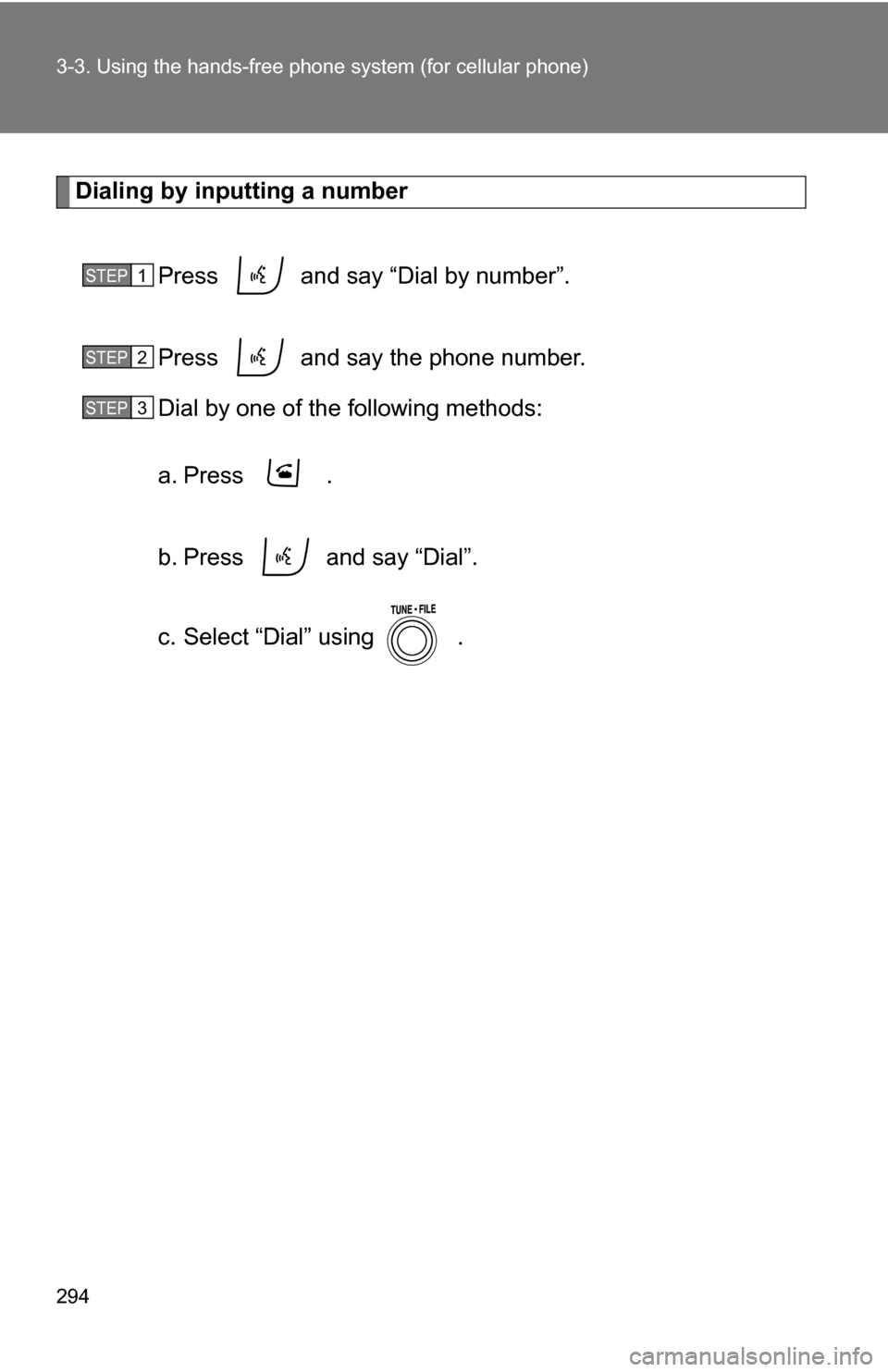

294 3-3. Using the hands-free phone system (for cellular phone)
Dialing by inputting a number
Press and say “Dial by number”.
Press and say the phone number.
Dial by one of the following methods:
a. Press .
b. Press and say “Dial”.
c. Select “Dial” using .
STEP 1
STEP 2
STEP 3

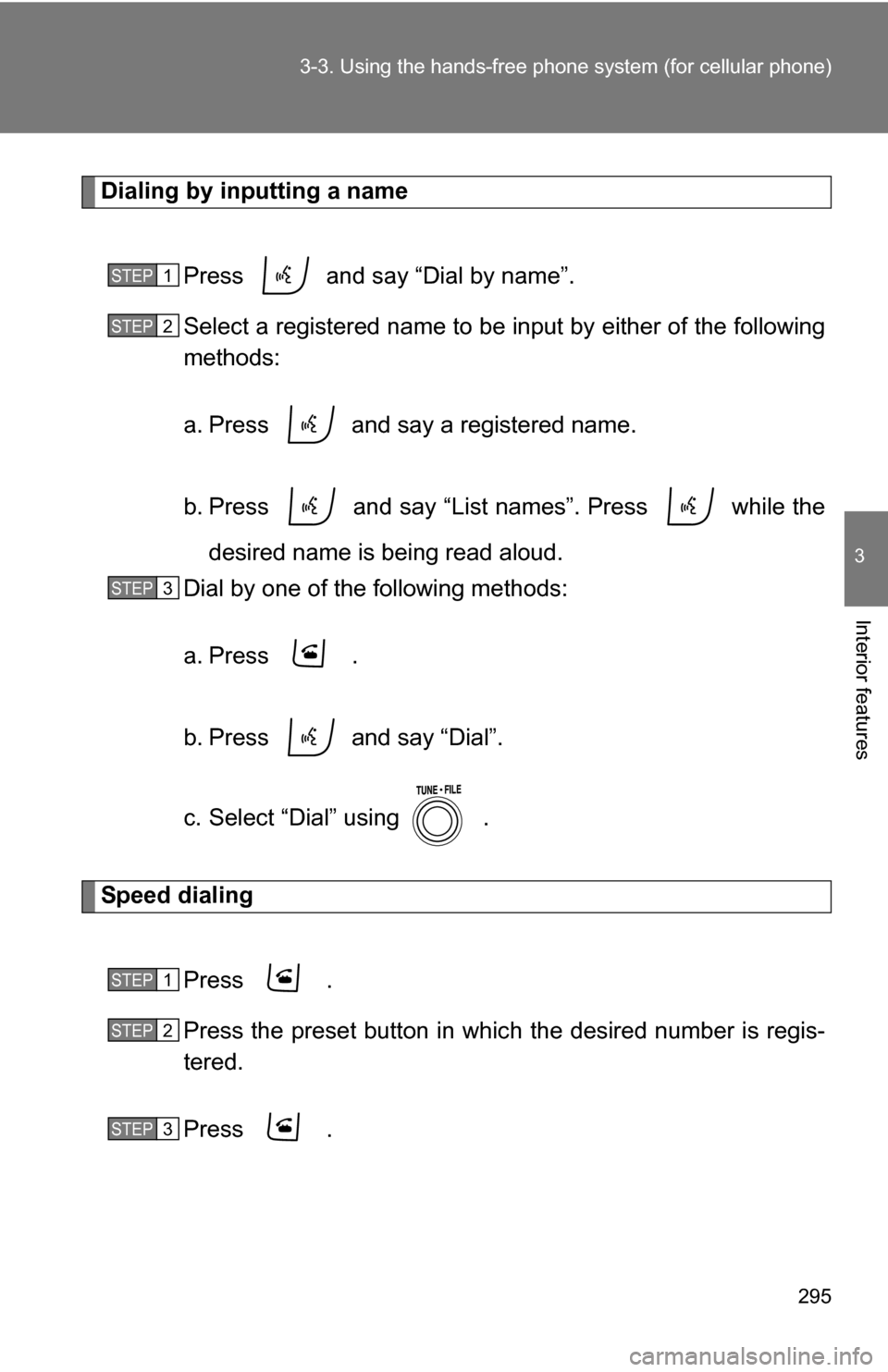

295
3-3. Using the hand
s-free phone system (for cellular phone)
3
Interior features
Dialing by inputting a name
Press and say “Dial by name”.
Select a registered name to be input by either of the following
methods:
a. Press and say a registered name.
b. Press and say “List names”. Press while thedesired name is being read aloud.
Dial by one of the following methods:
a. Press .
b. Press and say “Dial”.
c. Select “Dial” using .
Speed dialing
Press .
Press the preset button in which the desired number is regis-
tered.
Press .
STEP 1
STEP 2
STEP 3
STEP 1
STEP 2
STEP 3

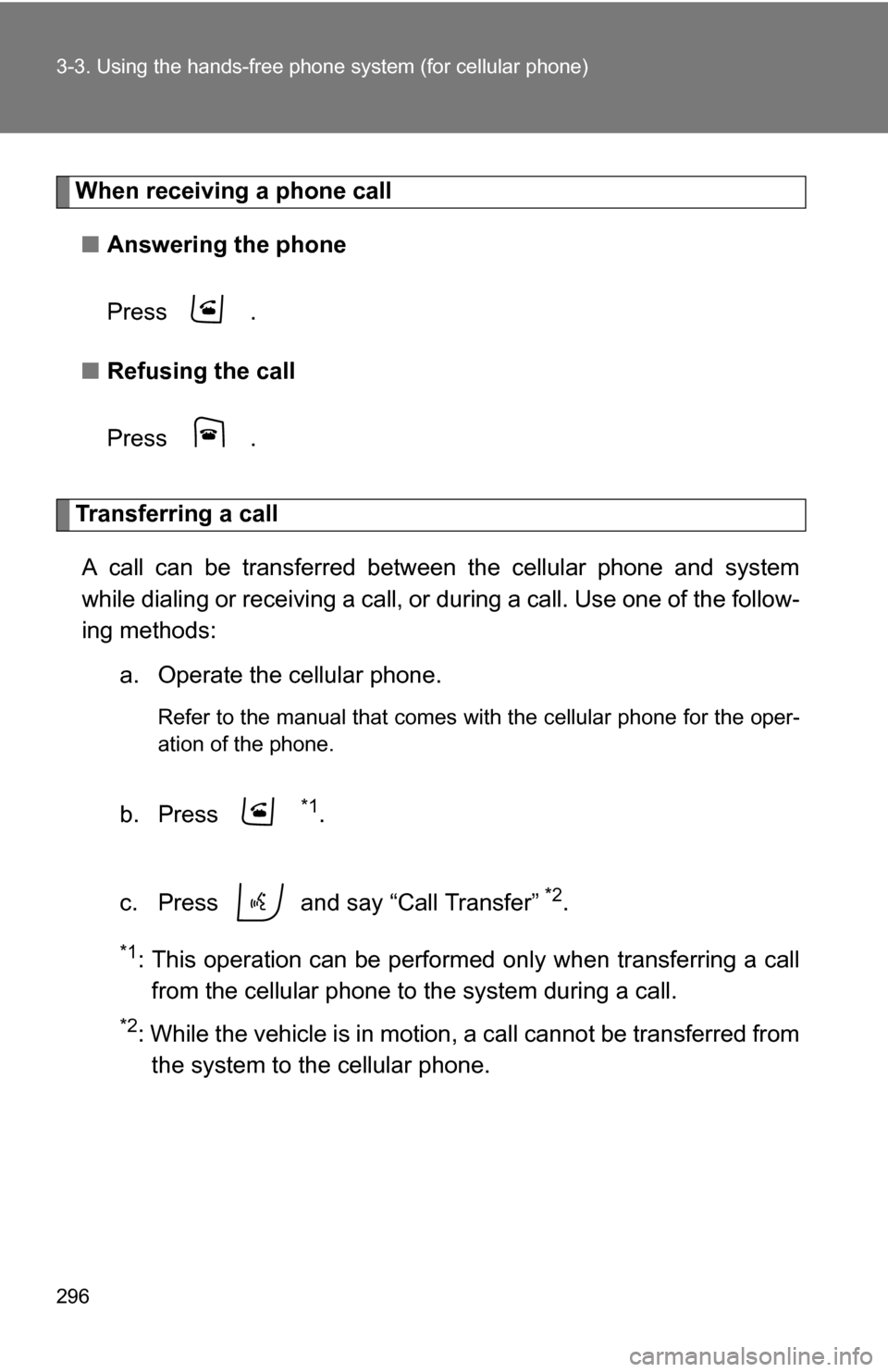

296 3-3. Using the hands-free phone system (for cellular phone)
When receiving a phone call
■ Answering the phone
Press .
■ Refusing the call
Press .
Transferring a call
A call can be transferred between the cellular phone and system
while dialing or receiving a call, or during a call. Use one of the follow-
ing methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
b. Press *1.
c. Press and say “Call Transfer”
*2.
*1: This operation can be performed only when transferring a call from the cellular phone to the system during a call.
*2: While the vehicle is in motion, a call cannot be transferred fromthe system to the cellular phone.

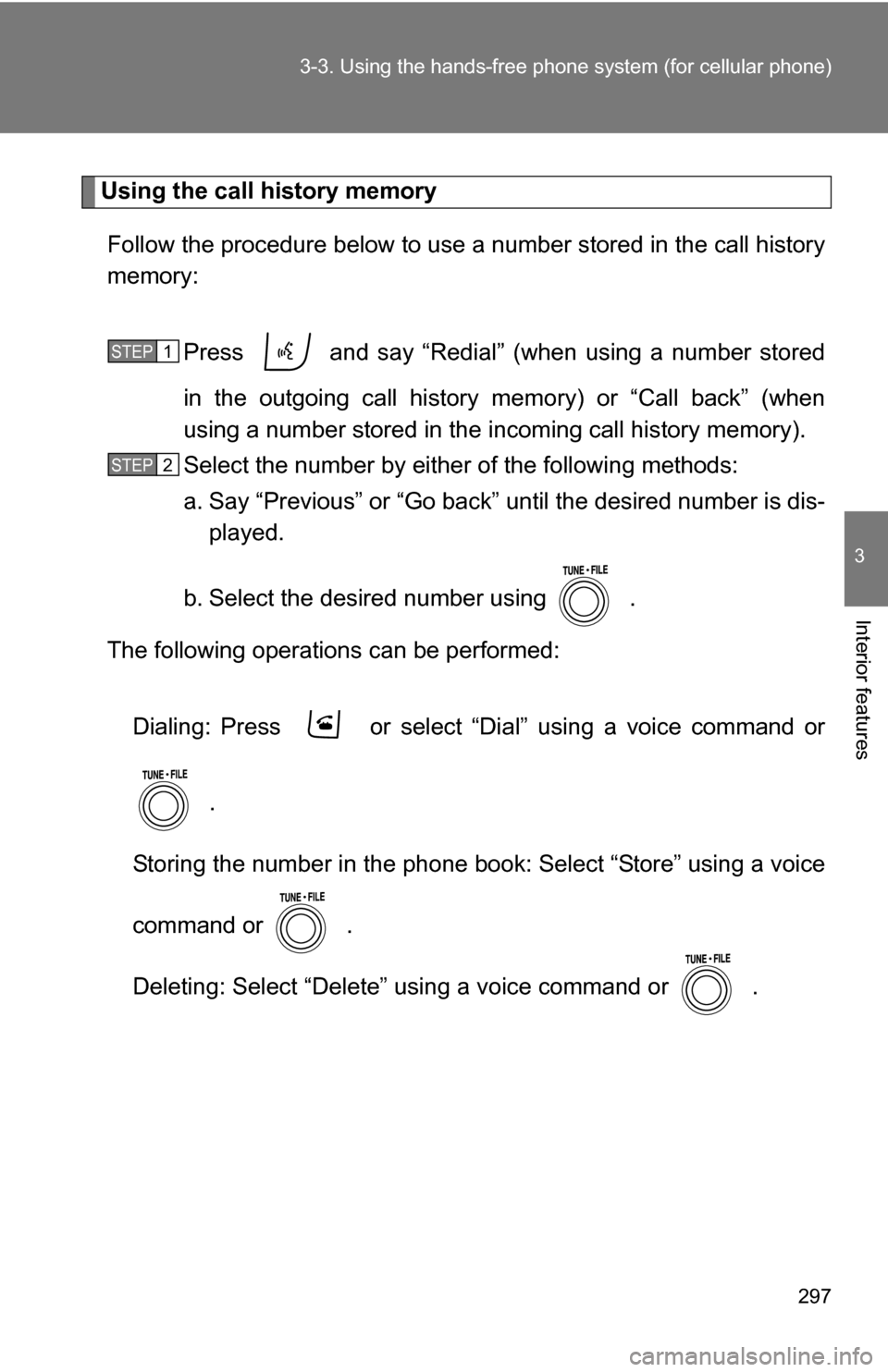

297
3-3. Using the hand
s-free phone system (for cellular phone)
3
Interior features
Using the call history memory
Follow the procedure below to use a number stored in the call history
memory:
Press and say “Redial” (when using a number stored
in the outgoing call history memory) or “Call back” (when
using a number stored in the incoming call history memory).
Select the number by either of the following methods:
a. Say “Previous” or “Go back” until the desired number is dis-
played.
b. Select the desired number using .
The following operations can be performed:
Dialing: Press or select “Dial” using a voice command or .
Storing the number in the phone book: Select “Store” using a voice
command or .
Deleting: Select “Delete” using a voice command or .
STEP 1
STEP 2

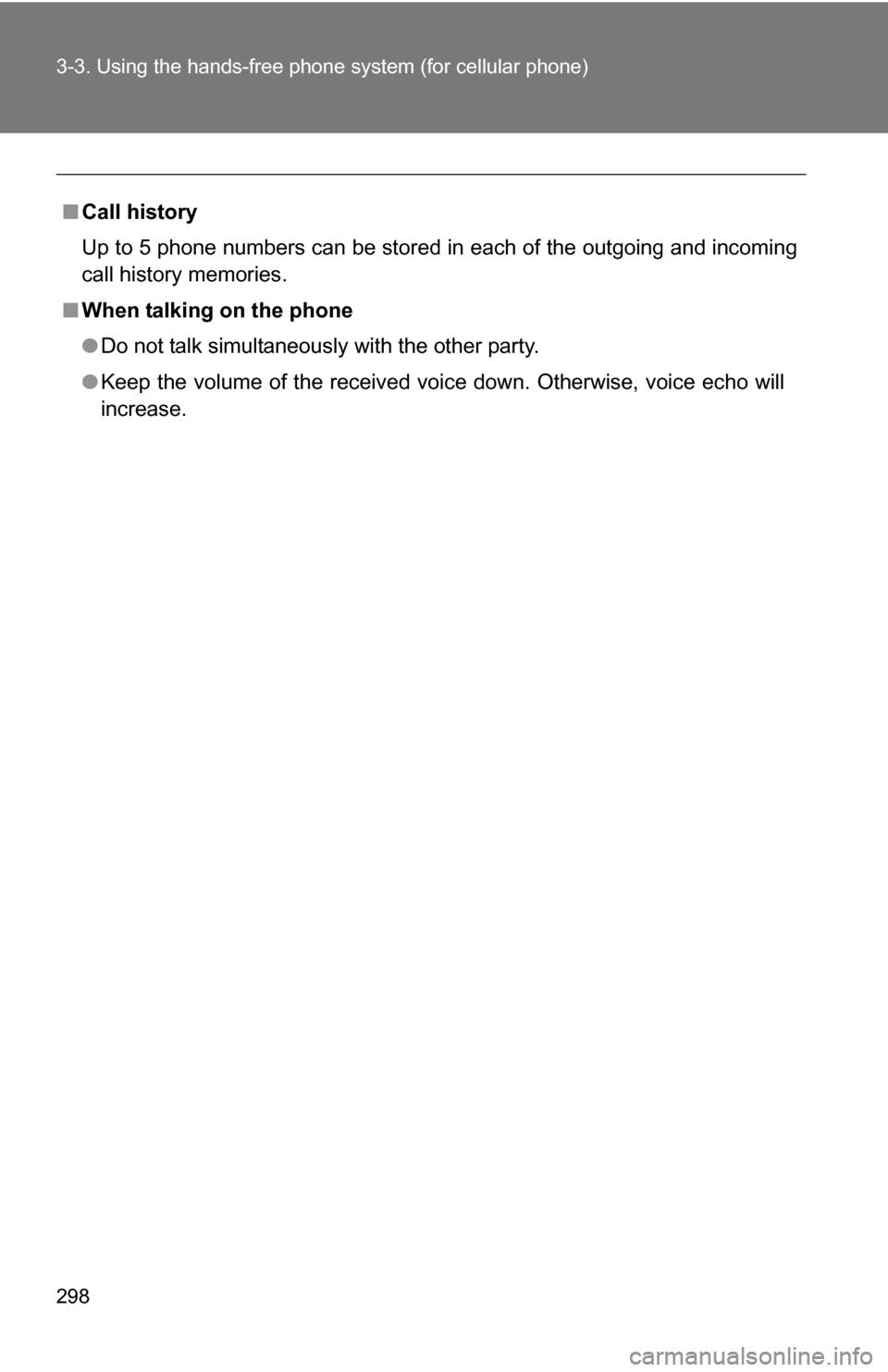

298 3-3. Using the hands-free phone system (for cellular phone)
■Call history
Up to 5 phone numbers can be stored in each of the outgoing and incoming
call history memories.
■ When talking on the phone
●Do not talk simultaneously with the other party.
● Keep the volume of the received voice down. Otherwise, voice echo will
increase.

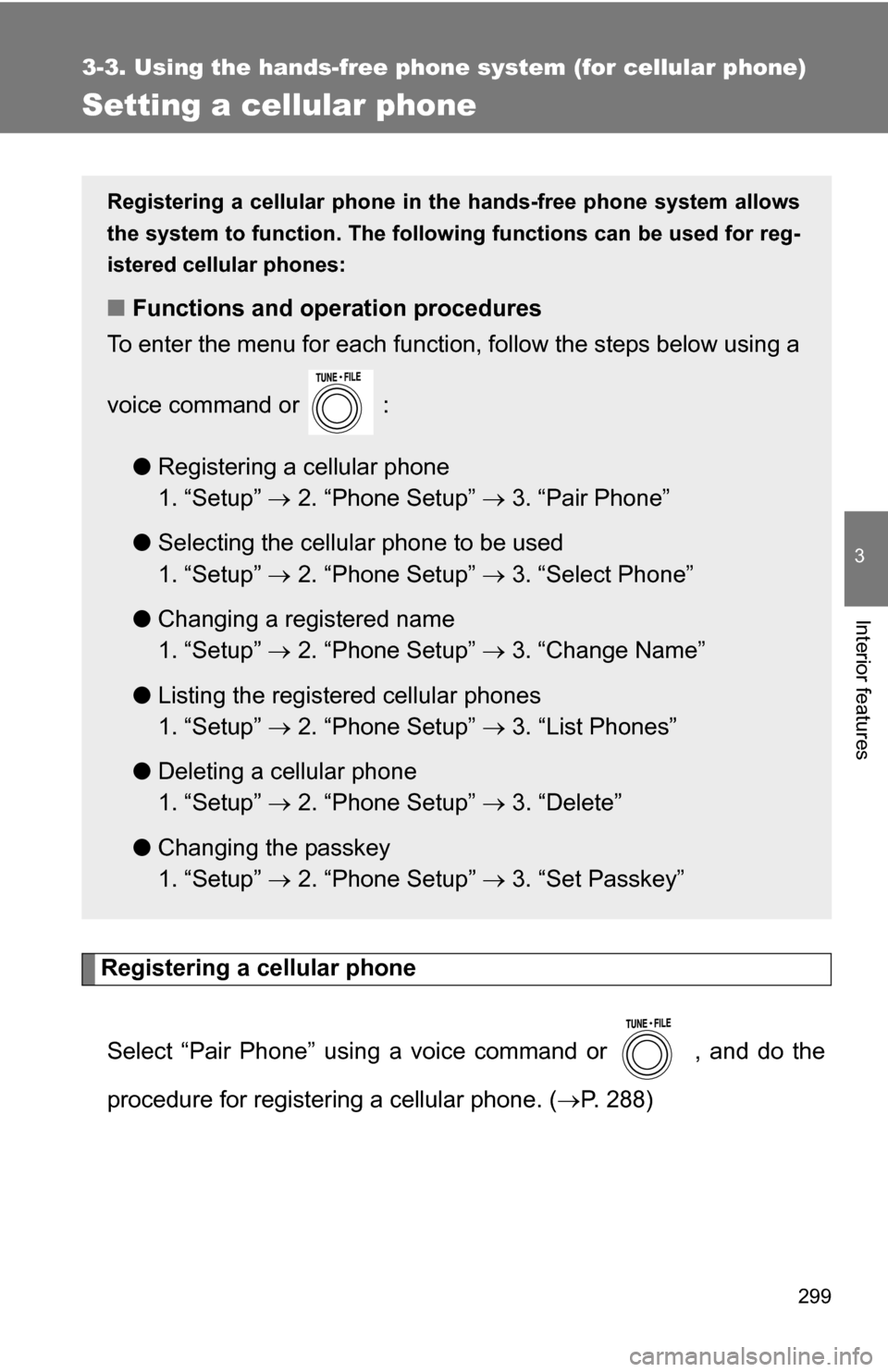

299
3-3. Using the hands-free phone system (for cellular phone)
3
Interior features
Setting a cellular phone
Registering a cellular phoneSelect “Pair Phone” using a voice command or , and do the
procedure for registering a cellular phone. ( P. 288)
Registering a cellular phone in the hands-free phone system allows
the system to function. The following functions can be used for reg-
istered cellular phones:
■ Functions and operation procedures
To enter the menu for each function, follow the steps below using a
voice command or :
●Registering a cellular phone
1. “Setup”  2. “Phone Setup”  3. “Pair Phone”
● Selecting the cellular phone to be used
1. “Setup”  2. “Phone Setup”  3. “Select Phone”
● Changing a registered name
1. “Setup”  2. “Phone Setup”  3. “Change Name”
● Listing the registered cellular phones
1. “Setup”  2. “Phone Setup”  3. “List Phones”
● Deleting a cellular phone
1. “Setup”  2. “Phone Setup”  3. “Delete”
● Changing the passkey
1. “Setup”  2. “Phone Setup”  3. “Set Passkey”

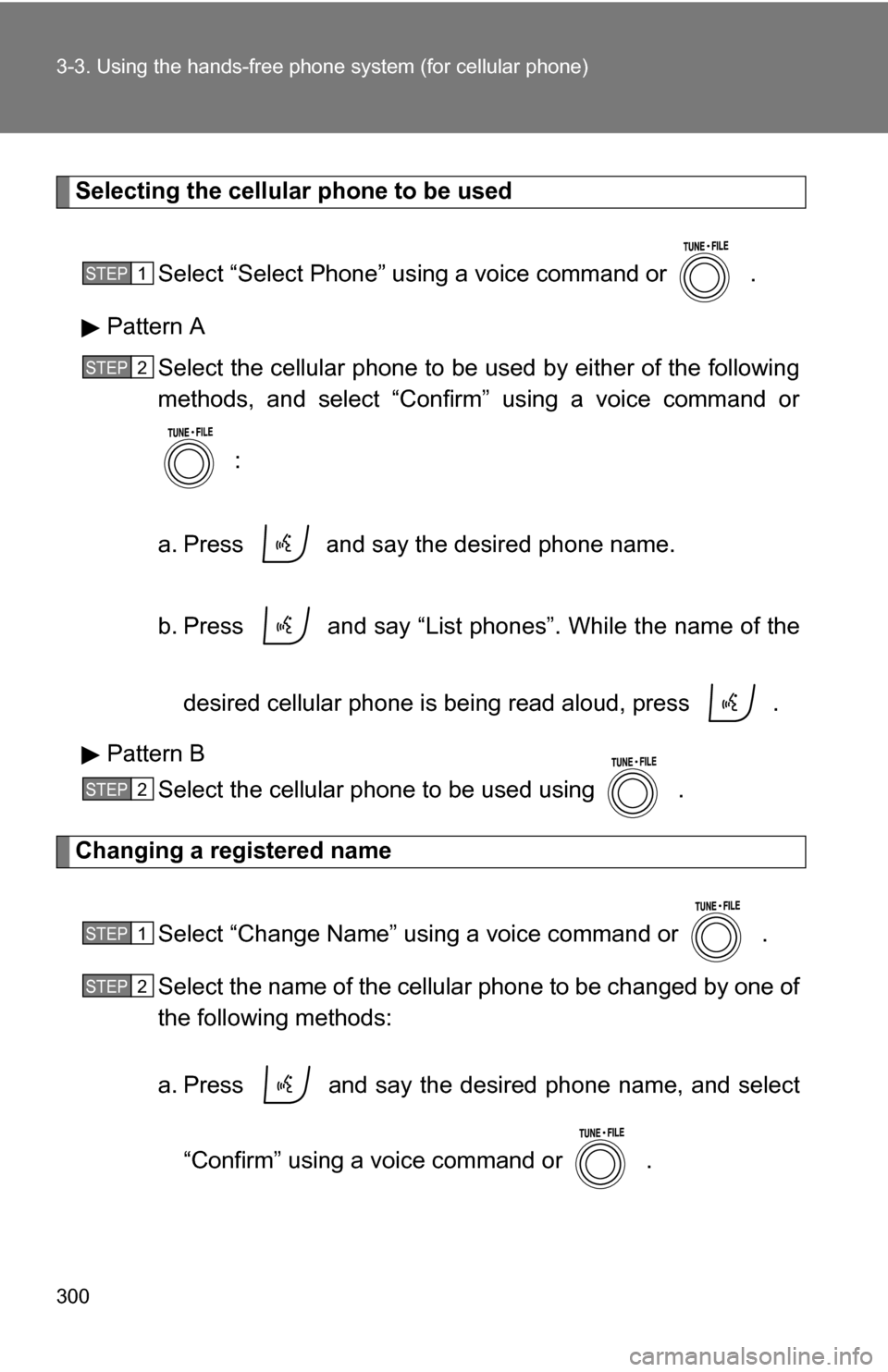

300 3-3. Using the hands-free phone system (for cellular phone)
Selecting the cellular phone to be used
Select “Select Phone” using a voice command or .
Pattern A Select the cellular phone to be used by either of the following
methods, and select “Confirm” using a voice command or
:
a. Press and say the desired phone name.
b. Press and say “List phones”. While the name of the desired cellular phone is being read aloud, press .
Pattern B Select the cellular phone to be used using .
Changing a registered name
Select “Change Name” using a voice command or .
Select the name of the cellular phone to be changed by one of
the following methods:
a. Press and say the desired phone name, and select“Confirm” using a voice command or .
STEP 1
STEP 2
STEP 2
STEP 1
STEP 2
