adding oil TOYOTA RAV4 2018 Owners Manual (in English)

553
RAV4_OM_OM0R012U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care

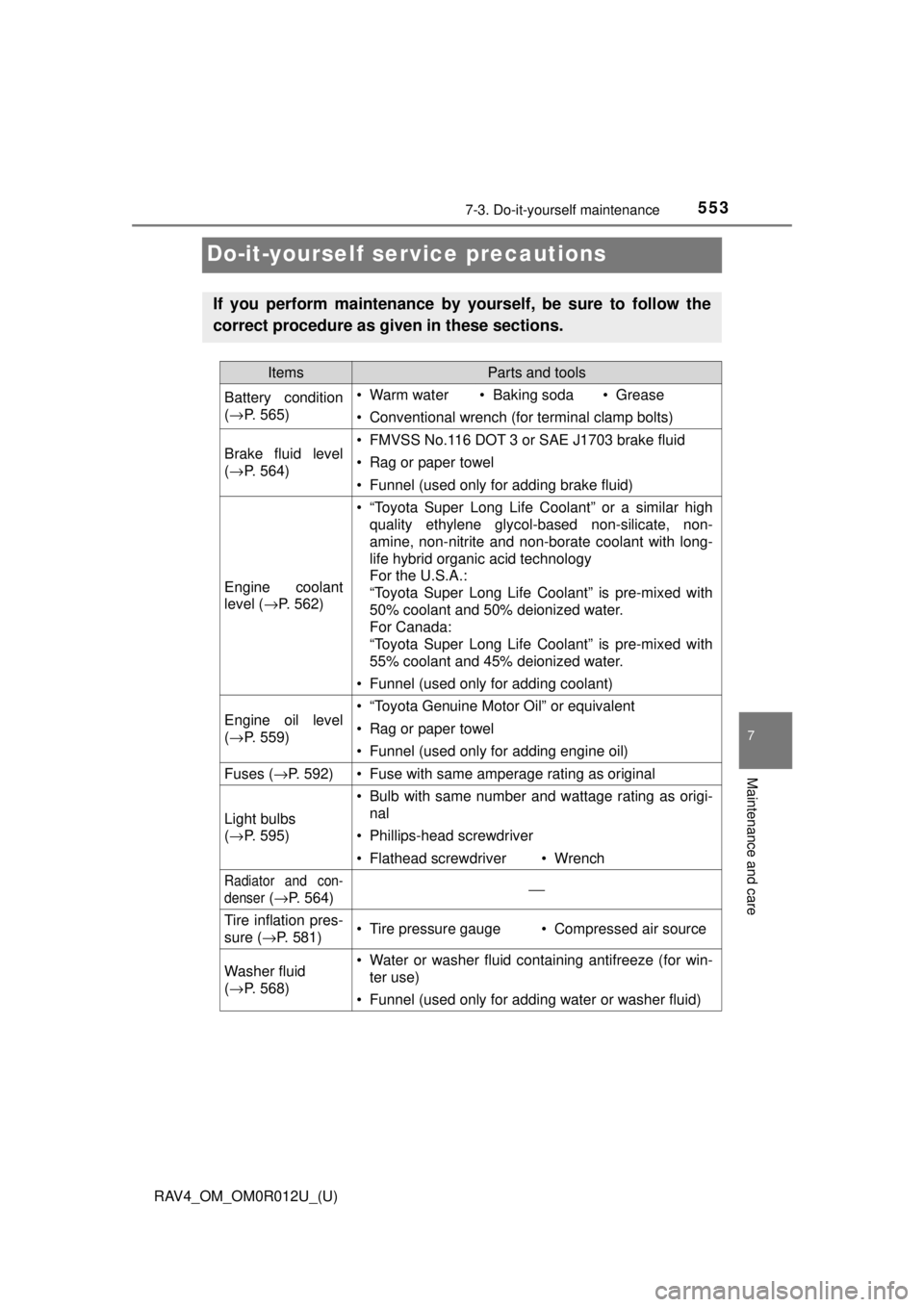

Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
Battery condition
(→ P. 565)• Warm water• Baking soda• Grease
• Conventional wrench (for terminal clamp bolts)
Brake fluid level
(→ P. 564)• FMVSS No.116 DOT 3 or SAE J1703 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine coolant
level ( →P. 562)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
For the U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
For Canada:
“Toyota Super Long Life Coolant” is pre-mixed with
55% coolant and 45% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
(→ P. 559)• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( →P. 592)• Fuse with same amperage rating as original
Light bulbs
(→ P. 595)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver• Wrench
Radiator and con-
denser
(→P. 564)⎯
Tire inflation pres-
sure ( →P. 581)• Tire pressure gauge• Compressed air source
Washer fluid
(→ P. 568)• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

560
RAV4_OM_OM0R012U_(U)
7-3. Do-it-yourself maintenance
Holding a rag under the end, pull the dipstick out and check the
oil level.Low
Normal
Excessive
The shape of the dipstick may differ depending on the type of vehicle or
engine.
Wipe the dipstick and reinsert it fully.
■Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, c hecking the dipstick.
Install the oil filler cap by turning it clockwise.
5
1
2
3
Flat dipstickNon-flat dipstick
Measuring side
6
Engine oil selection →P. 675
Oil quantity (Low → Full) 1.6 qt. (1.5 L, 1.3 Imp.qt.)
Items Clean funnel
1
2
3
