check engine TOYOTA RAV4 2021 Owners Manual (in English)

1 If the indicator does not turn off within a few seconds of starting the \
engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.5
Refer to section PKSB (Parking Support Braking function) in the Owner’\
s Manual.
7
Low outside temperature indicator
Pre-Collision System (PCS)
warning1,2
Vehicle Stability Control (VSC) OFF
indicator1
Slip indicator1,3
SPORT mode indicator
Stop & Start indicator1,4
Stop & Start cancel indicator1,2,4
RCTA OFF indicator1,2,4
Rear passengers’ seat belt
reminder
Parking brake indicator2
Mud & sand mode indicator4
Rock & dirt mode indicator4
Snow mode indicator4
Smart Key system indicator4
Security indicator
Turn signal indicator
Lane Tracing Assist (LTA)/
Lane Departure Alert (LDA)
indicator [White/green/orange
3]
Low engine oil pressure warning
Low fuel level warning
Low tire pressure warning1
Malfunction/Check Engine
indicator1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

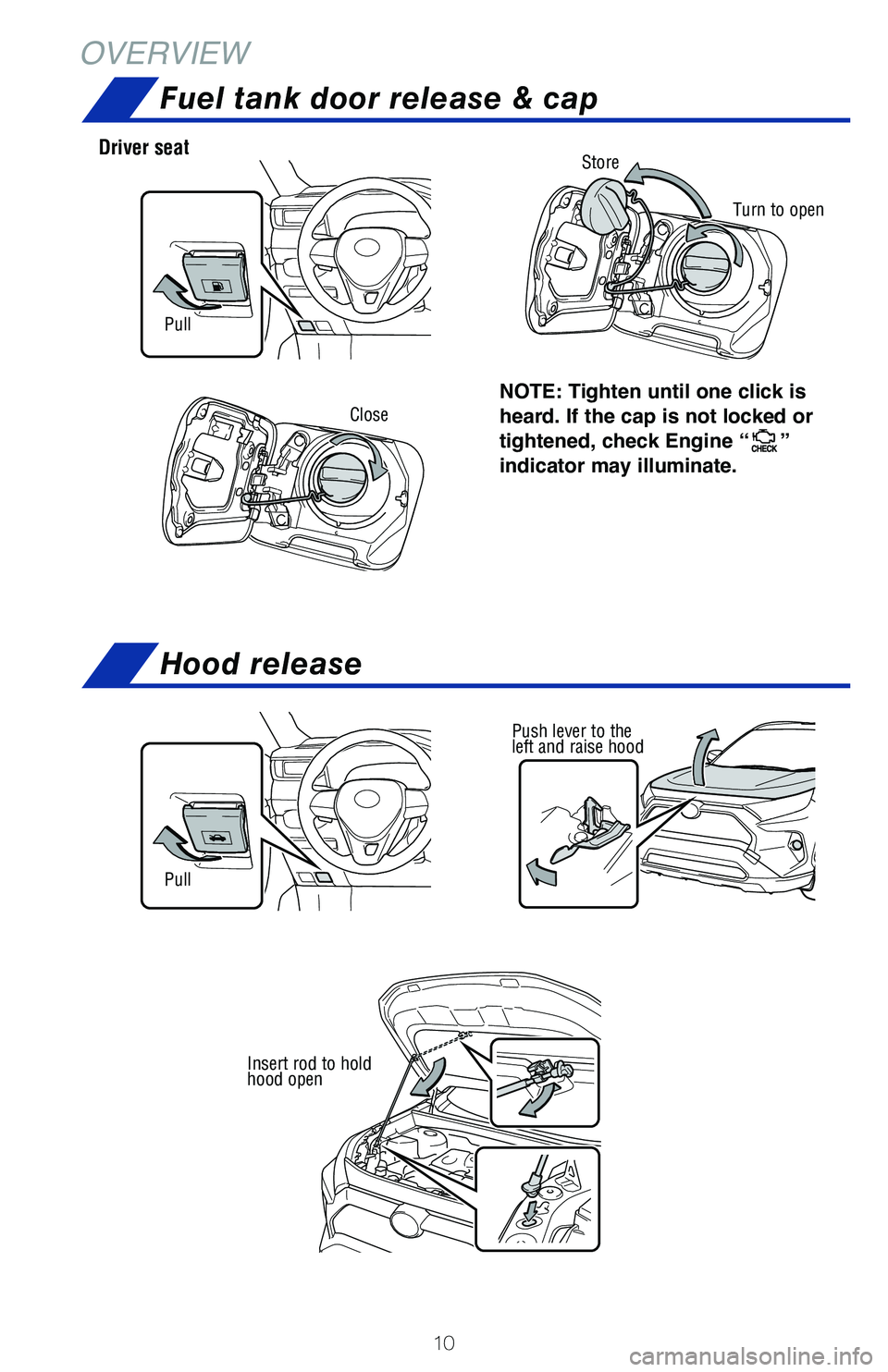

10
OVERVIEW
Push lever to the
left and raise hood
Insert rod to hold
hood open
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, check Engine “
”
indicator may illuminate.
Pull
Pull
Driver seat
Turn to open
Store
Close
Fuel tank door release & cap
Hood release

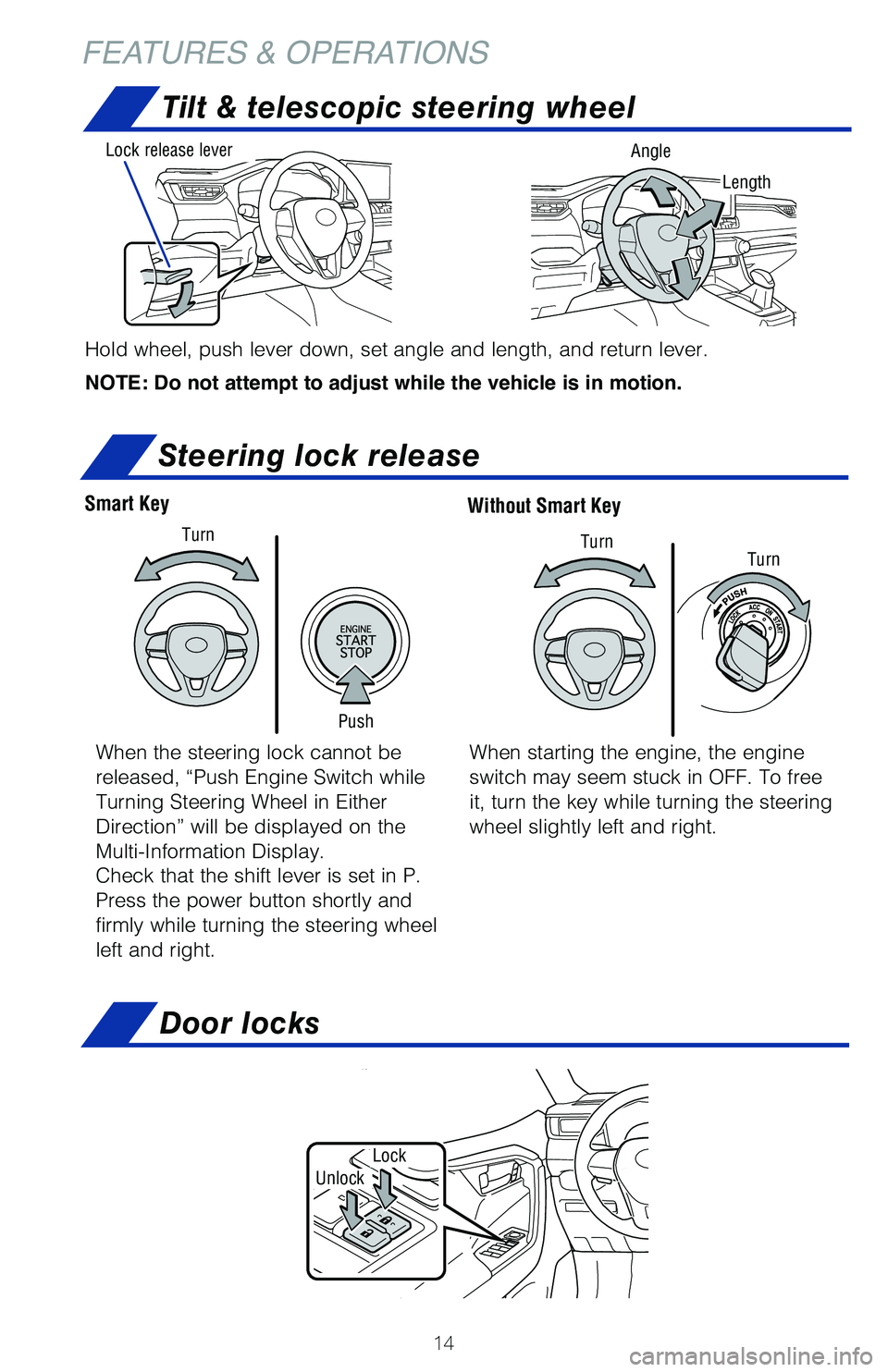

14
Smart KeyWithout Smart Key
Steering lock release
Push
Turn
Turn
Turn
When the steering lock cannot be
released, “Push Engine Switch while
Turning Steering Wheel in Either
Direction” will be displayed on the
Multi-Information Display.
Check that the shift lever is set in P.
Press the power button shortly and
firmly while turning the steering wheel
left and right. When starting the engine, the engine
switch may seem stuck in OFF. To free
it, turn the key while turning the steering
wheel slightly left and right.
Unlock
Lock
Door locks
Tilt & telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.

NOTE: Do not attempt to adjust while the vehicle is in motion.
Length
Lock release lever Angle
FEATURES & OPERATIONS
