TOYOTA RAV4 EV 2014 1.G Navigation Manual

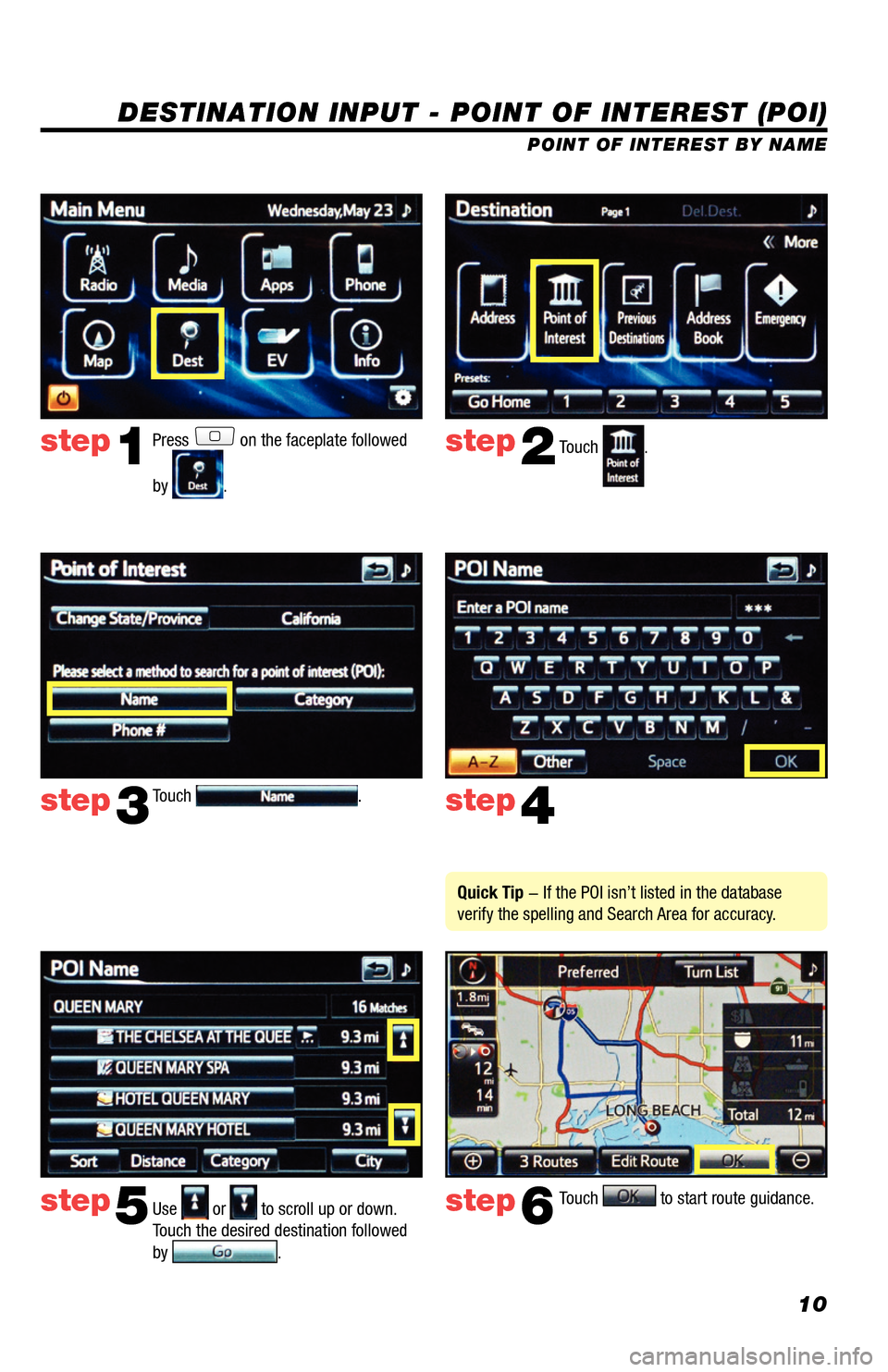

10
DESTINATION INPUT - POINT OF INTEREST (POI)
POINT OF INTEREST BY NAME
Press
on the faceplate followed
by
. Touch
.
Touch
.
Use
or to scroll up or down.
Touch the desired destination followed
by
.
step1step2
step3step4
step5Touch to start route guidance. step6
Quick Tip - If the POI isn’t listed in the database
verify the spelling and Search Area for accuracy.
33411a0_2014_Rav4EV_Nav_QRG_r1.indd 1011/19/13 3:29 PM

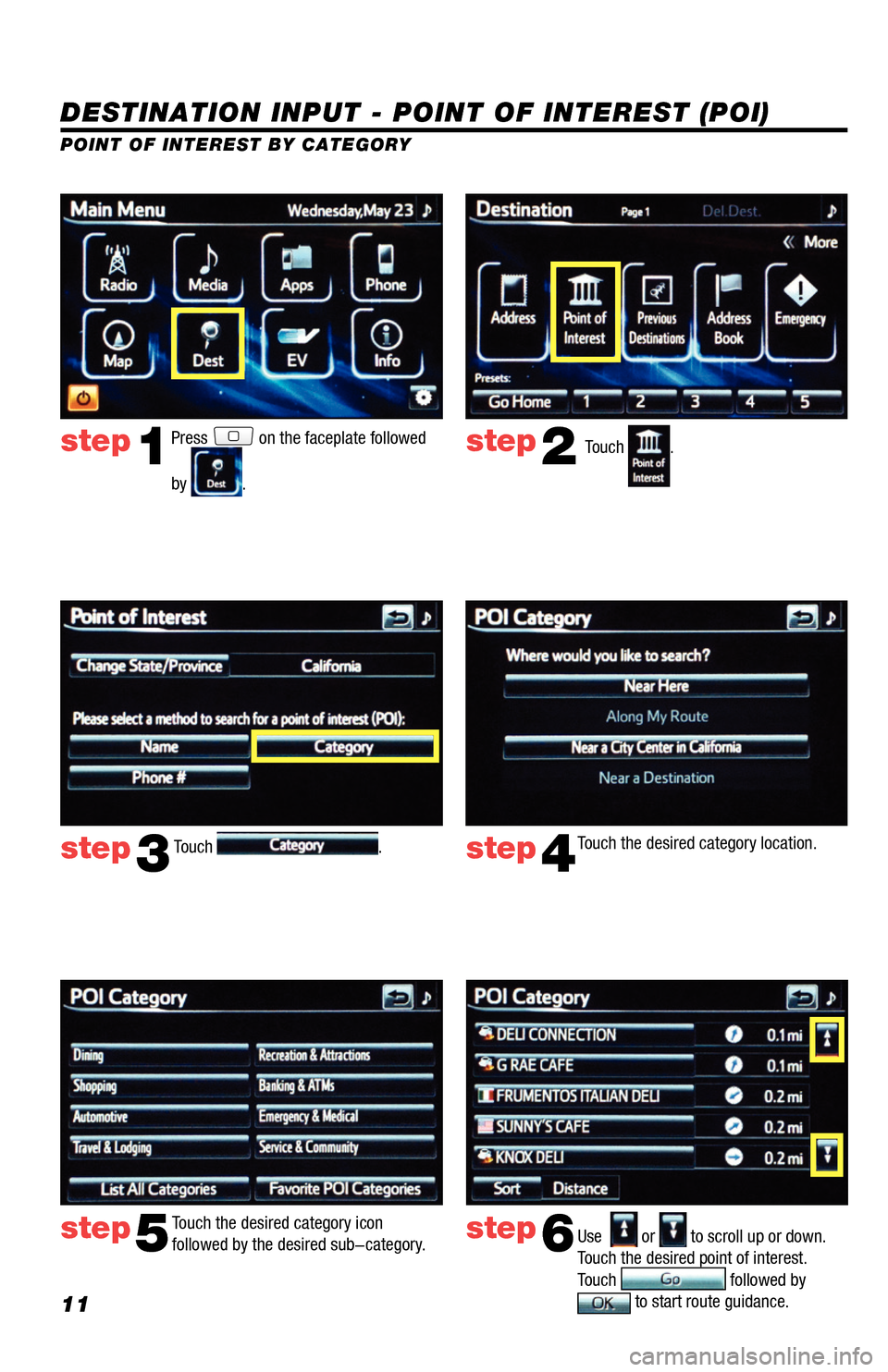

11
DESTINATION INPUT - POINT OF INTEREST (POI)
POINT OF INTEREST BY CATEGORYTouch
.
Touch
. Touch the desired category location.
Touch the desired category icon
followed by the desired sub-category.
step1step2
step3step4
step5Use or to scroll up or down.
Touch the desired point of interest.
Touch
followed by to start route guidance.
step6
Press on the faceplate followed
by
.
33411a0_2014_Rav4EV_Nav_QRG_r1.indd 1111/19/13 3:29 PM

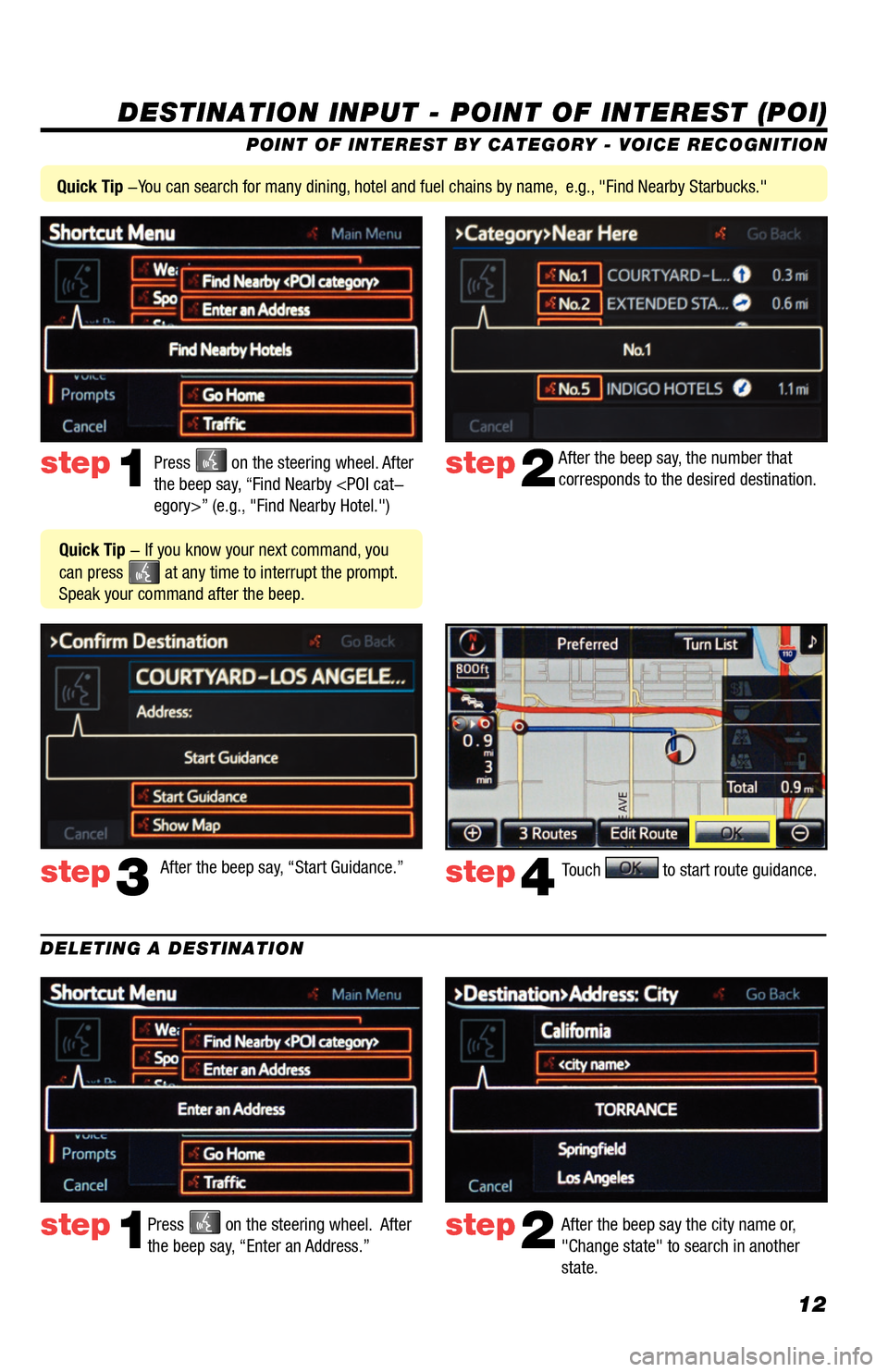

12
DESTINATION INPUT - POINT OF INTEREST (POI)
POINT OF INTEREST BY CATEGORY - VOICE RECOGNITION
Press
on the steering wheel. After
the beep say, “Find Nearby egory>” (e.g., "Find Nearby Hotel.") After the beep say, the number that
corresponds to the desired destination.
After the beep say, “Start Guidance.”step1step2
step3step4
Quick Tip - If you know your next command, you
can press
at any time to interrupt the prompt.
Speak your command after the beep.
Touch to start route guidance.
Quick Tip -You can search for many dining, hotel and fuel chains by name, e.g., "Find Nearby Starbucks."
step1step2Press on the steering wheel. After
the beep say, “Enter an Address.” After the beep say the city name or,
"Change state" to search in another
state.
DELETING A DESTINATION
33411a0_2014_Rav4EV_Nav_QRG_r1.indd 1211/19/13 3:30 PM

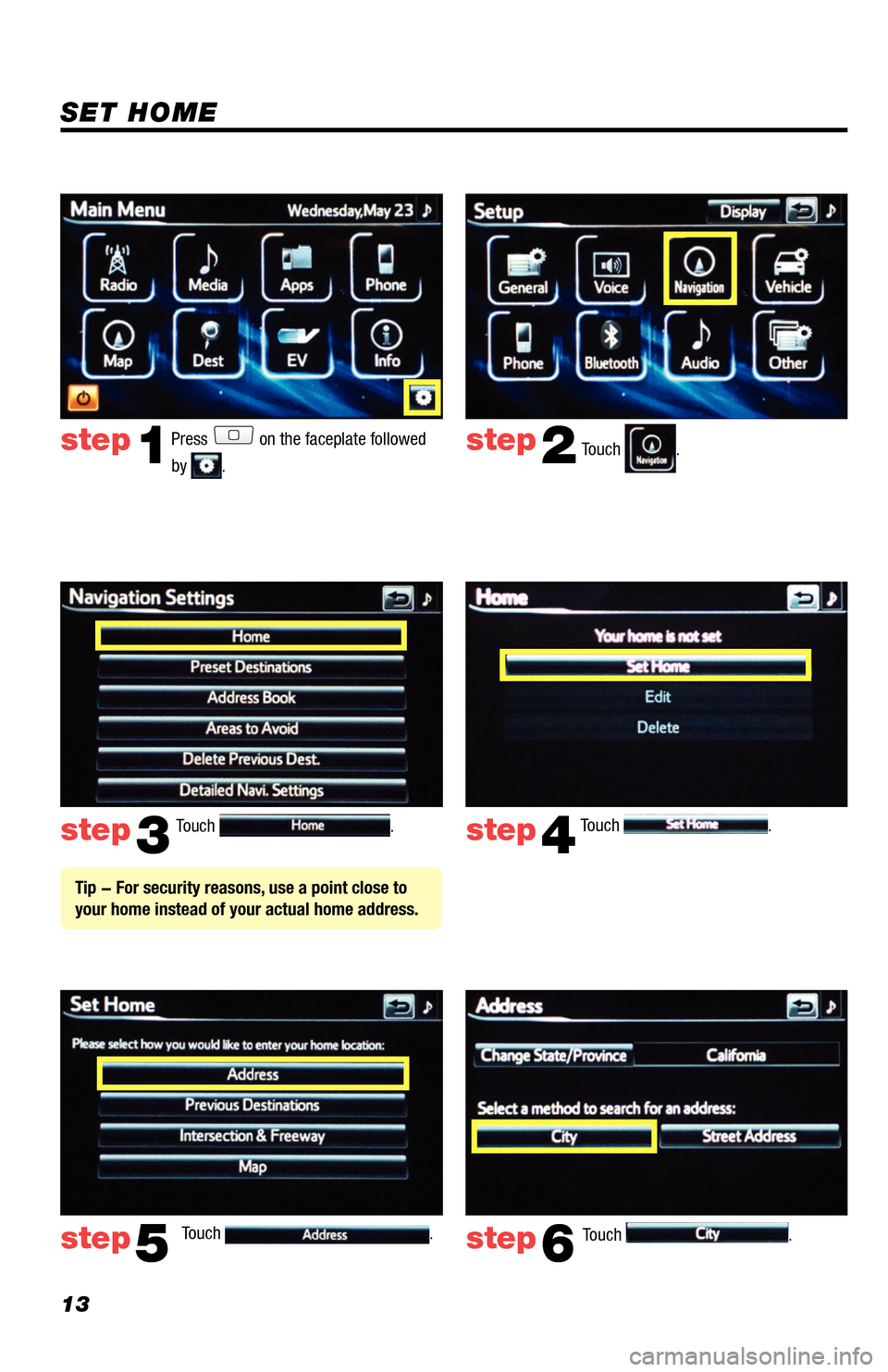

13
Touch .
Touch
. Touch .
step2
step3
step5step6
Press on the faceplate followed
by
. step1
Touch . Touch . step4
Tip - For security reasons, use a point close to
your home instead of your actual home address.
SET HOME
33411a0_2014_Rav4EV_Nav_QRG_r1.indd 1311/19/13 3:30 PM

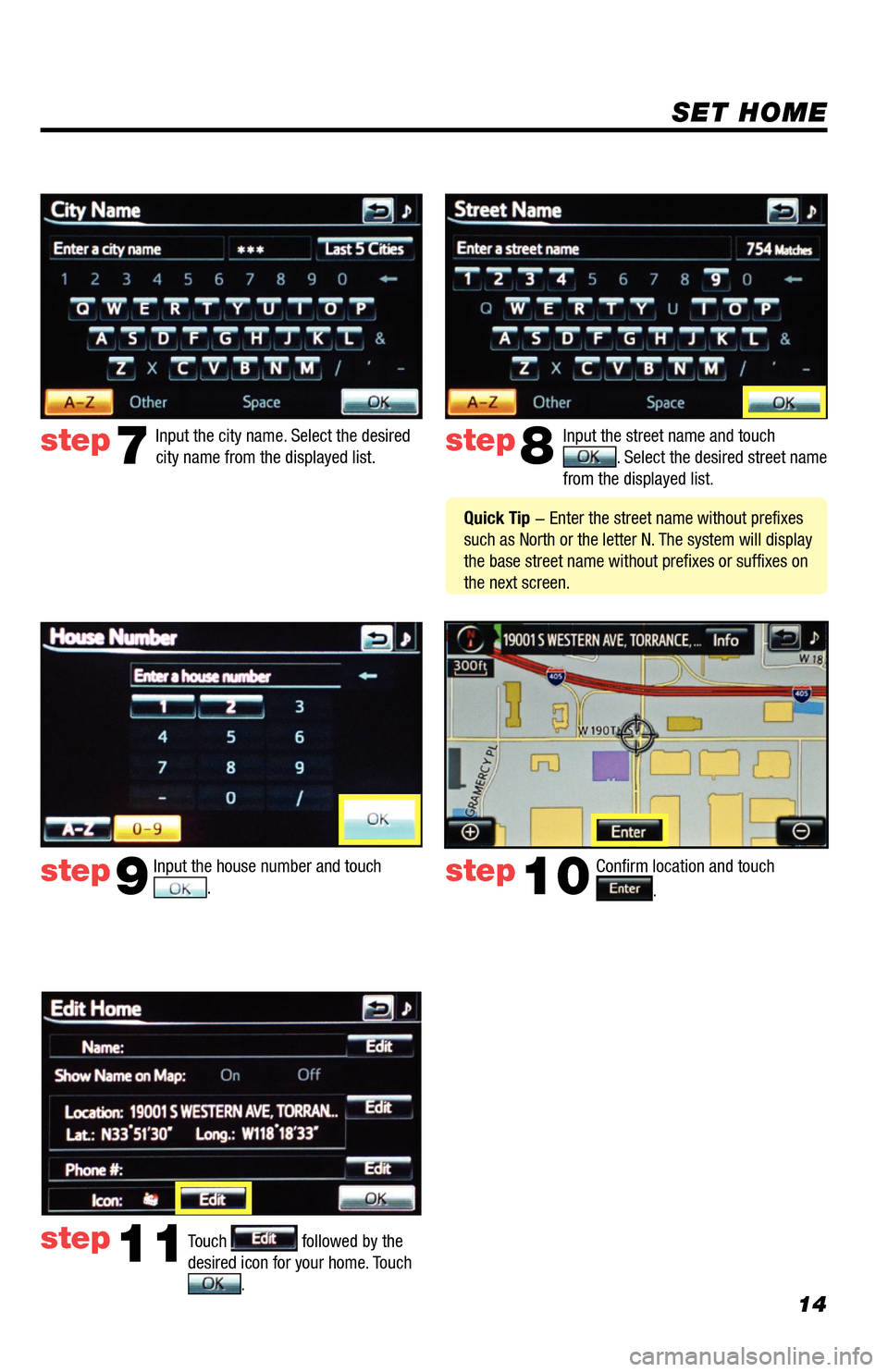

14
SET HOME
Touch . Input the street name and touch . Select the desired street name
from the displayed list.
Touch
followed by the
desired icon for your home. Touch
.
step8
step9
step11
Input the city name. Select the desired
city name from the displayed list.step7
Input the house number and touch . Confirm location and touch . step10
Quick Tip - Enter the street name without prefixes
such as North or the letter N. The system will display
the base street name without prefixes or suffixes on
the next screen.
33411a0_2014_Rav4EV_Nav_QRG_r1.indd 1411/19/13 3:30 PM

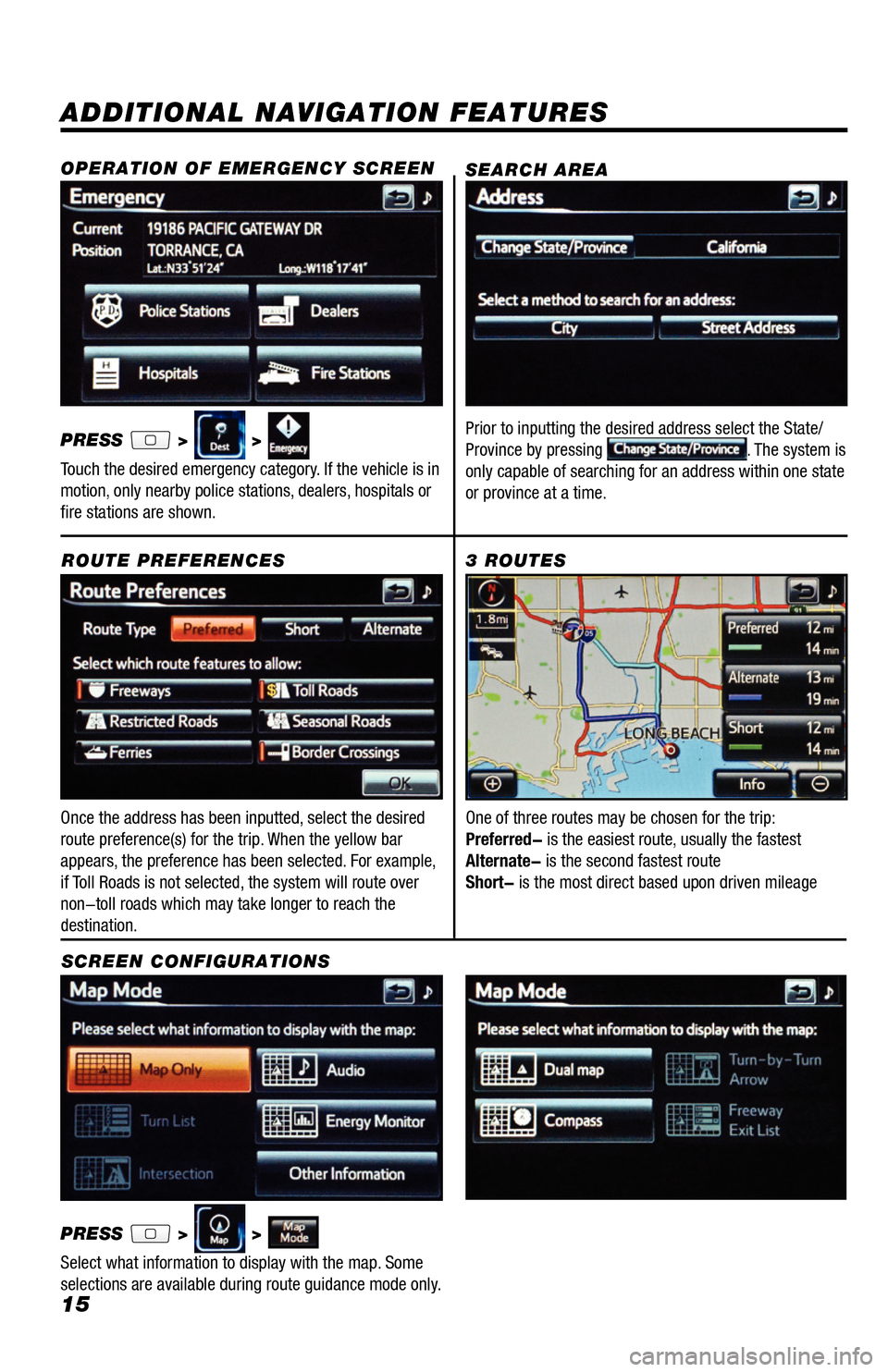

15
ADDITIONAL NAVIGATION FEATURES
Once the address has been inputted, select the desired
route preference(s) for the trip. When the yellow bar
appears, the preference has been selected. For example,
if Toll Roads is not selected, the system will route over
non-toll roads which may take longer to reach the
destination.ROUTE PREFERENCES
PRESS
> >
Select what information to display with the map. Some
selections are available during route guidance mode only.
3 ROUTES
SCREEN CONFIGURATIONS One of three routes may be chosen for the trip:
Preferred- is the easiest route, usually the fastest
Alternate- is the second fastest route
Short- is the most direct based upon driven mileage
SEARCH AREA
Prior to inputting the desired address select the State/
Province by pressing . The system is
only capable of searching for an address within one state
or province at a time.
OPERATION OF EMERGENCY SCREEN
PRESS > >
Touch the desired emergency category. If the vehicle is in
motion, only nearby police stations, dealers, hospitals or
fire stations are shown.
33411a0_2014_Rav4EV_Nav_QRG_r1.indd 1511/19/13 3:30 PM

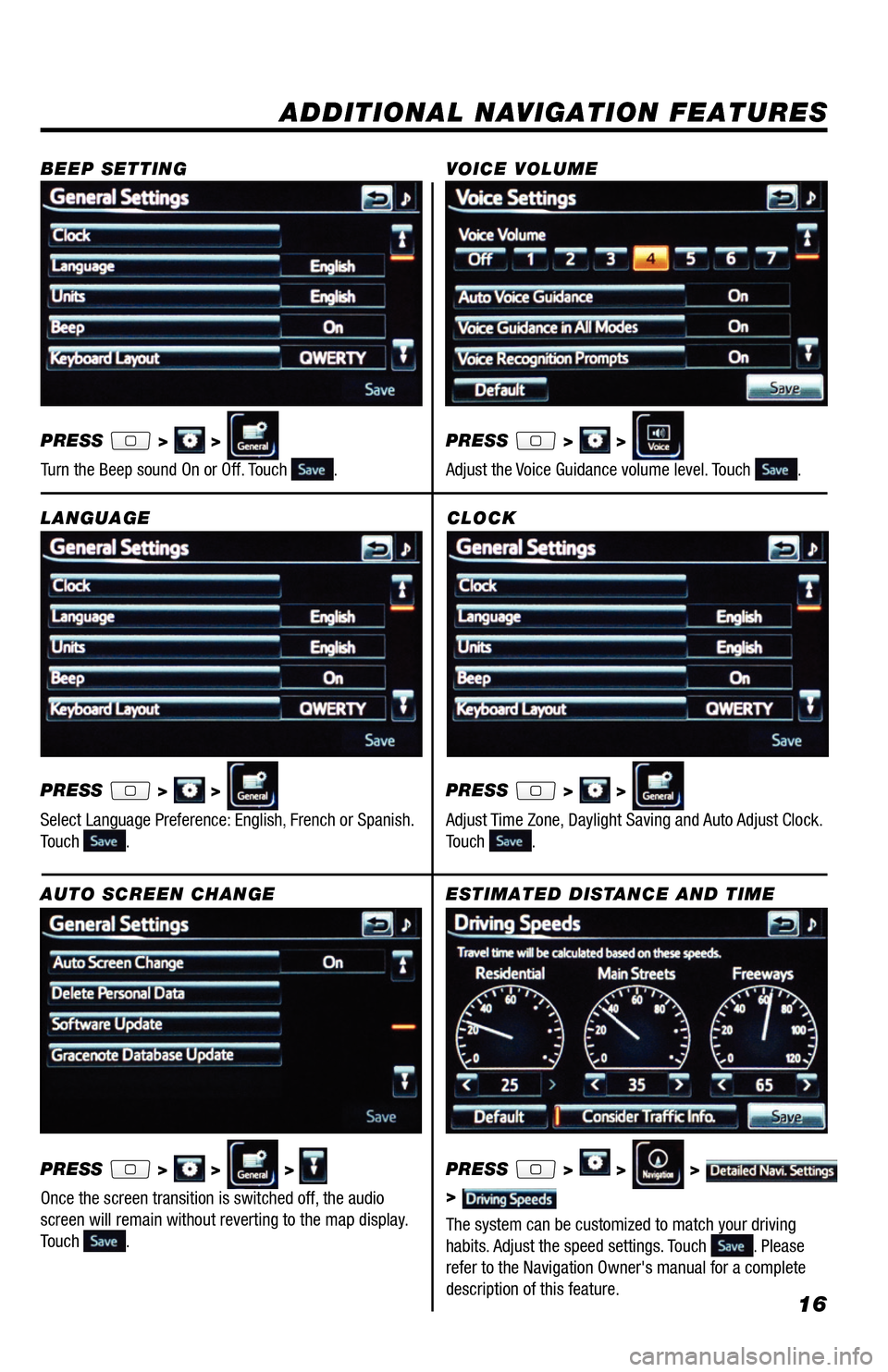

16
CLOCK
PRESS
> >
Adjust Time Zone, Daylight Saving and Auto Adjust Clock.
Touch
.
ADDITIONAL NAVIGATION FEATURES
LANGUAGE
PRESS
> >
Select Language Preference: English, French or Spanish.
Touch
. PRESS
> >
Adjust the Voice Guidance volume level. Touch
.
BEEP SETTING
VOICE VOLUME
AUTO SCREEN CHANGE
PRESS
> > >
Once the screen transition is switched off, the audio
screen will remain without reverting to the map display.
Touch
.
PRESS
> >
Turn the Beep sound On or Off. Touch
.
ESTIMATED DISTANCE AND TIME
The system can be customized to match your driving
habits. Adjust the speed settings. Touch
. Please
refer to the Navigation Owner's manual for a complete
description of this feature. PRESS
> > >
>
33411a0_2014_Rav4EV_Nav_QRG_r1.indd 1611/19/13 3:30 PM

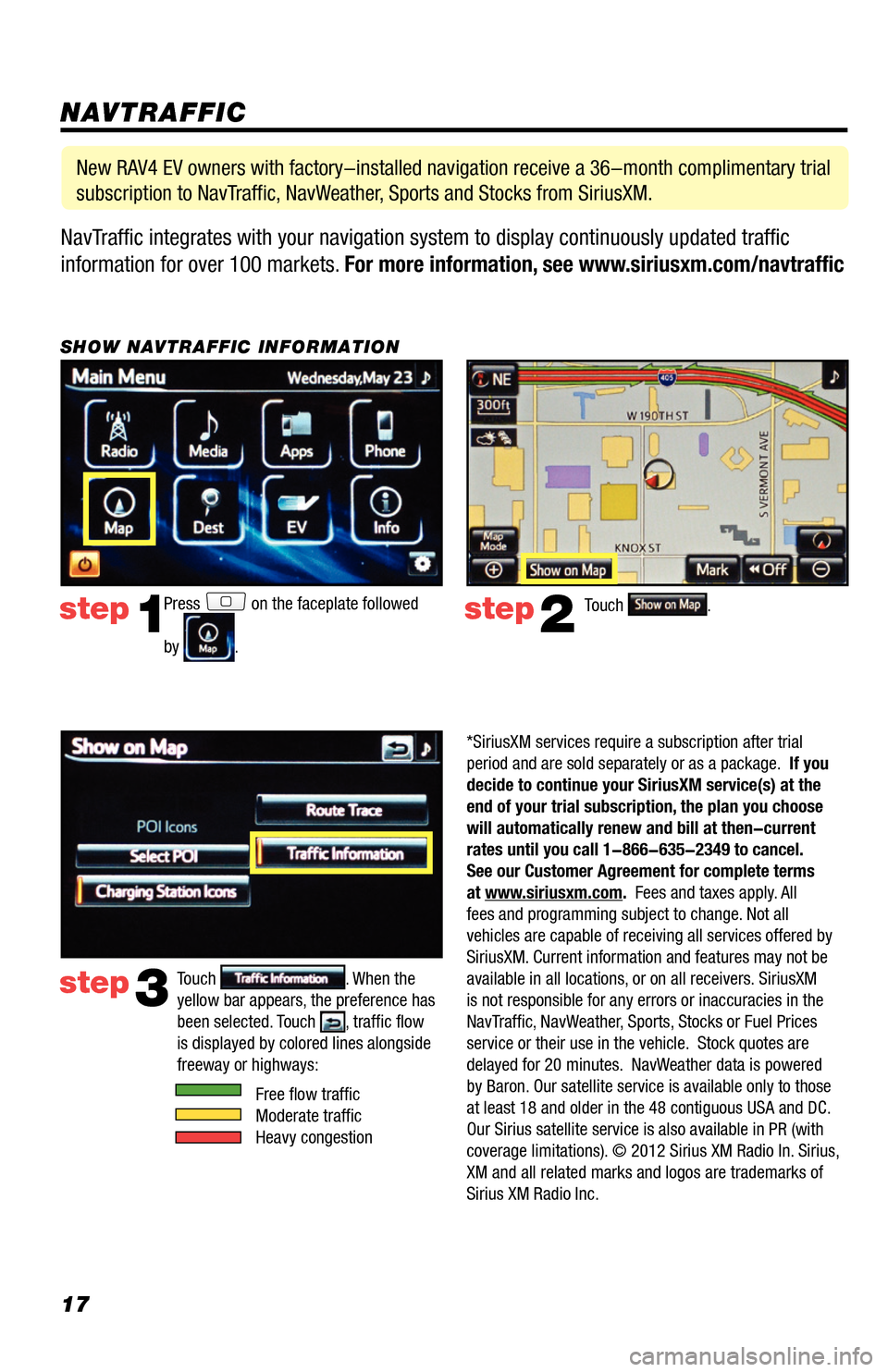

17NavTraffic integrates with your navigation system to display continuously updated traffic
information for over 100 markets. For more information, see www.siriusxm.com/navtraffic
NAVTRAFFIC
Press on the faceplate followed
by
.
step1step2Touch .
SHOW NAVTRAFFIC INFORMATION
New RAV4 EV owners with factory-installed navigation receive a 36-month complimentary trial
subscription to NavTraffic, NavWeather, Sports and Stocks from SiriusXM.
step3Touch . When the
yellow bar appears, the preference has
been selected. Touch
, traffic flow
is displayed by colored lines alongside
freeway or highways:
Free flow traffic
Moderate traffic
Heavy congestion
*SiriusXM services require a subscription after trial
period and are sold separately or as a package. If you
decide to continue your SiriusXM service(s) at the
end of your trial subscription, the plan you choose
will automatically renew and bill at then-current
rates until you call 1-866-635-2349 to cancel.
See our Customer Agreement for complete terms
at www.siriusxm.com. Fees and taxes apply. All
fees and programming subject to change. Not all
vehicles are capable of receiving all services offered by
SiriusXM. Current information and features may not be
available in all locations, or on all receivers. SiriusXM
is not responsible for any errors or inaccuracies in the
NavTraffic, NavWeather, Sports, Stocks or Fuel Prices
service or their use in the vehicle. Stock quotes are
delayed for 20 minutes. NavWeather data is powered
by Baron. Our satellite service is available only to those
at least 18 and older in the 48 contiguous USA and DC.
Our Sirius satellite service is also available in PR (with
coverage limitations). © 2012 Sirius XM Radio In. Sirius,
XM and all related marks and logos are trademarks of
Sirius XM Radio Inc.
33411a0_2014_Rav4EV_Nav_QRG_r1.indd 1711/19/13 3:30 PM

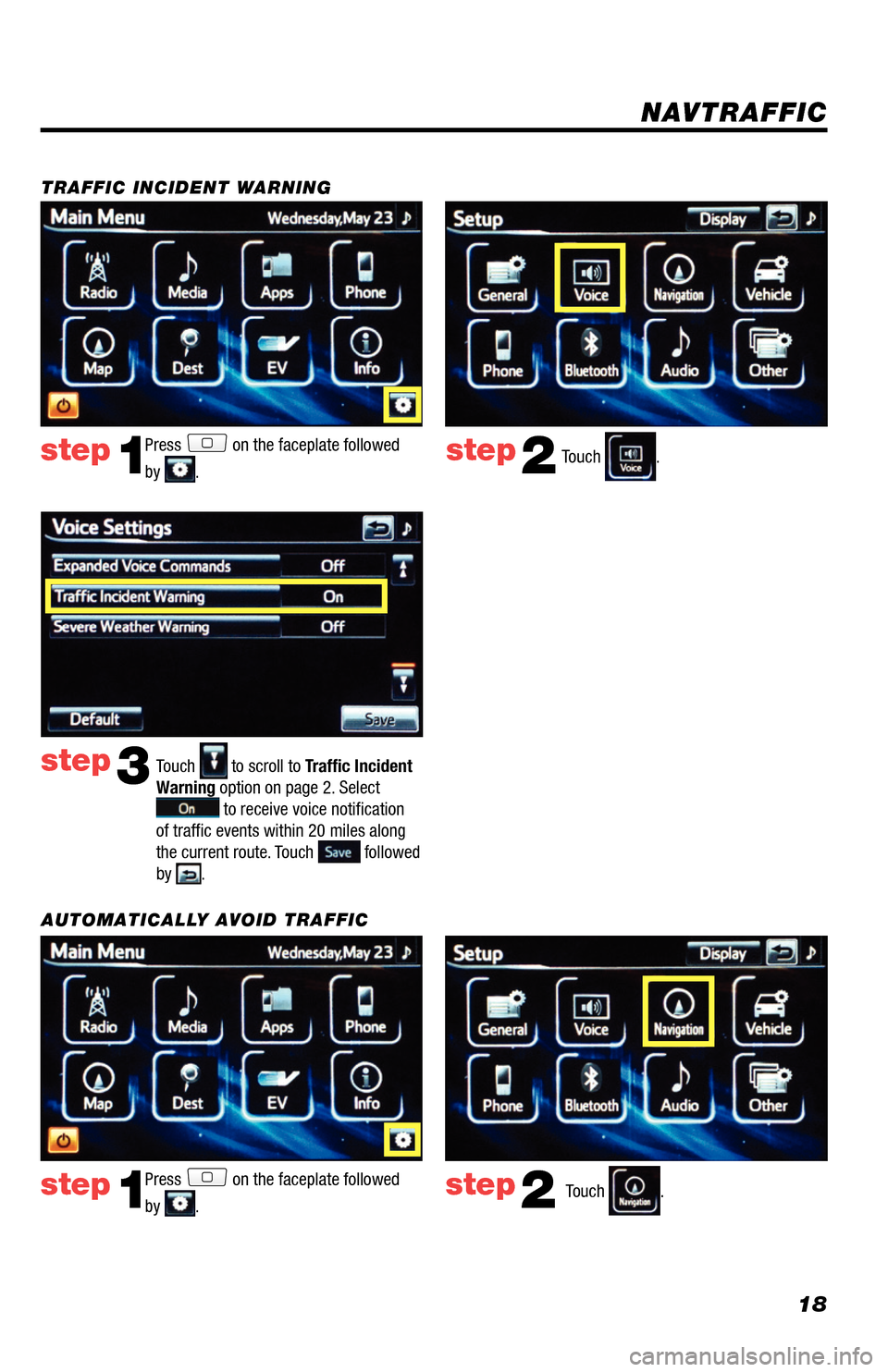

18
Press on the faceplate followed
by
. step1step2Touch .
TRAFFIC INCIDENT WARNING
Press
on the faceplate followed
by
. step1step2Touch .
AUTOMATICALLY AVOID TRAFFIC
NAVTRAFFIC
Touch to scroll to Traffic Incident
Warning option on page 2. Select
to receive voice notification
of traffic events within 20 miles along
the current route. Touch
followed
by .
step3
33411a0_2014_Rav4EV_Nav_QRG_r1.indd 1811/19/13 3:30 PM

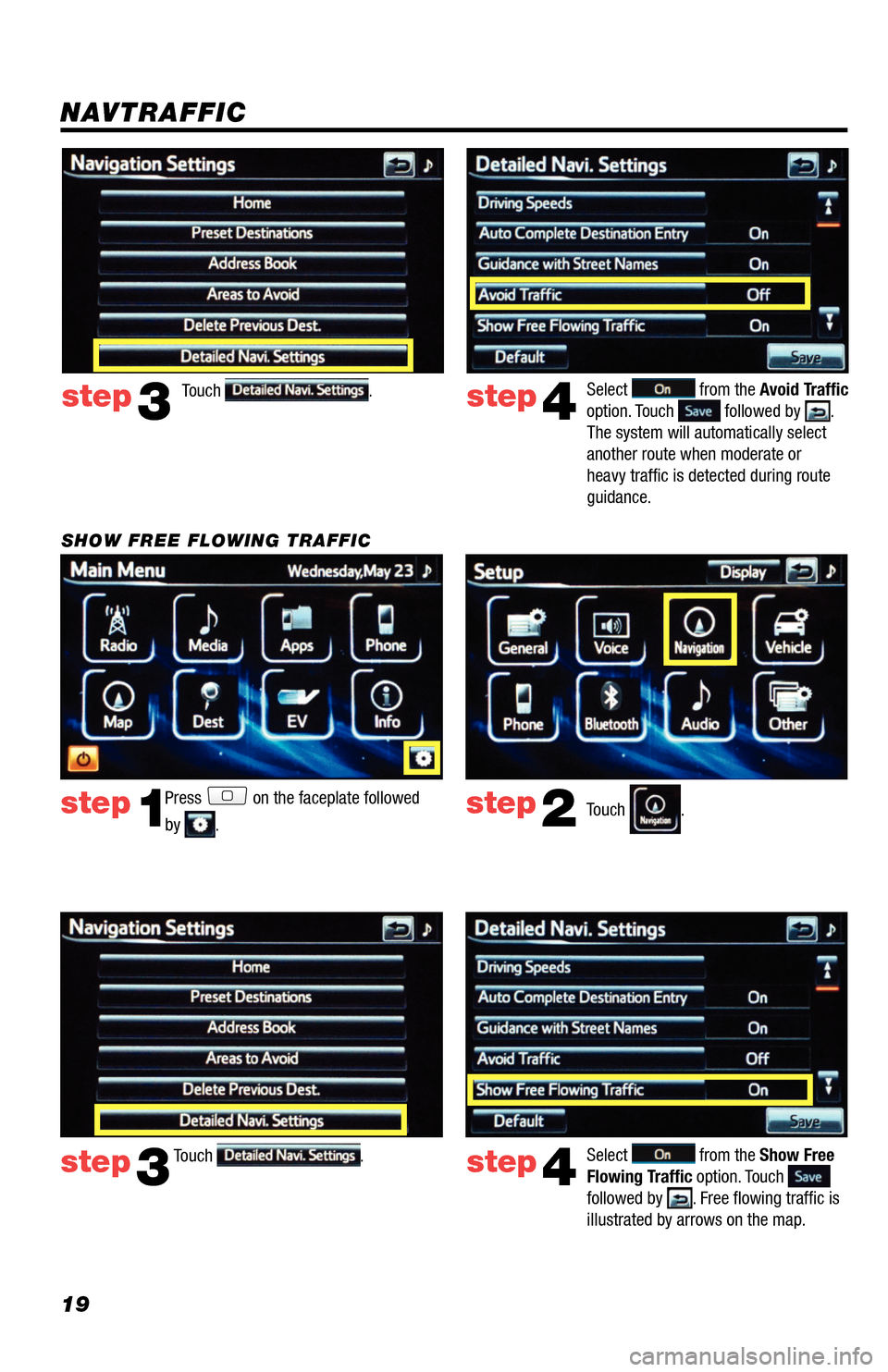

19
Press on the faceplate followed
by
. step1step2Touch .
SHOW FREE FLOWING TRAFFIC
step3
Touch .
NAVTRAFFIC
step3
Touch . step4
Select from the Avoid Traffic
option. Touch followed by .
The system will automatically select
another route when moderate or
heavy traffic is detected during route
guidance.
step4
Select from the Show Free
Flowing Traffic option. Touch
followed by . Free flowing traffic is
illustrated by arrows on the map.
33411a0_2014_Rav4EV_Nav_QRG_r1.indd 1911/19/13 3:31 PM
